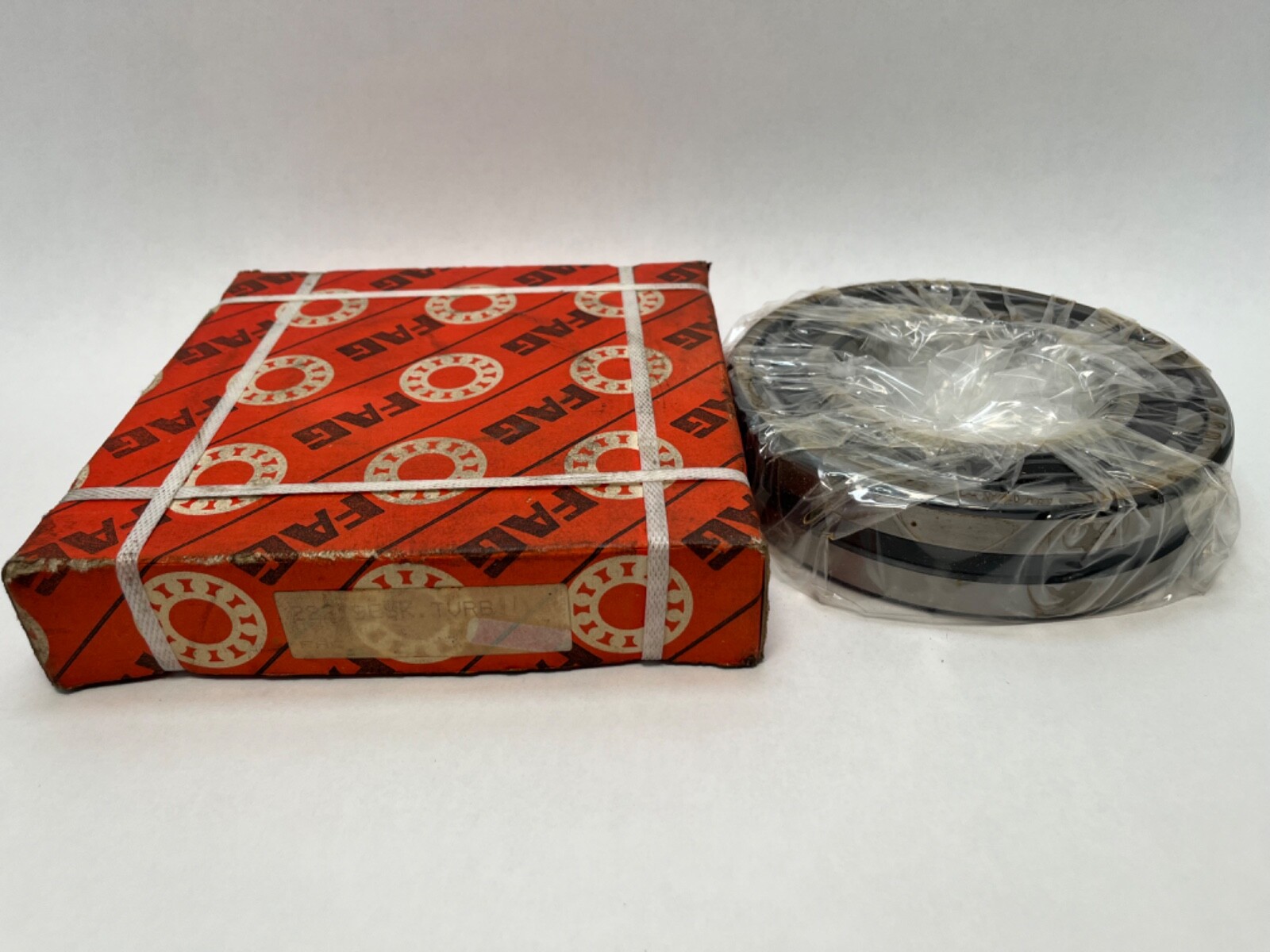

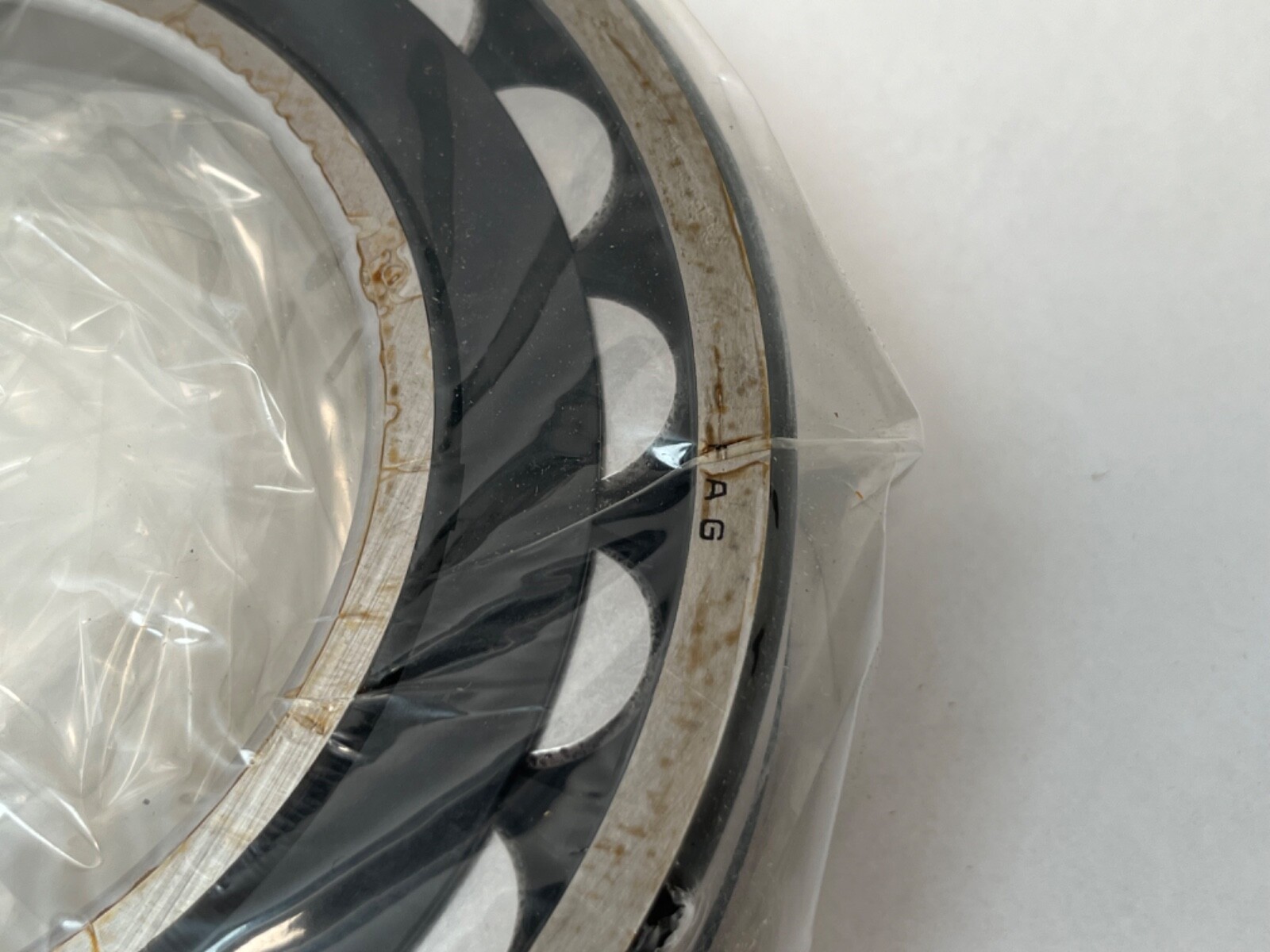

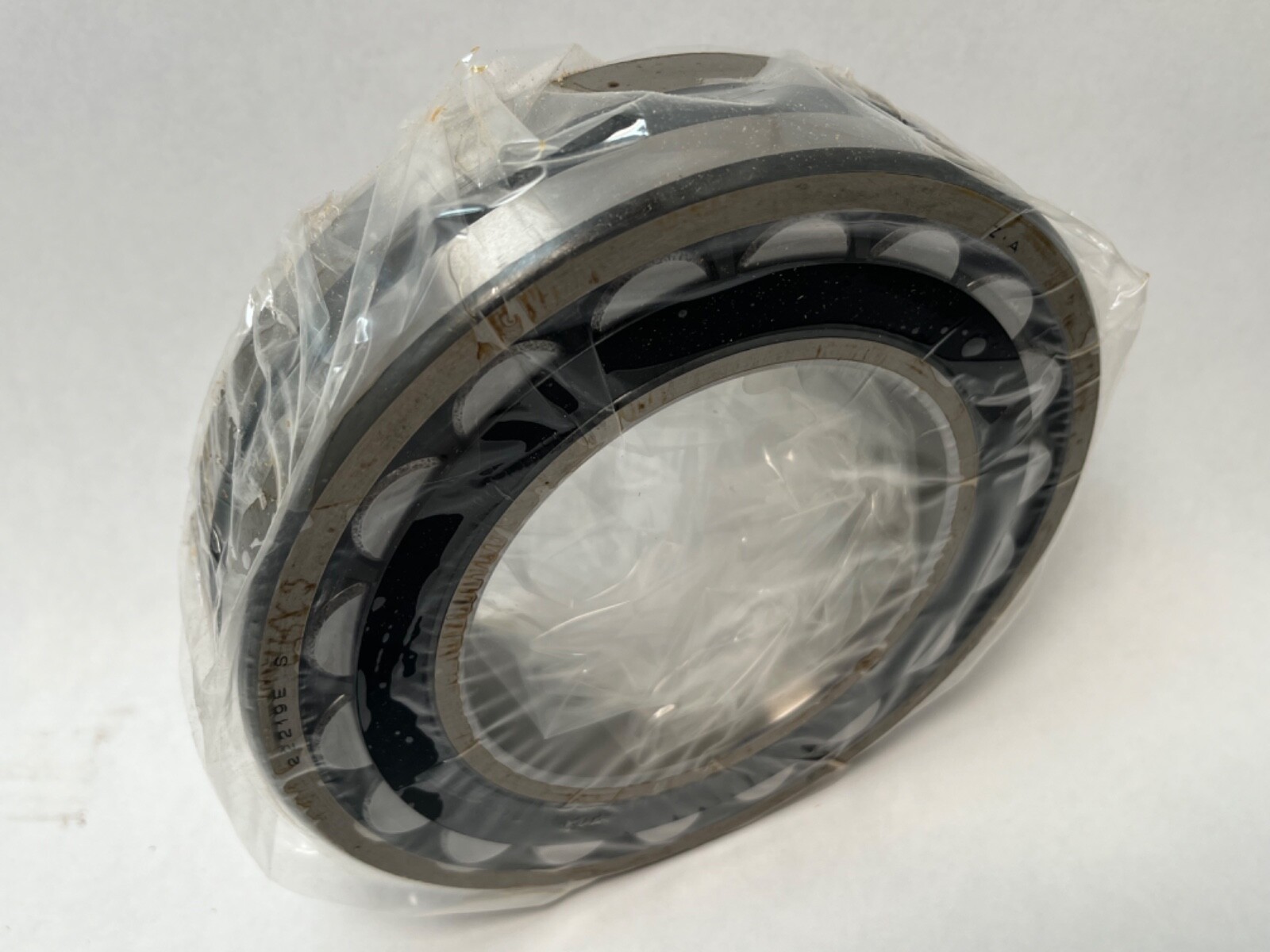

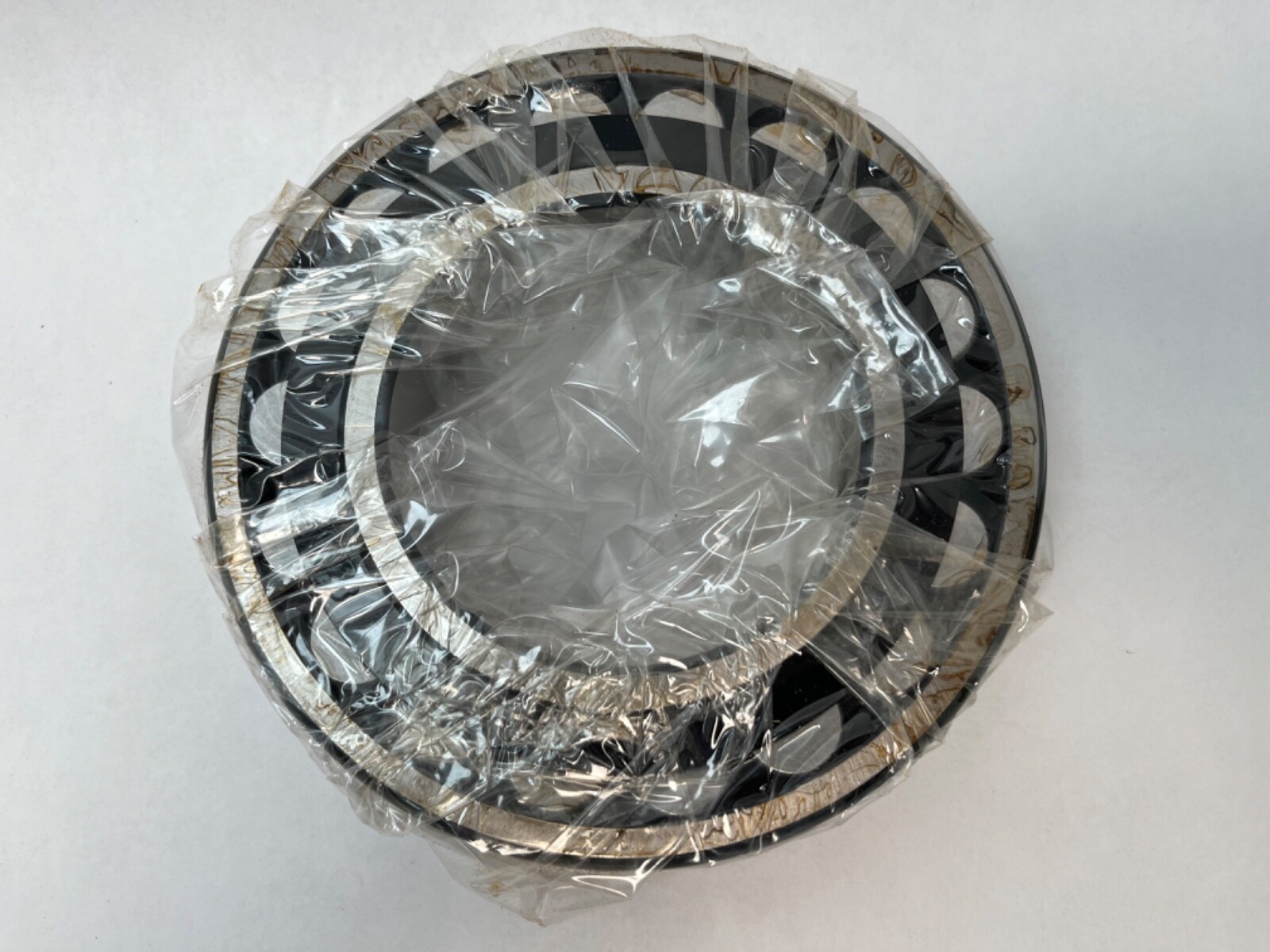

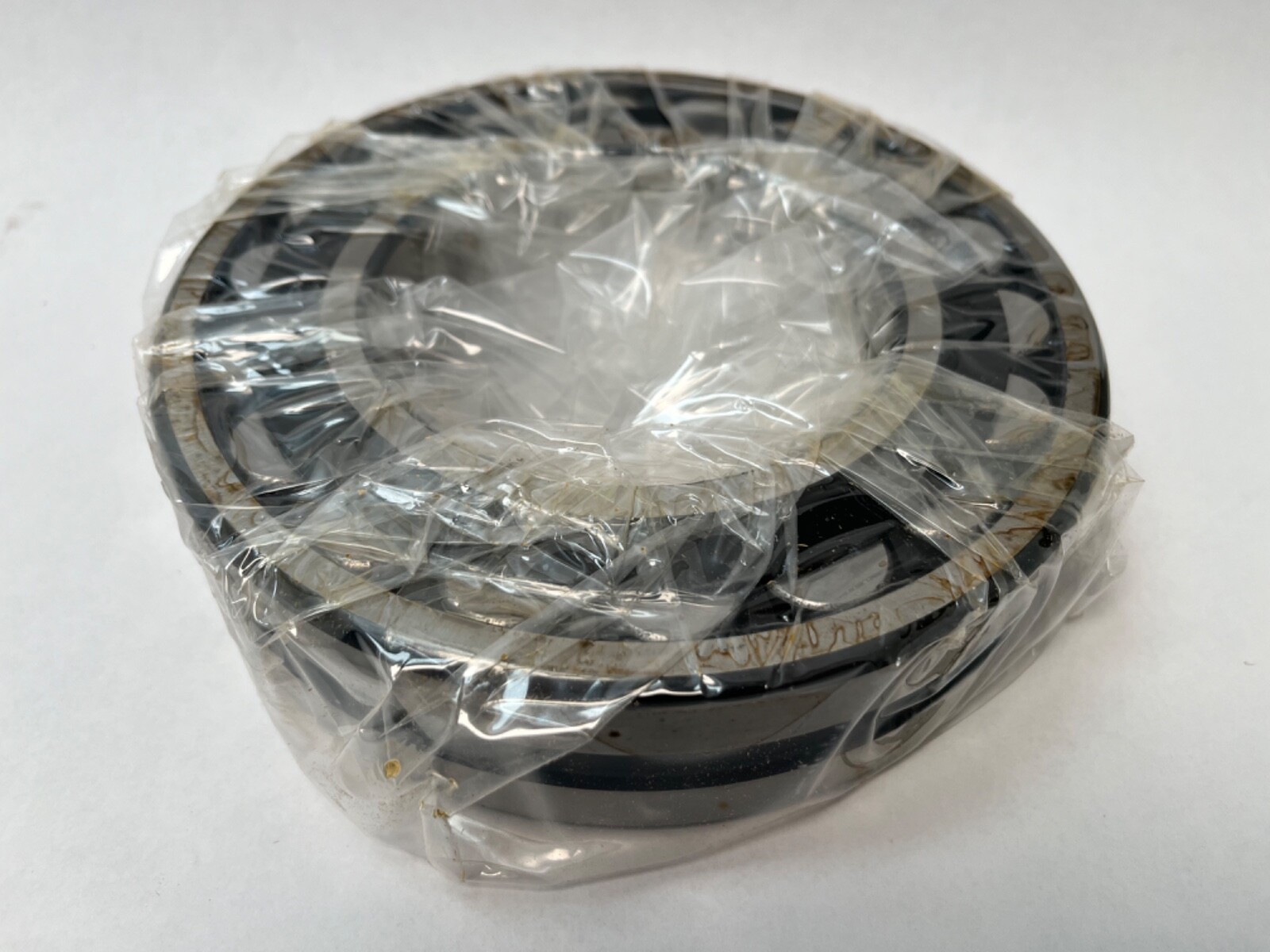

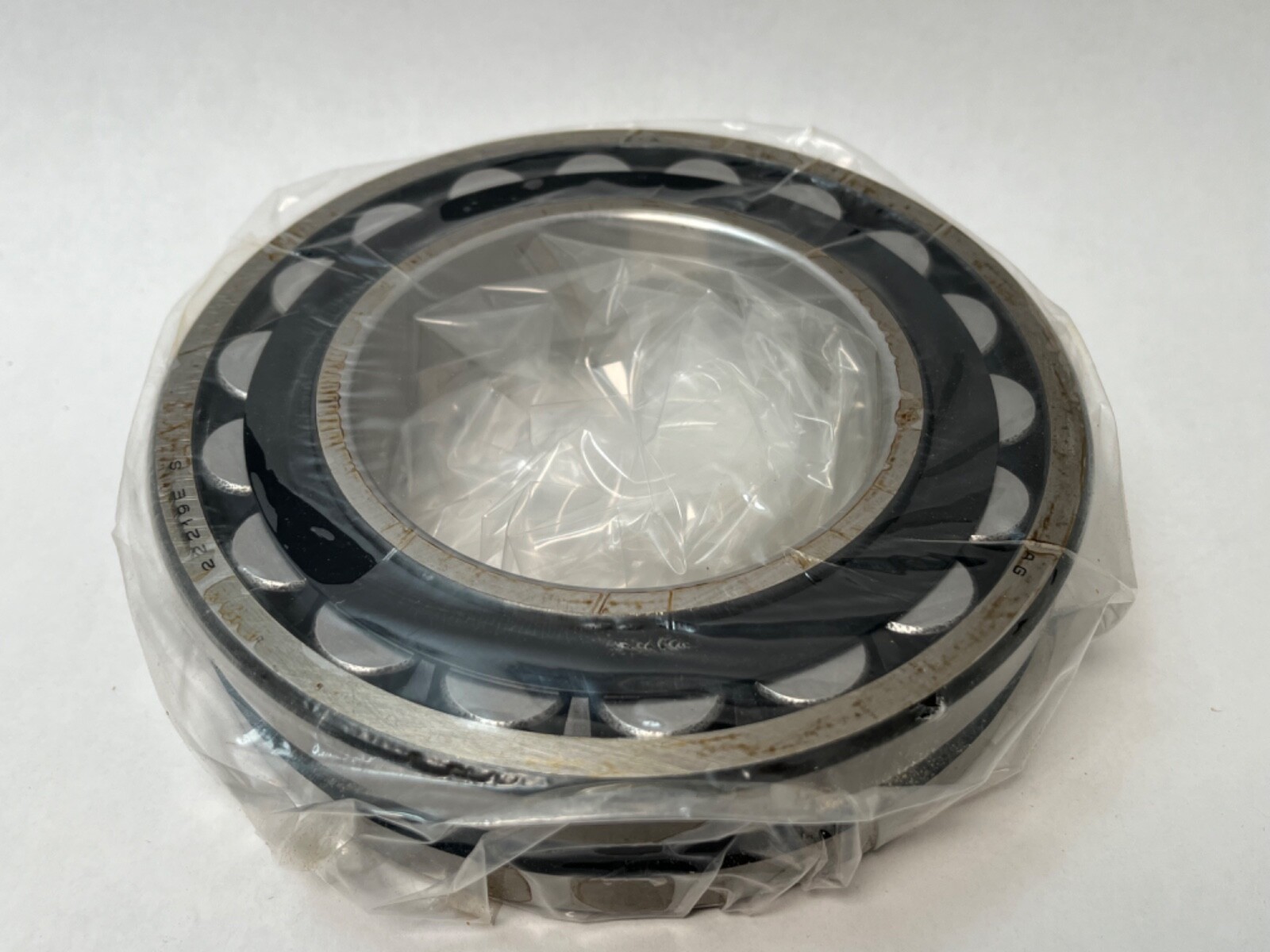

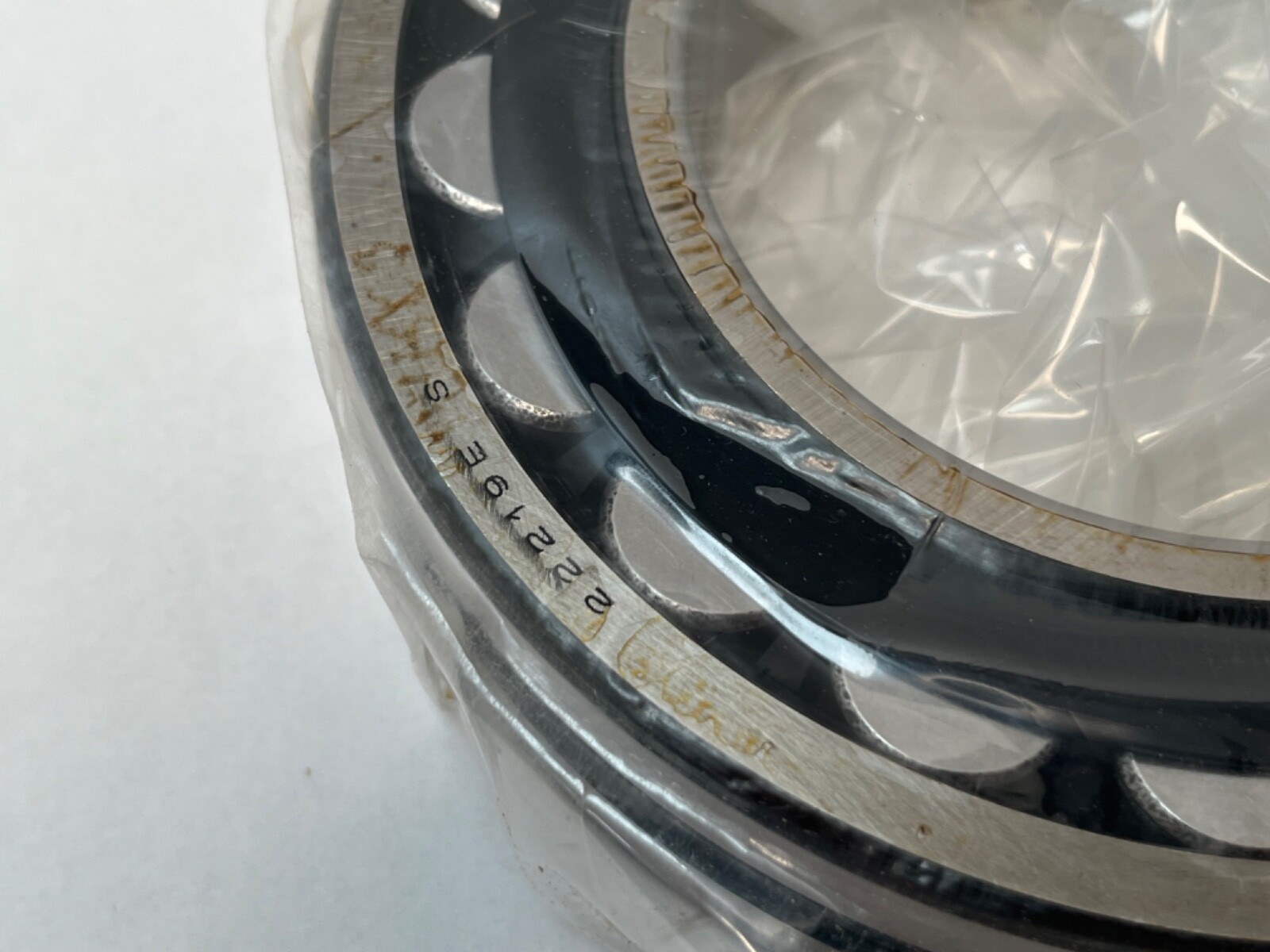

Spherical roller bearing, 95 mm tapered bore x 170 mm OD x 43 mm, polyamide cage, CN clearance, W33 lube groove. Mounts on an H319 adapter sleeve.
List Price
$137.11
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22219ESK.TVPB |
| Model | 22219-ES-K-TVPB |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 95 mm |
| OD | 170 mm |
| Width | 43 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Lubricant | grease or oil |
| Base Number | 22219 |
| Industry Terms | spherical roller bearing; self-aligning roller bearing; taper bore roller bearing; adapter sleeve bearing; W33 roller bearing |
| Application Types | Conveyor pulleys; gearboxes and reducers; fans and blowers; vibrating screens; paper machine rolls |
| Mpn Variants | 22219ESK.TVPB; 22219-ES-K-TVPB; 22219ESKTVPB; 22219 ES K TVPB; 22219E; 22219EK |
| Compatible With Replaces | Adapter sleeve FAG H319 (85 mm shaft seat), KM19 locknut, MB19 lock washer |
| Rolling Elements | Spherical Roller |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Relubrication Feature | W33 groove and three radial holes |
| Harmonization Code | 8482.30.00 |
| Common Misspellings | 22219ESK TVPB; 2219ESK.TVPB; 22219 ESKTVPB; FAG 22219 EKS TVPB; sperical roller bearing |
| Cross Reference 1 | SKF 22219 EK |
|---|---|
| Cross Reference 2 | NSK 22219EAKE4 |
| Cross Reference 3 | Timken 22219KEJW33 |
| Cross Reference 4 | Koyo 22219RHKW33 |
| Cross Reference 6 | FAG 22219-E1-XL-K – current FAG design |
FAG 22219ESK.TVPB is a double-row spherical roller bearing with a 1:12 tapered bore, 95 mm bore, 170 mm outside diameter, 43 mm wide. Open, with a glass-fibre reinforced polyamide cage, CN internal clearance and a W33-type lubrication groove with three radial holes. Bearing only. Unit Quantity: 1 Pc.
222 — double-row spherical roller bearing, 22 dimension series.
19 — bore code, 19 × 5 = 95 mm.
E — FAG reinforced E internal design.
S — lubrication groove and three radial holes in the outer ring, the W33 feature.
K — 1:12 tapered bore.
TVPB — glass-fibre reinforced polyamide cage.
Number Of Rows: 2. Rolling Elements: Spherical Roller. Cage Material: Polyamide. Internal Clearance: CN. Lubricant: grease or oil. Relubrication Feature: W33 groove and three radial holes. Seal Type: Open. Series: 22200. Base Number: 22219.
Bore Diameter: 95 mm. Outside Diameter: 170 mm. Overall Width: 43 mm. Bore Type: Tapered 1:12. Adapter sleeve for a cylindrical shaft: FAG H319, 85 mm shaft seat, with KM19 locknut and MB19 lock washer.
Cross-references at 95 x 170 x 43 mm, tapered bore, CN: SKF 22219 EK; NSK 22219EAKE4; Timken 22219KEJW33; Koyo 22219RHKW33. Each maker uses its own cage design. Current FAG design of the same size: 22219-E1-XL-K.
Bore 95 mm (tapered 1:12), outside diameter 170 mm, width 43 mm.
FAG H319 with an 85 mm shaft seat, KM19 locknut and MB19 lock washer.
S is the lubrication groove with three radial holes (W33 feature) and TVPB is a glass-fibre reinforced polyamide cage.
