Spherical roller bearing, 120 mm tapered bore x 215 mm OD x 58 mm, C3 clearance, machined brass cage, W33 lube groove. Mounts on an H324 adapter sleeve.
List Price
$205.75
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22224ESK.C3 |
| Model | 22224 ESK/CKY/ASK M/MB C3 W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 120 mm |
| OD | 215 mm |
| Width | 58 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | 22200 |
| Lubricant | grease or oil |
| Base Number | 22224 |
| Industry Terms | spherical roller bearing; self-aligning roller bearing; taper bore roller bearing; adapter sleeve bearing; W33 roller bearing |
| Common Misspellings | 22224ESK C3; 2224ESKC3; 22224 ESKC3; FAG 22224 EKS C3; sperical roller bearing |
| Application Types | Conveyor head and tail shafts; gearboxes and reducers; crushers and vibrating screens; fans and blowers; paper machine and mill rolls |
| Bore Shaft Size | 120 mm (4.7244 in), tapered 1:12 |
| Mpn Variants | 22224ESK.C3; 22224ES.K.C3; 22224-ES-K-C3; 22224ESKC3; 22224-ES-K-M-C3-W33; 22224EASKC3; 22224K |
| Compatible With Replaces | Adapter sleeve FAG H324 (110 mm shaft seat), KM24 locknut, MB24 lock washer |
| Cage Type | Machined |
| Rolling Elements | Spherical Roller |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Relubrication Feature | W33 groove and three radial holes |
| Harmonization Code | 8482.30.00 |
| Part Number | 22224ESK.C3 |
| Maximum Permissible Misalignment | 2° |
| Cross Reference 1 | SKF 22224 EK/C3W33 |
|---|---|
| Cross Reference 2 | NSK 22224EAKE4C3 |
| Cross Reference 3 | Timken 22224KEJW33C3 |
| Cross Reference 4 | Koyo 22224RHKW33C3 |
| Cross Reference 6 | FAG 22224-E1-XL-K-C3 – current FAG design |

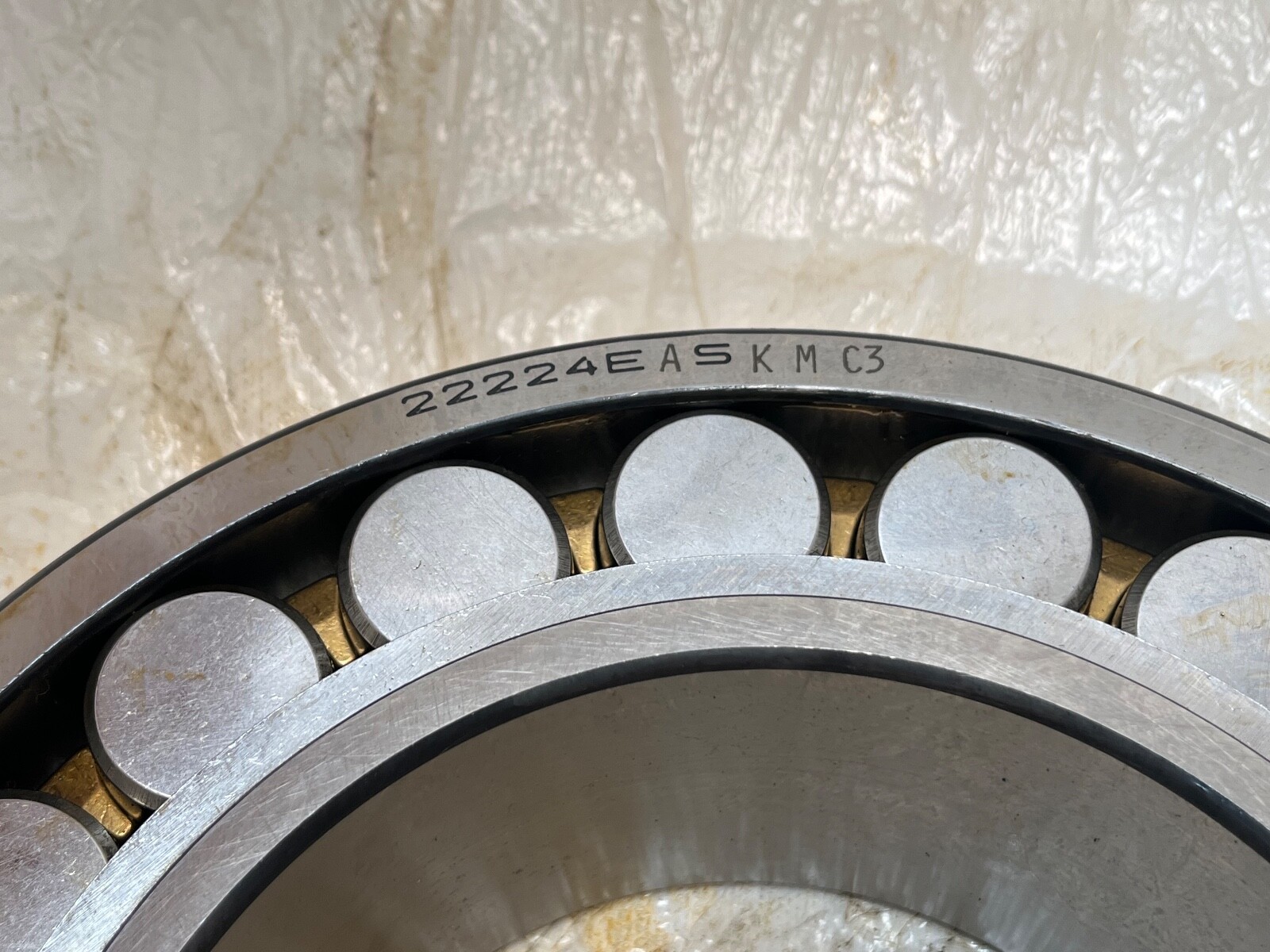

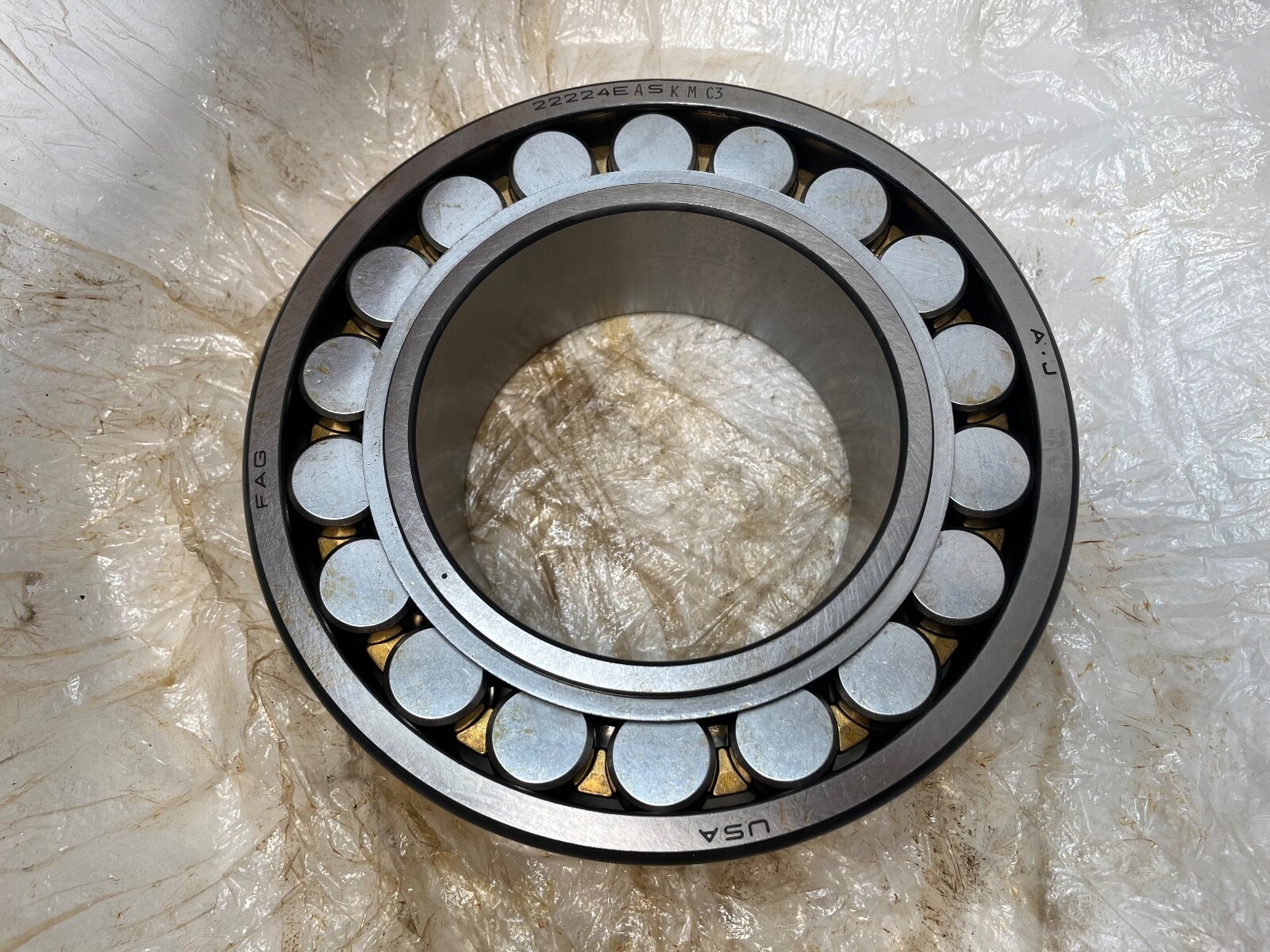

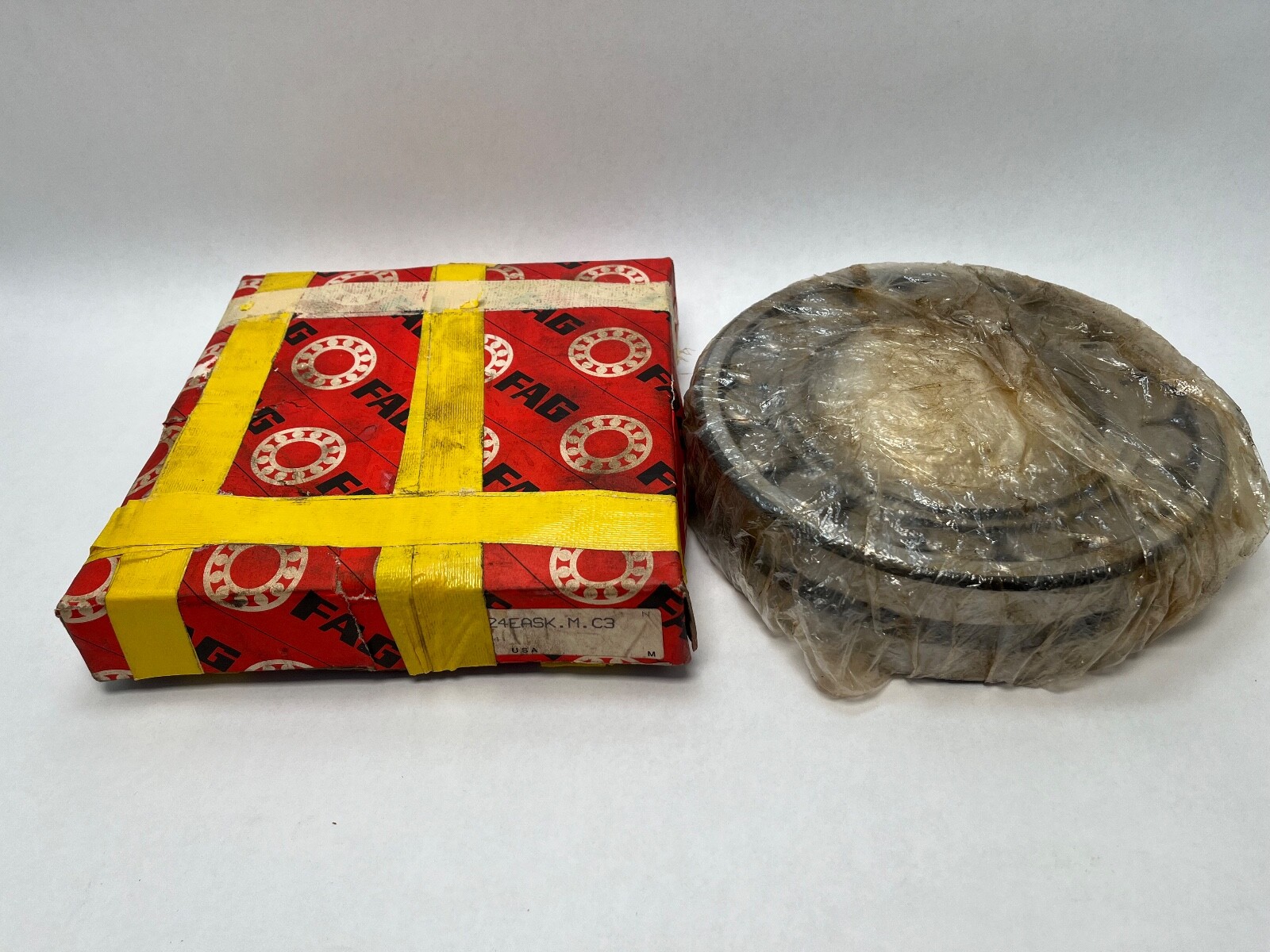

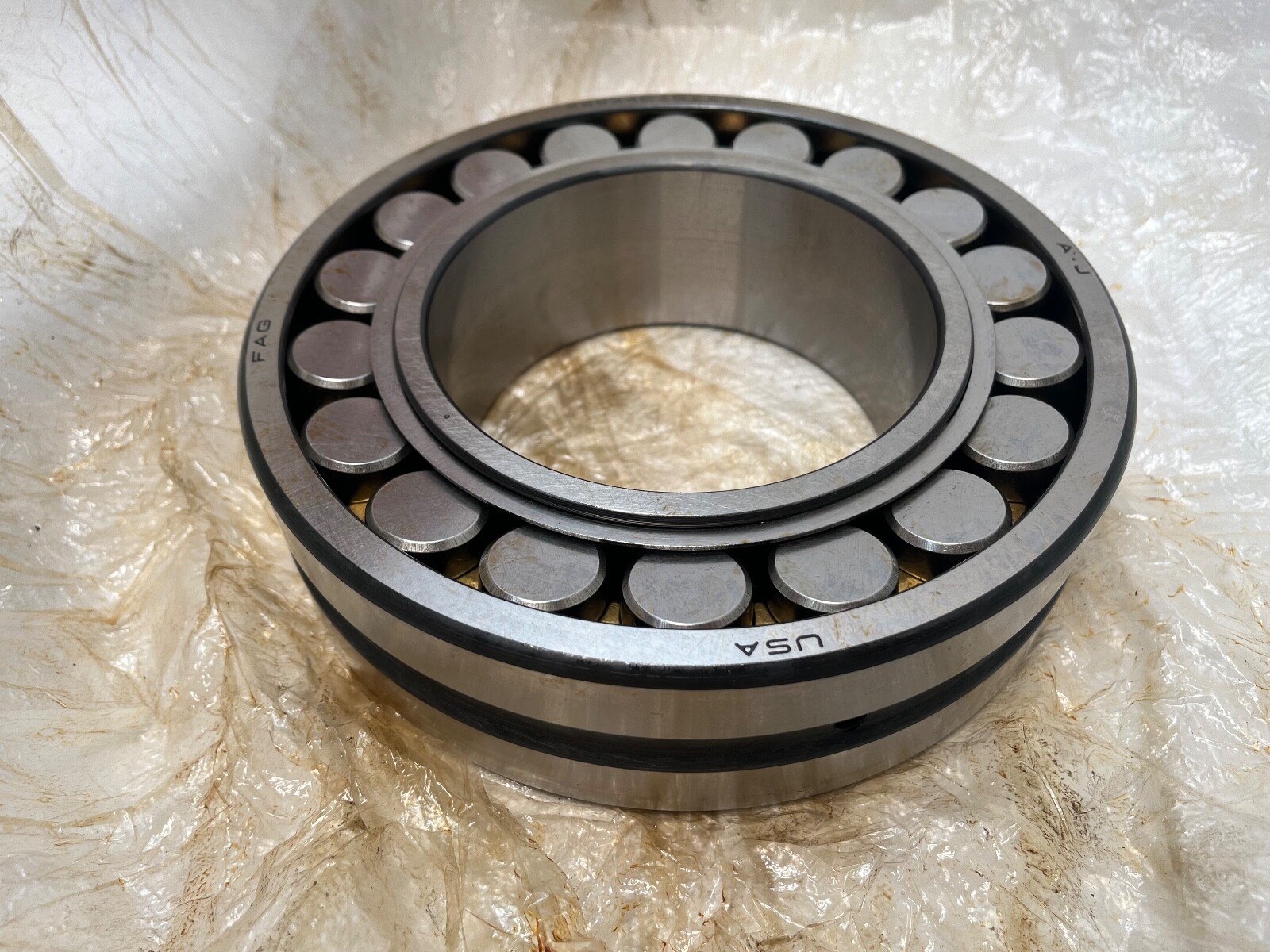

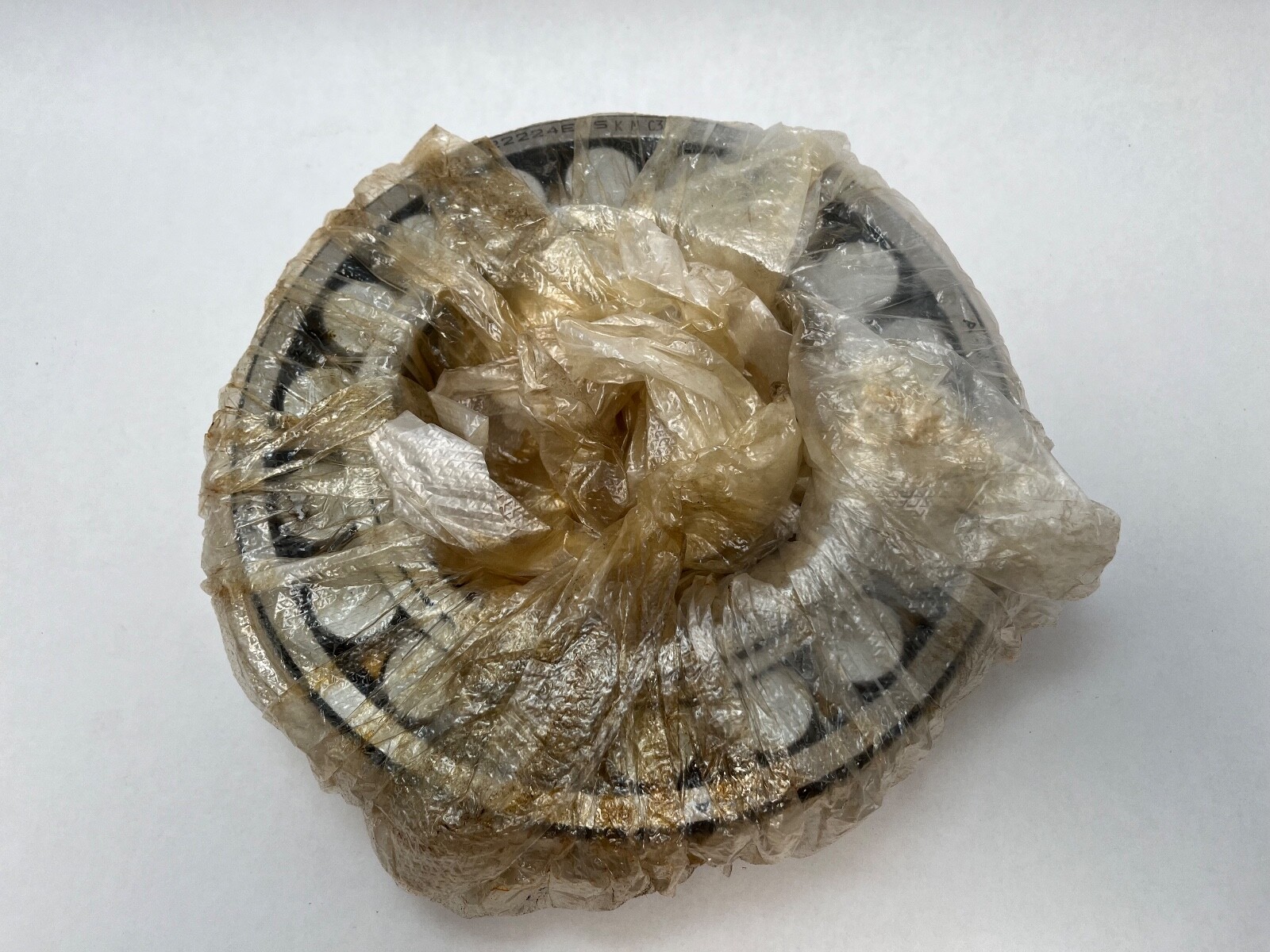

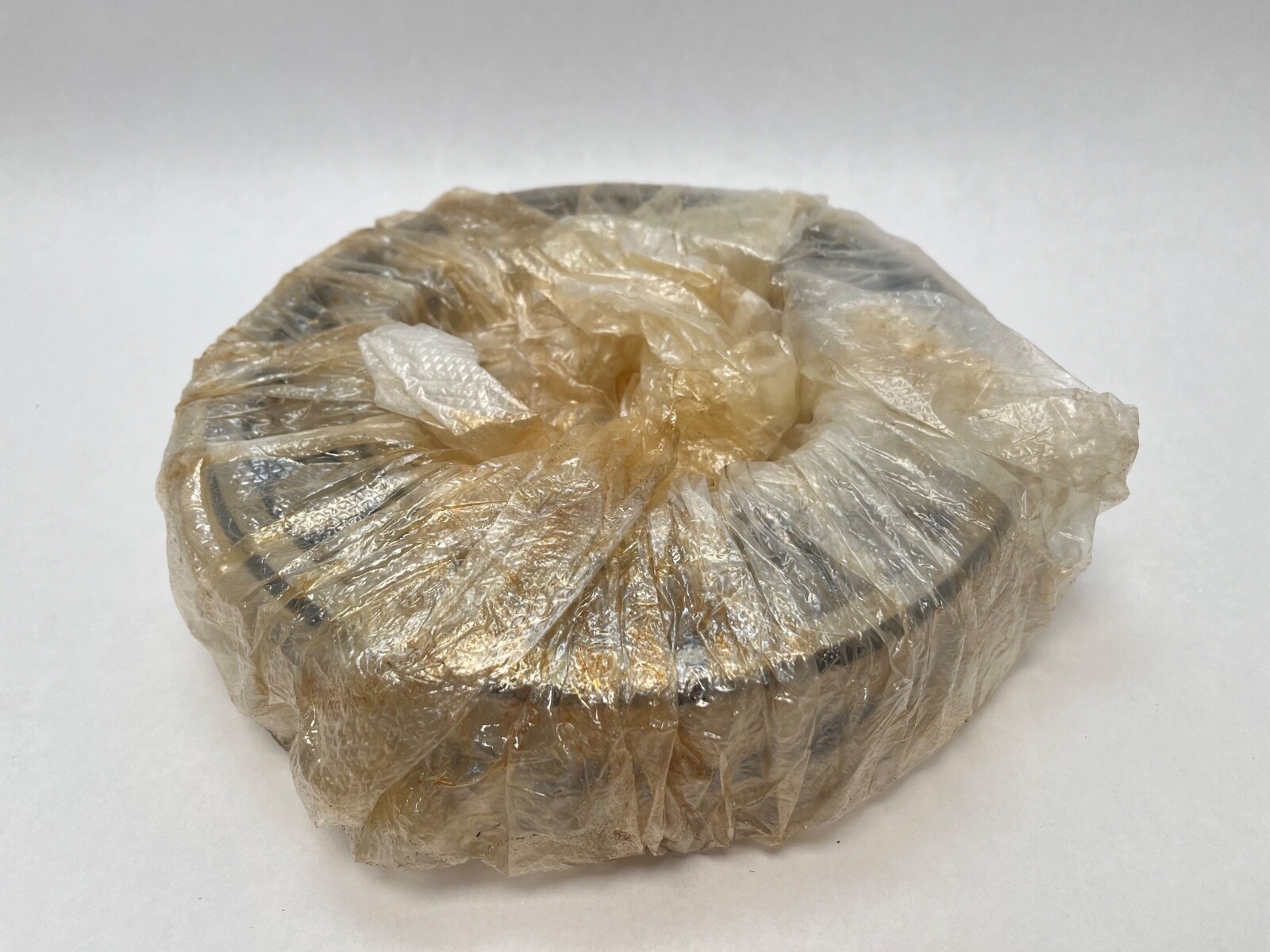

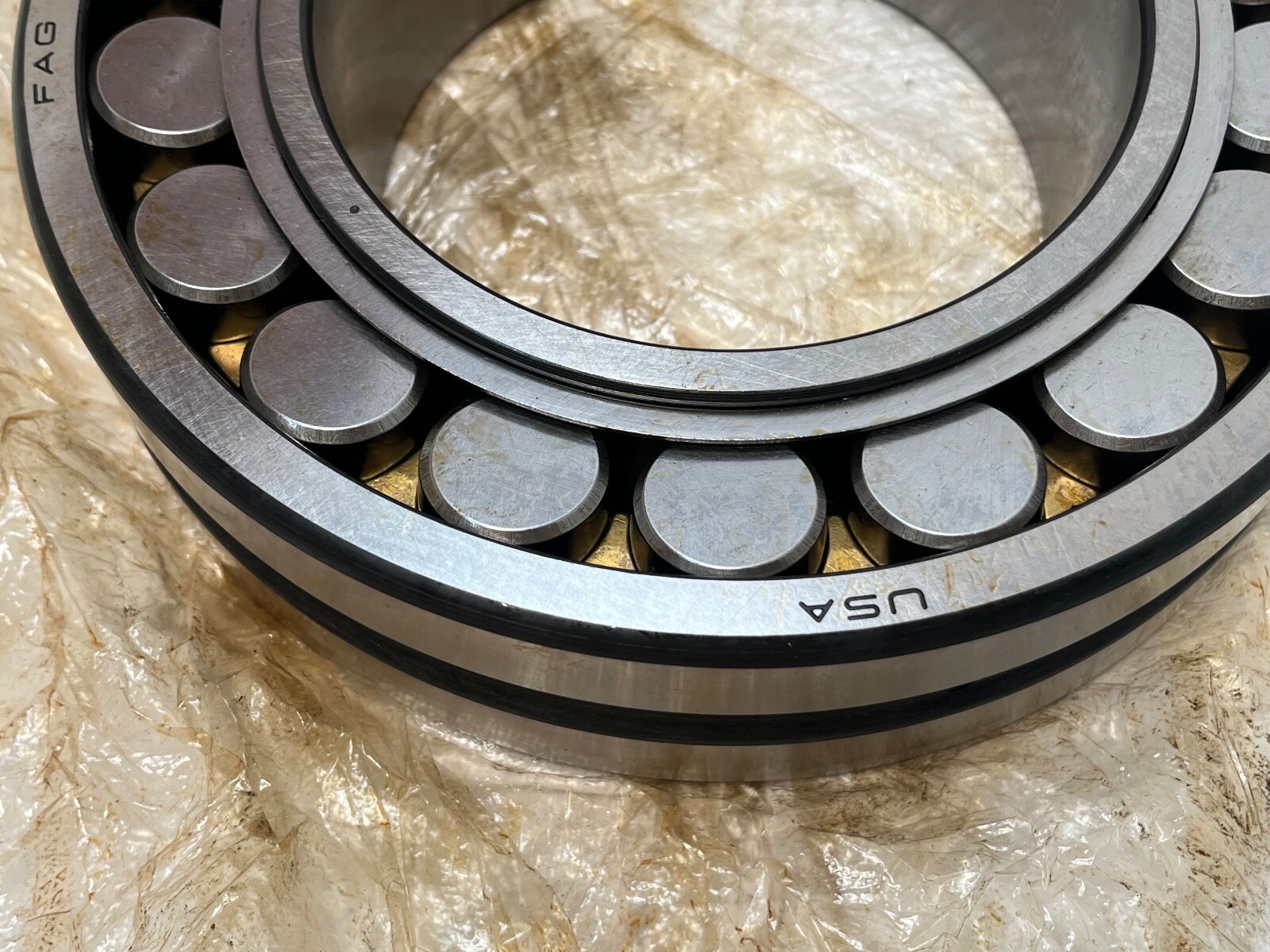

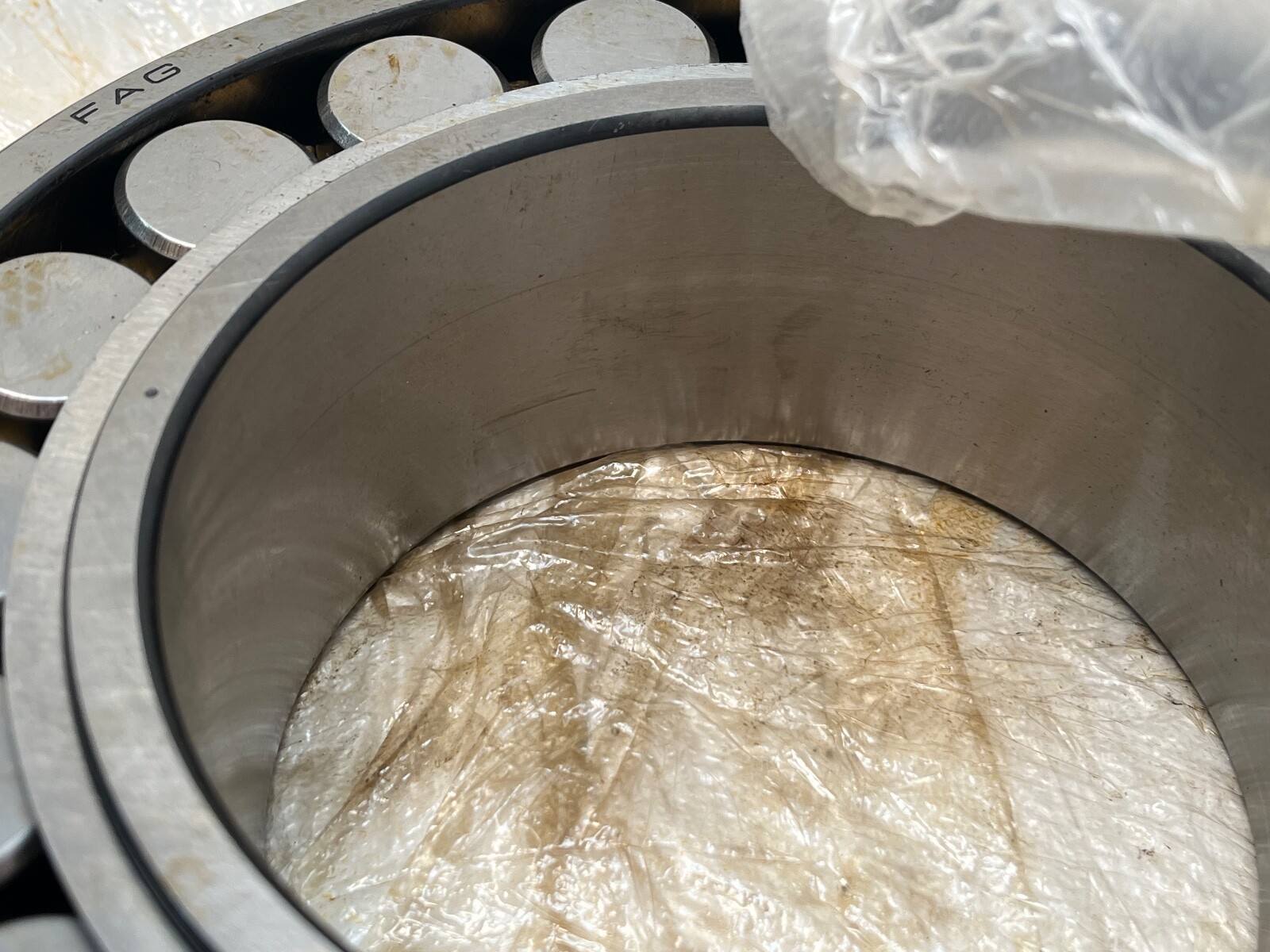

FAG 22224ESK.C3 is a double-row spherical roller bearing with a 1:12 tapered bore, 120 mm bore, 215 mm outside diameter, 58 mm wide. Open, with a machined brass cage, C3 internal clearance and a W33-type lubrication groove with three radial holes. Bearing only. Unit Quantity: 1 Pc.
222 — double-row spherical roller bearing, 22 dimension series.
24 — bore code, 24 × 5 = 120 mm.
E — FAG reinforced E internal design.
S — lubrication groove and three radial holes in the outer ring, the W33 feature.
K — 1:12 tapered bore.
M — machined brass cage.
C3 — radial internal clearance greater than normal.
Number Of Rows: 2. Rolling Elements: Spherical Roller. Cage Material: Machined brass. Cage Type: Machined. Internal Clearance: C3. Lubricant: grease or oil. Relubrication Feature: W33 groove and three radial holes. Seal Type: Open. Series: 22200. Base Number: 22224. Maximum Permissible Misalignment: 2°.
Bore Diameter: 120 mm. Outside Diameter: 215 mm. Overall Width: 58 mm. Bore Type: Tapered 1:12. Adapter sleeve for a cylindrical shaft: FAG H324, 110 mm shaft seat, with KM24 locknut and MB24 lock washer.
Cross-references at 120 x 215 x 58 mm, tapered bore, C3: SKF 22224 EK/C3W33; NSK 22224EAKE4C3; Timken 22224KEJW33C3; Koyo 22224RHKW33C3. Each maker uses its own cage design. Current FAG design of the same size: 22224-E1-XL-K-C3.
Bore 120 mm (tapered 1:12), outside diameter 215 mm, width 58 mm.
FAG H324 with a 110 mm shaft seat, KM24 locknut and MB24 lock washer.
S is the lubrication groove with three radial holes (W33 feature), M is a machined brass cage and C3 is radial internal clearance greater than normal.
