Double-row spherical roller bearing, 120 mm tapered 1:12 bore, 215 mm OD, 58 mm wide, C3 clearance, brass cage, outer-ring lube groove with three holes.
List Price
$213.37
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22224SK.MB.C3 |
| Model | 22224 S ESK/CKY/ASK MB C3 W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 120 mm |
| OD | 215 mm |
| Width | 58 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Base Number | 22224K |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, SRB |
| Common Misspellings | 22224SK MB C3, 2224SK.MB.C3, 22224S.K.MB.C3, 22224 SKMBC3 |
| Application Types | Conveyor pulleys, fans and blowers, crushers, gearboxes, pumps |
| Bore Shaft Size | 120 mm (4.7244 in), tapered 1:12 |
| Mpn Variants | 22224SK.MB.C3, 22224 SK MB C3, 22224-S-K-MB-C3-W33, 22224SKMBC3 |
| Rolling Elements | Spherical Roller |
| Cage Material | Brass |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | C3 |
| Part Number | 22224SK.MB.C3 |
| Overall Width | 58 mm |
| Lubricant | grease or oil |
| Cross Reference 1 | SKF 22224 CAK/W33 C3 |
|---|---|
| Cross Reference 2 | NSK 22224CAMKE4C3 |
| Cross Reference 3 | Timken 22224KEMW33C3 |

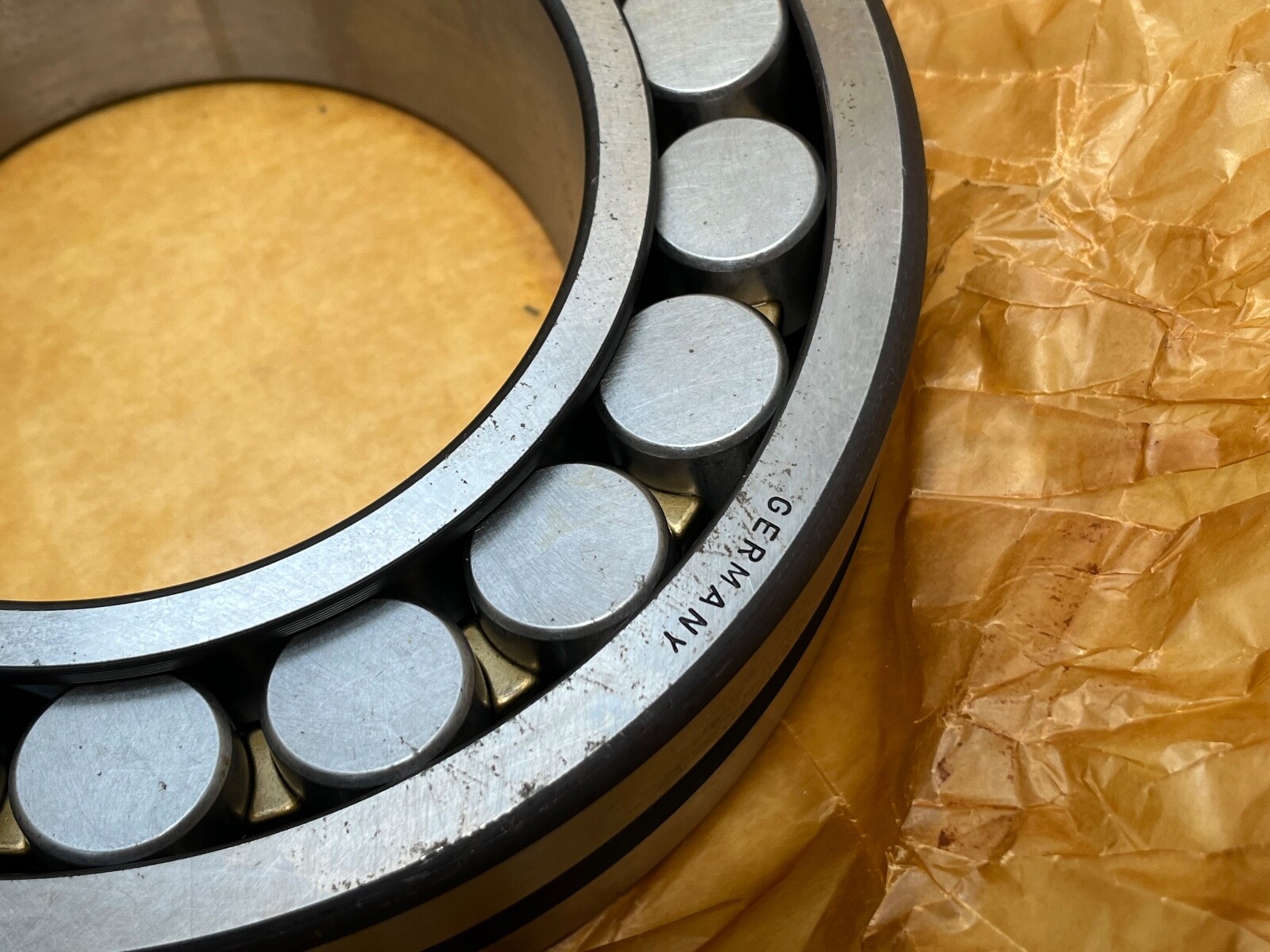

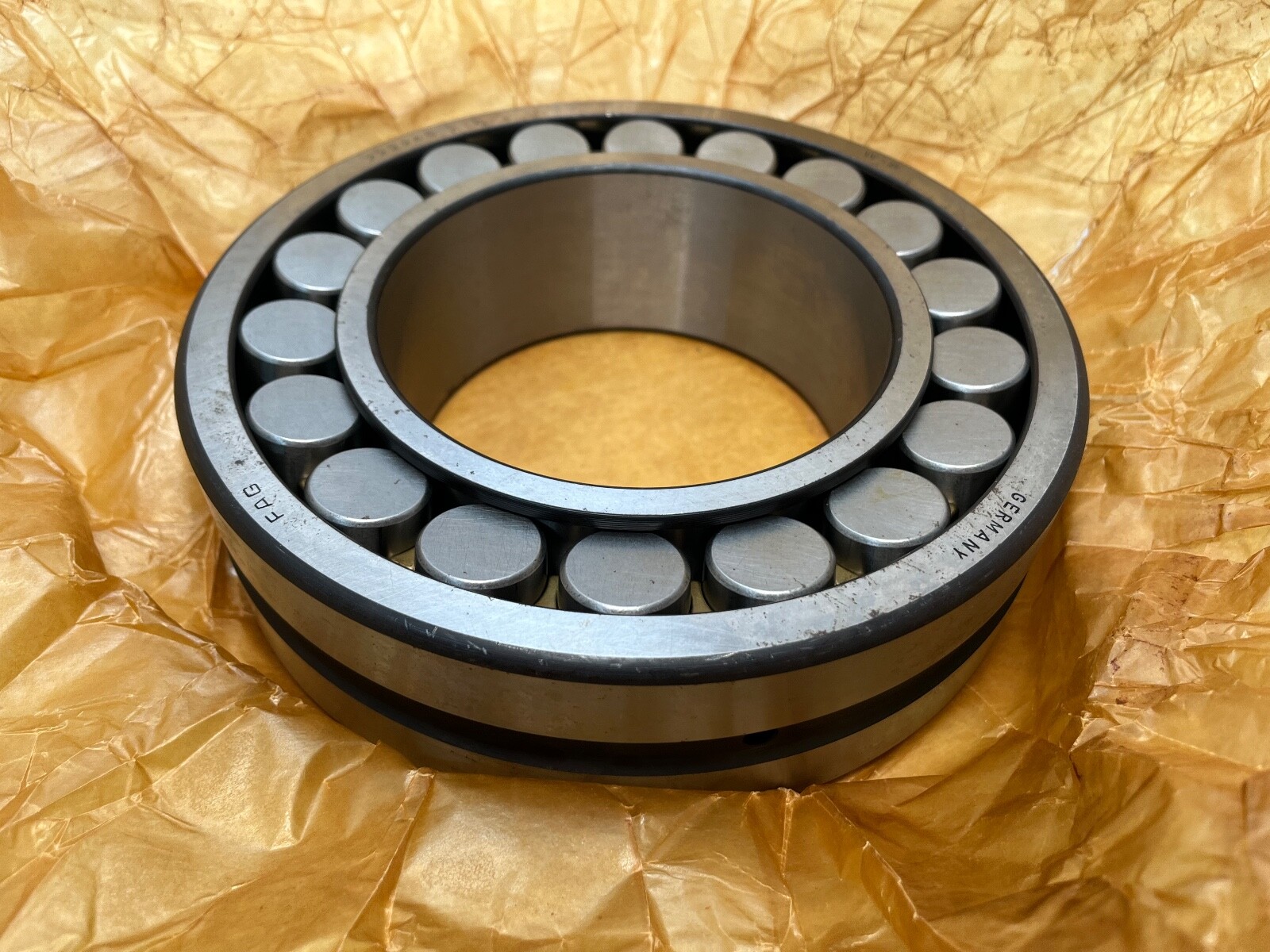

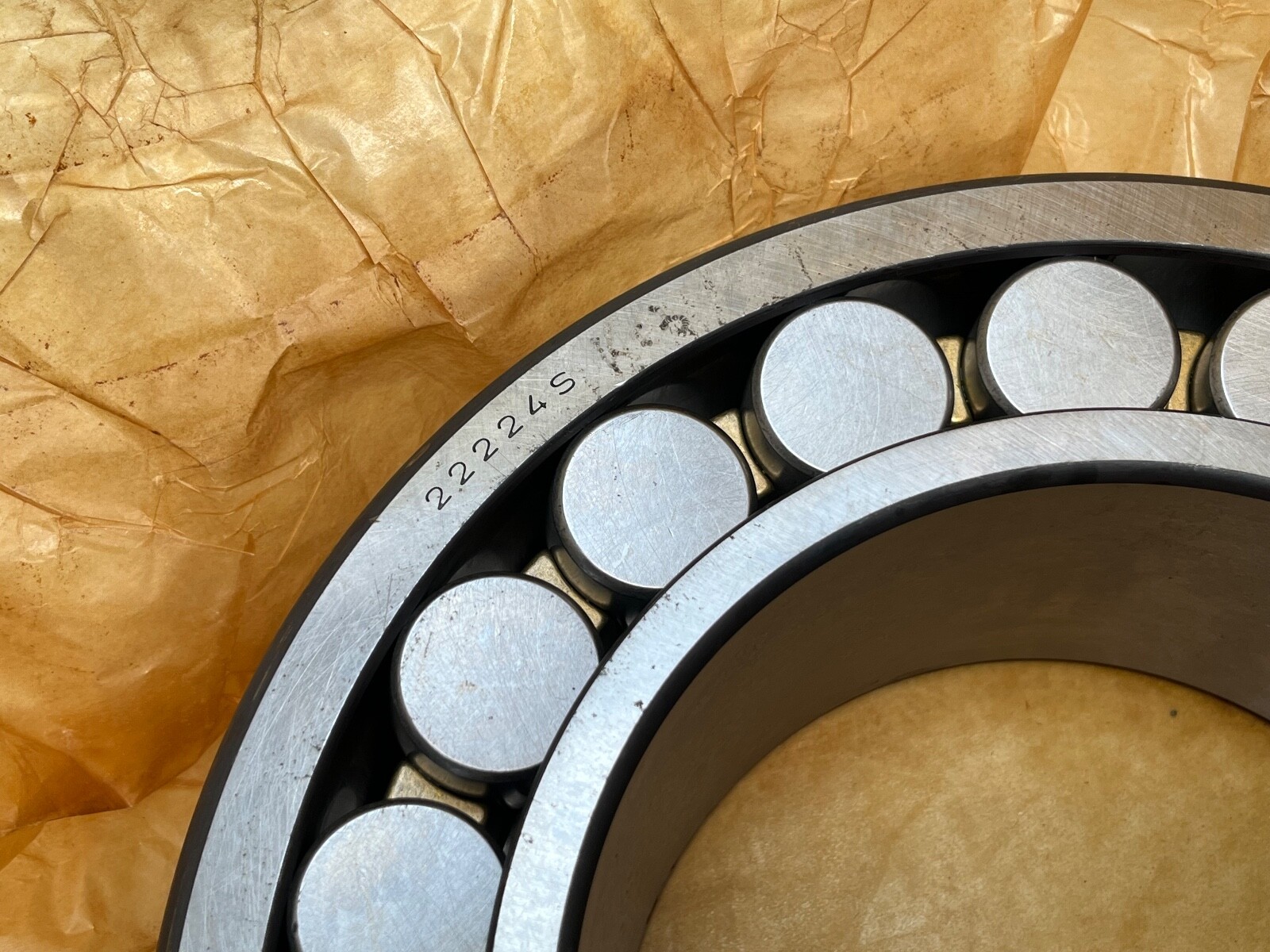

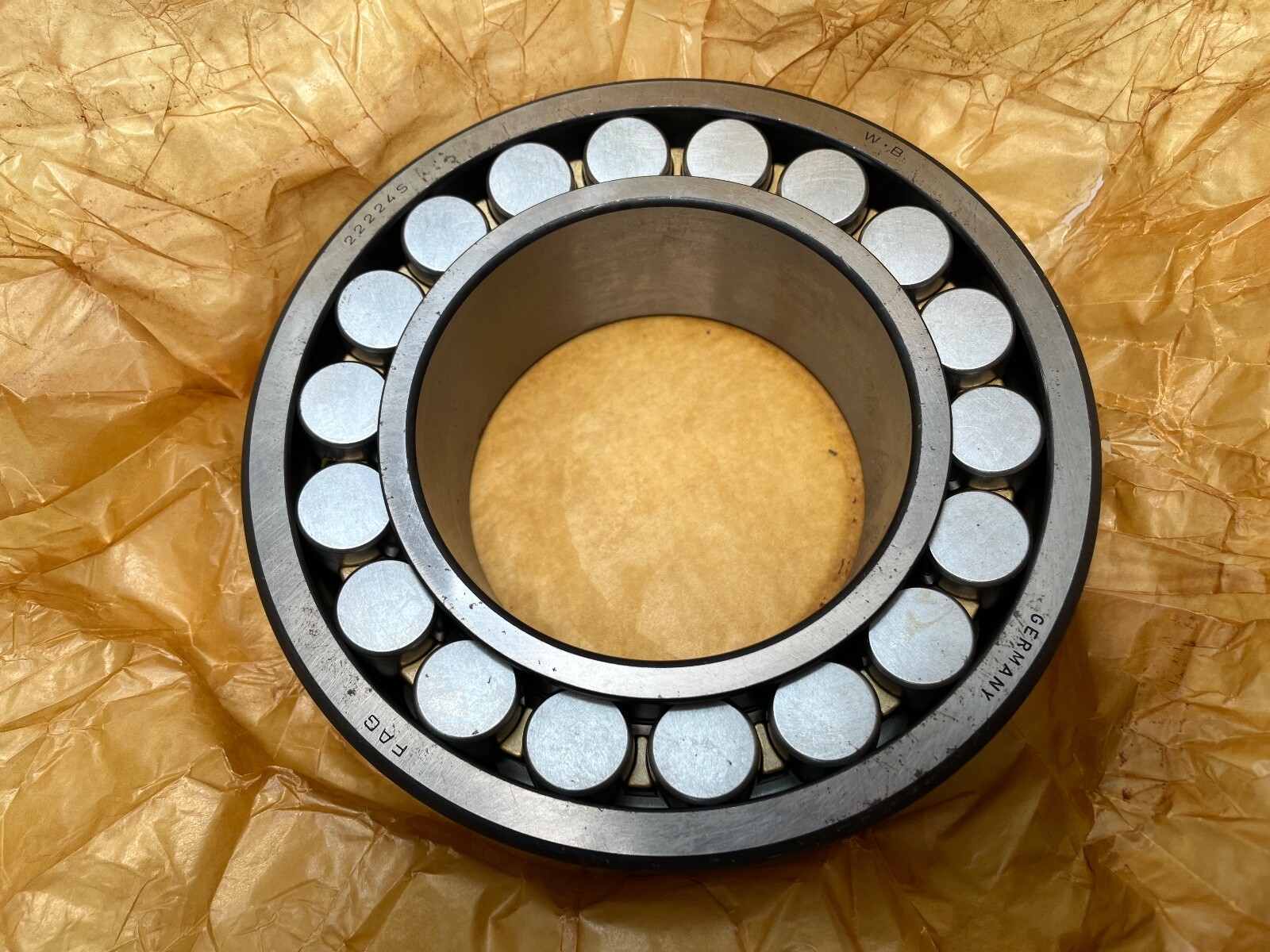

FAG 22224-S-K-MB-C3 is a double-row spherical roller bearing with a 1:12 tapered bore. Two rows of barrel rollers run on a common spherical outer raceway, so the inner ring and roller set swivel inside the outer ring. Unit Quantity: 1 Pc.
222 — double-row spherical roller bearing, dimension series 22.
24 — bore code, 24 x 5 = 120 mm bore.
S — lubrication groove in the outer ring with three radial holes, the FAG form of W33.
K — 1:12 tapered bore.
MB — machined brass cage, inner-ring guided.
C3 — radial internal clearance greater than normal.
Bearing Type: Spherical Roller Bearing, double row, tapered bore. Bore Diameter: 120 mm (4.7244 in). Outside Diameter: 215 mm (8.4646 in). Overall Width: 58 mm (2.2835 in). Number Of Rows: 2. Rolling Elements: Spherical Roller. Bore Type: Tapered 1:12. Cage Material: Brass. Internal Clearance: C3. Closure Type: Open. Series: 22200 / dimension series 22. Lubricant: grease or oil. Material: Bearing Steel. Harmonization Code: 8482.30.00.
Bore Diameter: 120 mm at the small end of the 1:12 taper. Outside Diameter: 215 mm. Width: 58 mm. Lubrication: groove in the outer ring with three radial holes. The spherical outer raceway takes up misalignment between shaft and housing, and the double-row roller set carries radial load plus thrust in both directions.
Brass-cage tapered-bore alternates with the W33 groove: SKF 22224 CAK/W33 C3, NSK 22224CAMKE4C3, Timken 22224KEMW33C3. Also searched as 22224SK.MB.C3, 22224 SK MB C3, 22224-S-K-MB-C3-W33, 22224SKMBC3 and 22224K.MB.C3.W33.
A double-row spherical roller bearing, 120 x 215 x 58 mm, with a 1:12 tapered bore, C3 clearance and a machined brass cage.
S is a lubrication groove in the outer ring with three radial holes, the FAG form of W33.
MB is a machined brass cage, inner-ring guided.
