Availability:
1 in stock
Double-row spherical roller bearing, 120 mm tapered 1:12 bore x 215 mm OD x 58 mm wide, C3 clearance, machined brass cage, W33 lube groove and three holes. 1 Pc.
List Price
$219.55
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | RIV |
|---|---|
| MPN | 22224KC3W33 |
| Model | 22224 K M/MB C3 W33 / 20AARS |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 120 mm |
| OD | 215 mm |
| Width | 58 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Condition | New |
| Lubricant | Oil/Grease |
| Running Accuracy | P0 |
| Relubrication | W33 - outer ring lube groove with three radial holes |
| Base Number | 22224K |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, taper bore bearing, adapter sleeve bearing, SRB |
| Common Misspellings | 22224KC3W3, 2224KC3W33, 22224 KC3 W33, RIV 22224 KC3W33, spherical rolller bearing |
| Application Types | Conveyor pulleys and drums, fans and blowers, crushers and screens, gearboxes, pumps, plummer blocks |
| Bore Shaft Size | 120 mm (4.7244 in), tapered 1:12 |
| Mpn Variants | 22224KC3W33, 22224 K C3 W33, 22224-K-M-C3-W33, 22224KMC3W33, 20AARS |
| Compatible With Replaces | Adapter sleeve H3124 (110 mm shaft seat) - not included |
| Min Temp | -30 °C |
| Cage Type | Stamped Steel |
| Dynamic Load Rating | 610 kN / 137100 lbf |
| Static Load Rating | 765 kN / 171900 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Roller |
| Max Temp | 200 °C |
| Item Weight | 18.0 lbs |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | Without Snap Ring |
| Relubrication Feature | Lubrication Groove |
| Harmonization Code | 8482.30.00 |
| Design Units | Metric |
| Internal Clearance | C3 |
| Part Number | 22224KC3W33 |
| Cross Reference 1 | FAG 22224-E1-K-M-C3 |
|---|---|
| Cross Reference 2 | NSK 22224CAMKE4C3 |
| Cross Reference 3 | Timken 22224KEMW33C3 |
| Cross Reference 4 | RIV 20AARS |

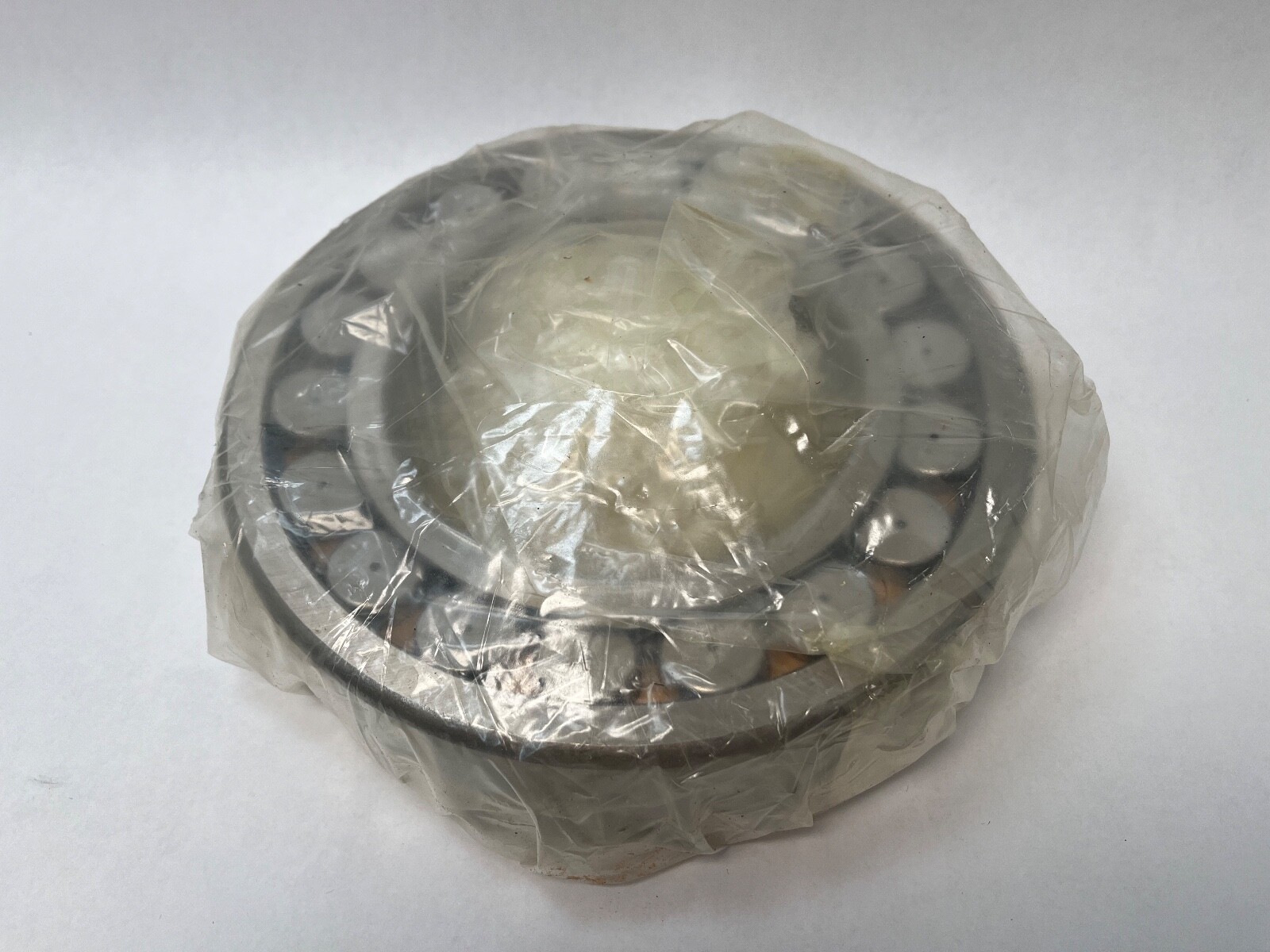

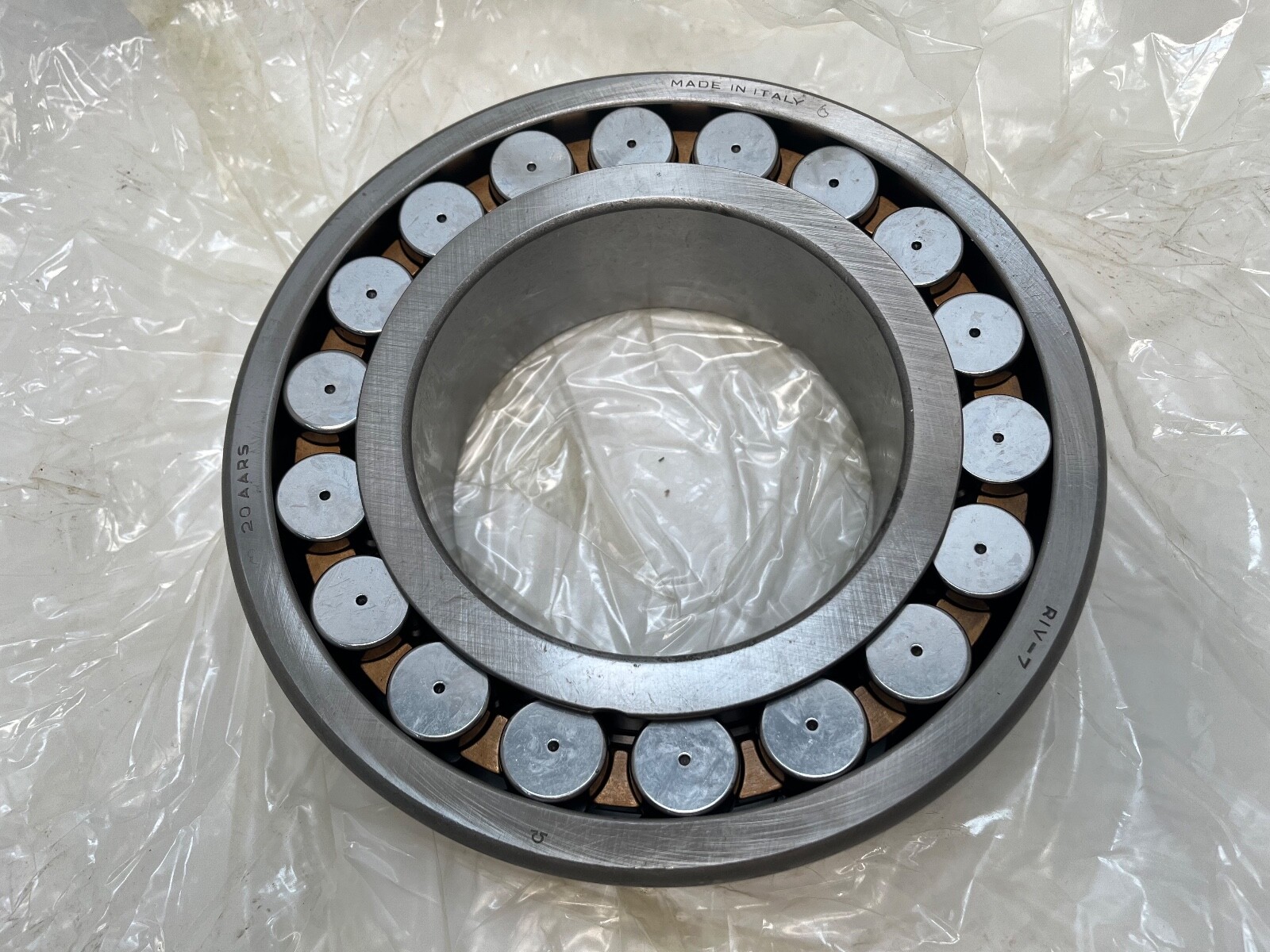

RIV 22224 K M C3 W33 double-row spherical roller bearing with a tapered 1:12 bore. Two rows of barrel rollers run on a common spherical outer raceway, so the inner ring and roller set can swivel inside the outer ring.
222 – double-row spherical roller bearing, dimension series 22
24 – bore code, 24 × 5 = 120 mm bore
K – 1:12 tapered bore

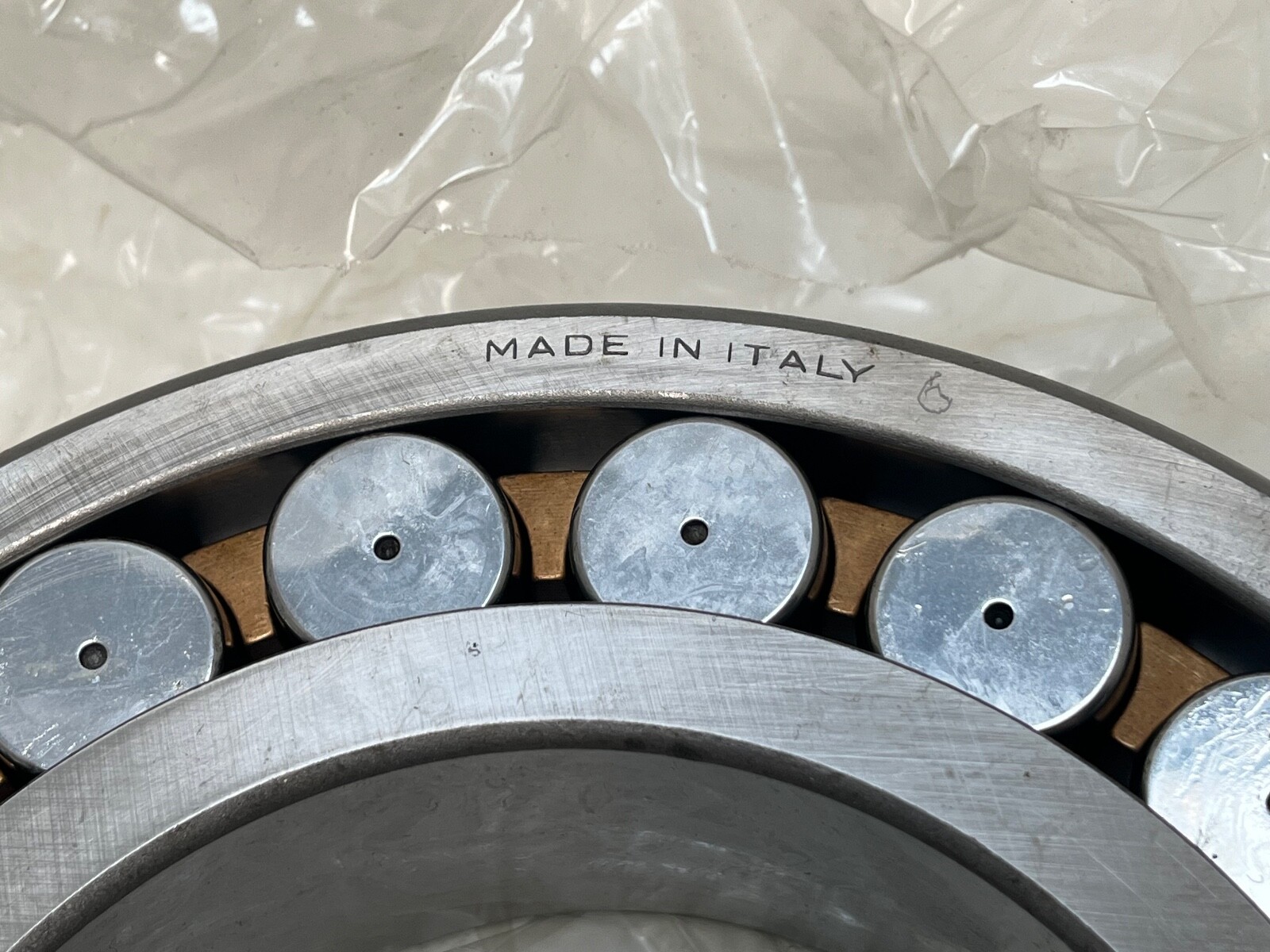

M – machined brass cage
C3 – radial internal clearance greater than normal

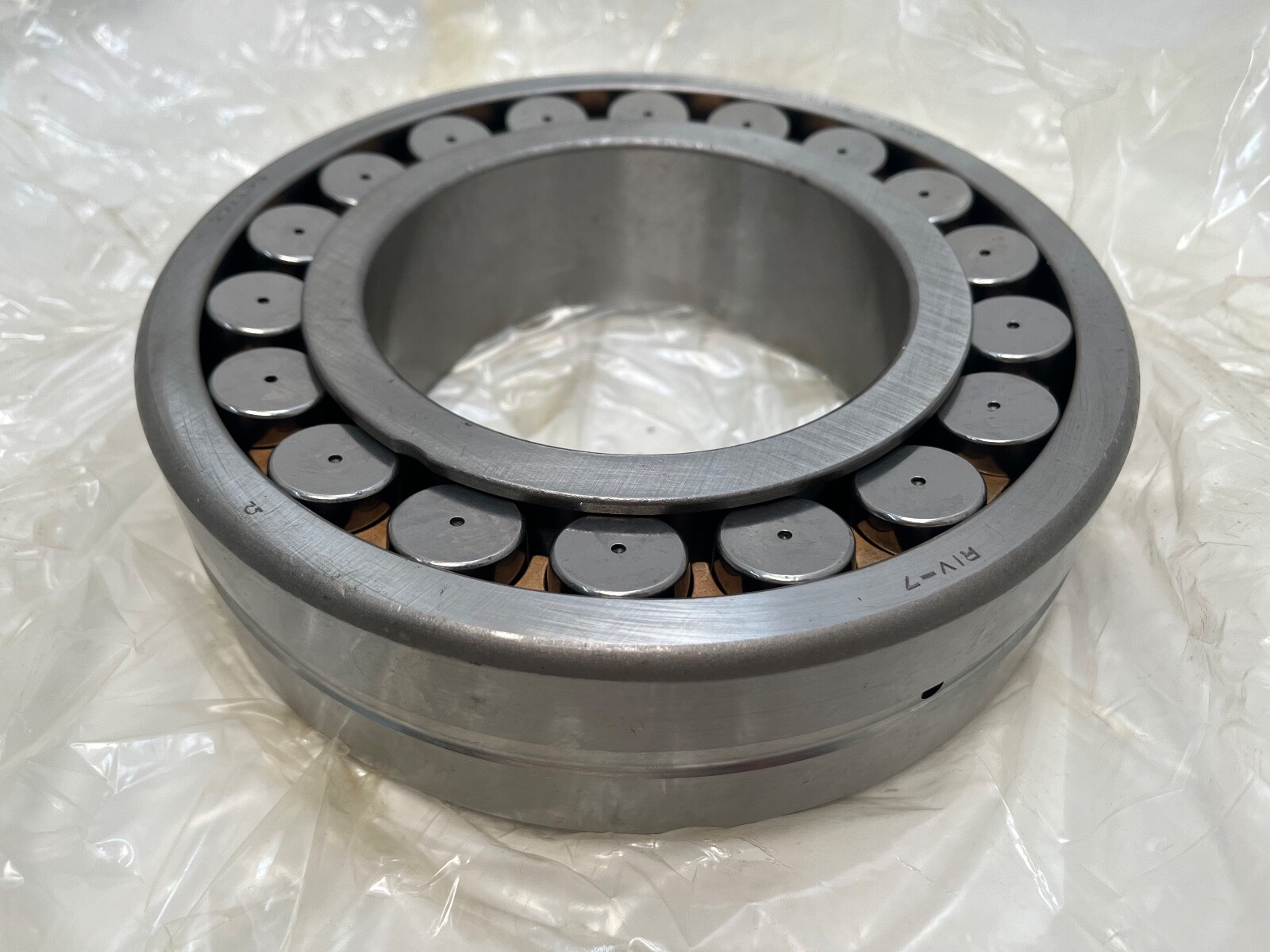

W33 – lubrication groove in the outer ring with three radial holes

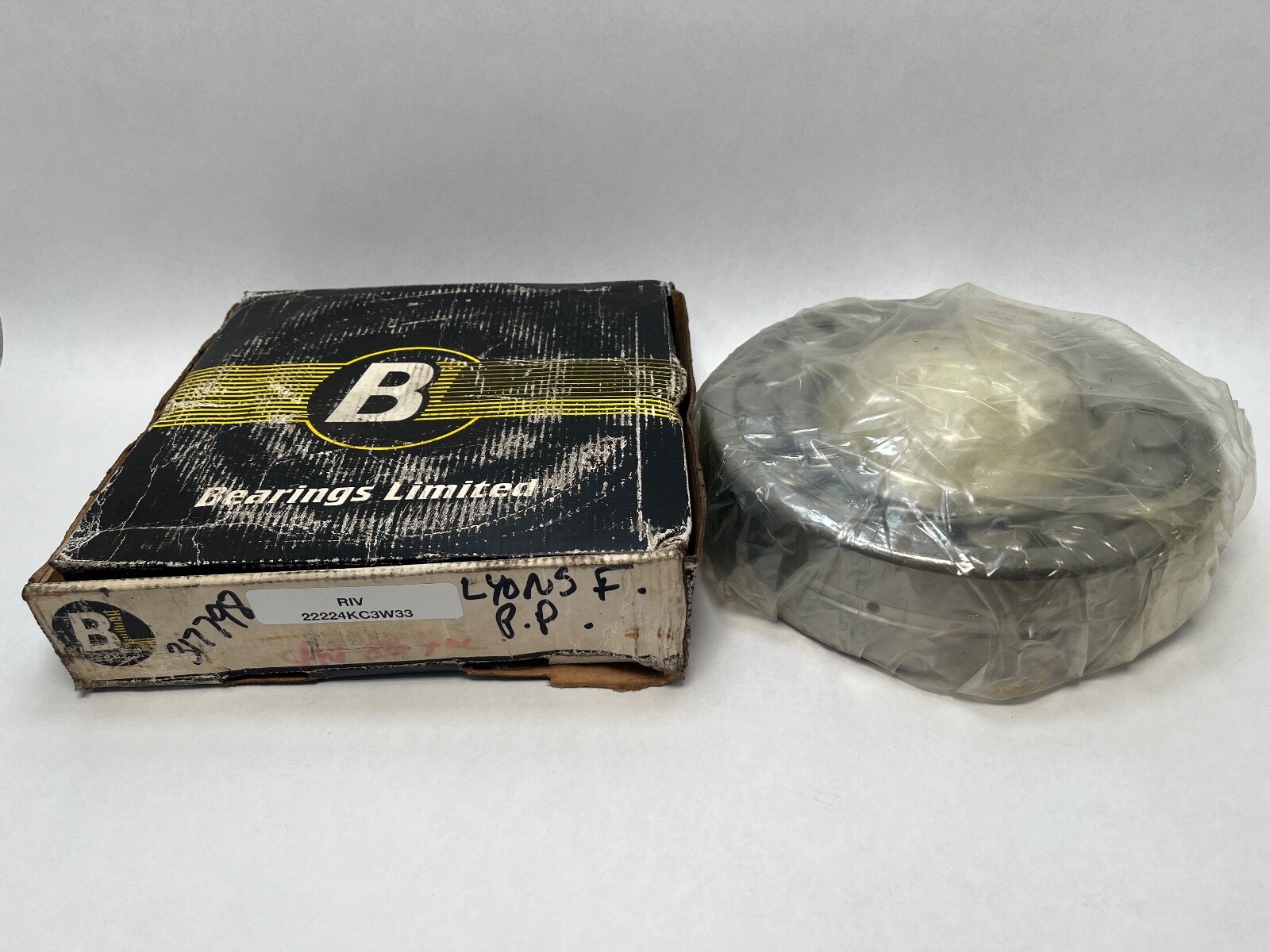

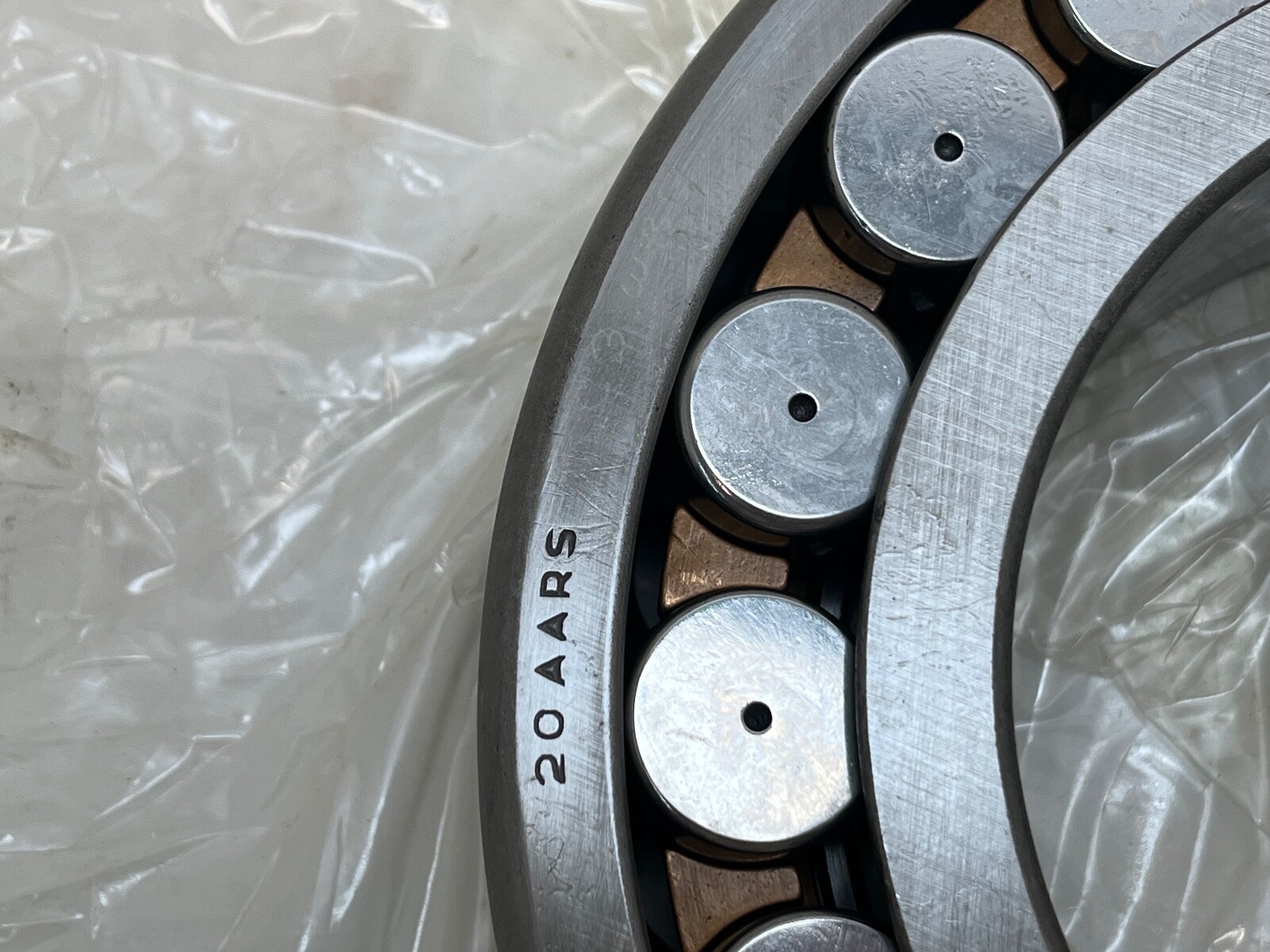

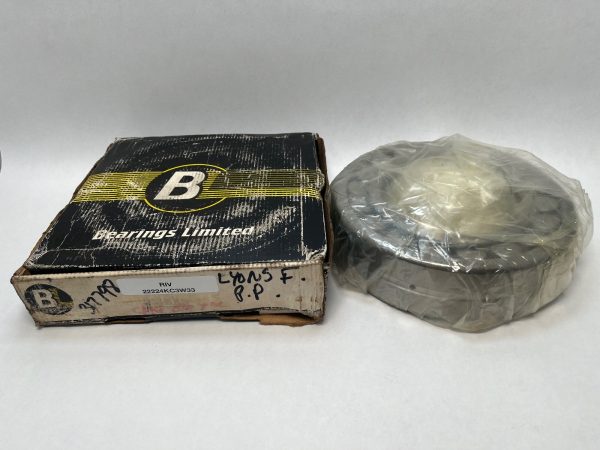

20AARS – RIV in-house carton designation for the same bearing
The spherical outer raceway absorbs static and dynamic misalignment between shaft and housing, which is why this type is standard on long conveyor shafts, fans and crusher drives. A double-row spherical roller takes radial load and thrust in both directions. C3 clearance leaves extra running room for interference-fit mounting and for a shaft that runs hotter than its housing. A machined brass cage tolerates higher temperature and shock loading than a pressed-steel cage and permits higher speed than a full-complement design.
Bore: 120 mm (4.7244 in), tapered 1:12
Outside diameter: 215 mm (8.4646 in)
Width: 58 mm (2.2835 in)
Rows: 2
Rolling elements: barrel rollers
Cage: machined brass
Internal clearance: C3
Relubrication: W33 groove and three holes

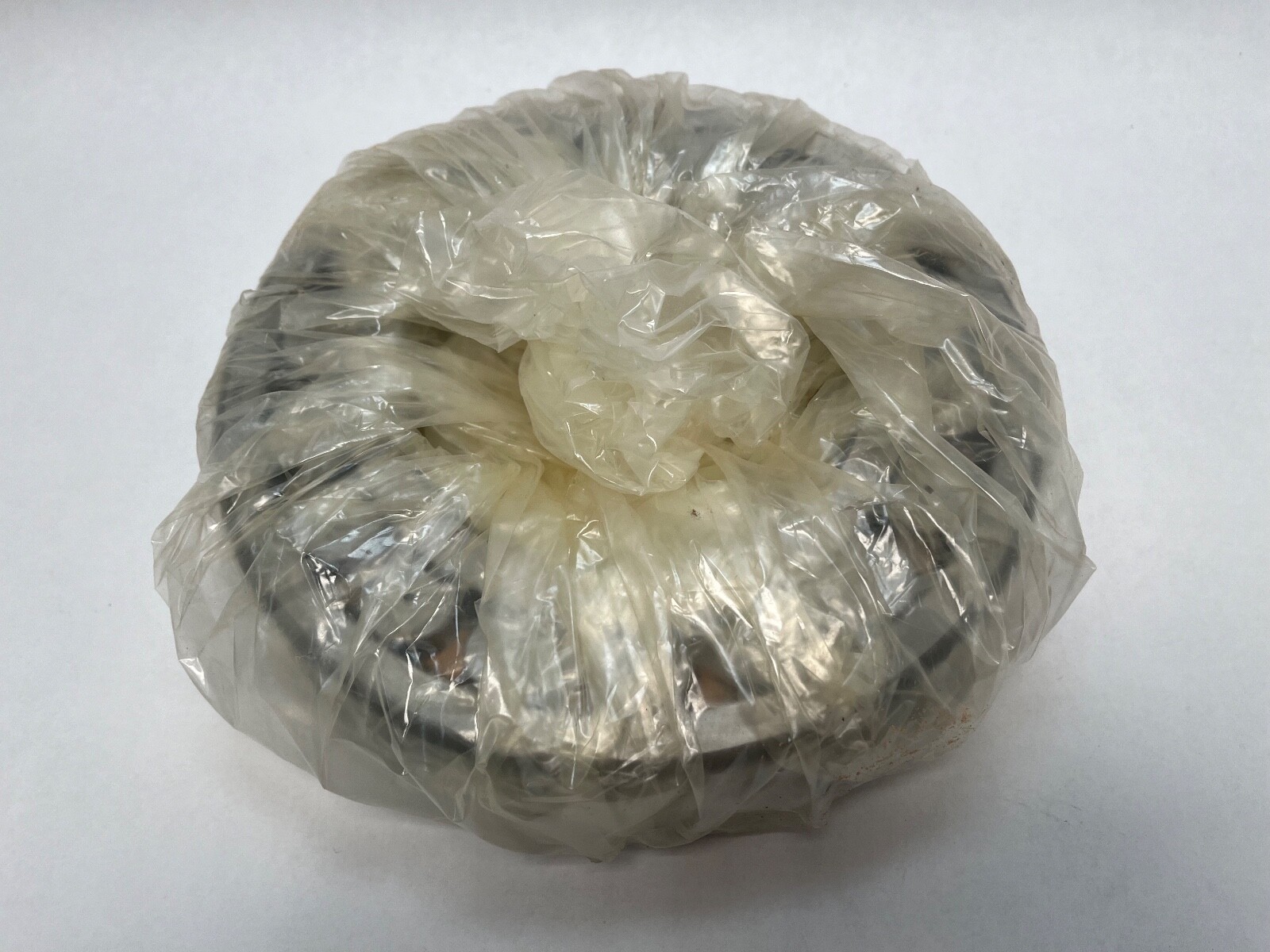

1 Pc. Bearing only. Supplied without adapter sleeve H3124.
The 1:12 tapered bore seats either on a matching tapered shaft journal or on an H3124 adapter sleeve, whose shaft seat is 110 mm. Drive-up distance on the taper sets the residual clearance, so the mounted clearance is a function of how far the ring is pressed on rather than of the bore fit alone. The W33 groove aligns with the housing lubrication port.
Same-spec brass-cage tapered-bore equivalents in other schemes: FAG 22224-E1-K-M-C3, NSK 22224CAMKE4C3, Timken 22224KEMW33C3. Straight-bore 22224 forms and pressed-steel-cage CC forms are related sizes in the same envelope, not interchanges.
