FAG22224-ES-K-TVPSpherical Roller Bearing – Tapered 1:12 Bore, 120 mm ID, 215 mm OD, 58 mm Width, Open, CN Internal Clearance

Product Description

What this part is:

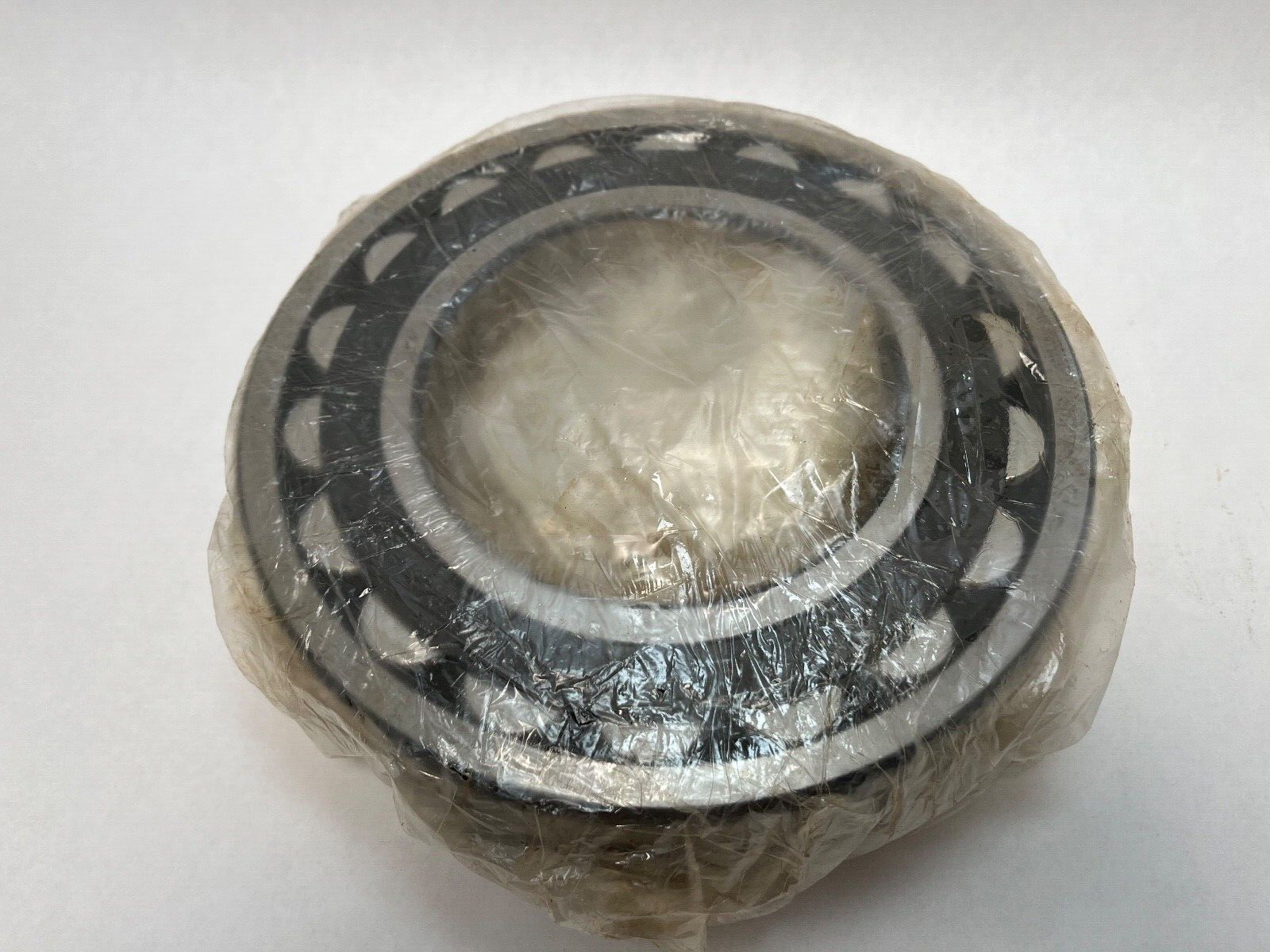

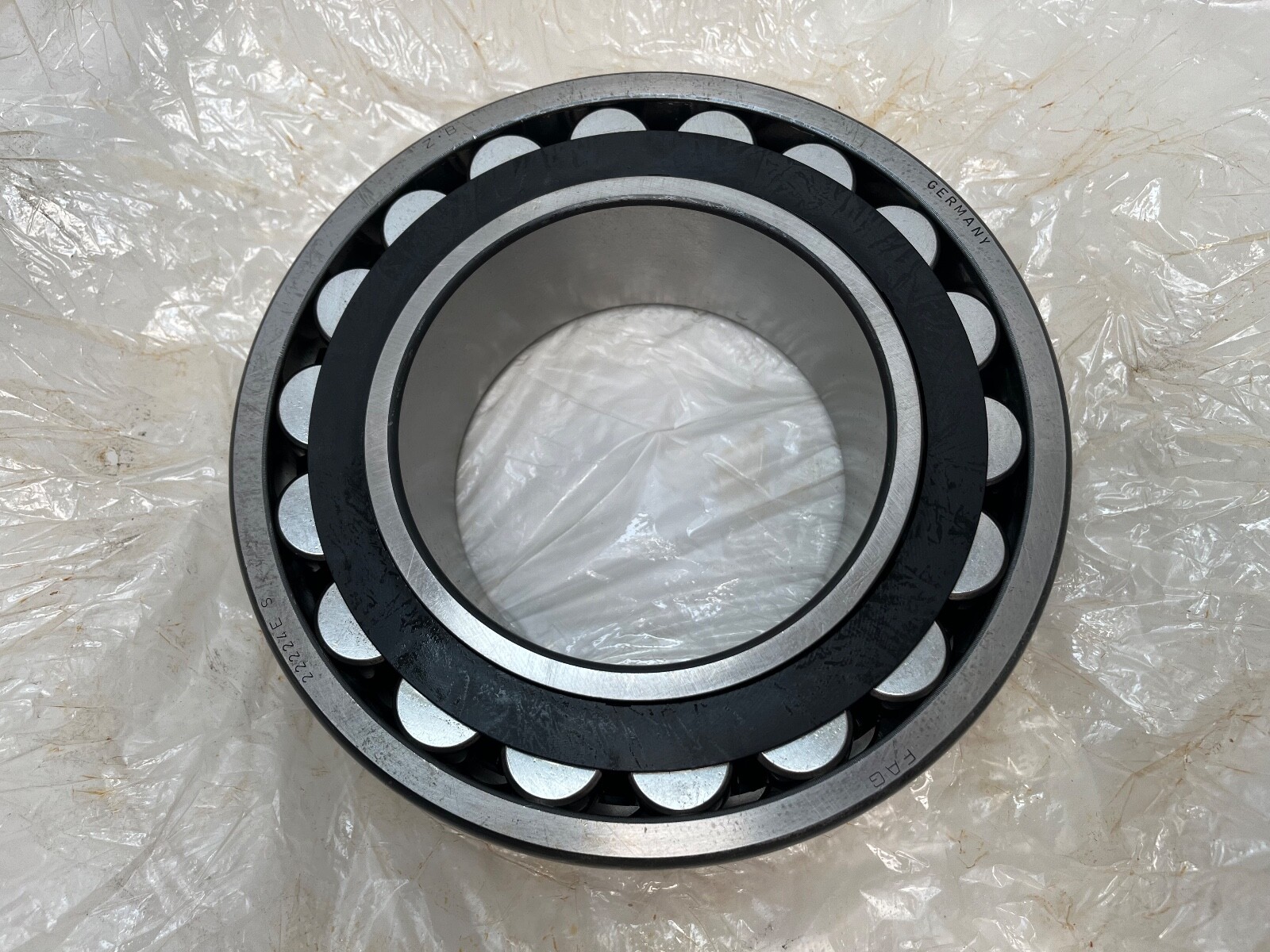

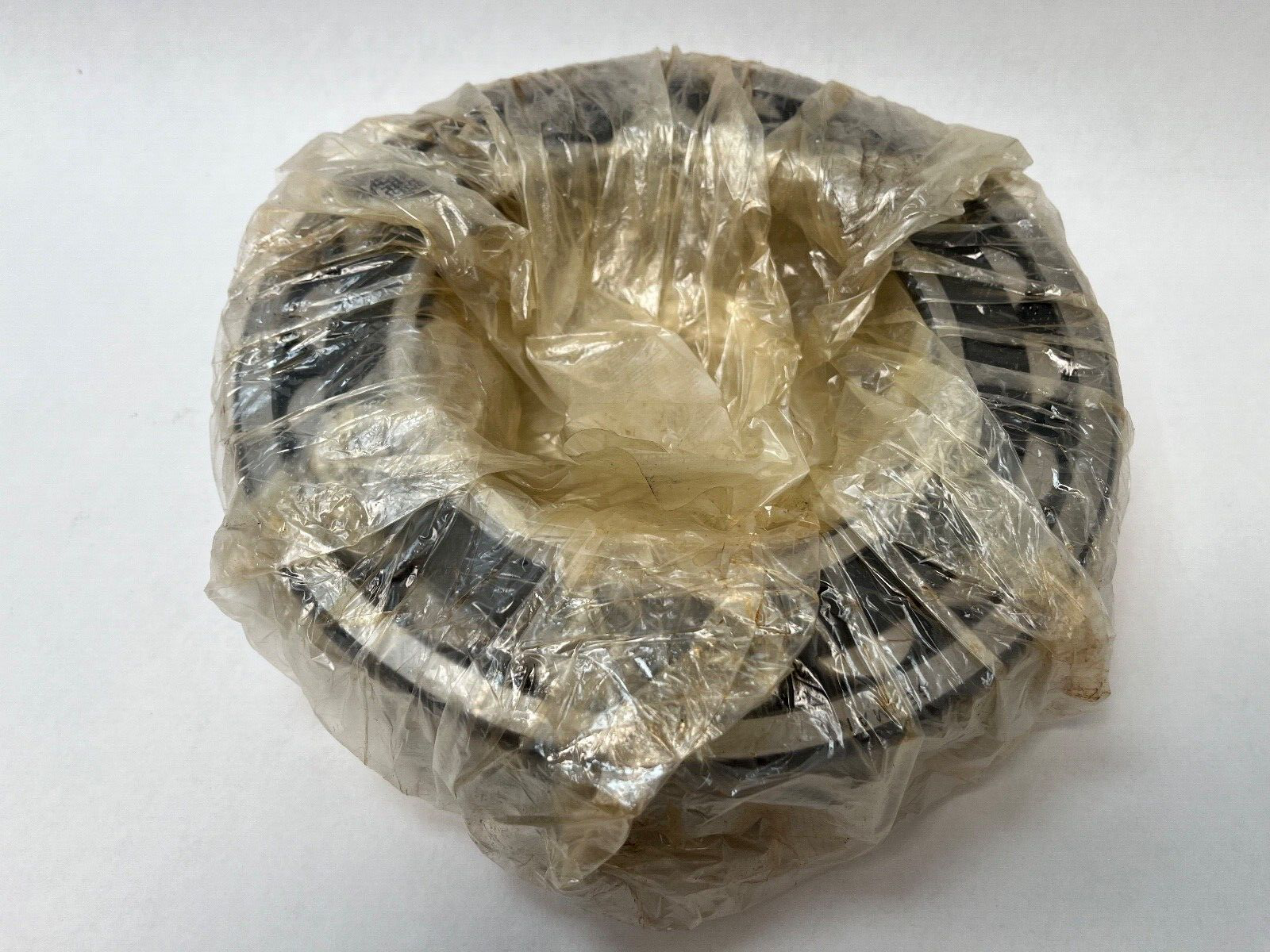

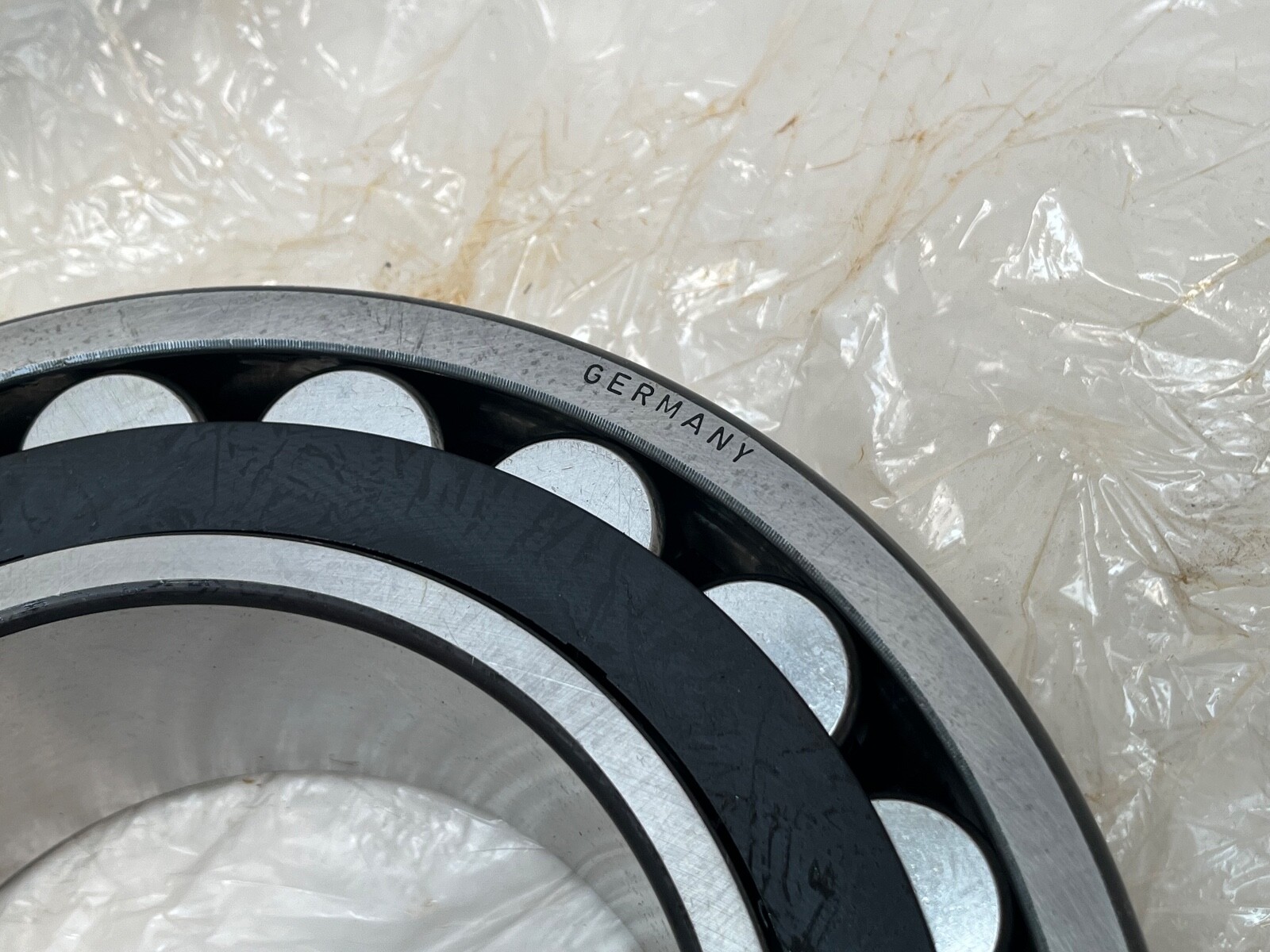

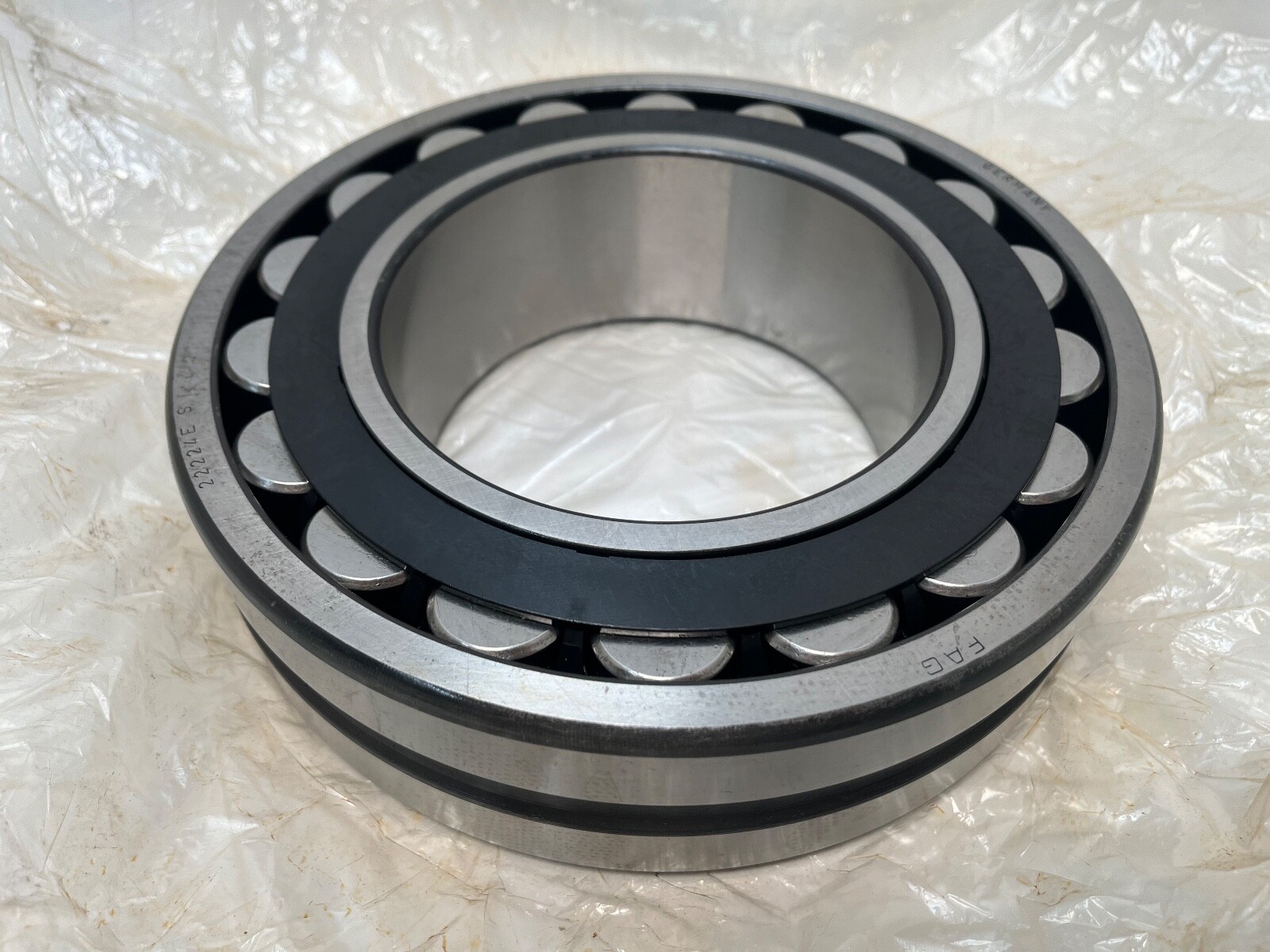

FAG 22224-ES-K-TVP double-row spherical roller bearing with a 1:12 tapered bore, one piece, bearing only. Bore: 120 mm. Outside diameter: 215 mm. Width: 58 mm. Two rows of spherical rollers share one spherical outer raceway, so the inner ring and roller set swivel inside the outer ring. Open on both faces.

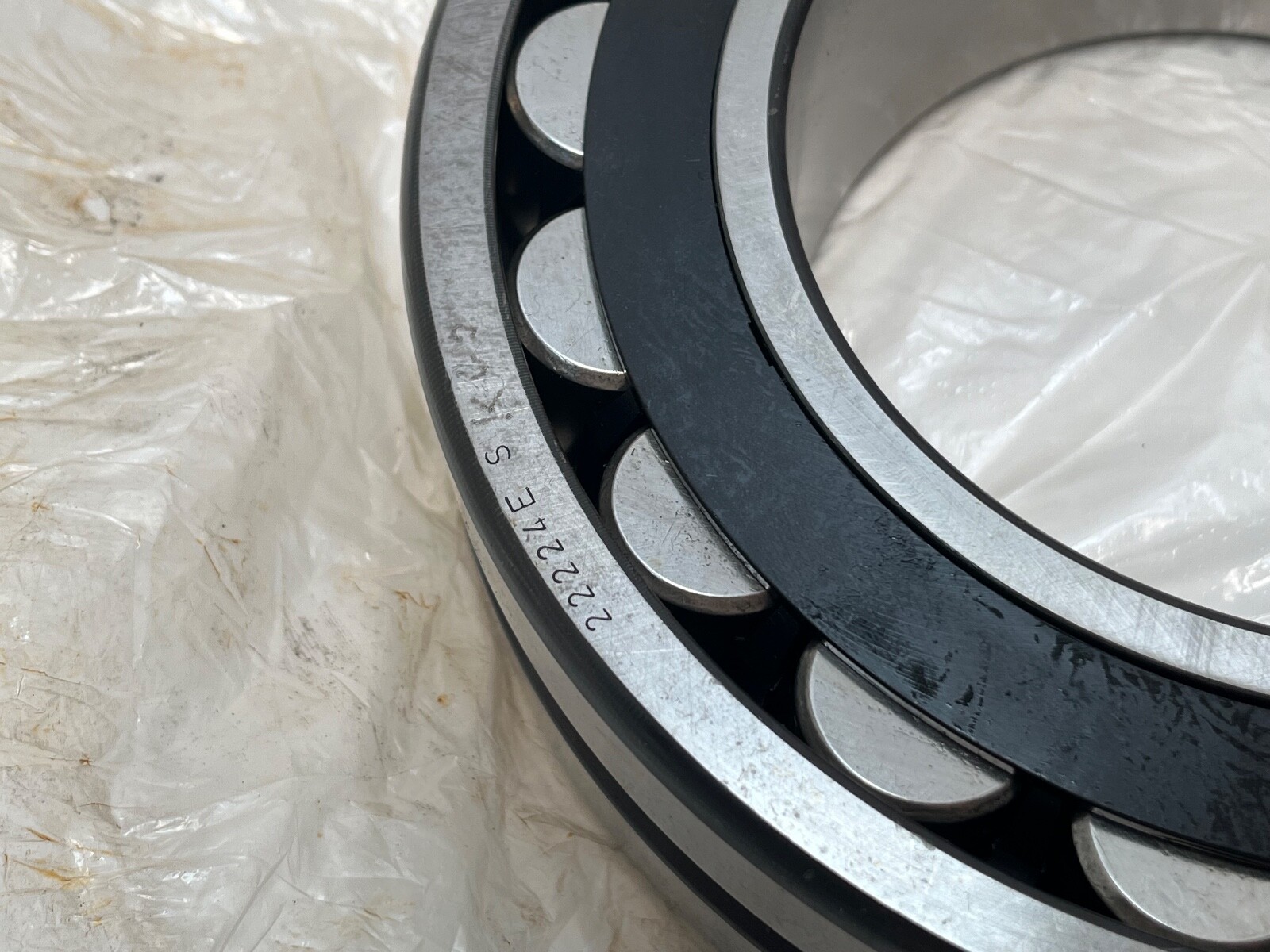

Decoding the designation:

222 — double-row spherical roller bearing, dimension series 22.

24 — bore code, 24 × 5 = 120 mm bore.

E — reinforced internal design with larger rollers and increased load capacity.

S — lubrication groove in the outer ring with three radial holes, the FAG form of W33.

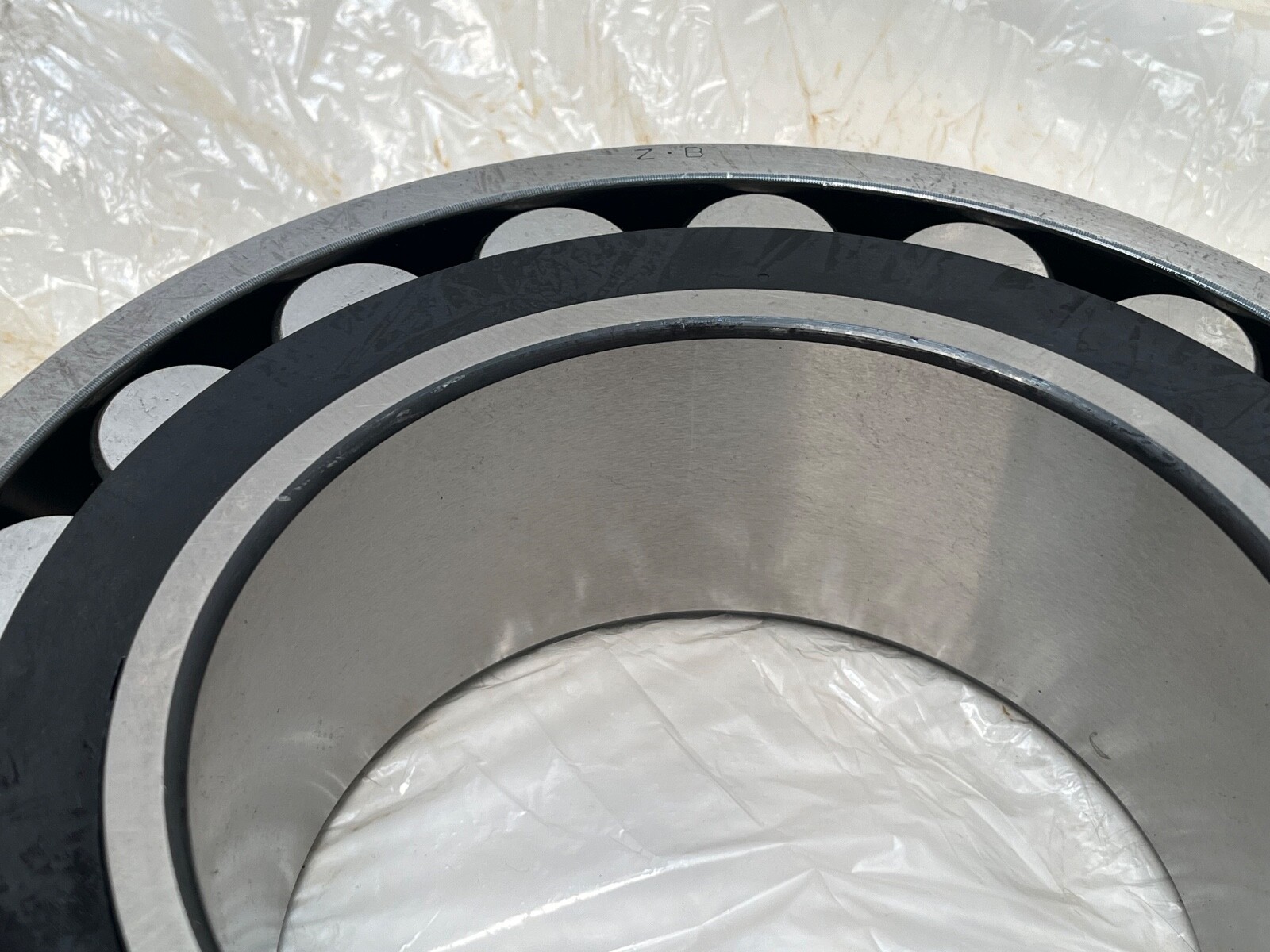

K — 1:12 tapered bore.

TVP — glass-fibre reinforced polyamide cage (TVPB in current FAG naming).

Specifications:

Bore Diameter: 120 mm (4.7244 in). Bore Type: Tapered, 1:12. Outside Diameter: 215 mm (8.4646 in). Overall Width: 58 mm (2.2835 in). Number Of Rows: 2. Rolling Elements: Spherical Roller. Cage Material: Glass-fibre reinforced polyamide. Internal Clearance: CN. Lubricant: grease or oil. Relubrication Feature: Outer-ring groove with three radial holes. Unit Quantity: 1 Pc.

Dimensions and mounting:

The 1:12 tapered bore seats on a matching tapered shaft journal or on adapter sleeve H3124, whose shaft seat is 110 mm. The outer ring carries a lubrication groove with three radial holes. No clearance suffix appears in the designation, so radial internal clearance is CN (normal).

Compatibility and replacement:

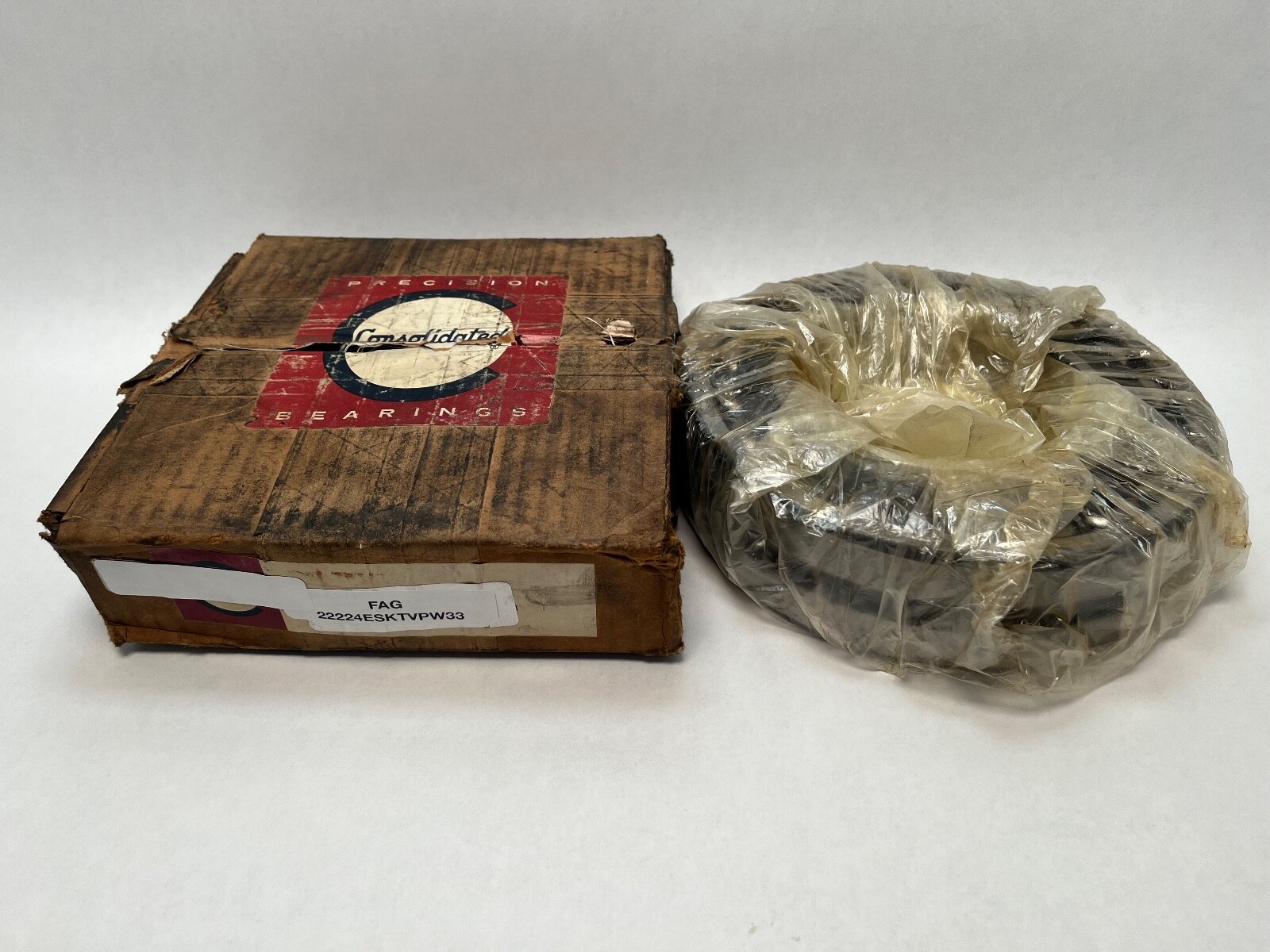

Current Schaeffler naming: 22224-E1-XL-K-TVPB-W33. Tapered-bore cross-references from other makers: SKF 22224 EK/W33, NSK 22224EAKE4, Timken 22224EJKW33. Brass-cage forms (M, MB, CAM) and straight-bore 22224 forms are related sizes in the same envelope. Other written forms: 22224ESK.TVP, 22224 ES K TVP, 22224-ES-K-TVP-W33, 22224ESKTVP.

Frequently asked questions:

What bore does the FAG 22224-ES-K-TVP have?

120 mm, tapered 1:12. The K in the designation is the 1:12 taper code.

What do the S and TVP codes mean on the FAG 22224-ES-K-TVP?

S is a lubrication groove in the outer ring with three radial holes, the FAG form of W33. TVP is a glass-fibre reinforced polyamide cage.

What are the outside diameter and width of the FAG 22224-ES-K-TVP?

215 mm outside diameter and 58 mm width, with two rows of spherical rollers.
