Spherical roller bearing, 130 x 230 x 64 mm, 1:12 tapered bore, CN clearance. SKF C design with W33 groove and Solid Oil (W64) fill. Refurbished take-out.
List Price
$152.98
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Spherical Roller Bearing — 130 mm ID, 230 mm OD, 64 mm Width, 1:12 Tapered Bore, Pressed Steel Cage, CN Clearance$328.89
Spherical Roller Bearing — 130 mm ID, 230 mm OD, 64 mm Width, 1:12 Tapered Bore, C3 Clearance, Pressed Steel Cage$328.89
Spherical Roller Bearing — 130 mm ID, 230 mm OD, 64 mm Width, Straight Bore, Brass Cage, W33 Lube Groove$244.51
Spherical Roller Bearing — 130 mm ID, 230 mm OD, 64 mm Width, Straight Bore, W33 Lube Groove, C3 Clearance$244.51| MFR / Brand | SKF |
|---|---|
| MPN | 22226 CK/W33W64B |
| Model | 22226 C K W33 W64B |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 130 mm |
| OD | 230 mm |
| Width | 64 mm |
| Lube | Solid Oil |
|---|---|
| Material | Bearing Steel |
| Series | 22200 |
| Lubricant | Solid Oil |
| Bore | Taper Bore |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, Solid Oil bearing, W64, tapered bore |
| Mpn Variants | 22226 CK/W33W64B, 22226CKW33W64B, 22226-C-K-W33-W64B, 22226CCK, 22226CKJ |
| Rolling Elements | Spherical Roller |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Relubrication Feature | W33 groove and three lubrication holes |
| Harmonization Code | 8482.30.00 |
| Cross Reference 1 | SKF 22226 EK - E design, no W33, no Solid Oil |
|---|---|
| Cross Reference 2 | FAG 22226-E1-K - no W33, no Solid Oil |
| Cross Reference 3 | NSK 22226EAKE4 - no Solid Oil |
| Cross Reference 4 | Timken 22226KEJW33 - EJ pressed steel cage, no Solid Oil |
| Cross Reference 5 | NTN 22226EAKD1 - no Solid Oil |

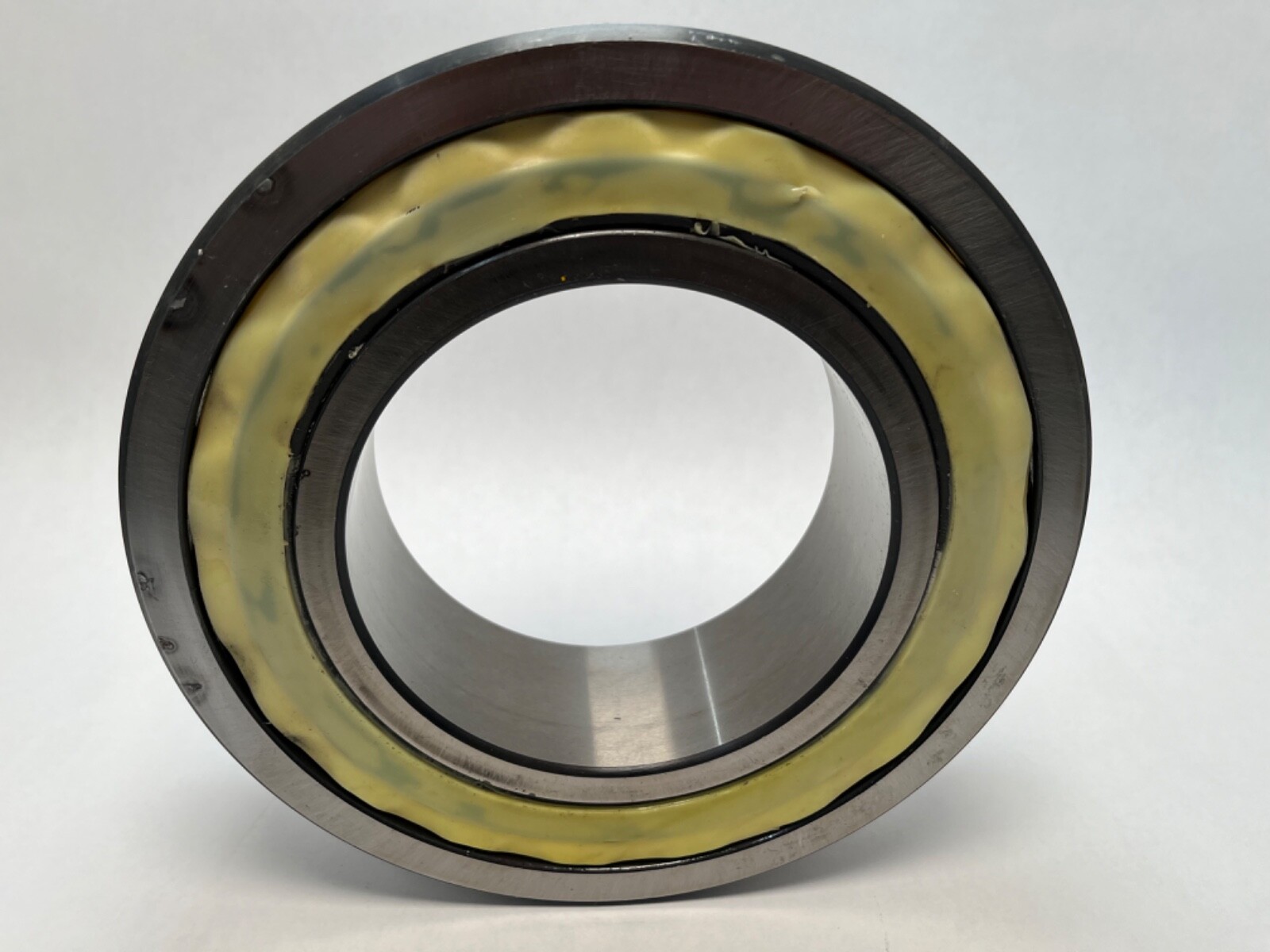

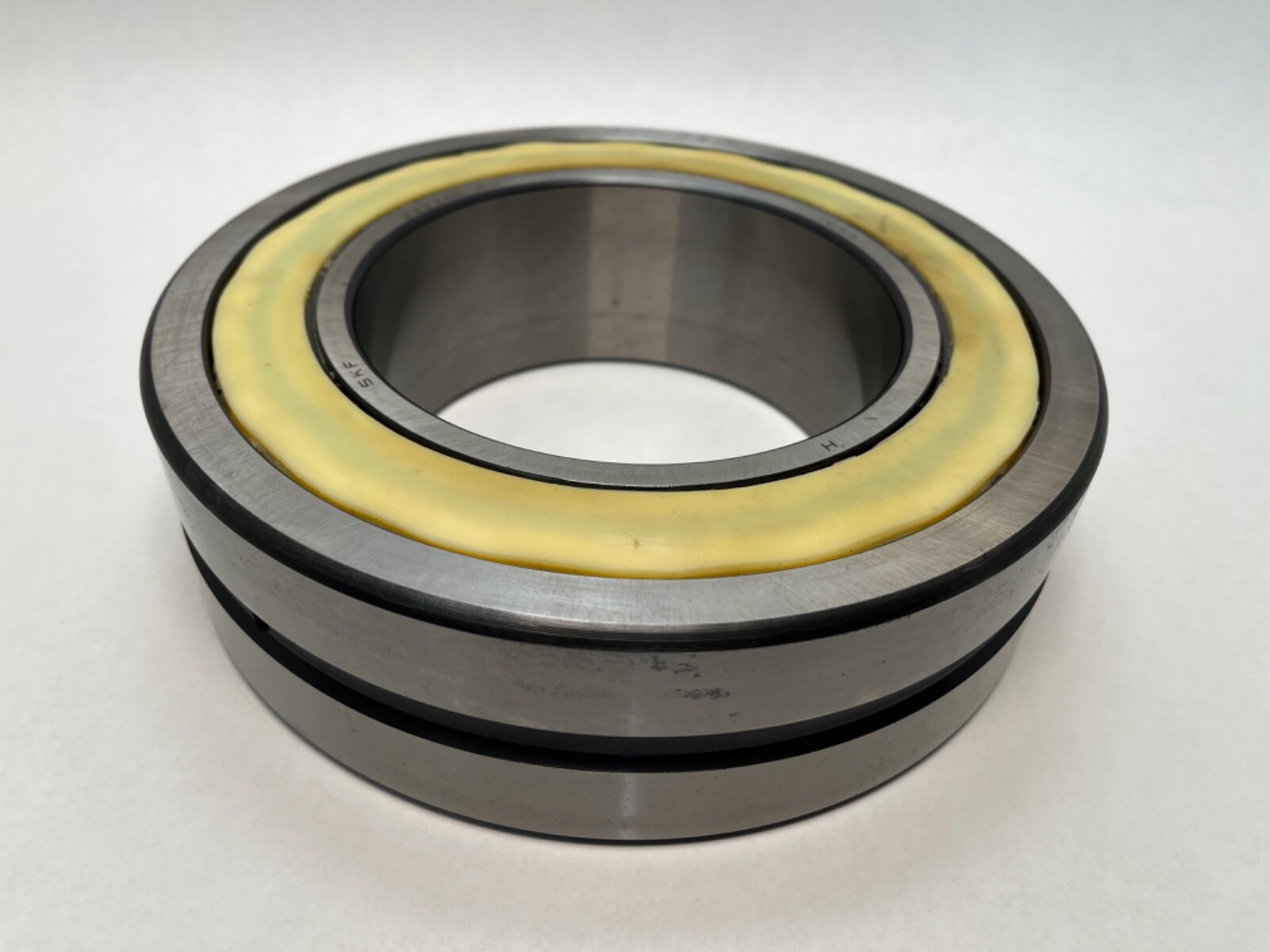

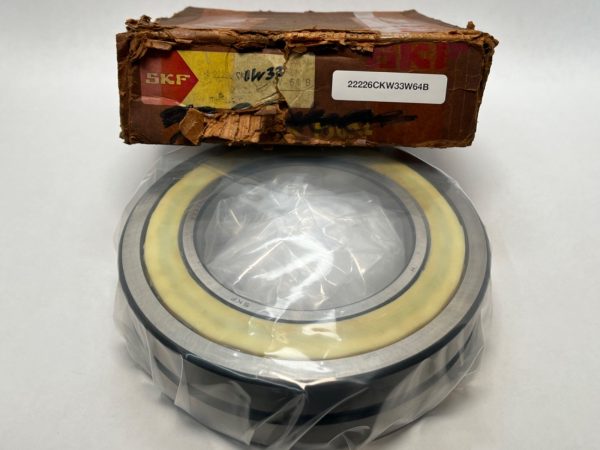

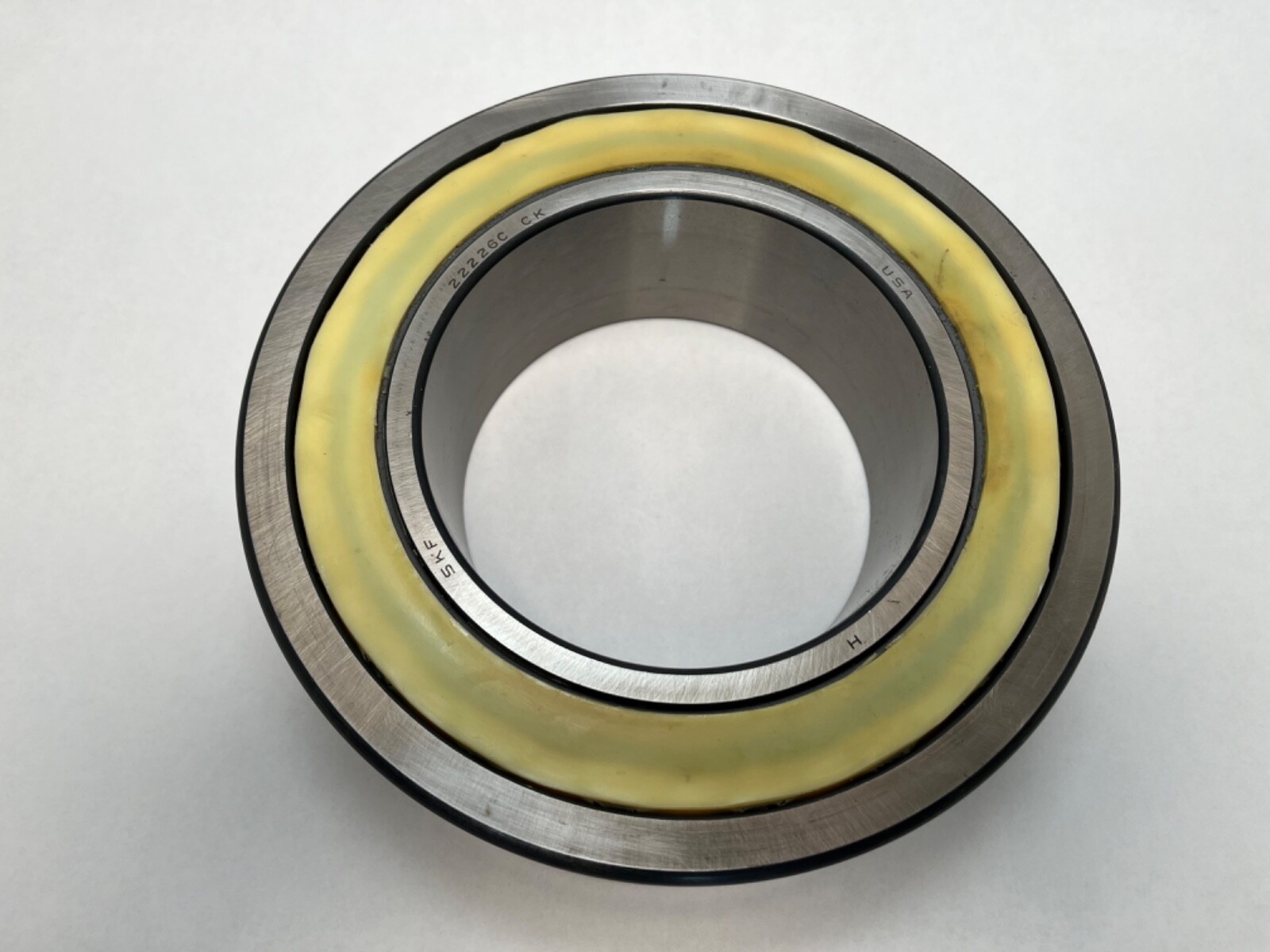

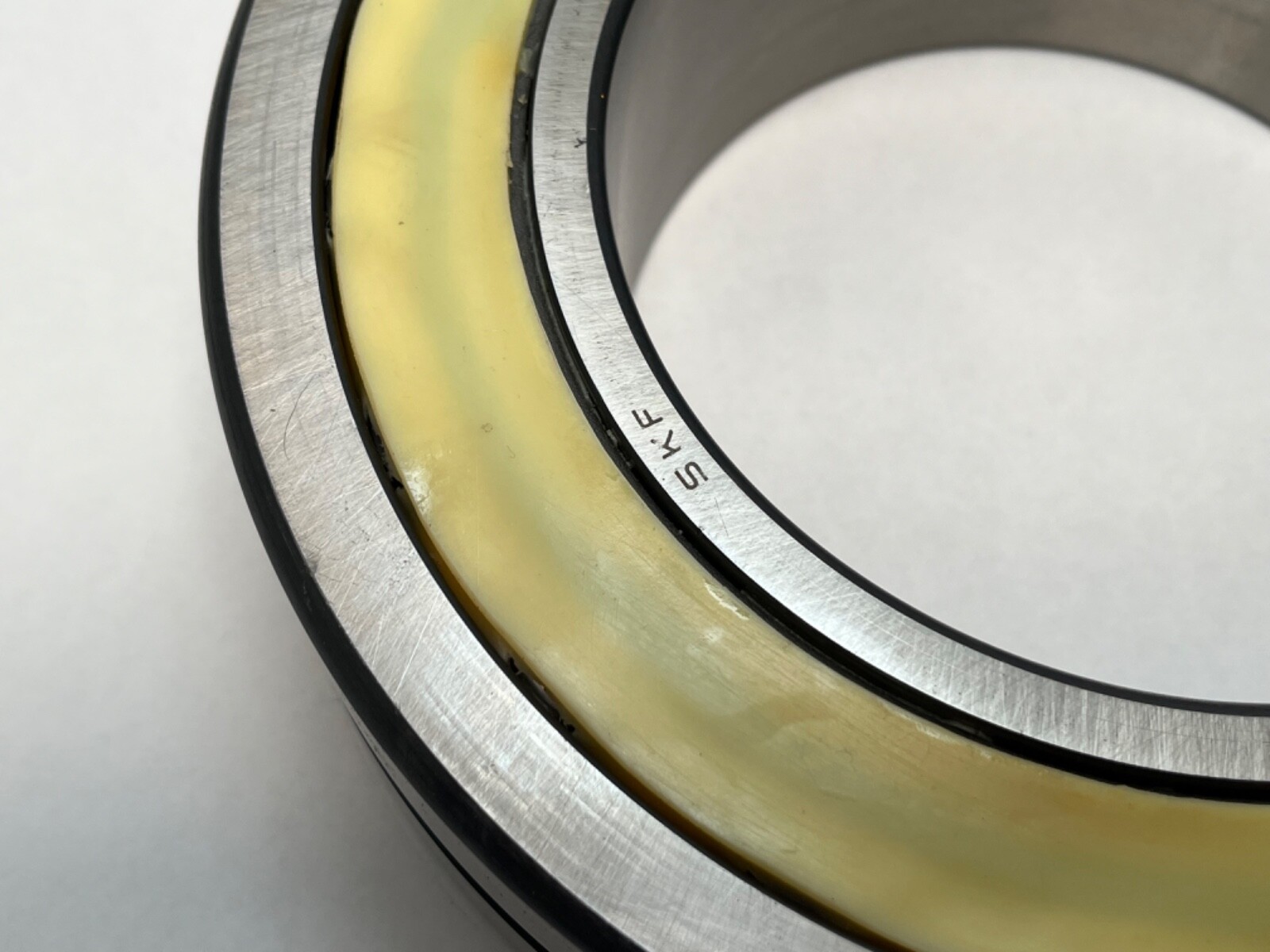

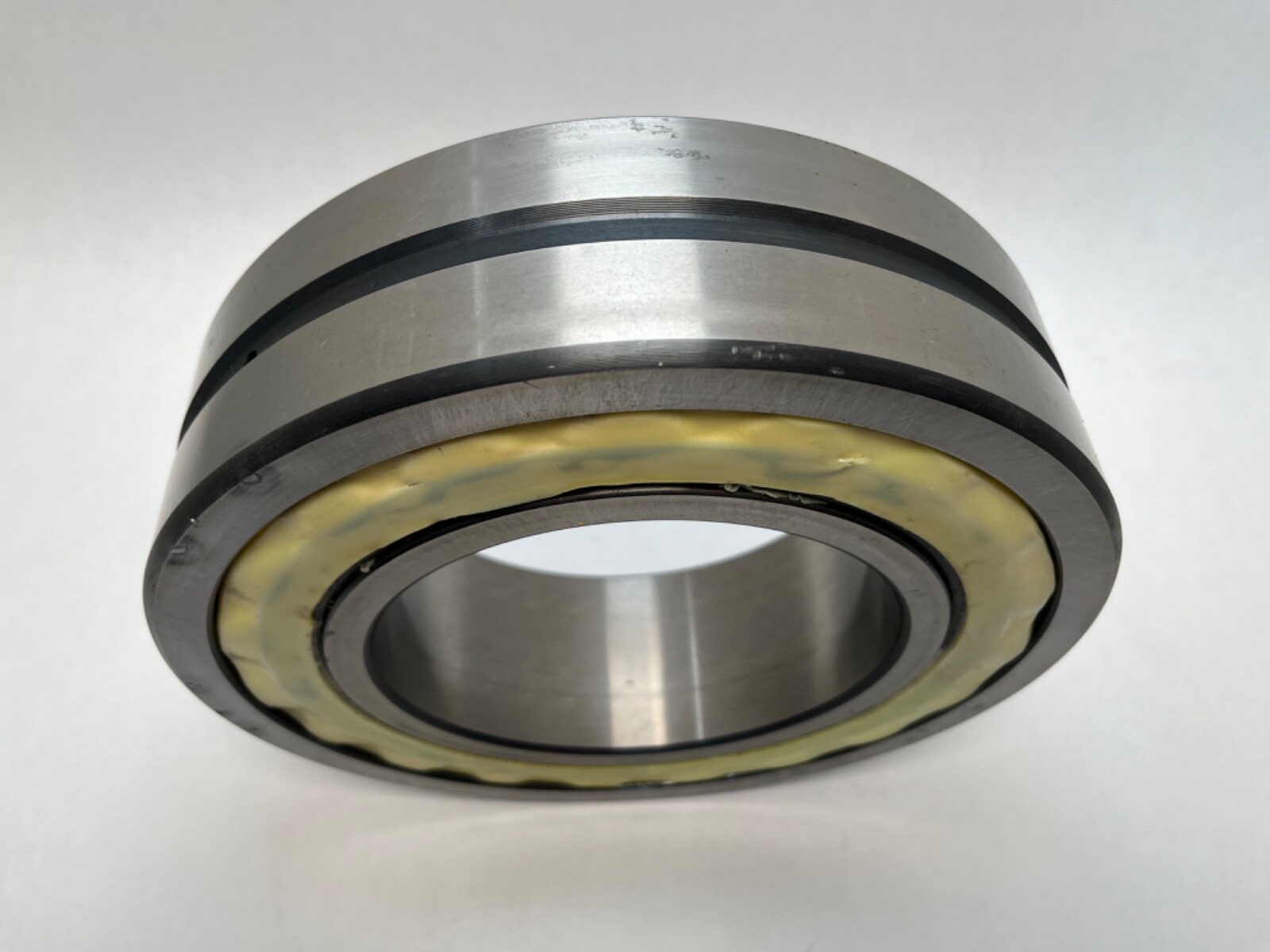

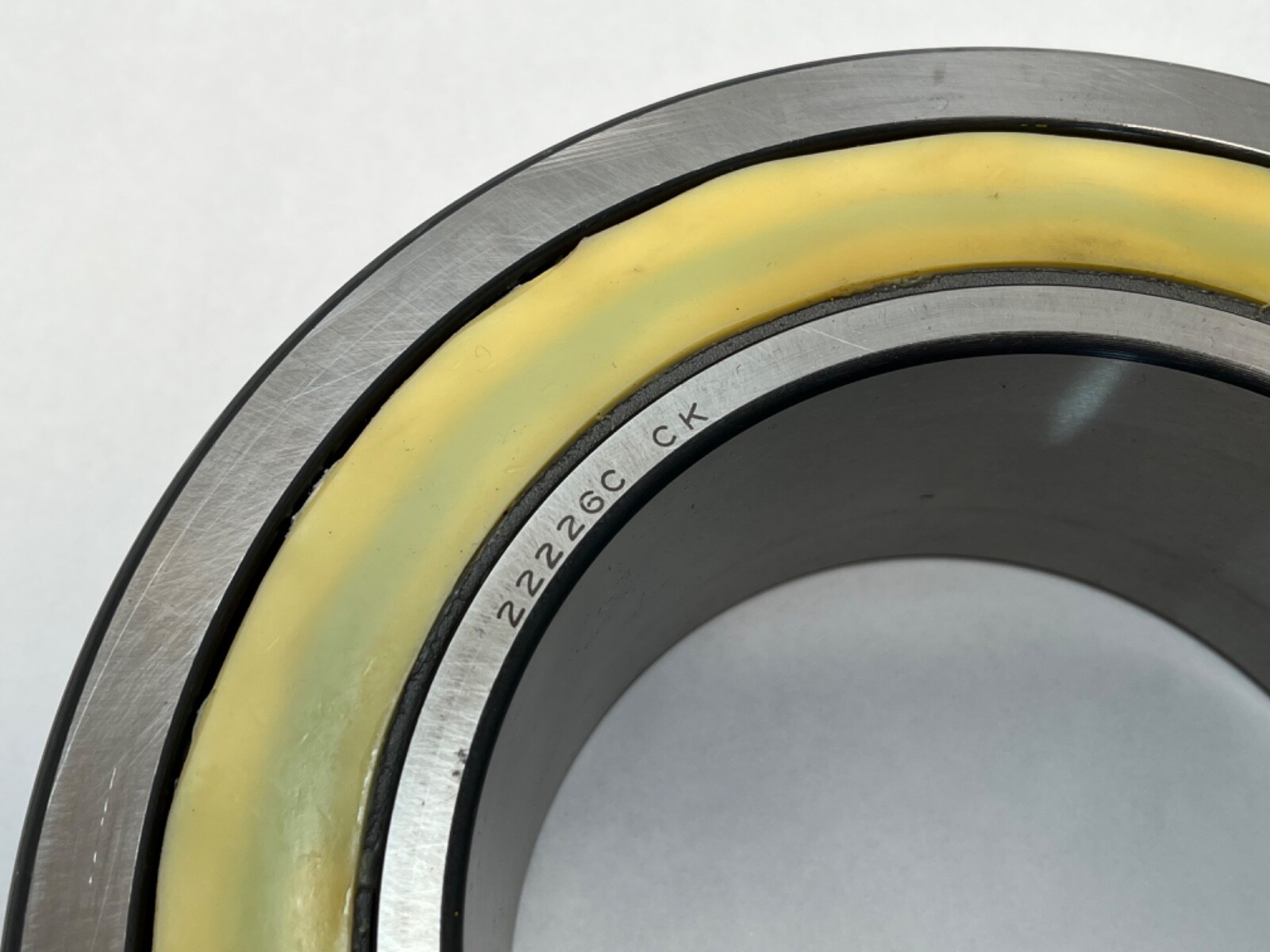

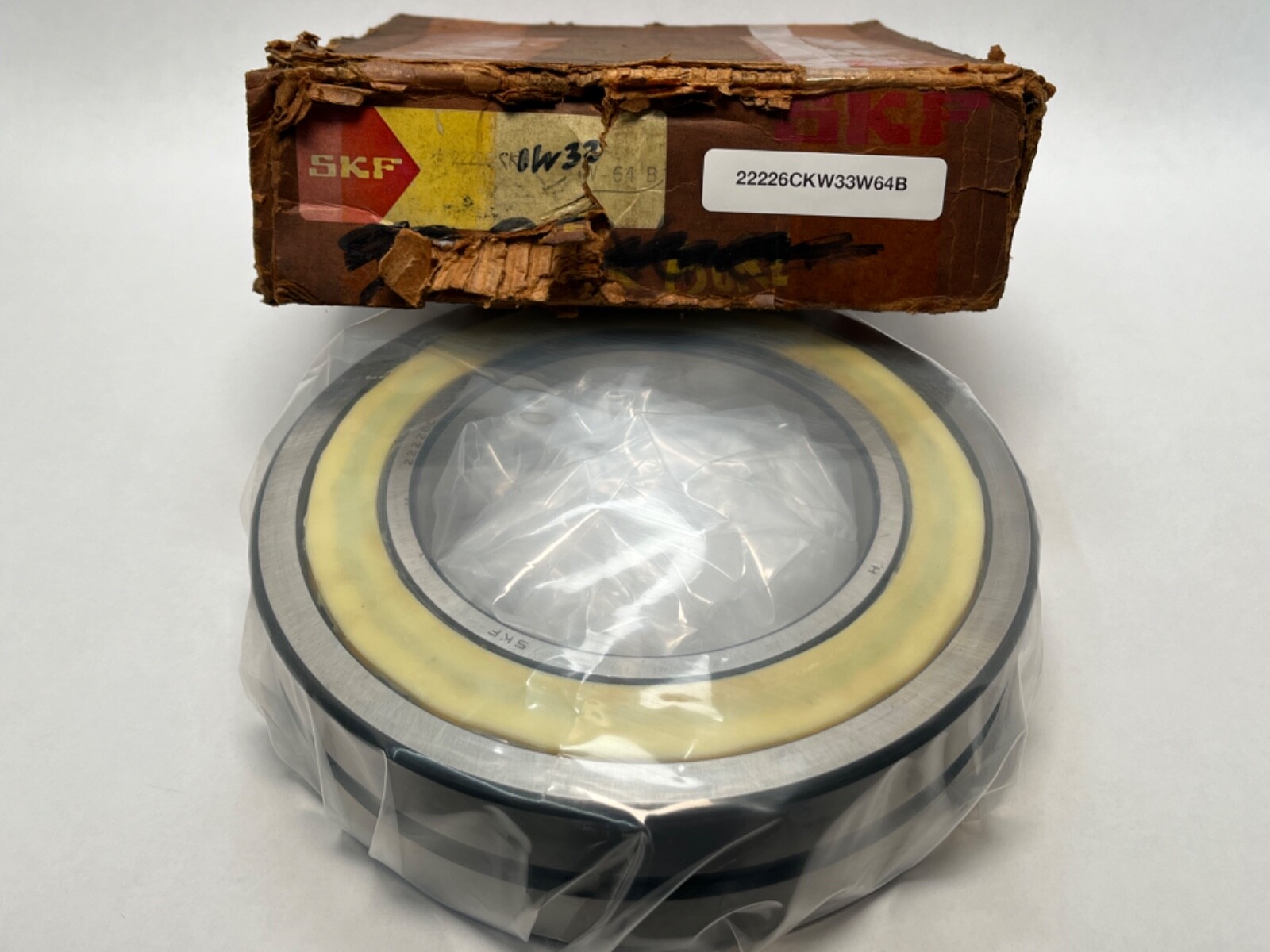

SKF 22226-CK-W33W64B is a double-row spherical roller bearing in SKF’s C design with a 1:12 tapered bore, a W33 relubrication groove and a Solid Oil fill. Bore Diameter: 130 mm. Outside Diameter: 230 mm. Width: 64 mm.
22226 — ISO 222 series spherical roller bearing, 130 mm bore.
C — SKF C internal design, symmetrical rollers.
K — tapered bore, taper 1:12.
W33 — lubrication groove and three lubrication holes in the outer ring.

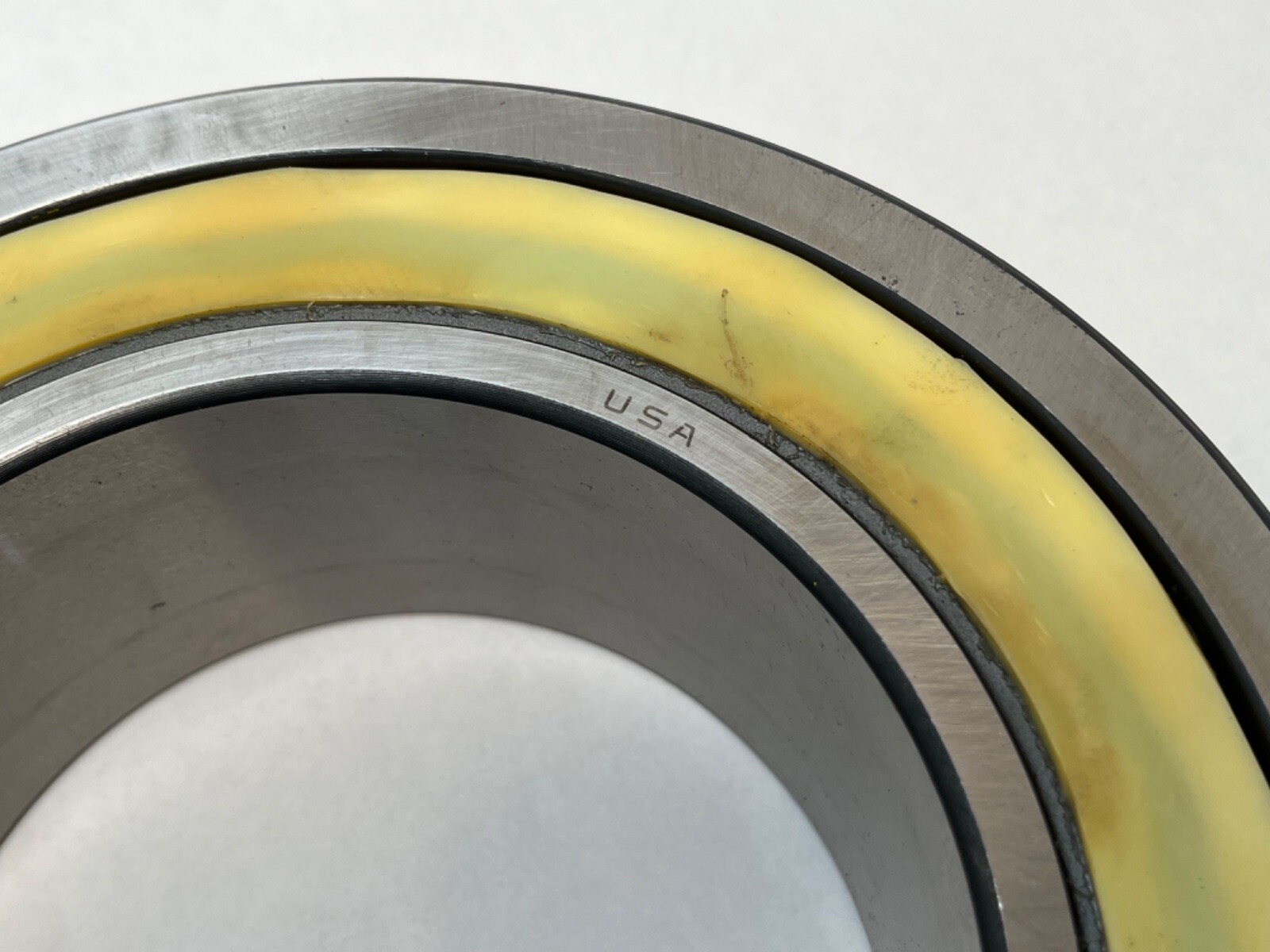

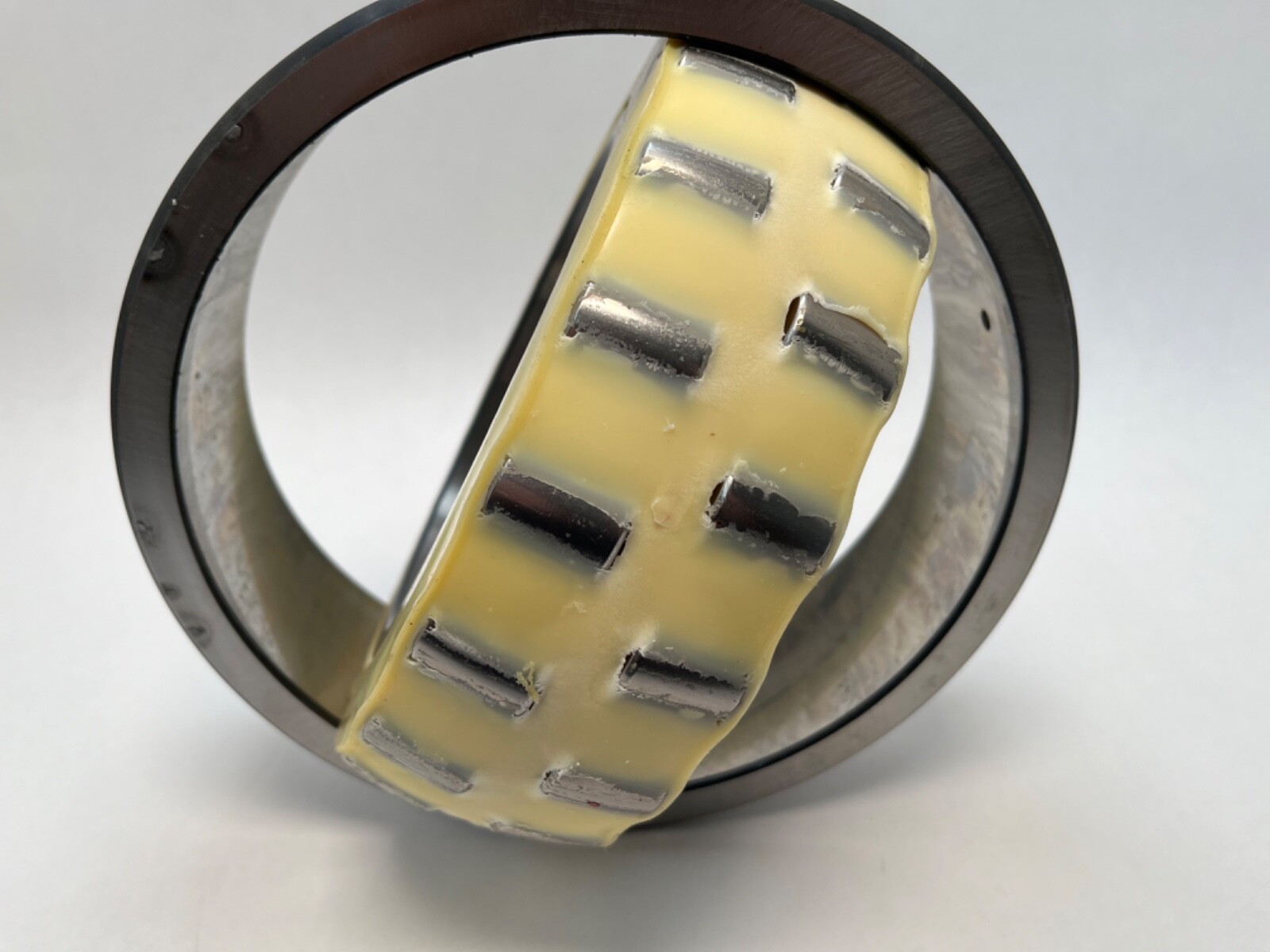

W64 — SKF Solid Oil: the free space is filled with an oil-saturated polymer matrix.
Bore Type: Tapered 1:12. Internal Clearance: CN. Lubricant: Solid Oil. Relubrication Feature: W33 groove with three lubrication holes. Solid Oil holds lubricant at the rolling contacts in wet or contaminated positions.

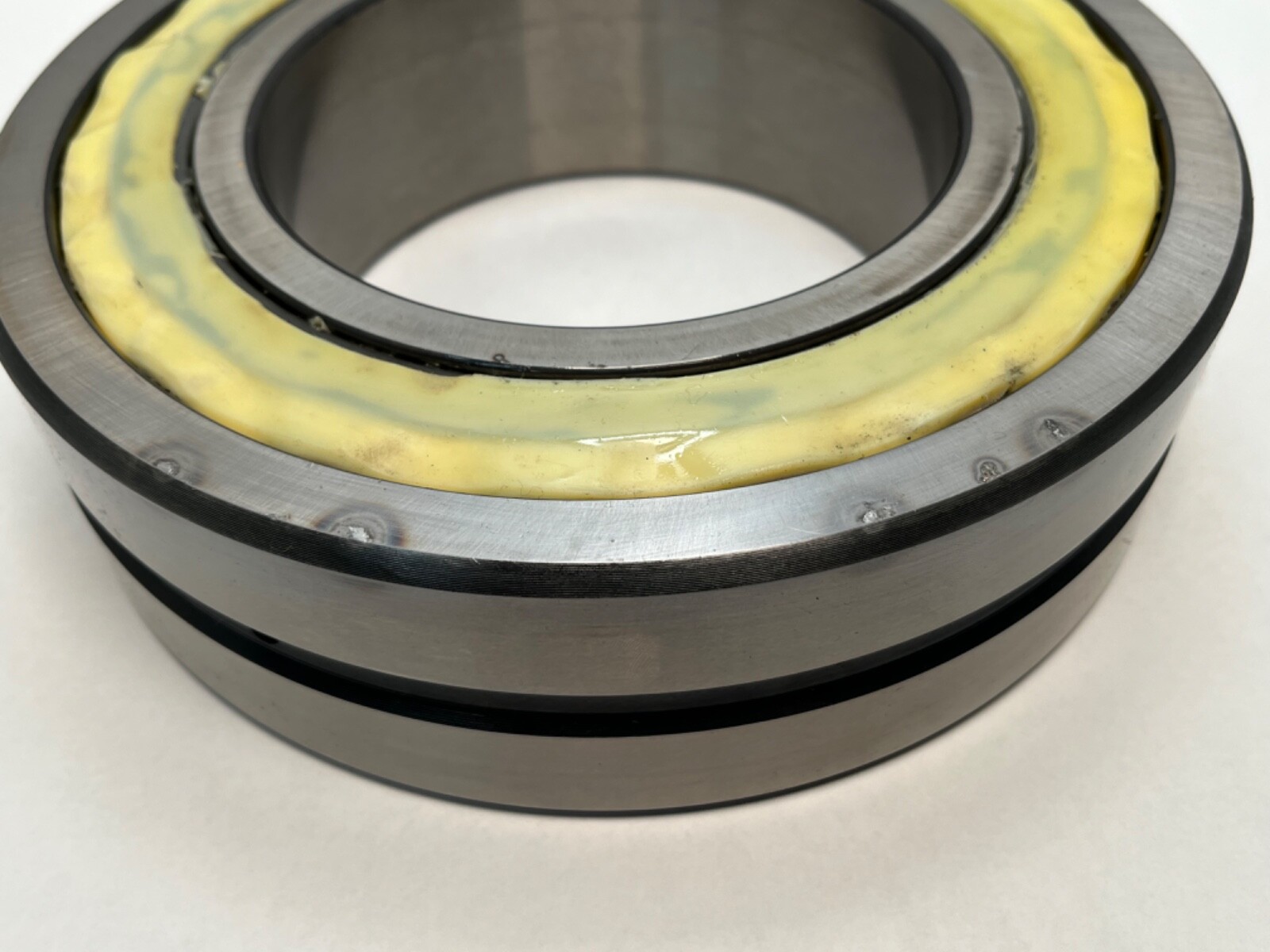

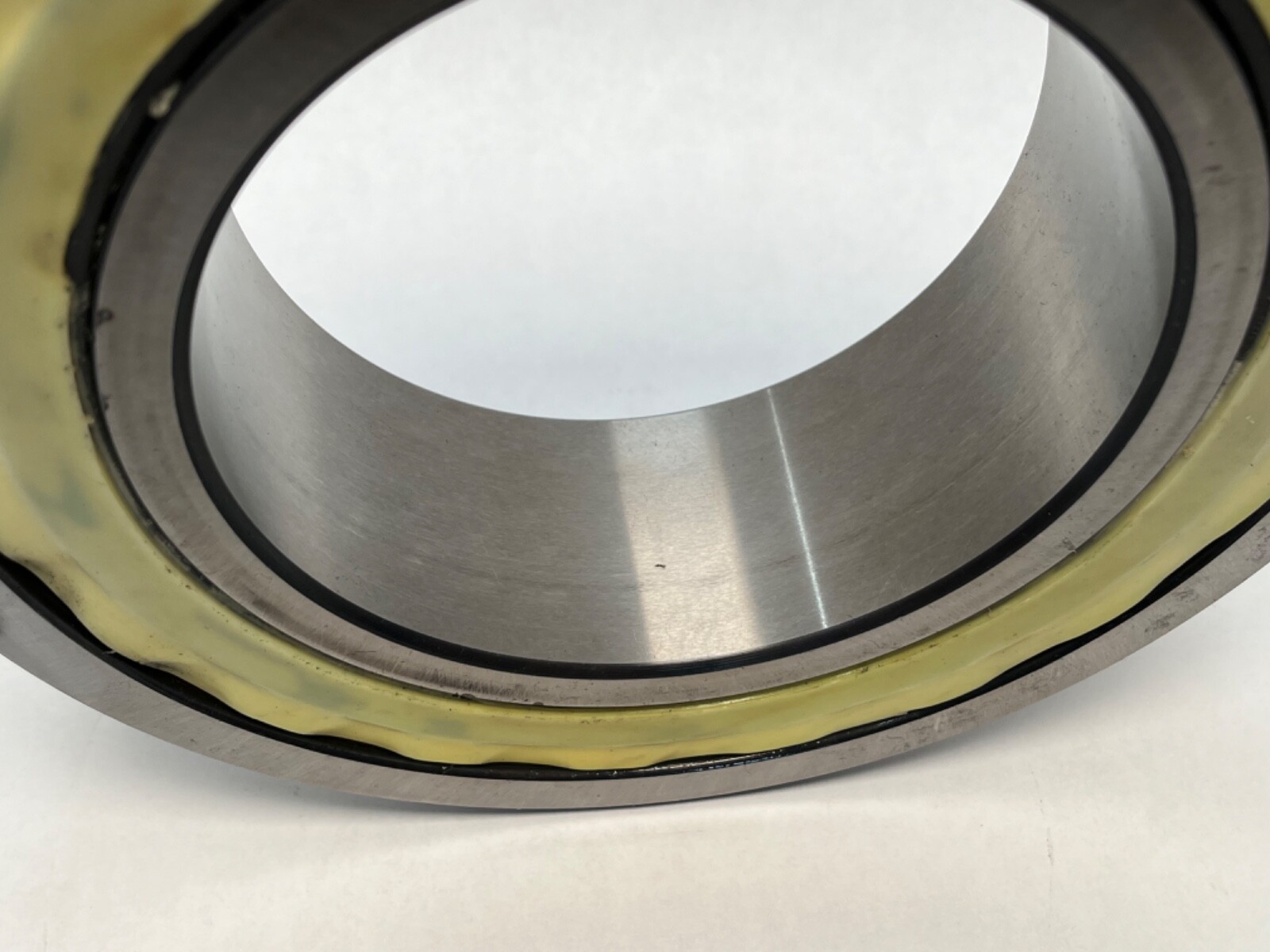

Unit Quantity: 1 Pc. Open bearing, no seals. Condition: seller refurbished take-out; bore measures 0.11 mm over nominal and the rings carry tack-weld marks from a previous mounting.
Cross-references, 130 x 230 x 64 mm, tapered bore, normal clearance: SKF 22226 EK, FAG 22226-E1-K, NSK 22226EAKE4, Timken 22226KEJW33, NTN 22226EAKD1. These are standard executions without the Solid Oil fill; load ratings differ between designs.
