Availability:
Out of stock
Double-row spherical roller bearing, 75 x 130 x 31 mm, straight bore, open, machined brass cage, CN clearance, axial capacity in both directions.
List Price
$76.49
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Spherical Roller Bearing 75 x 130 x 31 mm, Double Row, Straight Bore, W33 Lubrication Groove, Polyamide Cage$75.57
Spherical Roller Bearing - Straight Bore, 75 mm ID, 130 mm OD, 31 mm Width, Open, Machined Brass Cage, CN Clearance, AS Lubrication Groove$76.47
Spherical Roller Bearing - Straight Bore, 75 mm ID, 130 mm OD, 31 mm Width, Open, CN Internal clearance$68.78
Double-Row Spherical Roller Bearing, 75 x 130 x 31 mm, Straight Bore, Pressed Steel Cage, W33 Lubrication, Thermally Stabilised to 200 C$71.81| MFR / Brand | FAG |
|---|---|
| MPN | 22215M |
| Model | 22215 M |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 31 mm |
| Material | Bearing Steel |
|---|---|
| Relubrication | Through the housing; no W33 groove in the outer ring |
| Base Number | 22215 |
| Industry Terms | spherical roller bearing; self-aligning roller bearing; barrel roller double row; brass cage spherical roller; 22200 series bearing |
| Common Misspellings | 22215 M FAG; 2215M; 22215MB; FAG 22-215-M |
| Application Types | Vibrating screens; conveyor pulleys; fans and blowers; gearboxes; pumps and heavy shaft supports with misalignment |
| Bore Shaft Size | 75 mm |
| Mpn Variants | 22215M; 22215-M; 22215 M; 22215 |
| Arrangement Configuration | Self-aligning, axial capacity in both directions |
| Precision Class | P0 (normal, ABEC 1) |
| Min Temp | -40°C |
| Cage Type | Brass |
| Dynamic Load Rating | 216 kN |
| Static Load Rating | 240 kN |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Spherical Rollers |
| Max Temp | 200°C |
| Item Weight | 3.42 lbs |
| Cage Material | Brass |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Relubrication Feature | Yes |
| Design Units | Metric |
| Internal Clearance | CN |
| Part Number | 22215M |
| Limiting Speed | 5600 rpm |
| Cross Reference 1 | SKF 22215 E |
|---|---|
| Cross Reference 2 | NTN 22215EMD1 |
| Cross Reference 3 | NSK 22215EAE4 |
| Cross Reference 4 | Timken 22215EJW33 (related size, W33 lubrication groove) |

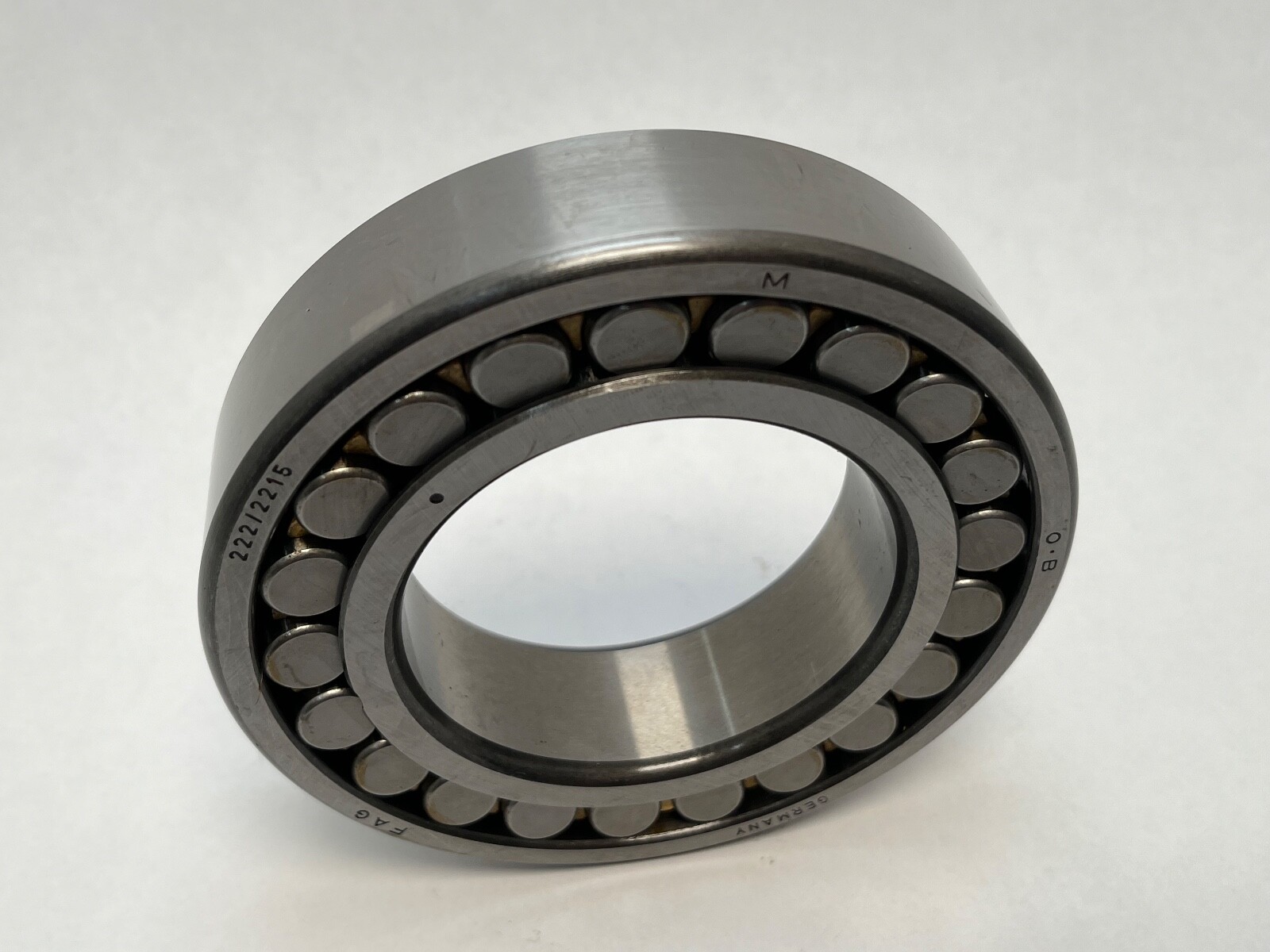

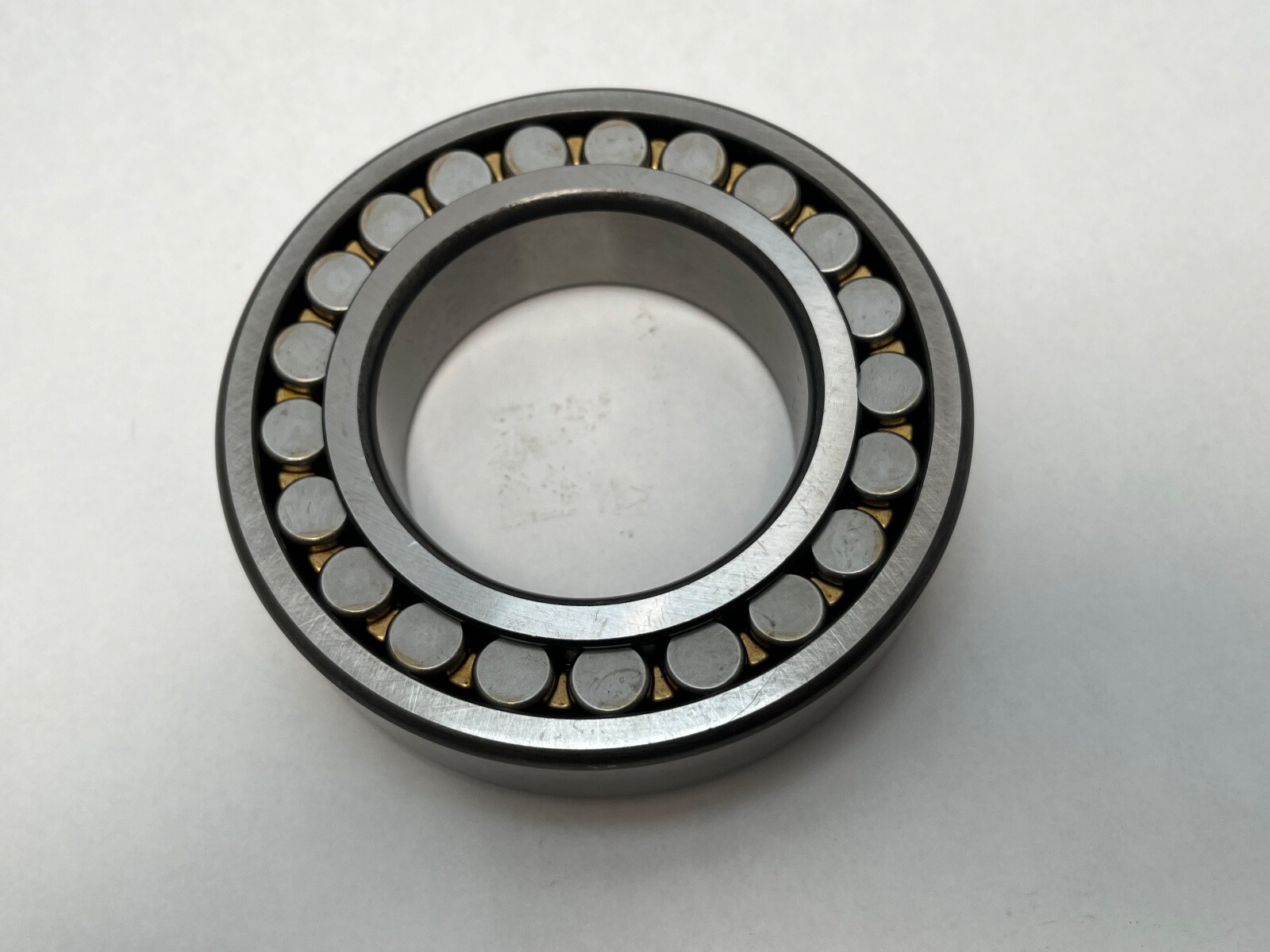

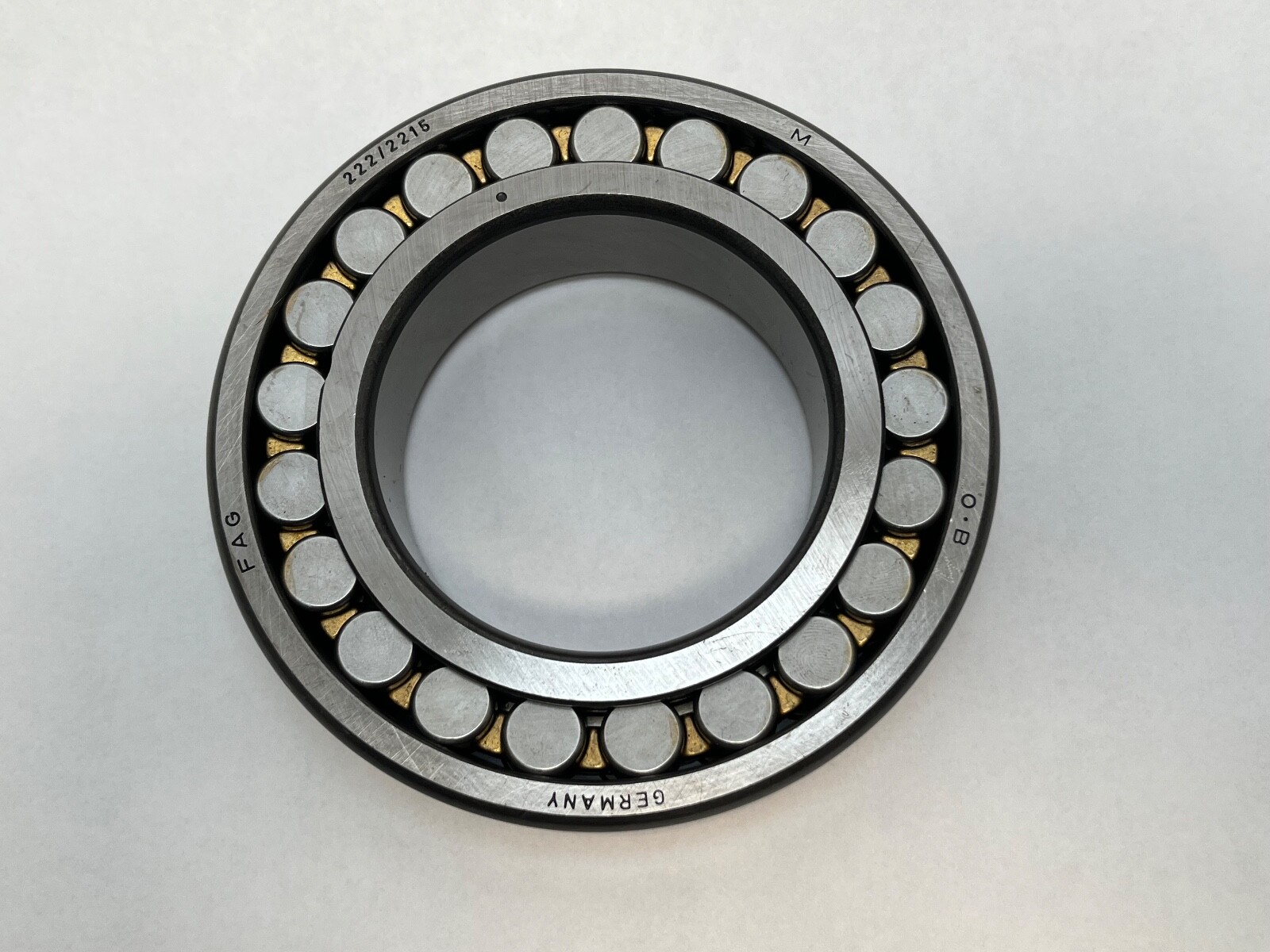

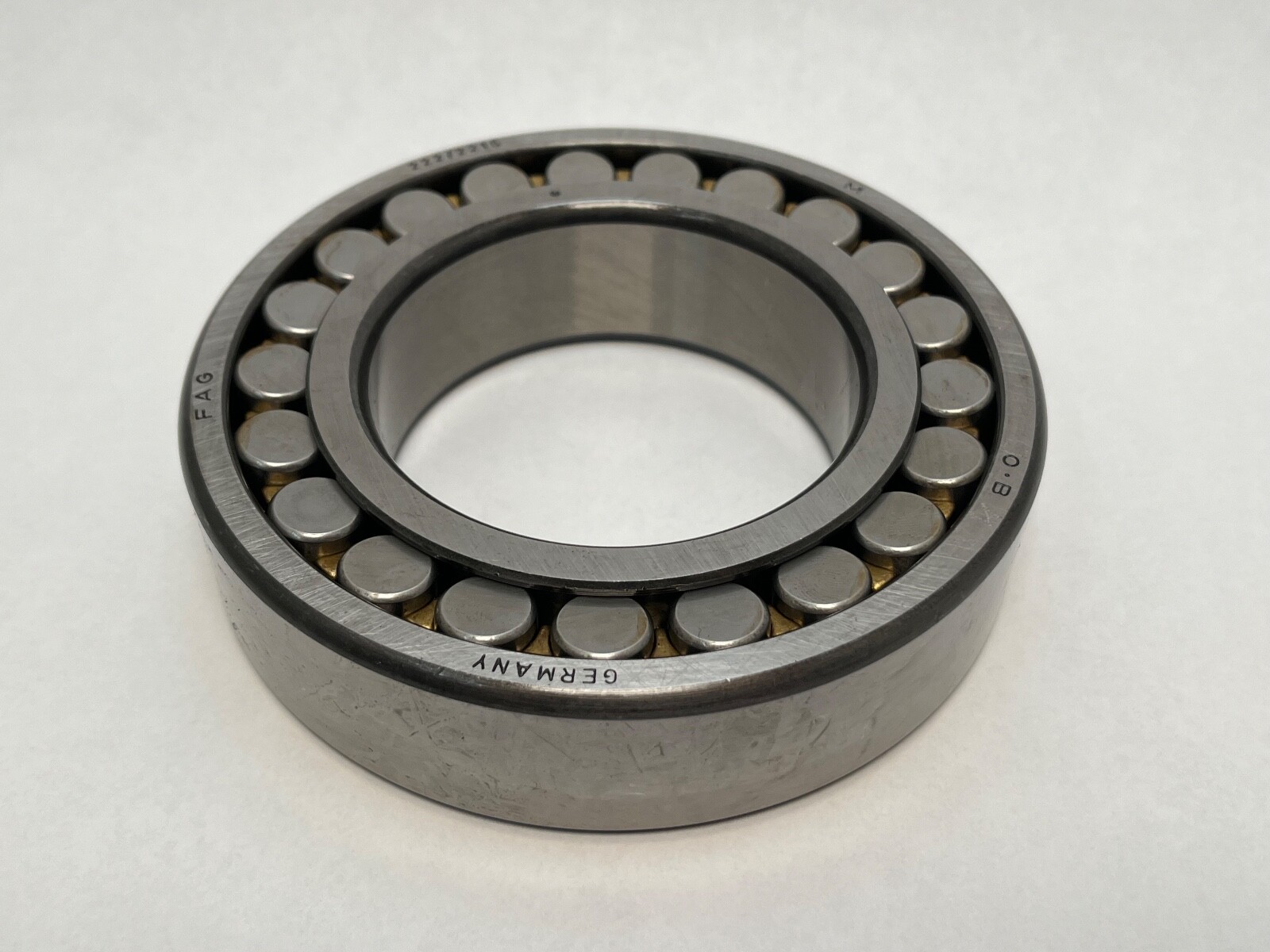

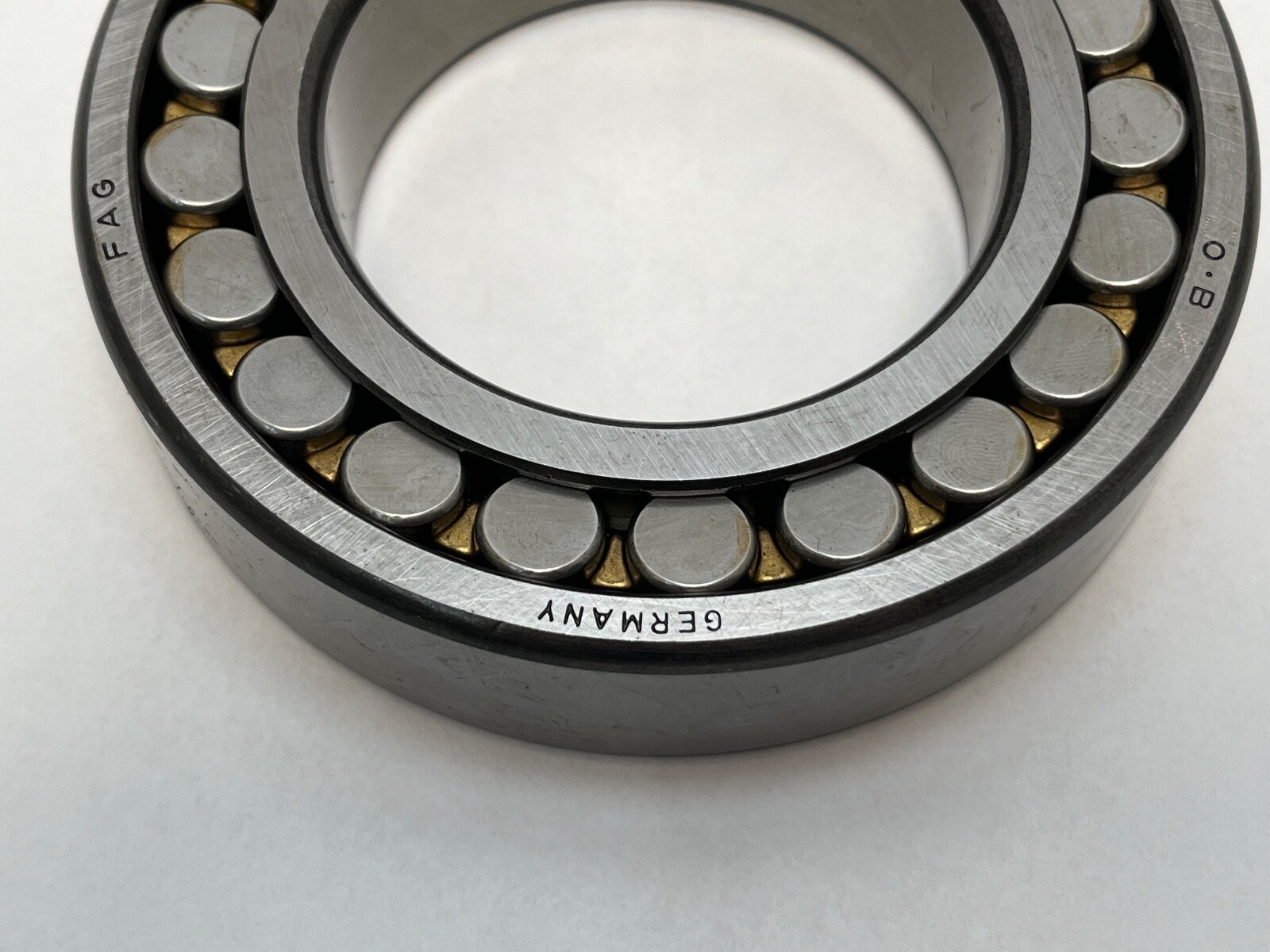

A FAG 22215M double-row spherical roller bearing, 75 mm bore, 130 mm outside diameter, 31 mm width. Straight cylindrical bore, open, machined brass cage, normal precision class, CN internal clearance.

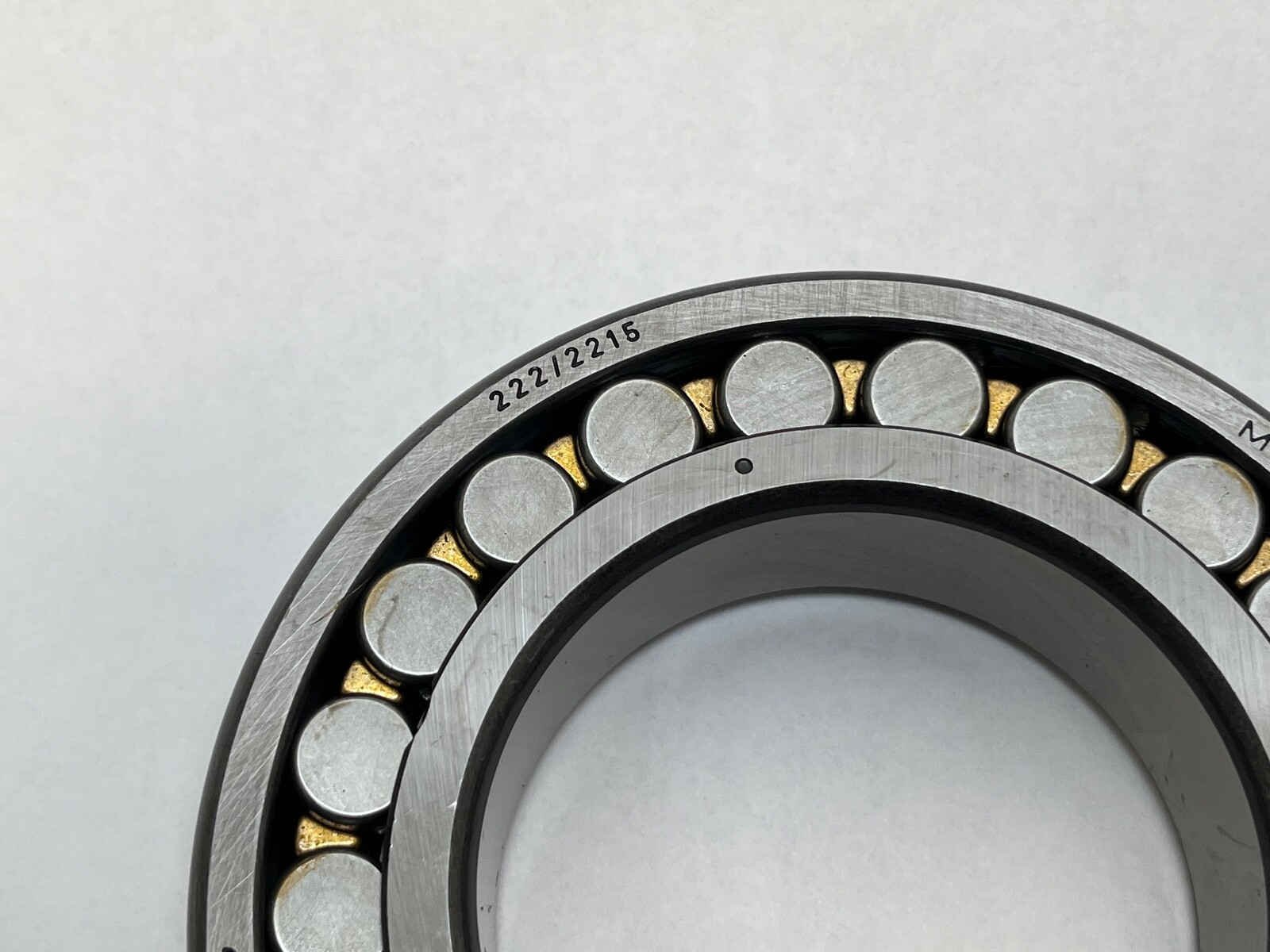

222 identifies the double-row spherical roller bearing in the 22 dimension series, the wider of the two common spherical roller series. The bore code 15 gives 75 mm. M is the machined brass cage. There is no K in the designation, so the bore is straight and the bearing mounts directly on the shaft rather than on an adapter sleeve. There is no W33, so the outer ring has no lubrication groove or feed holes.

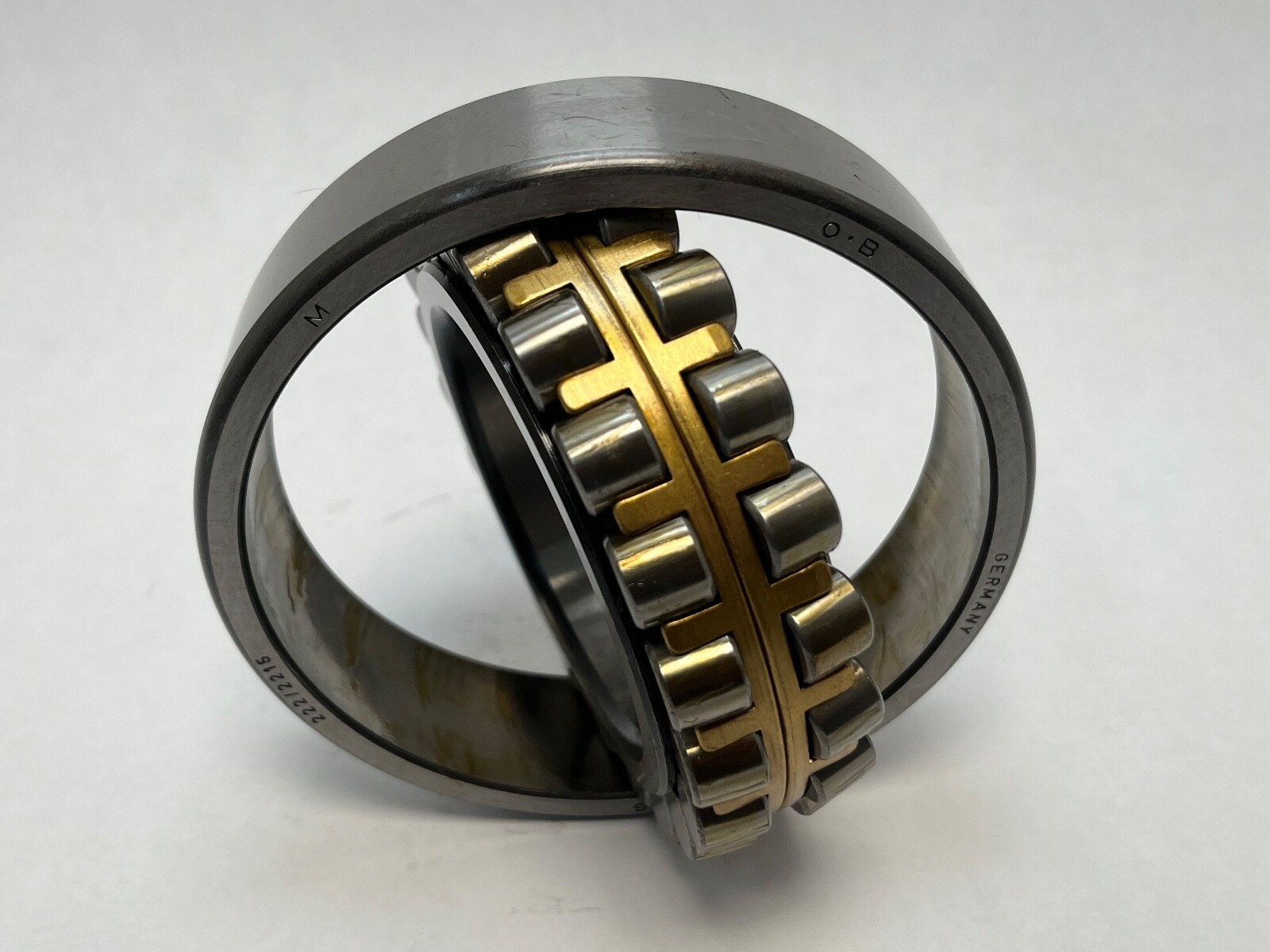

The two rows of barrel rollers run on a common spherical outer raceway, so the inner ring and roller set swivel within the outer ring and the bearing accommodates shaft misalignment and housing deflection while carrying very heavy radial load. A double-row spherical roller bearing takes thrust in both directions. The machined brass cage tolerates higher temperature and heavier shock than a pressed steel cage and is the usual choice for oil-lubricated and vibrating-screen duty.

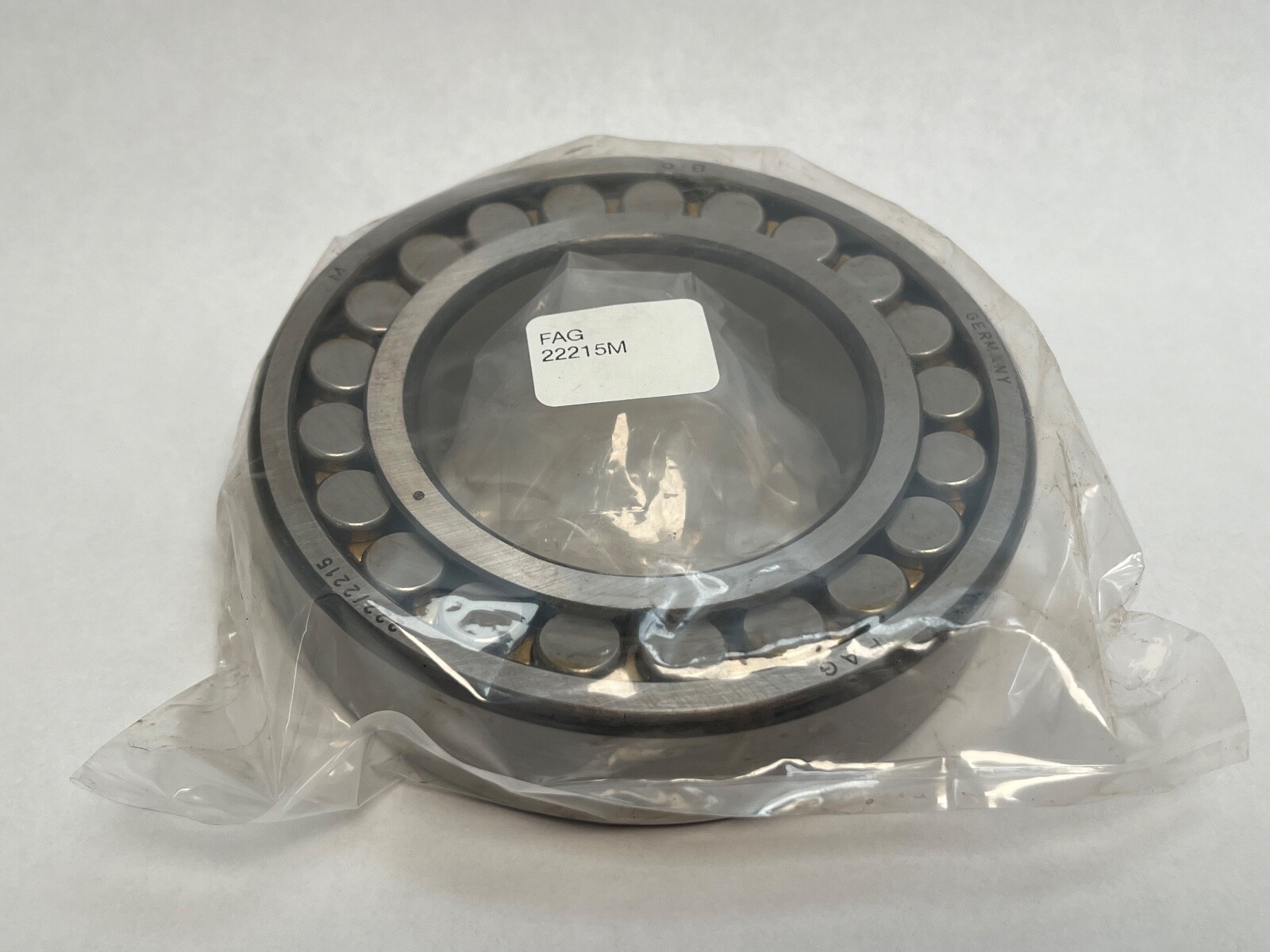

1 Pc. Complete bearing: outer ring, two roller rows, cage and inner ring. Open both faces, without snap ring.
The straight bore takes an interference fit directly on a cylindrical shaft seat, with induction or oil-bath heating for mounting. Relubrication is through the housing, since the outer ring carries no lubrication groove.
SKF 22215 E and NTN 22215EMD1 are same-envelope equivalents in the reinforced design. FAG 22215K is a related size with a 1:12 tapered bore that mounts on an H315 adapter sleeve; FAG 22215M.W33 is a related size with a lubrication groove and three feed holes in the outer ring.
$67.31
10 in stock
