NSK22215CDSpherical Roller Bearing – Straight Bore, 75 mm ID, 130 mm OD, 31 mm Width, Open, CN Internal clearance

Product Description

What this part is

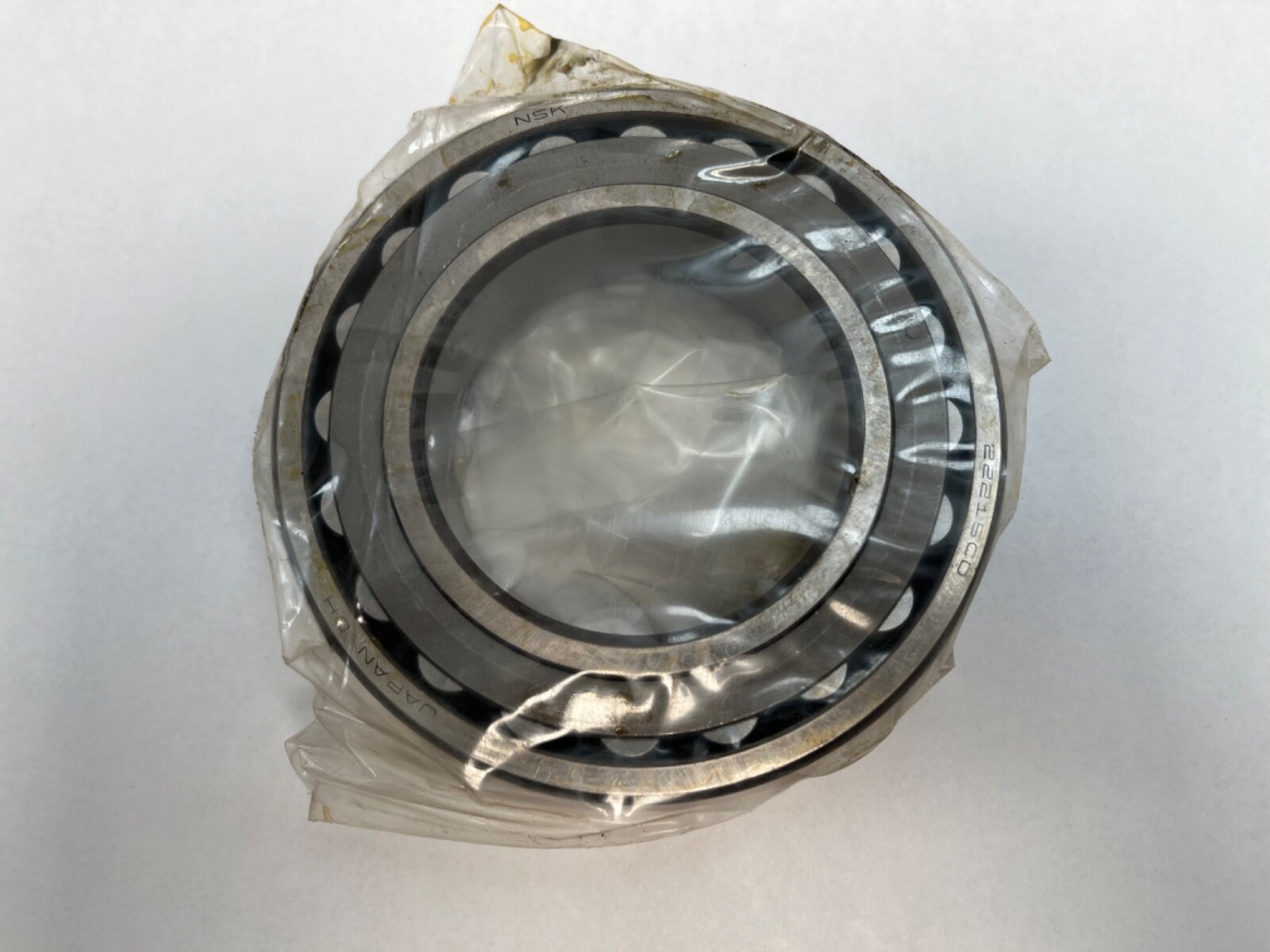

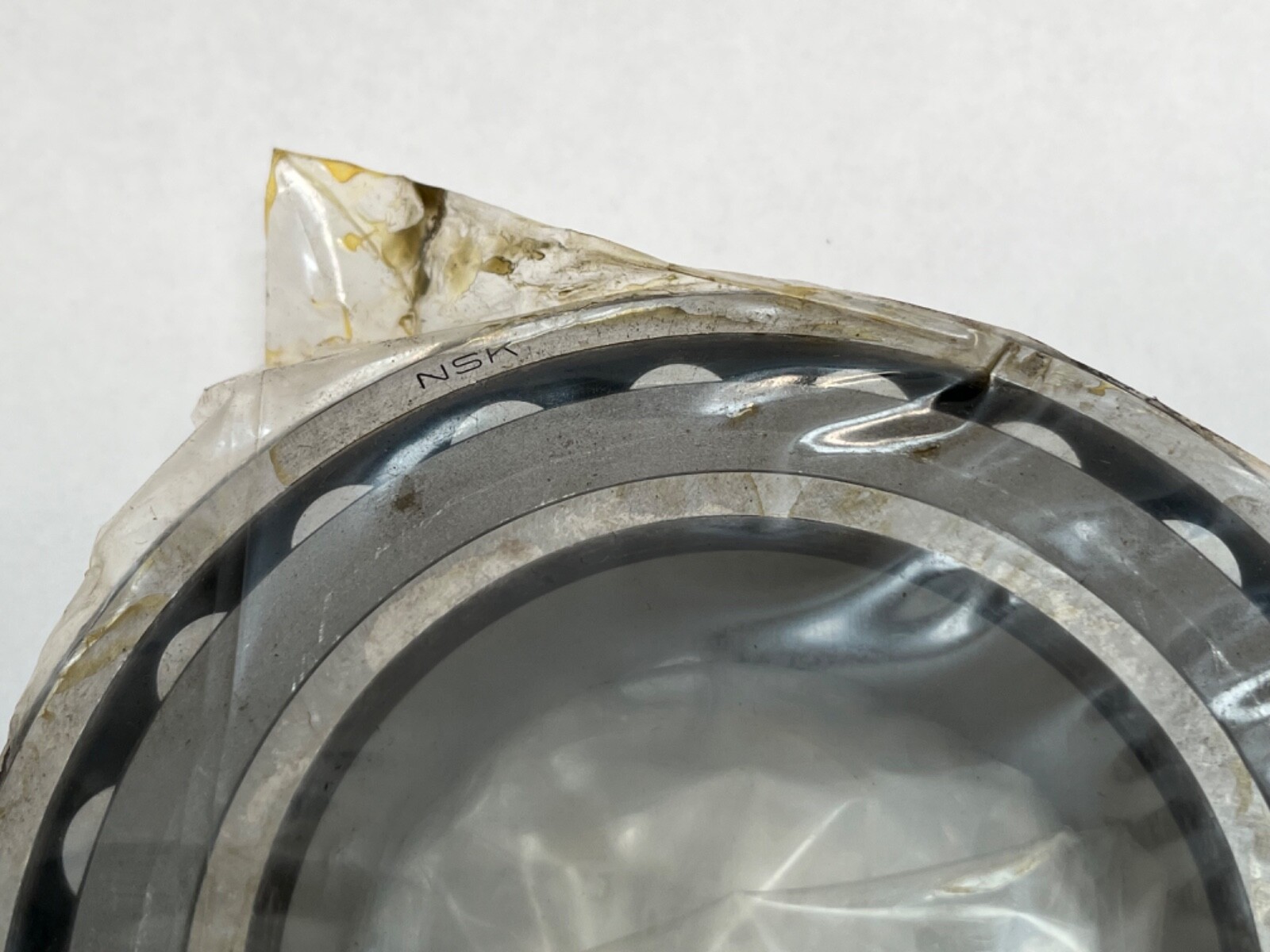

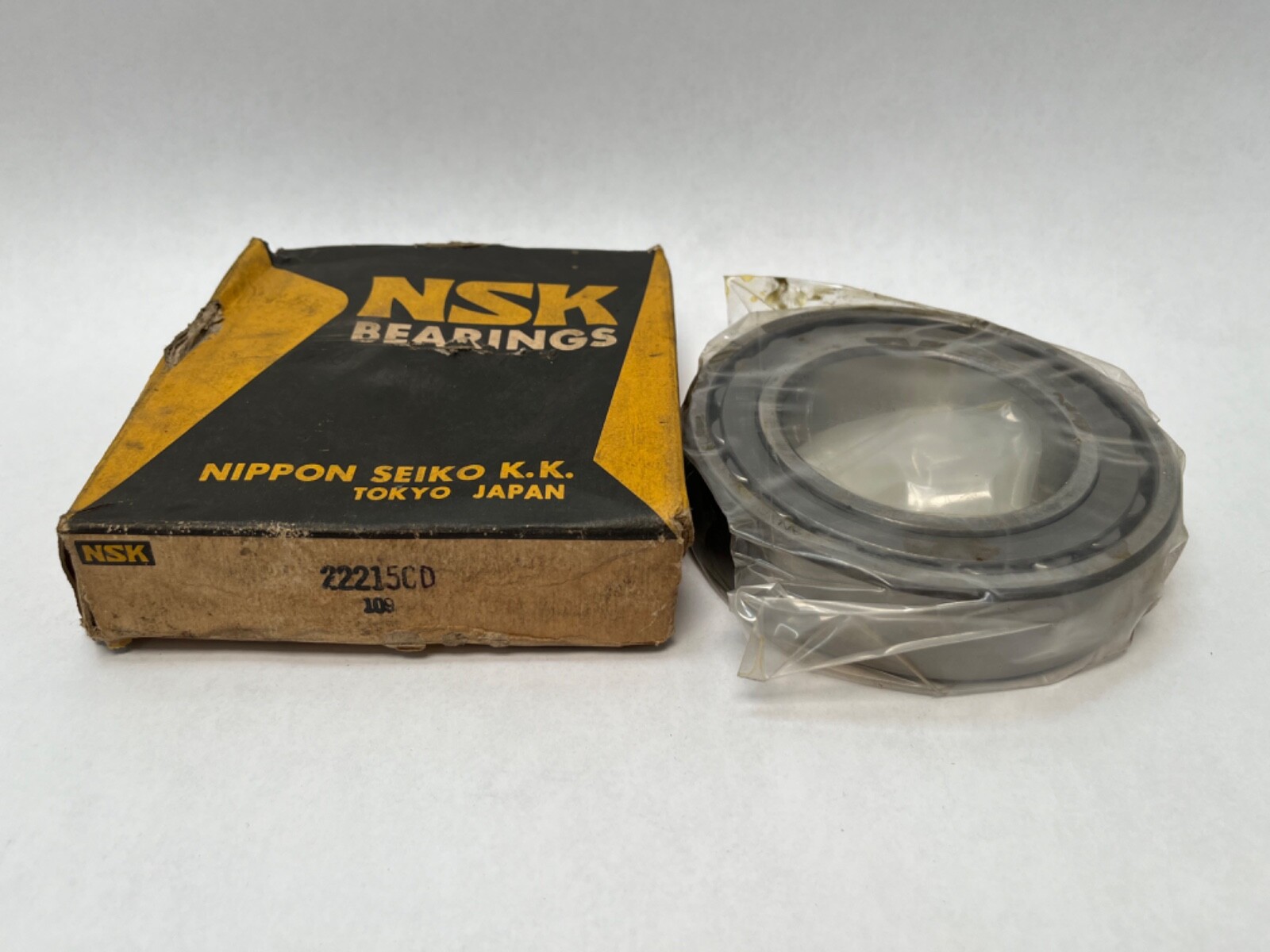

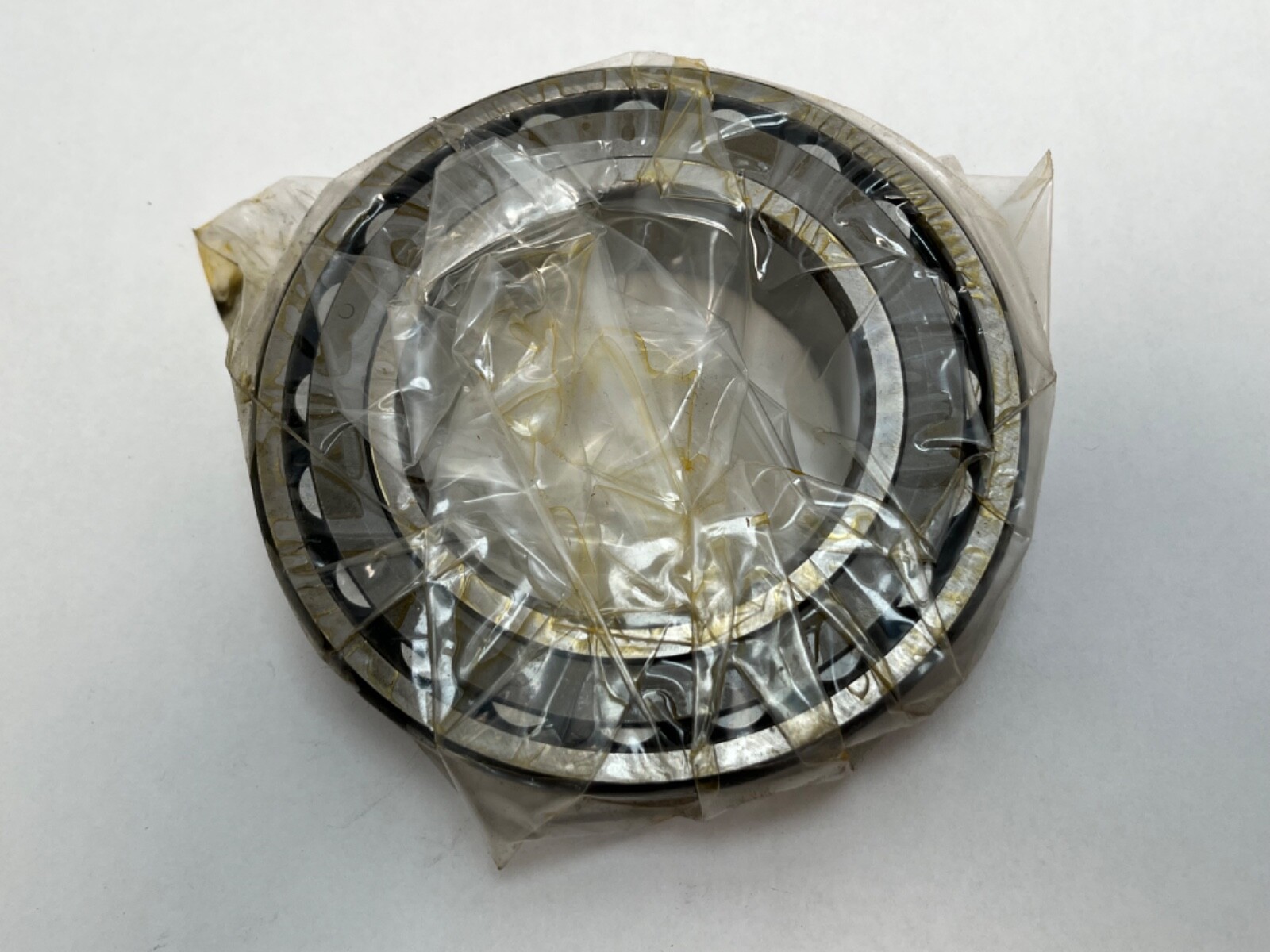

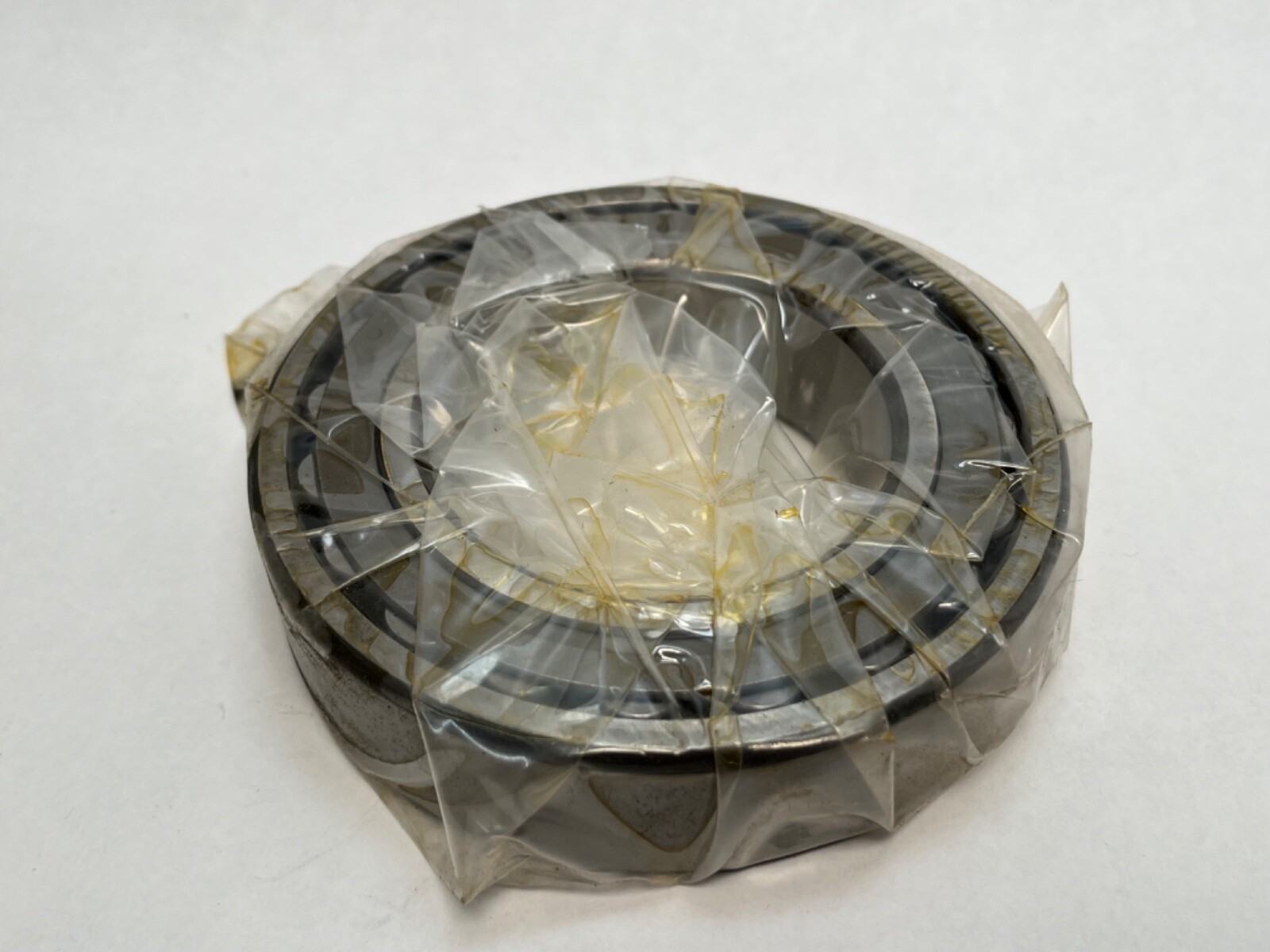

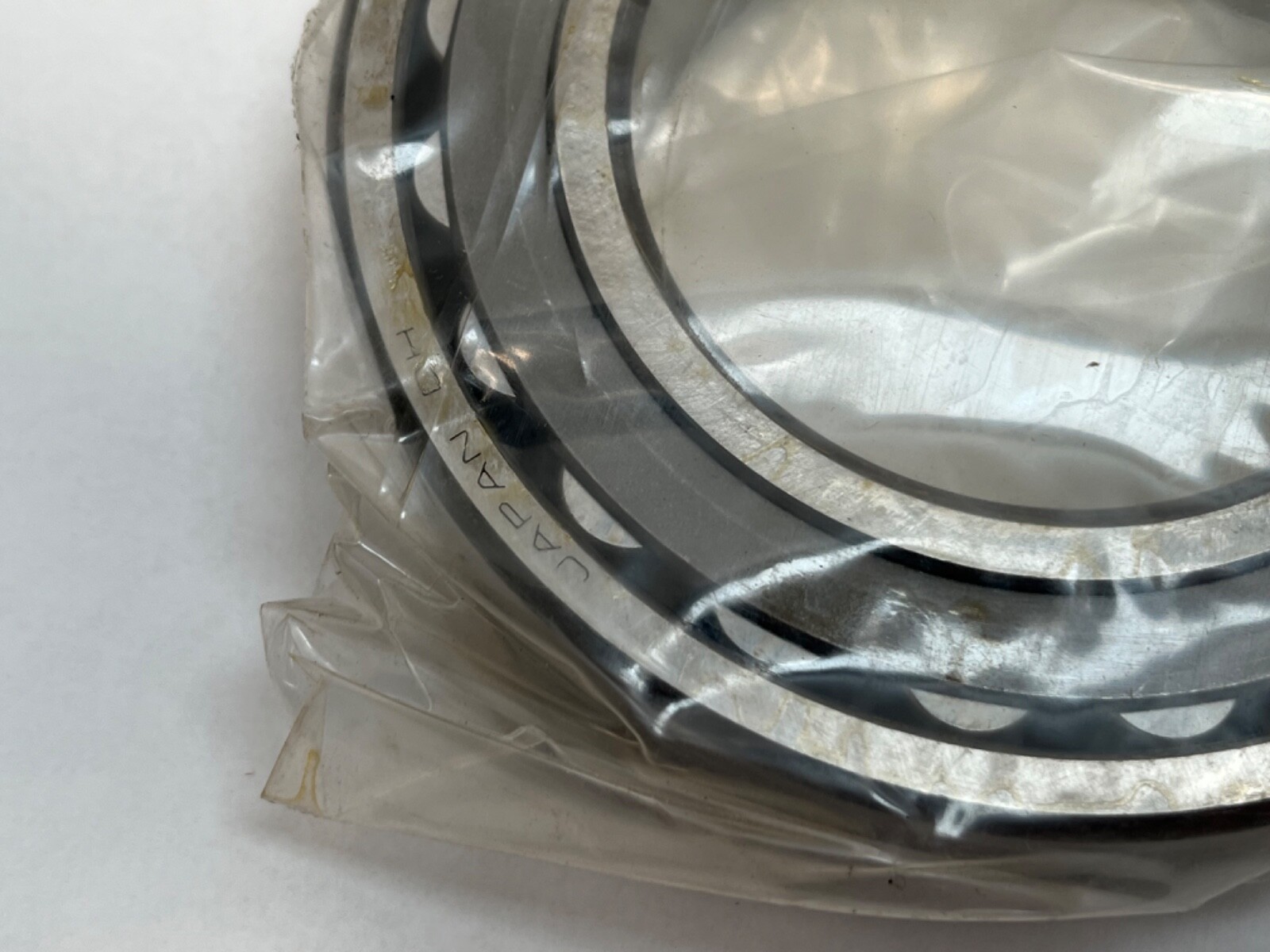

NSK 22215CD double-row spherical roller bearing. Brand: NSK. Manufacturer Part Number: 22215CD. Bearing Type: Spherical roller bearing. Series: 22200. Bore: 75 mm. Outside Diameter: 130 mm. Overall Width: 31 mm. Bore Type: Straight, cylindrical. Closure Type: Open. Number Of Rows: 2. Rolling Elements: Spherical rollers. Country of Origin: Japan.

Decoding the designation

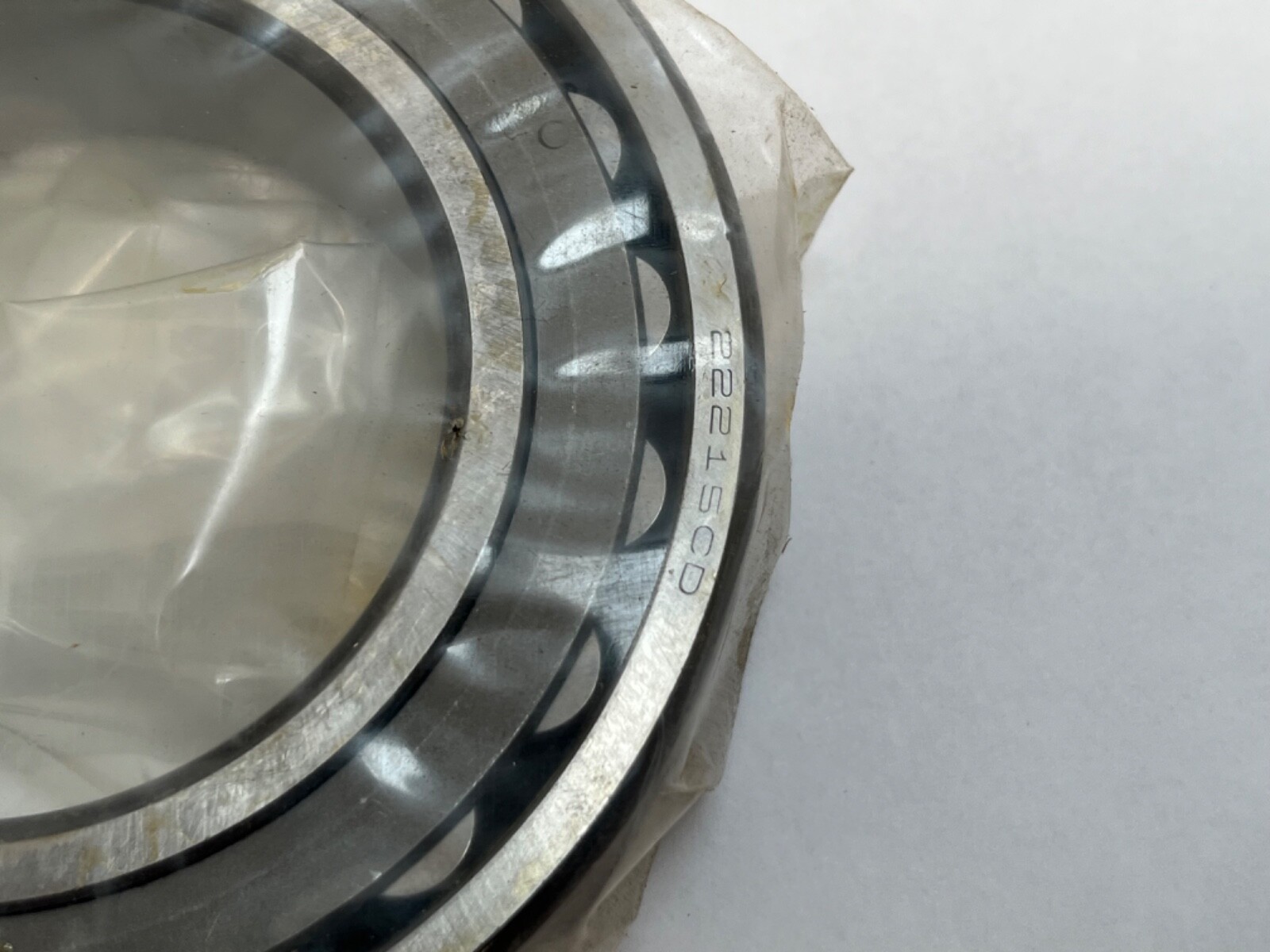

Cage Material: Pressed steel. Cage Type: Pressed, with a floating guide ring. Internal Clearance: CN. Precision Class: ABEC 1 / P0. Maximum Permissible Misalignment: 1.5°. Searchable designation variants: 22215CD, 22215-CD, 22215C, 22215CC, 22215CJ, 22215CCJ, 22215.

What these specs mean in practice

Two rows of barrel rollers run on a common spherical outer raceway, so the inner ring and roller set swivel inside the outer ring: the bearing absorbs Maximum Permissible Misalignment of 1.5° between shaft and housing without loading the roller ends. Thrust is carried in both directions. The bore is cylindrical, so the bearing mounts straight onto a ground shaft seat. Internal Clearance: CN, the normal class, which suits an interference fit on the shaft with a standard housing fit.

Material and construction

Bearing Material: Chrome steel. Cage Material: Pressed steel, with a floating guide ring between the two roller rows. Closure Type: Open on both faces.

Quantity and configuration

Unit Quantity: 1 Pc. One complete double-row bearing: inner ring, both roller rows, cages, guide ring and outer ring.

Interchange guidance

Cross-Reference 1: SKF 22215 E. Cross-Reference 2: FAG 22215-E1-XL. Both share the 75 x 130 x 31 mm envelope and the cylindrical bore. A 22215K carries a 1:12 tapered bore and mounts on an adapter sleeve instead of directly on the shaft, so it is a related size rather than a substitution.
