Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
5 in stock
Double-row spherical roller bearing, 75 mm bore, 130 mm OD, 31 mm wide, C3 clearance with W33 lubrication groove. Cylindrical bore, open. Successor: Timken 22215EJW33C3.
List Price
$76.48
5 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Torrington |
|---|---|
| MPN | 22215VJW33C3 |
| Model | 22215VJW33C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 31 mm |
| Series | 22200 |
|---|---|
| Lubricant | grease or oil |
| Relubrication | W33 groove and three holes in outer ring |
| Base Number | 22215 |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, double row spherical |
| Common Misspellings | 22215VJW33 C3, 22215 W33 C3, 22215VJC3W33 |
| Application Types | gearboxes, fans, pumps, conveyors, vibrating screens |
| Overall Width | 31 mm |
| Mpn Variants | 22215VJW33C3, 22215-VJ-W33-C3, 22215 VJ CJ W33 C3 |
| Compatible With Replaces | Successor: Timken 22215EJW33C3 |
| Additional Attributes | Successor 22215EJW33C3 data: Thermal Reference Speed Grease: 3,800 rpm; Thermal Reference Speed Oil: 4,600 rpm; Cage: 2-piece steel, window type; e Factor: 0.22; Y0: 3.07; Y (Fa/Fre): 4.67; Geometry Factor Cg: 0.0547; Shaft Backing Shoulder Dia: 88.0 mm; Housing Backing Shoulder Dia: 120.0 mm; Max Fillet Radius: 1.5 mm |
| Dynamic Load Rating | Successor 22215EJW33C3: 222,000 N |
| Static Load Rating | Successor 22215EJW33C3: 240,000 N |
| Rolling Elements | Spherical Rollers |
| Number Of Rows | 2 |
| Bore Type | Cylindrical |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Harmonization Code | 8482.30.00 |
| Design Units | Metric |
| Cross Reference 1 | Timken 22215EJW33C3 (current successor; W33, C3) |
|---|---|
| Cross Reference 2 | SKF 22215 E/C3 (E design; no W33 groove in code) |
| Cross Reference 3 | FAG 22215-E1-C3 (E1 design; no W33 groove in code) |
| Cross Reference 4 | NSK 22215EAE4C3 (E design; no W33 groove in code) |
| Cross Reference 5 | NTN 22215EAW33C3 (E design; W33 groove, C3) |

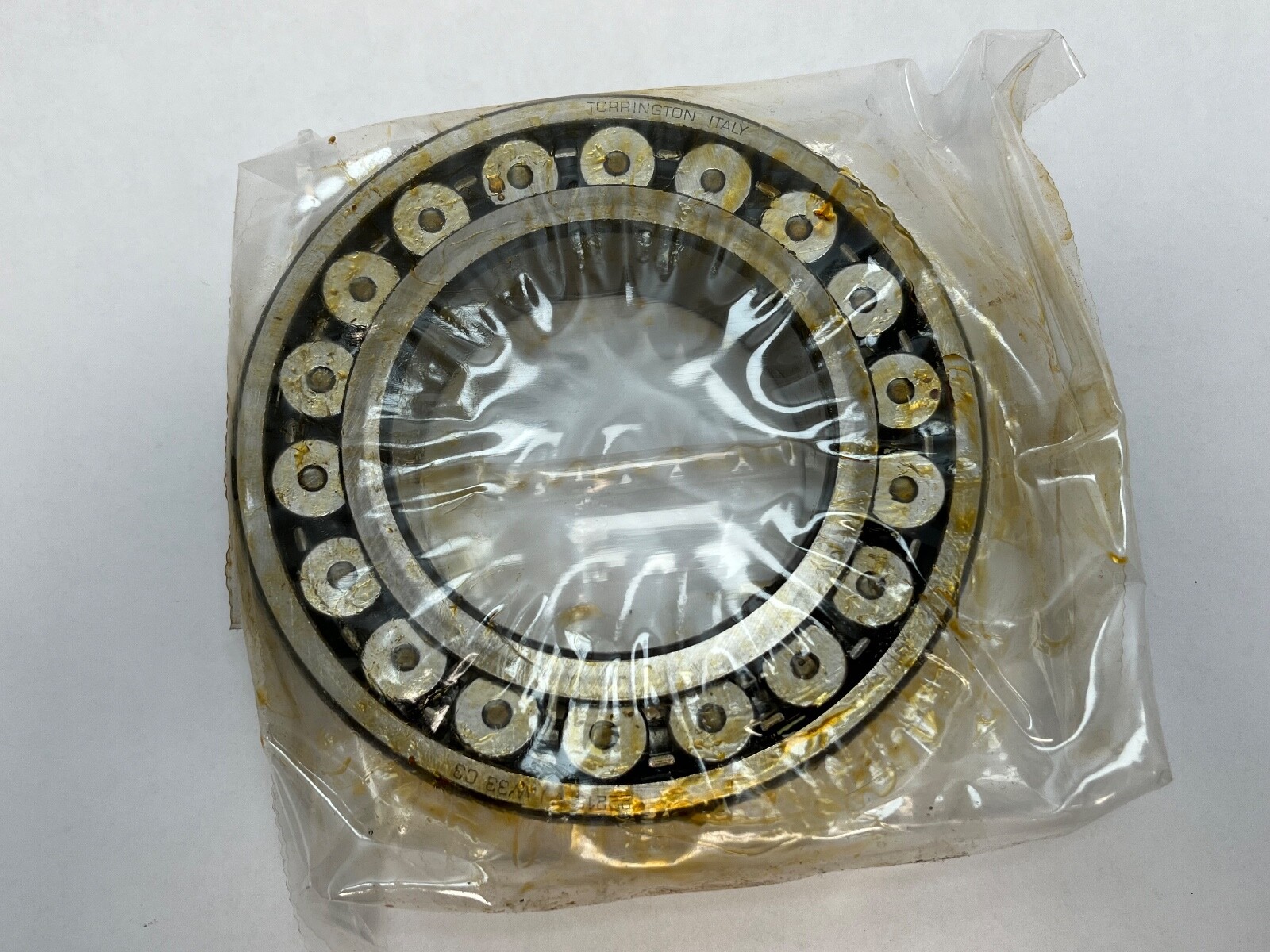

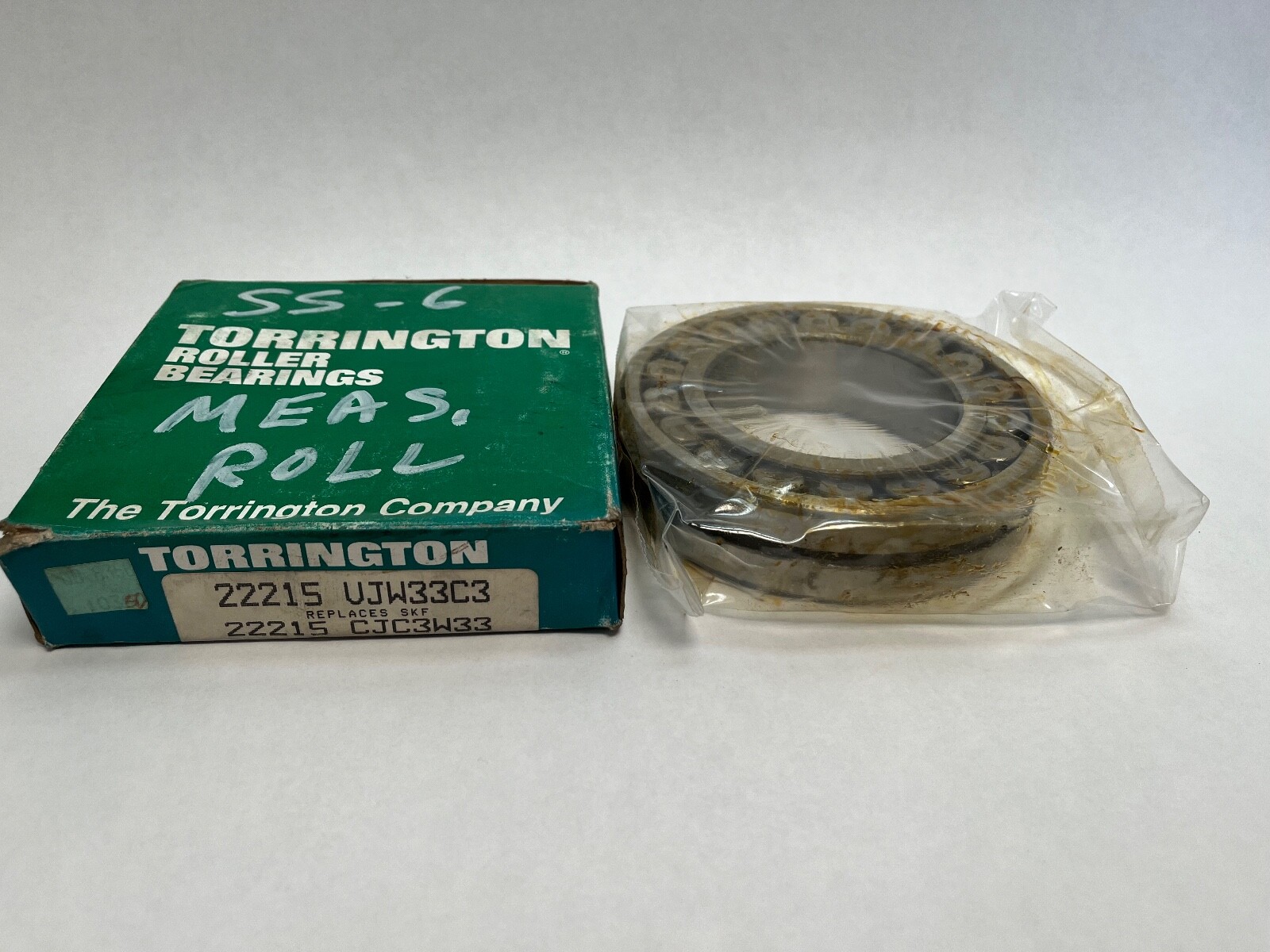

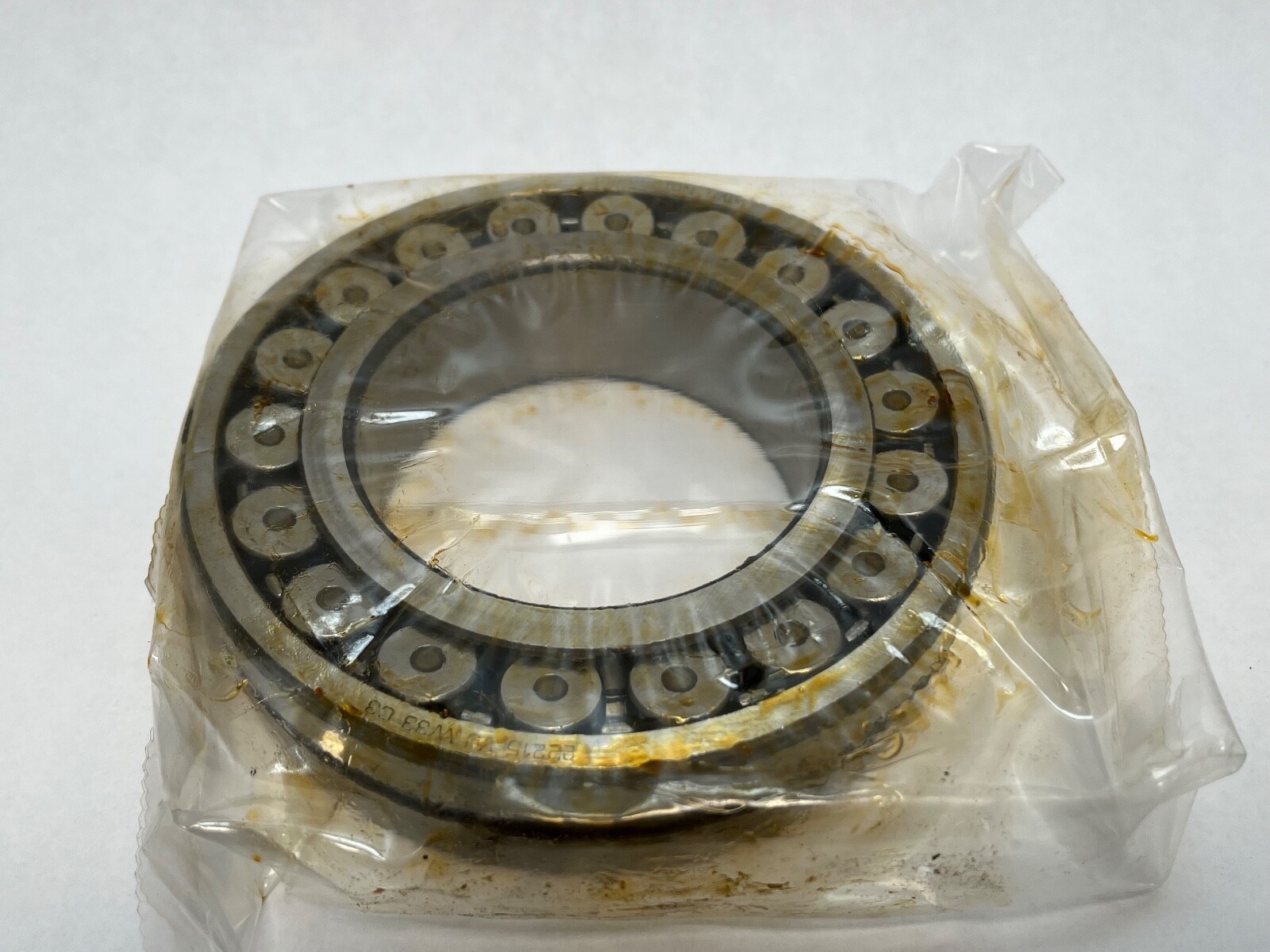

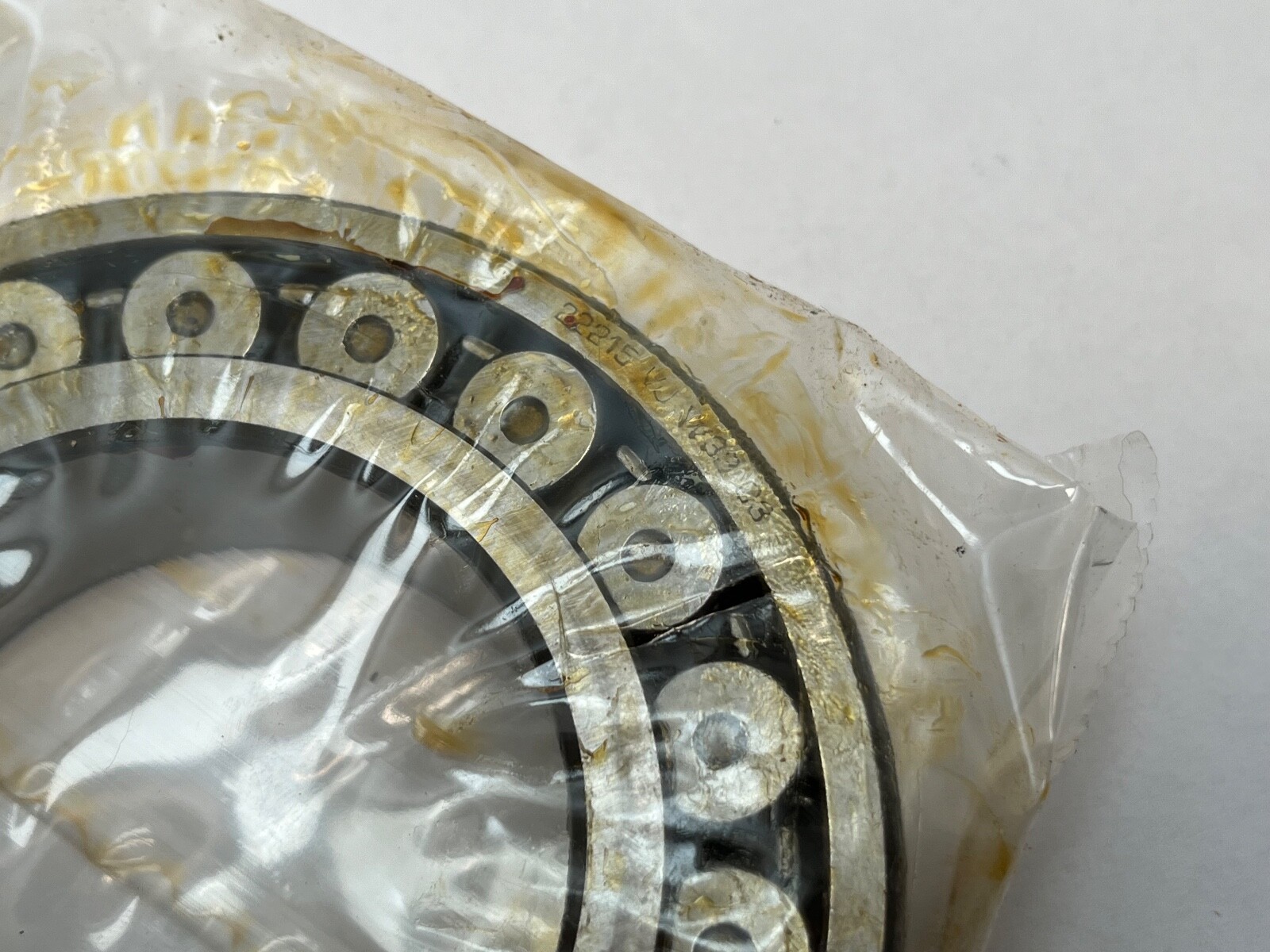

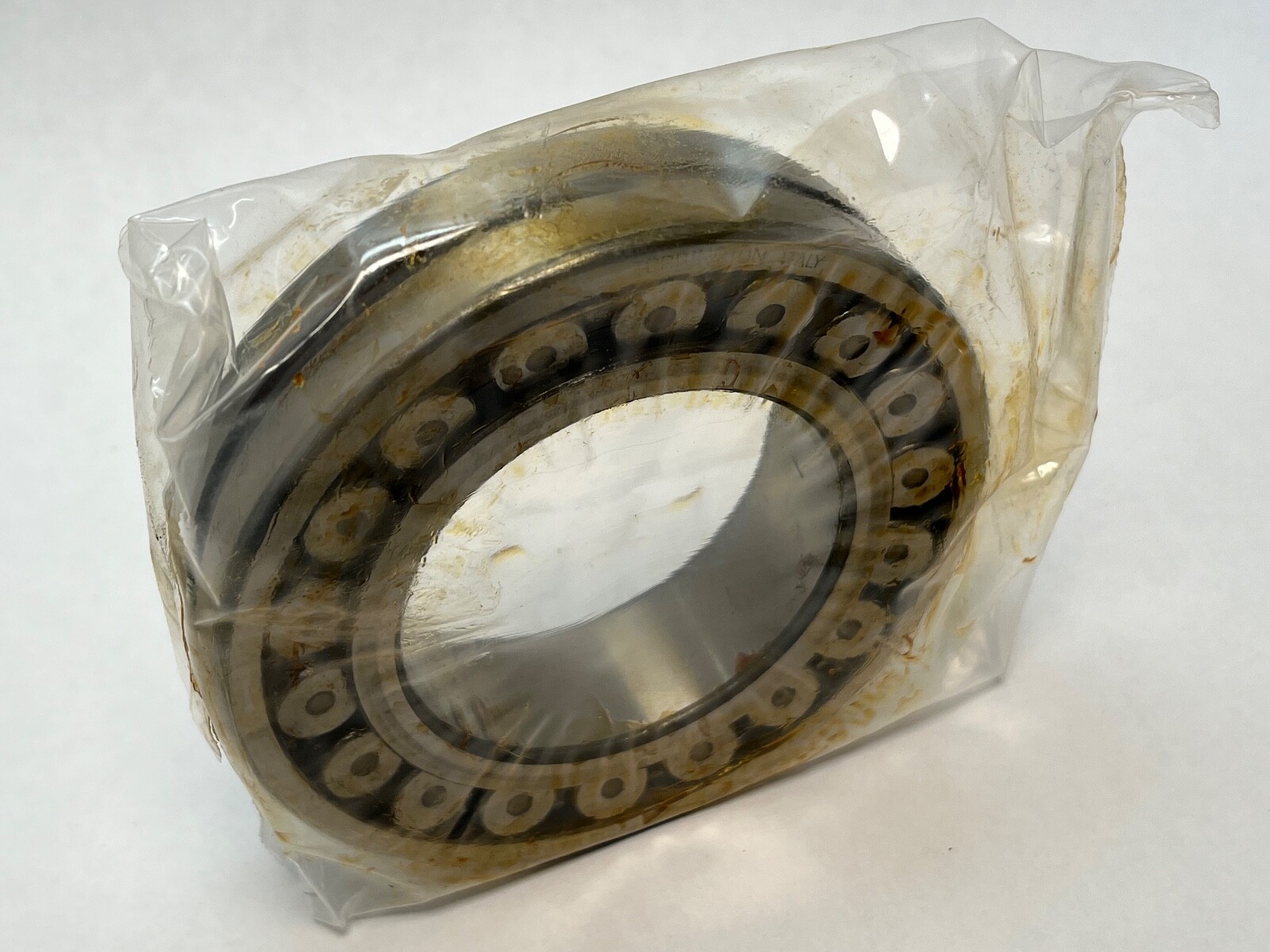

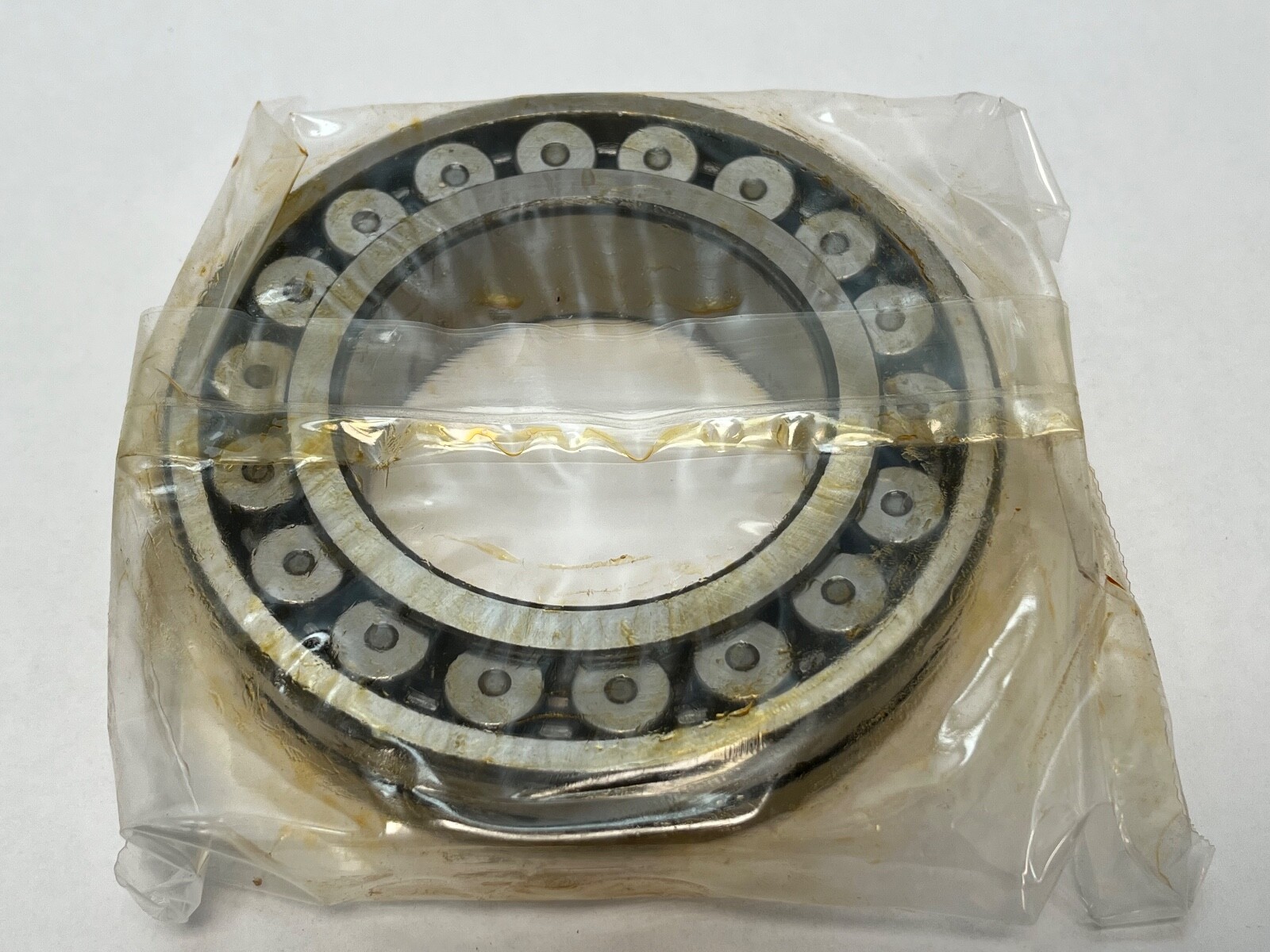

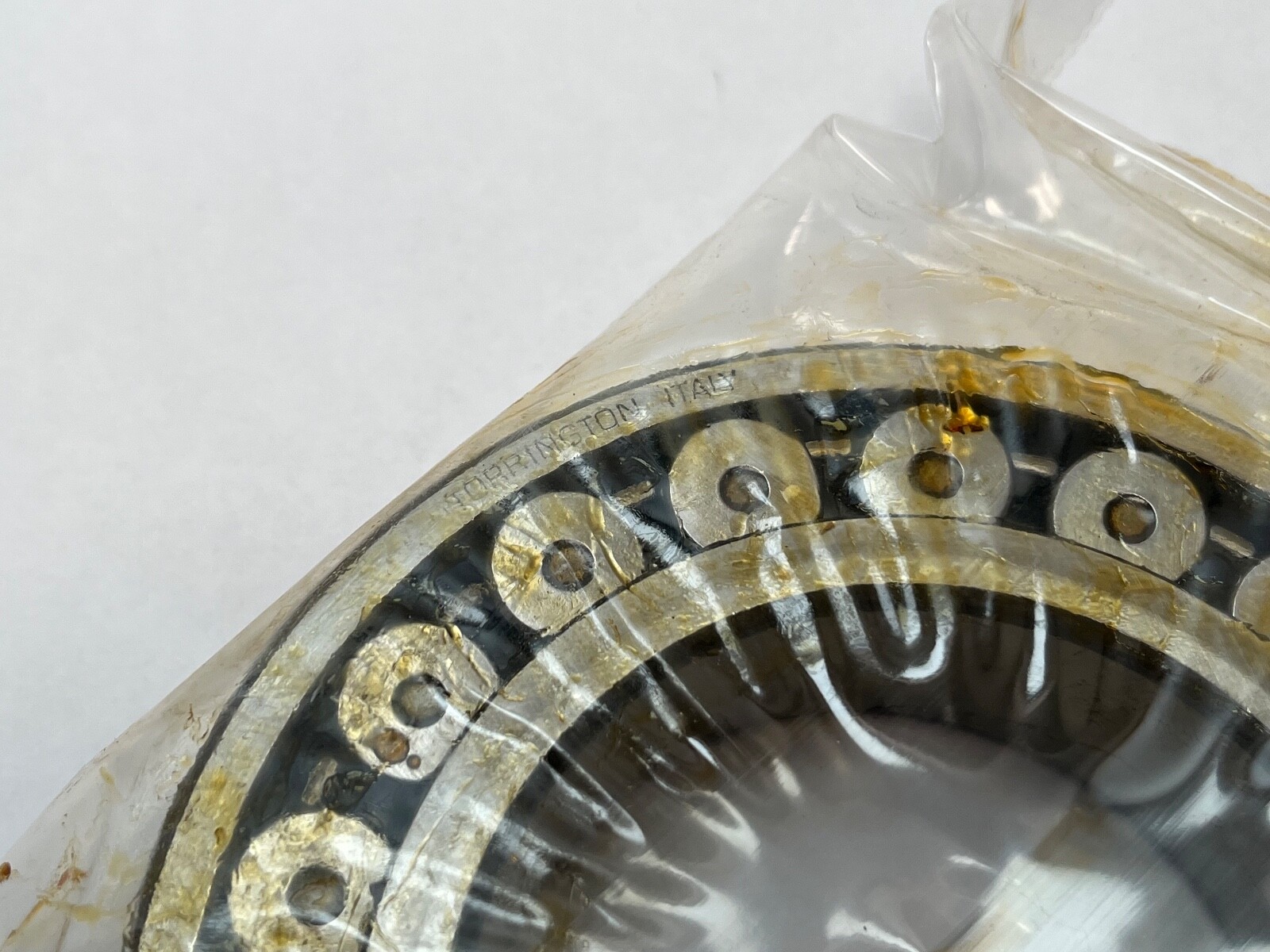

A Torrington 22215VJW33C3 double-row spherical roller bearing, now part of the Timken range. Bore Diameter: 75 mm. Outside Diameter: 130 mm. Overall Width: 31 mm. Bore Type: Cylindrical. Internal Clearance: C3. Closure Type: Open. Number Of Rows: 2. The bearing is self-aligning and carries heavy radial load with axial load in both directions.
22215 — ISO 222 series spherical roller bearing, bore code 15 = 75 mm, 75 x 130 x 31 mm.
W33 — lubrication groove and three holes in the outer ring for grease or oil feed.
C3 — radial internal clearance greater than normal, for shaft fits and running temperatures that close up clearance.
Successor 22215EJW33C3 data (Timken): Dynamic Load Rating: 222,000 N (49,900 lbf). Static Load Rating: 240,000 N (54,100 lbf). Thermal Reference Speed: 3,800 rpm grease; 4,600 rpm oil. Cage Material: Steel, 2-piece window type. e factor 0.22; Y0 3.07; Y (Fa/Fr≤e) 3.14; Y (Fa/Fr>e) 4.67; geometry factor Cg 0.0547. Lubricant: grease or oil.
Successor 22215EJW33C3 data (Timken): Shaft Backing Shoulder Diameter: 88.0 mm (3.500 in). Housing Backing Shoulder Diameter: 120.0 mm (4.700 in). Maximum Fillet Radius: 1.5 mm (0.06 in).
Current Timken equivalent: 22215EJW33C3, same envelope, cylindrical bore, C3 clearance, W33 groove. Same-envelope equivalents: SKF 22215 E/C3, FAG 22215-E1-C3, NSK 22215EAE4C3, NTN 22215EAW33C3. Tapered-bore sibling: 22215KEJW33C3.
$225.94
16 in stock
