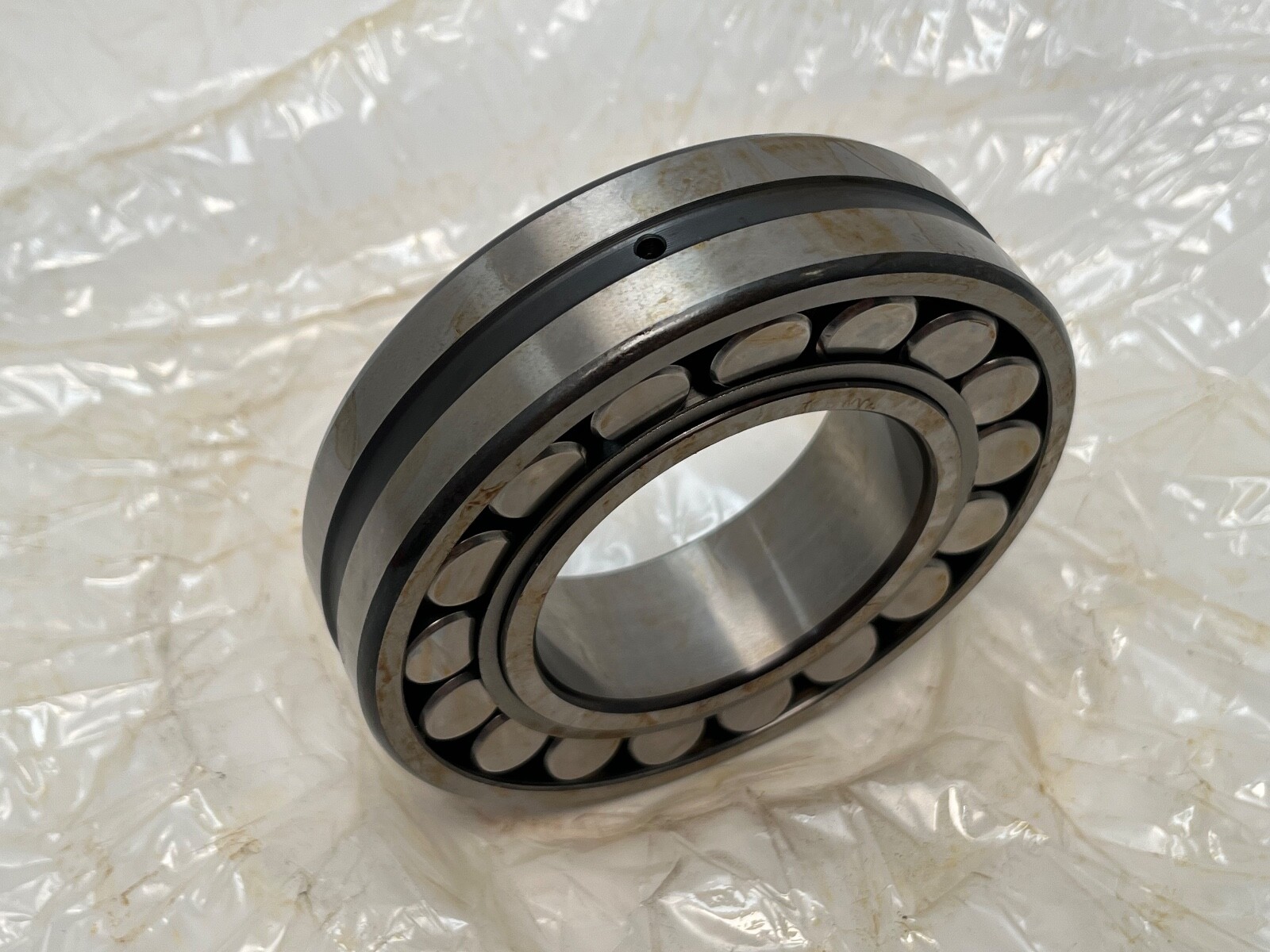

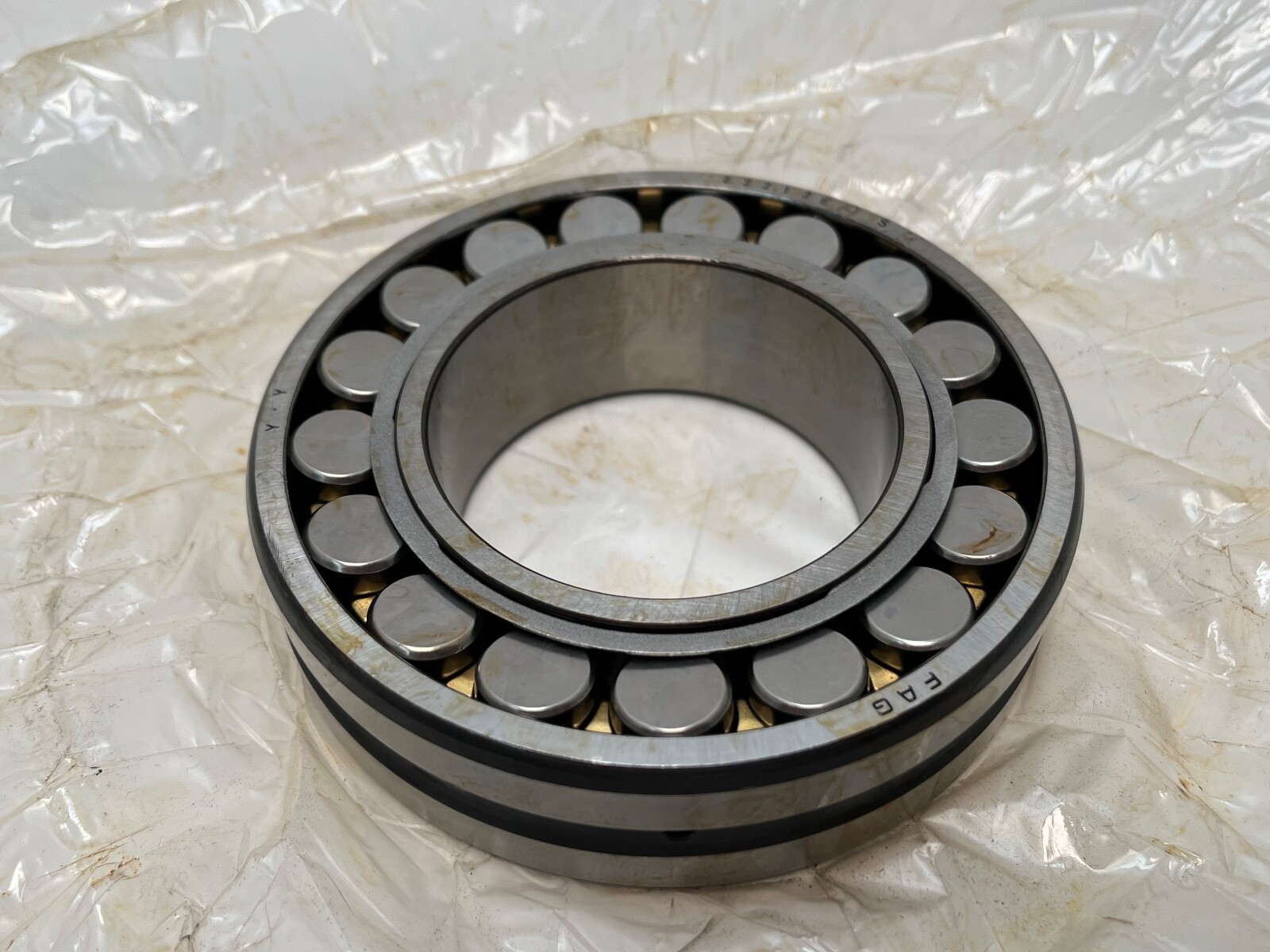

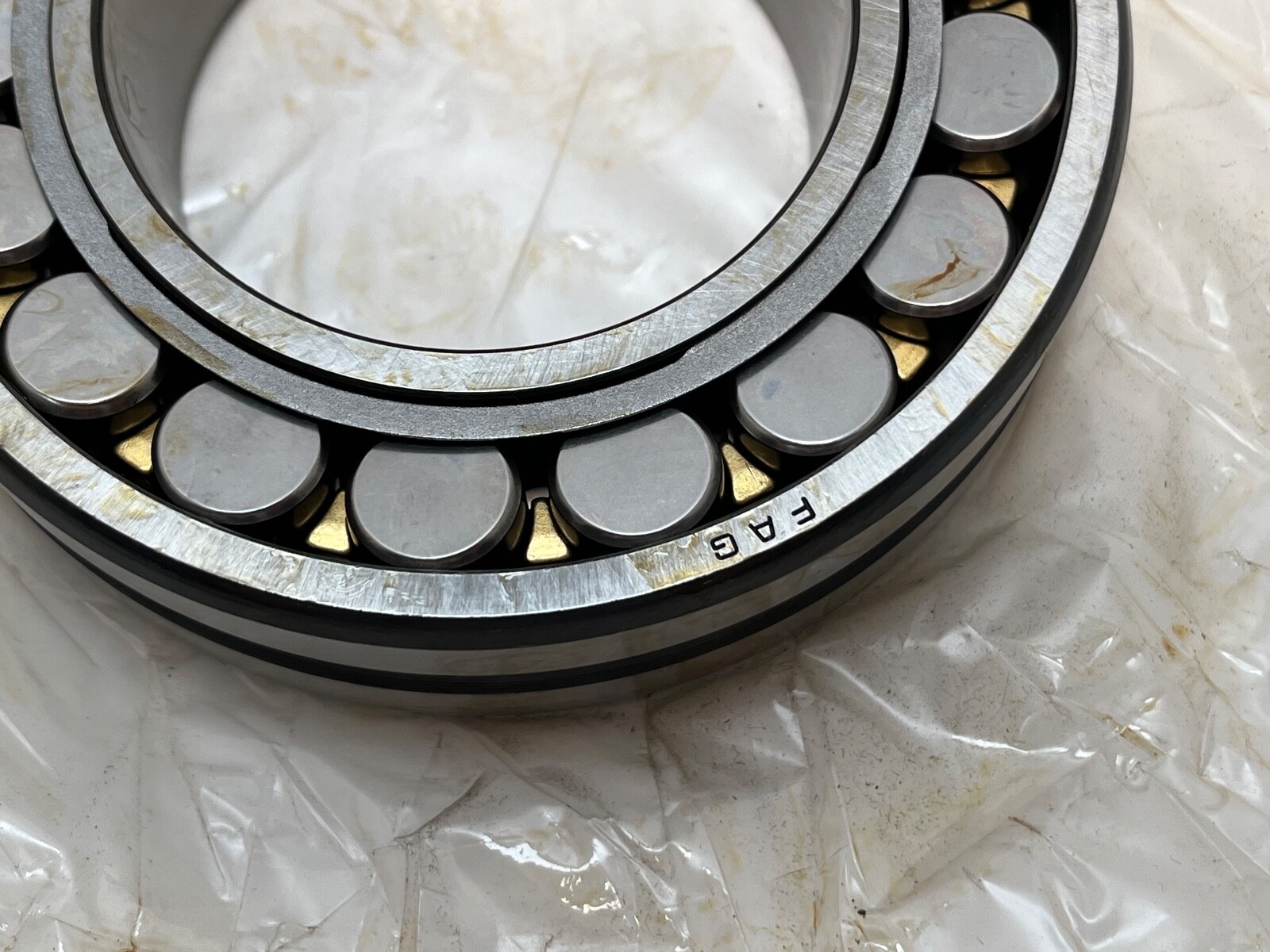

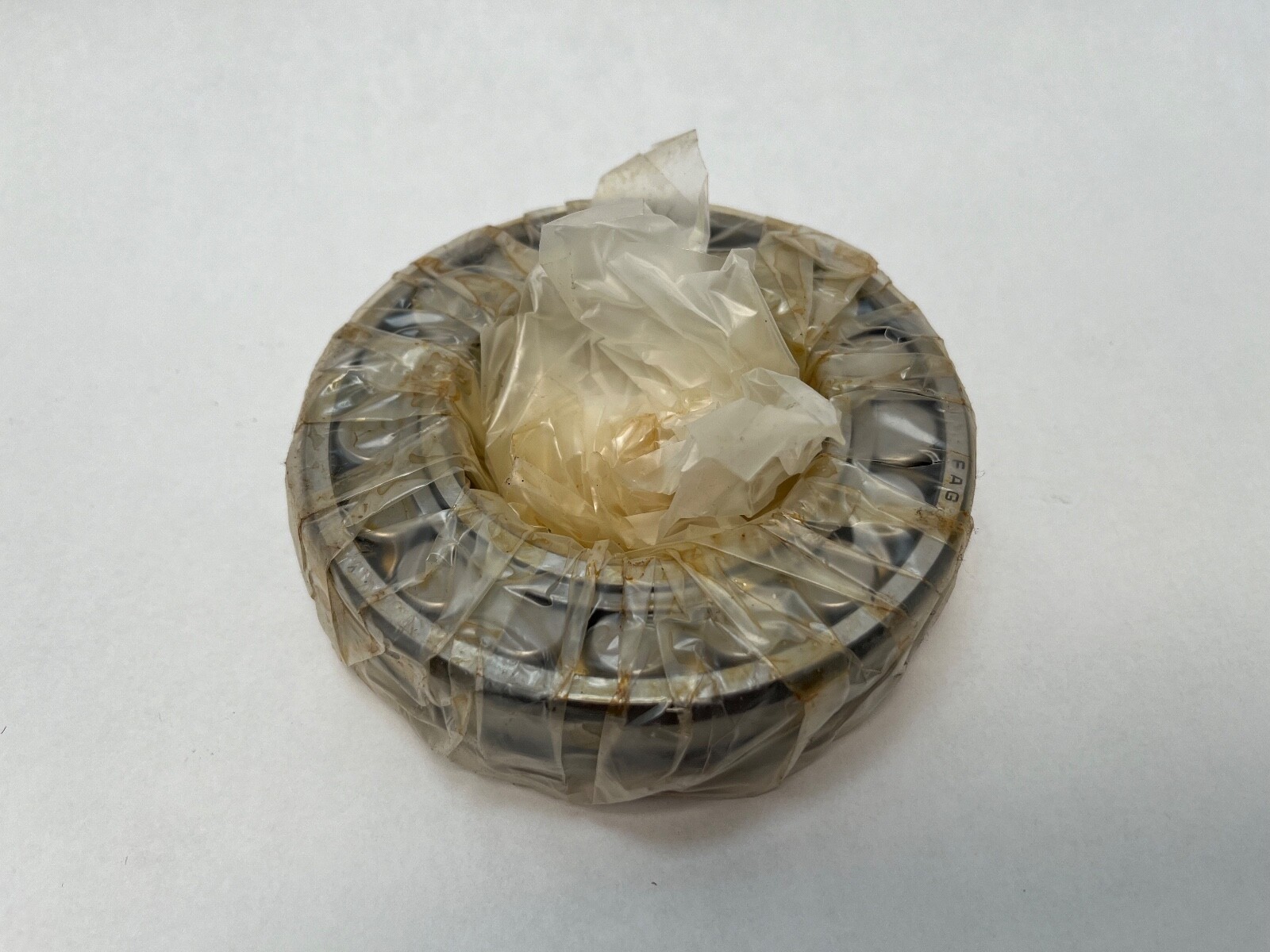

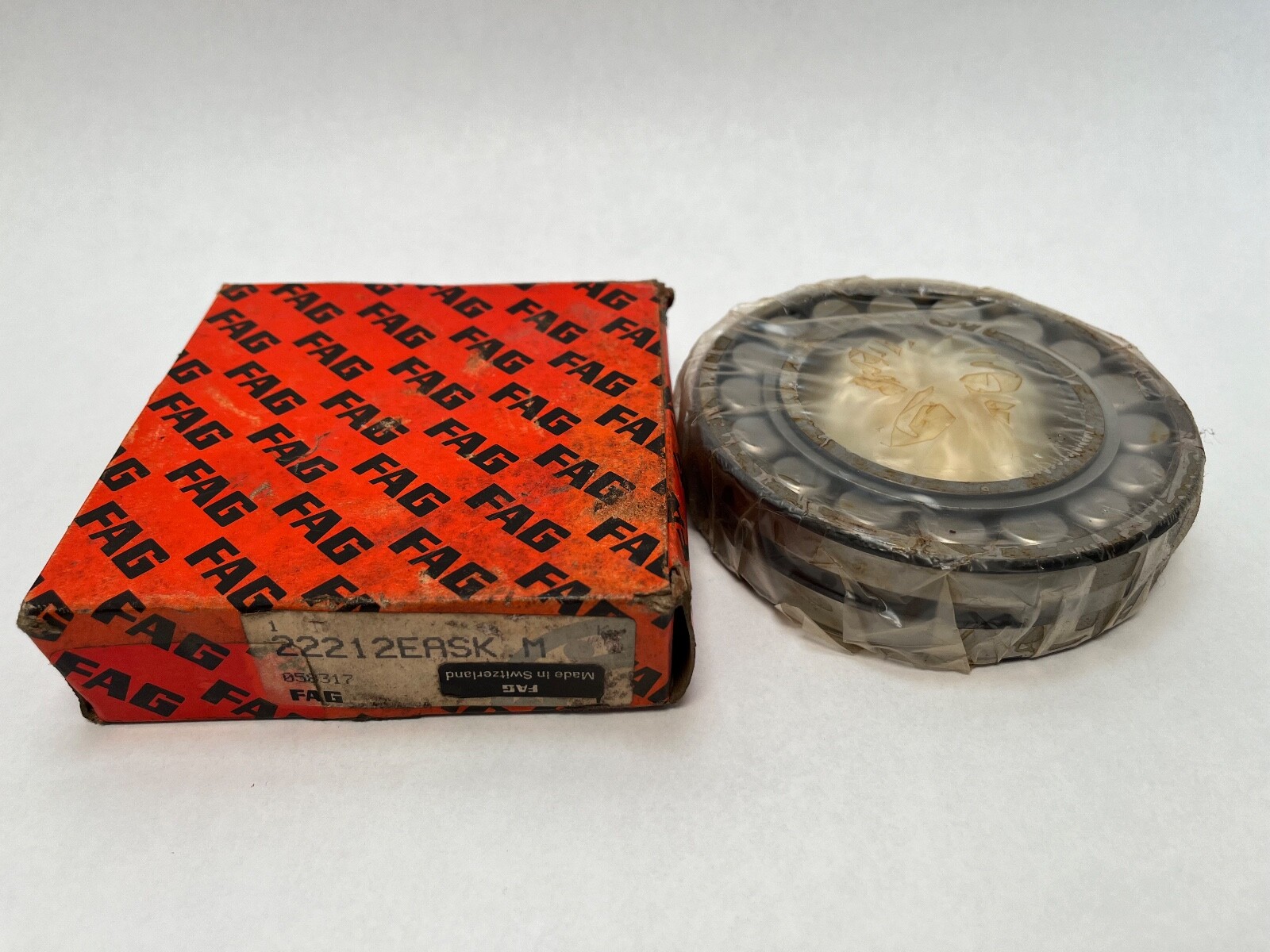

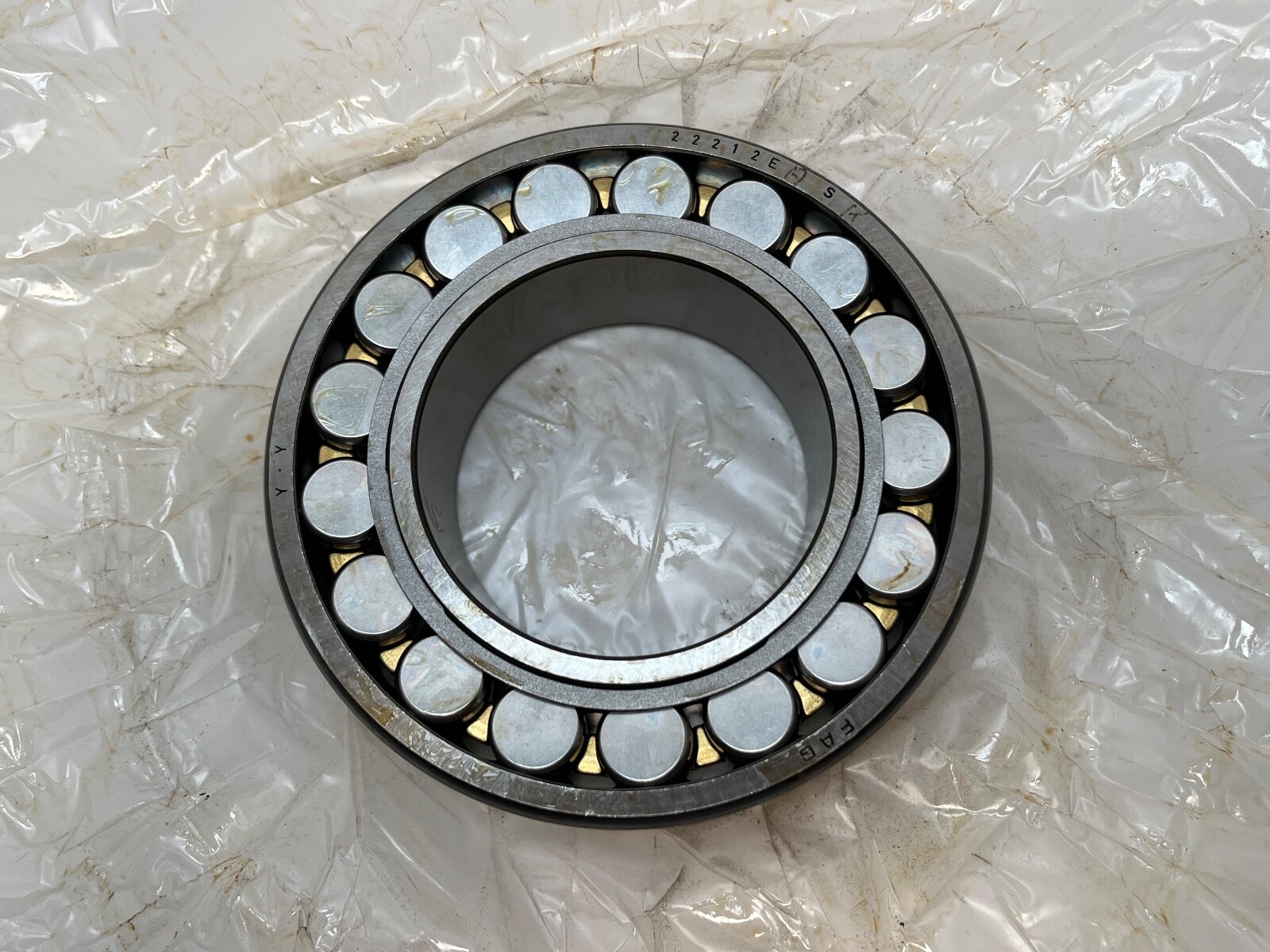

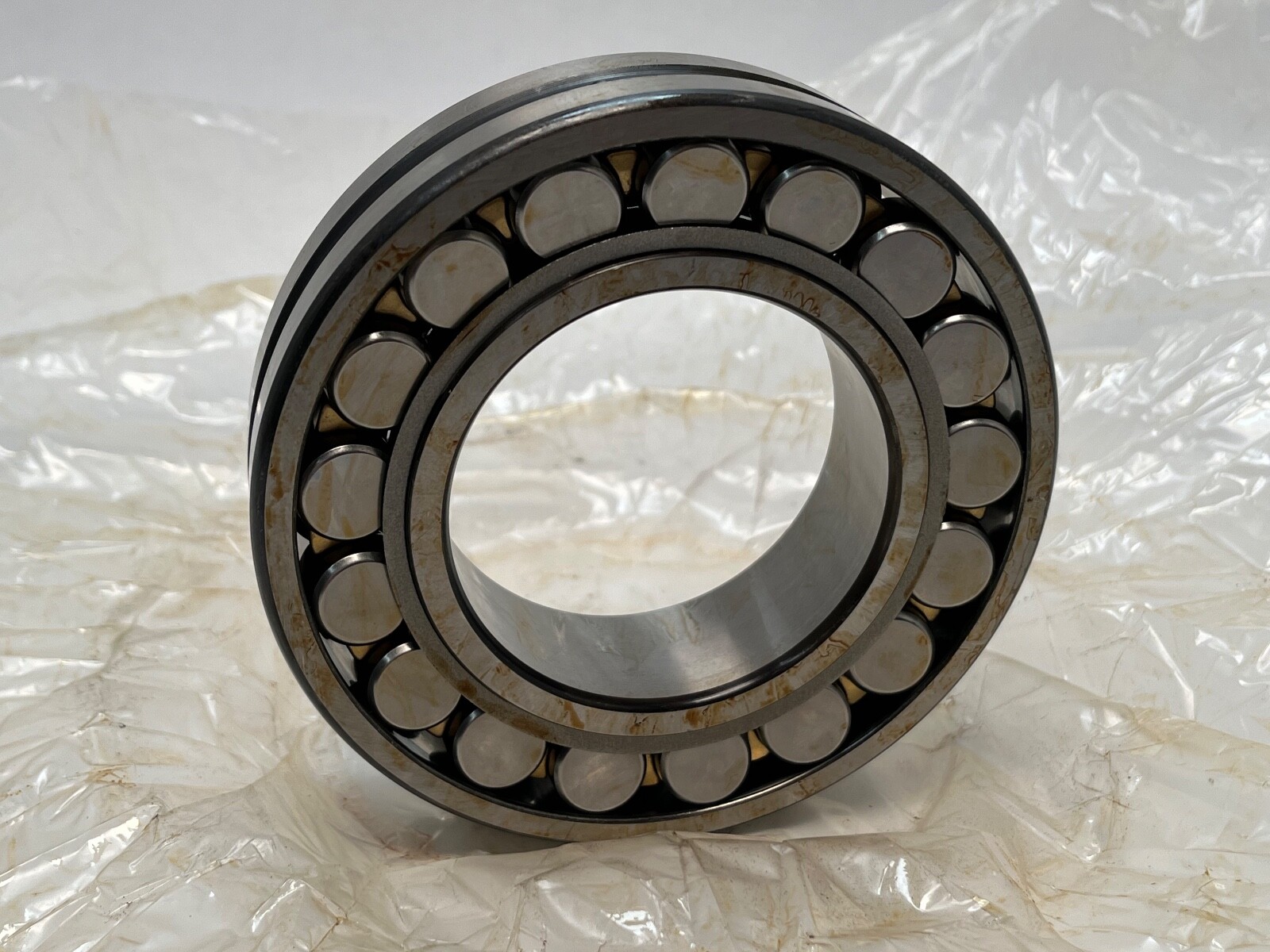

FAG 22212EASK.M spherical roller bearing, 60 x 110 x 28 mm, 1:12 tapered bore, machined brass cage, W33 lubrication groove and holes, H312 adapter sleeve.
List Price
$62.19
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| Model | 22212EASK.M |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 60 mm |
| OD | 110 mm |
| Width | 28 mm |
| Series | 22200 |
|---|---|
| Condition | New |
| Lubricant | grease or oil |
| Dynamic Load Rating | 160,000 N |
| Static Load Rating | 155,000 N |
| Rolling Elements | Spherical Roller |
| Item Weight | 1.064 kg (2.35 lb) |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Relubrication Feature | Yes |
| Harmonization Code | 8482.30.00.80 |
| Internal Clearance | CN |
| Limiting Speed | 8,100 rpm |
| Overall Width | 28 mm |
| Mpn Variants | 22212EASK.M, 22212-EAS-K-M-W33, 22212EASKM, 22212E |
| Compatible With Replaces | Schaeffler successor 22212-E1A-XL-K-M; adapter sleeve H312; withdrawal sleeve AHX312 |
| Additional Attributes | Reference Speed: 4,550 rpm (successor 22212-E1A-XL-K-M). Lubrication groove width: 6.5 mm. |
| Cross Reference 1 | Timken 22212KEMW33 - brass cage, W33 groove |
|---|---|
| Cross Reference 2 | NSK 22212CAMKE4 - CA internal design |
| Cross Reference 3 | SKF 22212 EK - no W33 groove |
FAG 22212EASK.M is a double-row spherical roller bearing with a 1:12 tapered bore, a machined brass cage and an outer-ring lubrication groove with radial holes. Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 28 mm. Adapter sleeve: H312. Withdrawal sleeve: AHX312. Unit Quantity: 1 Pc.

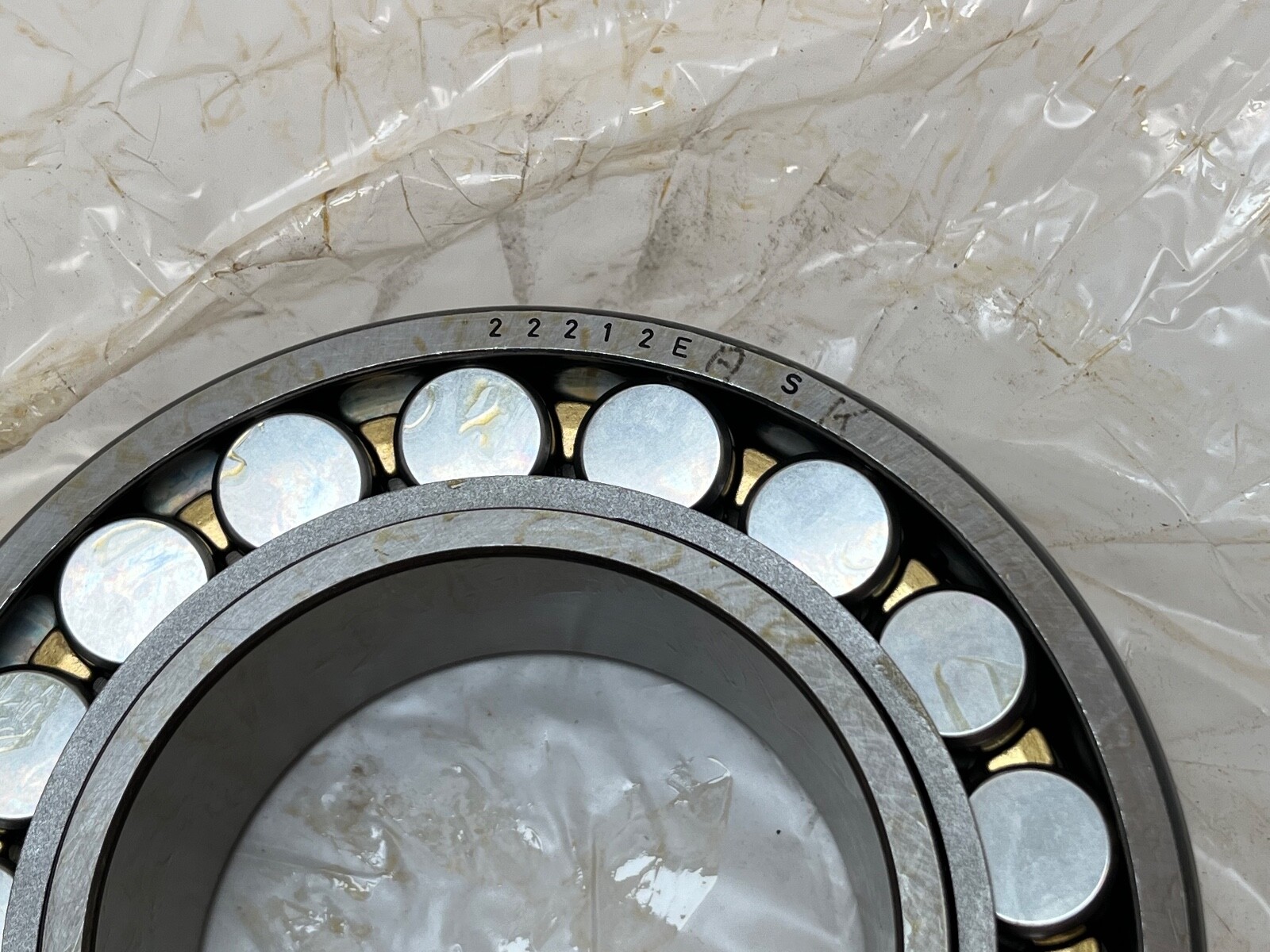

22212 — 222 series spherical roller bearing, bore code 12 = 60 mm, envelope 60 x 110 x 28 mm.
E — FAG reinforced internal design without a central rib.
AS — lubrication groove and radial lubrication holes in the outer ring.
K — tapered bore, taper 1:12.
M — machined brass cage.
W33 — North American marking for the outer-ring lubrication groove and holes.
Series: 22200. Number Of Rows: 2. Rolling Elements: Spherical roller. Bore Type: Tapered 1:12. Cage Material: Machined brass. Closure Type: Open. Internal Clearance: CN (normal). Lubricant: grease or oil, fed through the outer-ring groove and holes. Relubrication Feature: Yes.
Data of the current Schaeffler successor 22212-E1A-XL-K-M: Dynamic Load Rating: 160,000 N. Static Load Rating: 155,000 N. Limiting Speed: 8,100 rpm. Reference Speed: 4,550 rpm. Item Weight: 1.064 kg (2.35 lb).
Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 28 mm. Adapter sleeve: H312. Withdrawal sleeve: AHX312. Successor data: Minimum shaft shoulder diameter: 69 mm. Maximum housing shoulder diameter: 101 mm. Maximum fillet radius: 1.5 mm. Minimum chamfer: 1.5 mm. Lubrication groove width: 6.5 mm.
Schaeffler 22212-E1A-XL-K-M — current successor, same 60 x 110 x 28 mm tapered-bore brass-cage design.
Timken 22212KEMW33 — tapered bore, brass cage, W33 groove and holes.
NSK 22212CAMKE4 — tapered bore, brass cage, CA internal design.
SKF 22212 EK — tapered bore, no W33 groove.
What are the dimensions of the FAG 22212EASK.M?Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 28 mm.
What does the K in the designation mean?K is a tapered bore, taper 1:12. Mounts on an H312 adapter sleeve or an AHX312 withdrawal sleeve.
What does W33 mean?W33 is the North American marking for the outer-ring lubrication groove and radial holes.
