Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock
Spherical roller bearing, 60 mm tapered bore, 110 mm OD, 28 mm wide, steel cage, W33 lube groove, normal clearance. Successor: Timken 22212KEJW33.
List Price
$51.22
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Torrington |
|---|---|
| MPN | 22212KVJW33 |
| Model | 22212-K-VJ-W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 60 mm |
| OD | 110 mm |
| Width | 28 mm |
| Mpn Variants | 22212KVJW33, 22212-K-VJ-W33, 22212 K VJ W33, 22212 K V J W33 |
|---|---|
| Compatible With Replaces | Timken 22212KEJW33 (current successor design); adapter sleeve H312 |
| Additional Attributes | Successor 22212KEJW33 data: e factor 0.24; Y0 2.78; Y1 2.84; Y2 4.23; shaft backing shoulder 72 mm; housing backing shoulder 100 mm; max fillet radius 1.5 mm. Adapter sleeve H312 |
| Cage Type | Two-piece finger type |
| Dynamic Load Rating | 169,000 N (Successor 22212KEJW33 data) |
| Static Load Rating | 174,000 N (Successor 22212KEJW33 data) |
| Series | 22200 |
| Rolling Elements | Spherical Roller |
| Cage Material | Steel |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Lubricant | grease or oil |
| Relubrication Feature | W33 lubrication groove and three holes in outer ring |
| Harmonization Code | 8482.30.00 |
| Design Units | Metric |
| Industry Terms | spherical roller bearing, tapered bore spherical bearing, self-aligning roller bearing, double row roller bearing, W33 spherical, 22212K |
| Common Misspellings | Torrington 22212 KVJ W33; Torington 22212KVJW33; Torrington 22212K-VJ-W33; Torrington 2212KVJW33; Torrington 22212KVJ33 |
| Application Types | gearboxes; industrial fans and blowers; conveyors; vibrating screens; pumps; general heavy radial load machinery |
| Cross Reference 1 | Timken 22212KEJW33 - current successor design |
|---|---|
| Cross Reference 2 | SKF 22212 EK - E design |
| Cross Reference 3 | FAG 22212-E1-K - E1 design |
| Cross Reference 4 | NSK 22212EAKE4 |
| Cross Reference 5 | NTN 22212EAKW33 |

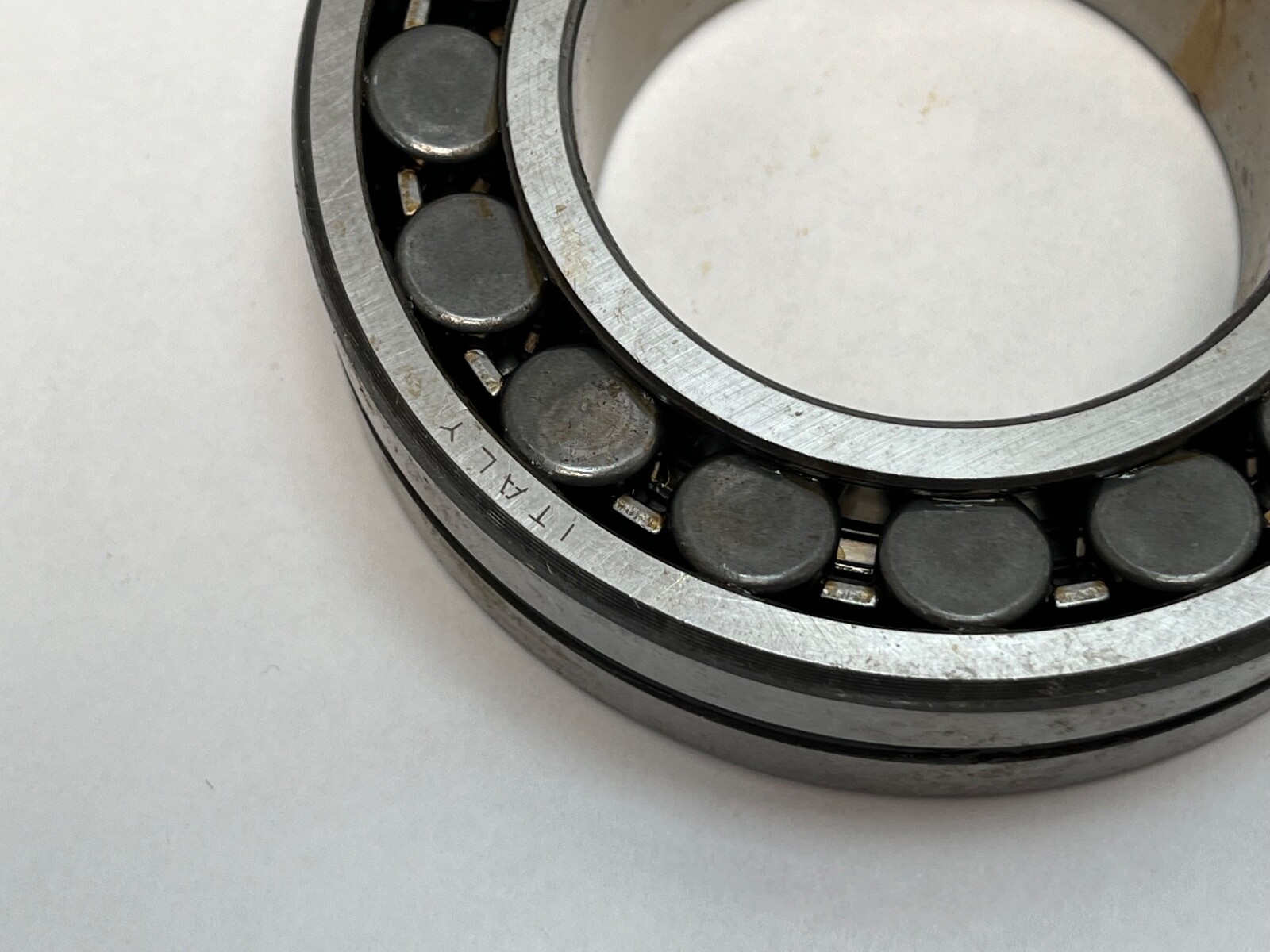

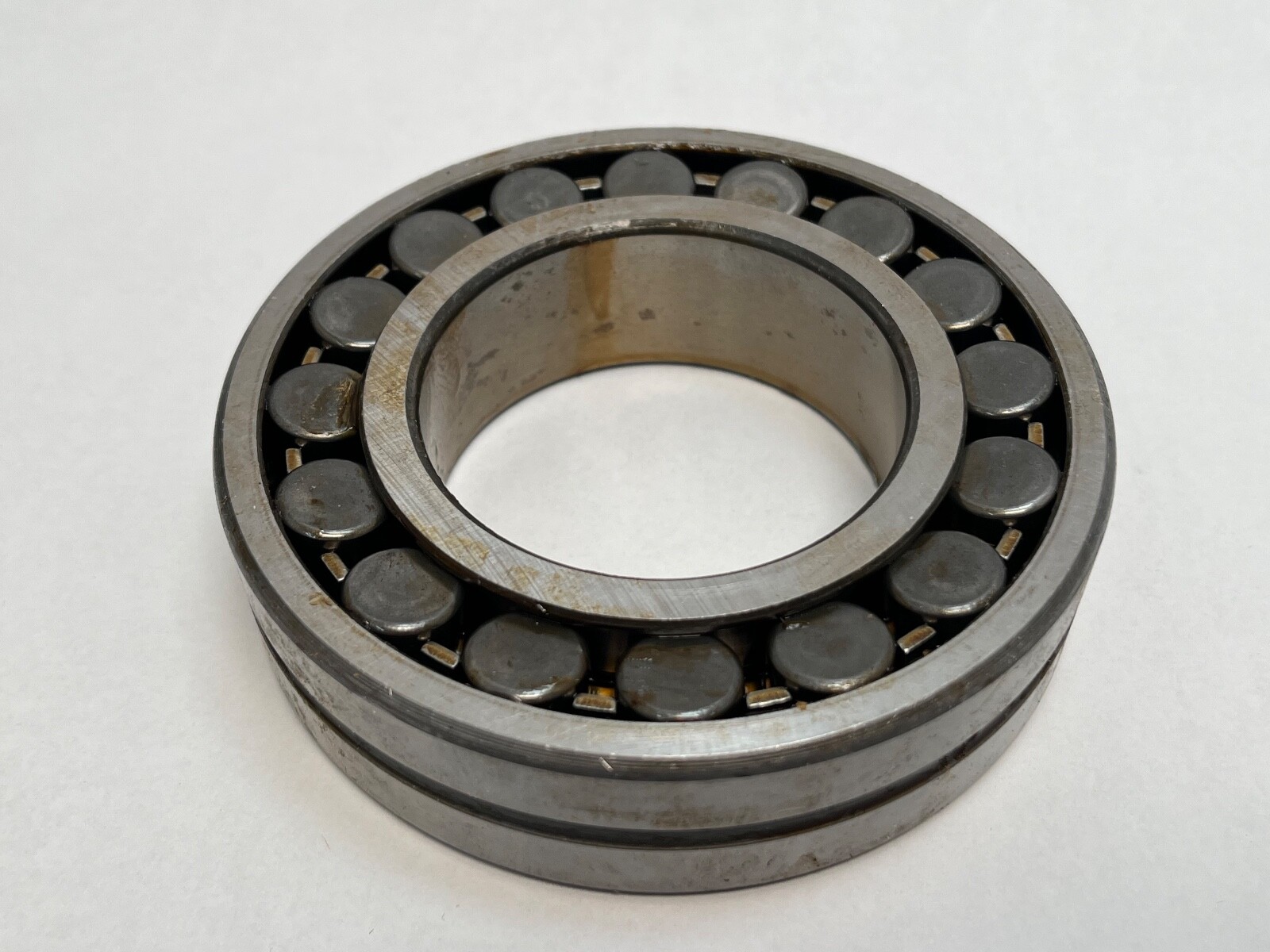

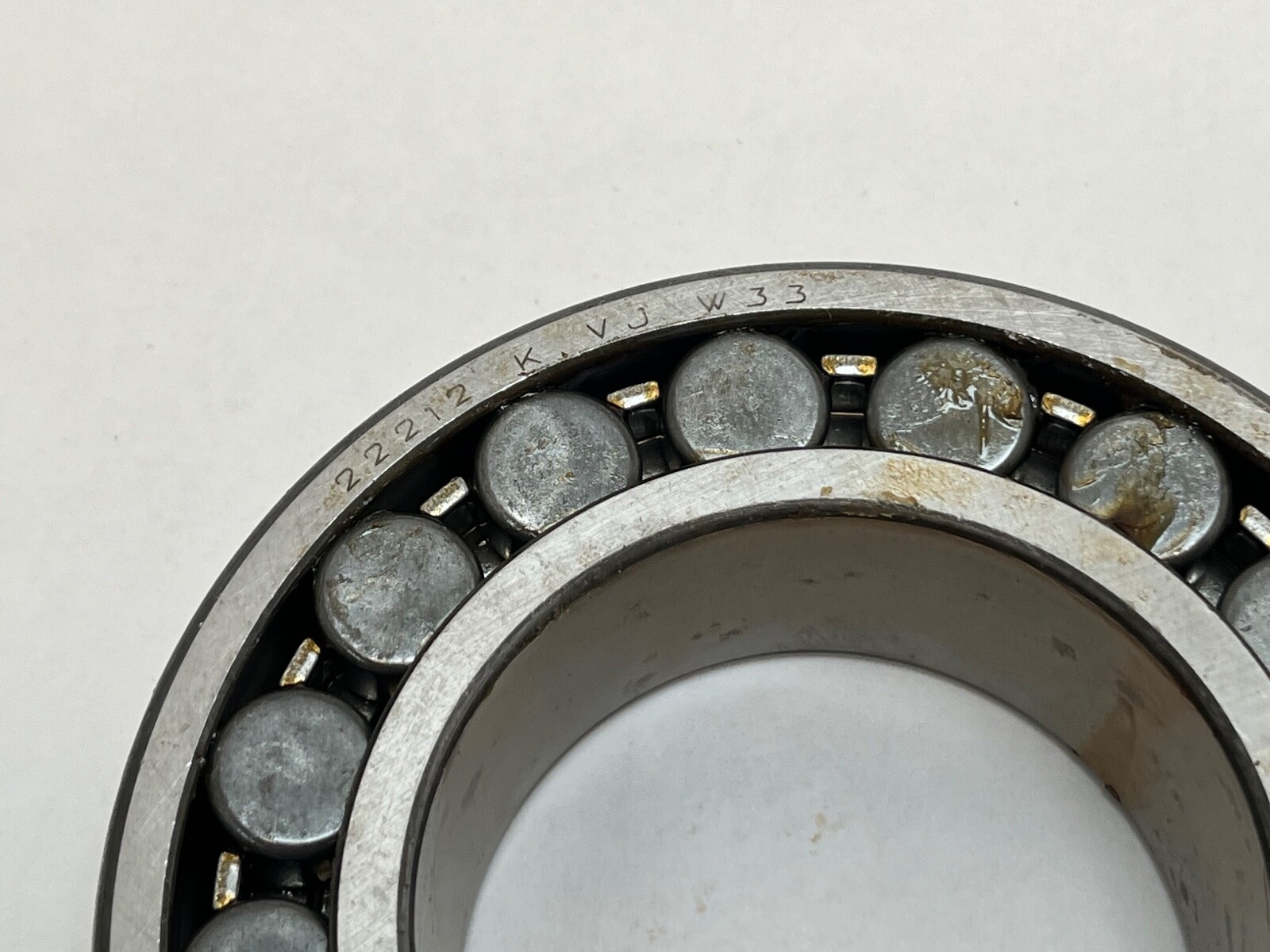

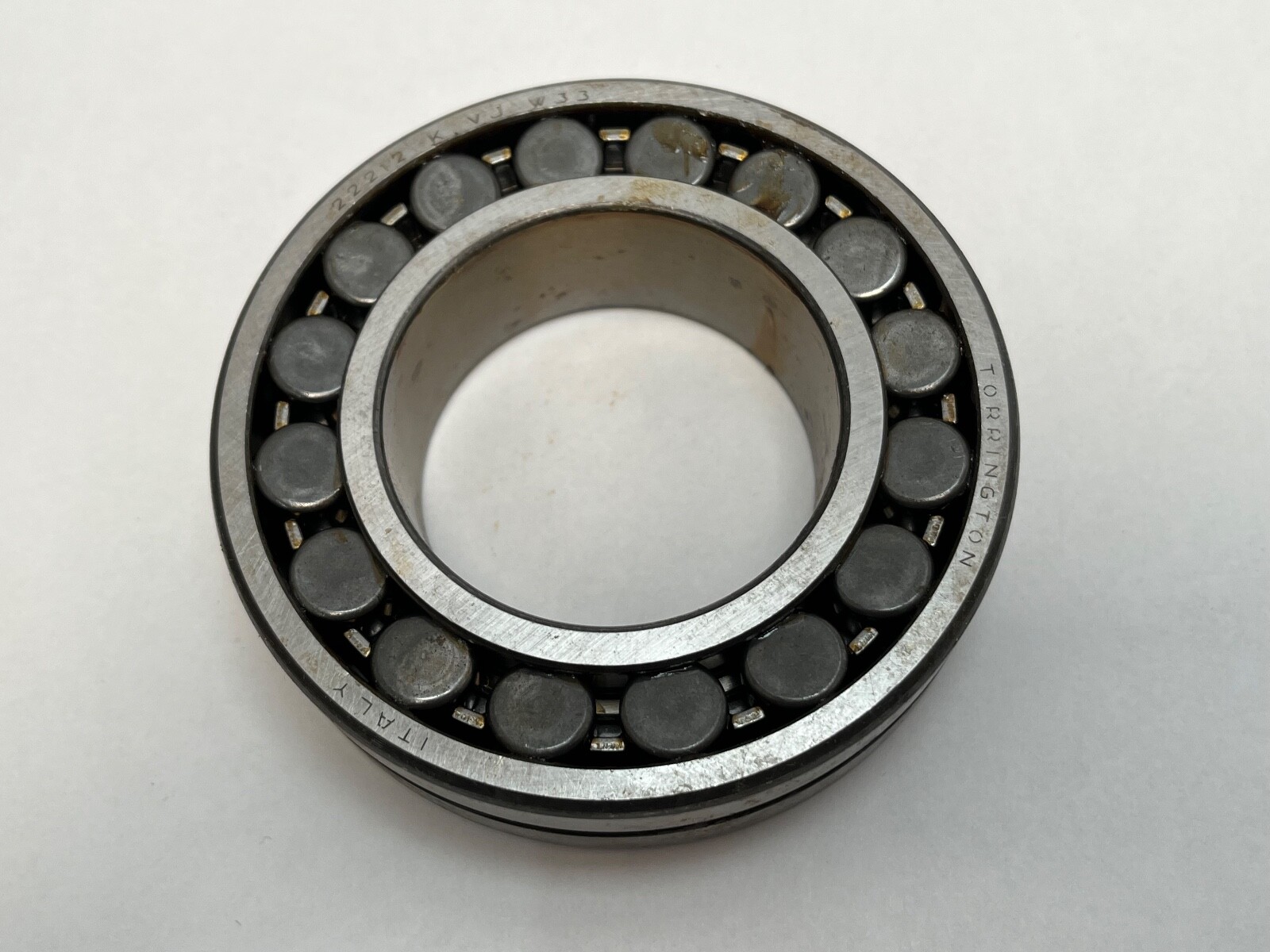

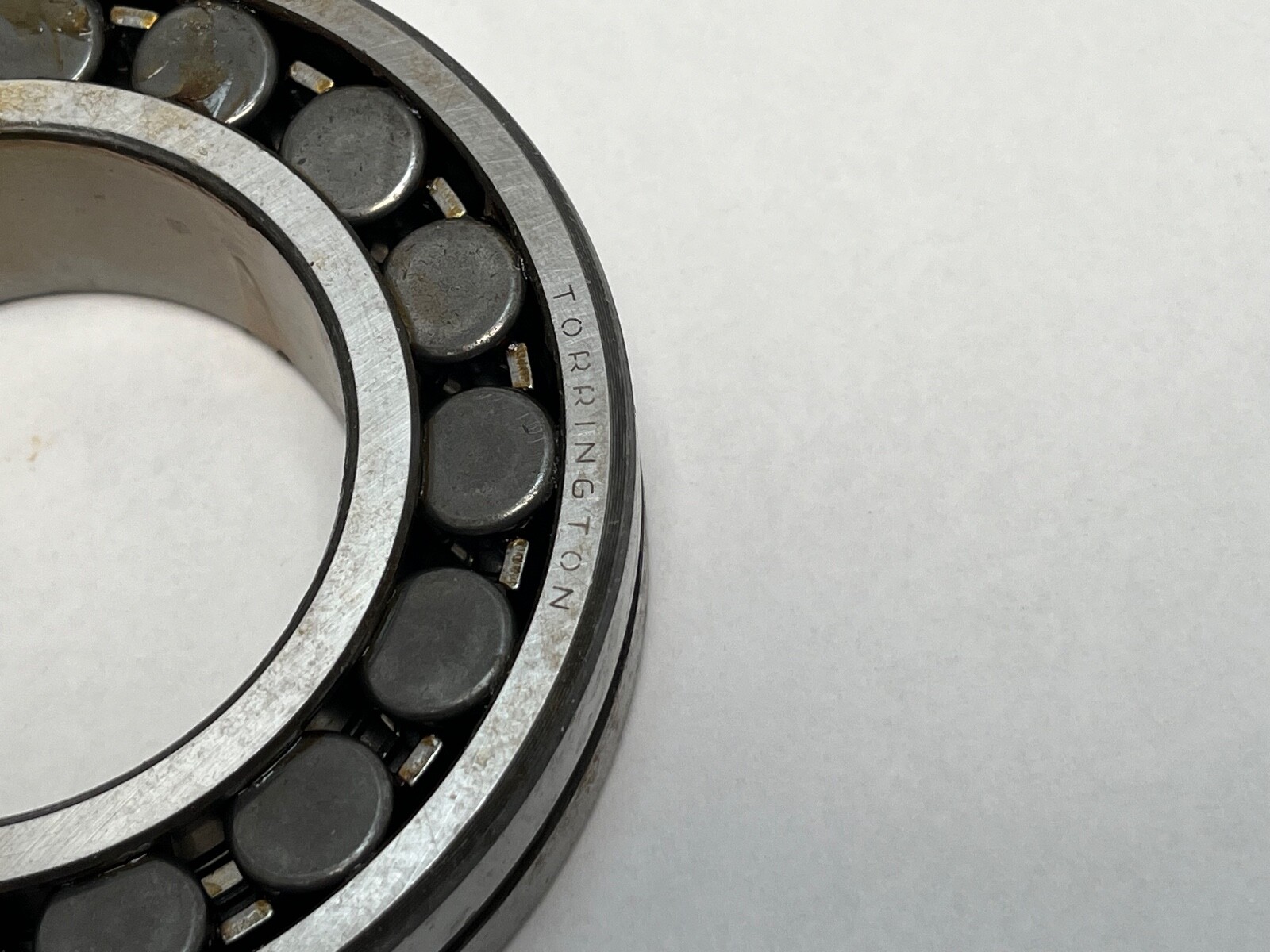

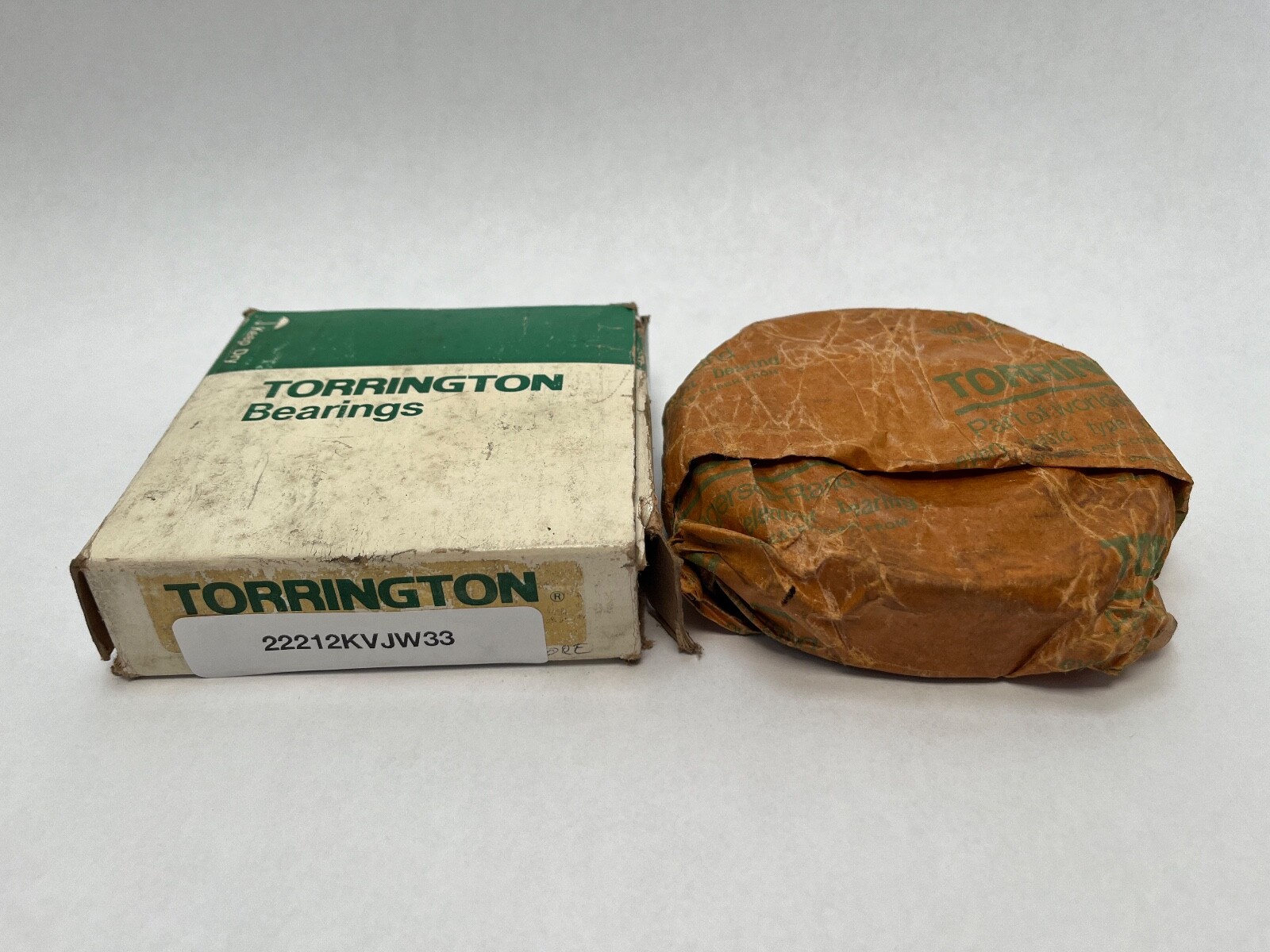

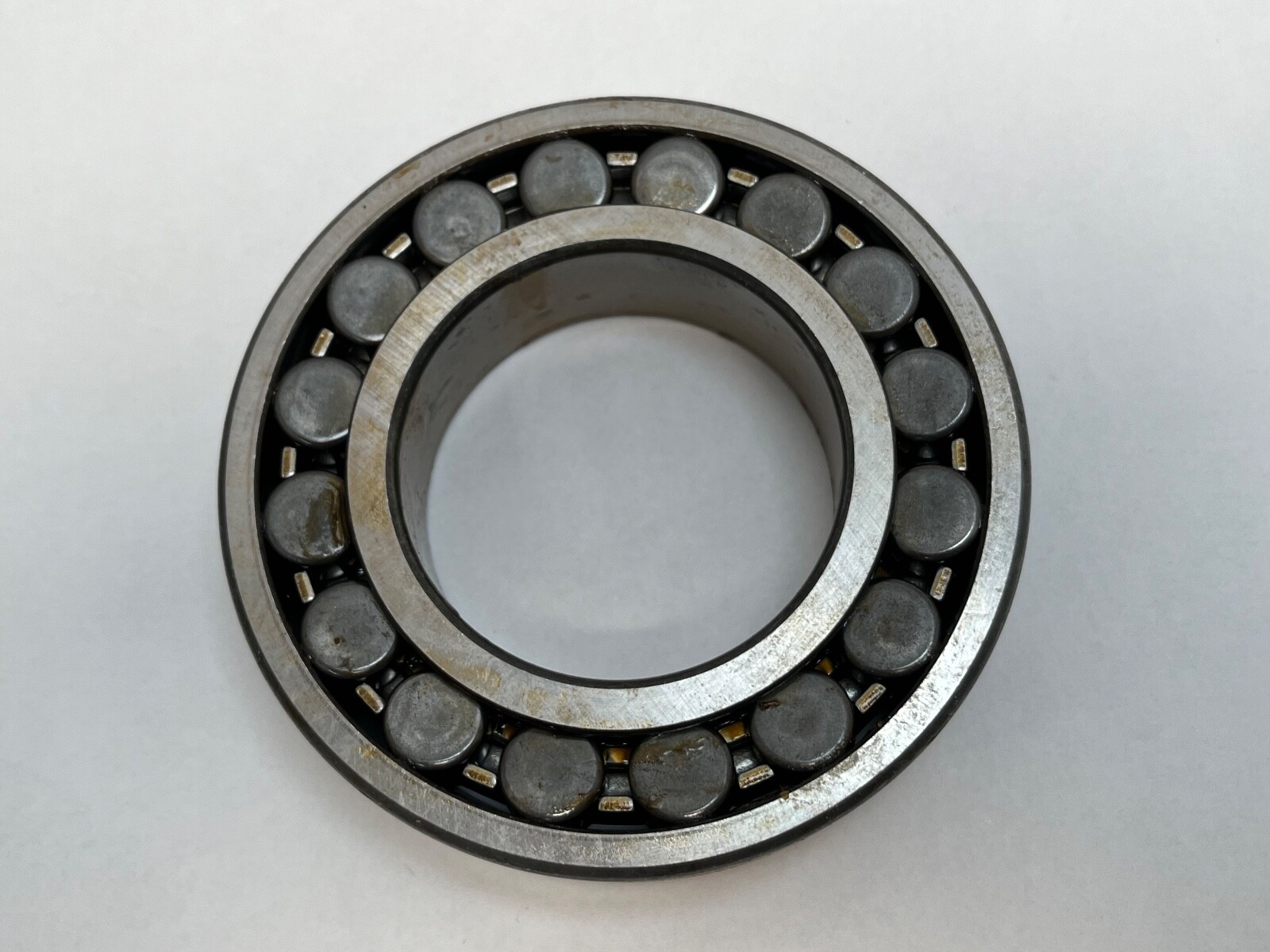

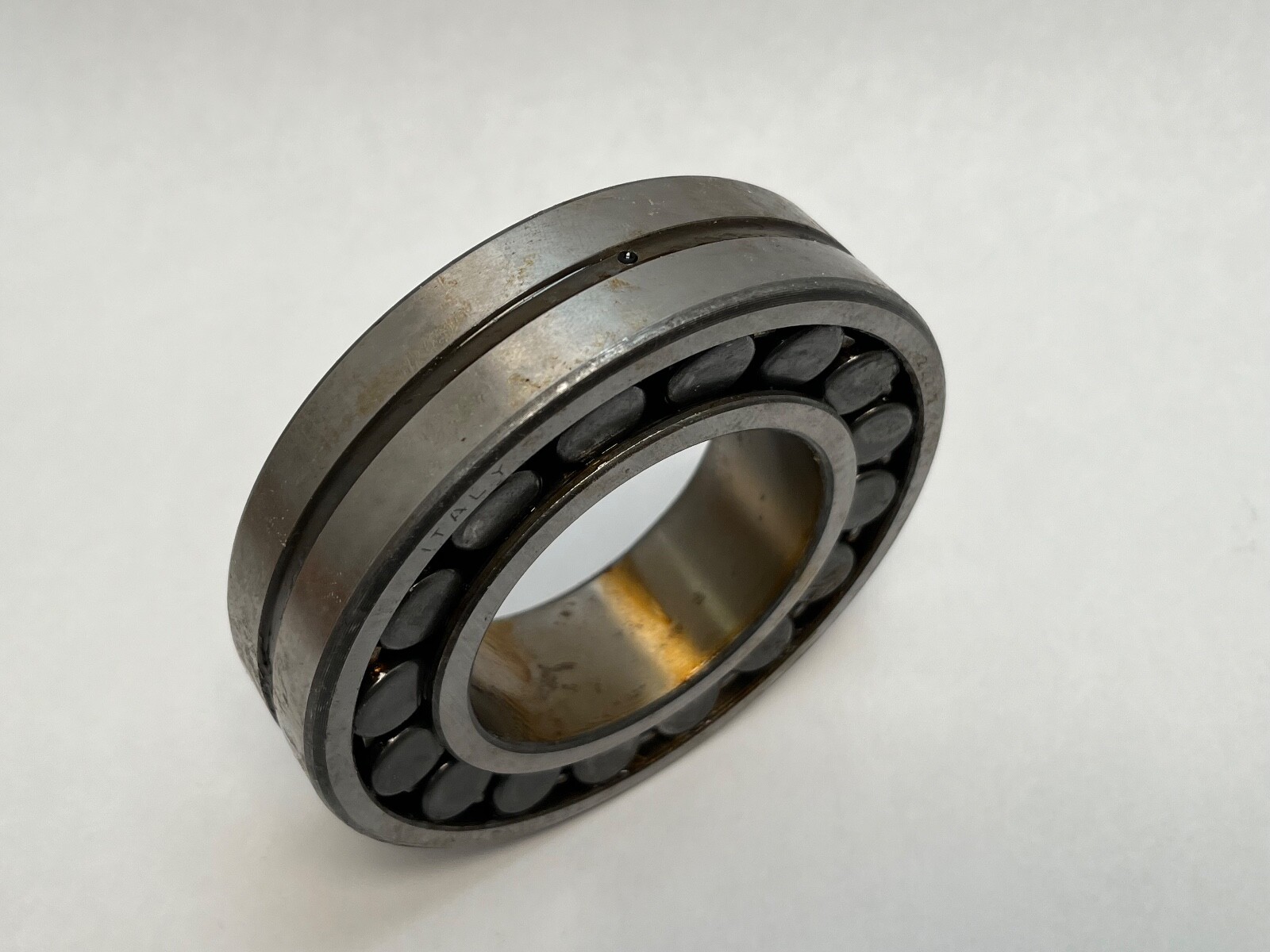

Torrington 22212KVJW33 is a double-row spherical roller bearing: 60 mm tapered bore, 110 mm outside diameter, 28 mm width, two-piece steel cage, W33 lubrication groove, normal clearance. Torrington is a Timken brand; the current Timken design is 22212KEJW33. Unit Quantity: 1 Pc. One complete bearing.
222 — spherical roller bearing, ISO dimension series 22.
12 — bore code. 12 × 5 = 60 mm bore.
K — 1:12 tapered bore, for an adapter sleeve or a tapered shaft seat.
VJ — Torrington two-piece steel cage, finger type, one cage per roller row.
W33 — lubrication groove with three radial holes in the outer ring.
Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 28 mm. Bore Type: Tapered 1:12. Rolling Elements: Spherical Roller. Number Of Rows: 2. Cage Material: Steel. Cage Type: Two-piece finger type. Internal Clearance: CN. Closure Type: Open. Lubricant: grease or oil. Successor 22212KEJW33 data: Dynamic Load Rating: 169,000 N. Static Load Rating: 174,000 N. Reference Speed: 4,500 rpm grease; 5,500 rpm oil. e factor: 0.24. Y1: 2.84. Y2: 4.23. Y0: 2.78.

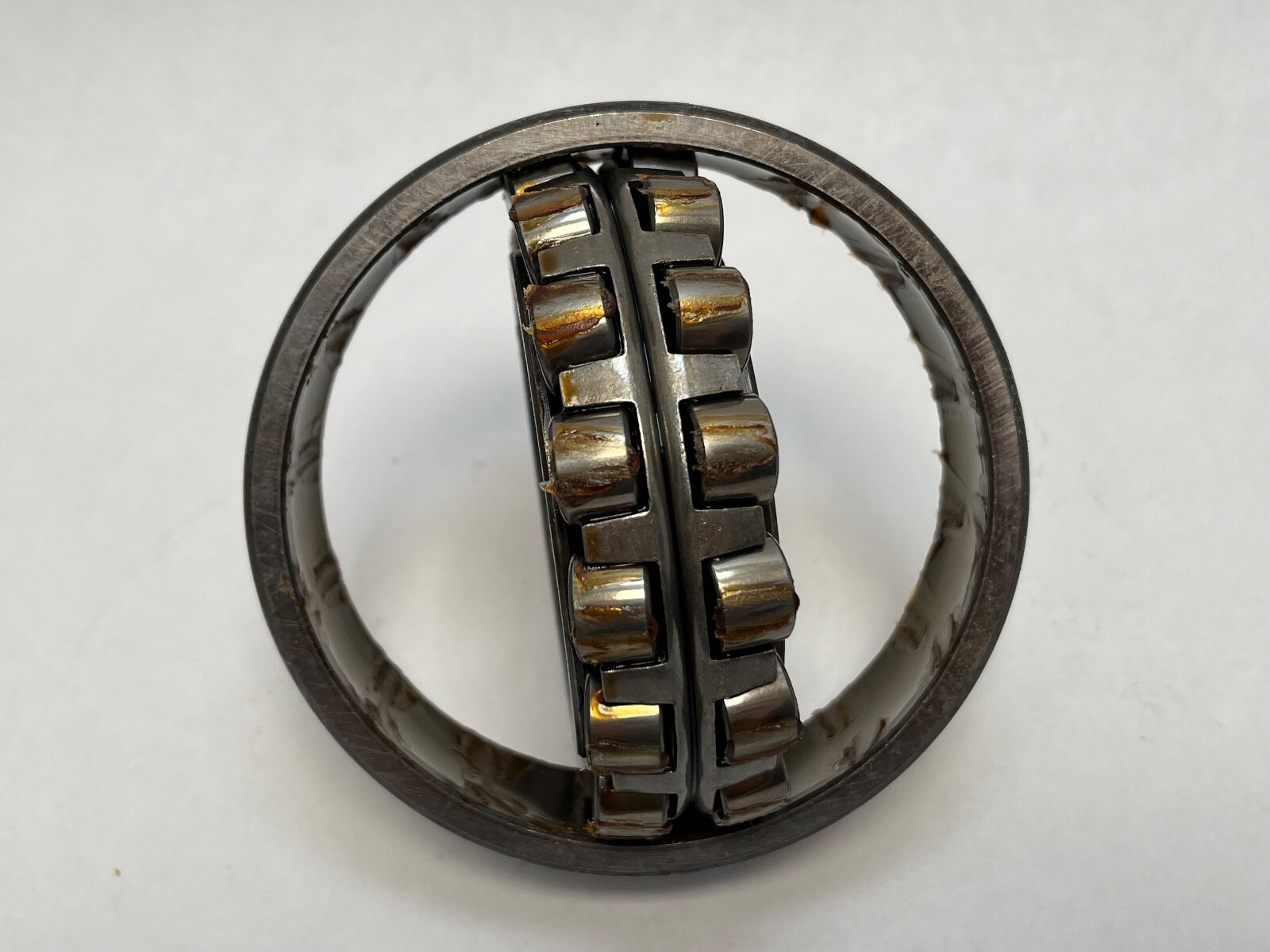

Successor 22212KEJW33 data: Shaft Backing Shoulder Diameter: 72 mm. Housing Backing Shoulder Diameter: 100 mm. Maximum Fillet Radius: 1.5 mm. Adapter sleeve: H312 (55 mm shaft) with KM12 locknut and MB12 lockwasher. The spherical outer raceway is self-aligning and carries heavy radial load and axial load in both directions. The W33 groove feeds grease or oil to the centre of both roller rows.
Current Timken successor: 22212KEJW33. Other makers’ 60 x 110 x 28 mm tapered-bore, normal-clearance designs: SKF 22212 EK, FAG 22212-E1-K, NSK 22212EAKE4, NTN 22212EAKW33.
Bore Diameter: 60 mm tapered 1:12. Outside Diameter: 110 mm. Overall Width: 28 mm.
H312, for a 55 mm shaft, with a KM12 locknut and MB12 lockwasher.
Timken 22212KEJW33.
