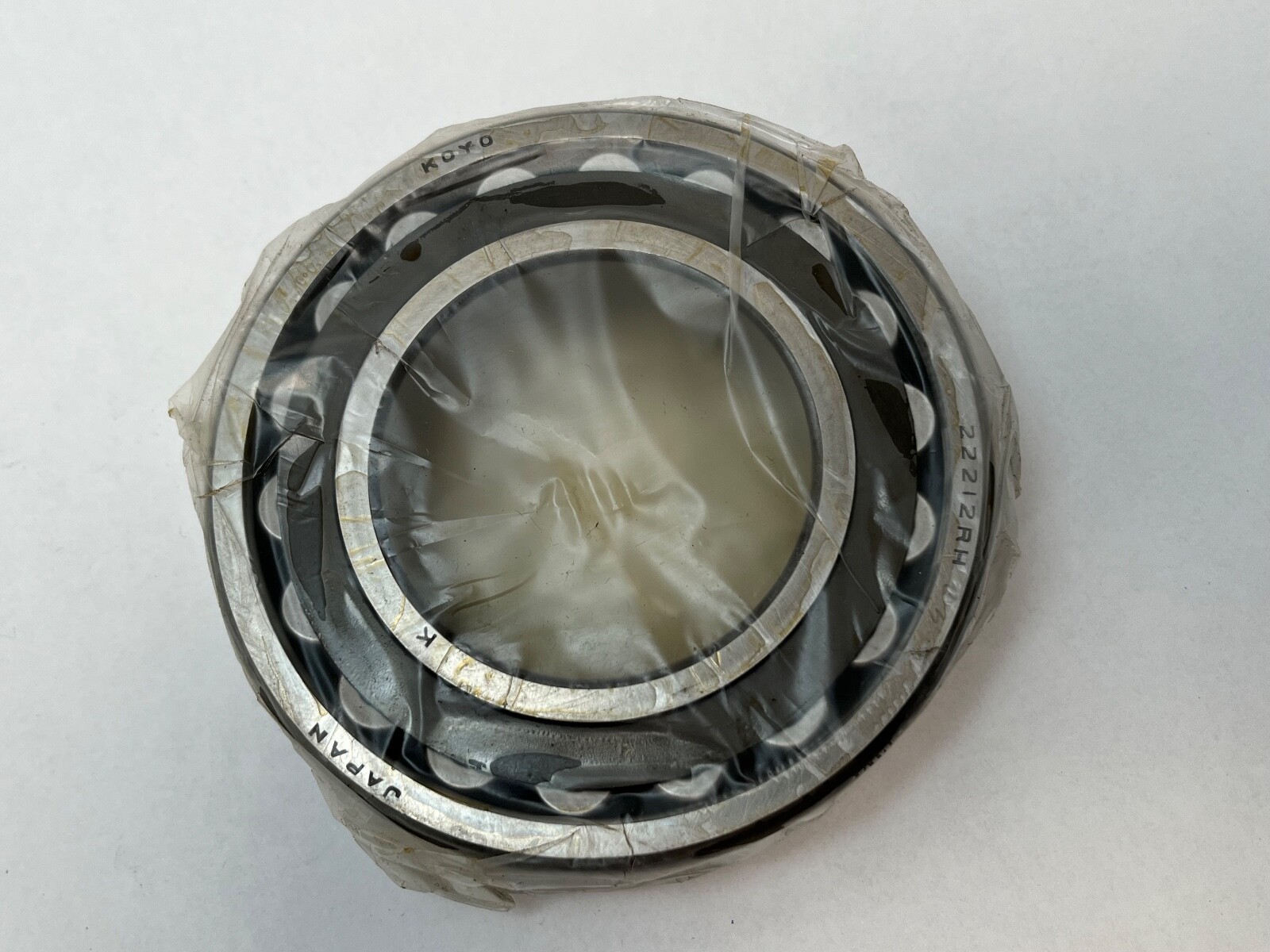

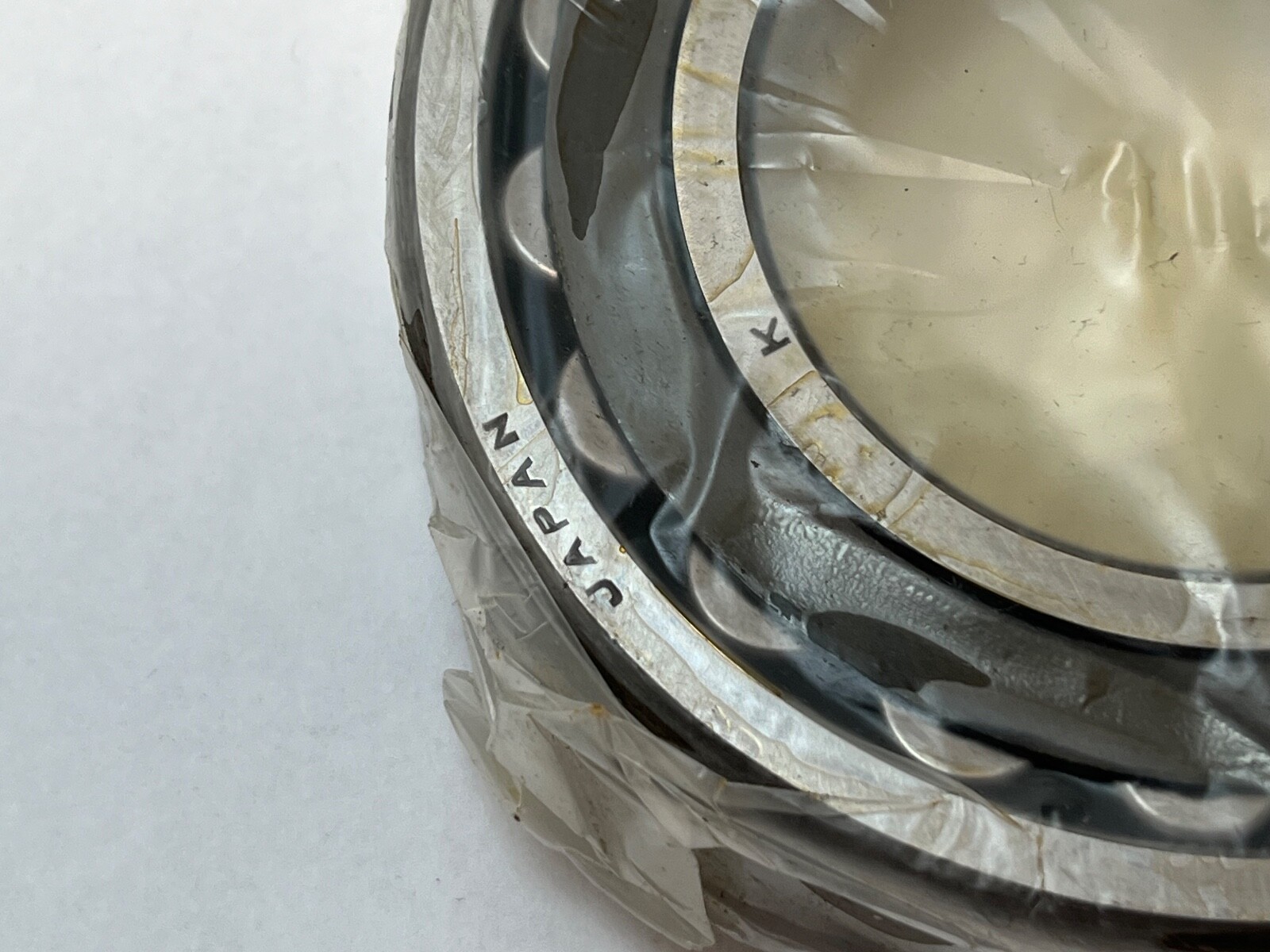

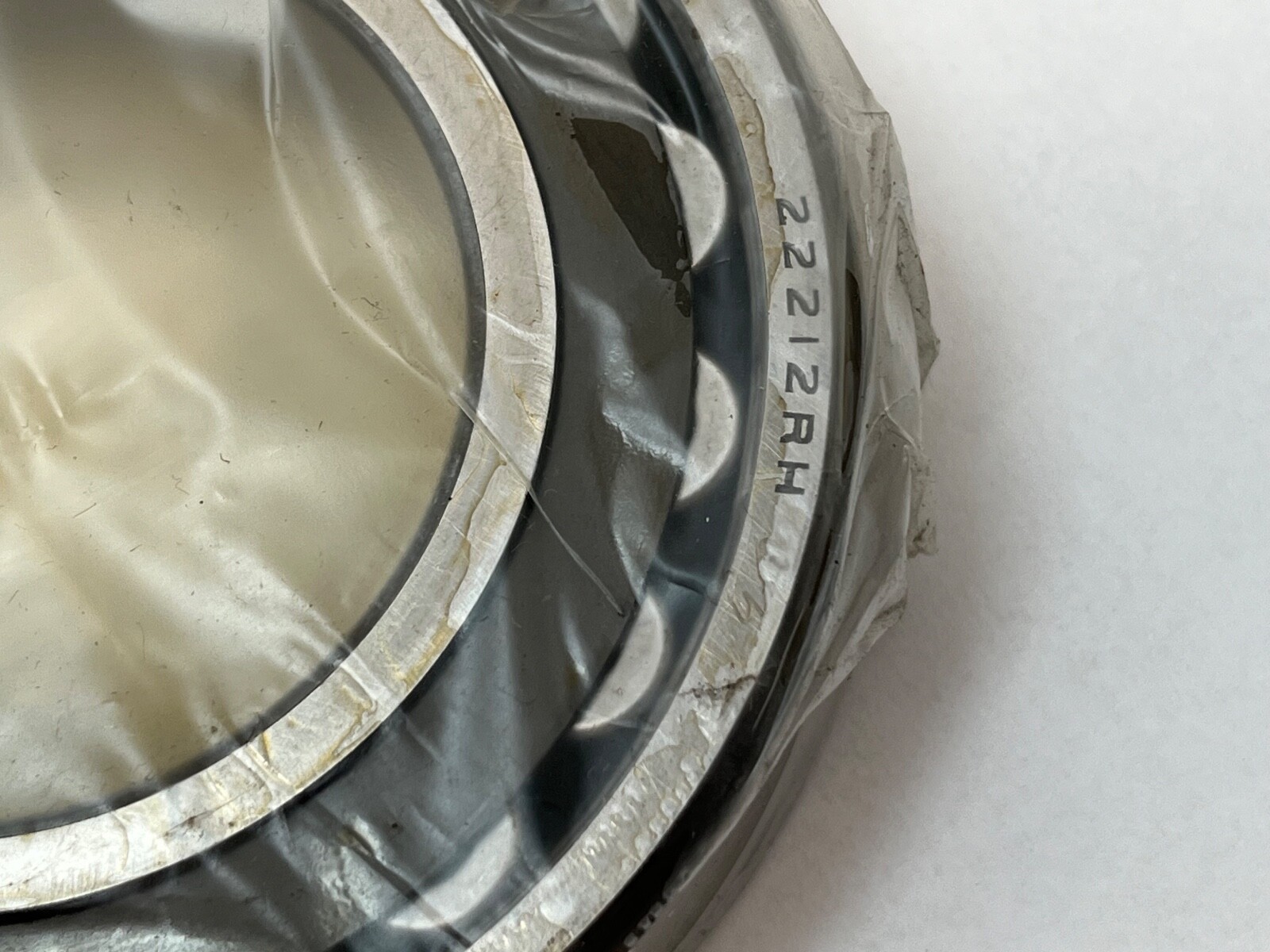

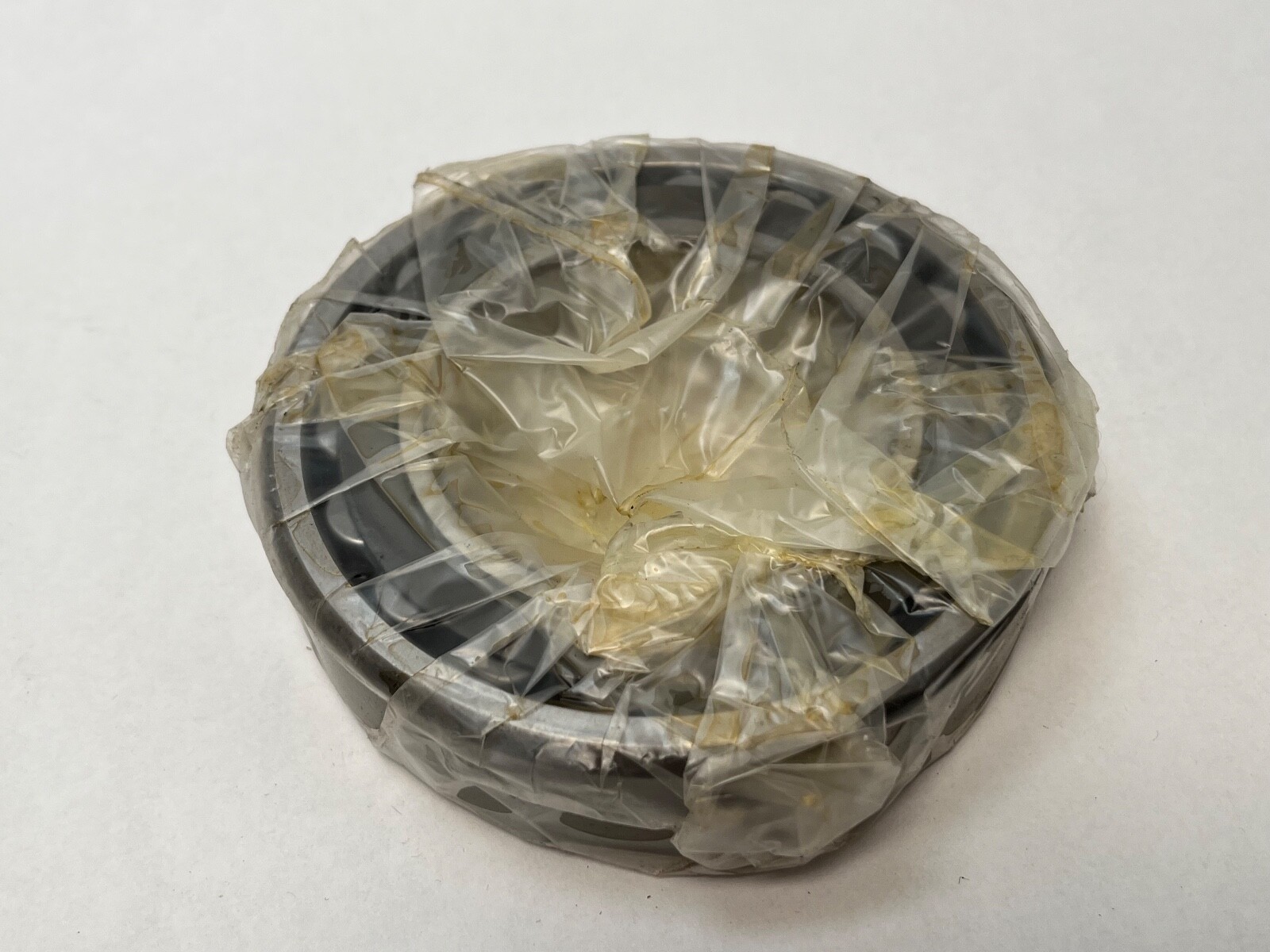

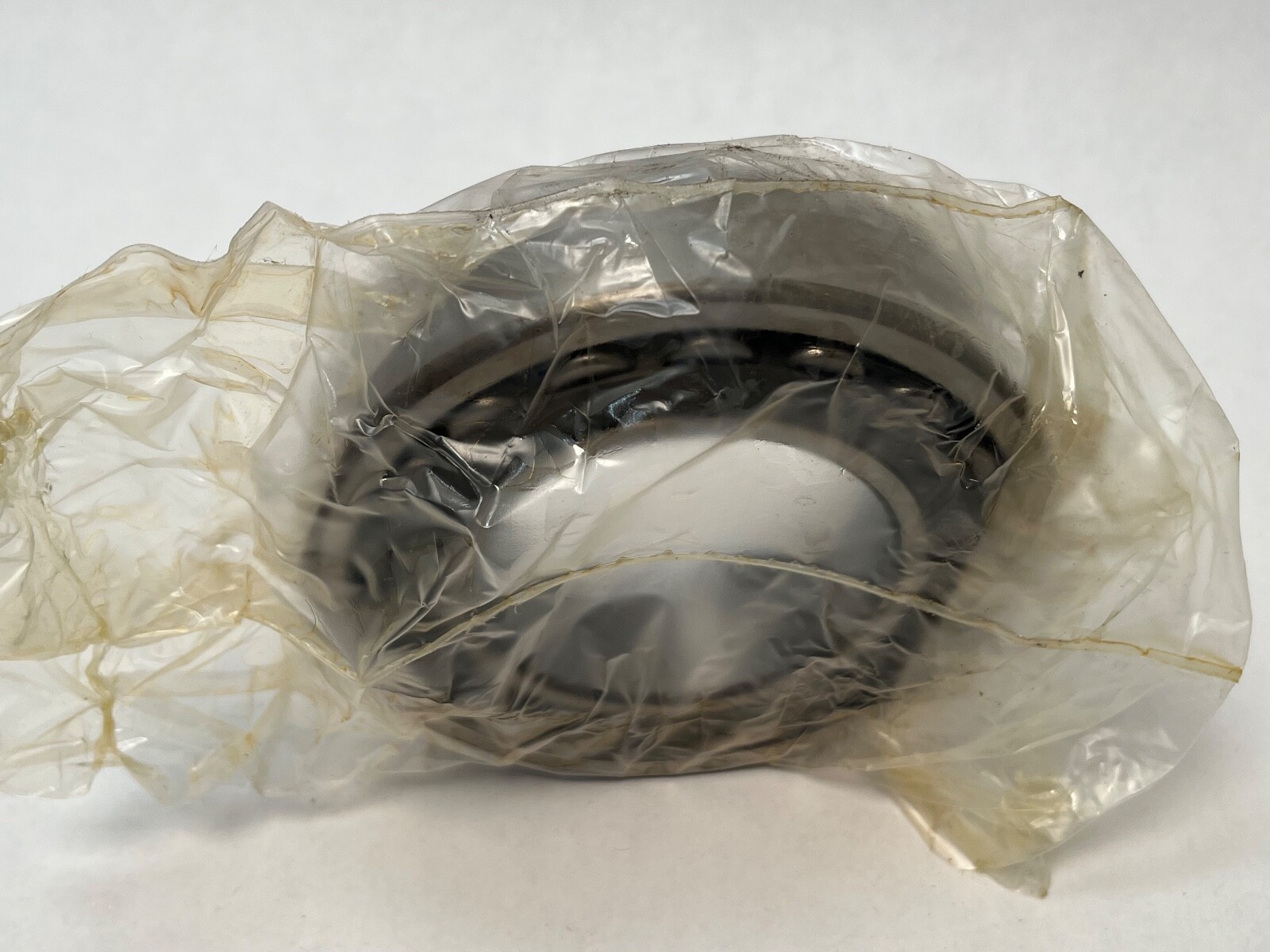

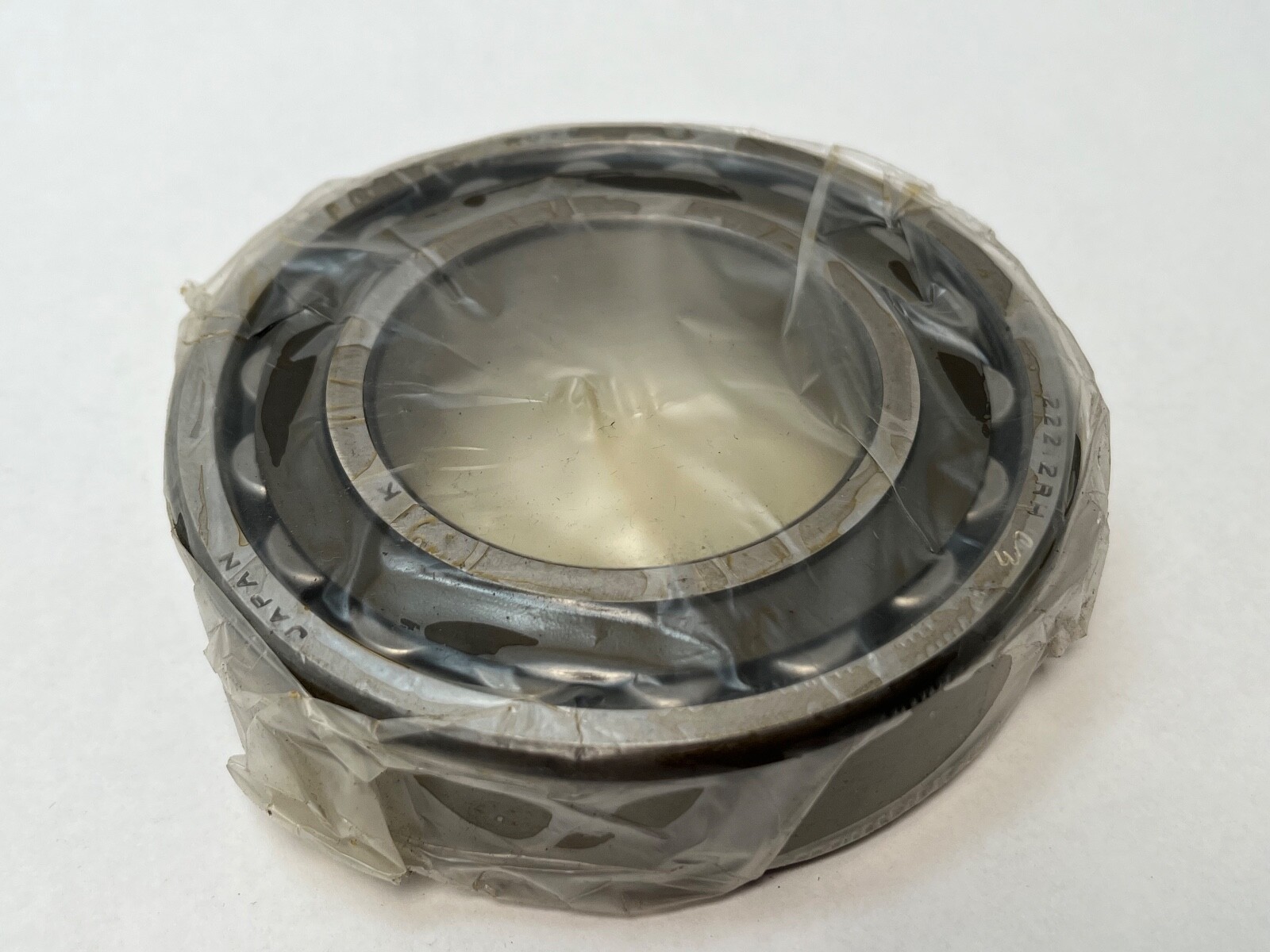

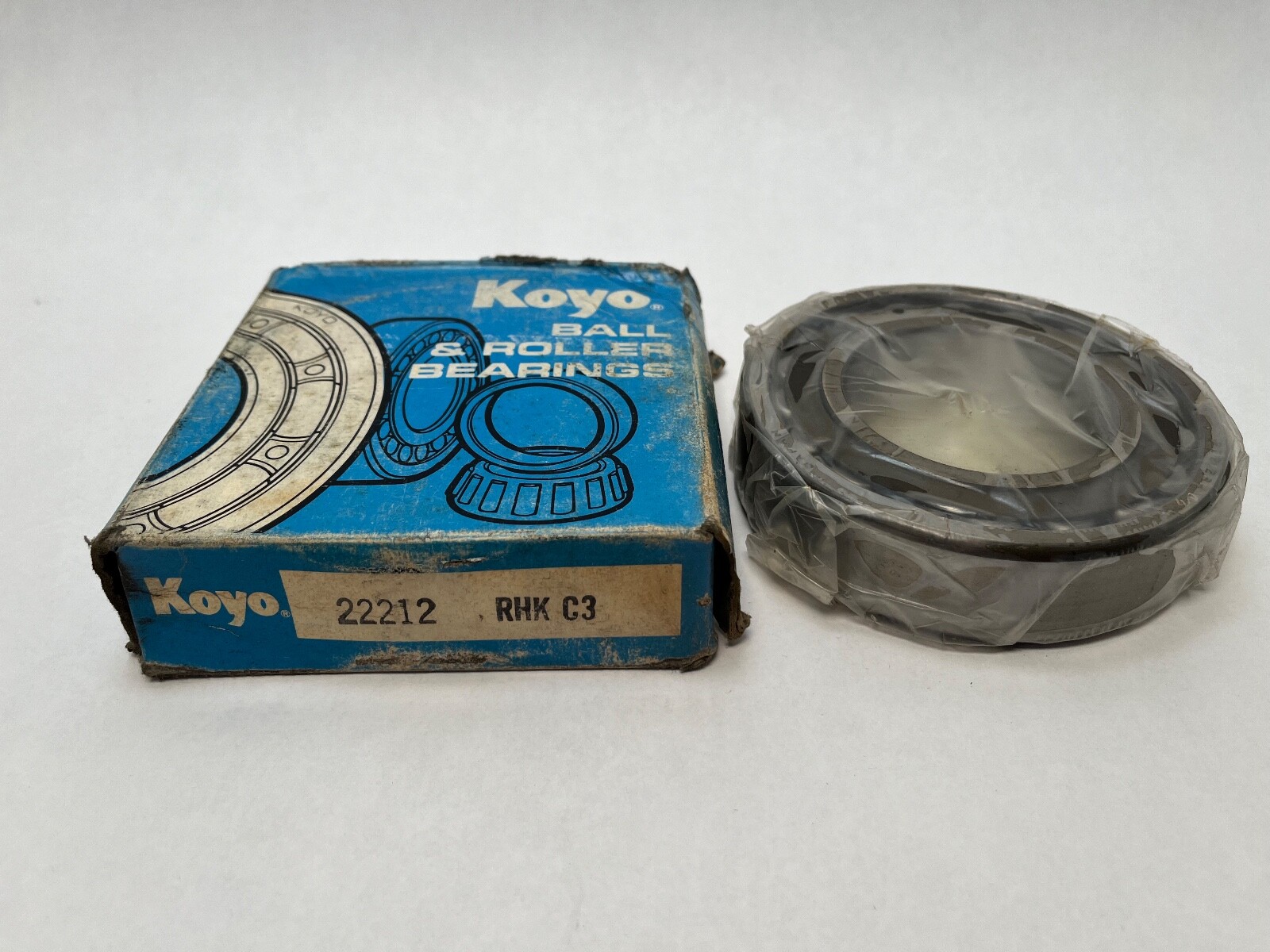

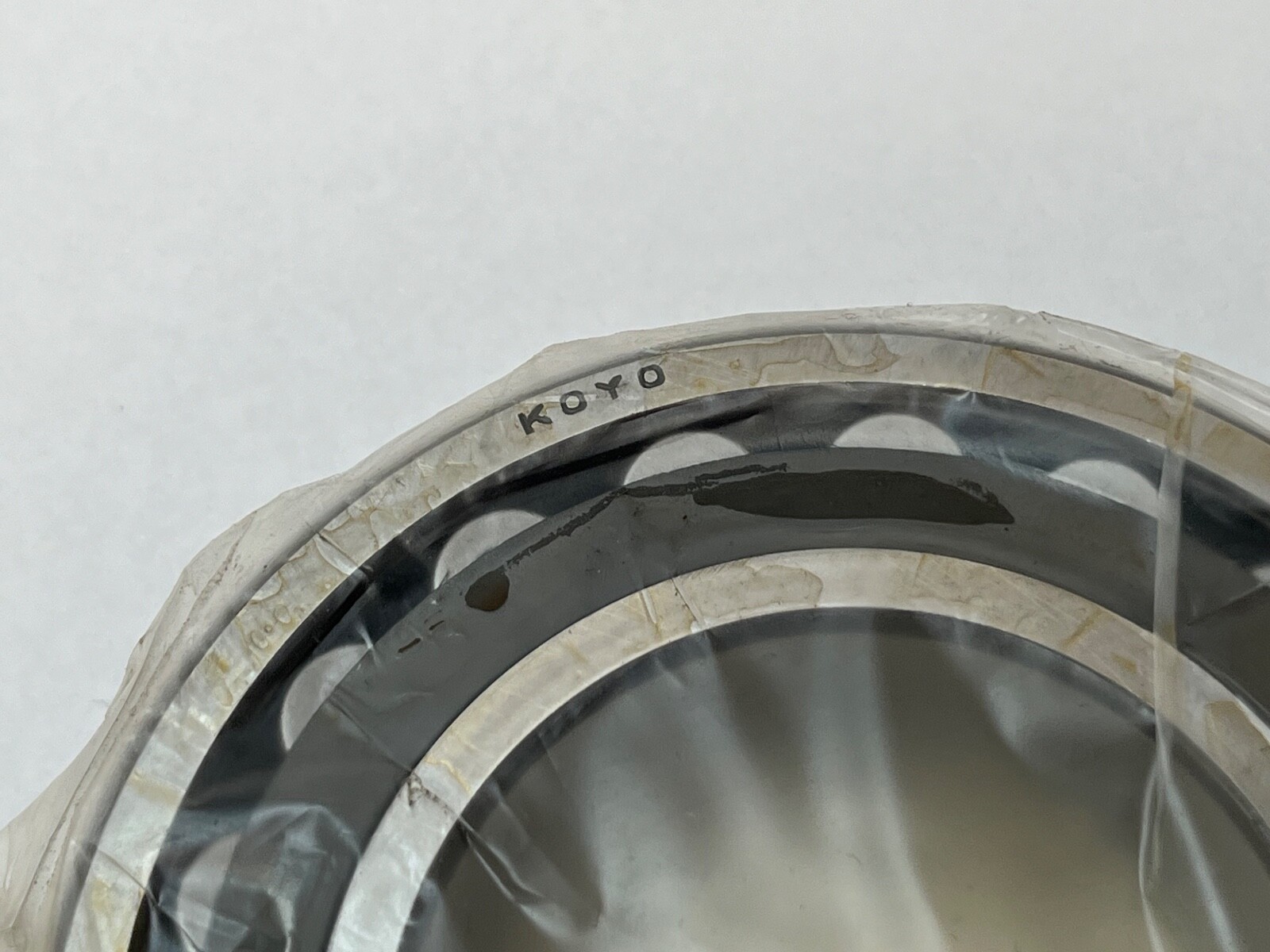

Koyo 22212RHKC3 spherical roller bearing, 60 x 110 x 28 mm, 1:12 tapered bore, C3 clearance, pressed steel cage. Mounts on an H312 adapter sleeve.
List Price
$60.43
8 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Koyo |
|---|---|
| MPN | 22212RHKC3 |
| Model | 22212-RH-K-C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 60 mm |
| OD | 110 mm |
| Width | 28 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00.40 |
| Internal Clearance | C3 |
| Base Number | 22212 |
| Industry Terms | spherical roller bearing, double row self-aligning roller bearing, tapered bore bearing, 222 series |
| Common Misspellings | 22212 R H K C3, 2212RHKC3, 22212RKC3 |
| Application Types | gearboxes, conveyors, fans, pumps, vibrating screens, crushers, paper machinery |
| Overall Width | 28 mm |
| Mpn Variants | 22212RHKC3, 22212-RH-K-C3, 22212RHK C3, 22212 RHK C3, 22212RHK |
| Compatible With Replaces | Mounts on H312 adapter sleeve with KM12 locknut and MB12 washer |
| Closure Type | Open |
| Cross Reference 1 | SKF 22212 EK/C3 - E design |
|---|---|
| Cross Reference 2 | FAG 22212-E1-K-C3 - E1 design |
| Cross Reference 3 | NSK 22212EAKE4C3 - EA design, E4 groove |
| Cross Reference 4 | NTN 22212EKC3 - E design |
| Cross Reference 5 | Timken 22212KEJW33C3 - W33 groove |
Koyo 22212RHKC3 double-row spherical roller bearing, 1:12 tapered bore, C3 internal clearance, open. Unit Quantity: 1 Pc.
22212 — 222 series double-row spherical roller bearing, bore code 12 = 60 mm, 60 x 110 x 28 mm.
RH — Koyo internal design with symmetrical rollers and a pressed steel cage.
K — tapered bore, taper 1:12.
C3 — radial internal clearance greater than normal.
Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 28 mm. Rolling Elements: Spherical Roller. Number Of Rows: 2. Bore Type: Tapered 1:12. Closure Type: Open. Internal Clearance: C3. Cage Material: Pressed steel. Series: 22200. Harmonization Code: 8482.30.00.40.
Adapter sleeve for the 60 mm bore: H312, with KM12 locknut and MB12 lock washer.
Cross-references: SKF 22212 EK/C3 (E design); FAG 22212-E1-K-C3 (E1 design); NSK 22212EAKE4C3 (EA design, E4 groove); NTN 22212EKC3 (E design); Timken 22212KEJW33C3 (W33 groove). Part number variants: 22212RHKC3, 22212-RH-K-C3, 22212RHK C3, 22212 RHK C3, 22212RHK.
Bore 60 mm, outside diameter 110 mm, width 28 mm, with a 1:12 tapered bore.
RH is Koyo’s internal design with symmetrical rollers and a pressed steel cage.
An H312 adapter sleeve, with KM12 locknut and MB12 lock washer.
