Spherical roller bearing, 60 mm bore x 110 mm OD x 28 mm wide, pressed steel cage, W33 outer-ring lubrication groove. ISO 22212 size, CN clearance.
List Price
$51.88
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 22212EAE4 |
| Model | 22212 EA E4 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 60 mm |
| OD | 110 mm |
| Width | 28 mm |
| Series | 22200 |
|---|---|
| Lubricant | Grease or oil |
| Material | Bearing Steel |
| Industry Terms | Spherical roller bearing; self-aligning roller bearing; W33 |
| Overall Width | 28 mm |
| Mpn Variants | 22212EAE4, 22212 EAE4, 22212 EA E4, 22212-EA-E4, 22212EA |
| Dynamic Load Rating | 178,000 N |
| Static Load Rating | 174,000 N |
| Rolling Elements | Spherical Roller |
| Item Weight | 1.1 kg (2.43 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 4,800 rpm grease; 6,000 rpm oil |
| Internal Clearance | CN |
| Relubrication Feature | Outer-ring lubrication groove and three holes (E4 / W33) |
| Harmonization Code | 8482.3 |
| Bearing Material | Bearing steel |
| Cross Reference 1 | NTN 22212EAD1 |
|---|---|
| Cross Reference 2 | Timken 22212EJW33 |
| Cross Reference 3 | Nachi 22212EXW33 |
| Cross Reference 4 | Koyo 22212RHW33 |
| Cross Reference 5 | SKF 22212 E (no W33 groove) |
| Cross Reference 6 | FAG 22212-E1 (no W33 groove) |

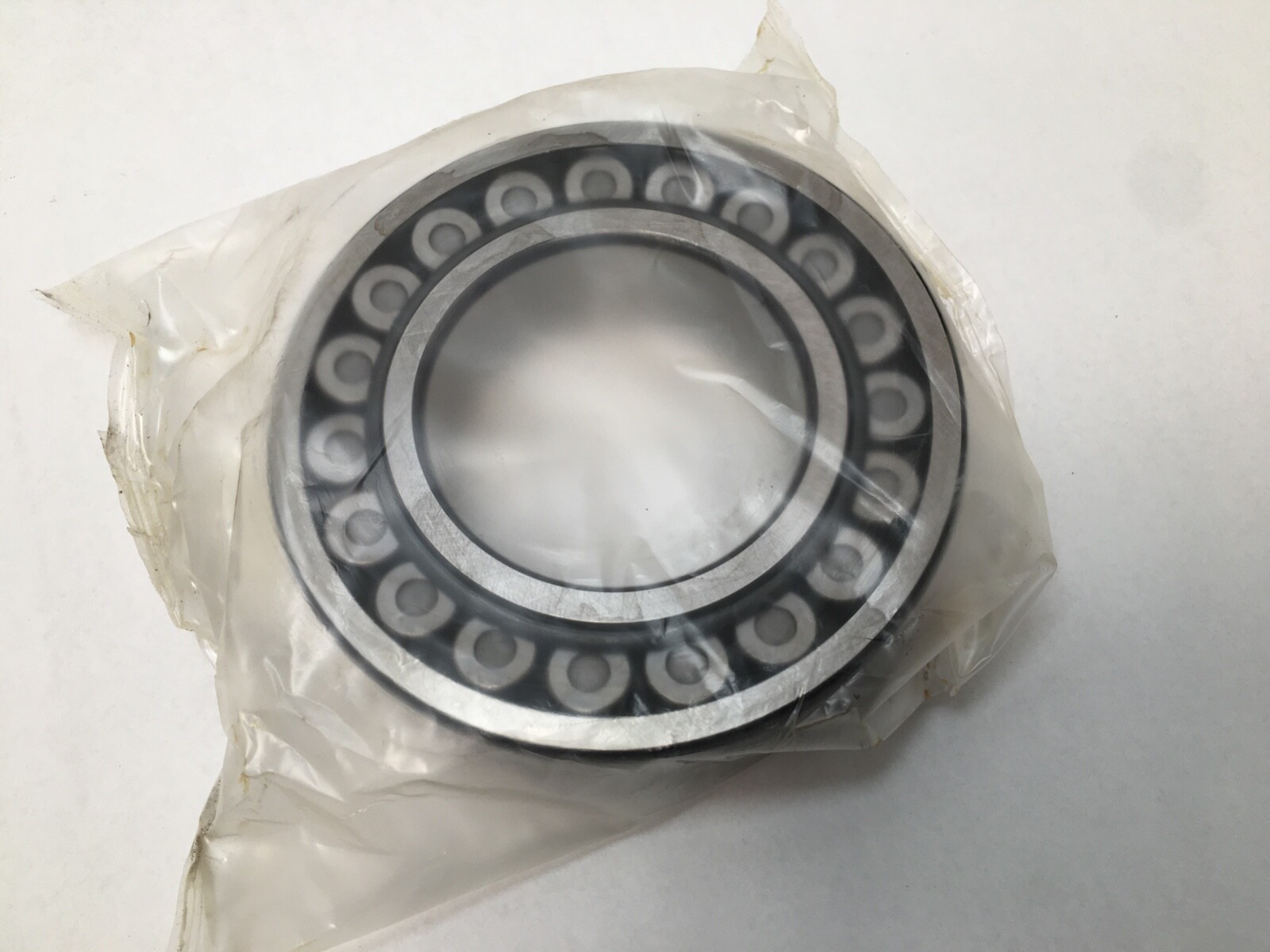

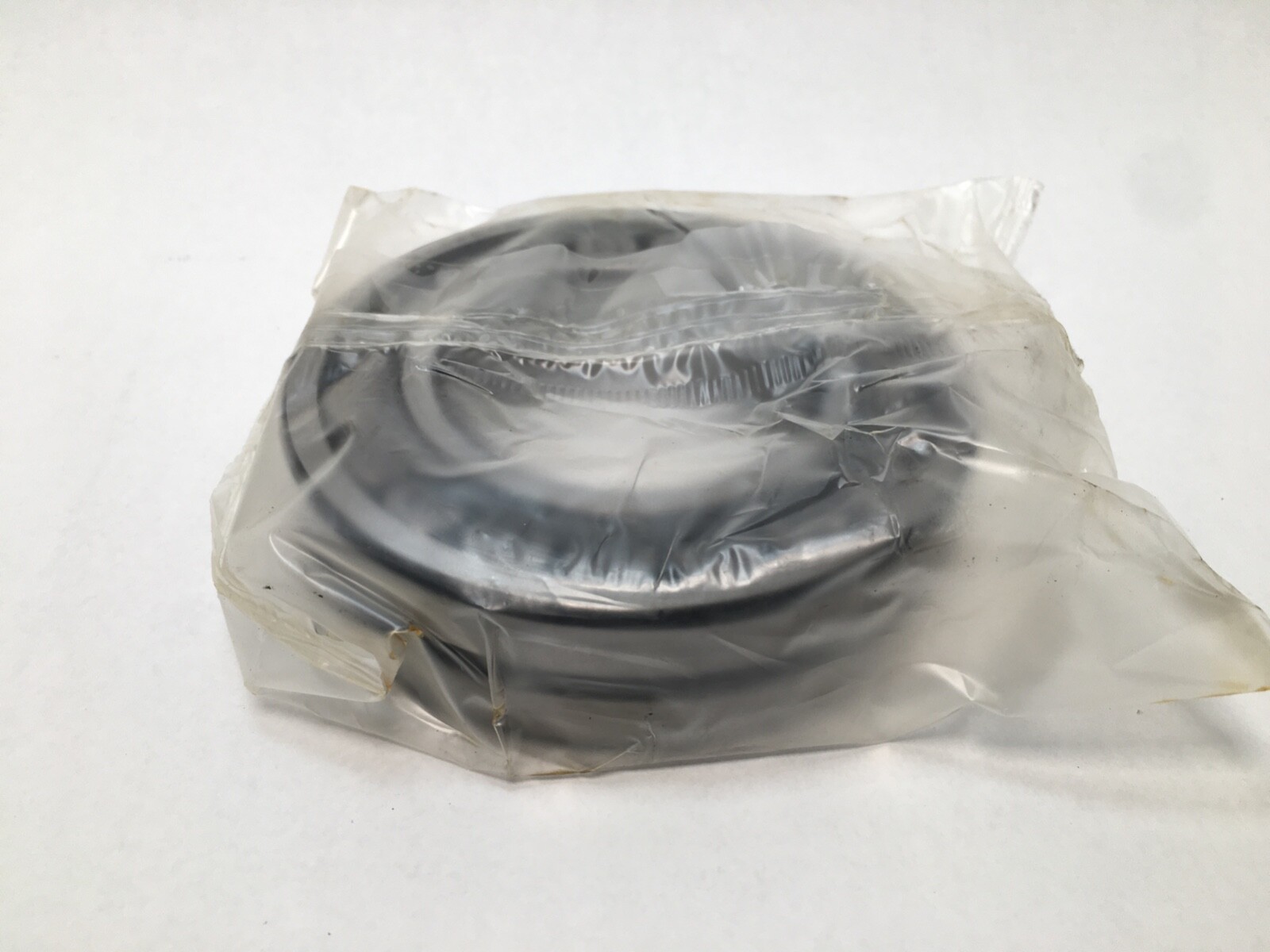

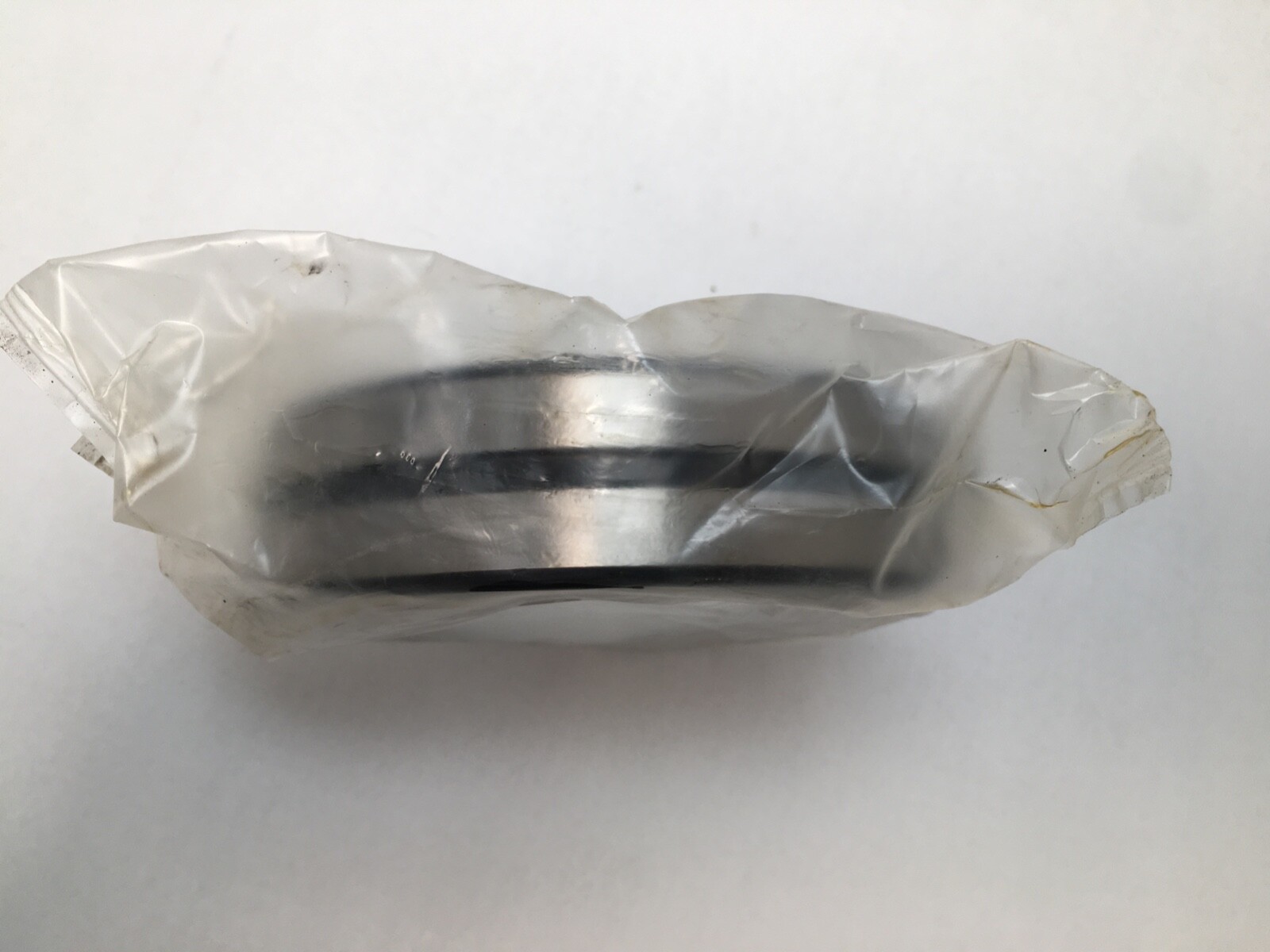

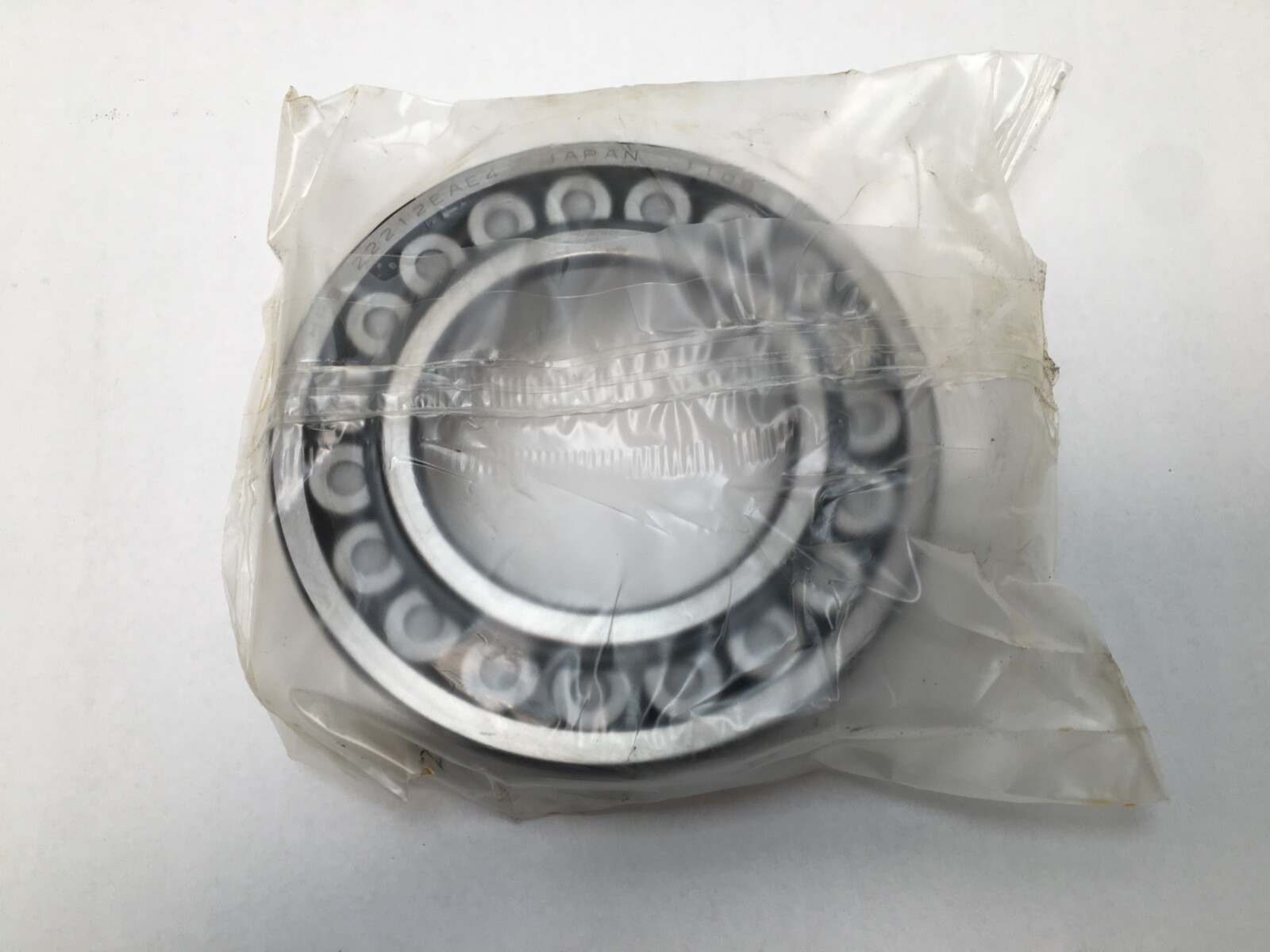

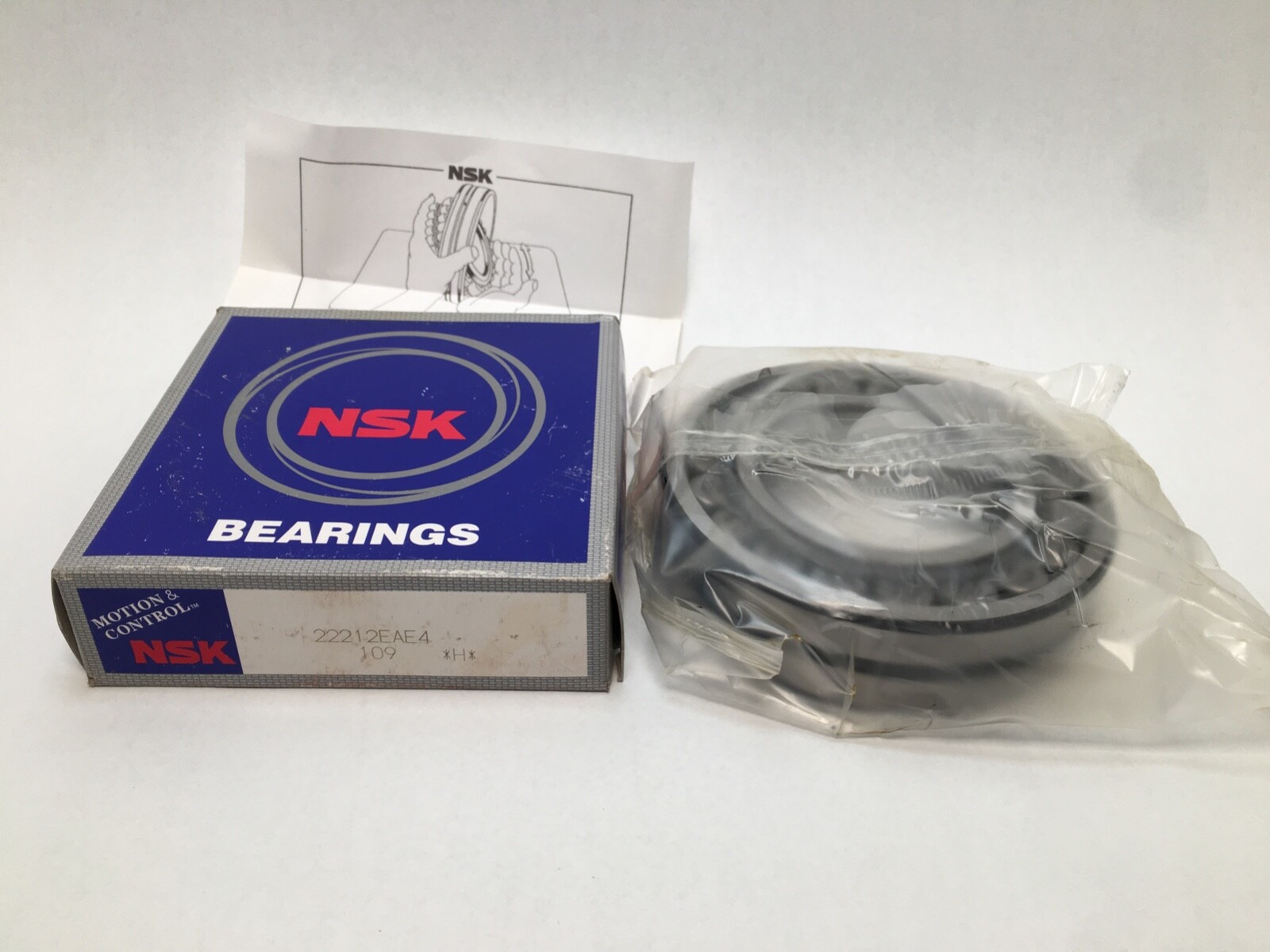

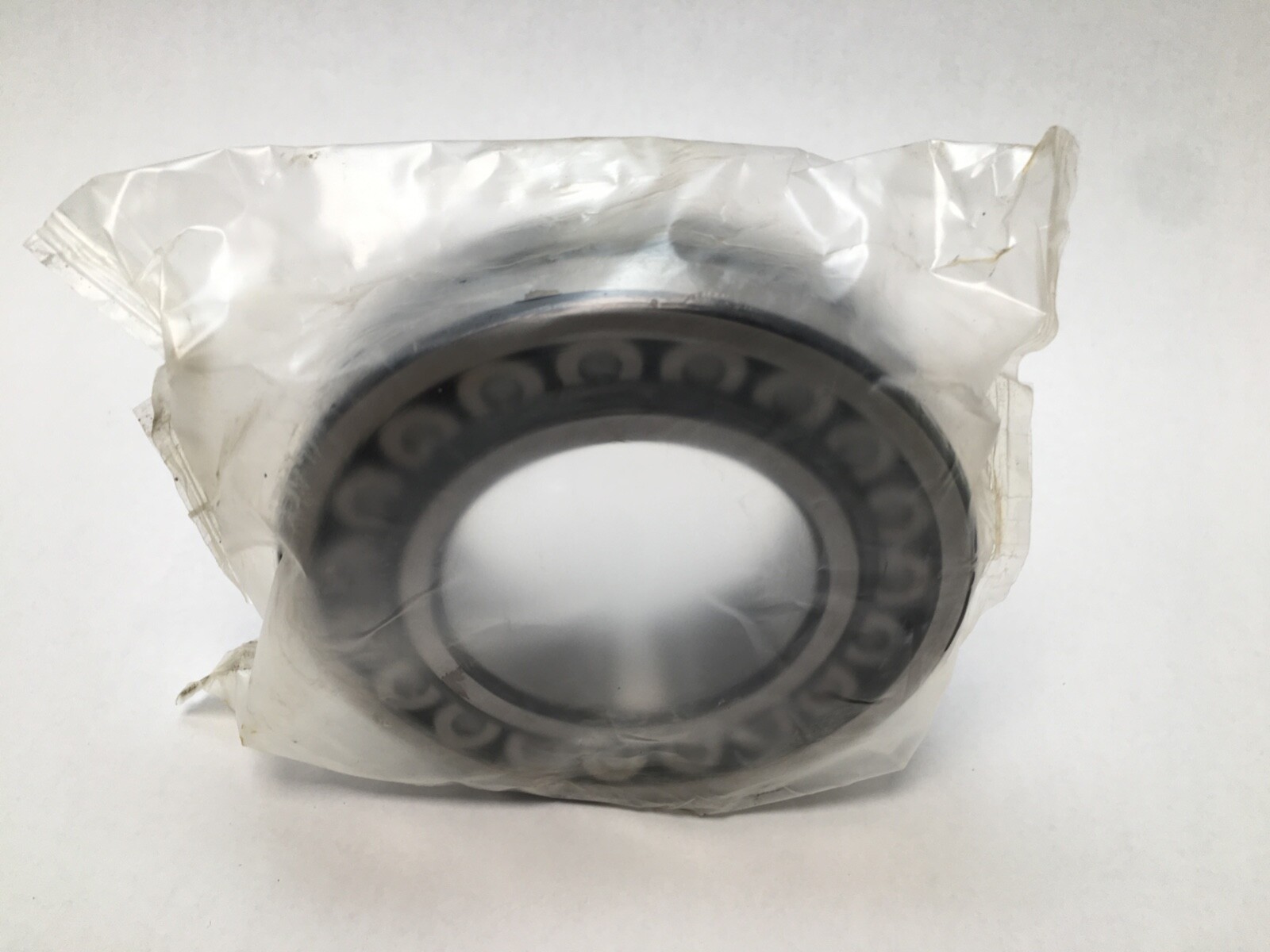

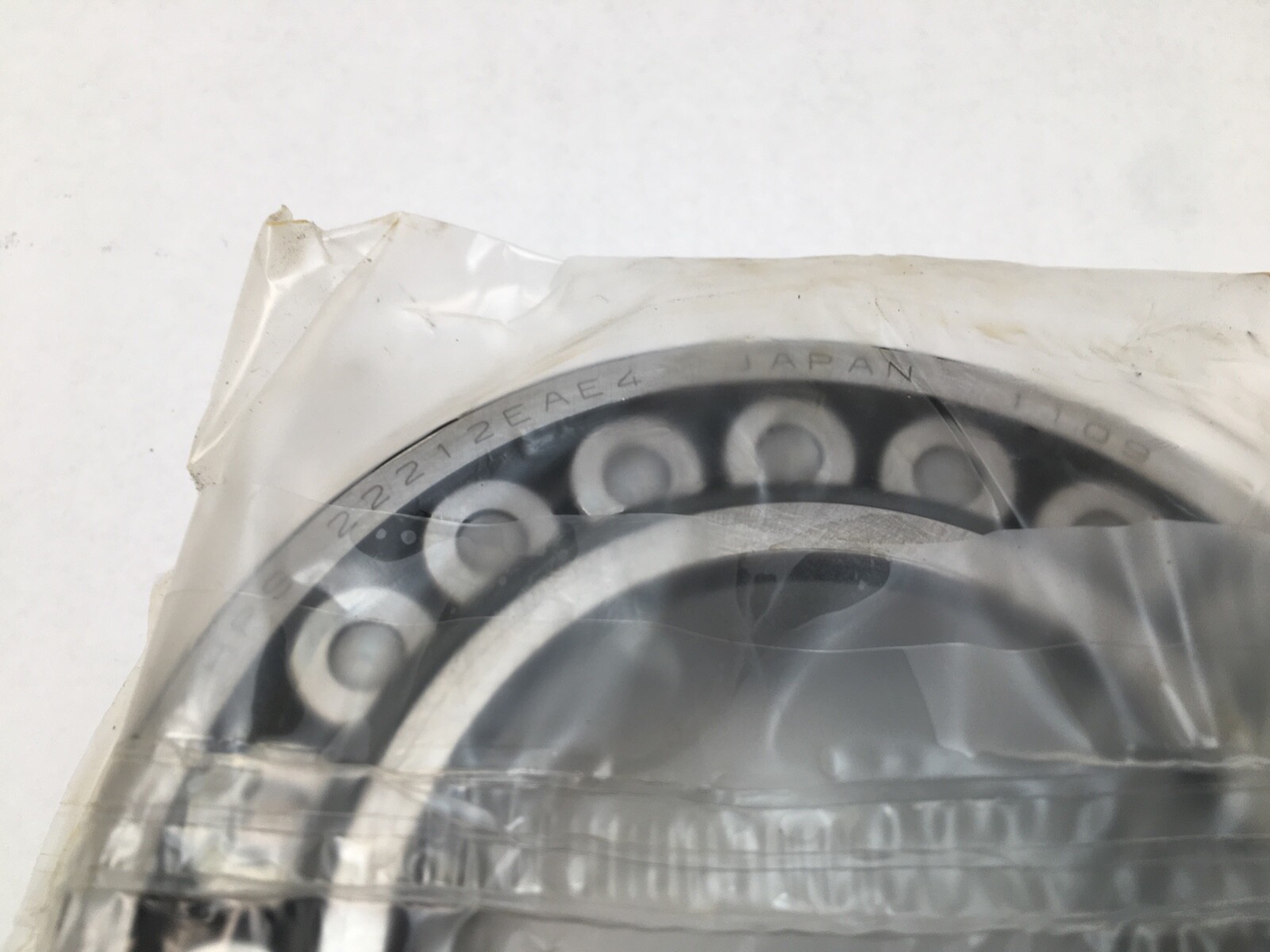

NSK 22212EAE4 double-row spherical roller bearing with a straight bore, pressed steel cage and a lubrication groove with three holes in the outer ring. Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 28 mm. The self-aligning outer raceway accommodates shaft deflection and housing misalignment under heavy radial load. Unit Quantity: 1 Pc.
22212 — ISO 22212 size, series 222, 60 x 110 x 28 mm.
EA — NSK high-capacity internal design with a pressed steel cage.
E4 — lubrication groove and three radial holes in the outer ring, equivalent to W33.
Dynamic Load Rating: 178,000 N. Static Load Rating: 174,000 N. Limiting Speed: 4,800 rpm grease; 6,000 rpm oil. Item Weight: 1.1 kg (2.43 lb). Rolling Elements: Spherical Roller. Number Of Rows: 2. Cage Material: Pressed steel. Bore Type: Straight. Closure Type: Open. Internal Clearance: CN. Lubricant: Grease or oil. Bearing Material: Bearing steel. Snap Ring Included: No. Series: 22200. Country of Origin: Japan.
Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 28 mm. Chamfer r min: 1.5 mm. Shaft Abutment da: 69 to 72 mm. Housing Abutment Da: 98 to 101 mm. Fillet ra max: 1.5 mm. The outer-ring groove distributes lubricant around the bearing and the three radial holes carry it to the rollers.
Cross-Reference: NTN 22212EAD1, Timken 22212EJW33, Nachi 22212EXW33, Koyo 22212RHW33, SKF 22212 E and FAG 22212-E1 (the last two without the W33 groove). Each shares the 60 x 110 x 28 mm envelope, straight bore and normal clearance. A tapered-bore 22212 K execution is a related size.
60 mm bore, 110 mm outside diameter and 28 mm width.
A lubrication groove and three radial holes in the outer ring, equivalent to W33.
Dynamic Load Rating: 178,000 N. Static Load Rating: 174,000 N.
