Availability:
1 in stock
Double-row spherical roller bearing, 60 x 110 x 28 mm, straight bore, open, C3 clearance, W33 lubrication groove, two stamped steel cages. Sold as 1 Pc.
List Price
$73.99
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22212 CC/C3W33 |
| GTIN | 7316576652189 |
| Model | 22212CC/C3W33 22212CJ/C3W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 60 mm |
| OD | 110 mm |
| Width | 28 mm |
| Material | Bearing Steel |
|---|---|
| Base Number | 22212 |
| Industry Terms | Spherical roller bearing; self-aligning roller bearing; double row barrel roller bearing; W33 relubricatable; SRB; 222 series spherical |
| Common Misspellings | 22212CC C3 W33; 22212 CCC3W33; 2212CC/C3W33; 22212-CC-C3-W33; SKF 22212 CC C-3 W-33; 22212CCW33C3 |
| Application Types | Conveyor systems and pulleys, mining and aggregate plant, gearboxes and speed reducers, fans and blowers, pumps, general heavy-duty shafting |
| Bore Shaft Size | 60 mm |
| Locking Method | Interference fit on a cylindrical shaft seat |
| Mpn Variants | 22212 CC/C3W33; 22212-CC/C3W33; 22212CC/C3W33; 22212CCC3W33; 22212 CC C3 W33; 22212CJ/C3W33; 22212CCJ/C3W33; 22212CC |
| Manufacturer Status | SKF; the CC design has been superseded by the current E generation |
| Precision Class | ISO normal (ABEC 1 / P0) |
| Cage Type | Two stamped cages, guide ring on inner ring |
| Rolling Elements | Spherical Rollers |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30 |
| Internal Clearance | C3 |
| Part Number | 22212-CC/C3W33 |
| Cross Reference 1 | SKF 22212 E/C3W33 (current E design) |
|---|---|
| Cross Reference 2 | NTN 22212 EAW33C3 (E design, C3, W33) |
| Cross Reference 3 | Timken 22212 EJW33C3 (C3, W33) |
| Cross Reference 4 | NSK 22212 CDE4C3 (CD design, C3, E4 = W33) |
| Cross Reference 5 | FAG 22212-E1-C3 (C3; no outer ring groove) |
| Cross Reference 6 | Koyo 22212RHW33C3 (C3, W33) |
| Cross Reference 7 | RHP 22212 EJW33C3 (C3, W33) |
| Cross Reference 9 | SKF 22212 CCK/C3W33 (1:12 tapered bore, H312 sleeve) |

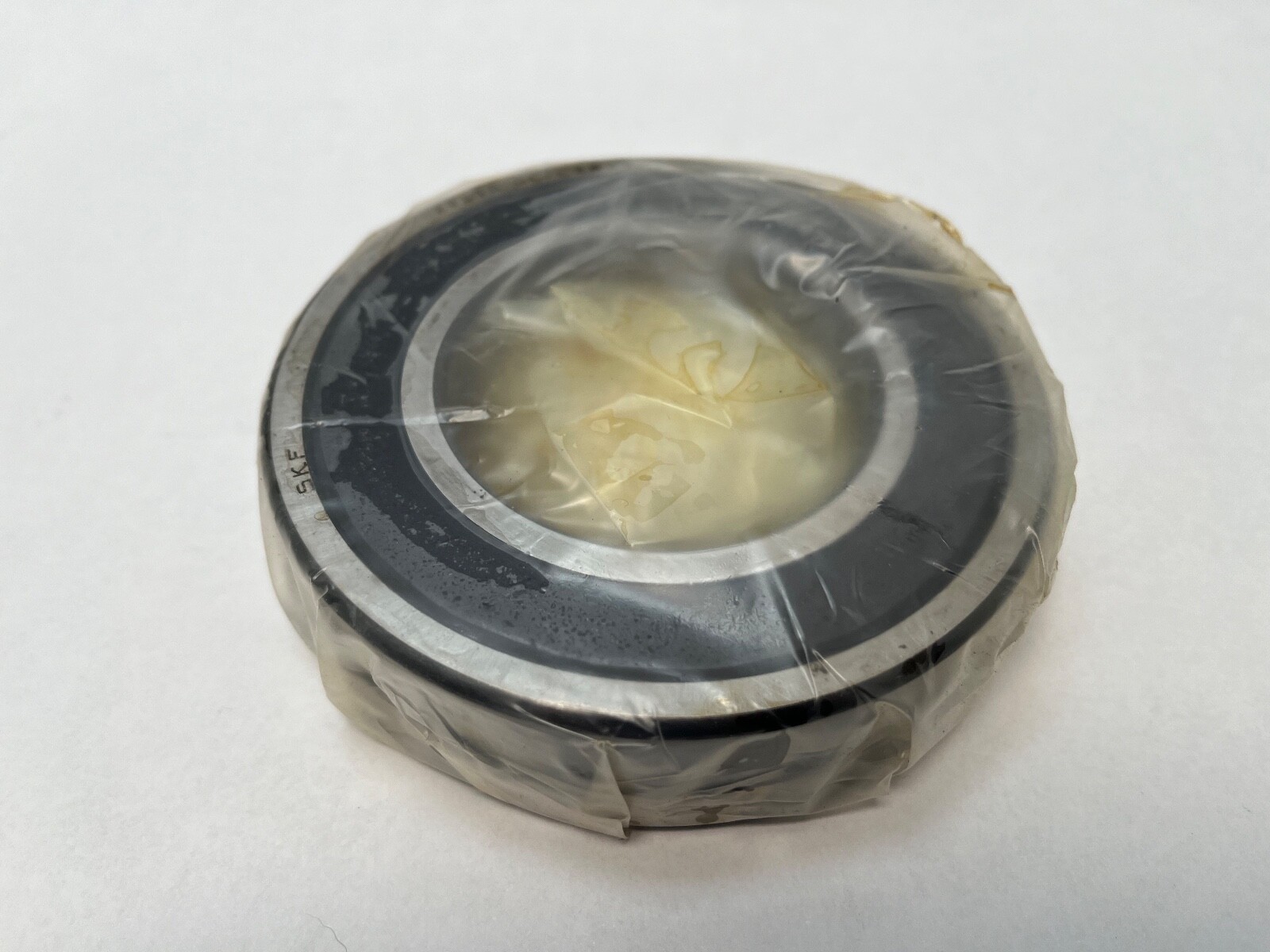

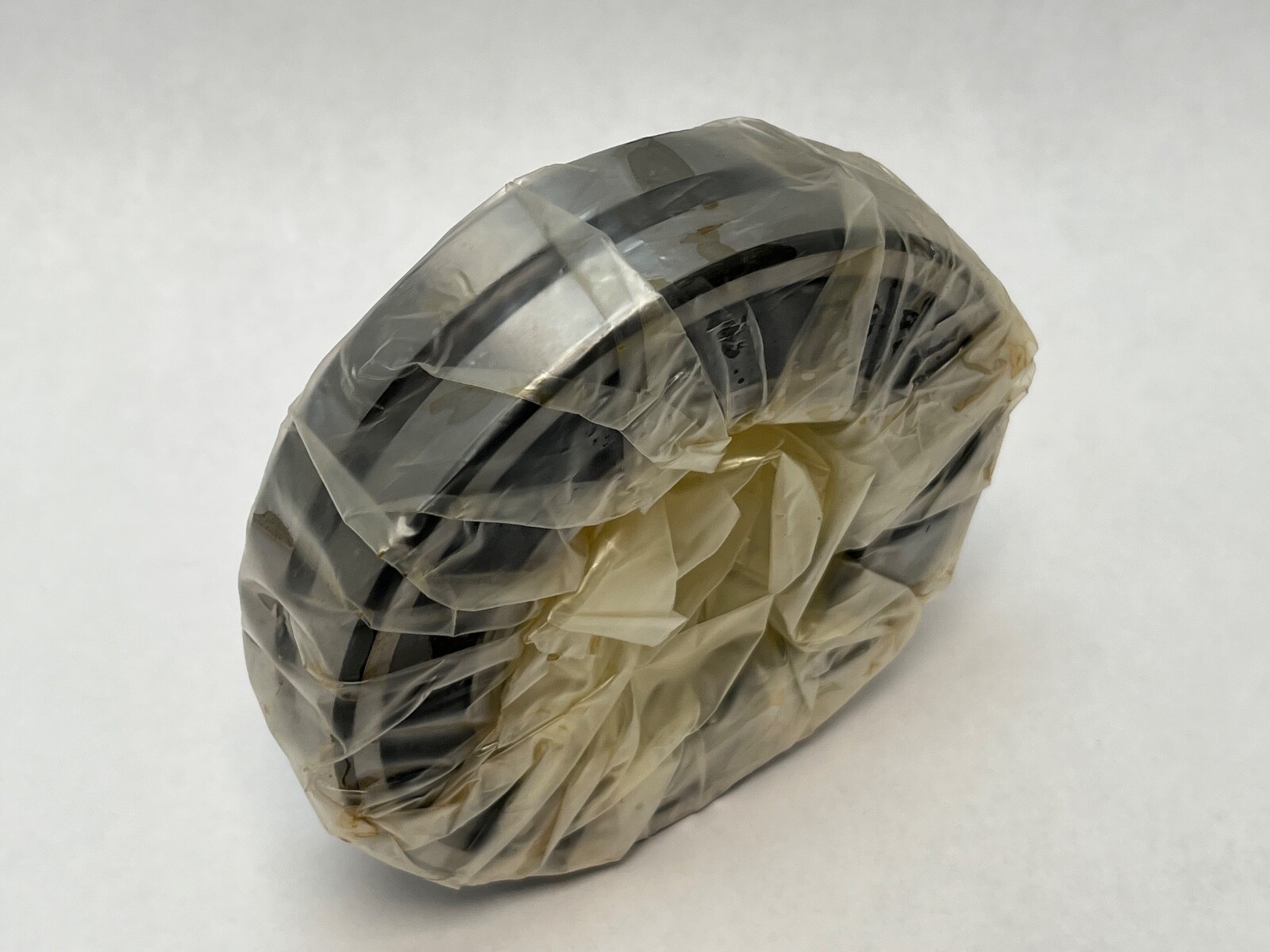

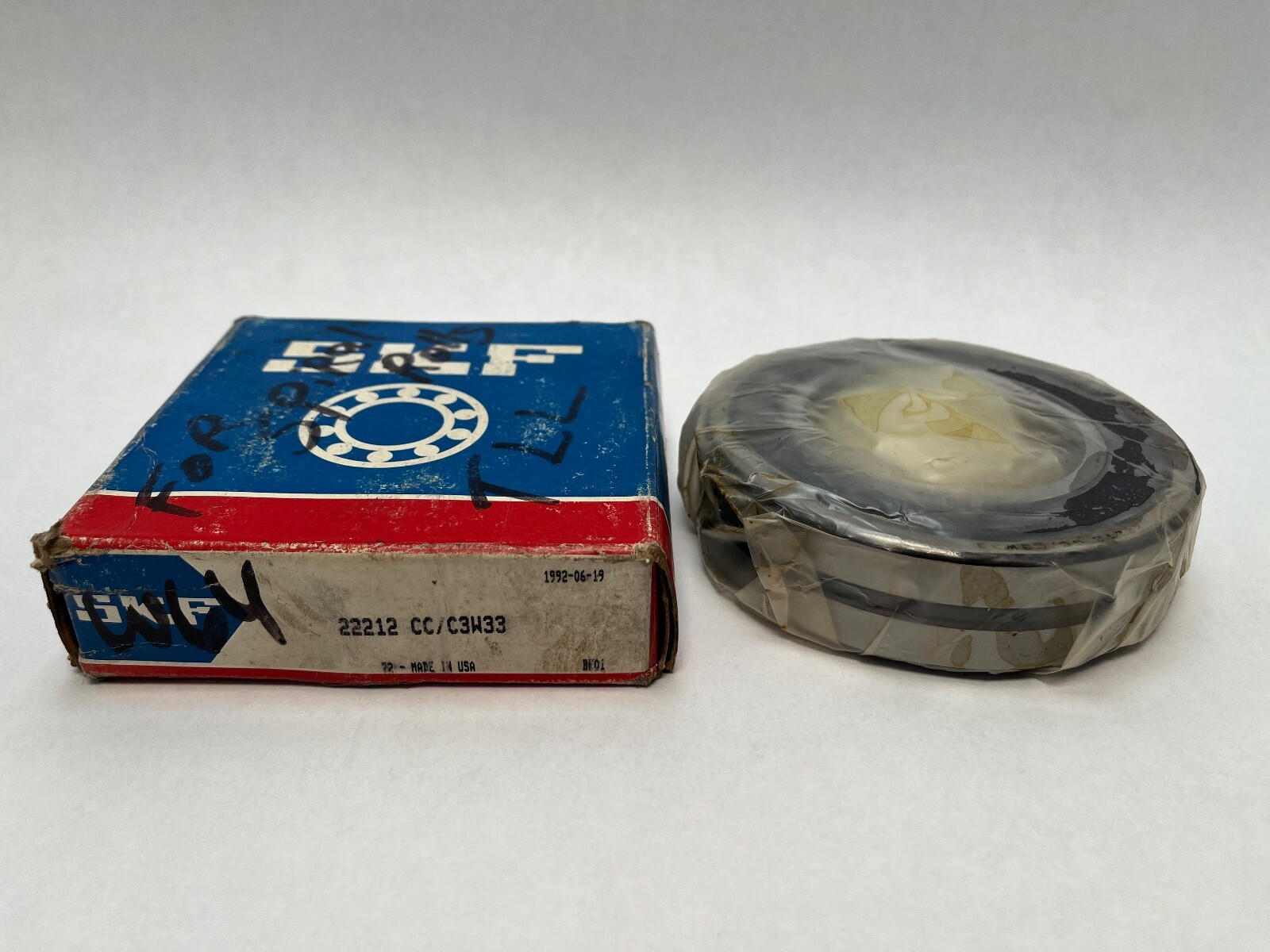

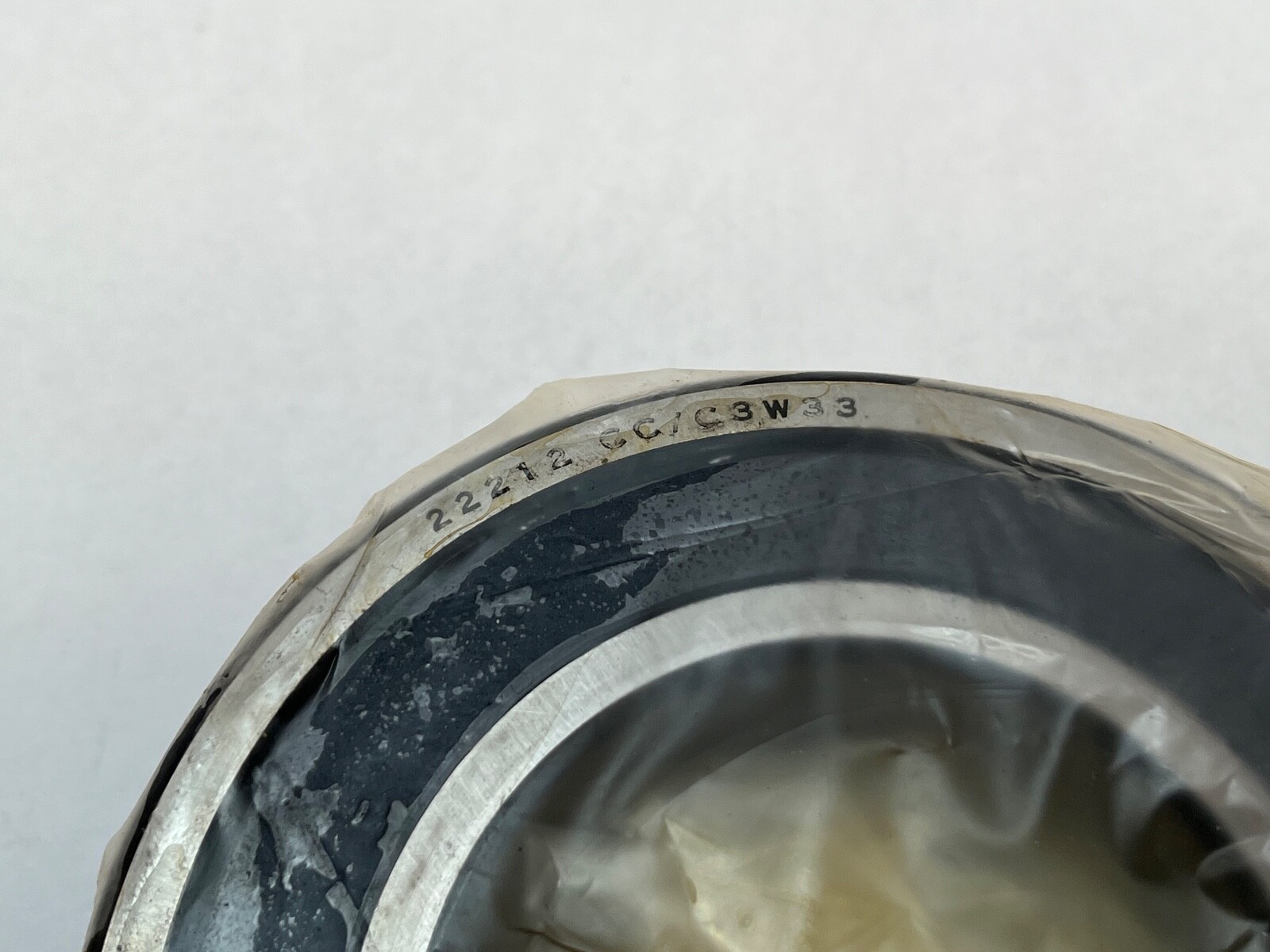

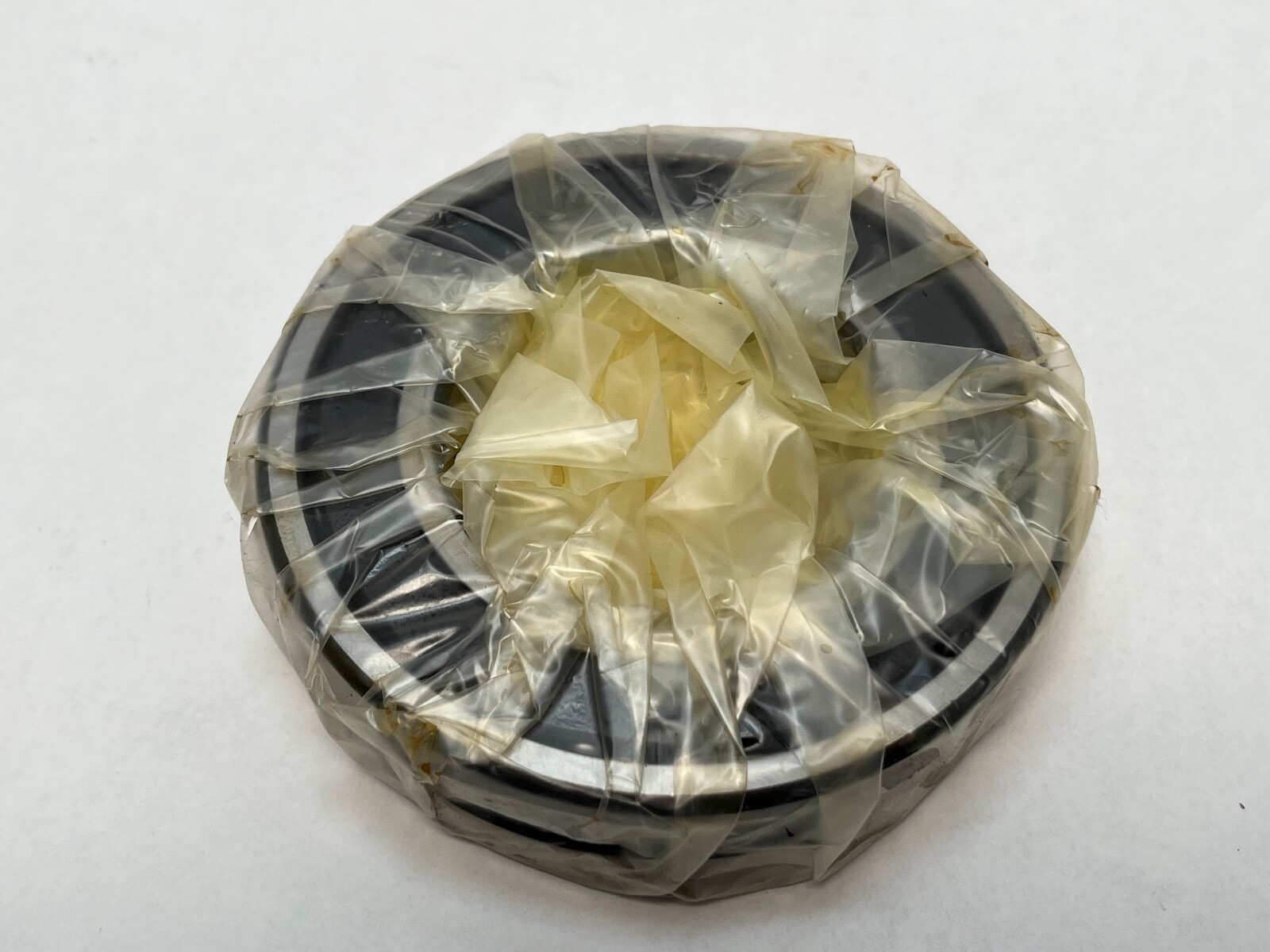

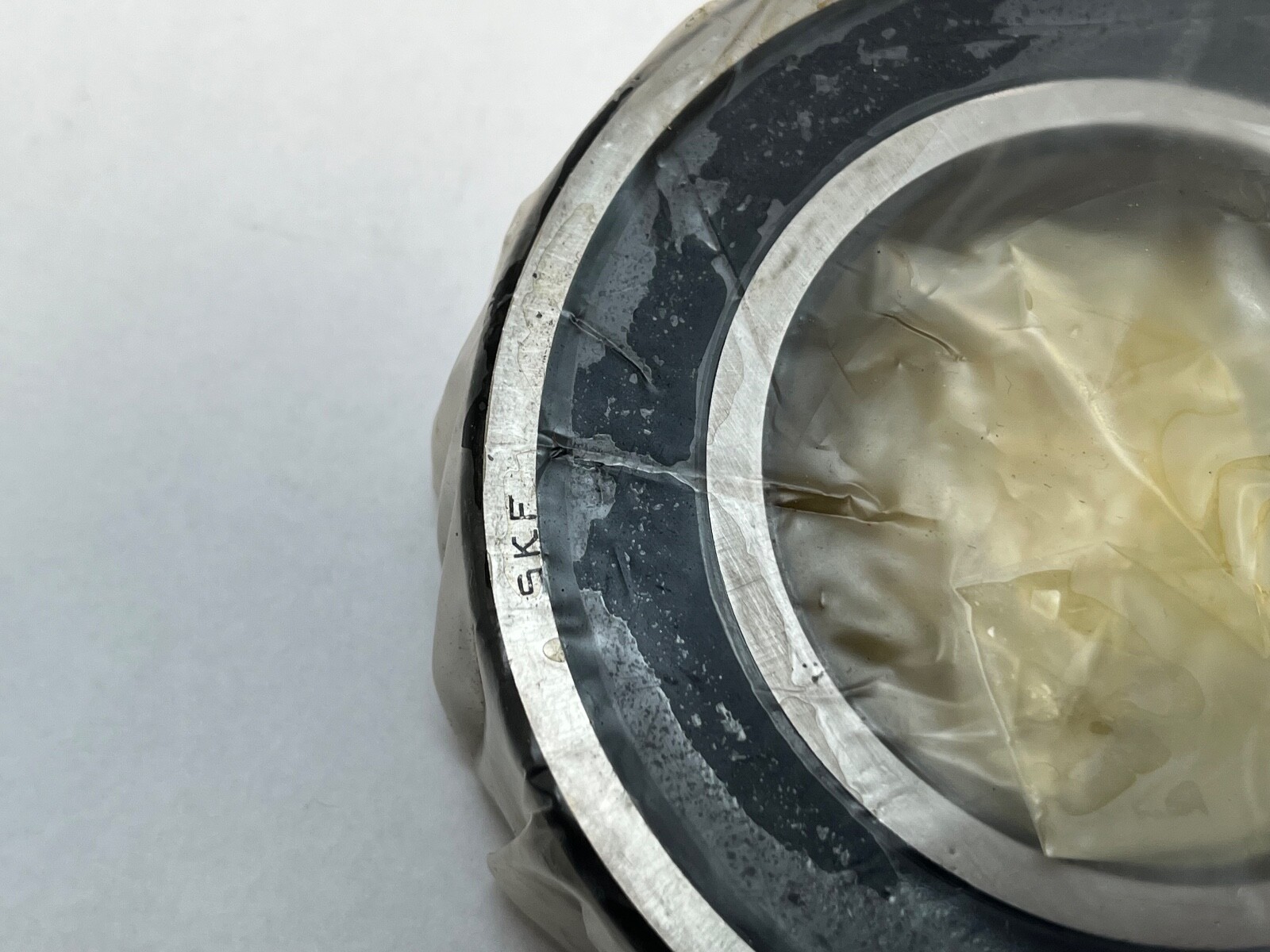

An SKF 22212 CC/C3W33 double-row spherical roller bearing with a straight cylindrical bore, open, with C3 clearance and a W33 lubrication groove. Unit Quantity: 1 Pc. One complete non-separable bearing: flangeless inner ring, two rows of spherical rollers, two stamped steel cages, guide ring and outer ring with the lubrication groove and three holes.
222 — double-row spherical roller bearing, ISO dimension series 22.
12 — bore code; 12 x 5 = 60 mm bore.
CC — SKF internal design: flangeless inner ring, a guide ring centred on the inner ring in place of a fixed central rib, and two stamped steel cages, one per roller row. SKF also writes this design CC(J) or CJ, which is why the title carries both forms.
C3 — radial internal clearance greater than normal.
W33 — circumferential lubrication groove around the outer ring outside diameter plus three radial lubrication holes through to the raceway.
No K in the designation — straight cylindrical bore.
Bore Diameter: 60 mm. Outside Diameter: 110 mm. Width: 28 mm. Number Of Rows: 2. Bore Type: Straight (cylindrical). Closure Type: Open. Inner Ring: flangeless, with a guide ring centred on the inner ring. Cage Material: Pressed steel. Cage Type: two stamped steel cages, one per roller row. Lubrication: groove and three holes through the outer ring (W33). Internal Clearance: C3, greater than normal. Precision Class: ISO normal (ABEC 1 / P0). Series: 222.
Chamfer rs min: 1.5 mm. Fillet ra max: 1.5 mm. Shaft abutment da min: 69 mm. Housing abutment Da max: 101 mm. Inner ring shoulder d2: 71.9 mm. Outer ring shoulder D1: 98.5 mm. Outer ring lubrication groove width: 6.9 mm. Lubrication hole diameter: 3 mm, three holes. Axial load factors: e 0.24, Y1 2.84, Y2 4.23, Y0 2.78.
Cross-references: SKF 22212 E/C3W33 (current E design); NTN 22212 EAW33C3 (E design, C3, W33); Timken 22212 EJW33C3 (C3, W33); NSK 22212 CDE4C3 (CD design, C3, E4 = W33); FAG 22212-E1-C3 (C3; no outer ring groove); Koyo 22212RHW33C3 (C3, W33); RHP 22212 EJW33C3 (C3, W33). Related tapered-bore version: SKF 22212 CCK/C3W33 (1:12 tapered bore, H312 adapter sleeve, 55 mm shaft). The designation 22212CJ/C3W33 is the same design written as CJ.
Bore Diameter: 60 mm. Outside Diameter: 110 mm. Width: 28 mm.
C3 is radial internal clearance greater than normal. W33 is a circumferential lubrication groove in the outer ring outside diameter plus three radial lubrication holes.
Bore Type: Straight (cylindrical). There is no K in the designation.
