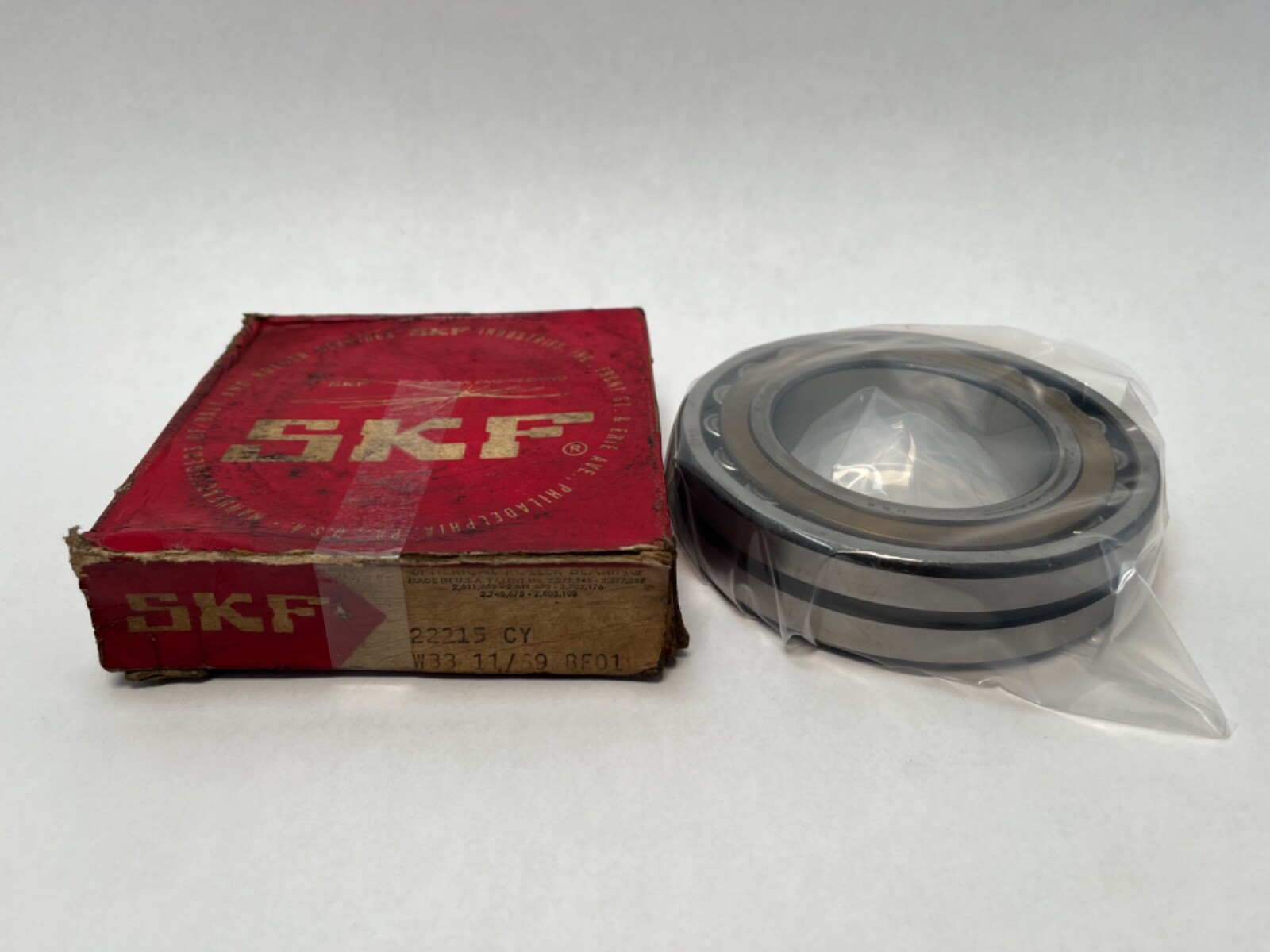

SKF22215 CY/W33Double-Row Spherical Roller Bearing, 75 x 130 x 31 mm, Straight Bore, Pressed Brass Window Cage, W33 Lubrication, Normal Clearance

Product Description

What this part is:

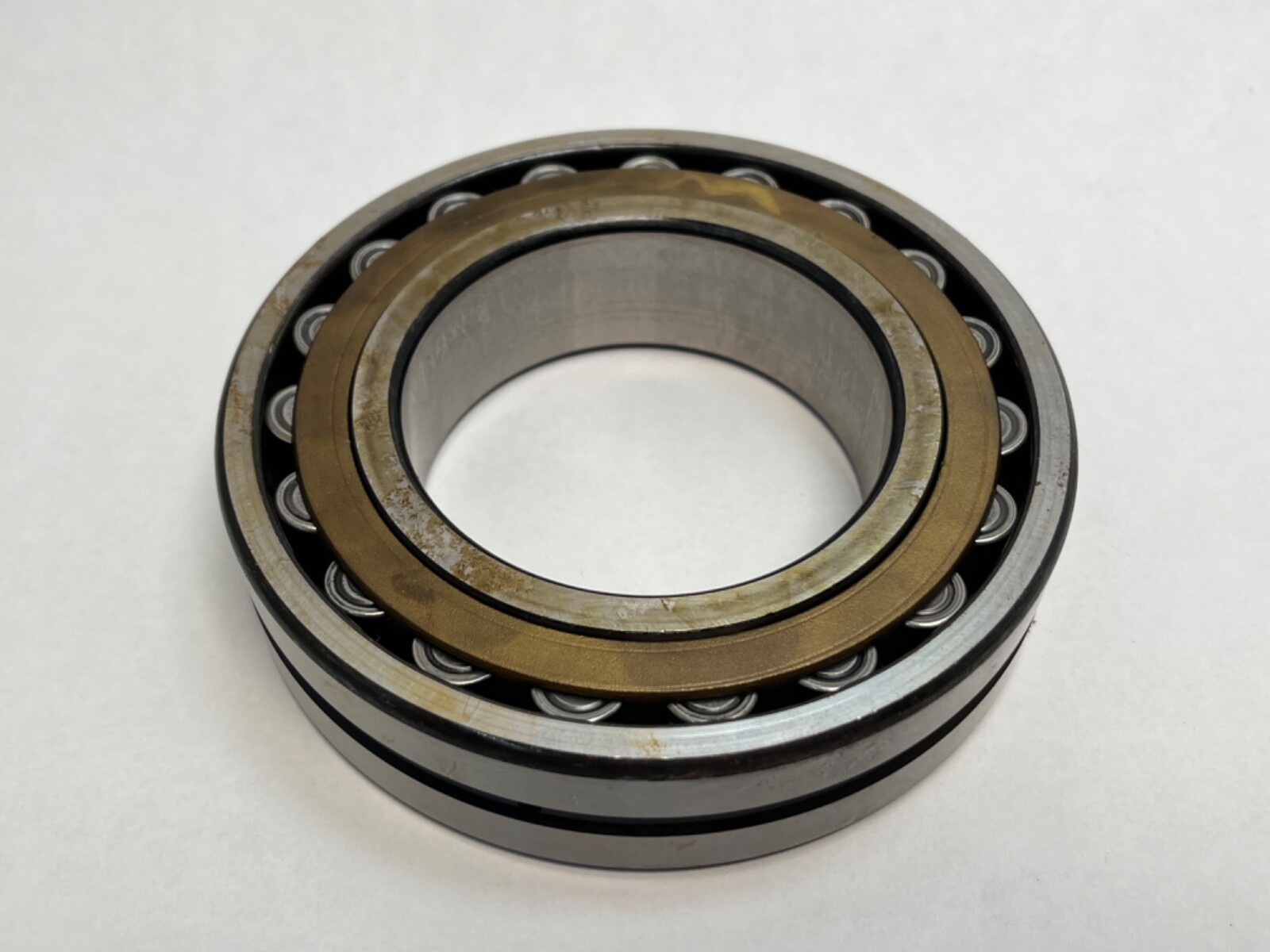

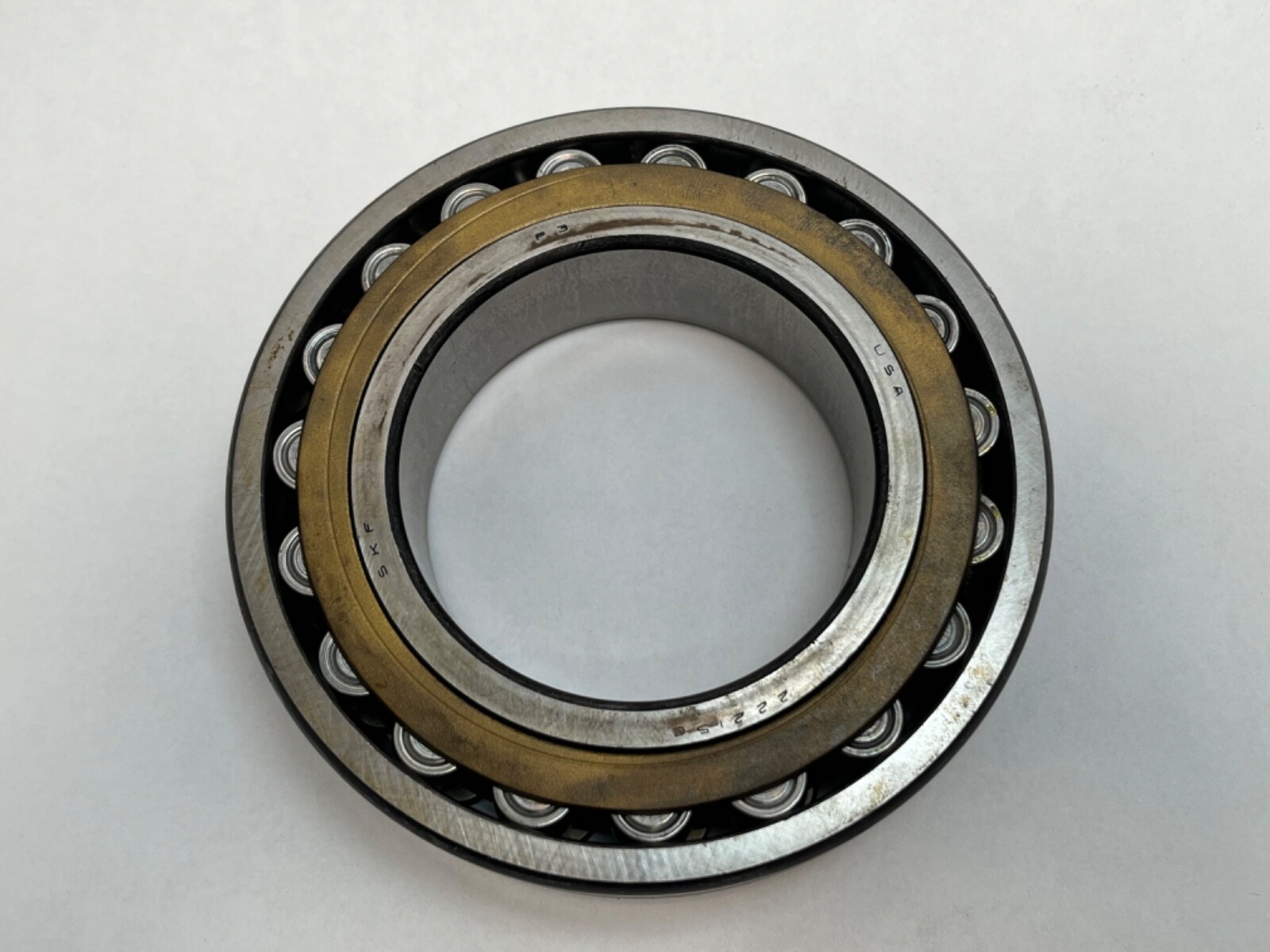

SKF 22215 CY/W33 is a double-row spherical roller bearing. Bore Diameter: 75 mm. Outside Diameter: 130 mm. Width: 31 mm. Bore Type: Straight cylindrical. Closure Type: Open, both sides. Internal Clearance: Normal (CN). Unit Quantity: 1 Pc. The spherical outer raceway lets the inner-ring assembly swivel, so the bearing carries heavy radial load with axial load in both directions and self-aligns to shaft deflection or housing misalignment.

Decoding the designation:

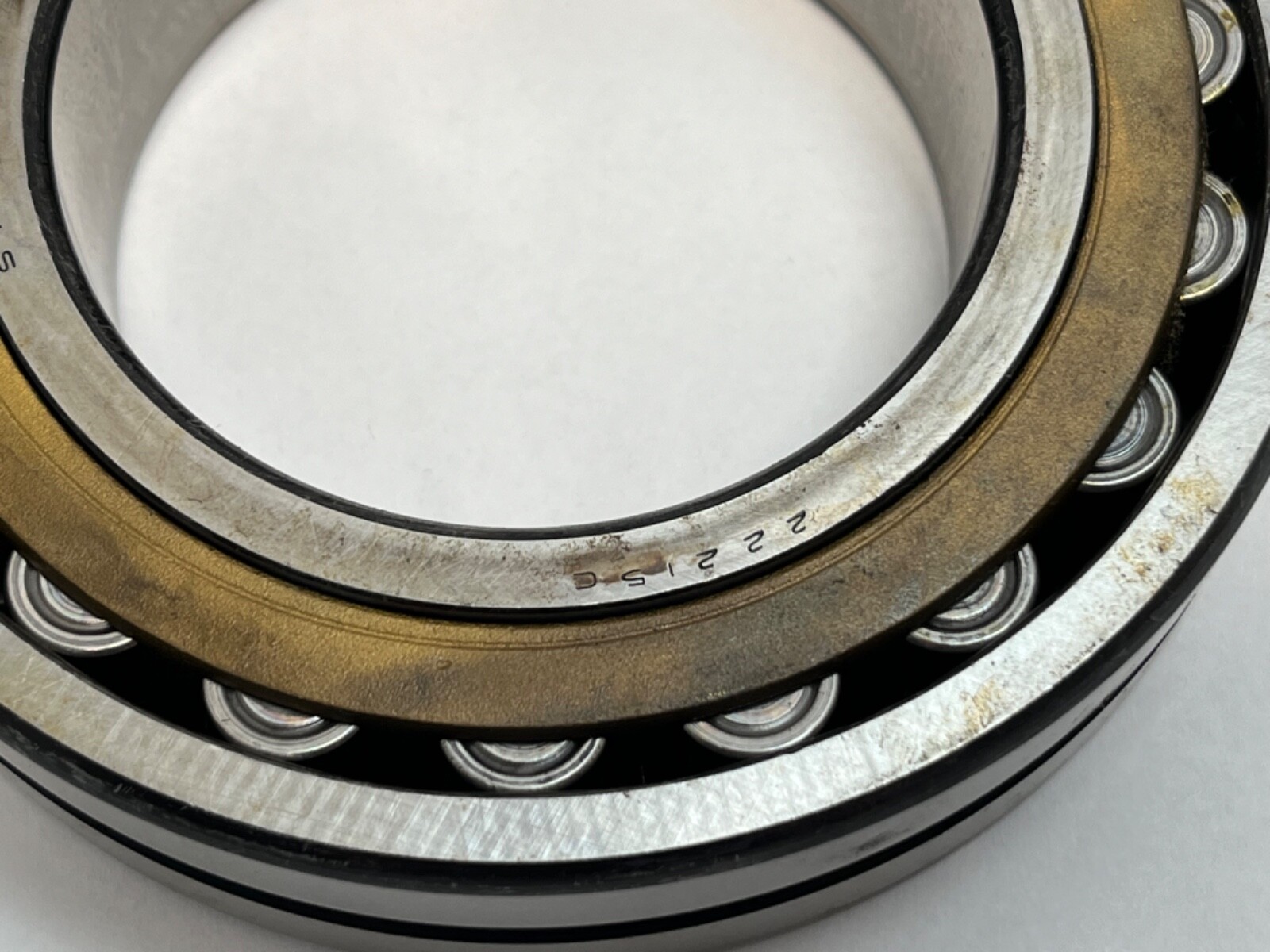

222 — double-row spherical roller bearing, ISO dimension series 22.

15 — bore code, 15 x 5 = 75 mm bore.

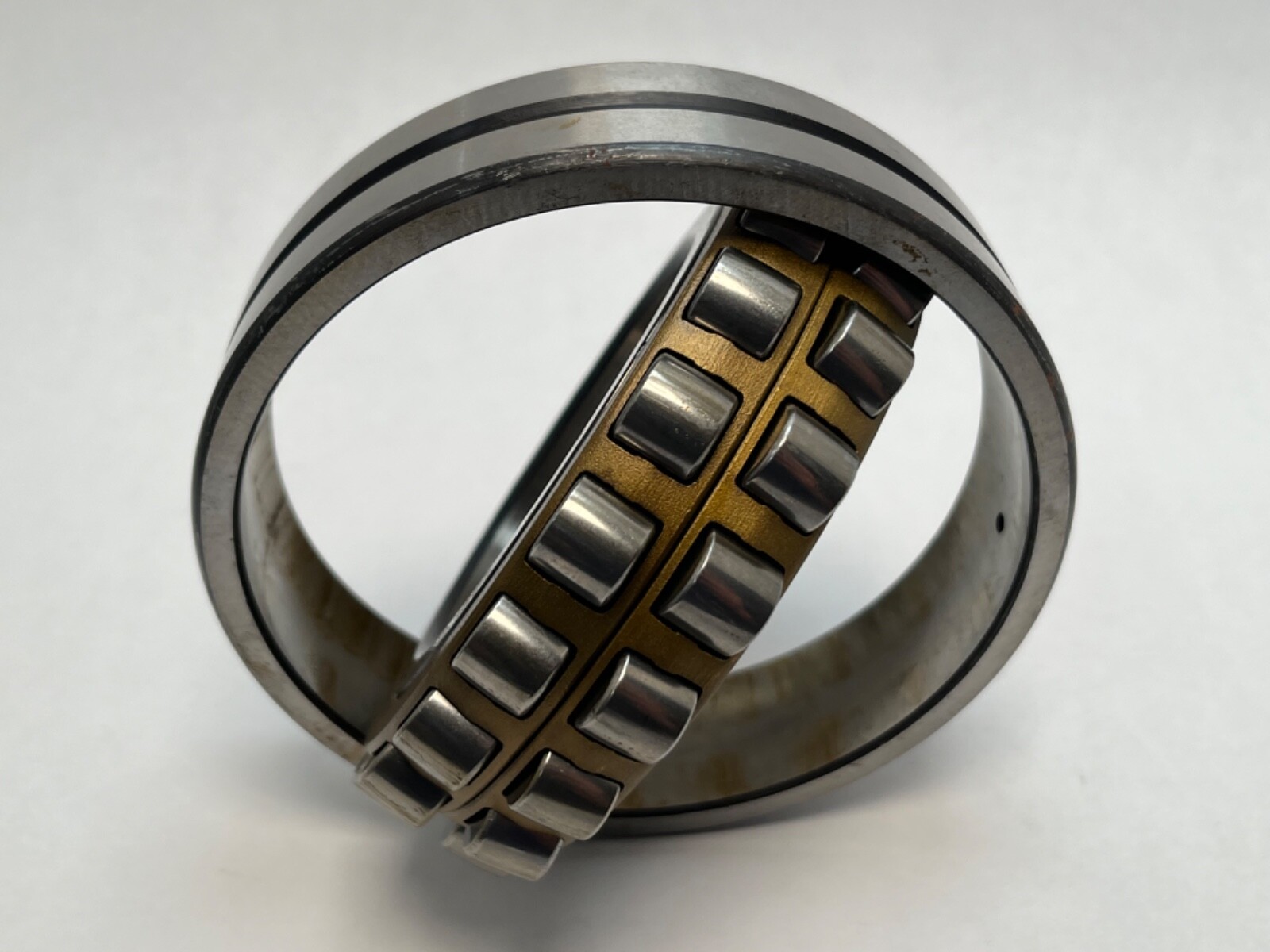

C — SKF internal design with a guide ring between the roller rows in place of a fixed central rib.

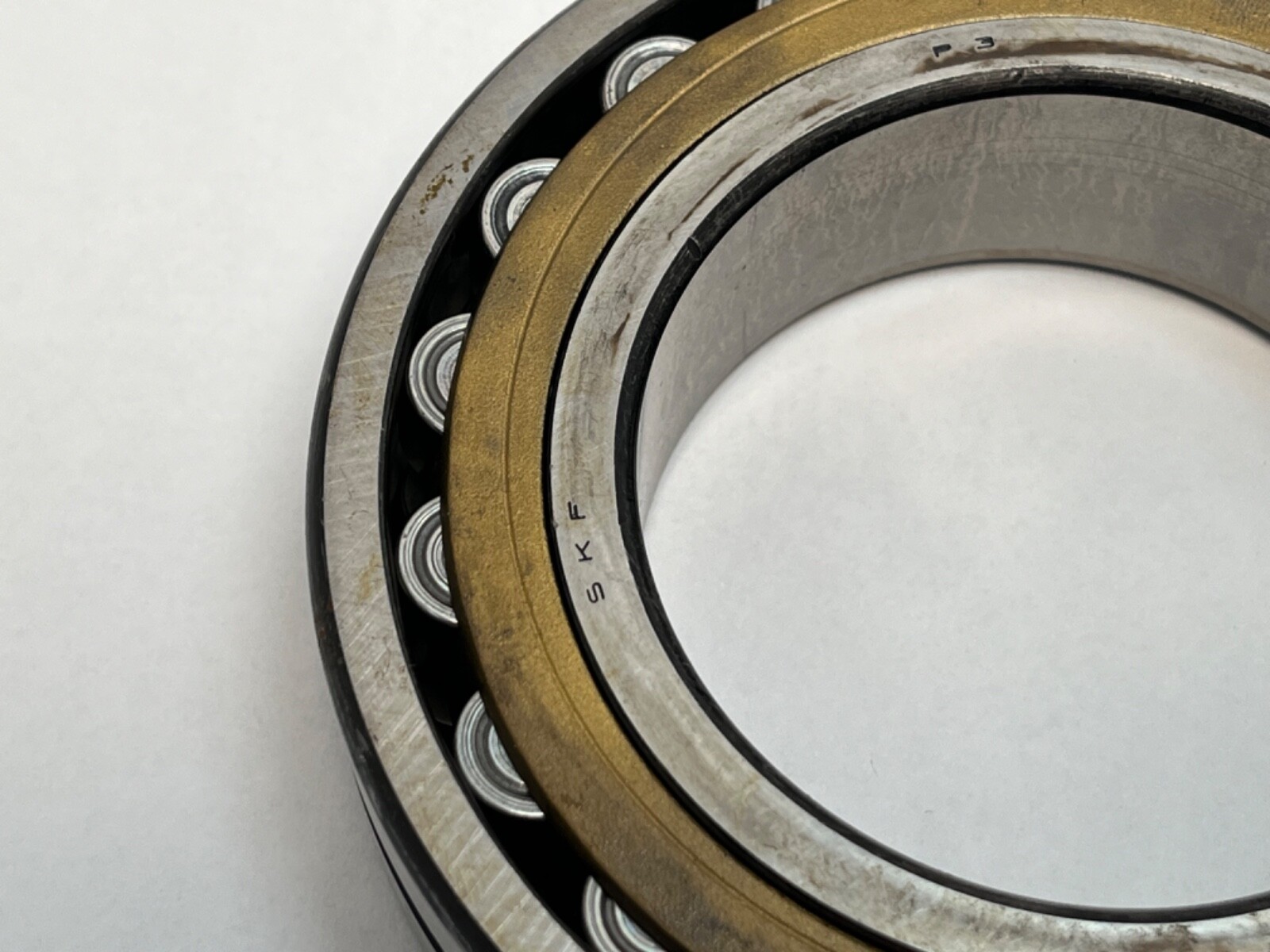

Y — pressed brass window-type cage, centred on the inner ring.

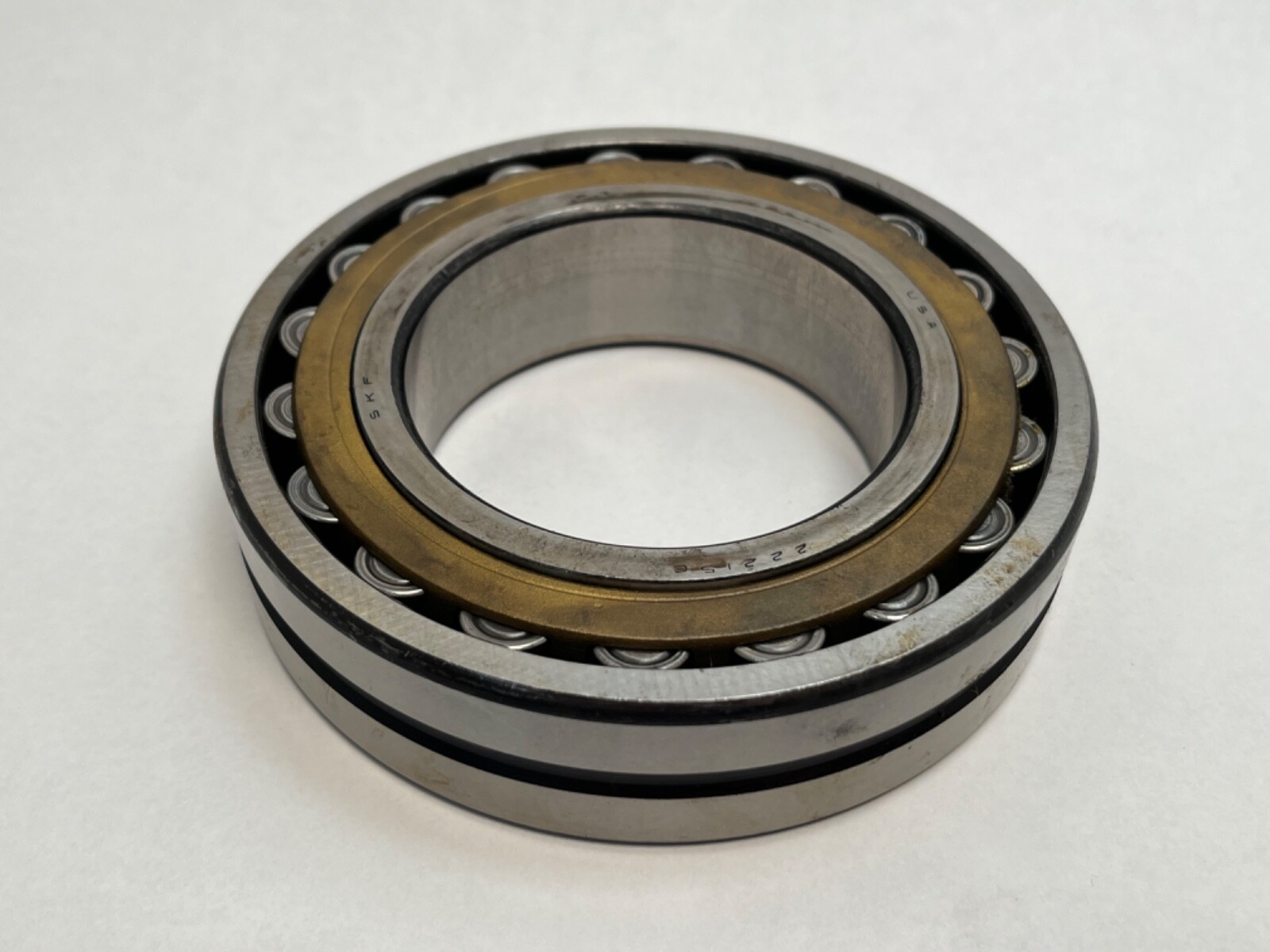

W33 — circumferential lubrication groove in the outer ring outside diameter plus three radial lubrication holes through to the raceway.

No K — straight cylindrical bore. No clearance suffix — normal (CN) radial internal clearance.

Specifications:

Bearing Type: Spherical roller bearing, double row. Rolling Elements: Spherical rollers, two rows, with a guide ring in place of a central rib. Number Of Rows: 2. Cage Material: Pressed brass. Cage Type: Window-type, centred on the inner ring. Series: 222 (22215 C). Precision Class: ISO normal (ABEC 1 / P0). Relubrication Feature: W33, groove width 7 mm, three holes of 3.5 mm diameter. Axial Load Factor e: 0.22. Y1: 3.14. Y2: 4.67. Y0: 3.07. Bearing Material: Through-hardened bearing steel. Harmonization Code: 8482.30. Unit Quantity: 1 Pc.

Dimensions and mounting:

Bore d: 75 mm. Outside Diameter D: 130 mm. Width B: 31 mm. Chamfer rs min: 1.5 mm. Fillet ra max: 1.5 mm. Shaft Abutment da min: 84 mm. Housing Abutment Da max: 121 mm. Inner Ring Shoulder d1: 88 mm. Outer Ring Shoulder D1: 118 mm. Locking Method: Interference fit on a cylindrical shaft seat. Complete non-separable bearing: inner ring, two rows of spherical rollers, pressed brass window cage, guide ring and outer ring.

Compatibility and replacement:

Base Number: 22215. The 75 x 130 x 31 mm 222-series envelope is an industry standard. Same envelope with a machined brass cage: SKF 22215 CA/W33, NSK 22215 CAME4, Koyo 22215RW33, NTN 22215 EMW33, Timken 22215 EMW33. Same envelope with a steel cage: SKF 22215 CC/W33, SKF 22215 CJ/W33, SKF 22215 E/W33, Timken 22215 EJW33, RHP 22215 EJW33. The tapered-bore counterpart is 22215 CYK/W33, 1:12 taper on an H315 adapter sleeve for a 65 mm shaft. The C design has been superseded by the SKF E generation. MPN Variants: 22215-CY-W33; 22215CY/W33; 22215CYW33; 22215 CY W33; 22215-C-Y-W33; 22215CY.

Frequently asked questions:

What size is an SKF 22215 CY/W33?

75 mm bore, 130 mm outside diameter, 31 mm wide.

What does Y mean in 22215 CY/W33?

A pressed brass window-type cage centred on the inner ring.

What does W33 mean?

A lubrication groove in the outer ring outside diameter with three radial lubrication holes.
