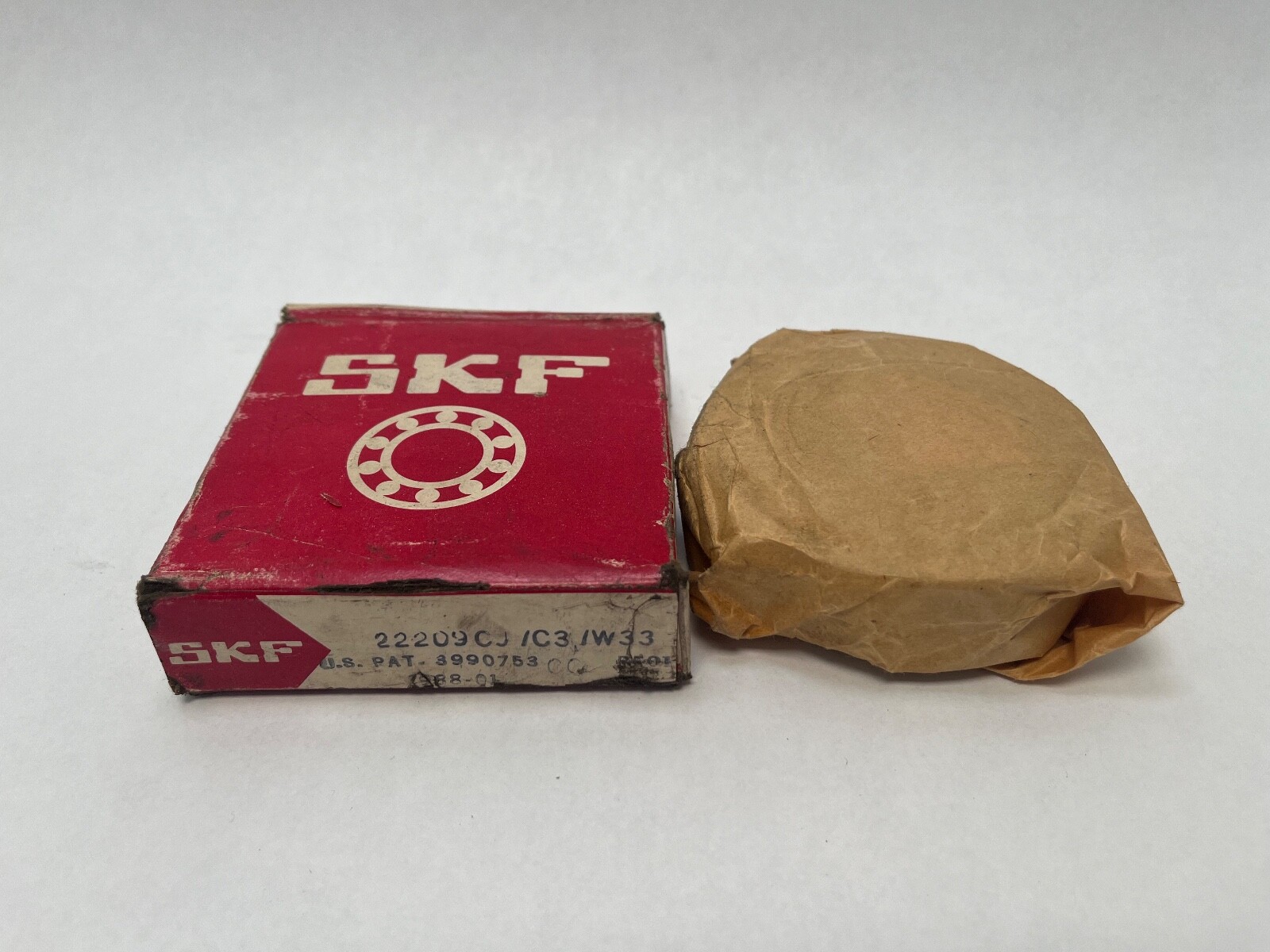

SKF22209CJC3W33Double-Row Spherical Roller Bearing, 45 x 85 x 23 mm, Straight Bore, C3 Clearance, W33 Outer-Ring Lubrication Groove

Product Description

What this part is

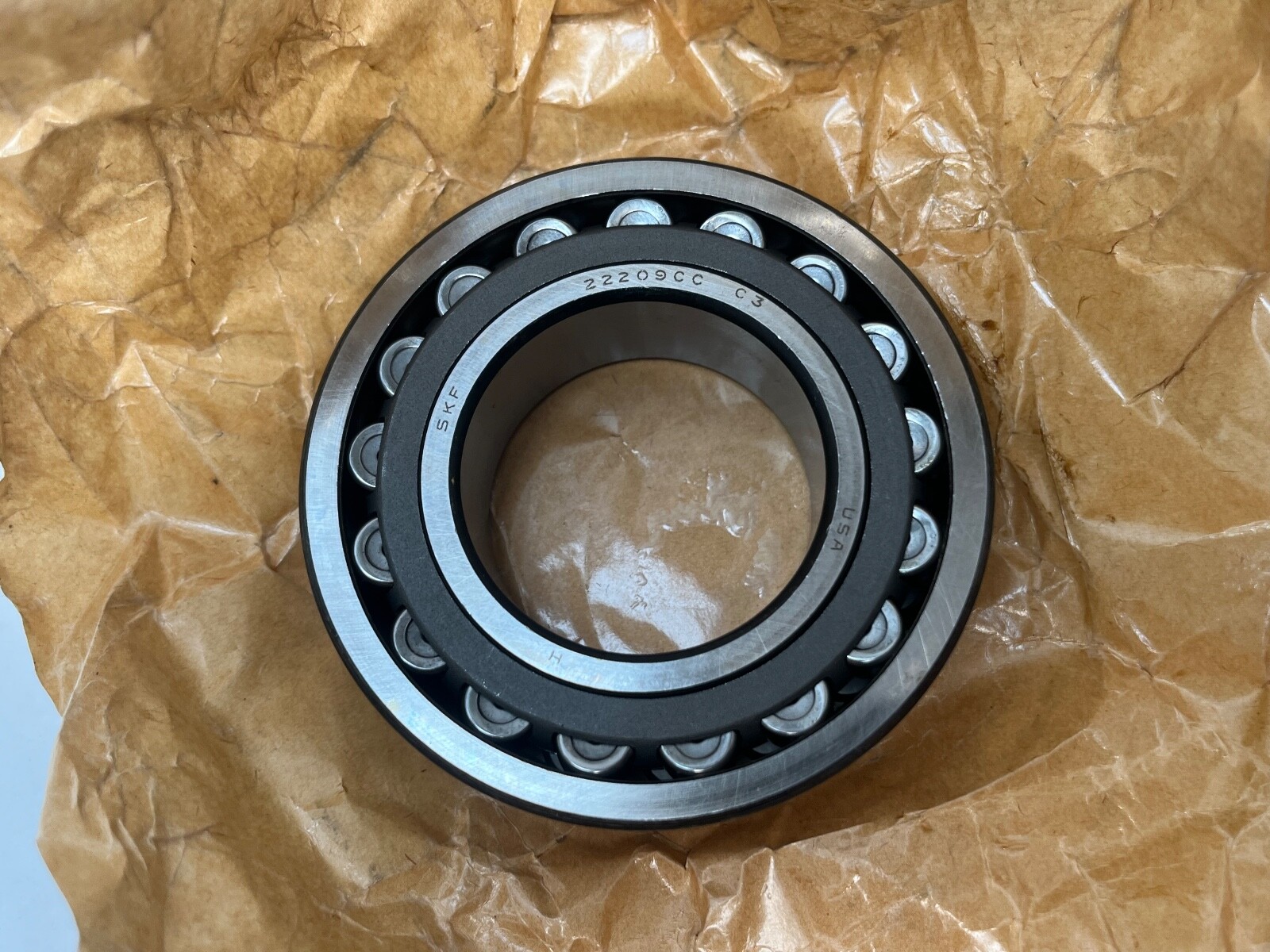

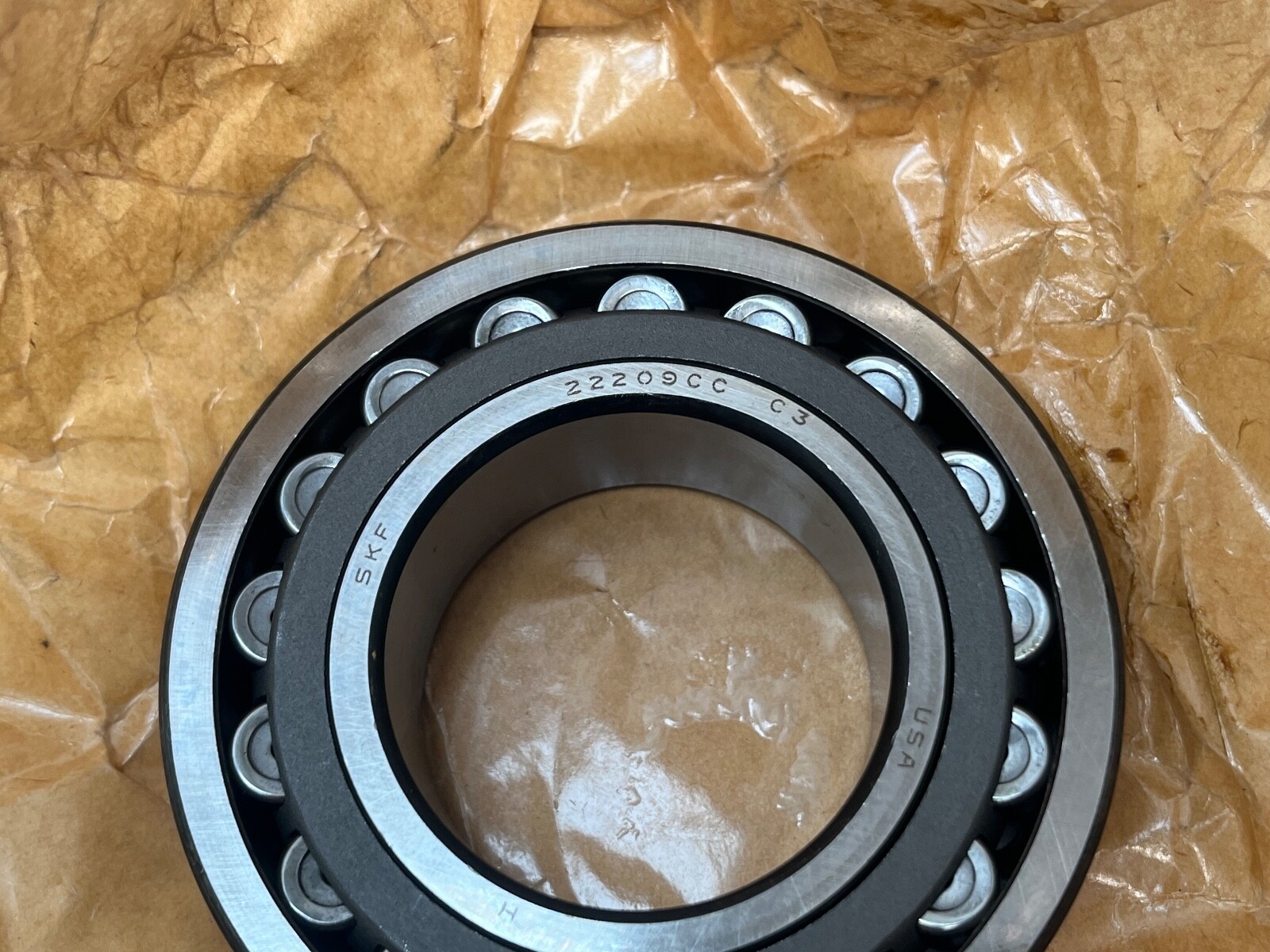

A double-row spherical roller bearing on the 22209 envelope — 45 mm bore, 85 mm outside diameter, 23 mm width. One spherical raceway is ground into the outer ring and both rows of barrel rollers run against it, which lets the inner ring and roller assembly swivel bodily inside the outer ring. The result is a bearing with very high radial capacity that also absorbs shaft deflection and out-of-line housing seats instead of edge-loading itself to death.

Decoding the designation

222 – ISO dimension series for spherical roller bearings.
09 – bore reference number; 9 × 5 = 45 mm bore.
CJ – steel window-type cage with an inner-ring centre guide rib. CJ is the Torrington and Fafnir lineage of this code; the same cage in current SKF catalogue nomenclature is CC, and CCJ is seen on the same rings.
C3 – radial internal clearance greater than the normal group.
W33 – annular lubrication groove around the outer ring with three radial holes into the raceway.

What these specs mean in practice

There is no K in the designation, so the bore is cylindrical. It presses straight onto a plain 45 mm shaft seat — no adapter sleeve, no drive-up measurement, no residual-clearance calculation at assembly. If your shaft seat is plain, this is the variant you want.

C3 clearance is a fit decision, not an upgrade. It is called for where the inner ring runs hot relative to the outer ring, or where the shaft interference fit is heavy, because each of those consumes internal clearance once the machine is at temperature. Fit C3 where normal clearance was designed in and the bearing runs slack, letting rollers skid through the unloaded arc and scuff the raceway. Fit normal clearance where C3 was designed in and the bearing preloads itself as it warms up. Match what came out of the machine.

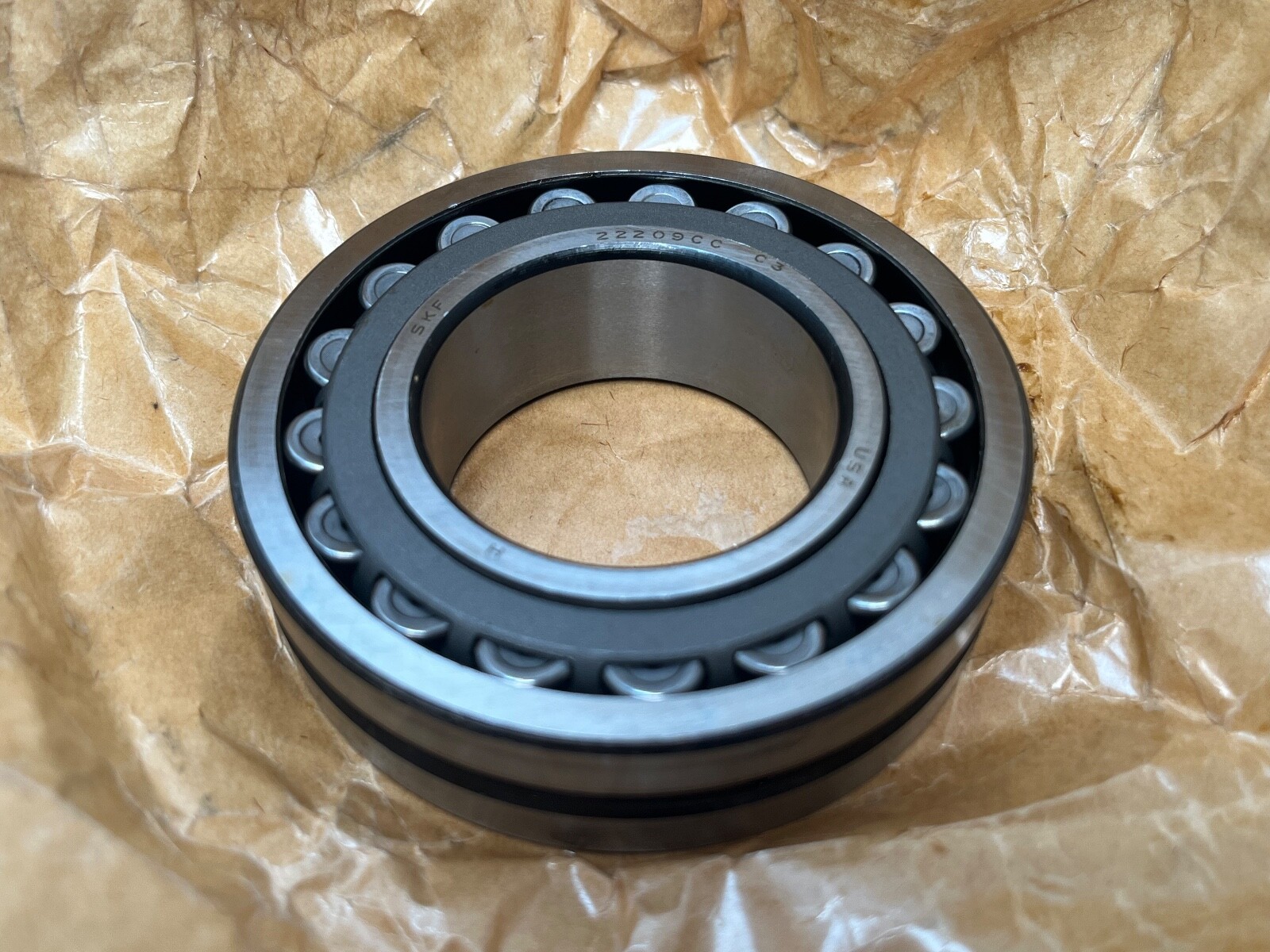

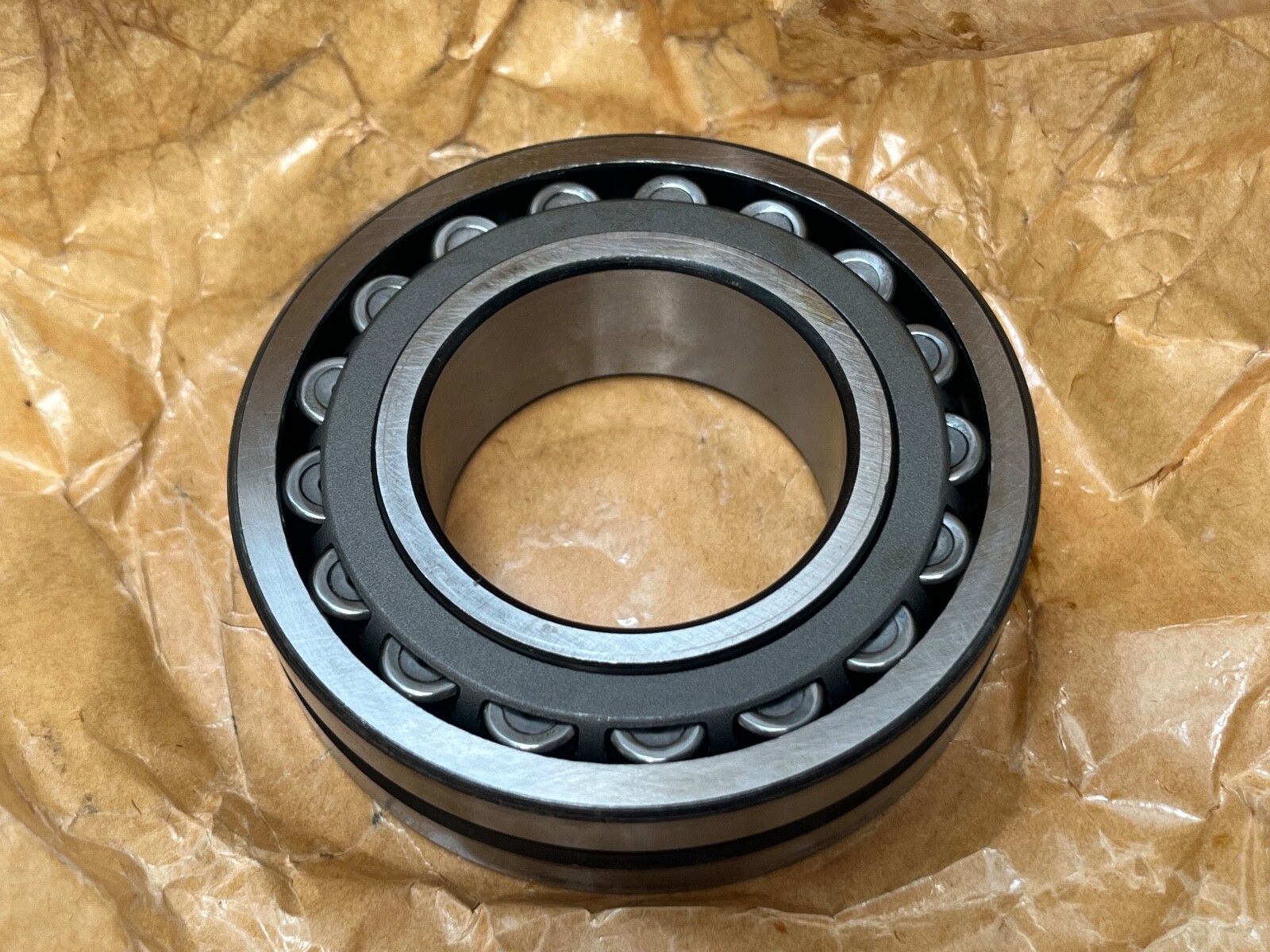

The W33 groove and its three radial holes give a relubrication path straight through the outer ring, delivering grease or oil between the two roller rows so both are fed. It needs a housing with a lube port aligned on the groove — typically a split plummer block. In a housing without one the groove simply sits idle.

Published ratings and mounting data

Bore: 45 mm, cylindrical
Outside diameter: 85 mm
Width: 23 mm
Rows: 2, barrel rollers
Basic dynamic radial load rating C: 104 kN
Basic static radial load rating C0: 100 kN
Reference speed: 7 500 rpm — limiting speed 10 000 rpm
Internal clearance: C3
Cage: steel window type
Closure: open
Mass: approximately 0.57 kg

Quantity and configuration

Priced and supplied as one bearing.

Interchange guidance

Dimensionally interchangeable with other makers’ straight-bore 22209 W33 C3 spherical roller bearings: SKF 22209 E/C3 and 22209 CC/C3W33, FAG 22209-E1-XL-C3, NSK 22209EAE4C3, NTN 22209BD1C3, Koyo 22209RHRW33C3, Timken and Torrington 22209EJW33C3 and 22209CCJ, Steyr 22209-C-C3-W33. Normal-clearance 22209 CC/W33 fits the same seats and carries the same load ratings; only the internal clearance group differs, so treat it as a substitute only if your application was designed for normal clearance. Tapered-bore 22209 K and CCK variants share the 45 x 85 x 23 envelope but have a 1:12 bore and are carried here as a dimensional cross-reference only.
