Availability:
Out of stock
Two-bolt oval cast iron flange unit, 20 mm shaft, 71.5 mm bolt centres, RHP Self-Lube set screw insert with seals and C3 clearance. Two units per listing.
List Price
$34.85
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Two-Bolt Flange Bearing Unit - 1 in Shaft, Cast Iron Housing, Set Screw Locking, Self-Lube Insert$30.39
Four-Bolt Square Flange Bearing Unit - 1/2 in Shaft, Cast Iron Housing, Set Screw Locking, Self-Lube Insert$32.27
Self-Lube 4-Bolt Square Flange Mount Bearing Unit, 1-1/4" Bore, Setscrew Lock, Cast Iron$32.94
Two-Bolt Oval Flange Bearing Unit — 1-3/4 in Bore, Cast Iron Housing, Set Screw Locking, Spherical Insert, 148.5 mm Bolt Centres, C3$51.54| MFR / Brand | RHP |
|---|---|
| MPN | LFTC20A |
| Model | LFTC20 A |
| ID | 20 mm |
| Series | LFTC |
|---|---|
| Type | Flanged Mount Bearing |
| Lubricant | Grease |
| Material | Cast Iron Housing |
| Bolt Center To Center | 71.5 mm |
| Number Of Bolt Holes | 2 |
| Bolt Center To Center Length | 71.5 mm |
| Number Of Bolt Holes For Fasteners | 2 |
| Mpn Variants | LFTC20A, LFTC 20 A, LFTC20 A |
| Rolling Elements | Ball |
| Bearing Type | 2-Bolt Flange Unit |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Duty Type | Standard |
| Locking Device | Set screw |
| Housing Material | Cast Iron |
| Expansion Type | Non-expansion |
| Cross Reference 5 | Fafnir RCJTC 20 |
|---|

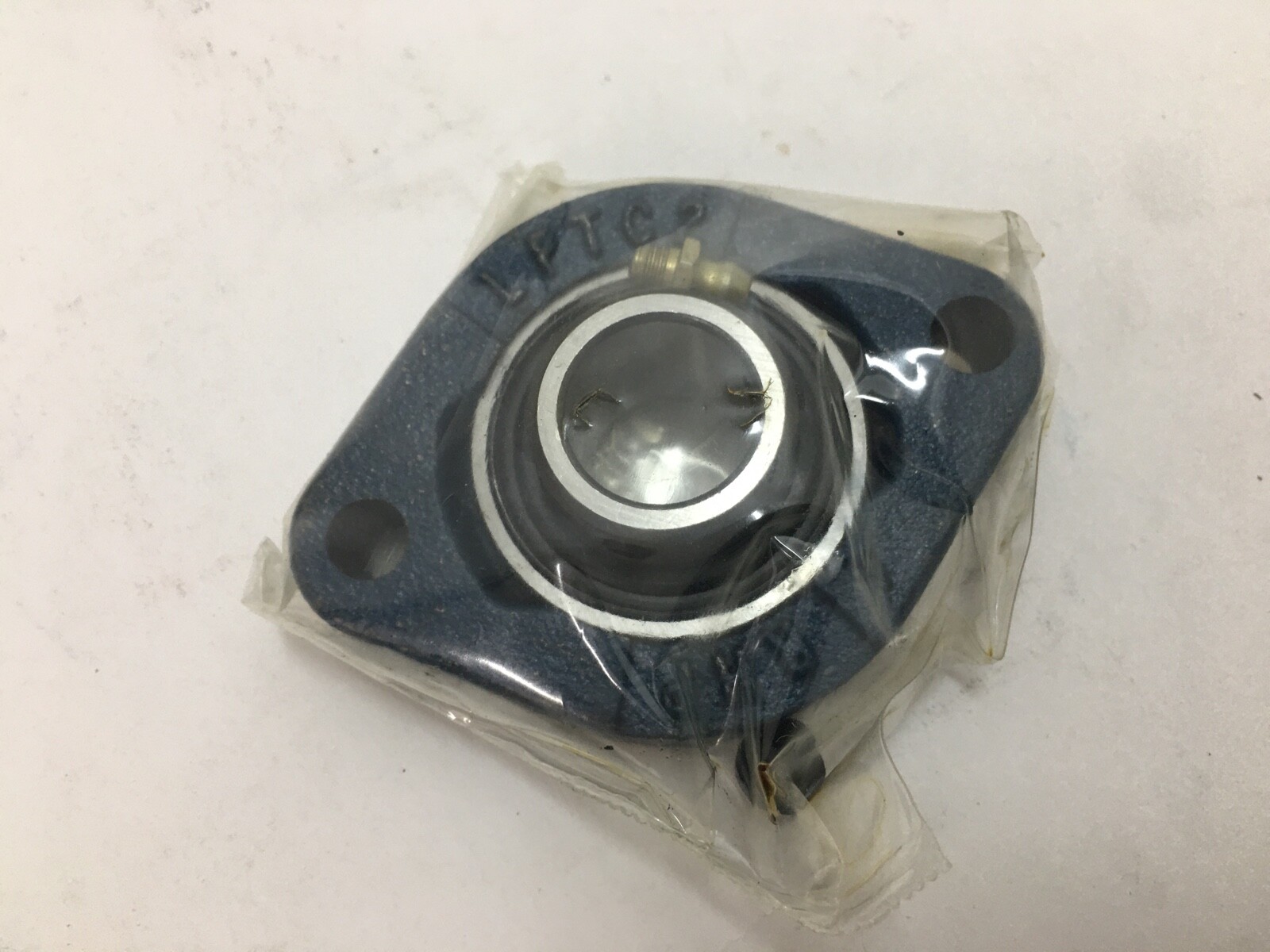

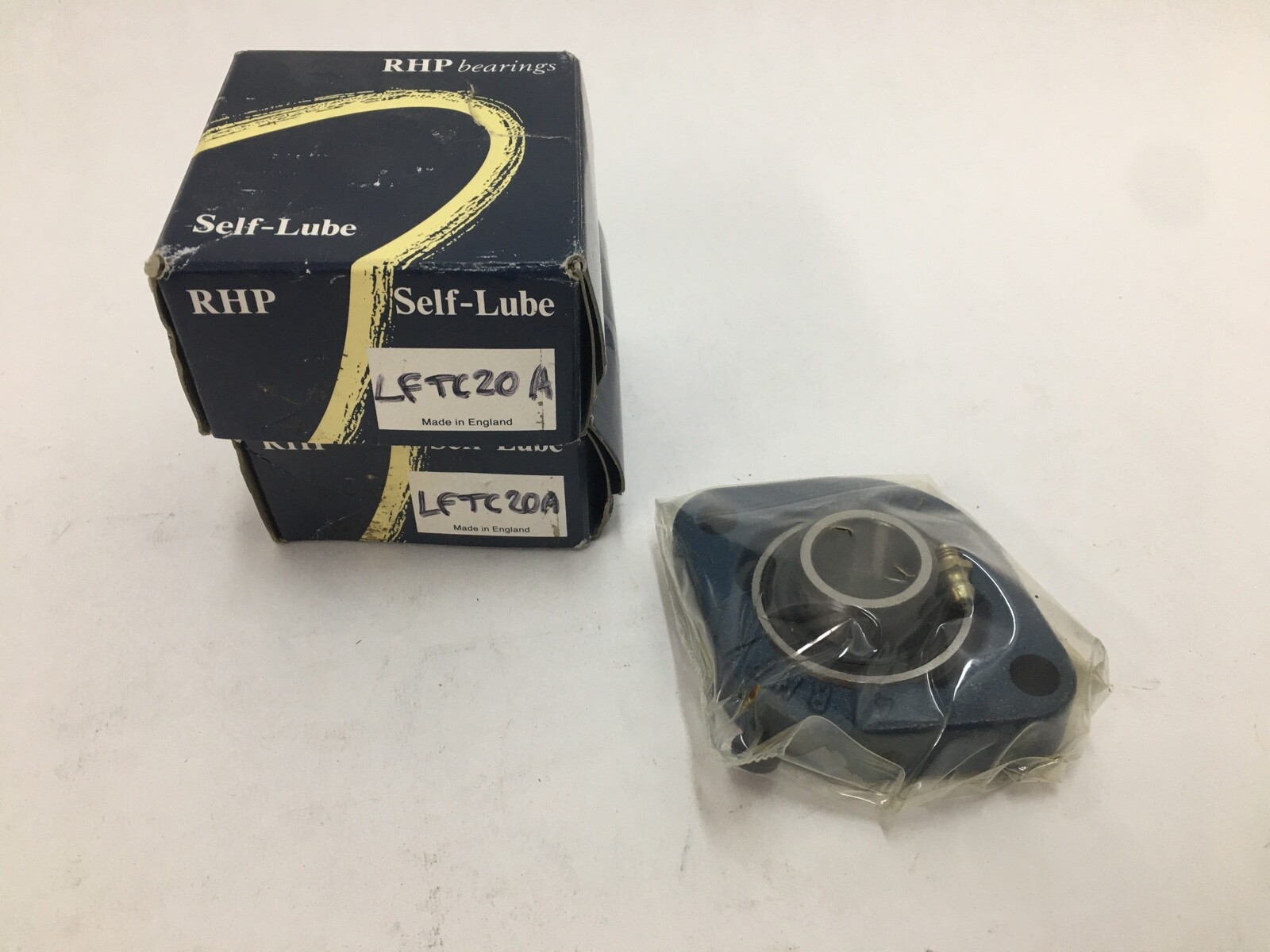

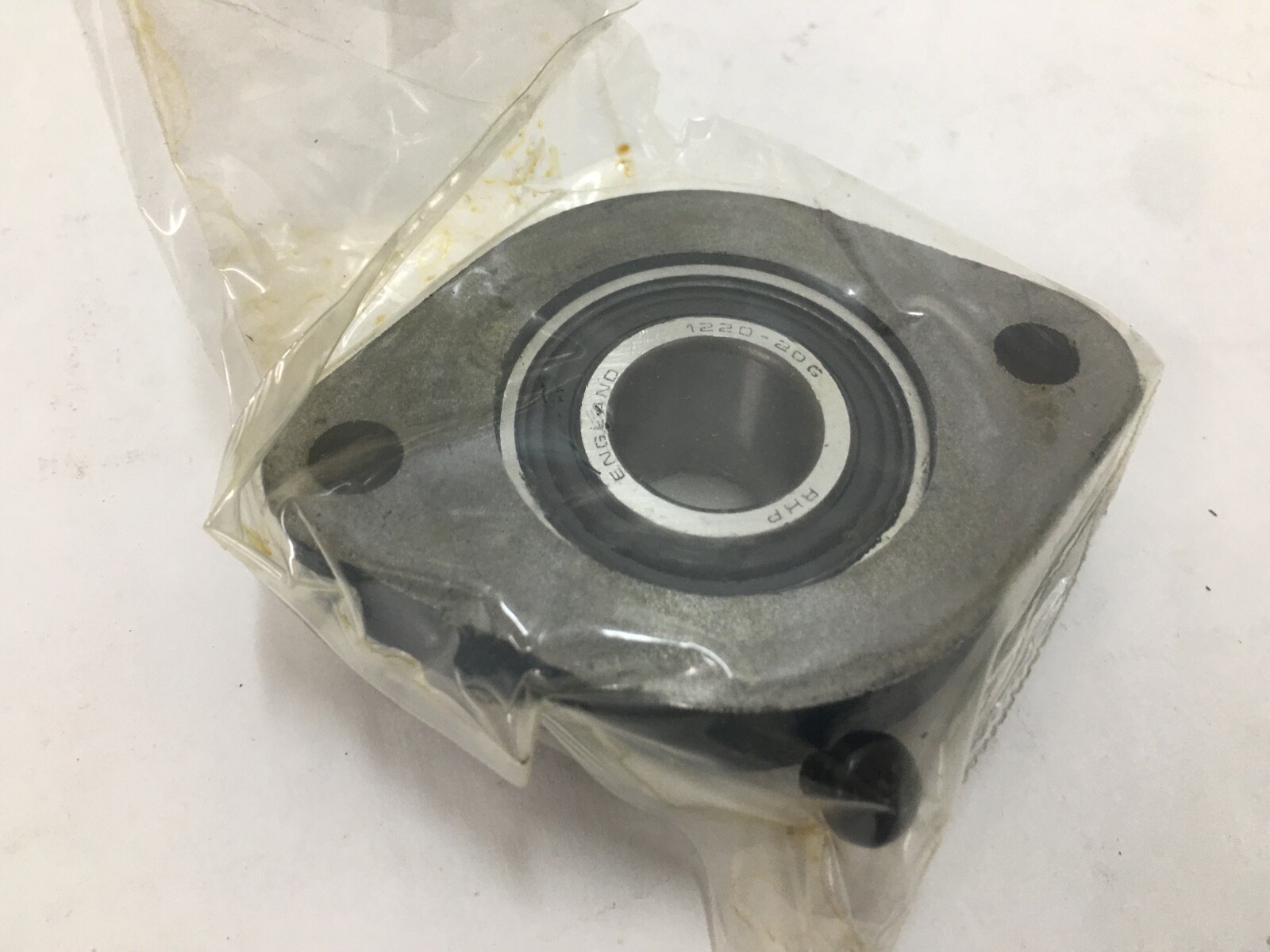

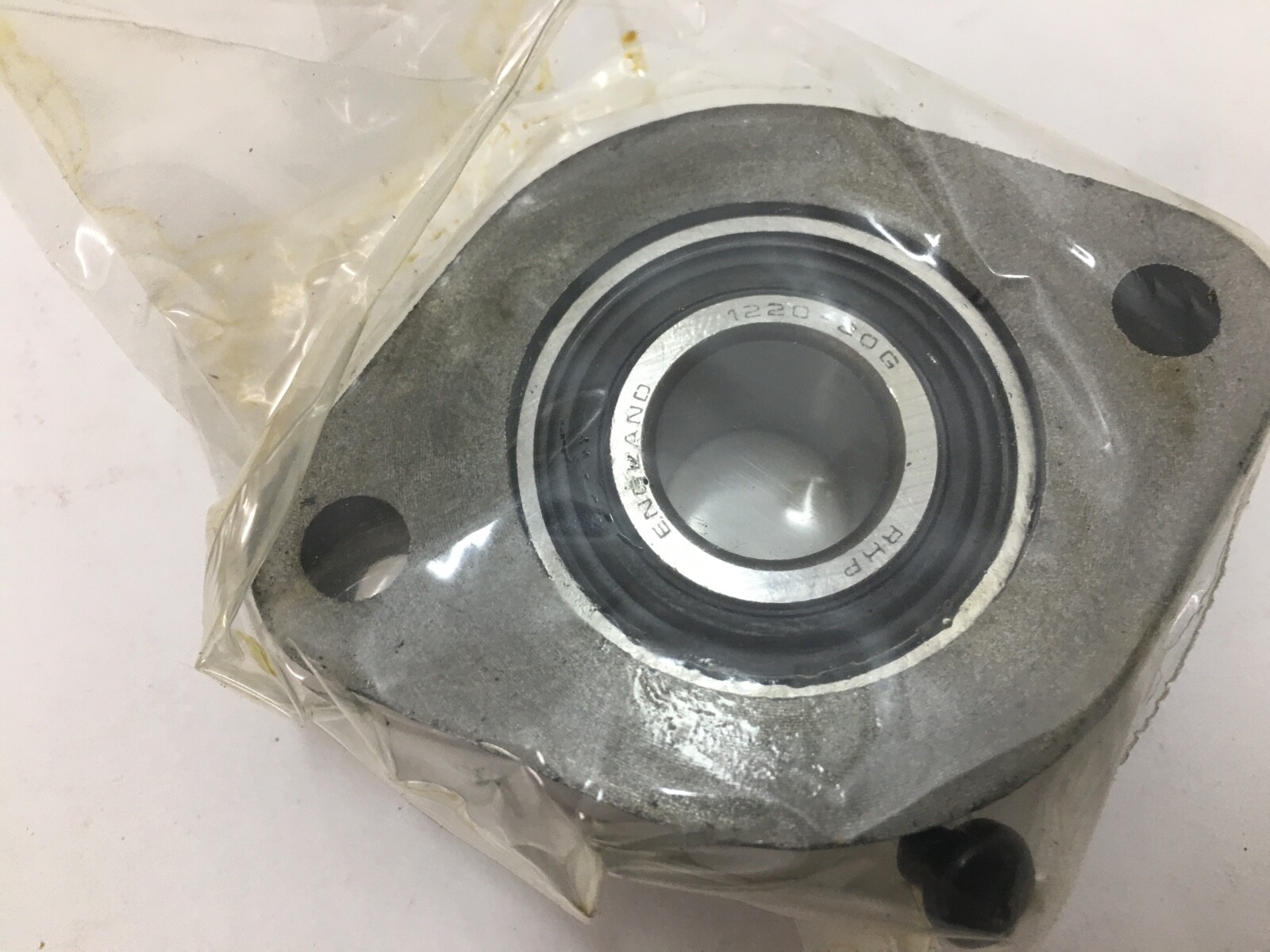

RHP LFTC20A is a Self-Lube two-bolt oval flange bearing unit for a 20 mm shaft. The cast iron housing carries a spherical-OD ball bearing insert locked by grub screws. Bore Diameter: 20 mm. Housing Material: Cast iron. Number Of Bolt Holes: 2. Bolt Center To Center: 71.5 mm. Flange Length: 90.5 mm. Locking Device: Set screw. Internal Clearance: C3. Seal Type: Nitrile/fabric seals. Rolling Elements: Ball.
LFTC — RHP Self-Lube two-bolt oval cast iron flange housing.
20 — 20 mm shaft diameter.
The spherical outside diameter of the insert takes up initial shaft misalignment in the housing. C3 radial clearance suits the fits and temperatures of housed units. Expansion Type: Non-expansion.
Unit Quantity: 2 Pcs. Two complete flange units, each with insert fitted.
MPN Variants: LFTC20A, LFTC 20 A, LFTC20 A.
