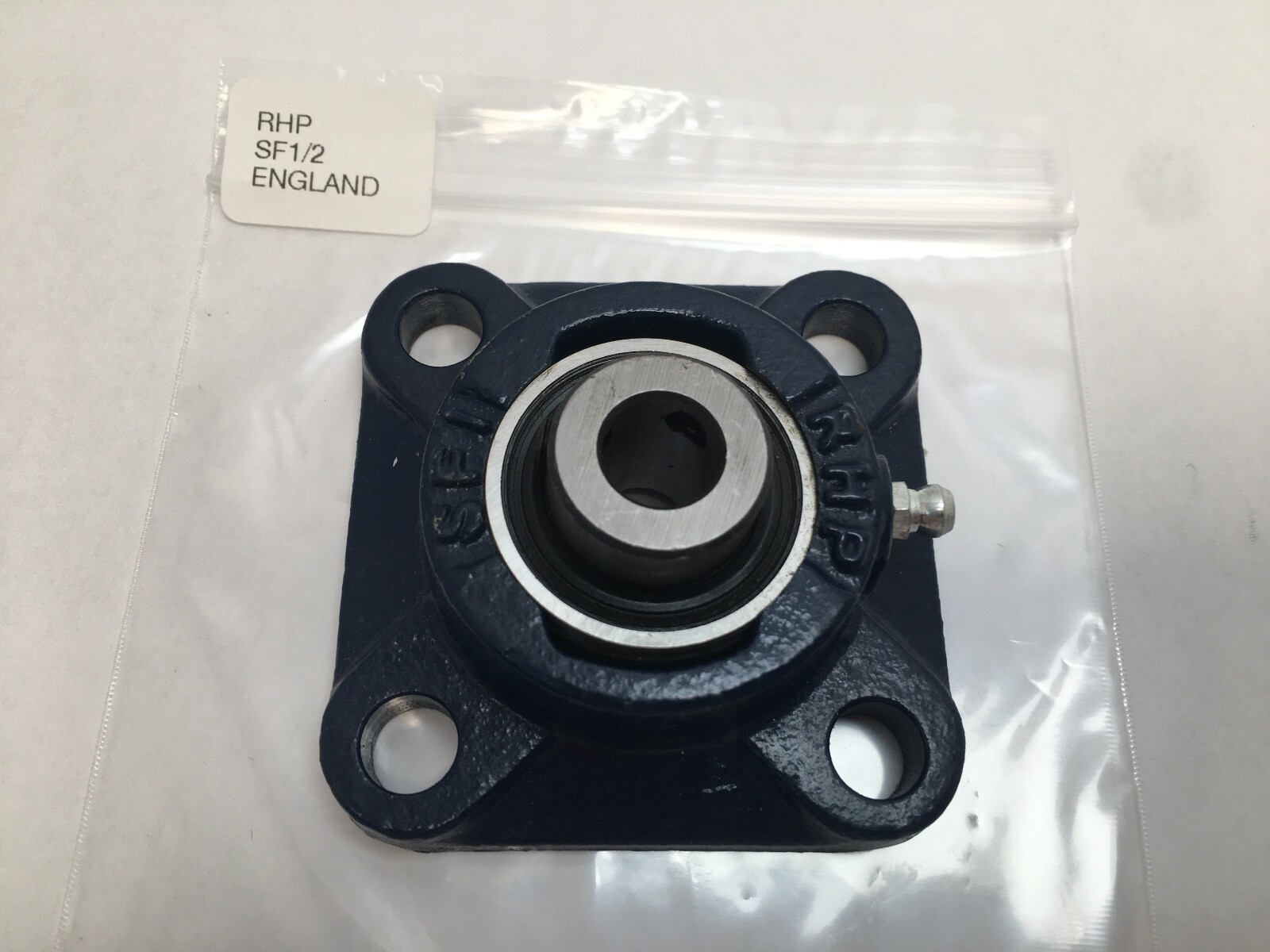

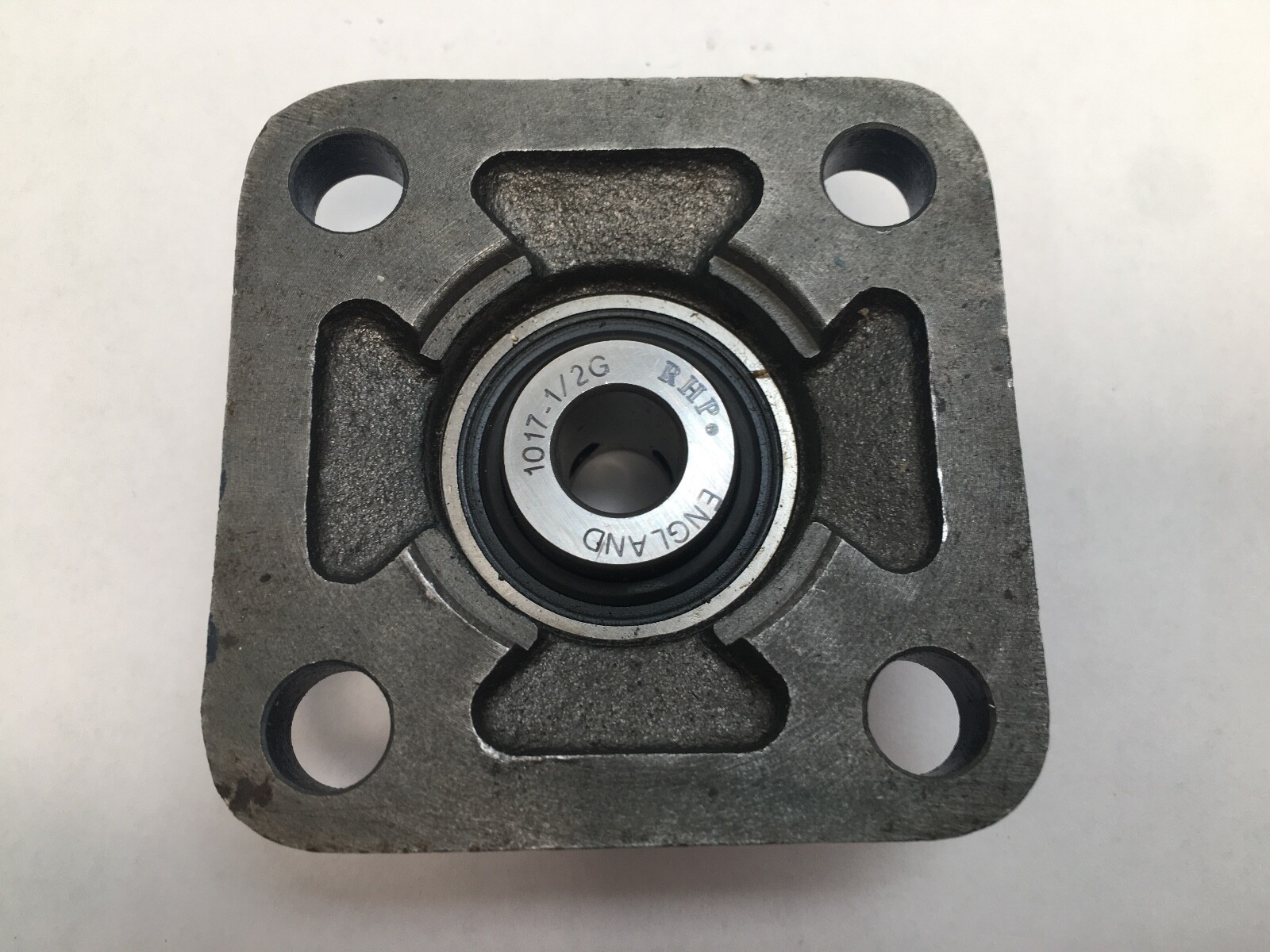

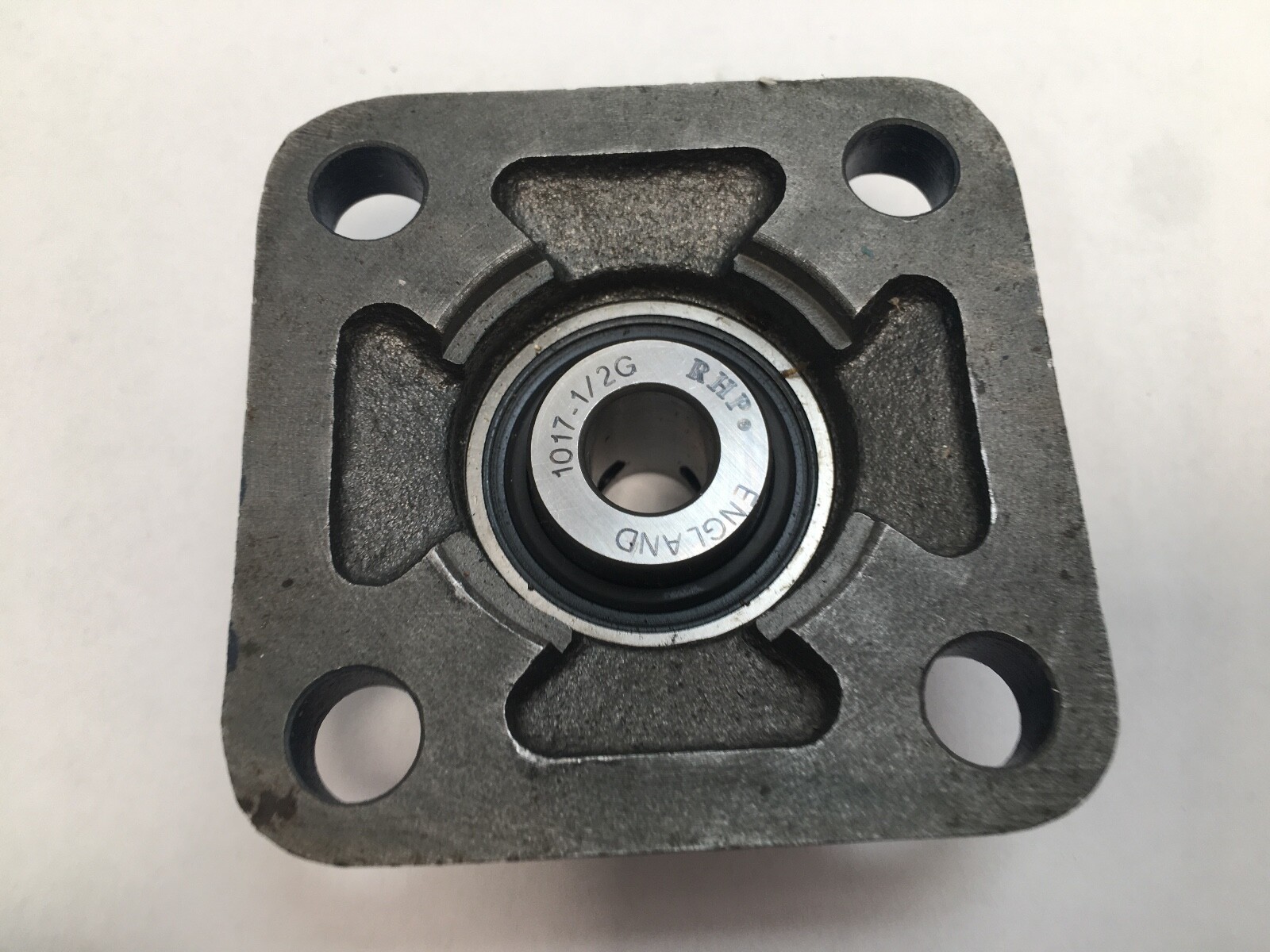

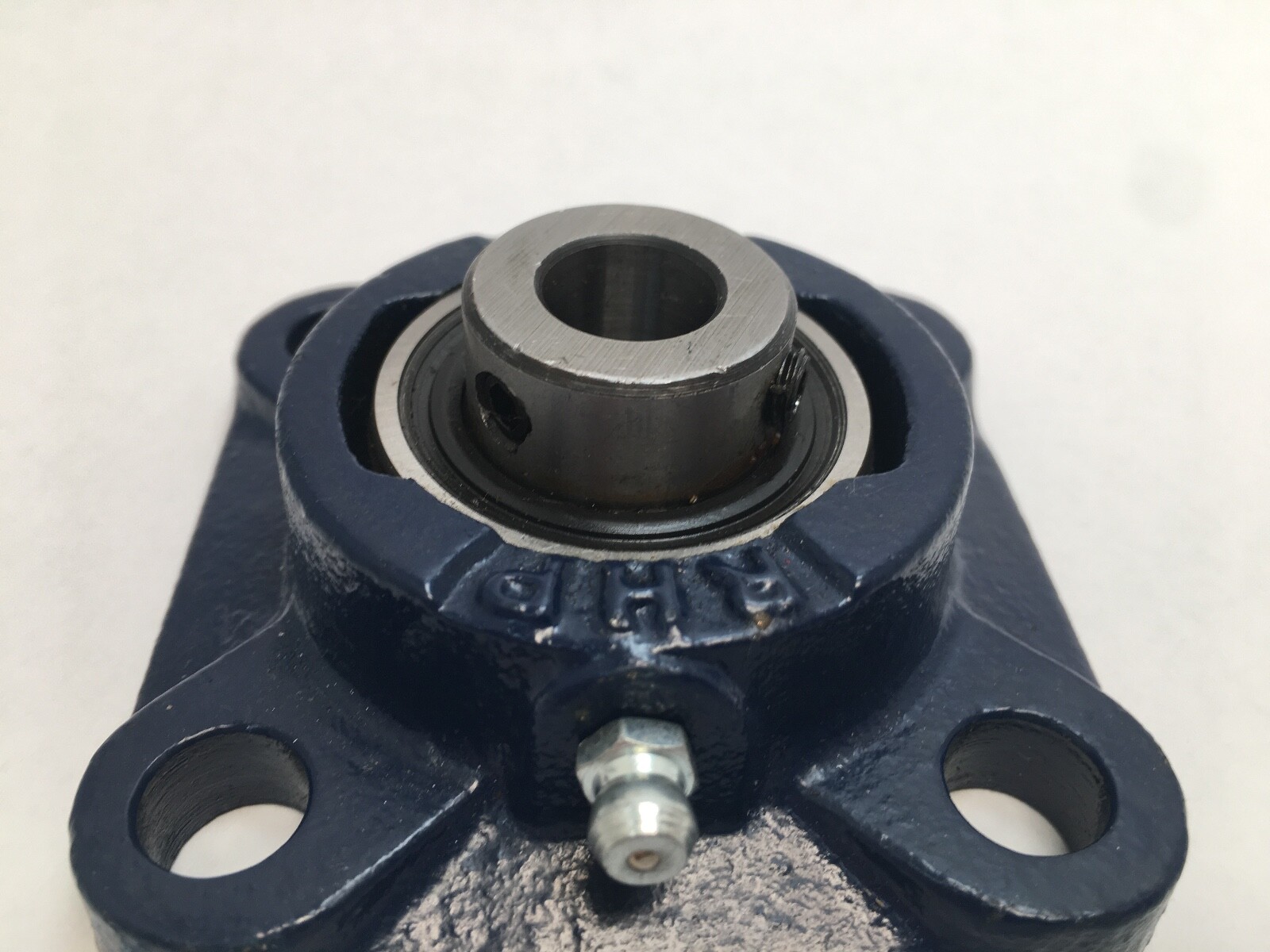

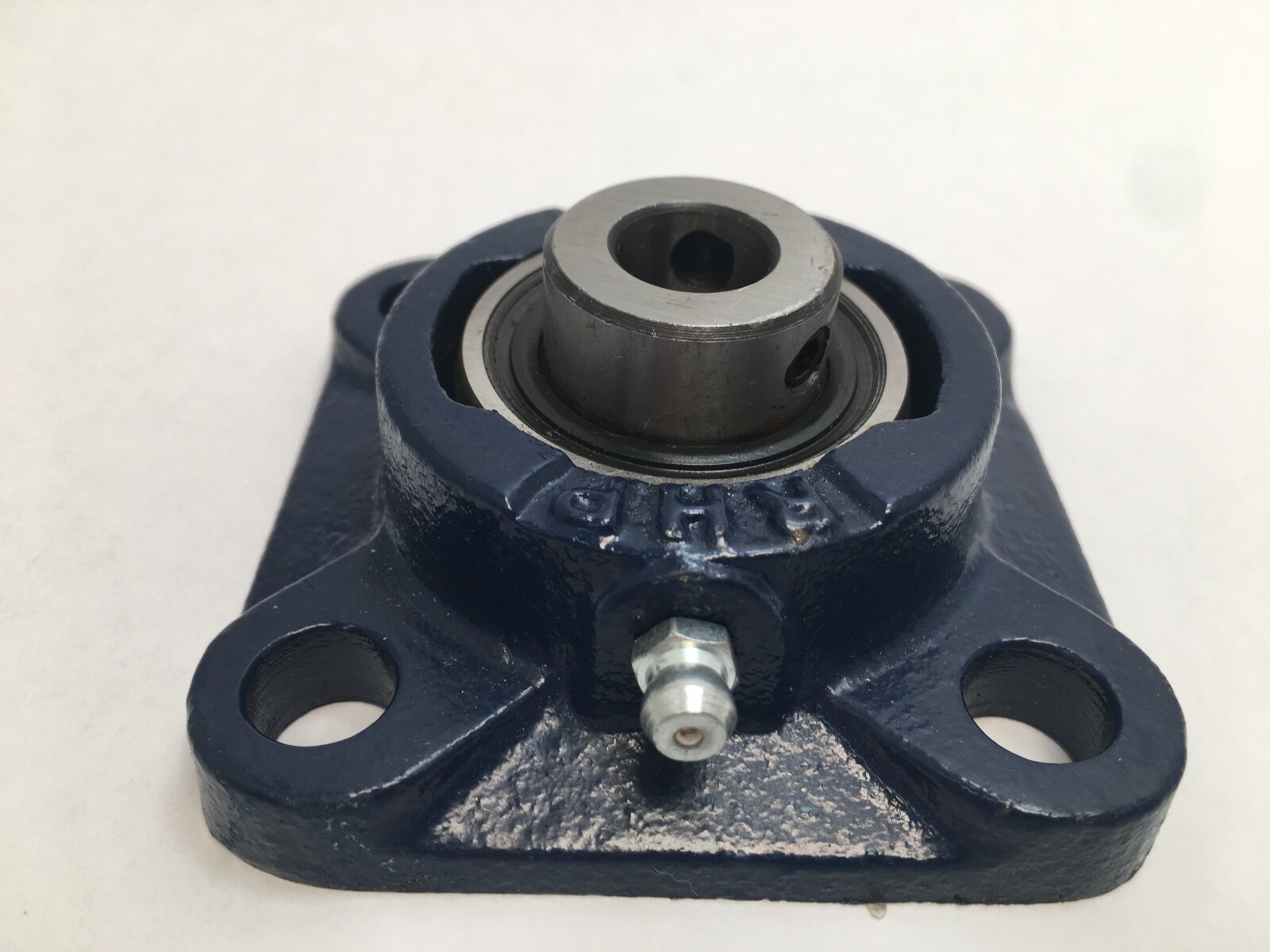

RHPSF1/2normal duty 4-Bolt Flange Unit with 1/2″ bore. Cast iron housing, set screw lock, and relubrication feature. Excellent for light to medium duty equipment in the Northeast US manufacturing sector.

Name: RHP SF1/2 normal duty 4-Bolt Flange Unit with 1/2" bore. Cast iron housing, set screw lock, and relubrication feature. Excellent for light to medium duty equipment in the Northeast US manufacturing sector.
Brand: RHP
SKU: AM5B1#7UMAWA
Price: 32.27 USD
Availability: InStock

Condition: New – Open box

Condition Note: Made In England, New Old Stock

Availability:

1 in stock

Categories: Bearings, Flanged Mount Bearing

Same day shipment

List Price

$32.27

1 in stock

Also Available From:

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	RHP
MPN	SF1/2
Model	SF-1/2
ID	1/2 in

Technical Specifications

Series	SF
Condition	New – Open box
Type	Flanged Mount Bearing
Lubricant	Grease
Material	Steel Bearing / Cast Iron Housing
Condition Note	Made In England, New Old Stock
Number Of Flanges	4
Bolt Center To Center	2.8125 in
Number Of Bolt Holes	4
Bolt Center To Center Length	2.8125 in
Number Of Bolt Holes For Fasteners	4
Centre Height Pillow Block	23.8 mm
Centre Height	23.8 mm
Dynamic Load Rating	9.4 kN / 2113 lbf
Static Load Rating	4.8 kN / 1079 lbf
Precision Rating	ABEC 1 / P0
Rolling Elements	Ball
Bearing Type	4-Bolt Flange Bearing Unit
Item Weight	1.3 lbs
Limiting Speed	9500 rpm
Number Of Rows	1
Bore Type	Straight
Snap Ring Included	Without Snap Ring
Duty Type	Normal Duty
Locking Device	Set Screws
Relubrication Feature	Relubricatable (Grease Nipple)
Harmonization Code	8482.10.5068
Housing Material	Cast Iron
Expansion Type	Non-Expansion Bearing (Fixed)

Cross-References

Cross Reference 1	SKF FY 1/2 TF
Cross Reference 2	FAG UCF201-8
Cross Reference 3	NTN UCF201-008D1
Cross Reference 4	KOYO UCF201-8
Cross Reference 5	DODGE F4B-SC-008

Seller Part Number: AM5B1#7UMAWA

Product Description

RHP SF1/2 Flange Mount Bearing Unit – Perfect for Your Industrial Needs! Introducing the RHP SF1/2 Flange Mount Bearing Unit, a reliable component designed for optimal performance in various applications. With a bore diameter of 1/2 inch, this pillow block bearing is ideal for providing support and stability in your machinery and equipment. Manufactured in the United Kingdom, it reflects high-quality engineering and durability, making it a preferred choice for industry professionals. Product Features: Brand: RHP Type: Flanged Mount Bearing Model: SF-1/2 MPN: SF1/2 Bore Diameter: 1/2 in Condition: New – Open box Our commitment to customer satisfaction ensures you will receive your parts quickly, with same day shipping on all items and next day shipping available at checkout. We offer competitive prices and the benefit of international shipping on every order, along with combined shipping to help you save on costs. Whether you are looking to replace worn parts or upgrade your machinery, you can count on us to meet your needs swiftly. If you cannot find the specific part you are looking for, please do not hesitate to contact us. We specialize in sourcing all bearings and industrial supplies, ensuring you get exactly what you need!
