Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
2 in stock

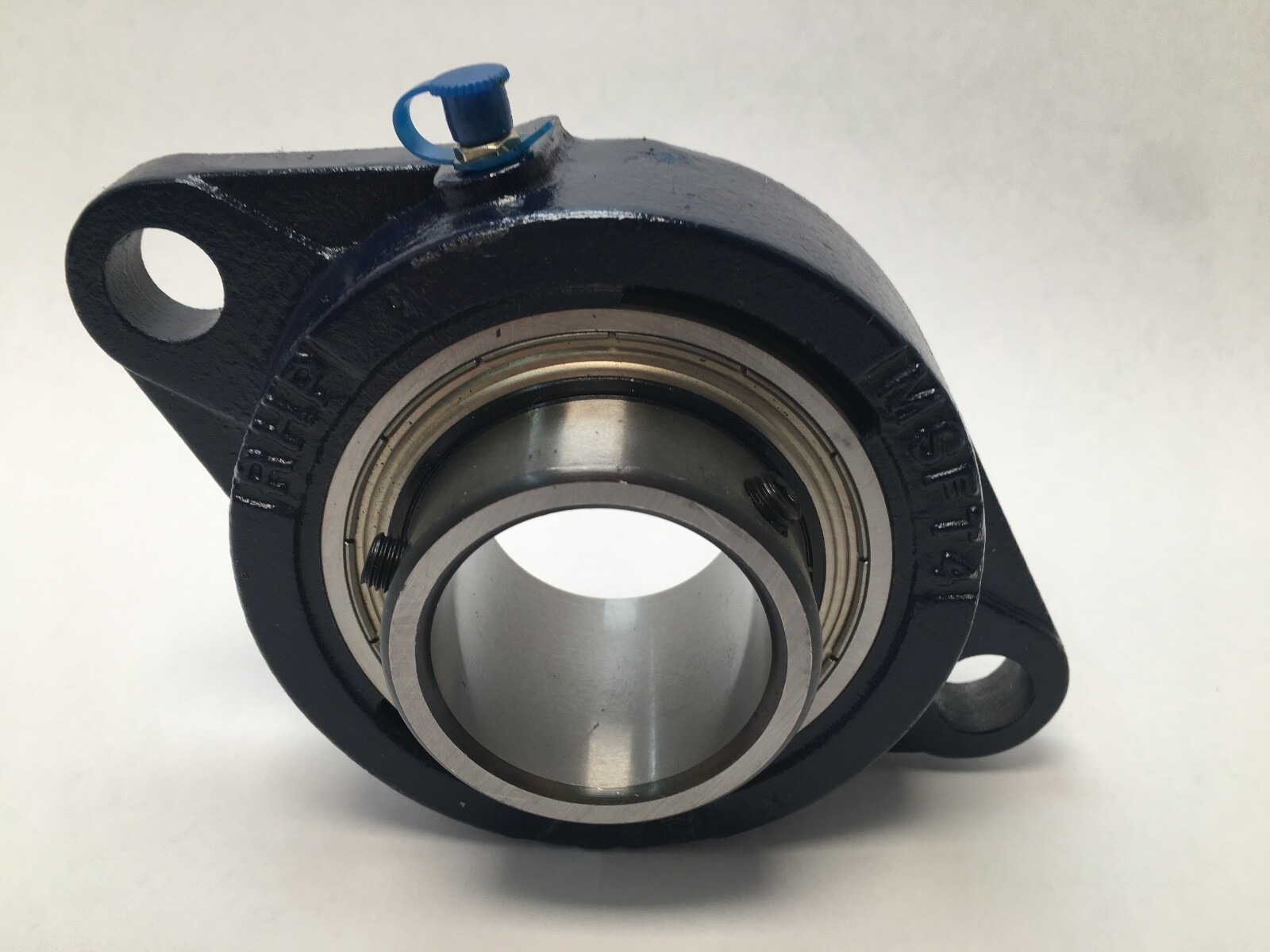

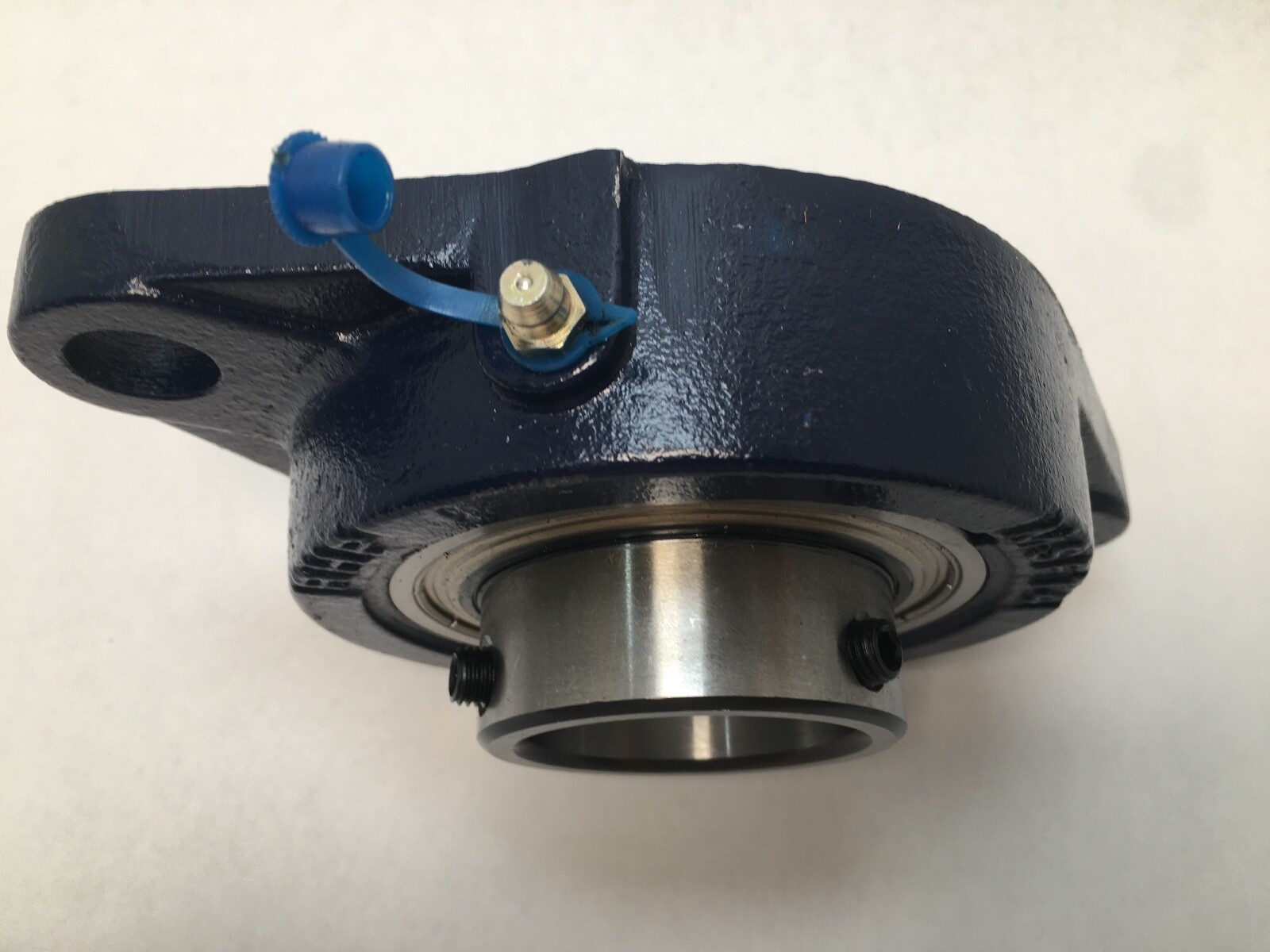

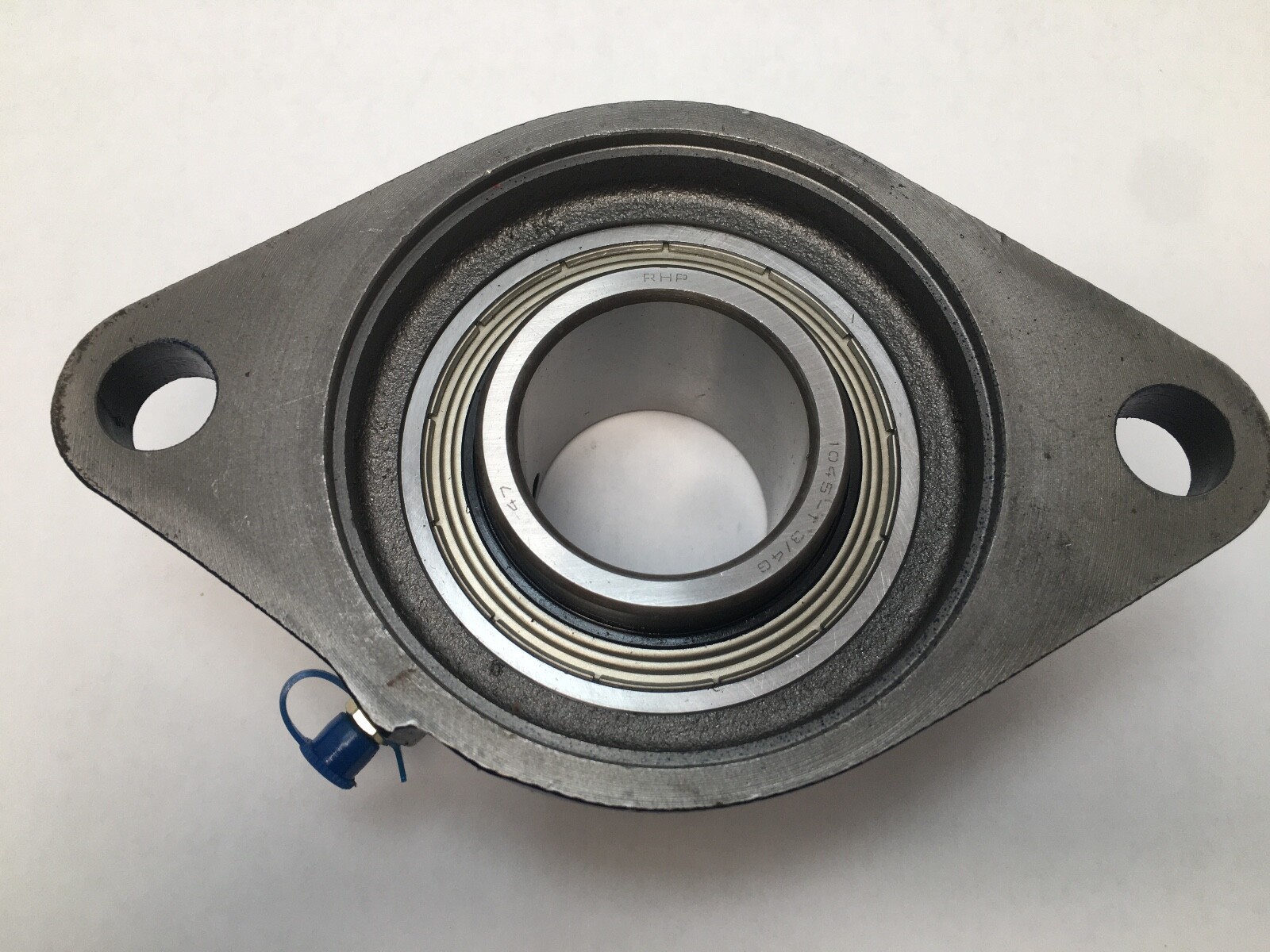

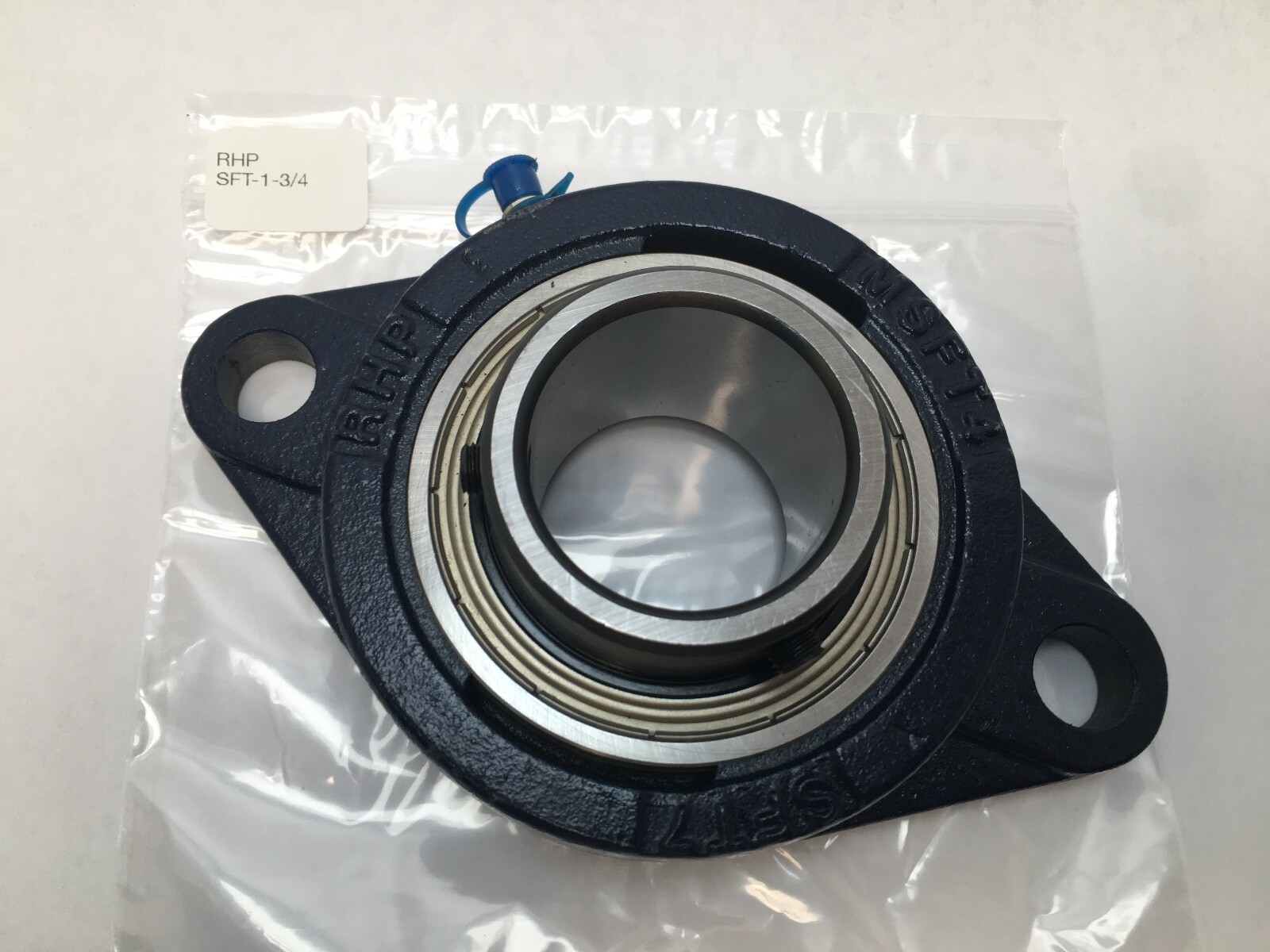

Two-bolt oval flange bearing unit, 1-3/4 in bore, cast iron housing, set-screw spherical insert. Bolt centres 148.5 mm, C3 clearance, 3,700 rpm.
List Price
$51.54
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| Model | SFT-1-3/4 |
| ID | 1.7500 in (44.450 mm) |
| Type | Flanged Mount Bearing |
|---|---|
| Industry Terms | Two-bolt flange bearing unit; oval flange unit; self-lube flange bearing; set screw flange bearing |
| Application Types | Conveyors; agricultural machinery; fans; material handling |
| Bolt Center To Center | 148.5 mm |
| Bore Shaft Size | 1-3/4 in (44.45 mm) |
| Housing Style | Two-bolt oval flange |
| Locking Method | Set screw |
| Mpn Variants | SFT1-3/4; SFT 1 3/4; SFT1.3/4; insert 1045-1.3/4G; housing MSFT4 / SFT7CAS |
| Material | Cast iron |
| Dynamic Load Rating | 32,500 N |
| Static Load Rating | 20,500 N |
| Series | Self-Lube SFT |
| Rolling Elements | Ball |
| Bearing Type | Flange Mounted Ball Bearing Unit |
| Limiting Speed | 3,700 rpm grease |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Internal Clearance | C3 |
| Lubricant | Grease |
| Relubrication Feature | Grease nipple |
| Harmonization Code | 8483.20.00.00 |
| Housing Material | Cast iron |
| Bearing Material | Bearing Steel |
| Cross Reference 1 | NSK SFT1-3/4 |
|---|---|
| Cross Reference 2 | Timken UCFL 209-28 - different bolt centres |
| Cross Reference 3 | AMI UCFL 209-28 - different bolt centres |
RHP Self-Lube SFT1-3/4 two-bolt oval flange bearing unit, 1-3/4 in bore, cast iron housing, set-screw locking, spherical insert.
SFT — RHP Self-Lube two-bolt oval flange housing in cast iron to BS 1452.
1-3/4 — shaft size in inches.

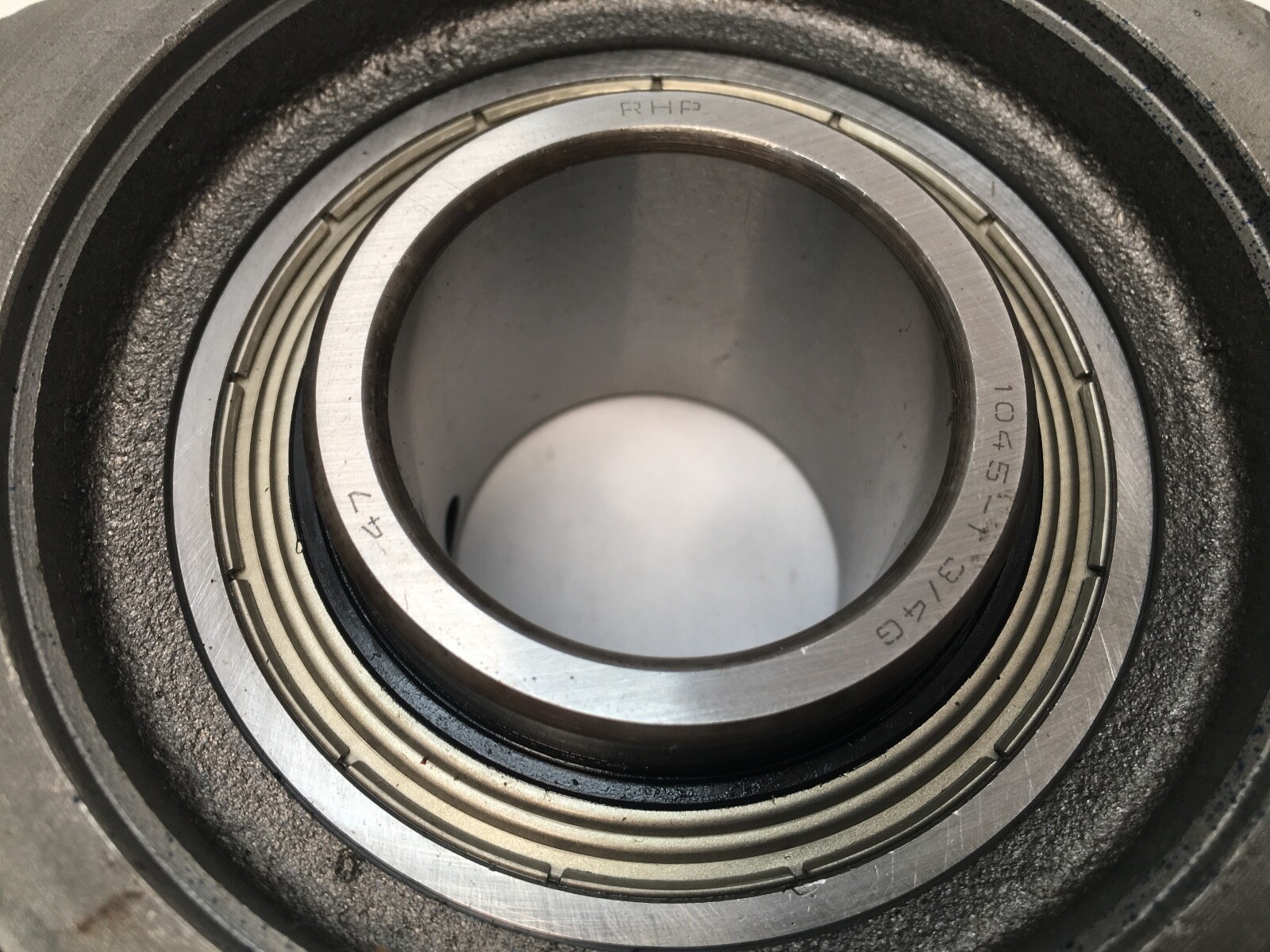

1045-1.3/4G — insert bearing fitted to this housing. The 1000 series carries a spherical outside diameter and G states set-screw locking.
MSFT4 / SFT7CAS — RHP housing reference for the SFT1-3/4 casting.
Bore / Shaft Size: 1-3/4 in (44.45 mm). Housing Style: Two-bolt oval flange. Housing Material: Cast iron. Locking Method: Set screw. Number Of Bolts: 2. Bolt Center To Center: 148.5 mm. Item Weight: 2.2 kg (4.85 lb). Dynamic Load Rating: 32,500 N. Static Load Rating: 20,500 N. Limiting Speed: 3,700 rpm grease. Internal Clearance: C3. Closure Type: Contact seals both sides. Rolling Elements: Ball. Lubricant: Grease. Relubrication Feature: Grease nipple. Series: Self-Lube SFT.
Two-bolt oval flange. Bolt Center To Center: 148.5 mm. Number Of Bolts: 2. Bore / Shaft Size: 1-3/4 in (44.45 mm).
Cross-Reference 1: NSK SFT1-3/4. RHP Self-Lube is sold under NSK. Cross-Reference 2: Timken UCFL 209-28, 1-3/4 in bore two-bolt oval flange with different bolt centres. Cross-Reference 3: AMI UCFL 209-28, 1-3/4 in bore two-bolt oval flange with different bolt centres. Searchable forms: SFT1-3/4, SFT 1 3/4, SFT1.3/4, insert 1045-1.3/4G.
What housing style is the RHP SFT1-3/4?
Housing Style: Two-bolt oval flange. Housing Material: Cast iron. Bolt Center To Center: 148.5 mm.
How is it locked to the shaft?
Locking Method: Set screw. Bore / Shaft Size: 1-3/4 in (44.45 mm).
What are the load ratings and speed?
Dynamic Load Rating: 32,500 N. Static Load Rating: 20,500 N. Limiting Speed: 3,700 rpm grease.
