Availability:
1 in stock
Four-bolt square flange unit, cast iron to BS1452, 2-3/16 in bore on 143 mm bolt centres. Spherical self-aligning insert, nitrile seals, C3 clearance.
List Price
$80.14
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | MSF2-3/16 |
| Model | MSF 2 3/16 |
| ID | 2-3/16 in |
| Type | Flanged Mount Bearing |
|---|---|
| Base Number | MSF |
| Industry Terms | Self-Lube bearing, four bolt flange bearing, square flange unit, housed bearing unit, flange block, mounted ball bearing |
| Common Misspellings | MSF2-3-16, MFS2-3/16, MSF23/16, RPH, R.H.P. |
| Application Types | Conveyor shafts, fans and blowers, agricultural machinery, food and packaging plant, fabricated steelwork mountings |
| Bore Shaft Size | 2-3/16 in (55.56 mm) |
| Housing Style | Four-bolt square flange, cast iron to BS1452; 4 bolts |
| Locking Method | Set screw (grub screw) |
| Mpn Variants | MSF 2-3/16, MSF 2 3/16, MSF-2-3/16, MSF2.3/16, MSF2 3 16 |
| Series | MSF, RHP Self-Lube Four-Bolt Square Flange |
| Rolling Elements | Balls |
| Bearing Type | Mounted ball bearing flange unit, spherical outer insert |
| Number Of Rows | 1 |
| Housing Material | Cast iron to BS1452 |
| Part Number | MSF2-3/16 |
RHP MSF2-3/16 Self-Lube four-bolt square flange bearing unit. Manufacturer: RHP, now part of NSK. Part Number: MSF2-3/16. Series: MSF, RHP Self-Lube four-bolt square flange. Bore / Shaft Size: 2-3/16 in (55.56 mm). Housing Style: four-bolt square flange, cast iron. Housing Material: cast iron to BS1452. Insert: spherical outer surface, self-aligning. Locking Method: setscrew (grub screw). Seal Type: nitrile / fabric. Internal Clearance: C3. Number Of Rows: 1. Rolling Elements: steel balls. Design Units: Inch. Country of Origin: United Kingdom.
MSF — RHP Self-Lube four-bolt square flange cast iron unit.
2-3/16 — bore in inches, 55.56 mm.
Bore / Shaft Size: 2-3/16 in (55.56 mm). Housing Material: cast iron to BS1452. Locking Method: setscrew, two grub screws in the extended inner ring clamping the insert to a plain shaft. Internal Clearance: C3, one step above normal. Seal Type: nitrile / fabric seals at both faces. Unit Quantity: 1 Pc.

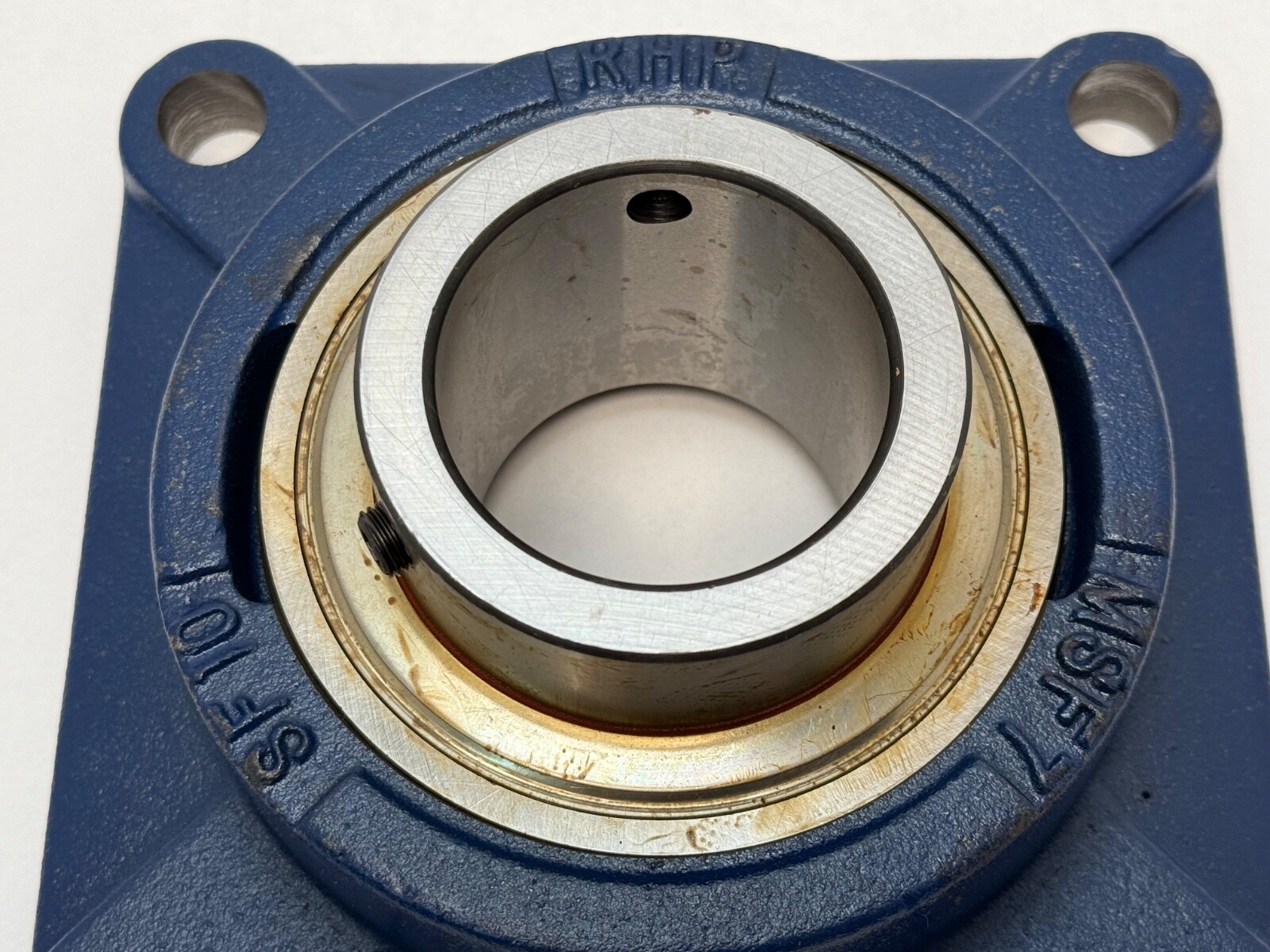

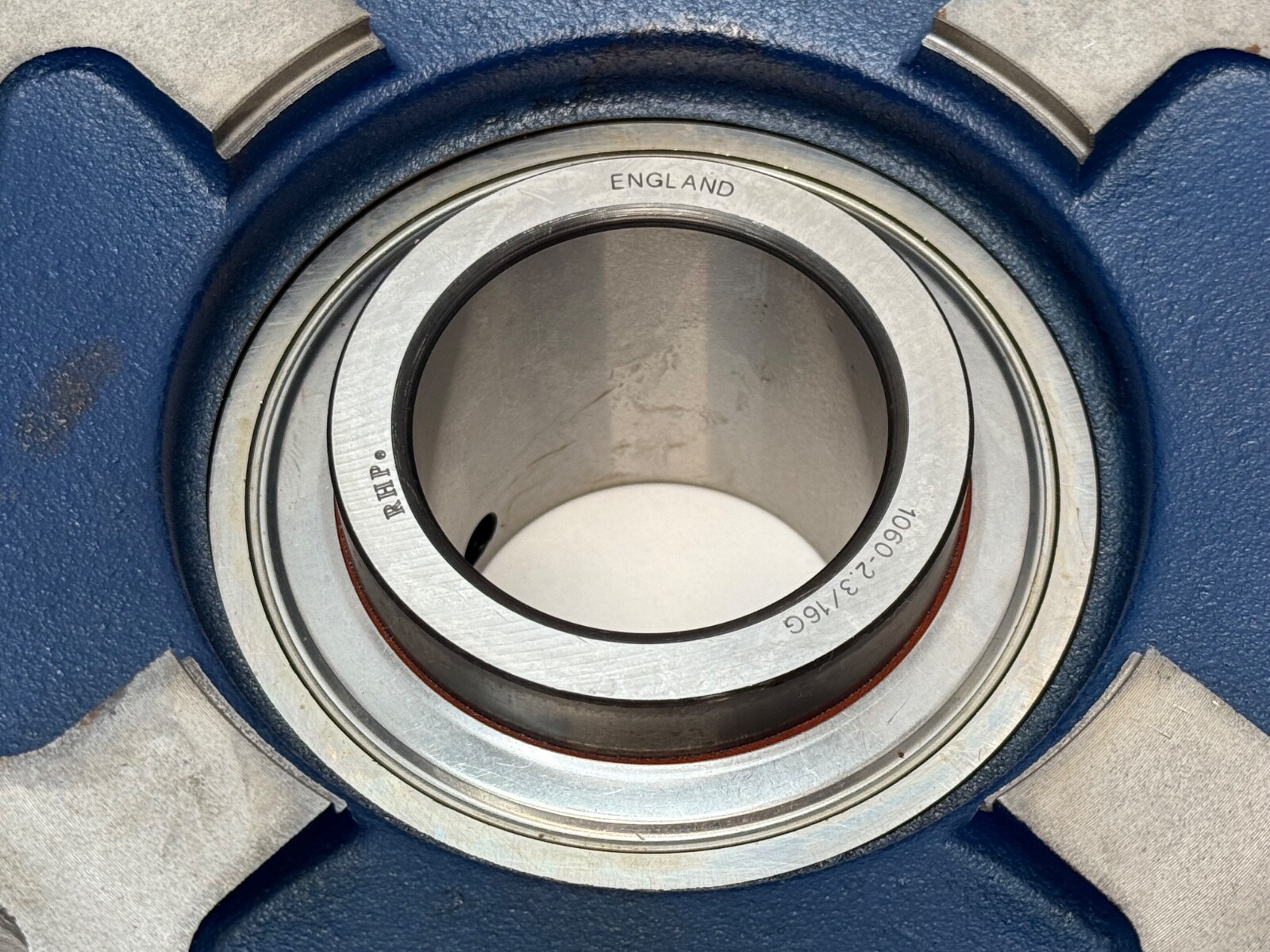

The spherical outer surface of the insert seats in a matching spherical housing bore, so the insert swivels to take up initial misalignment between shaft and mounting face.

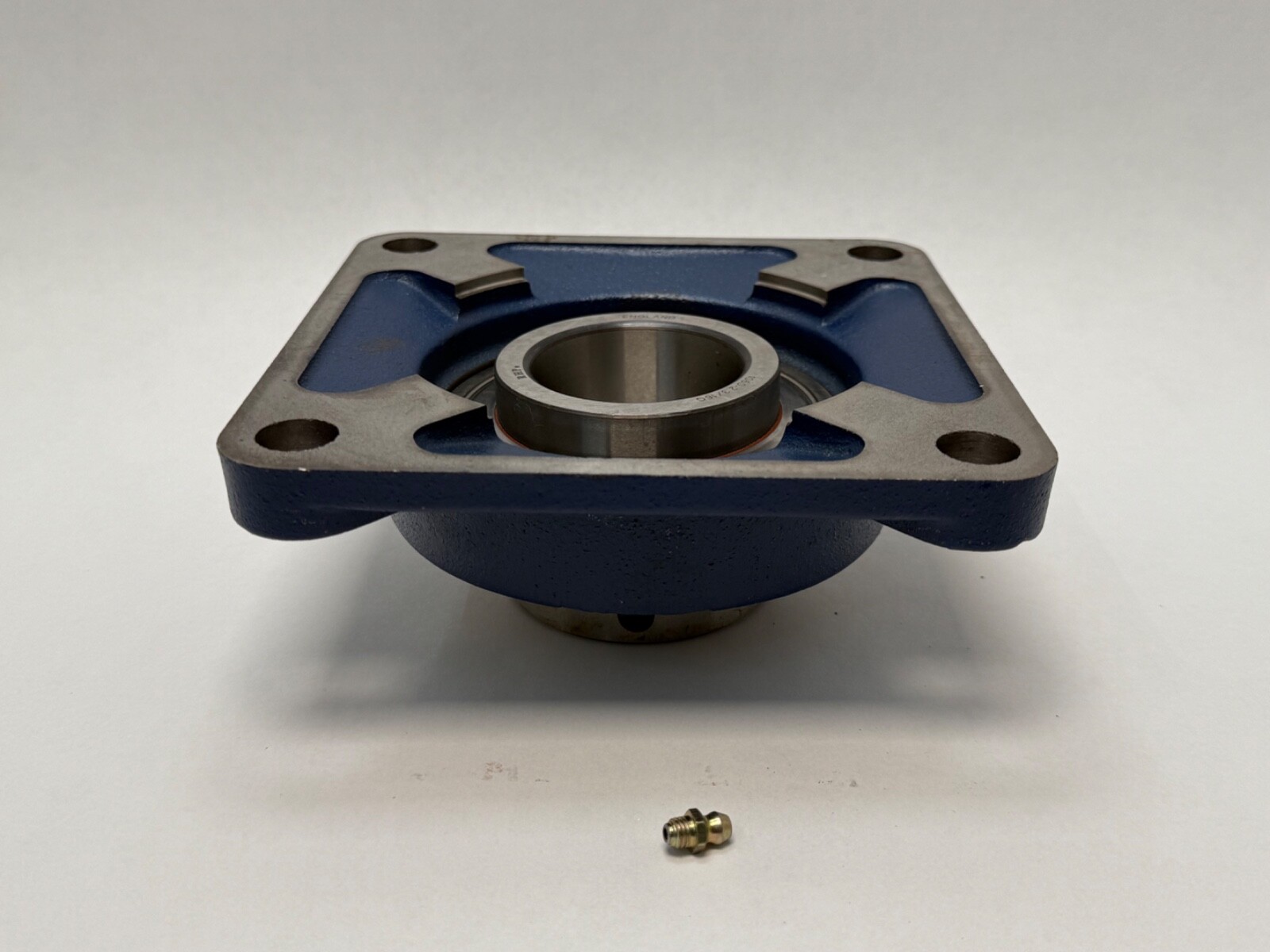

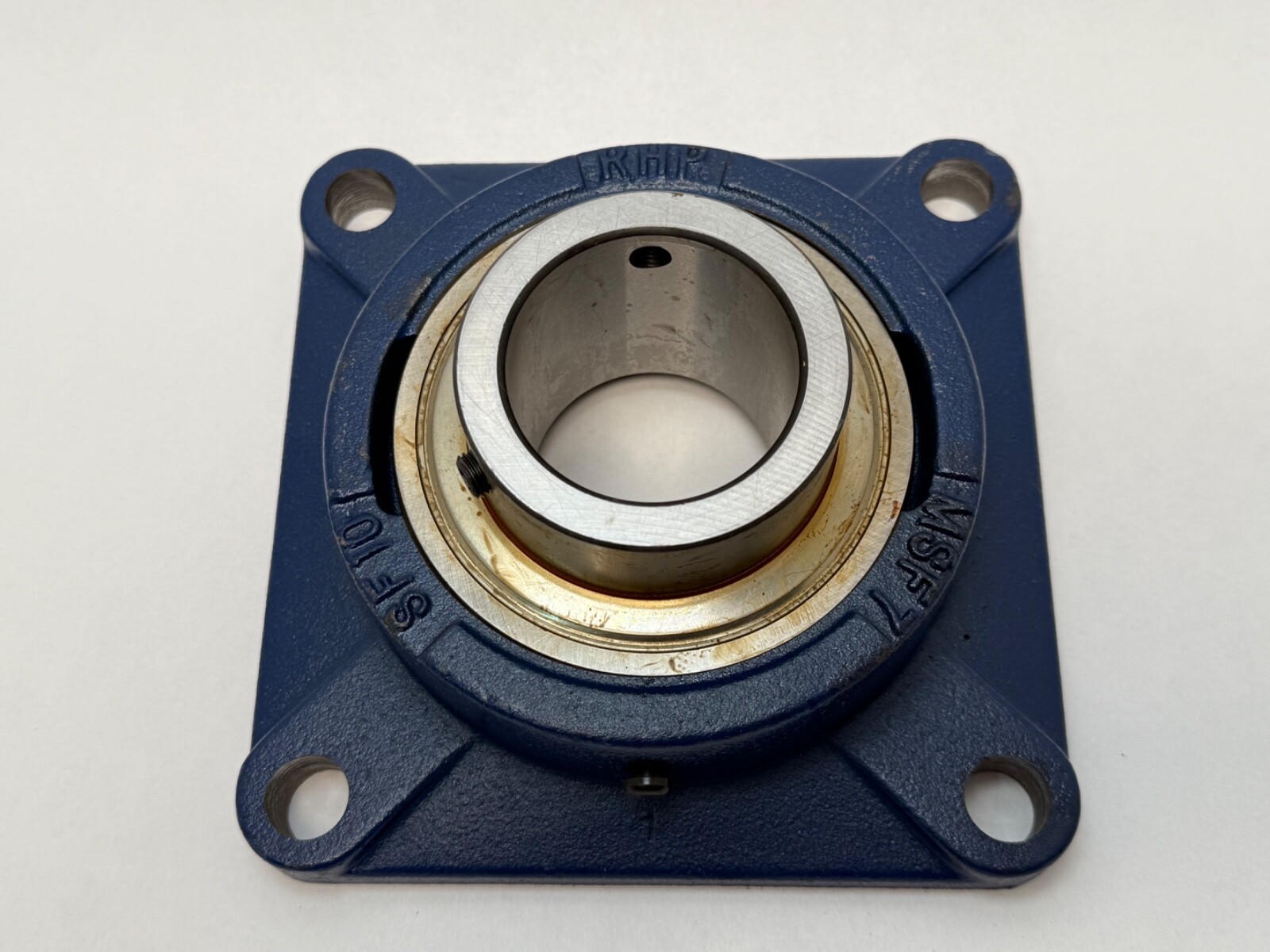

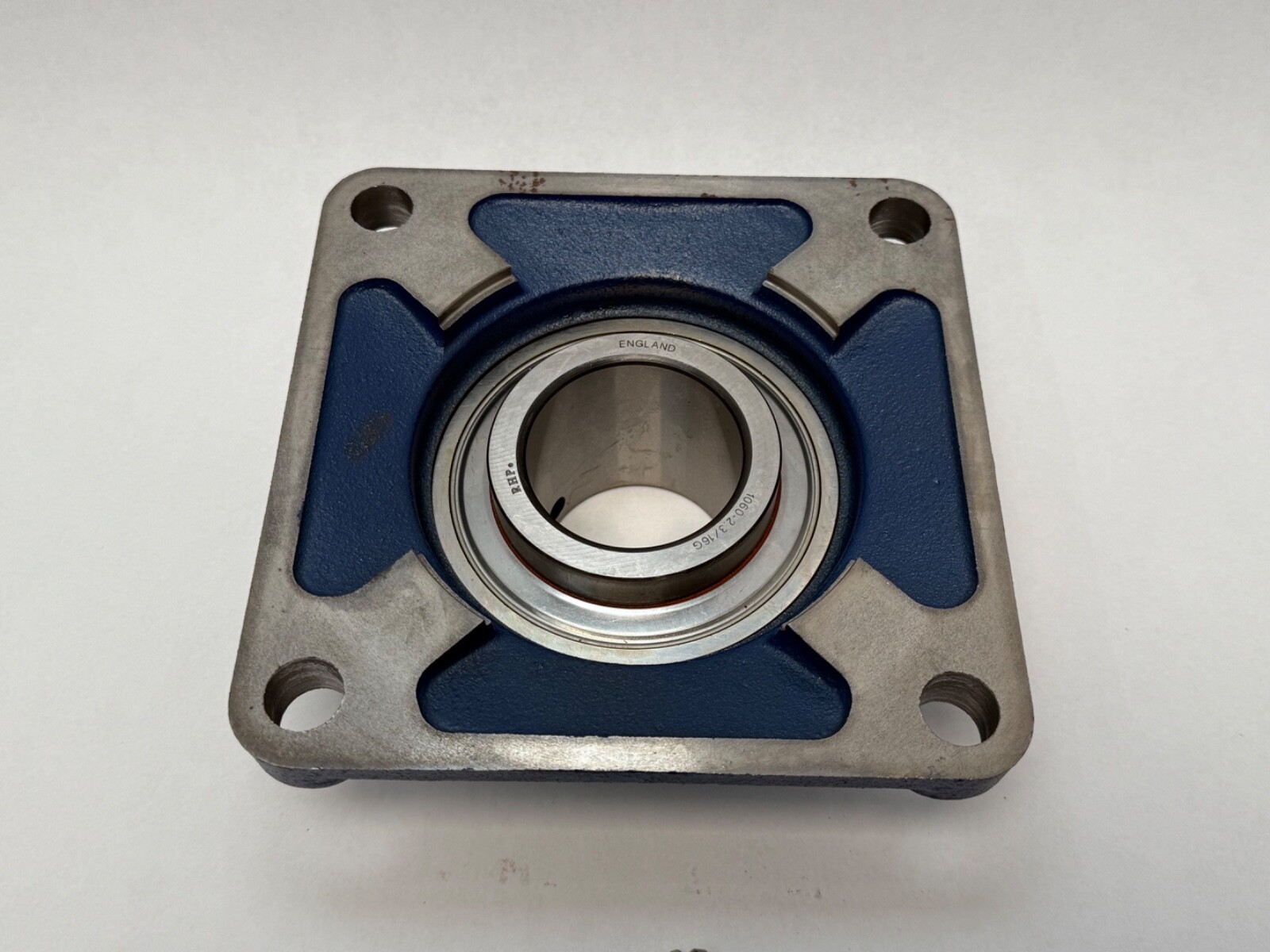

Housing Style: four-bolt square flange. Bolt Count: 4. Bolt Hole Centres: 143 mm (5.63 in). The four holes sit at the corners of a square with 143 mm between centres on each side, so the unit bolts to a face perpendicular to the shaft.
A flange unit interchanges when the bore and the bolt hole centres both match. Bore / Shaft Size: 2-3/16 in. Bolt Hole Centres: 143 mm. Within the RHP Self-Lube range the same insert size appears in other housings: SFT is the two-bolt oval flange and SF is the standard square flange. Searchable variants: MSF2-3/16, MSF 2-3/16, MSF 2 3/16, MSF-2-3/16, MSF2.3/16.
Four holes on a square with 143 mm (5.63 in) between centres.

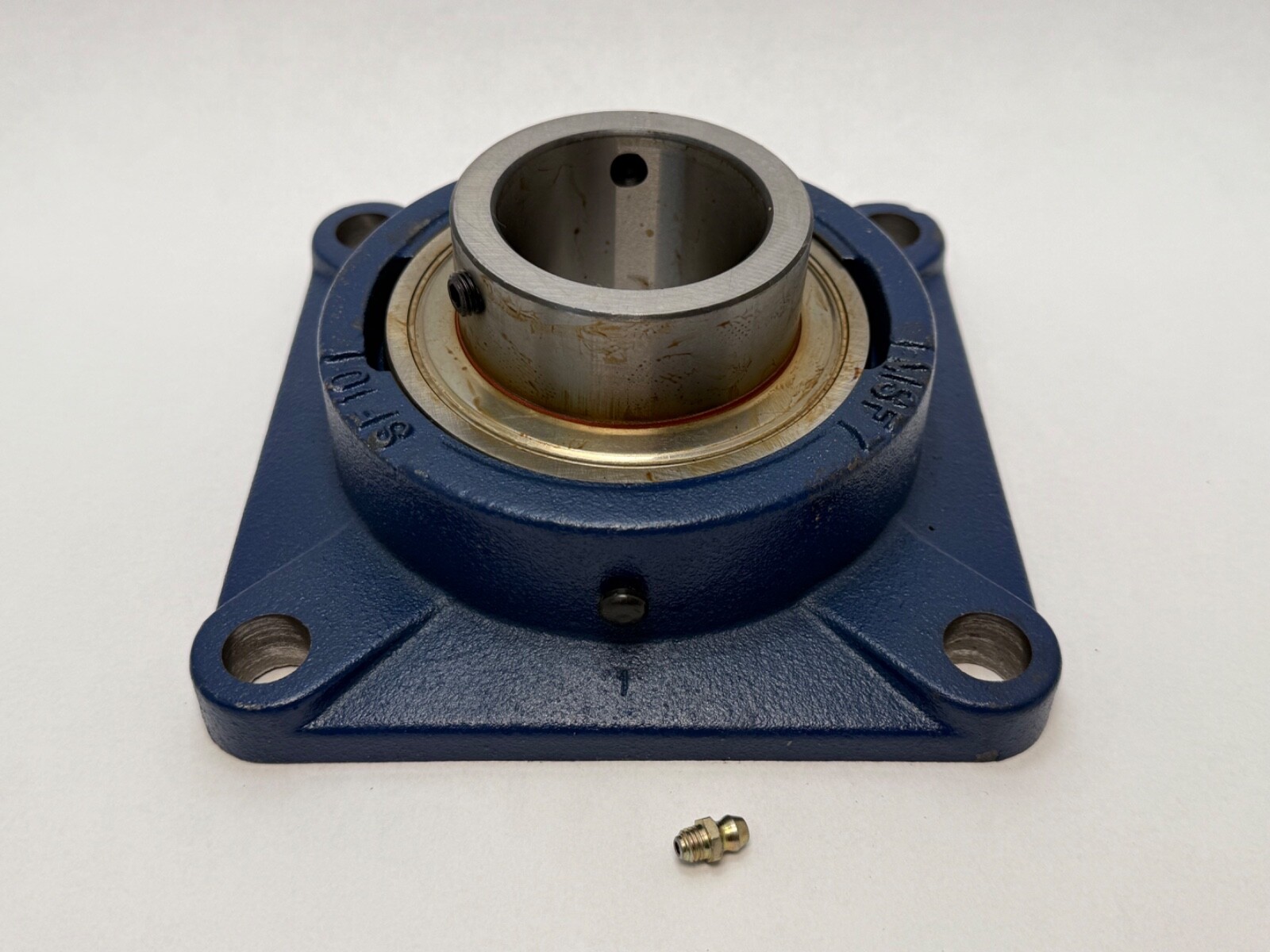

Setscrew (grub screw) locking in the extended inner ring.
Cast iron to BS1452.
