Also Available From:
| MFR / Brand | RHP |
|---|---|
| MPN | SFT1 |
| Model | SFT-1 |
| ID | 1.0000 in |
| Series | SFT |
|---|---|
| Condition | New – Open box |
| Type | Flanged Mount Bearing |
| Lubricant | Standard Grease |
| Material | Cast Iron |
| Condition Note | Made In England, New, No Box |
| Bolt Center To Center | 92 mm |
| Number Of Bolt Holes | 2 |
| Bolt Center To Center Length | 92 mm |
| Number Of Bolt Holes For Fasteners | 2 |
| Min Temp | -20 C |
| Cage Type | Pressed |
| Dynamic Load Rating | 19.5 kN / 4380 lbf |
| Static Load Rating | 11.3 kN / 2540 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Max Temp | 110 C |
| Bearing Type | 2-Bolt Flange Unit |
| Item Weight | 2.05 lbs |
| Cage Material | Steel |
| Limiting Speed | 5000 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Duty Type | Standard Duty |
| Locking Device | Set Screw |
| Relubrication Feature | Yes |
| Housing Material | Cast Iron |
| Expansion Type | Non-Expansion |
| Cross Reference 1 | DODGE F2B-SC-100 |
|---|---|
| Cross Reference 2 | SKF FY 1 TF |
| Cross Reference 3 | FAFNIR RCJ-1 |
| Cross Reference 4 | NTN UCF205-100D1 |
| Cross Reference 5 | SEALMASTER SFT-16 |

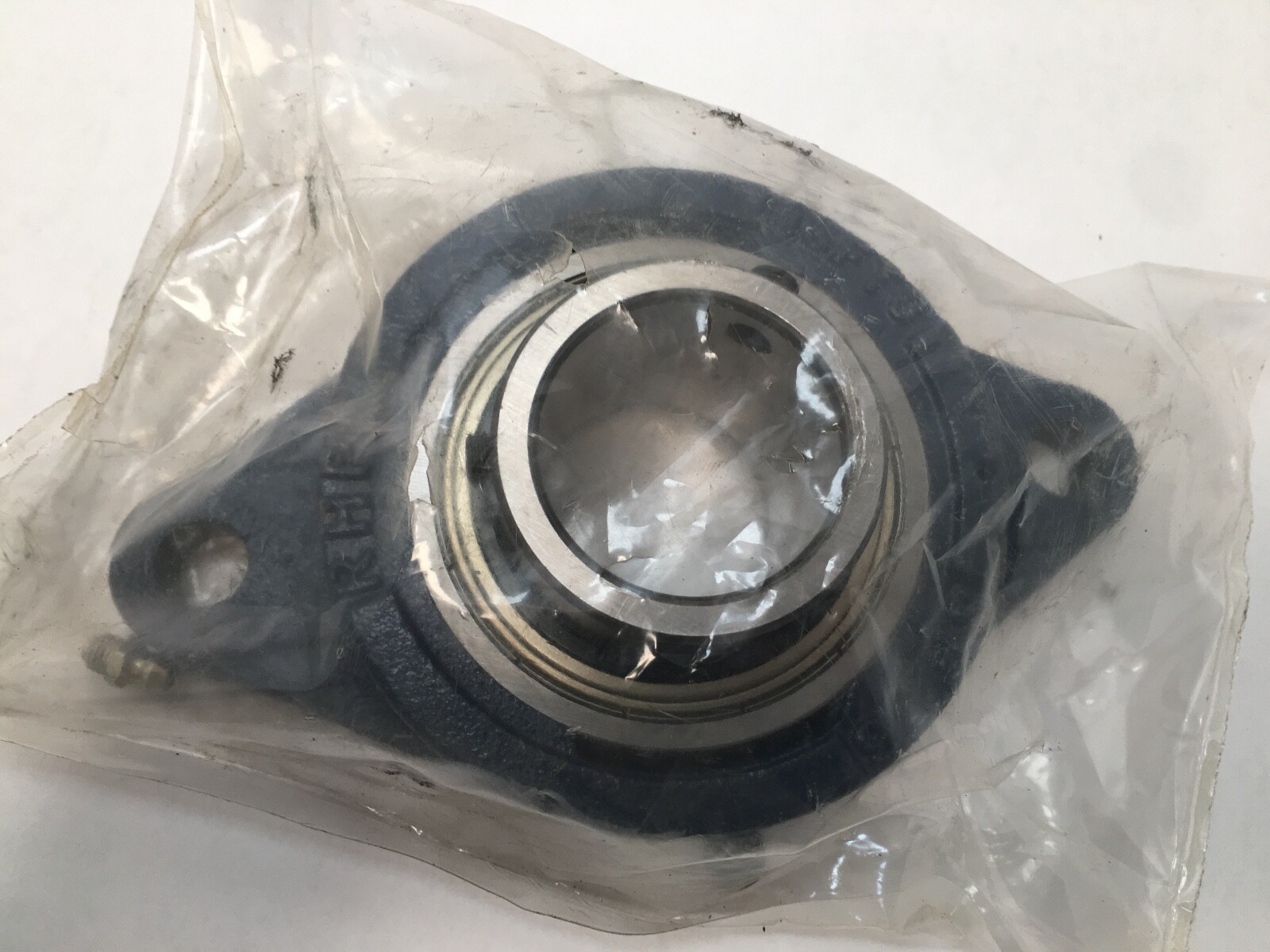

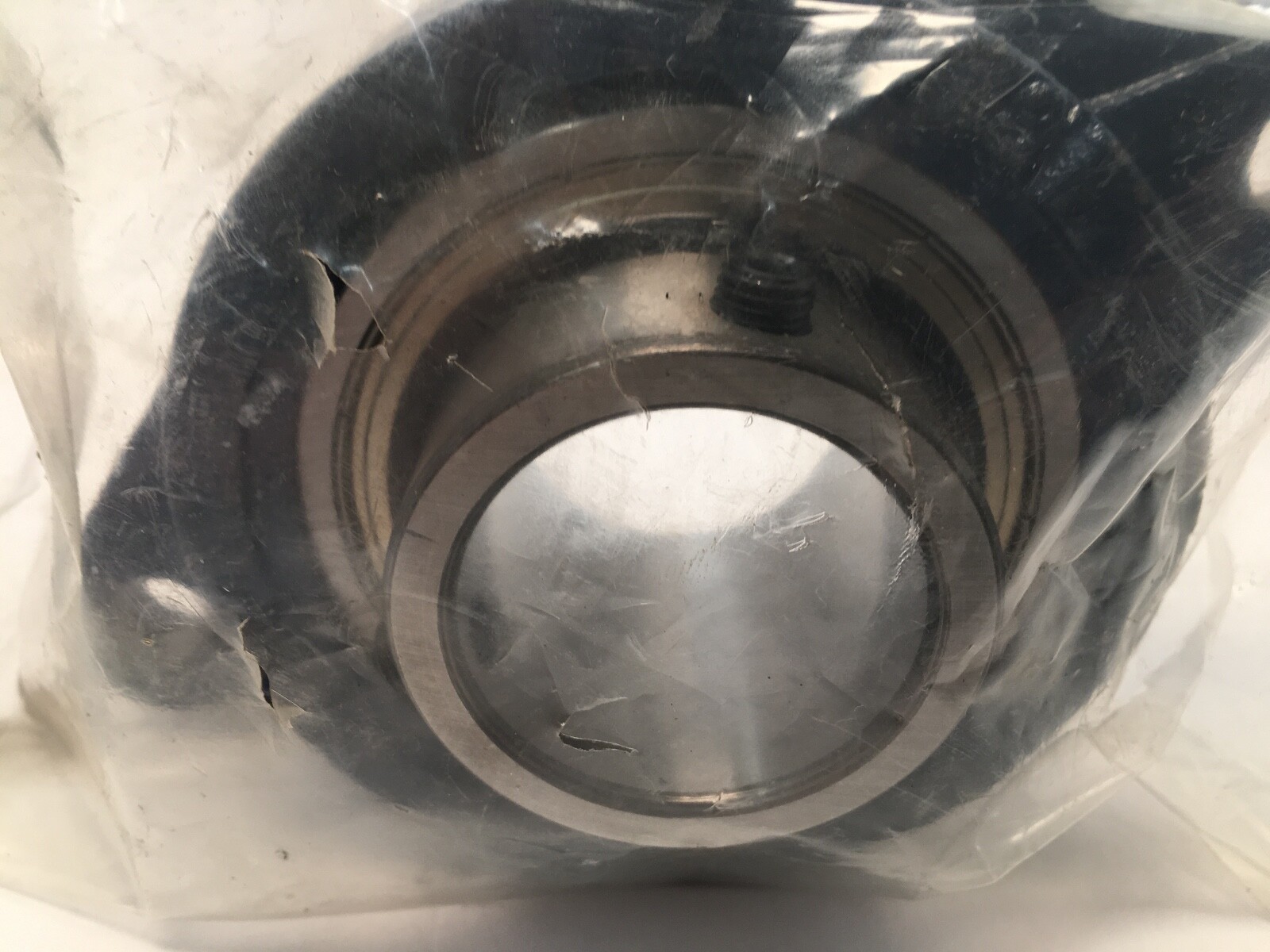

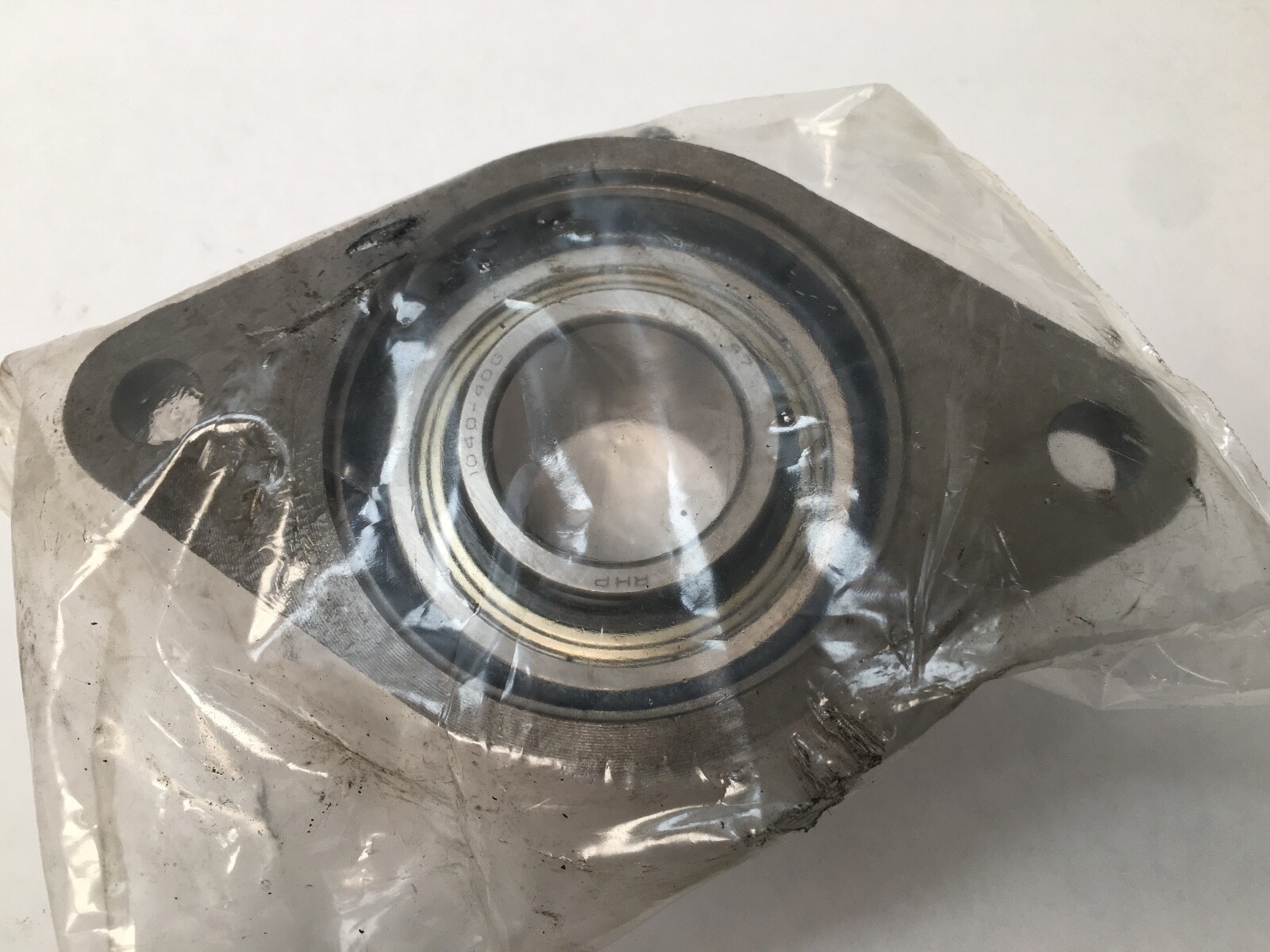

RHP SFT1 2-Bolt Flange Unit 1″ Bore. Cast iron housing with sealed insert bearing and set screw lock. Ideal for general purpose industrial machinery.
