DodgeNSTU-DL-207Narrow-Slot Take-Up Ball Bearing Unit – 2-7/16 in Bore, D-LOK Concentric Collar, Non-Expansion

Product Description

What this part is:

Dodge NSTU-DL-207, Dodge item number 064430, is a narrow-slot take-up ball bearing unit. Bearing Type: Mounted single-row ball bearing insert in a take-up housing. Housing Style: Narrow-slot take-up cartridge. Bore / Shaft Size: 2-7/16 in (61.91 mm). Locking Method: D-LOK concentric clamp collar. Closure Type: Single-lip seal. Expansion Type: Non-expansion. Series: 212. Dynamic Load Rating: 11,791 lbf. Static Load Rating: 8,100 lbf. Overall Length: 6.69 in. Overall Height: 5-3/4 in.

Decoding the designation:

NSTU — narrow-slot take-up housing, sized to slide in the narrow rail section of a Dodge take-up frame.

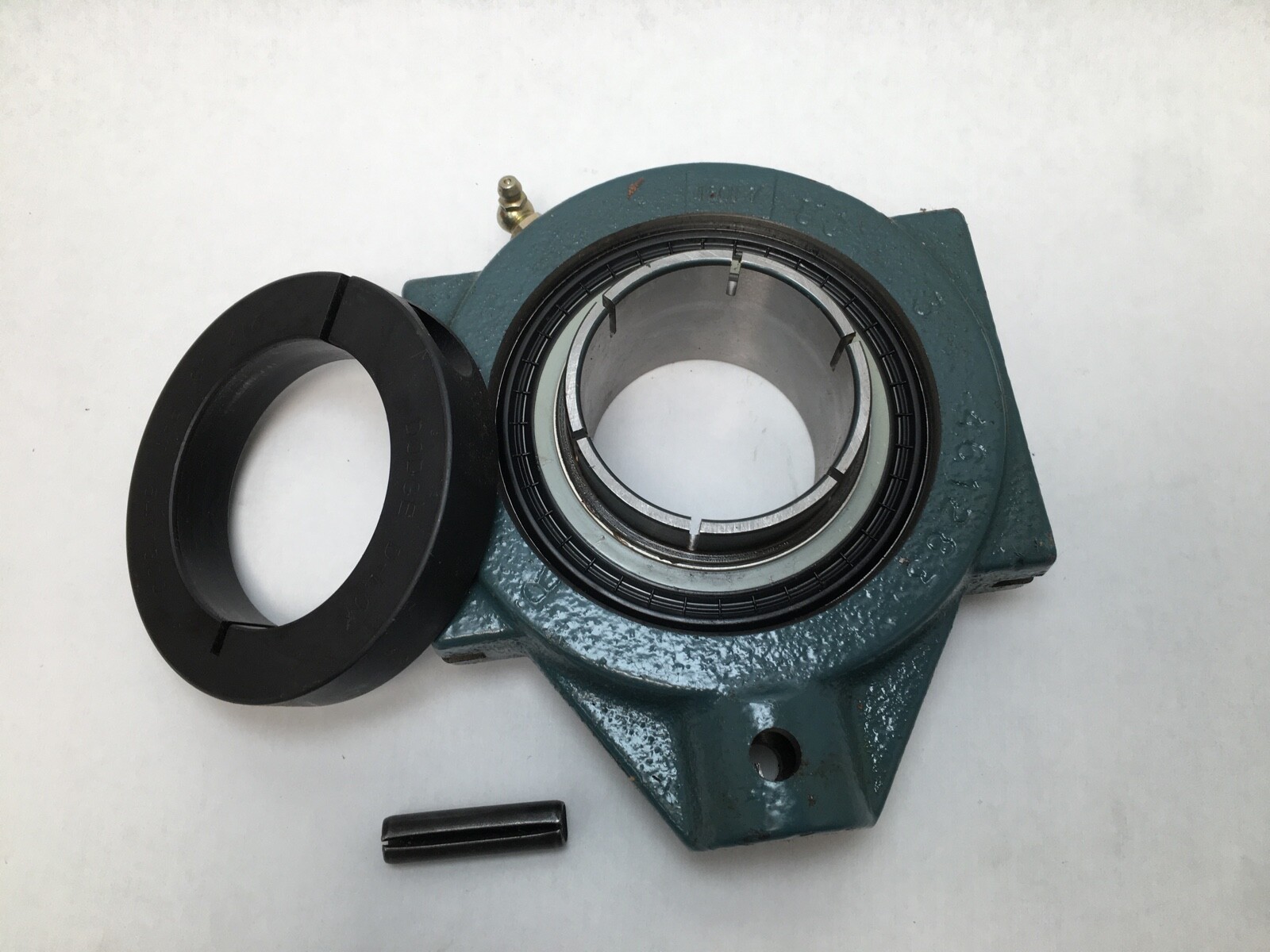

DL — D-LOK concentric clamp collar, which grips the shaft evenly all the way round instead of biting at two setscrew points.

207 — bore code for a 2-7/16 in shaft.

What these specs mean in practice:

Locking Method: D-LOK concentric clamp collar. A concentric grip centres the insert on the shaft, so the assembly runs with less vibration at speed than a setscrew unit and resists creep under reversing or shock load. Dynamic Load Rating: 11,791 lbf and Static Load Rating: 8,100 lbf set the load ceiling for a 212-series ball insert. Closure Type: Single-lip seal, which keeps grease in and coarse debris out on general conveyor duty.

Housing style and bolt pattern:

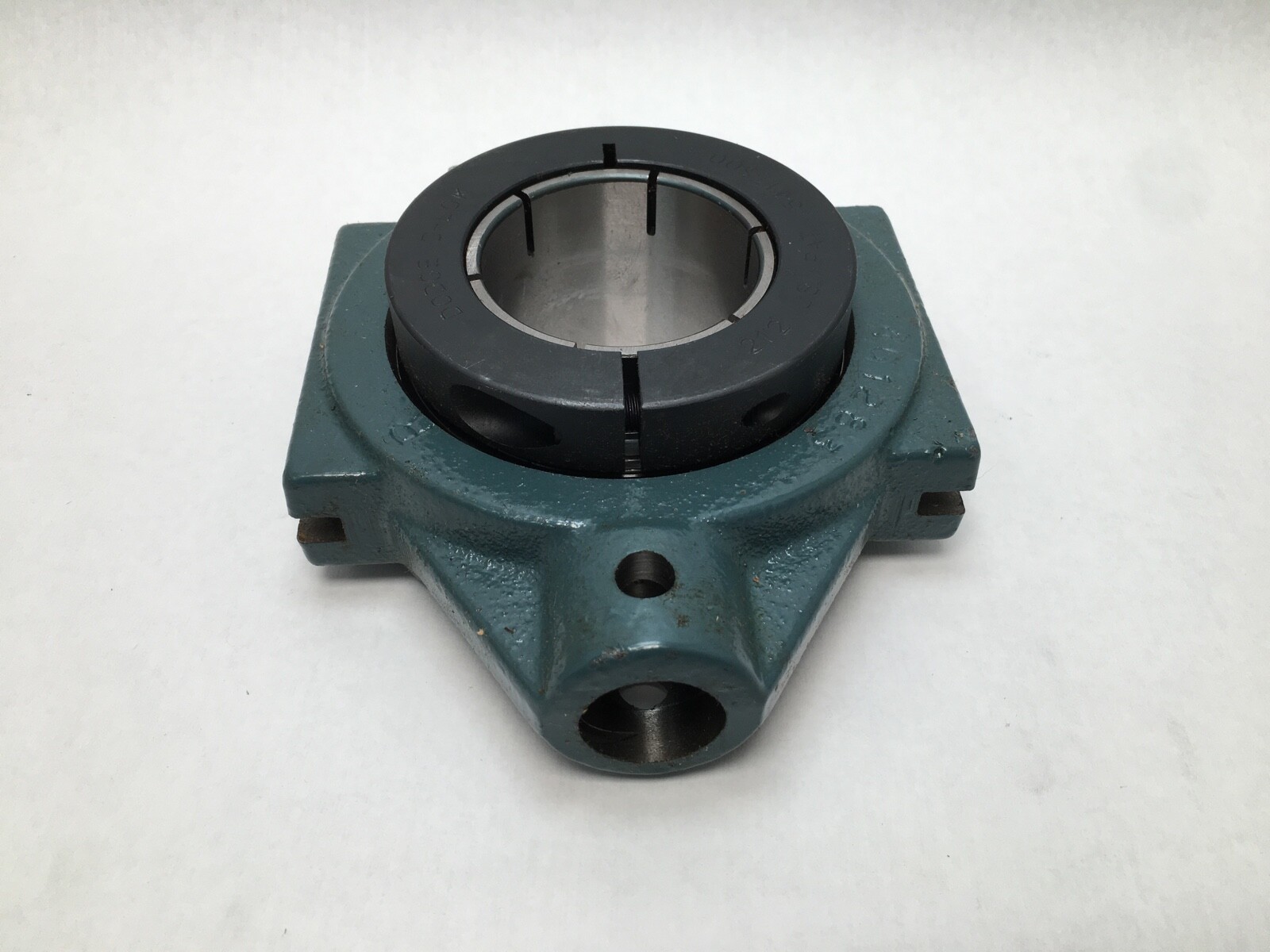

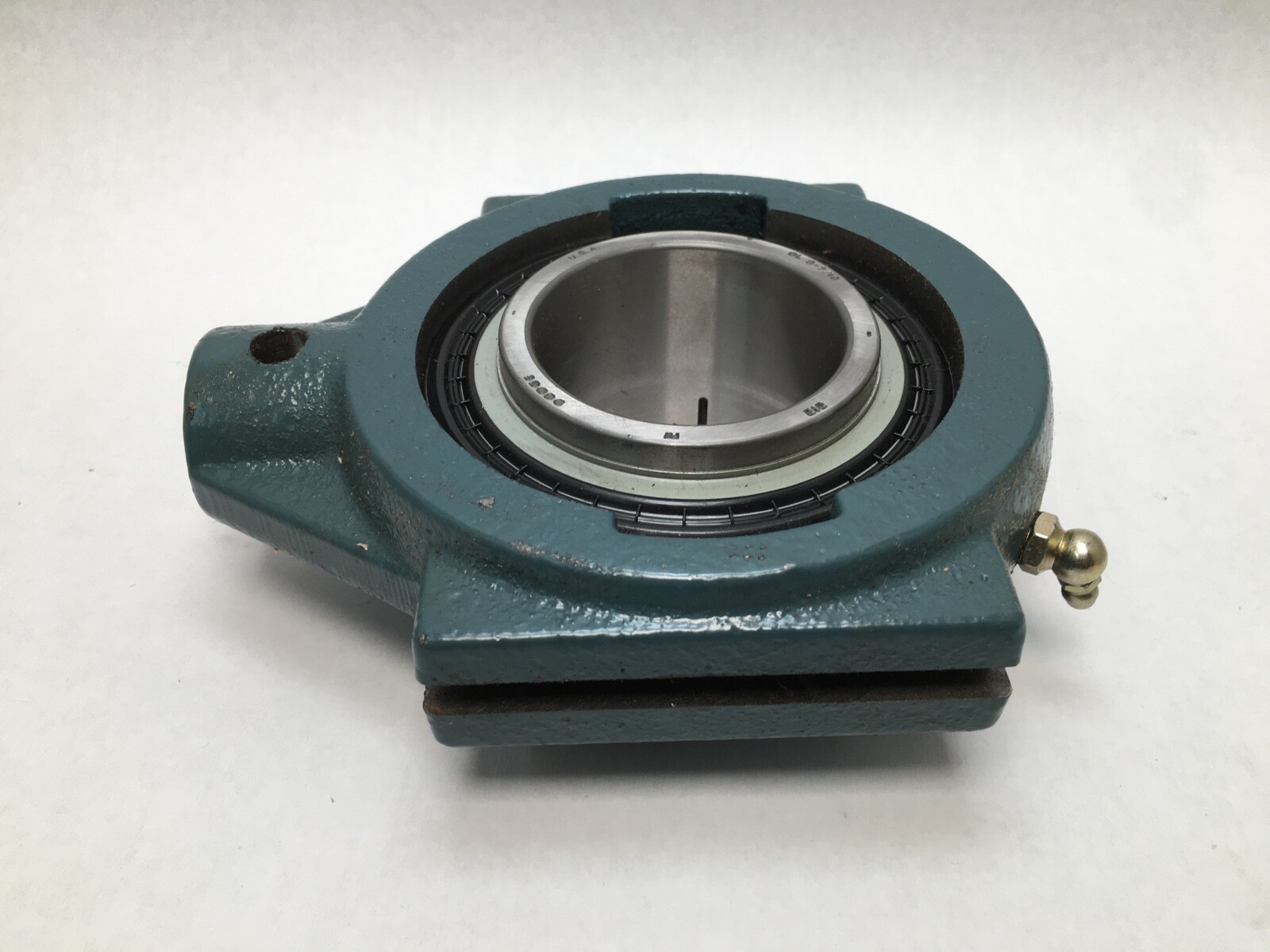

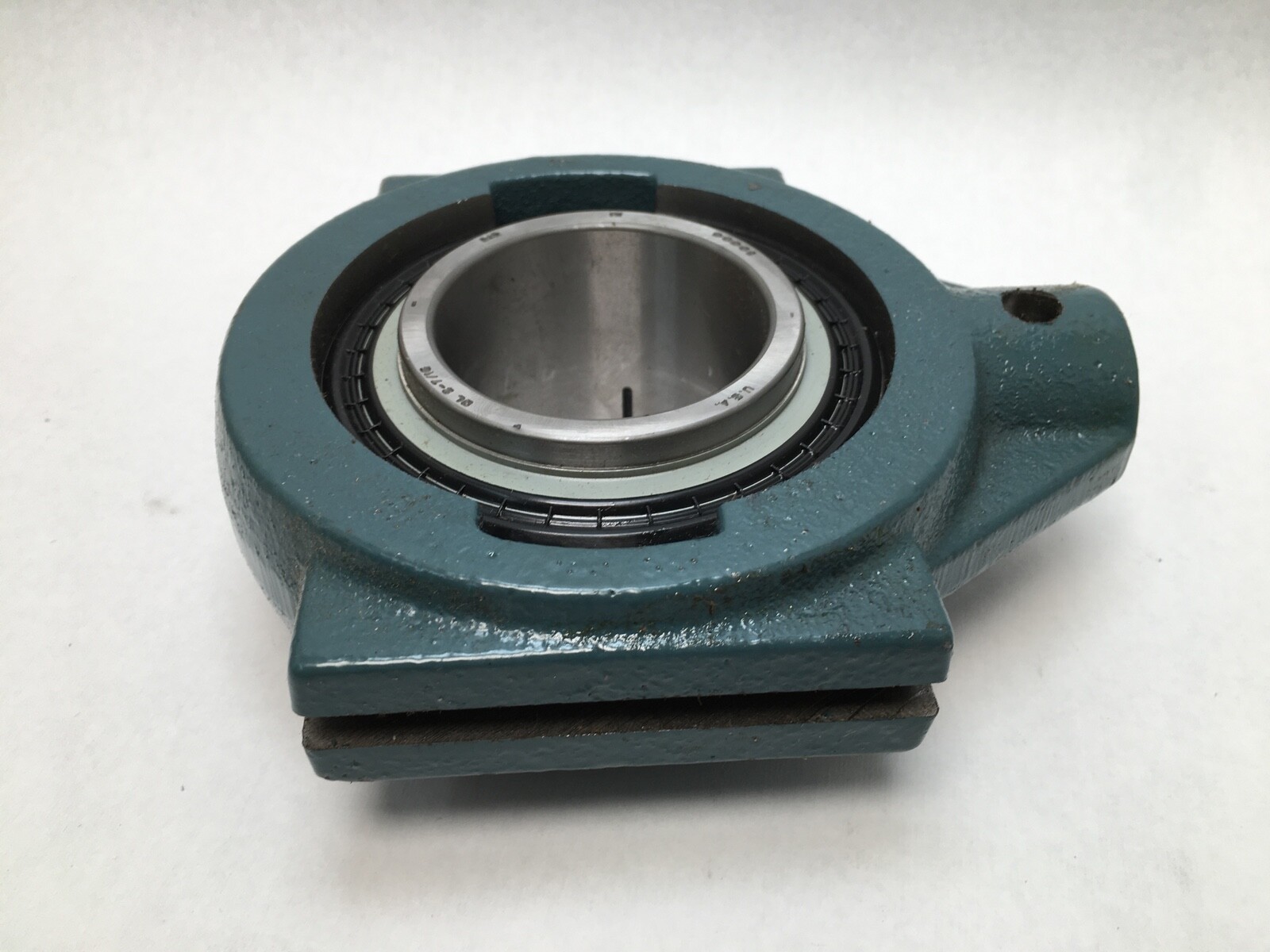

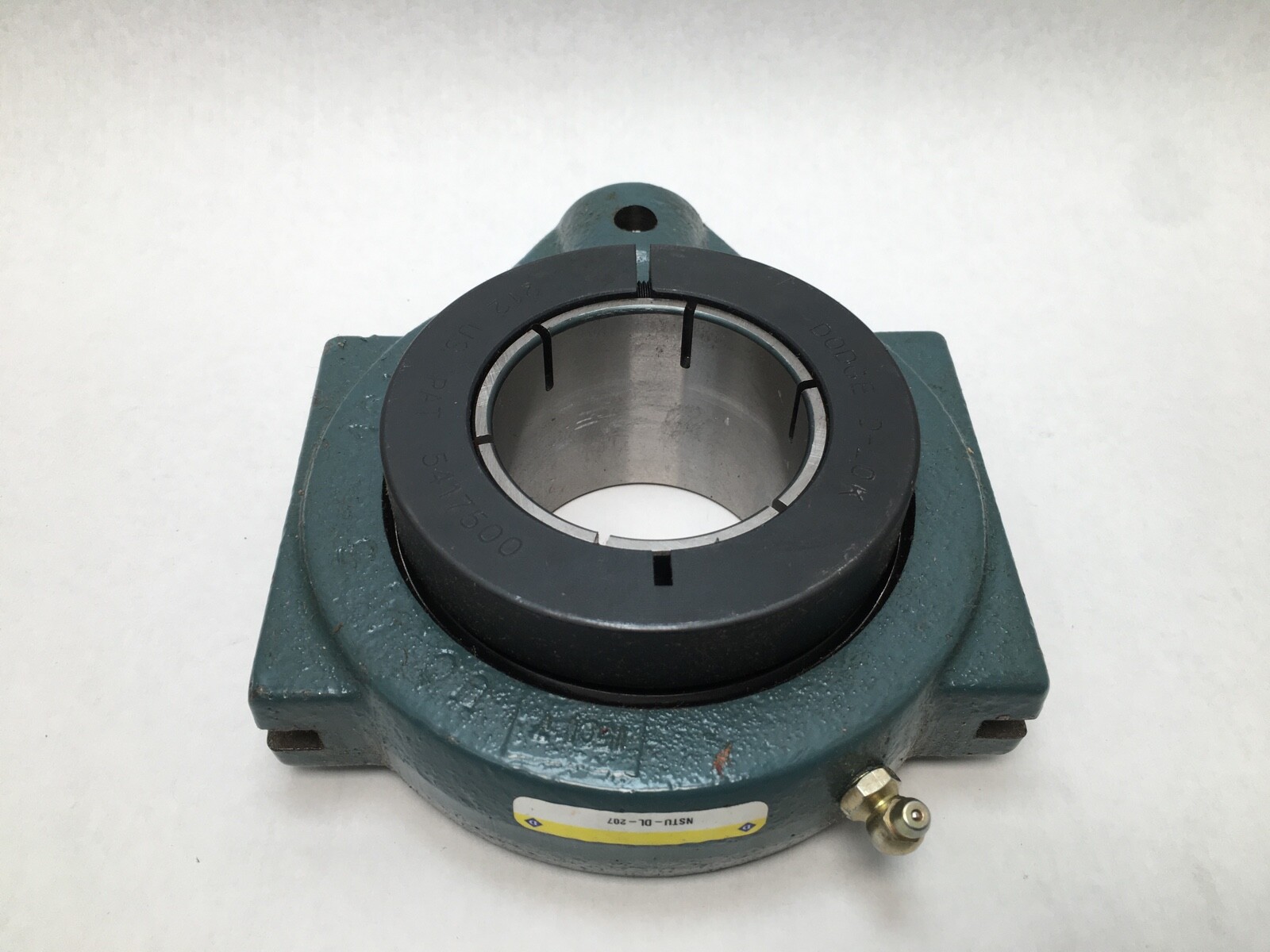

Housing Style: Narrow-slot take-up. The housing has machined guide faces that run in the slot of the take-up frame, and a threaded boss that takes the frame’s adjusting screw. Overall Length: 6.69 in. Overall Height: 5-3/4 in.

Fitting notes:

Expansion Type: Non-expansion — the insert holds the shaft in axial position, so a floating unit belongs at the opposite end of the shaft. The unit slides into a Dodge NS415 narrow-slot take-up frame, and the frame’s screw draws it along the rail to tension a belt or chain.

Quantity and configuration:

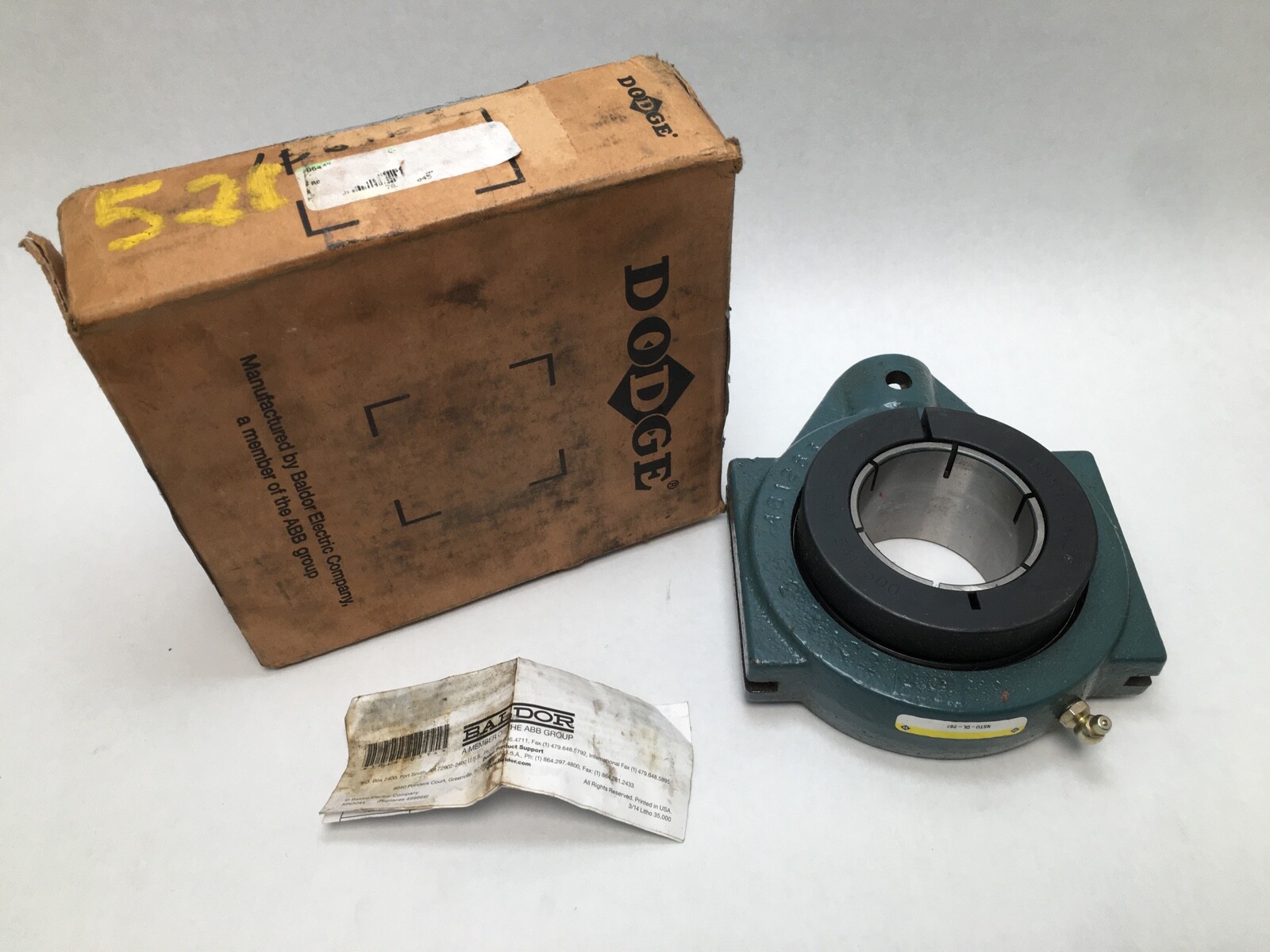

Unit Quantity: 1 Pc. Take-up cartridge complete with its ball bearing insert and D-LOK collar. The matching frame is the Dodge NS415.

Interchange guidance:

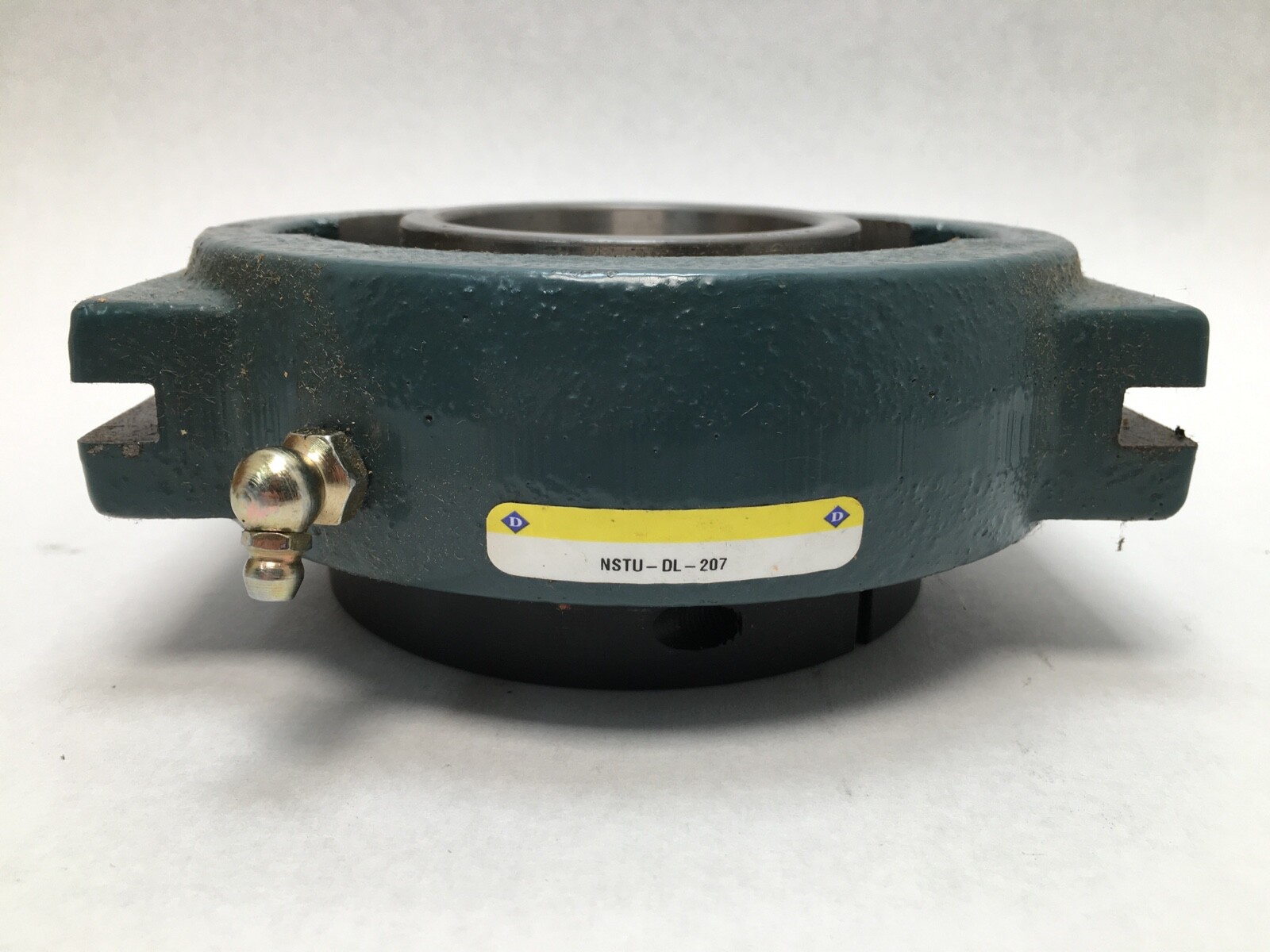

Part Number: NSTU-DL-207. Base Number: 064430. Searchable variants: NSTUDL207, NSTU DL 207, NSTU-DL207. The setscrew equivalent on the same housing is the Dodge NSTU-SC-207, item 125162 — same envelope, setscrew locking rather than a concentric collar.
