This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Spherical Roller Bearing — 150 mm ID, 270 mm OD, 73 mm Width, 1:12 Tapered Bore, W33 Groove, Pressed Steel Cage$443.51
Spherical Roller Bearing — 150 mm ID Tapered Bore, 270 mm OD, 73 mm Width, Polyamide Cage, Lubrication Groove$367.17
Spherical Roller Bearing - 150 mm ID, 270 mm OD, 73 mm Width, 1:12 Tapered Bore, W33 Lubrication Groove, CN Clearance$374.82
Spherical Roller Bearing — 150 mm ID Tapered Bore, 270 mm OD, 73 mm Width, Brass Cage, C3 Clearance, Lubrication Groove$363.34| MFR / Brand | SKF |
|---|---|
| MPN | 22230CKYW33 |
| Model | 22230 C K Y W33 / 22230 CC/C K J W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 150 mm |
| OD | 270 mm |
| Width | 73 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Closure Type | Open |
| Cage Type | Sheet Metal |
| Dynamic Load Rating | 898 kN / 202000 lbf |
| Static Load Rating | 1080 kN / 243000 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Cylindrical Roller |
| Max Temp | 200 °C |
| Item Weight | 38.3 lbs |
| Cage Material | Steel |
| Limiting Speed | 3000 rpm |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | CN |
| Cross Reference 1 | FAG 22230-E1-K |
|---|---|
| Cross Reference 2 | NTN 22230EK |

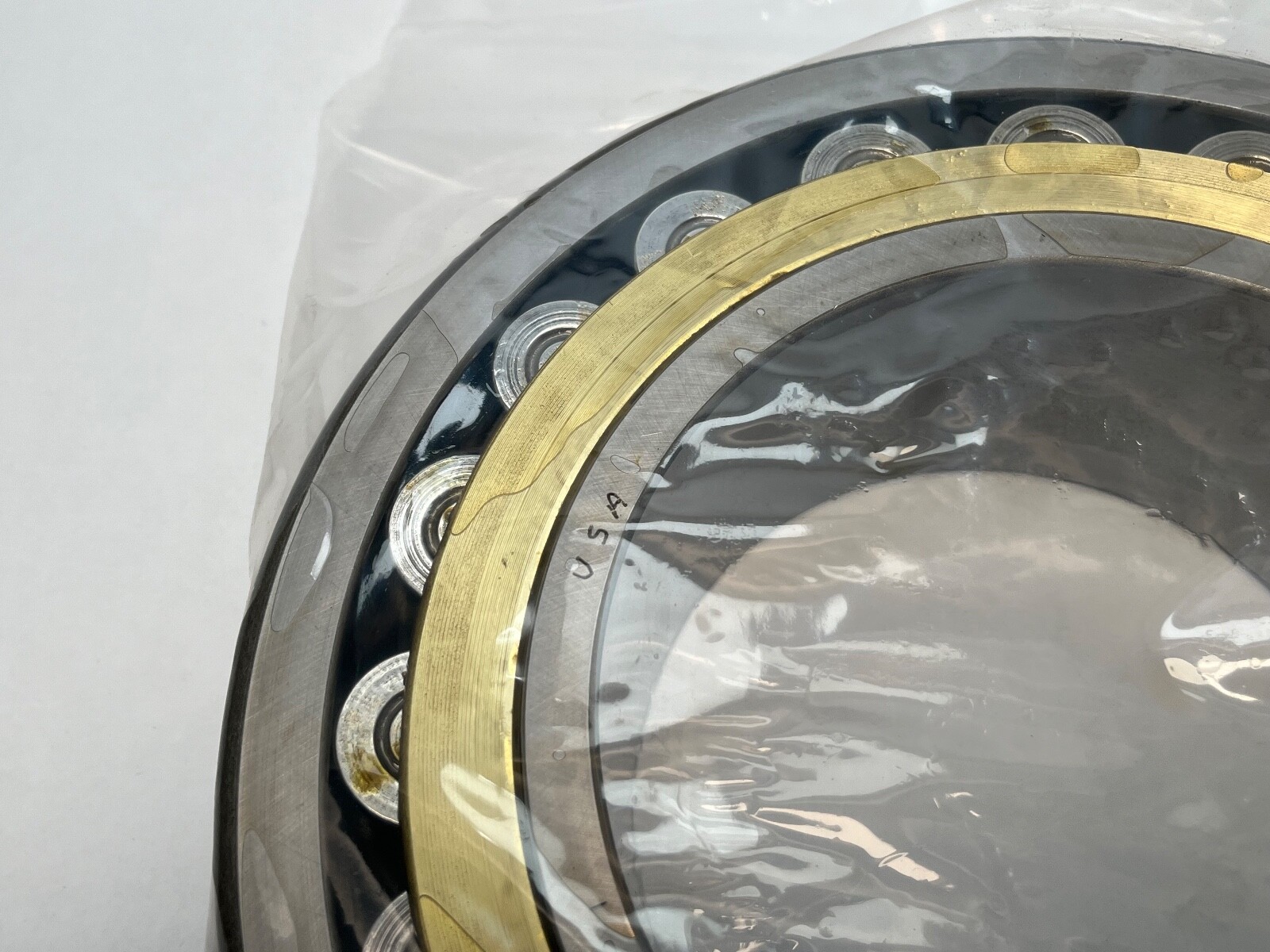

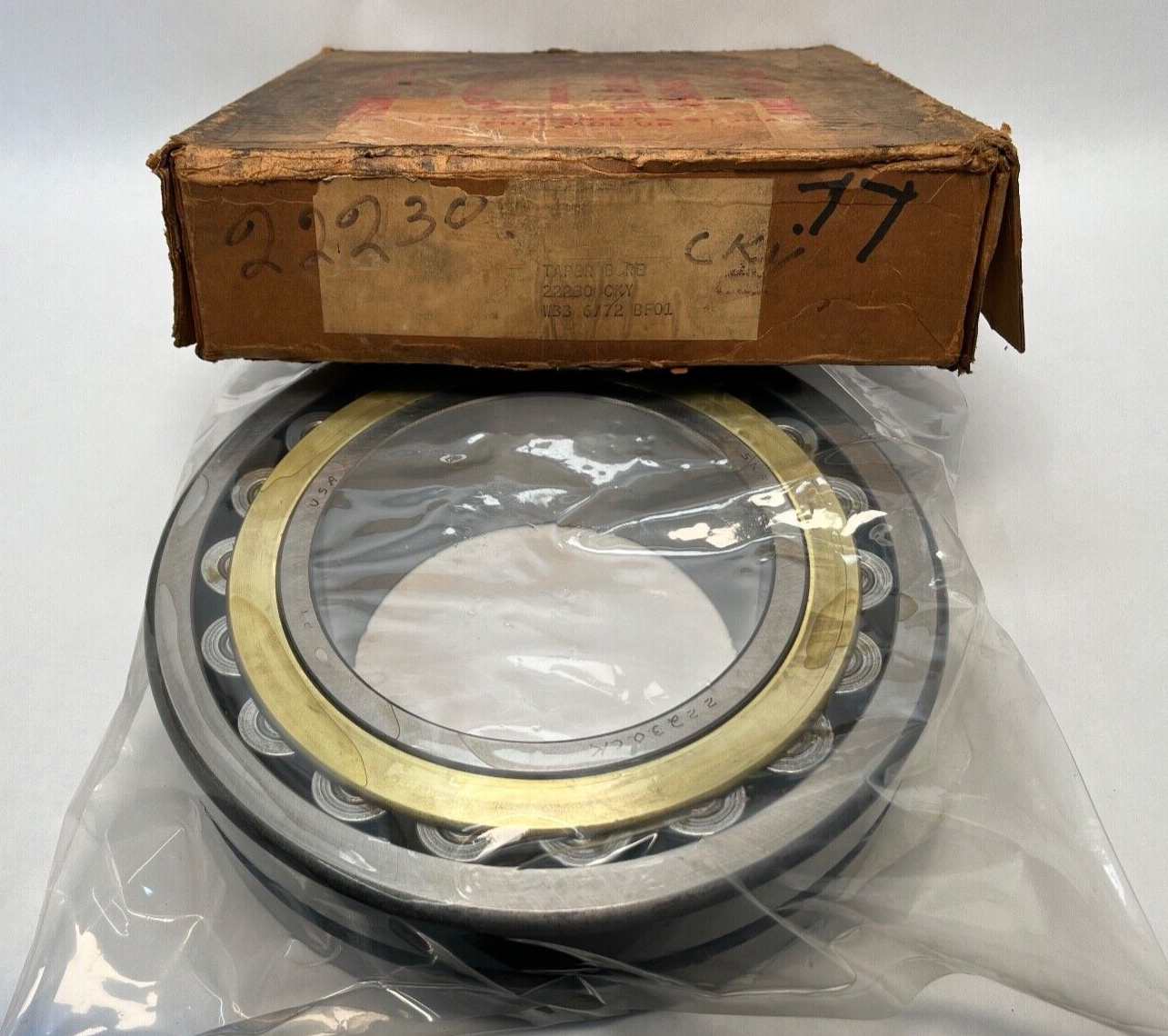

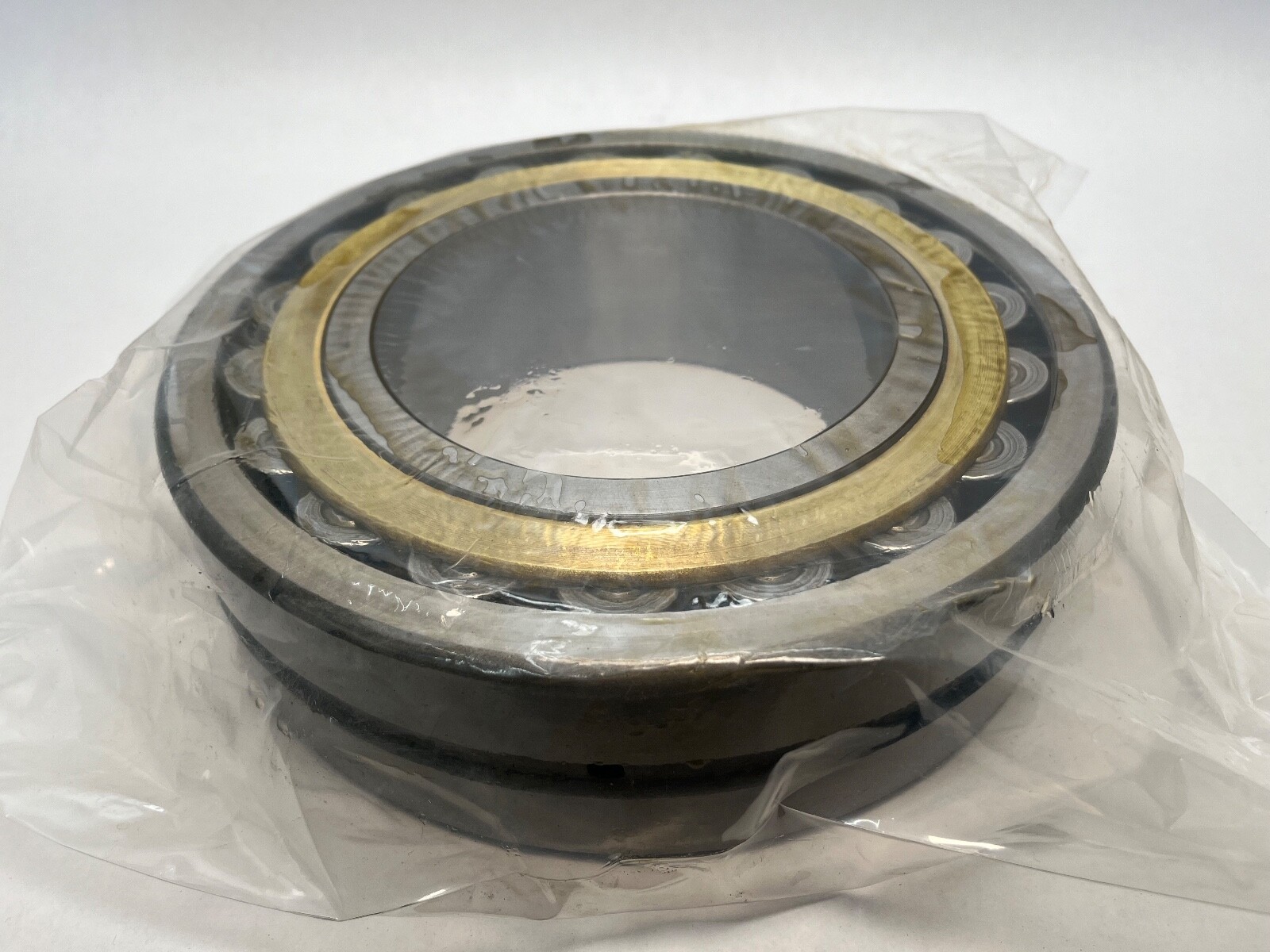

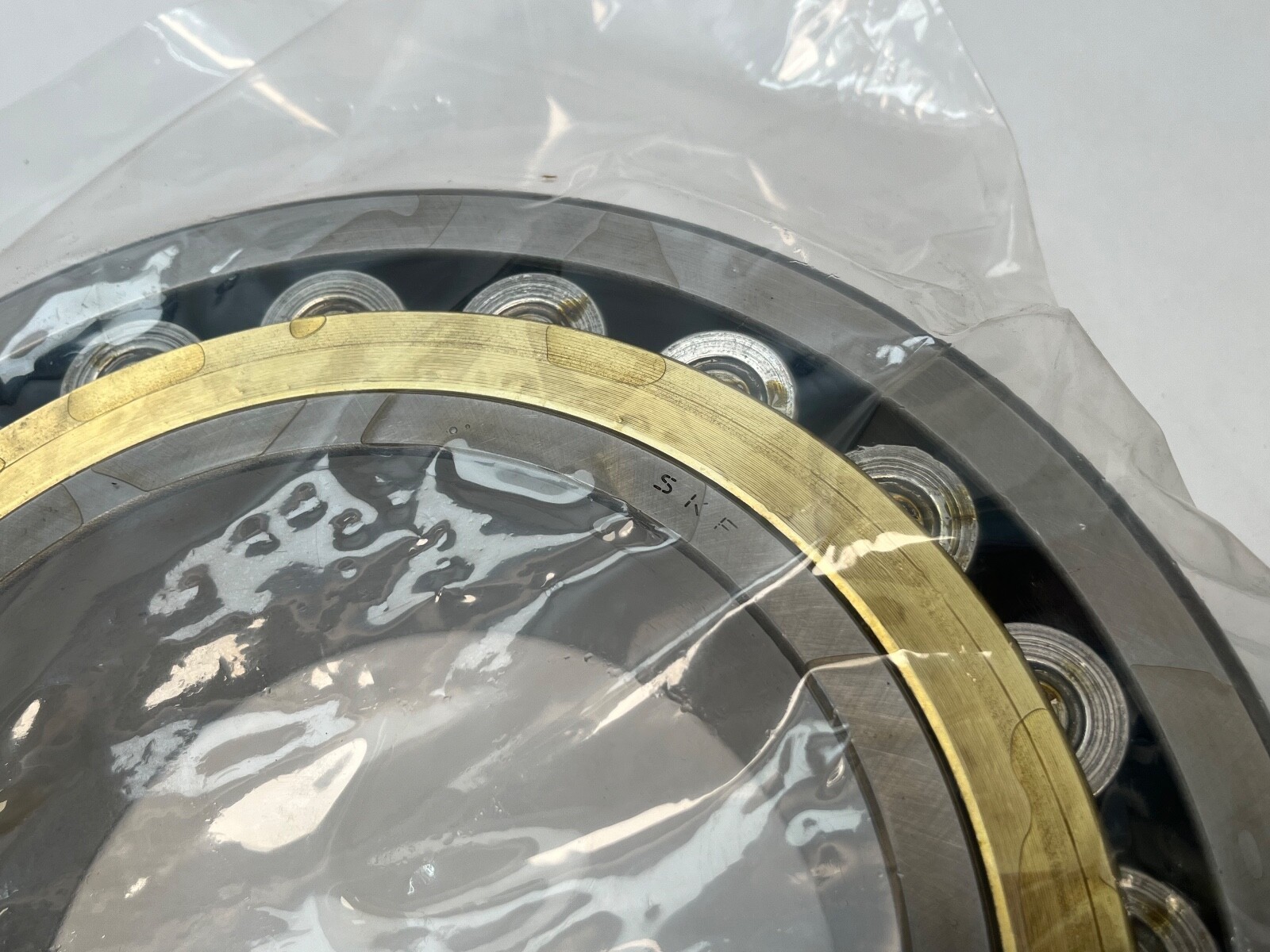

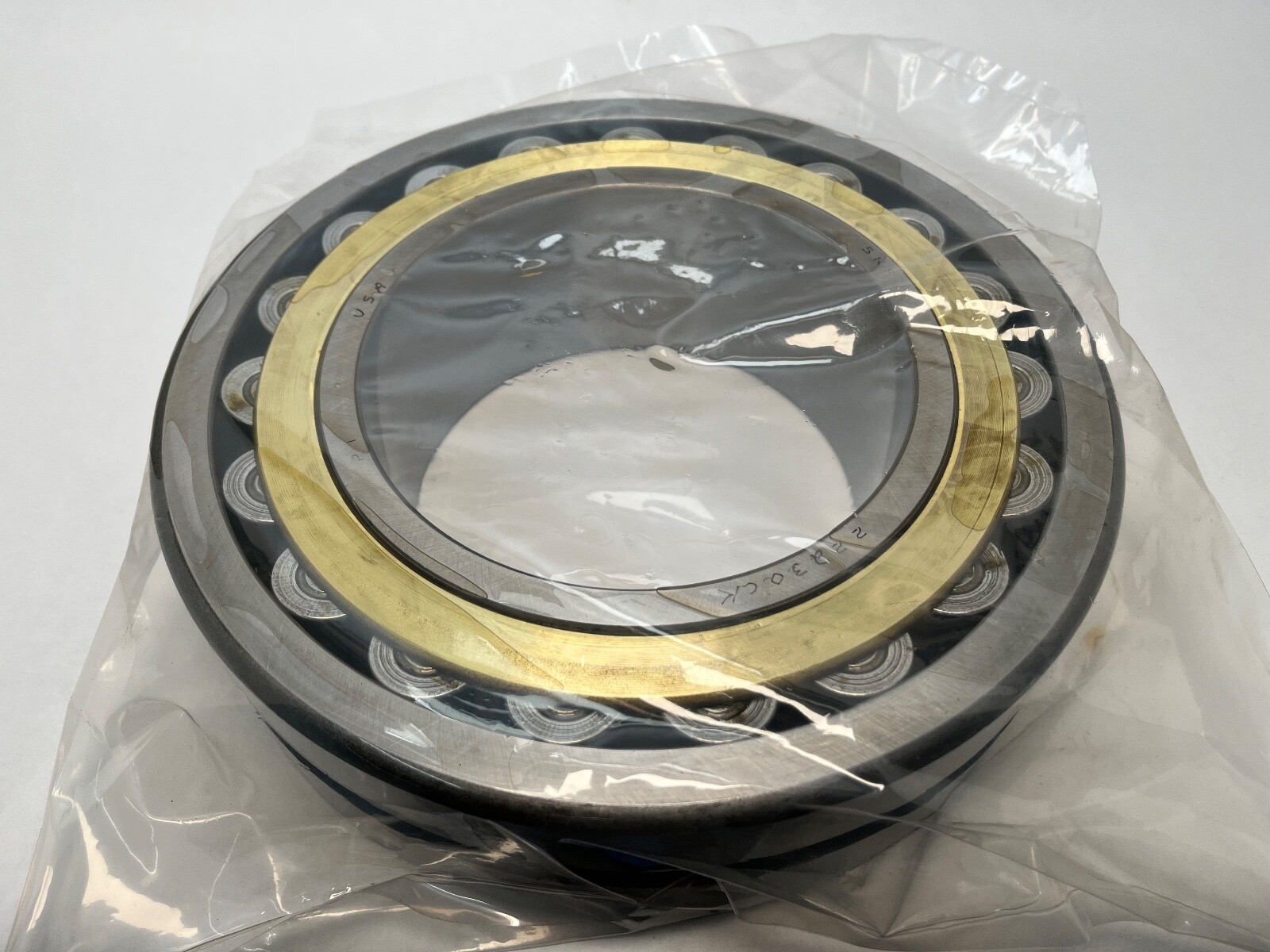

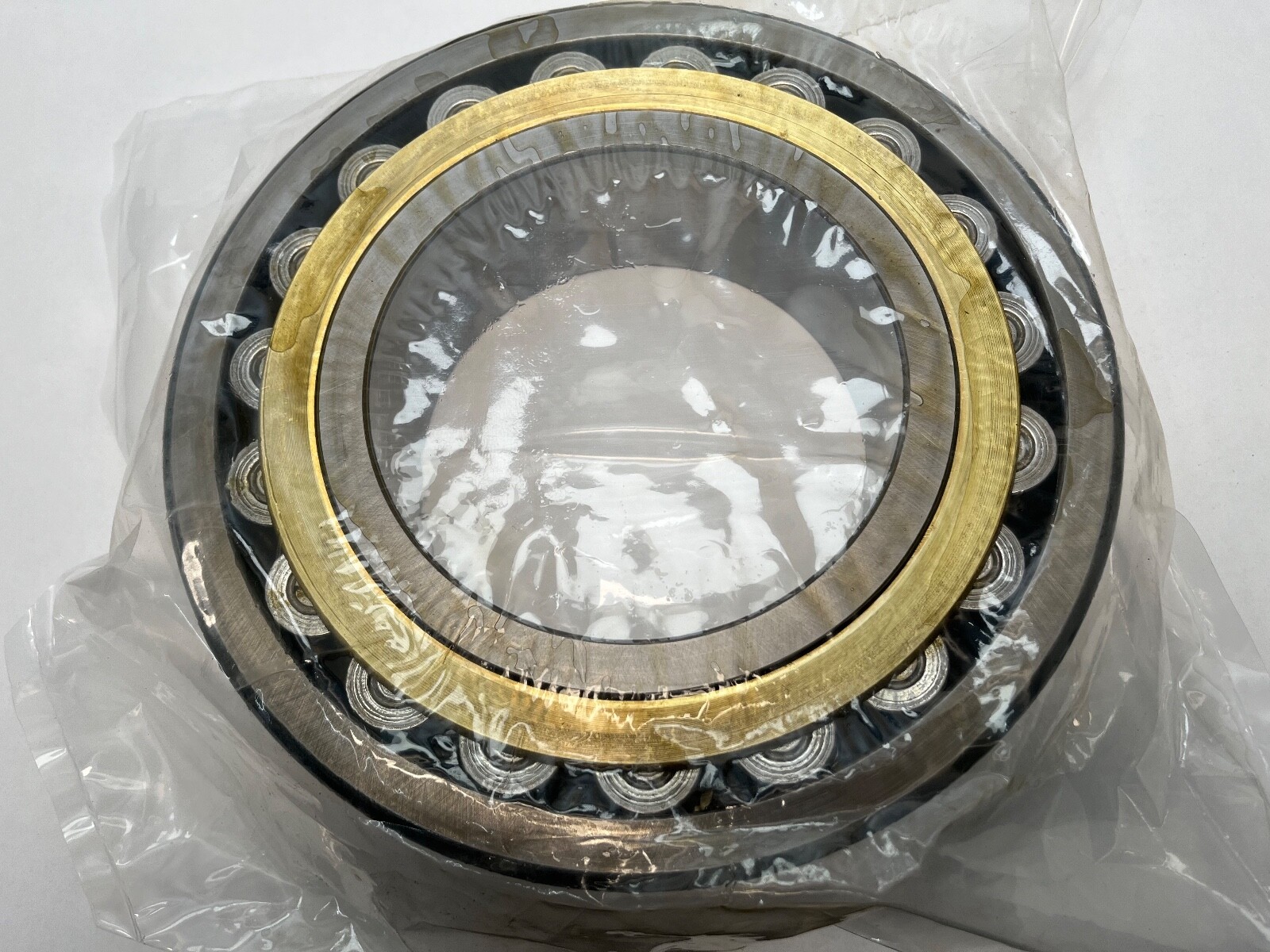

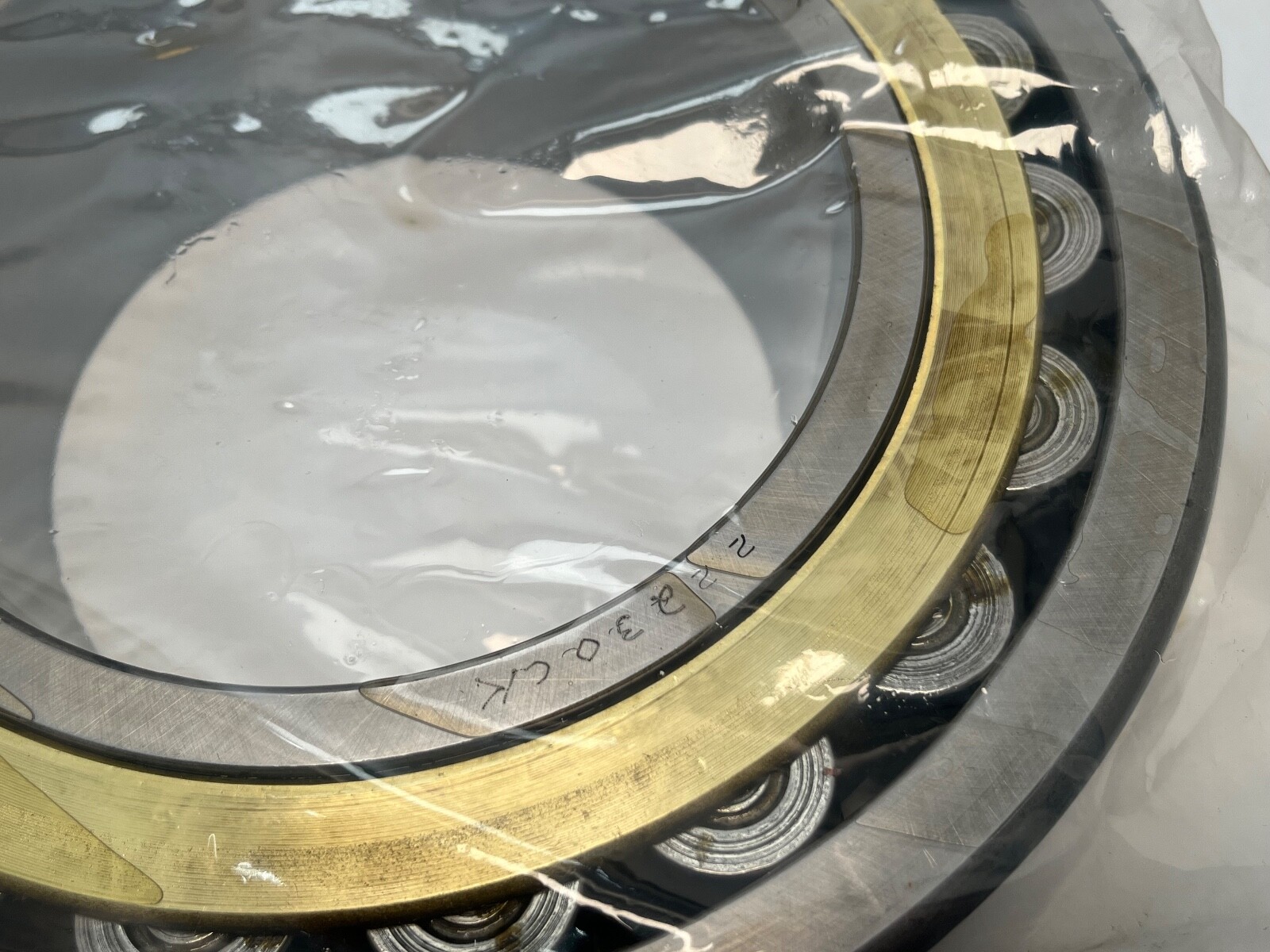

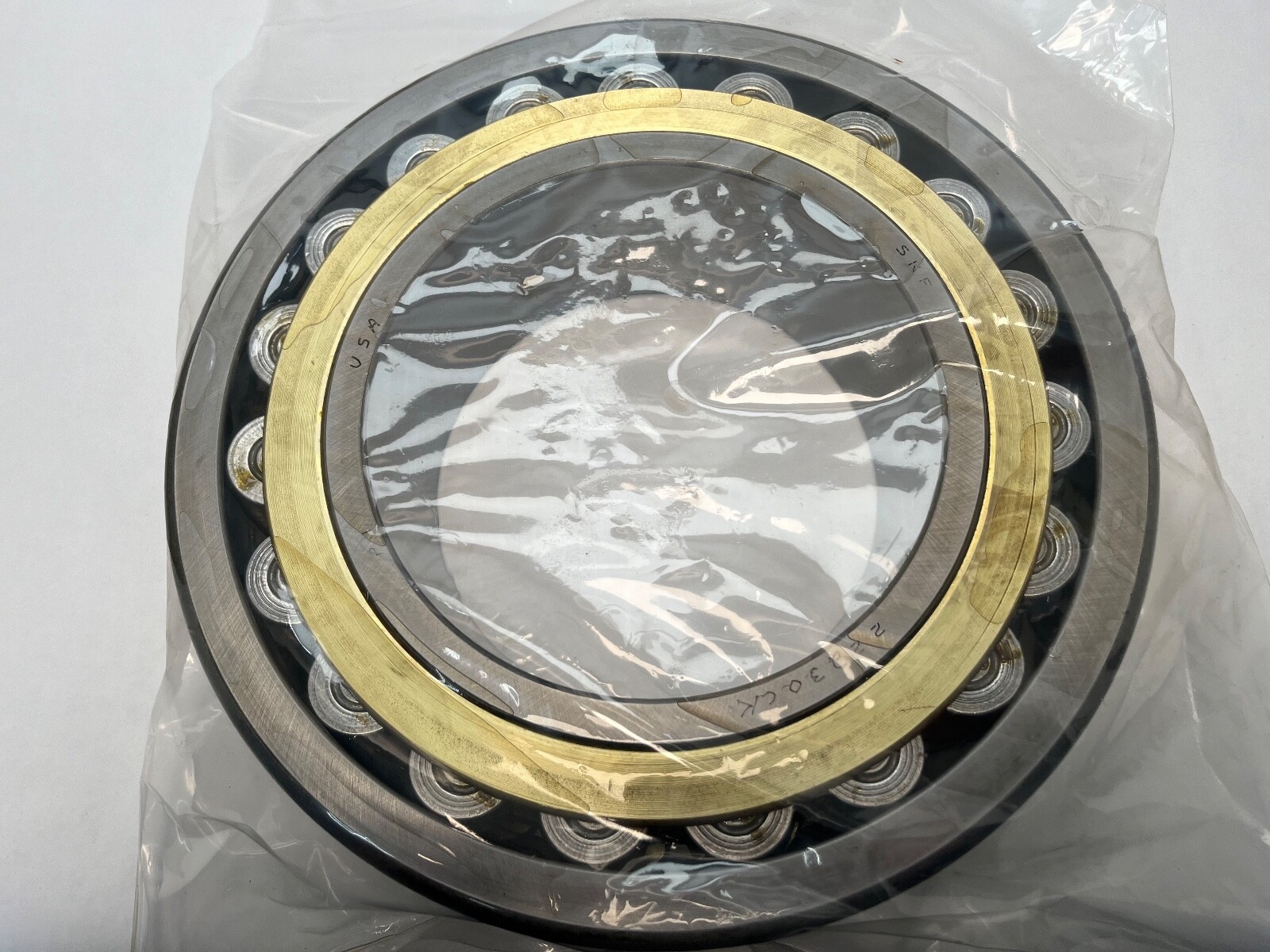

The SKF 22230-CKY-W33 Spherical Bearing is a high-quality industrial component designed for mechanical power transmission and industrial automation. With a bore diameter of 150mm, an outside diameter of 270mm, and a width of 73mm, this bearing is made of durable steel material. The spherical roller bearing model 22230 C K Y W33/22230 CC/C K J W33 from SKF is a reliable choice for various industrial applications, ensuring smooth and efficient operation. Made in the USA, this bearing meets the highest standards of quality and performance.
