Spherical roller bearing, 130 mm straight bore x 230 mm OD x 64 mm wide, E design, machined brass M cage, S lube groove and holes, C3 clearance.
List Price
$281.46
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Spherical Roller Bearing — 130 mm ID, 230 mm OD, 64 mm Width, Straight Bore, W33 Lube Groove, C3 Clearance$244.51
Spherical Roller Bearing - 130 mm Tapered Bore, 230 mm OD, 64 mm Width, Polyamide Cage, Lube Groove$351.88
Spherical Roller Bearing — 130 mm ID, 230 mm OD, 64 mm Width, Straight Bore, Brass Cage, W33 Lube Groove$244.51
Spherical Roller Bearing - Straight Bore, 130 mm ID, 230 mm OD, 64 mm Width, Open, Pressed Steel Cage, C3 Internal Clearance, W33 Lubrication Groove.$250.30| MFR / Brand | FAG |
|---|---|
| MPN | 22226EAS.M.C3 |
| Model | 22226 E AS M C3 W33 / 22226 MB 22226BR 22226 M |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 130 mm |
| OD | 230 mm |
| Width | 64 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Lubricant | grease or oil |
| Bore | Straight Bore |
| Mpn Variants | 22226EAS.M.C3, 22226-EAS-M-C3, 22226-EAS-M-C3-W33, 22226EASMC3W33, 22226E MB |
| Rolling Elements | Spherical Roller |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Relubrication Feature | Lubrication groove and three holes (S / W33) |
| Harmonization Code | 8482.30.00 |
| Cross Reference 1 | SKF 22226 CC/C3W33 |
|---|---|
| Cross Reference 2 | NSK 22226CAME4C3 |
| Cross Reference 3 | Timken 22226EMW33C3 |
| Cross Reference 4 | NTN 22226BD1C3 |
| Cross Reference 5 | FAG 22226-E1-XL-C3 - current FAG design |

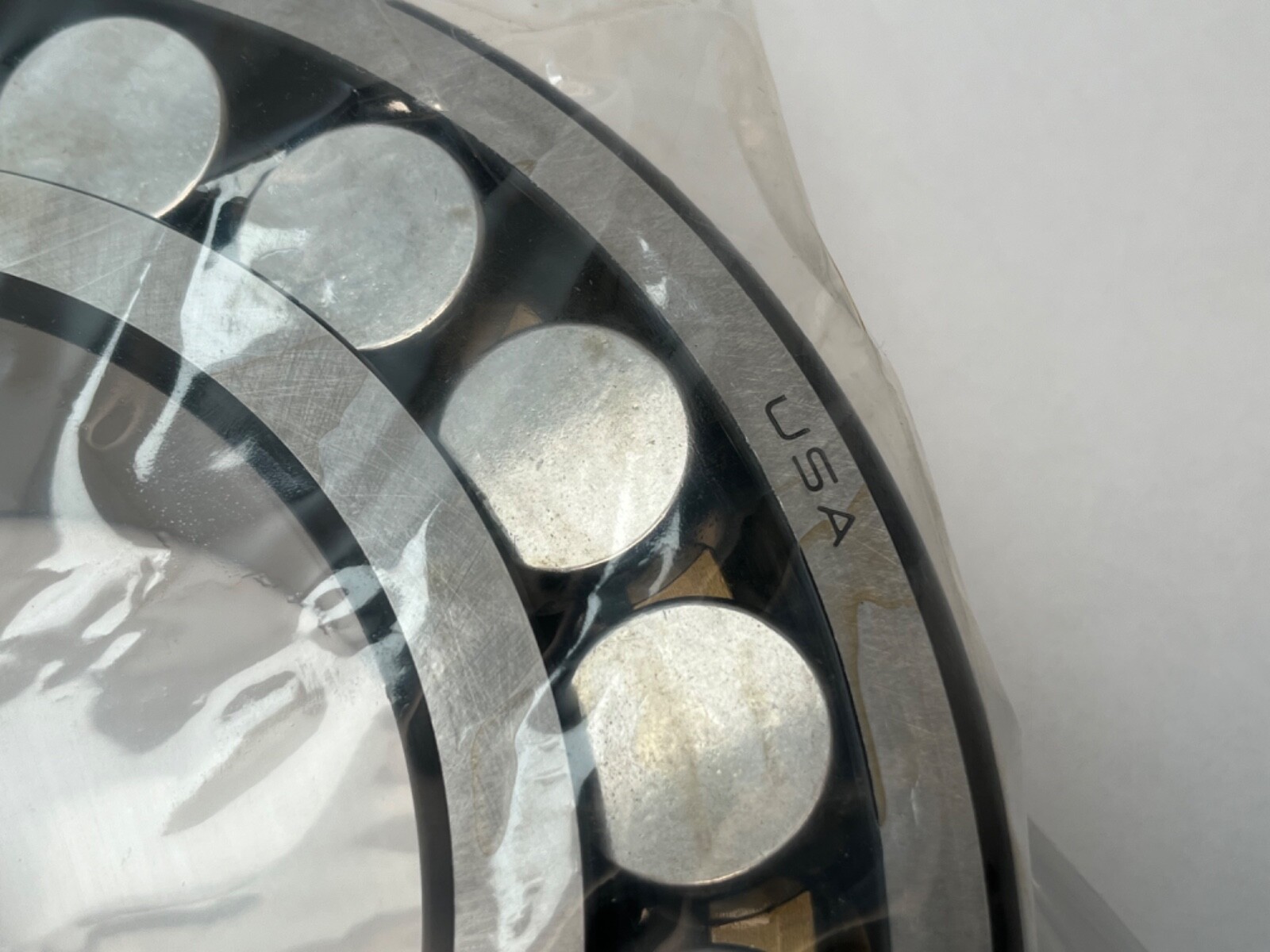

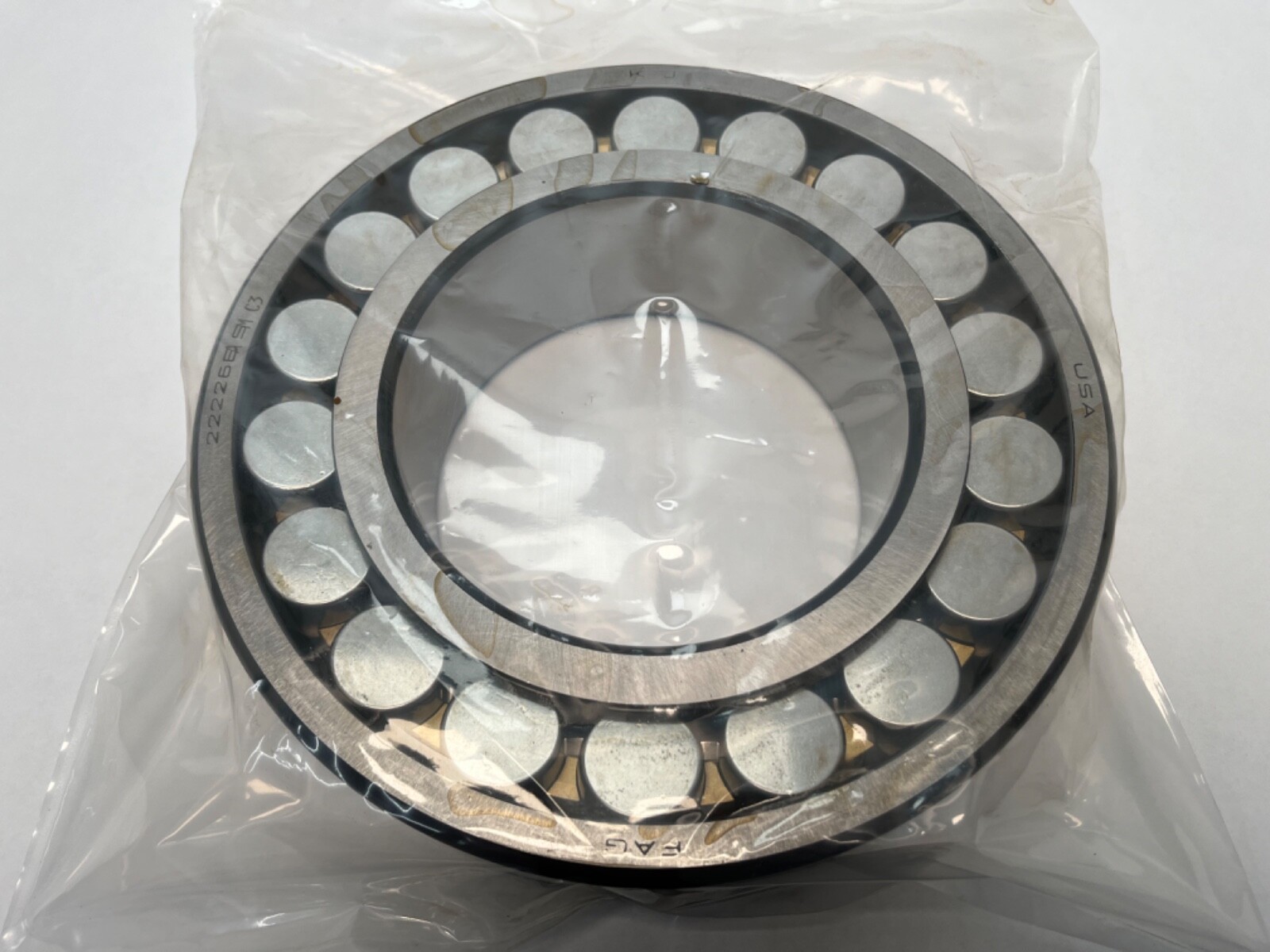

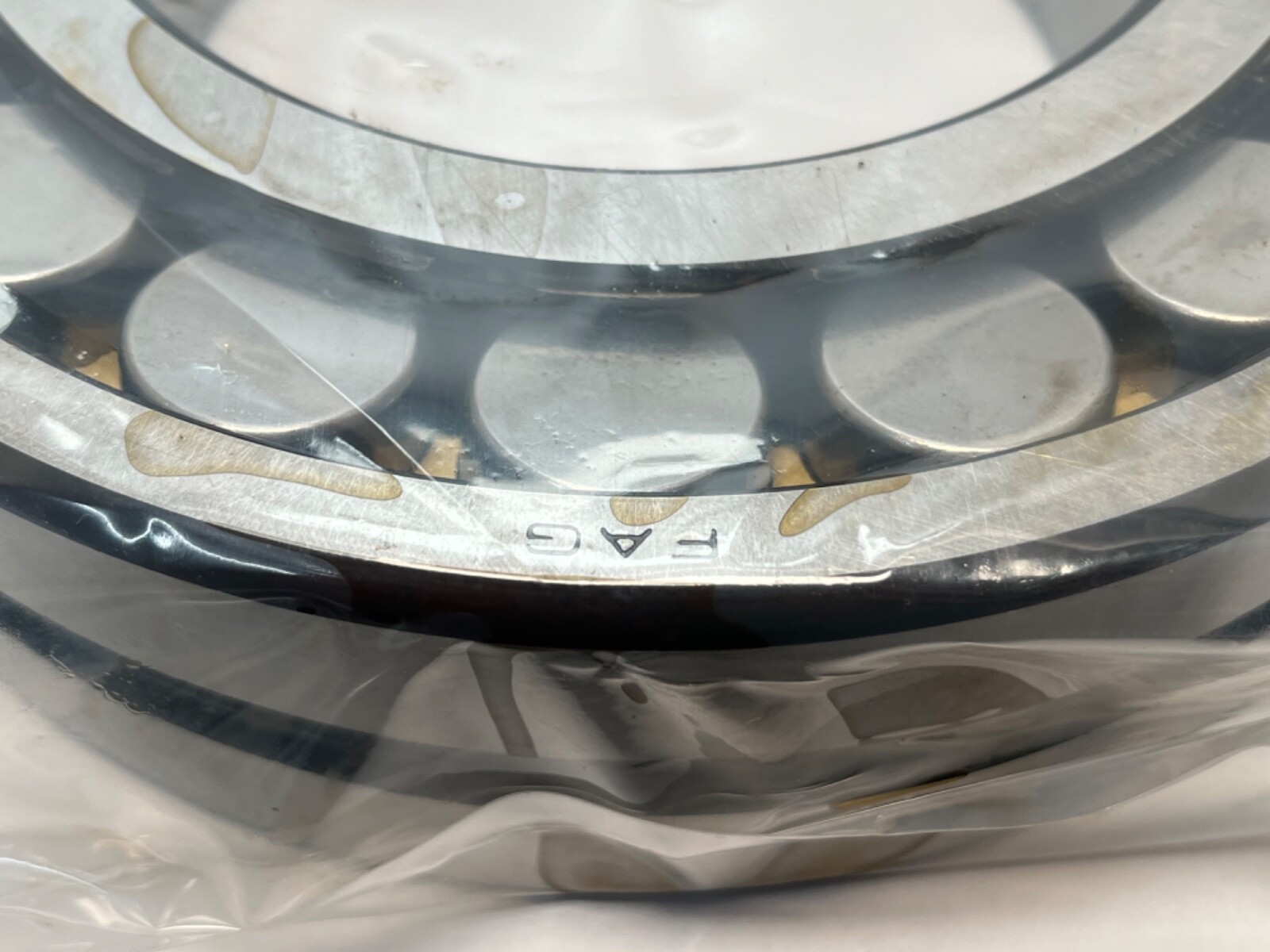

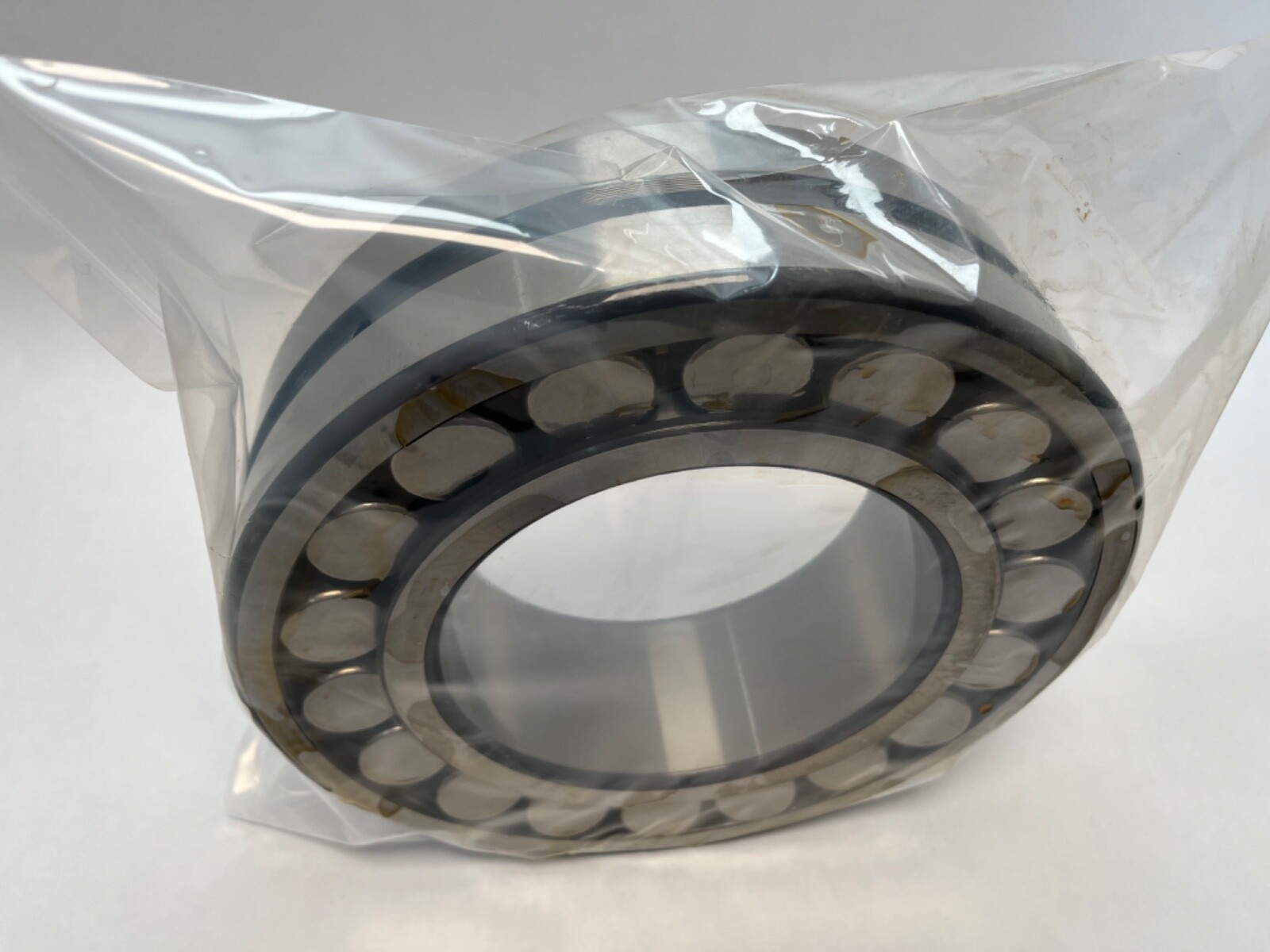

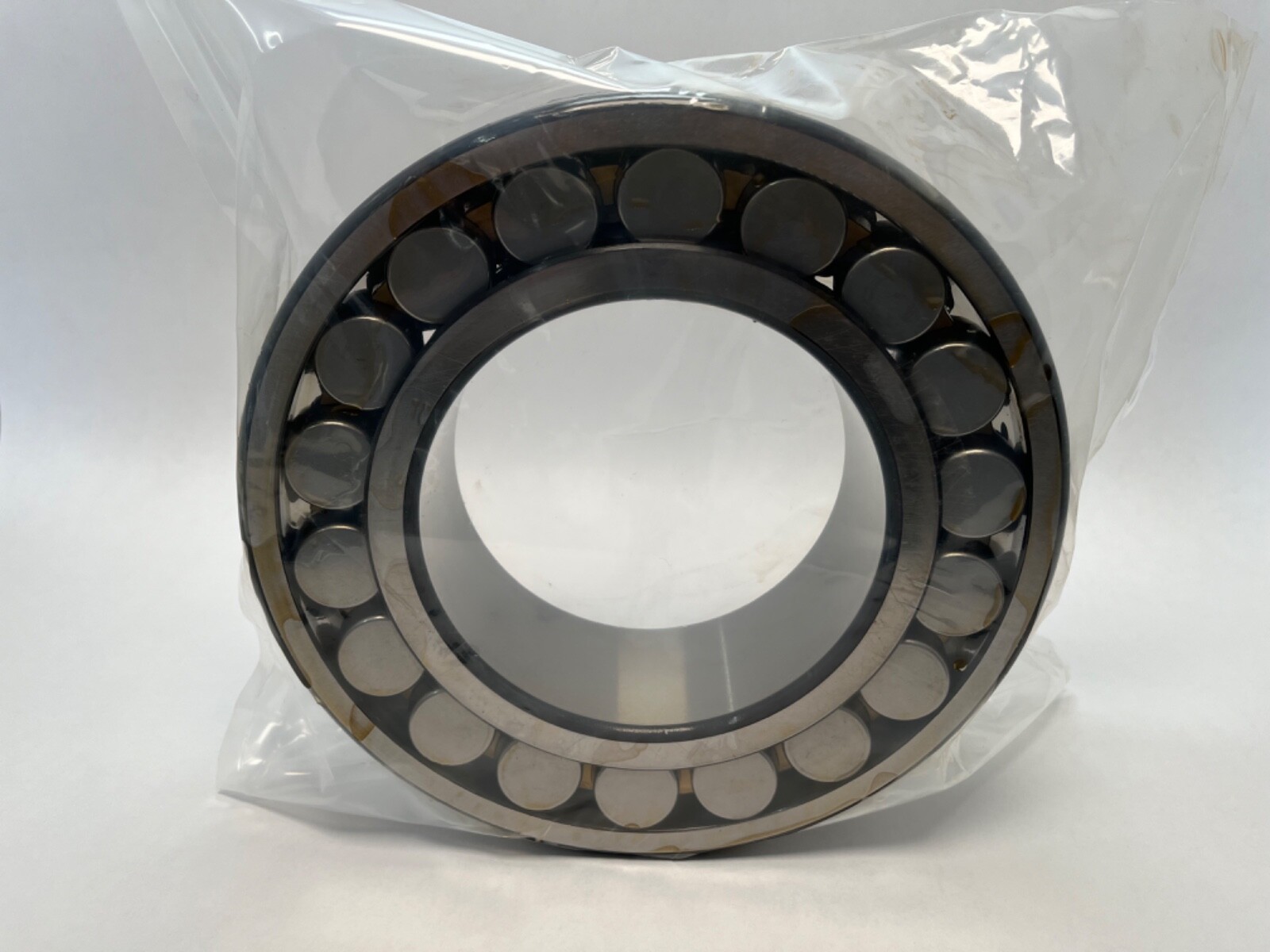

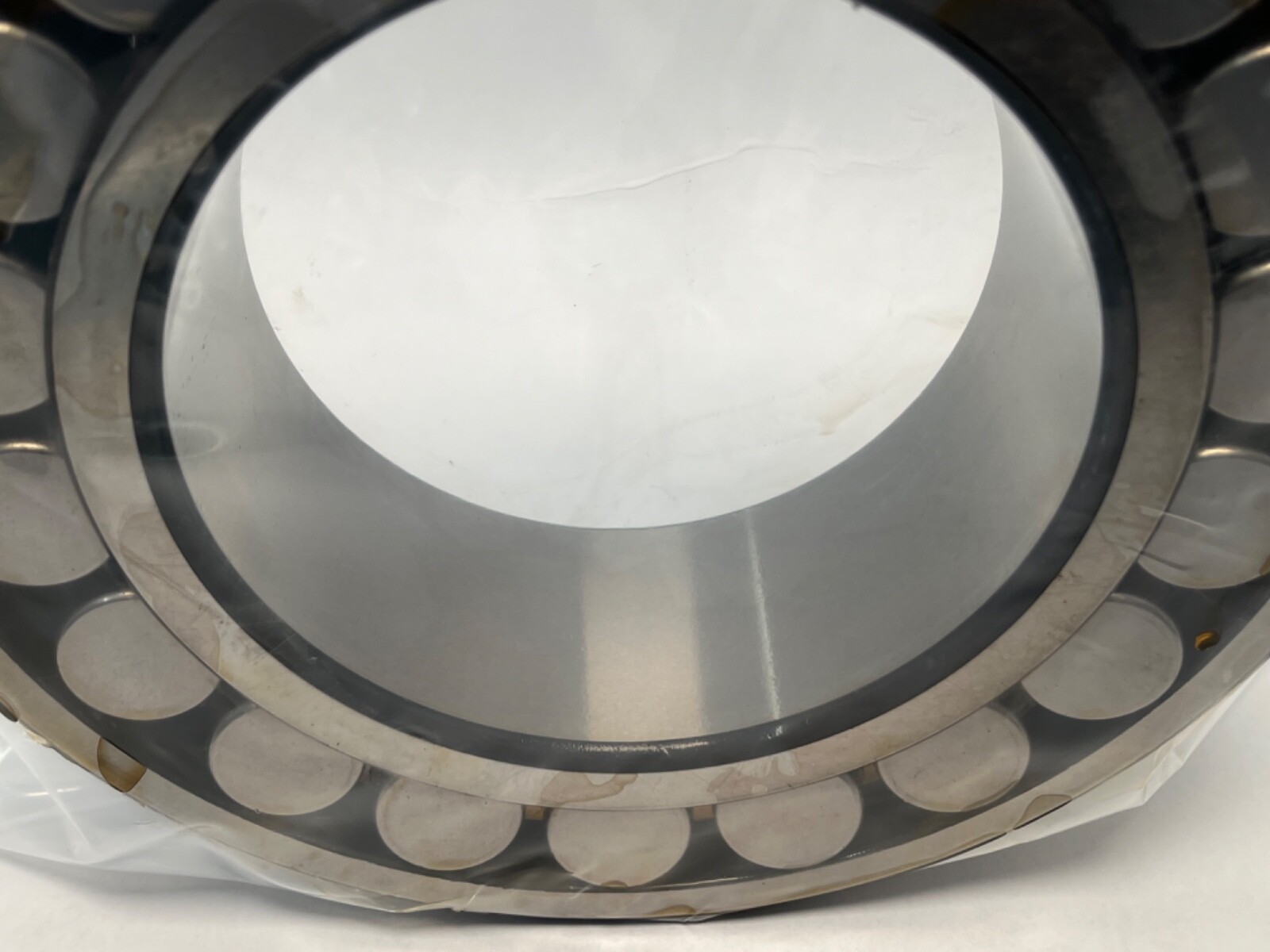

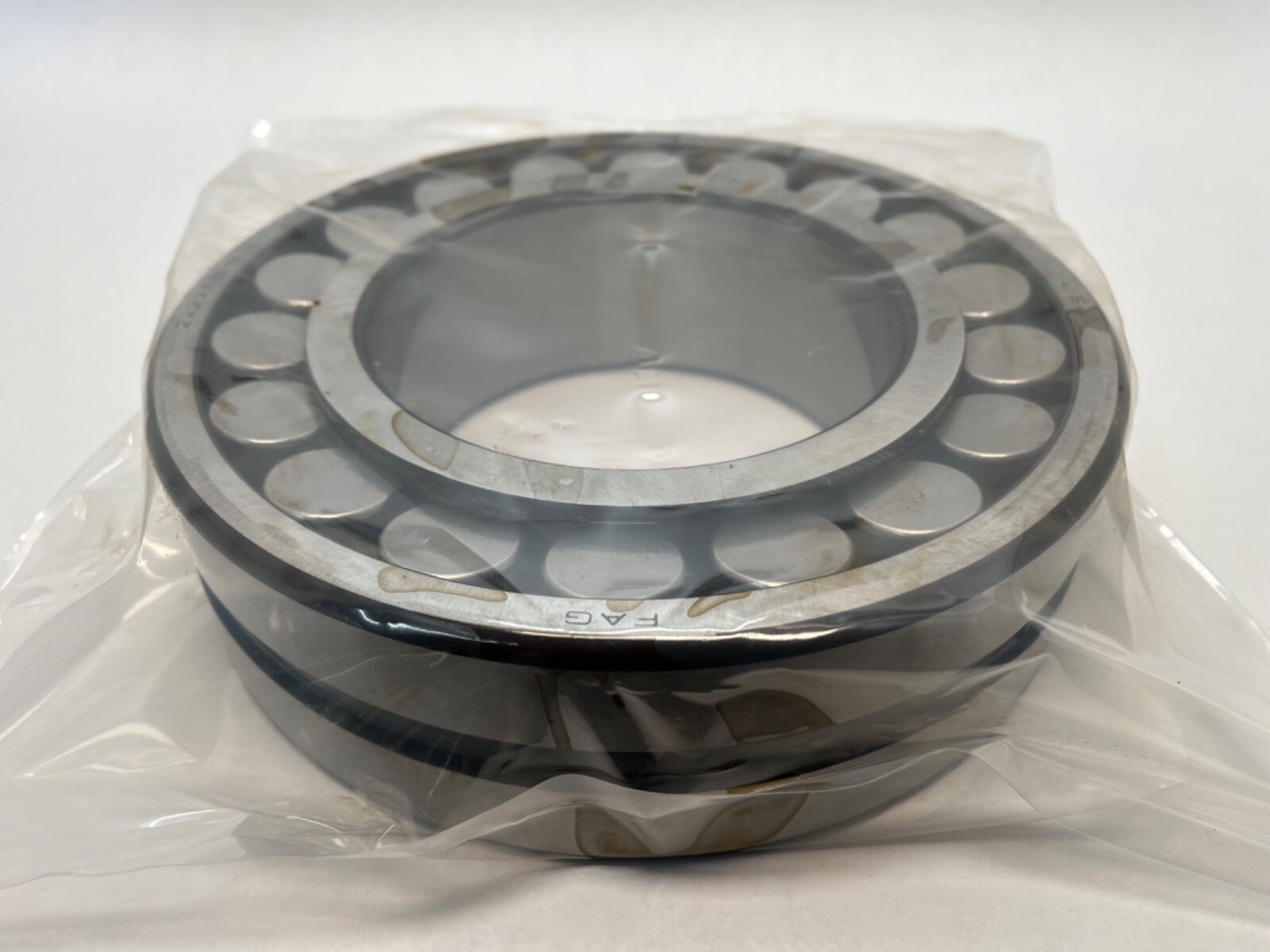

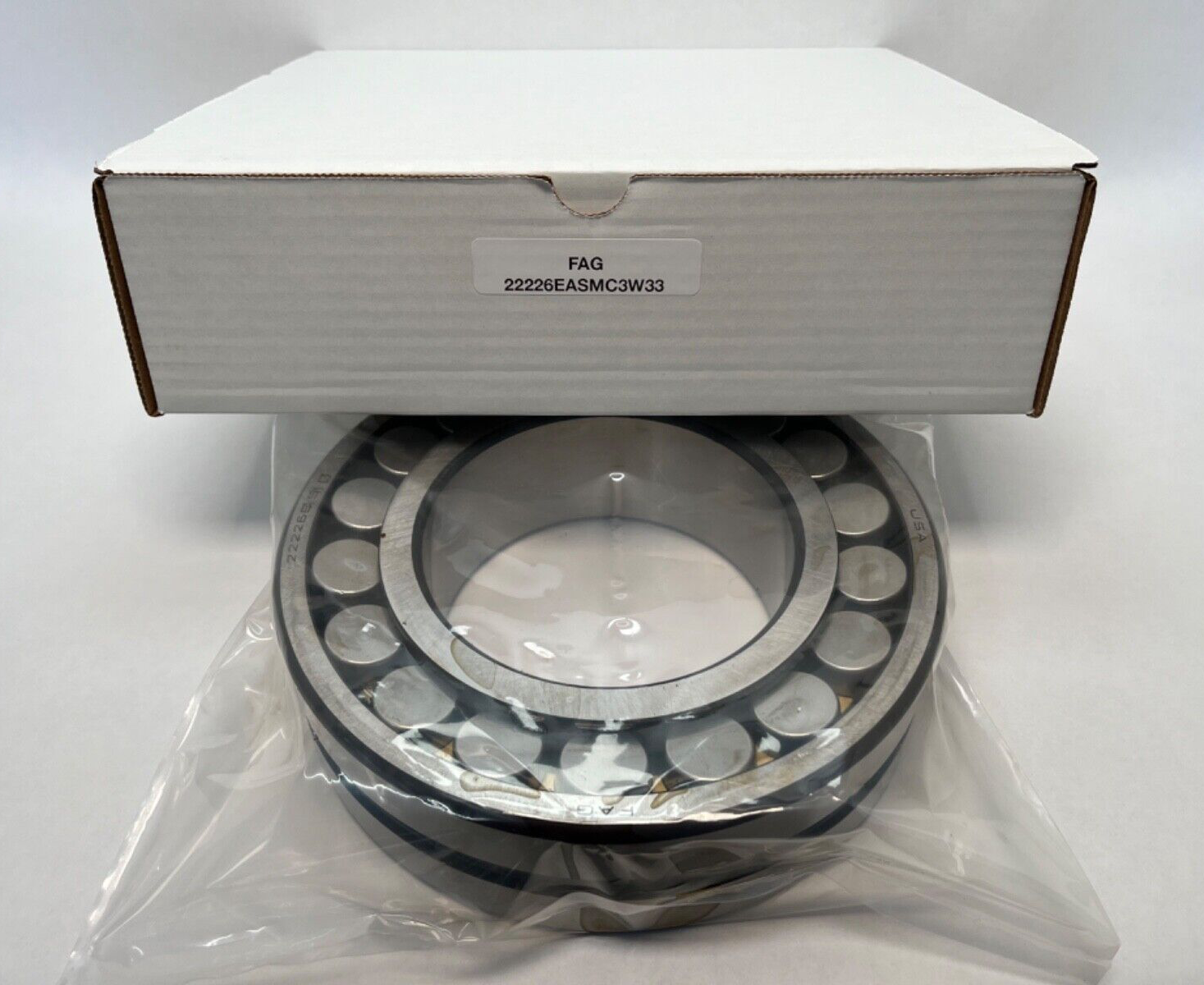

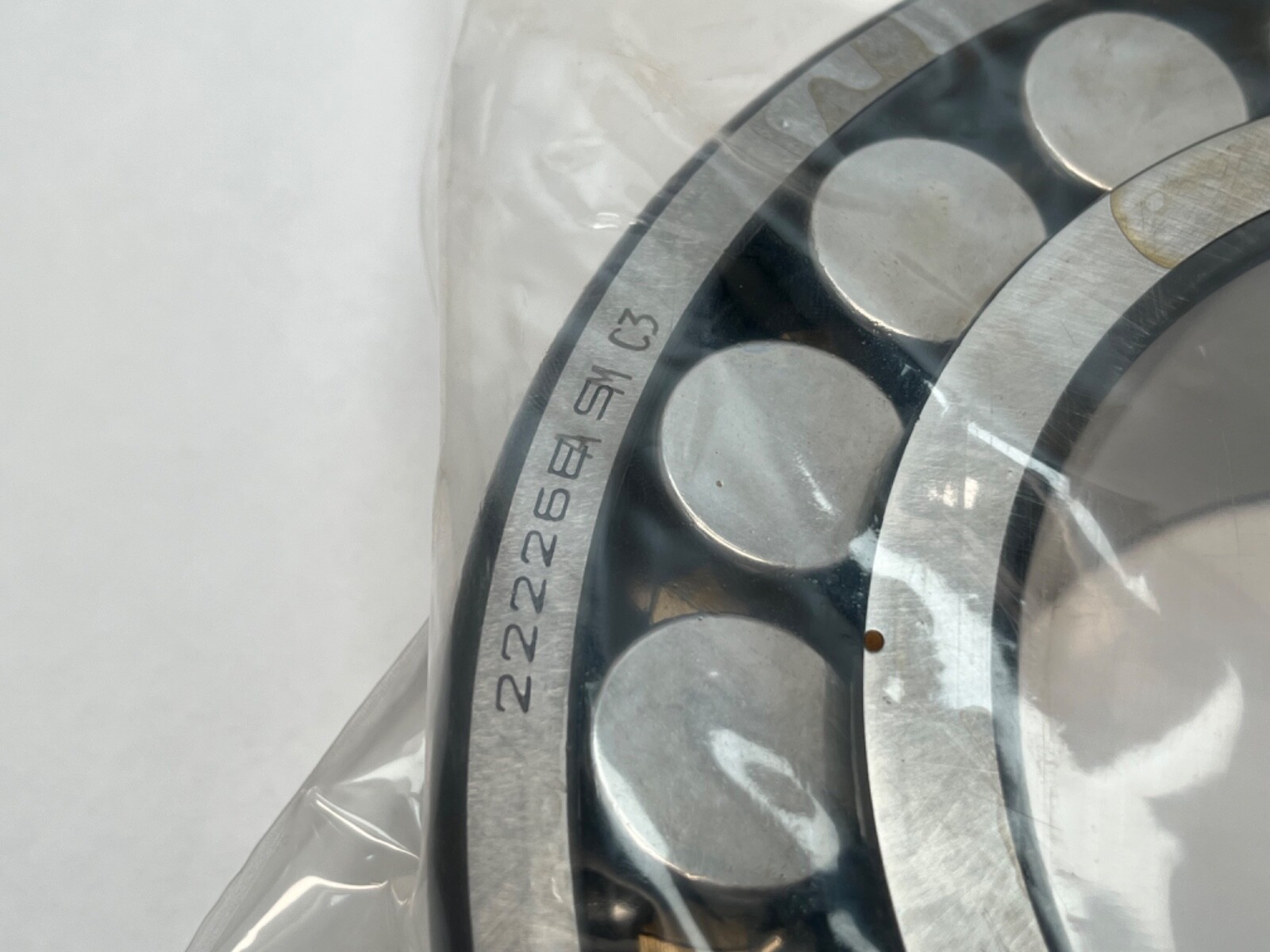

FAG 22226EAS.M.C3 double-row spherical roller bearing with a straight bore, outer-ring lubrication groove, machined brass cage and C3 clearance. Bore Diameter: 130 mm. Outside Diameter: 230 mm. Width: 64 mm. Rolling Elements: Spherical Roller. Number Of Rows: 2.
222 — FAG 222 series spherical roller bearing, 22 dimension series.
26 — bore code, 26 x 5 = 130 mm bore.
E — FAG reinforced E internal design.
S — lubrication groove and three radial lubrication holes in the outer ring, the FAG equivalent of W33.
M — machined brass cage.
C3 — radial internal clearance larger than normal.
Bore Type: Straight. Cage Material: Machined brass. Internal Clearance: C3. Lubricant: grease or oil. Seal Type: Open. The brass cage tolerates high temperature, vibration and shock load. C3 clearance allows for interference fits and a warmer inner ring.
Unit Quantity: 1 Pc. Single bearing, open, straight bore.
Same 130 x 230 x 64 mm straight-bore envelope with lubrication groove and C3 clearance: SKF 22226 CC/C3W33, NSK 22226CAME4C3, Timken 22226EMW33C3, NTN 22226BD1C3. The current FAG execution is 22226-E1-XL-C3.
