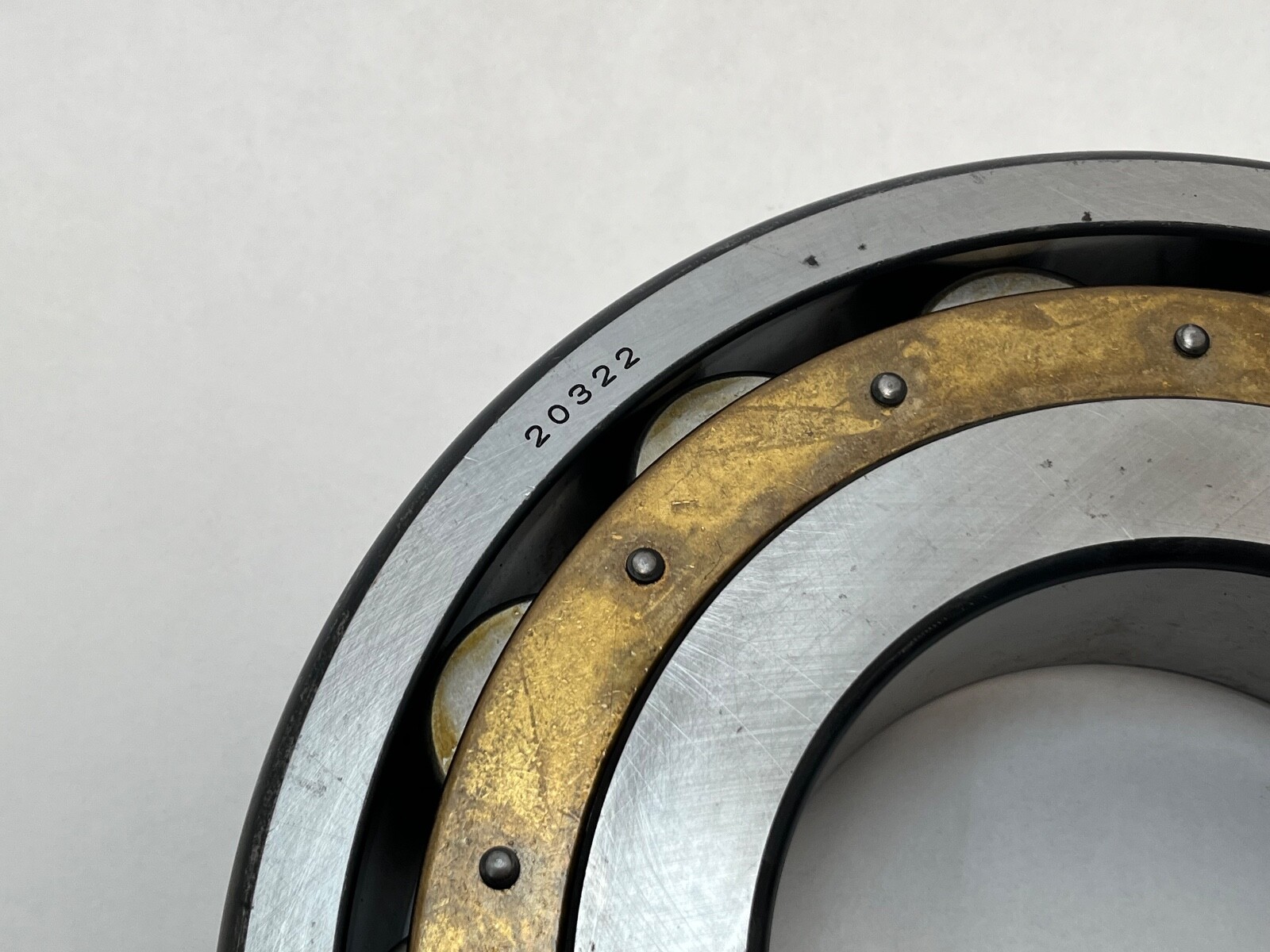

FAG20322KMBSingle Row Barrel Roller Bearing 110 x 240 x 50 mm 1:12 Tapered Bore Machined Brass Cage

Product Description

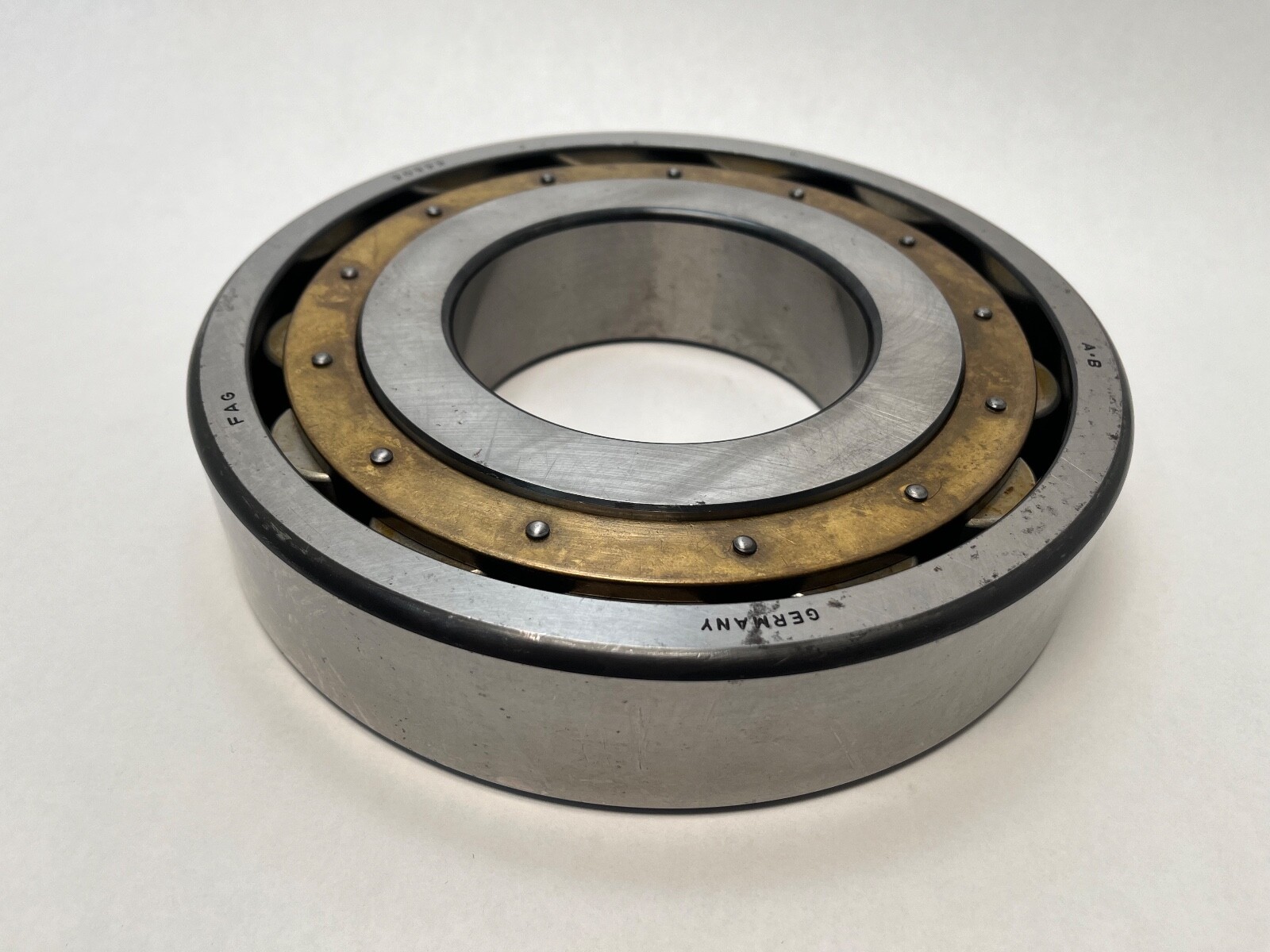

What this part is

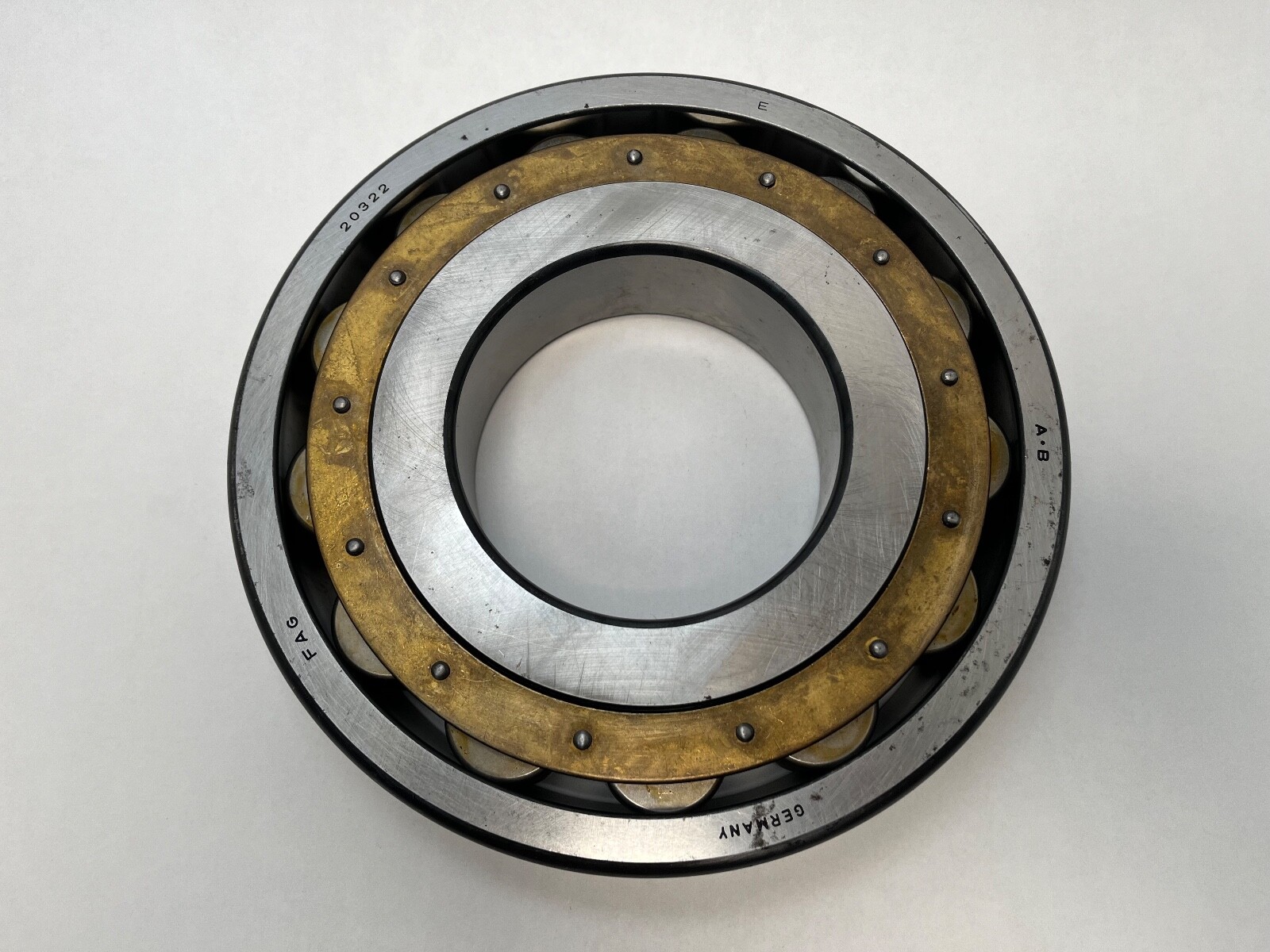

A single-row barrel roller bearing, 110 mm bore × 240 mm outside diameter × 50 mm width, with a 1:12 tapered bore and a machined brass cage.

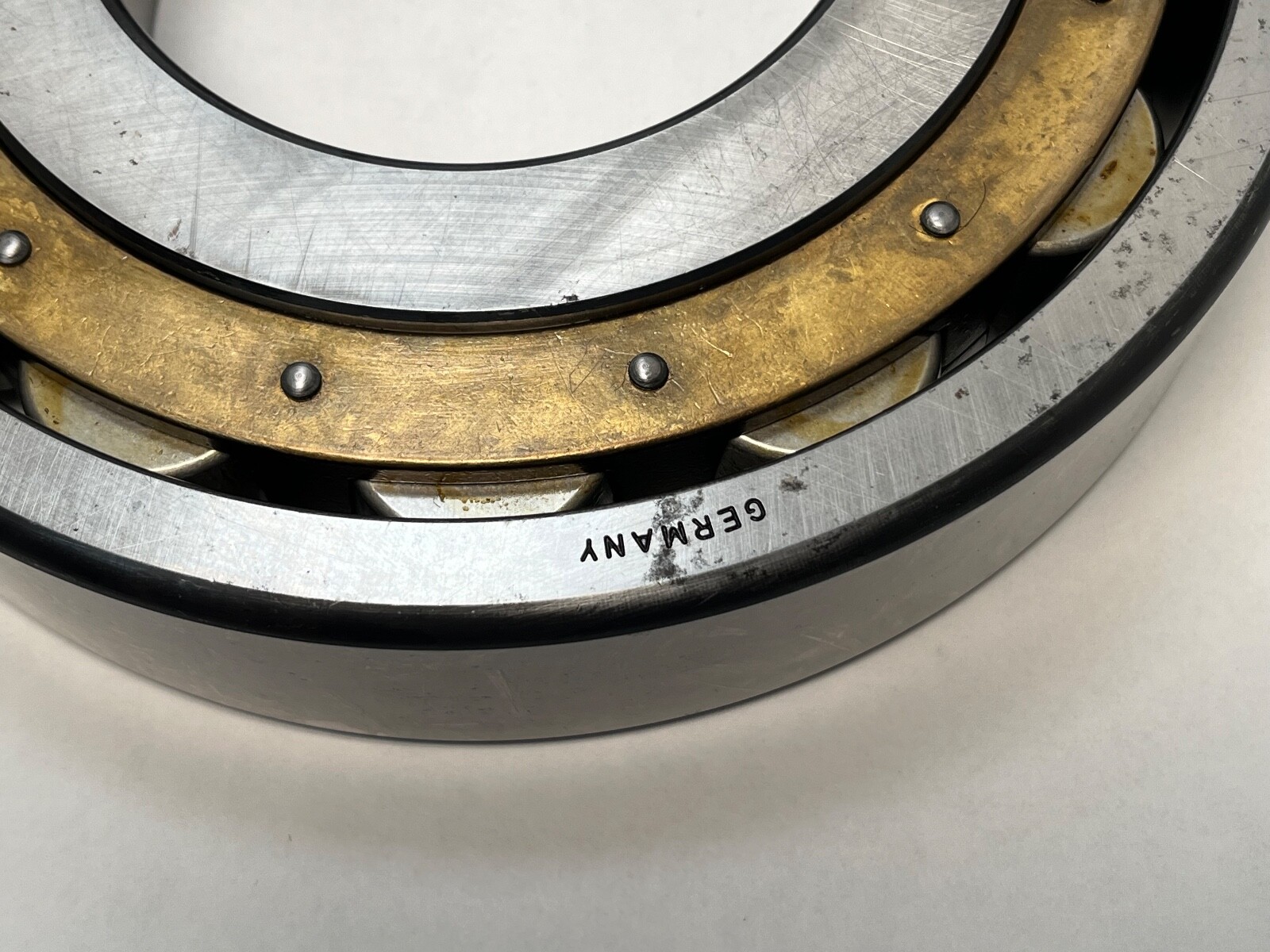

Decoding the designation

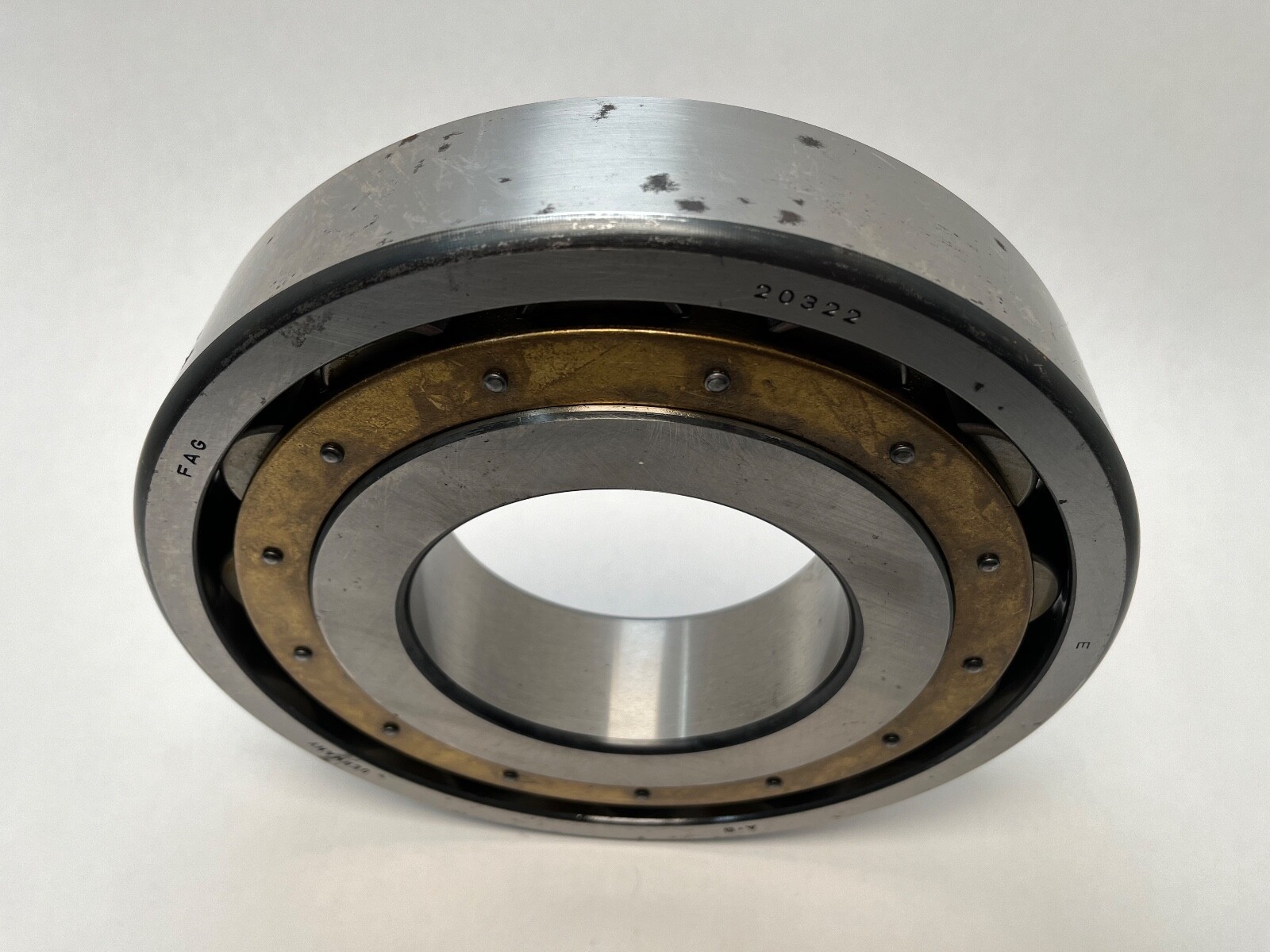

203 — single-row barrel roller bearing, 20300 dimension series.
22 — bore code, giving a 110 mm bore.

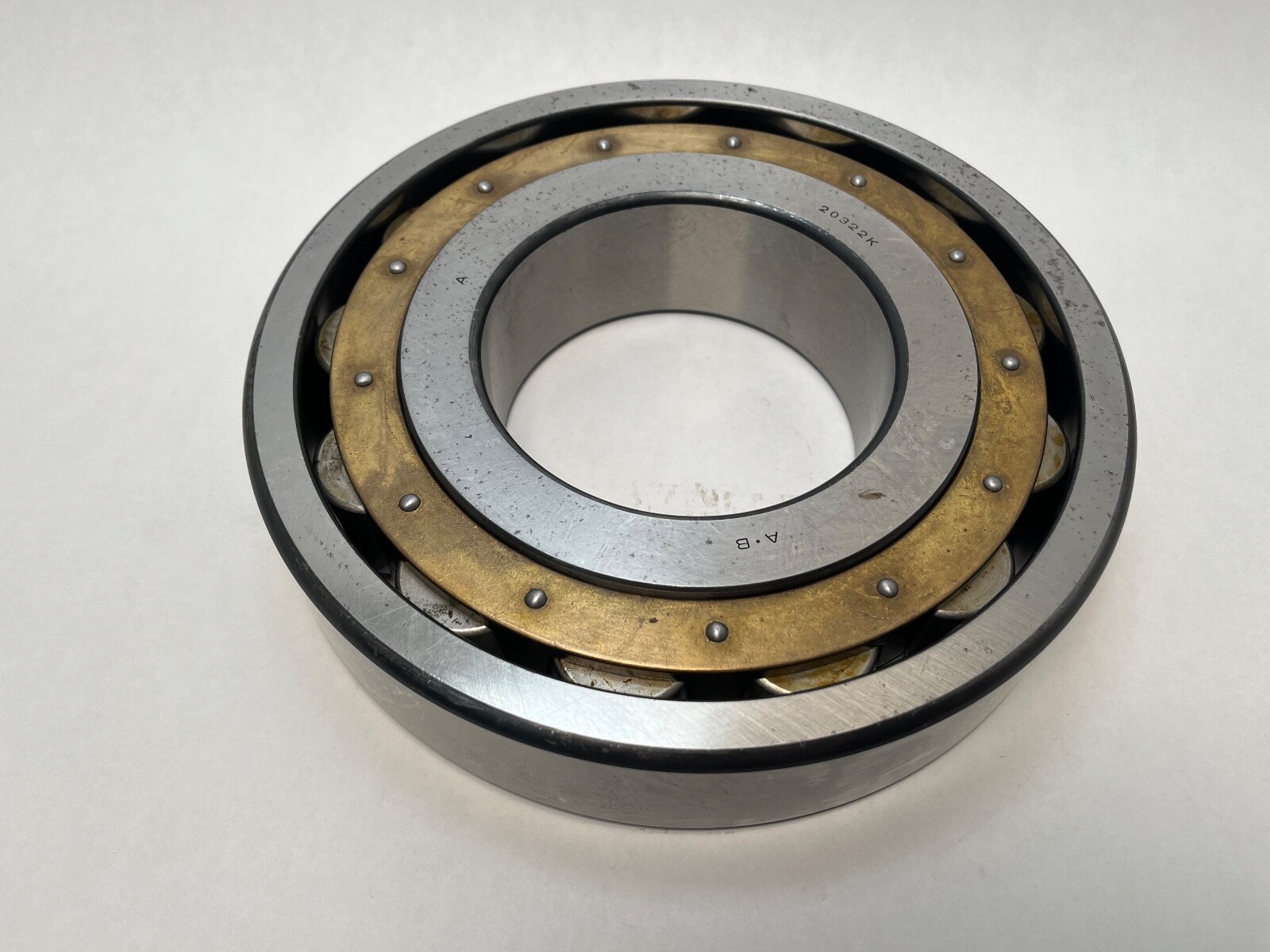

K — 1:12 tapered bore.
MB — machined brass cage.

What these specs mean in practice

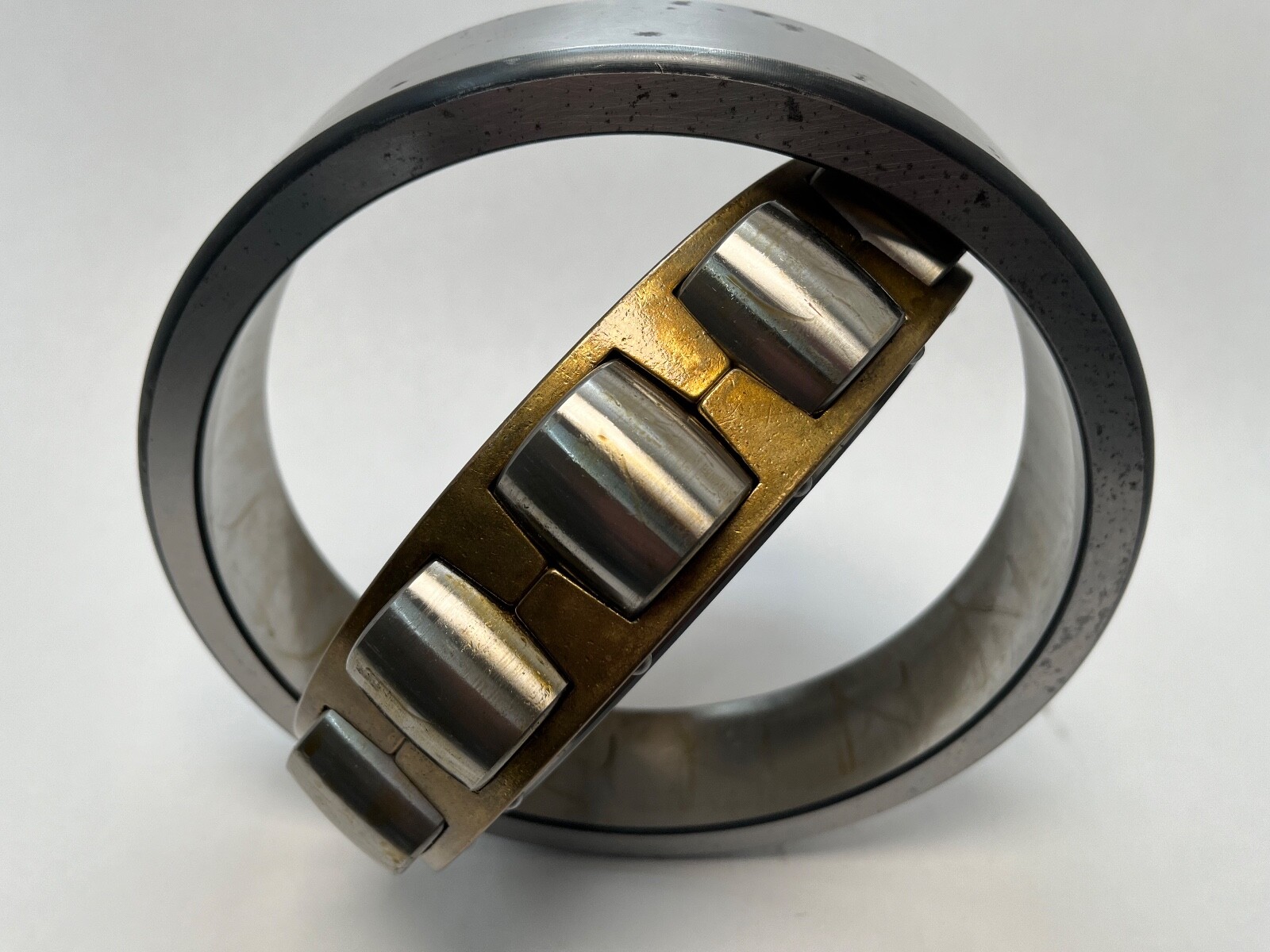

A barrel roller runs one row of convex rollers against a concave outer raceway, which makes the bearing self-aligning and tolerant of shaft deflection and housing misalignment. That single-row geometry carries radial load only and has no axial capacity, so the shaft is located axially elsewhere in the arrangement. A double-row spherical roller in a comparable envelope does take thrust in both directions, which is the practical difference between the two types.

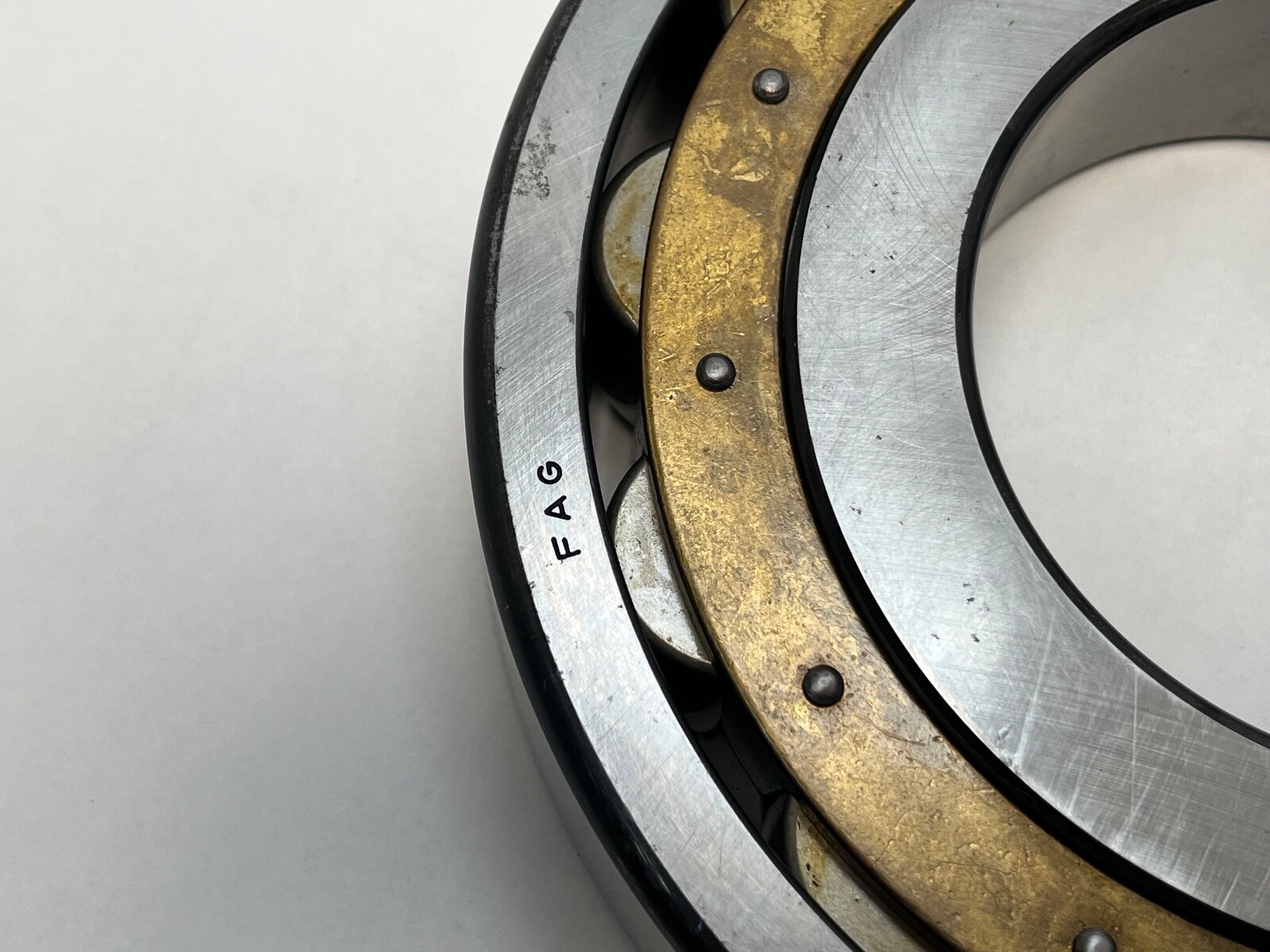

The 1:12 tapered bore sets the running clearance by how far the inner ring is driven up the taper, which gives control over clearance at assembly instead of accepting a fixed factory value. A machined brass cage tolerates higher temperature and more shock and vibration than a pressed steel cage, and suits oil lubrication and heavier loads.

Published specifications

Bore: 110 mm (4.3307 in)
Outside diameter: 240 mm (9.4488 in)
Width: 50 mm (1.9685 in)
Bearing type: single-row barrel roller
Rows: 1
Bore type: 1:12 taper (K)
Cage: machined brass
Axial load capacity: none — radial load only
Closure: open, both faces
Matching adapter sleeve: FAG H2322, 100 mm shaft seat

Quantity and configuration

Bearing only, 1 Pc. Supplied without adapter sleeve H2322 and without a locknut or lockwasher.

Fitting notes

The tapered bore mounts either directly on a 1:12 tapered shaft journal or on an H2322 adapter sleeve over a plain 100 mm shaft. Drive-up distance sets the residual radial clearance, so the clearance is measured across the rollers as the ring advances. The outer ring seats in a housing bore sized to allow the self-aligning function to work.

Interchange guidance

The equivalent in other schemes is the SKF 20322 KM and the NSK 20322KM, both single-row barrel rollers with a 1:12 bore in the same envelope. The 20322-MB has a cylindrical bore, and the 22322-K is a double-row spherical roller with axial capacity — those are related sizes rather than interchanges.
