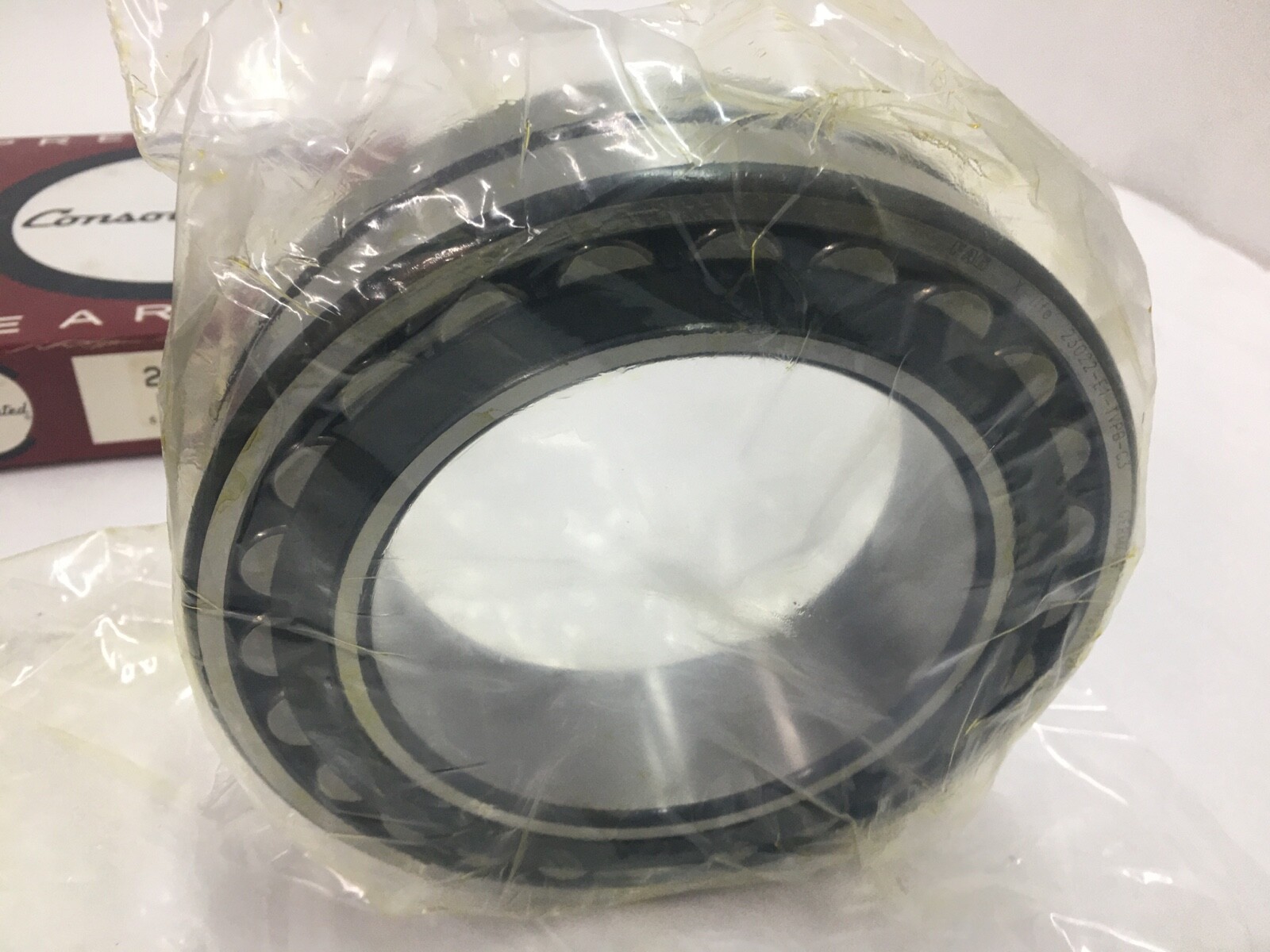

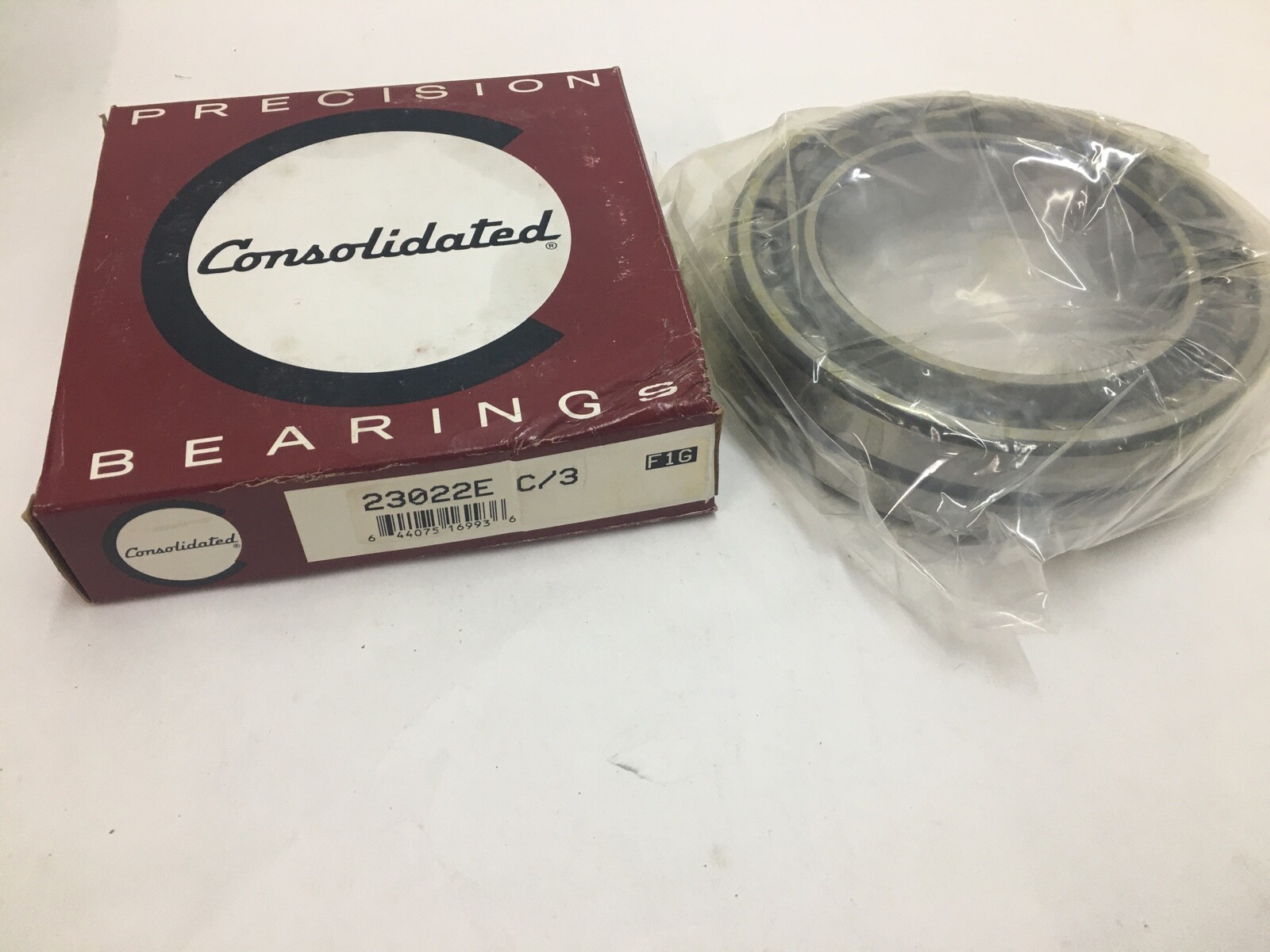

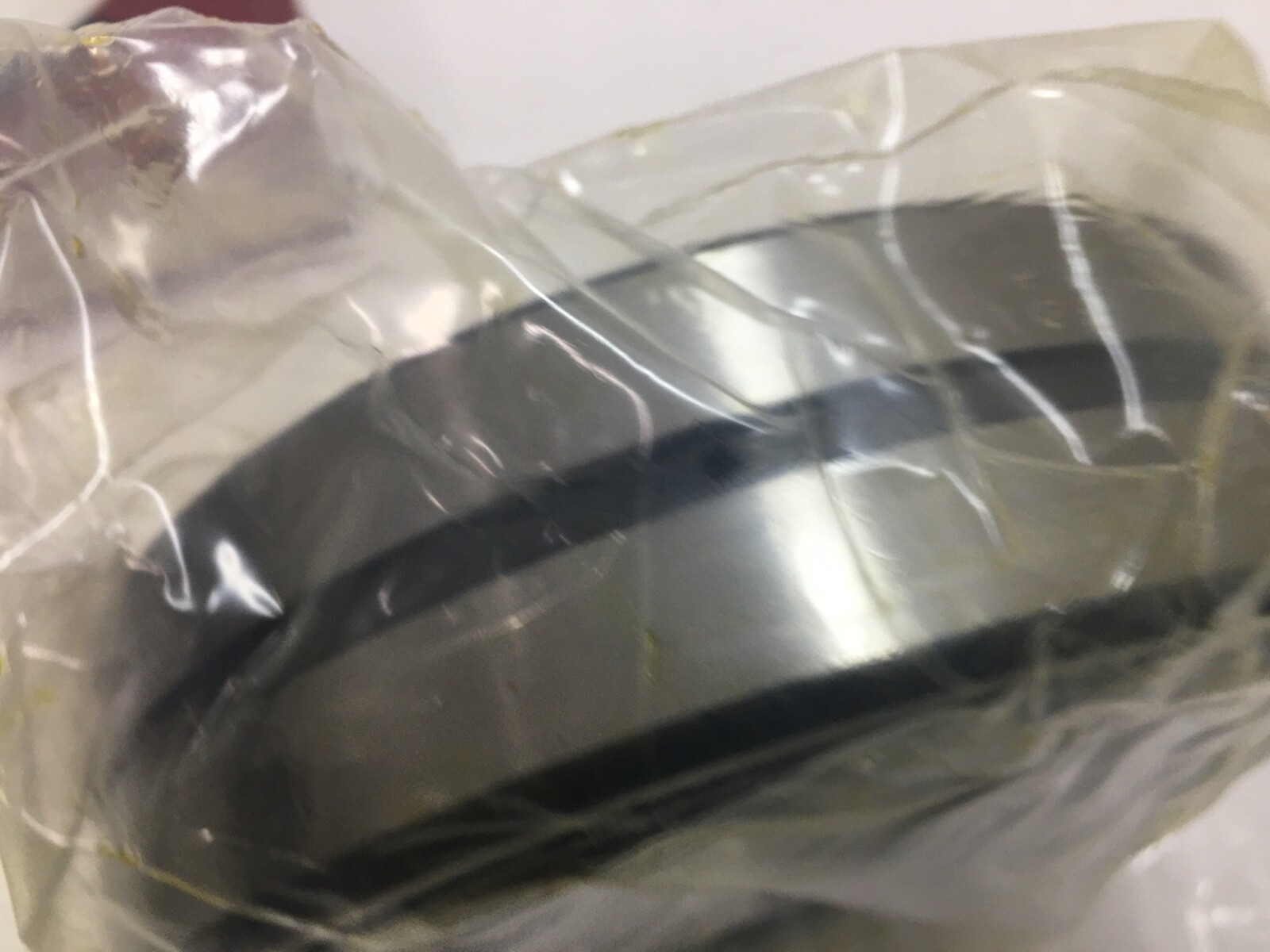

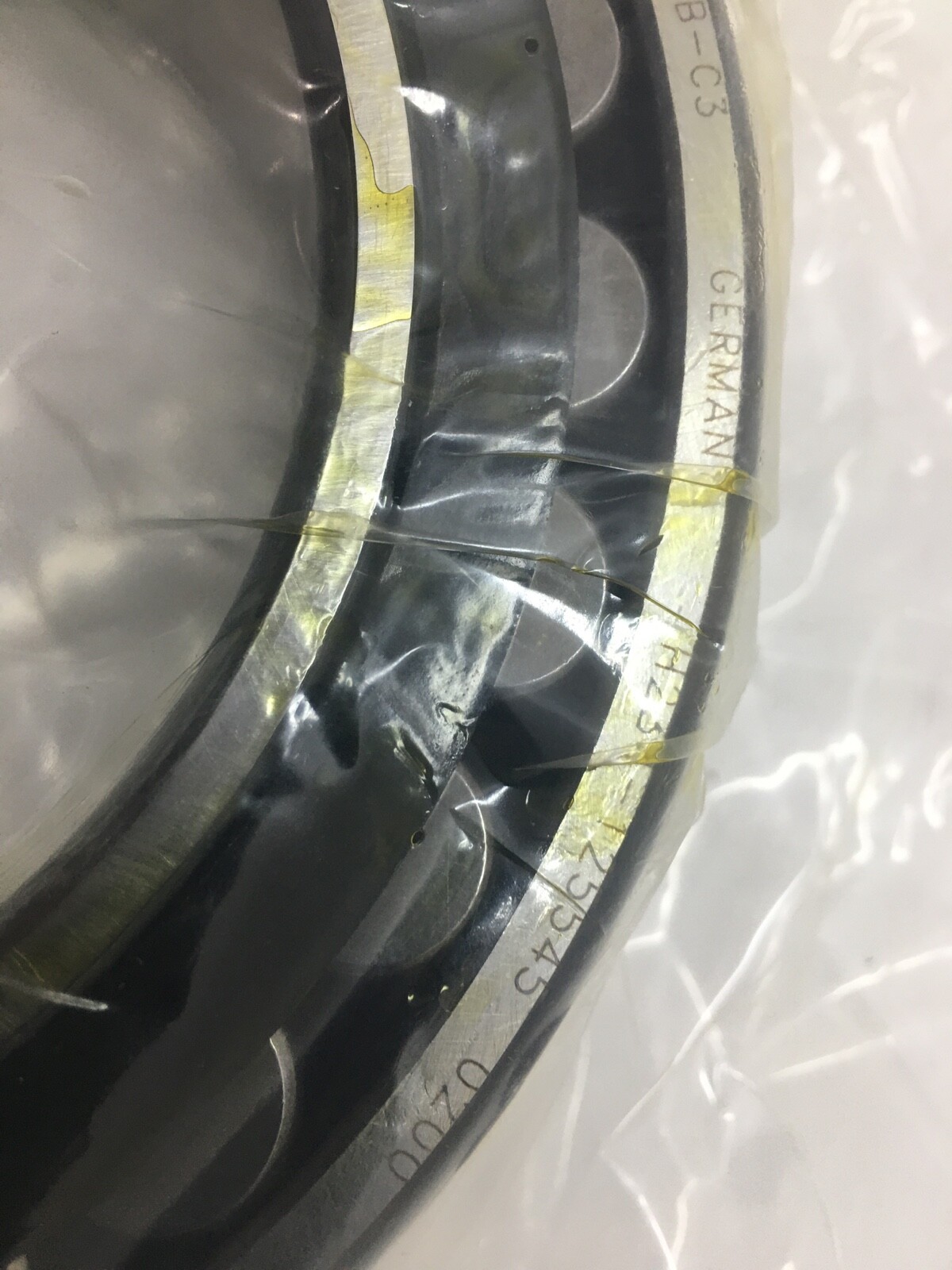

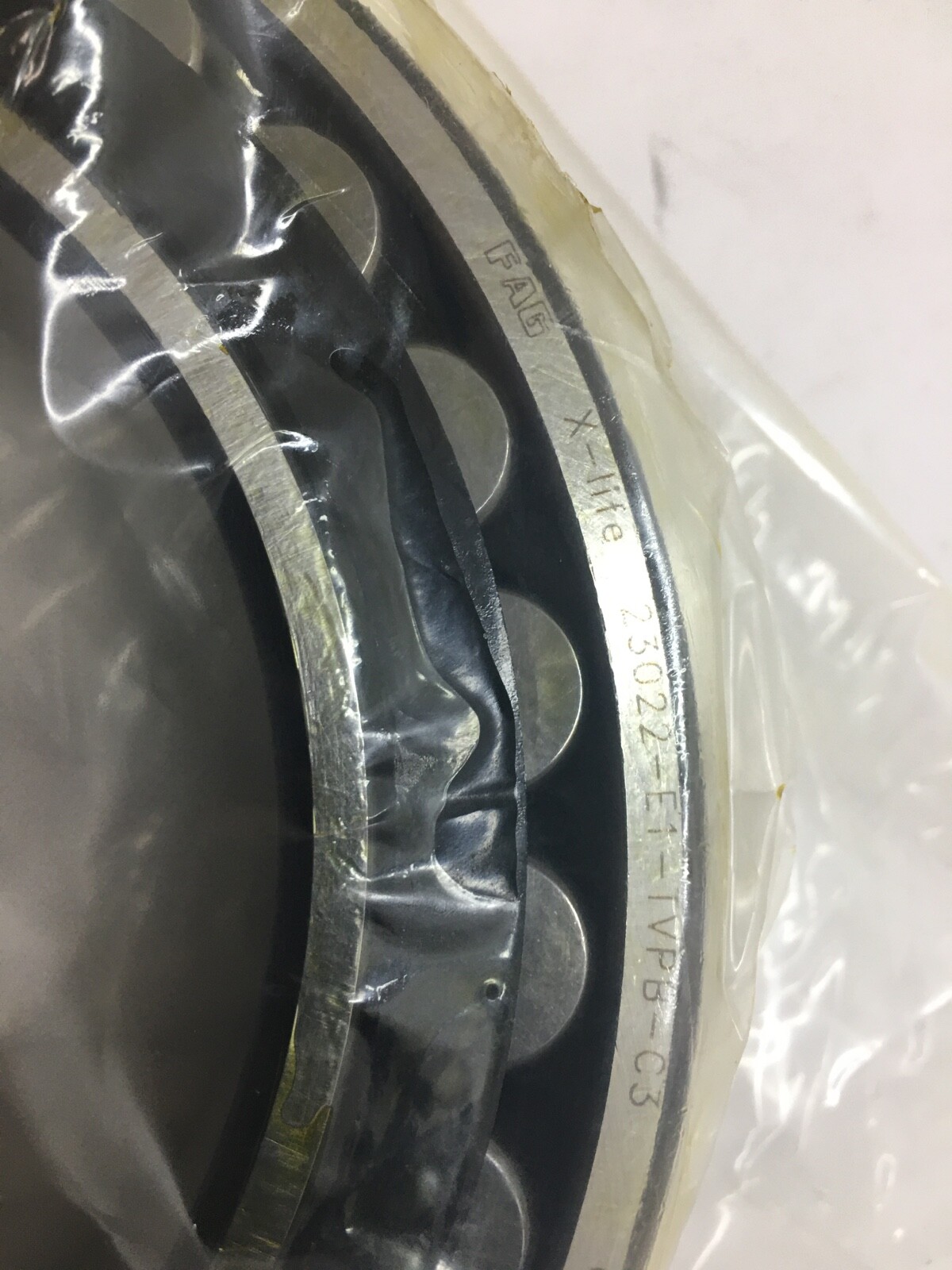

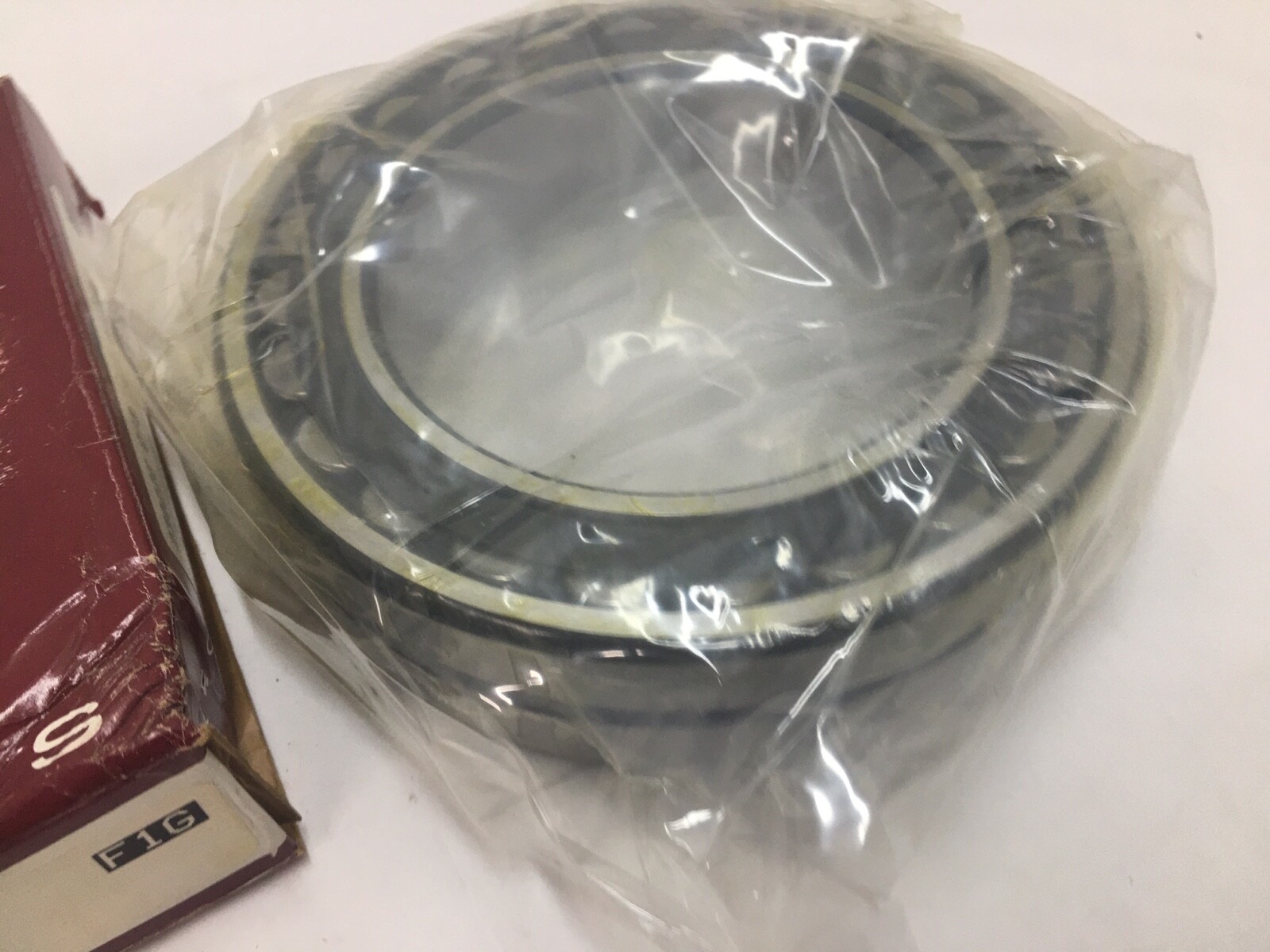

Spherical roller bearing, 110 mm bore x 170 mm OD x 45 mm wide, C3 clearance, polyamide cage, lubrication groove and holes. Consolidated (FAG 23022-E1-TVPB-C3).
List Price
$213.40
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 23022-E1-TVPB-C3 |
| Model | 23022E C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 110 mm |
| OD | 170 mm |
| Width | 45 mm |
| Material | Chrome Steel |
|---|---|
| Series | 23000 |
| Overall Width | 45 mm |
| Mpn Variants | 23022EC3, 23022E C3, 23022 E1 TVPB C3, 23022-E1-TVPB-C3, 23022 E1 TVBP C3, 23022-E1-XL-TVPB-C3, Consolidated 23022-E1-TVPB-C3 |
| Cage Type | Window, glass-fibre reinforced (TVPB) |
| Rolling Elements | Spherical Roller |
| Cage Material | Polyamide |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Lubricant | Grease or oil |
| Relubrication Feature | Lubrication groove and holes in outer ring (W33 equivalent) |
| Harmonization Code | 8482.30.00.40 |
| Industry Terms | Spherical roller bearing; self-aligning roller bearing; double row roller bearing; polyamide cage roller bearing; lubrication groove roller bearing |
| Common Misspellings | 23022 E1 TVBP C3; FAG 23022EC; 23022-E1-TVBP-C3; Consolidated 23022 EC3 |
| Application Types | Industrial gearboxes; fans and blowers; conveyor pulleys; pump drives |
| Closure Type | Open |
| Cross Reference 1 | FAG 23022-E1-XL-TVPB-C3 (current designation) |
|---|---|
| Cross Reference 2 | SKF 23022 CC/C3W33 |
| Cross Reference 3 | NSK 23022CE4C3 |
| Cross Reference 4 | NTN 23022BD1C3 |
| Cross Reference 5 | Timken 23022EJW33C3 |
Consolidated 23022 E1 TVPB C3 (FAG designation) is a double-row spherical roller bearing in the 230 series with a straight bore, glass-fibre reinforced polyamide cage, C3 clearance and a lubrication groove with holes in the outer ring. Bore: 110 mm. Outside Diameter: 170 mm. Width: 45 mm. Open on both faces. Unit Quantity: 1 Pc.
230 — spherical roller bearing, dimension series 30.
22 — bore code, 22 x 5 = 110 mm.
E1 — reinforced internal design without a central rib, with lubrication groove and holes in the outer ring.
TVPB — glass-fibre reinforced polyamide cage.
C3 — internal clearance greater than normal.
Bore Diameter: 110 mm. Outside Diameter: 170 mm. Width: 45 mm. Bore Type: Straight. Number Of Rows: 2. Rolling Elements: Spherical Roller. Cage Material: Polyamide. Cage Type: Window, glass-fibre reinforced. Internal Clearance: C3. Closure Type: Open. Lubricant: grease or oil. Series: 23000. Unit Quantity: 1 Pc.
Minimum Chamfer Dimension: 2 mm. Shaft Shoulder Diameter: 118.8 mm. Housing Shoulder Diameter: 161.2 mm. Maximum Recess Radius: 2 mm. Lubrication Groove Width: 6.5 mm. Lubrication Hole Diameter: 3.2 mm.
Cross-references: FAG 23022-E1-XL-TVPB-C3 (current designation); SKF 23022 CC/C3W33; NSK 23022CE4C3; NTN 23022BD1C3; Timken 23022EJW33C3.
Bore 110 mm, outside diameter 170 mm, width 45 mm, straight bore.
Glass-fibre reinforced polyamide cage (TVPB) and C3 internal clearance.
Yes. The E1 design has a lubrication groove and holes in the outer ring.
