Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

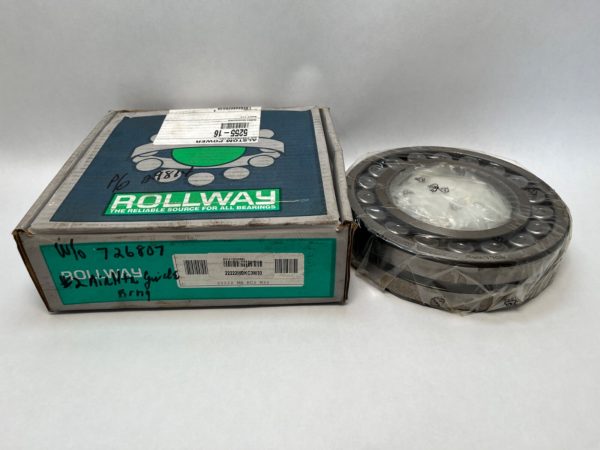

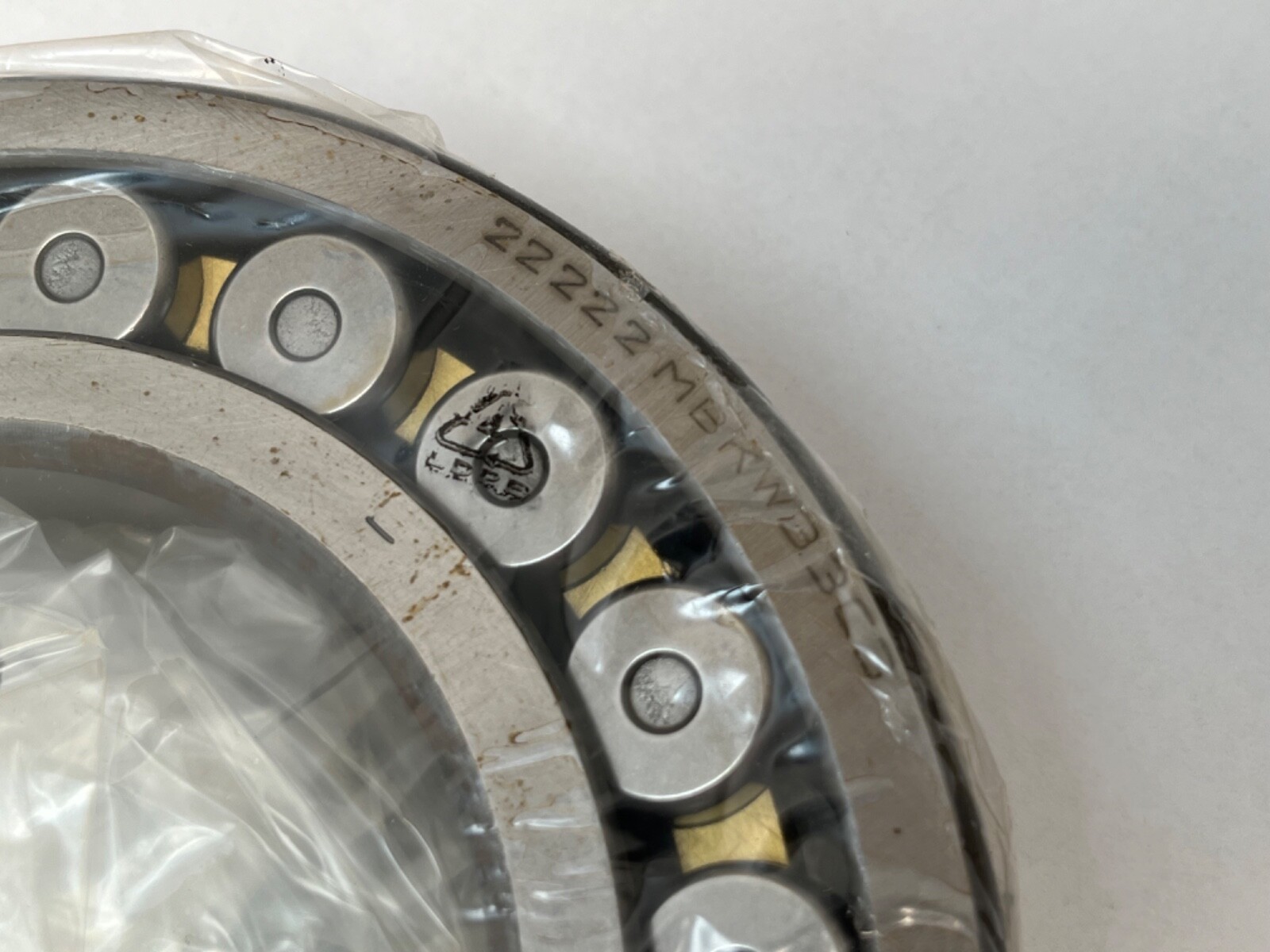

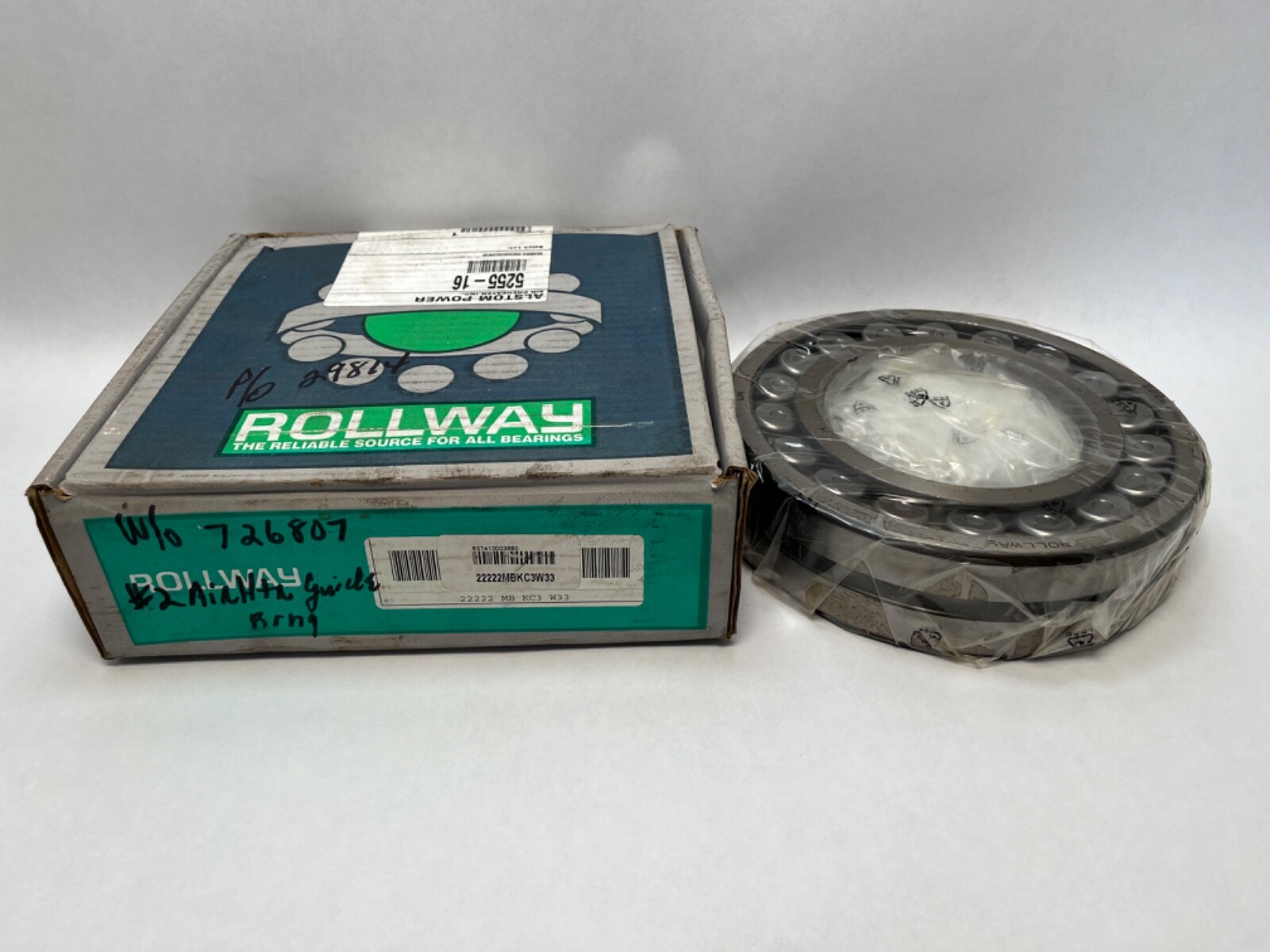

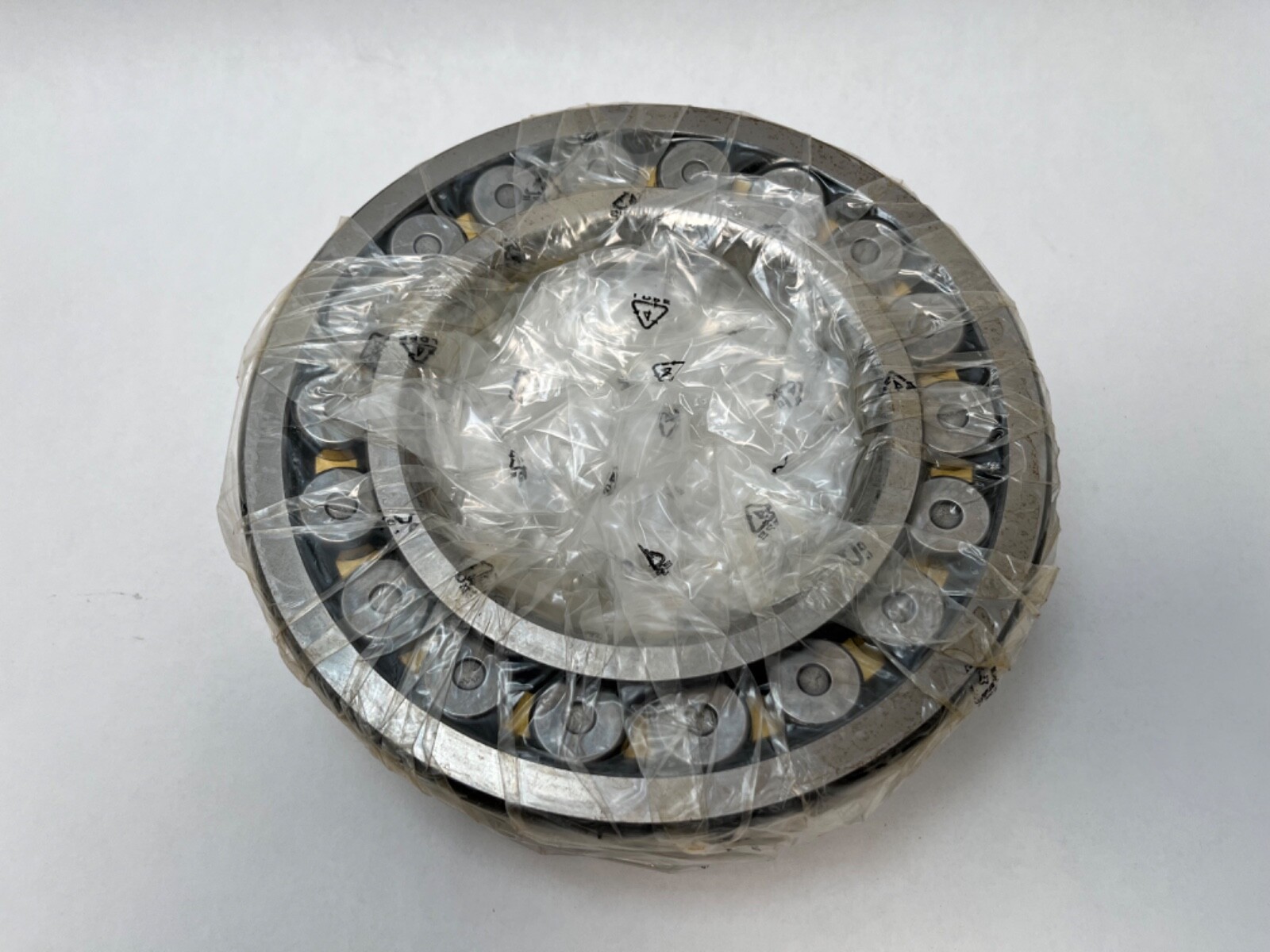

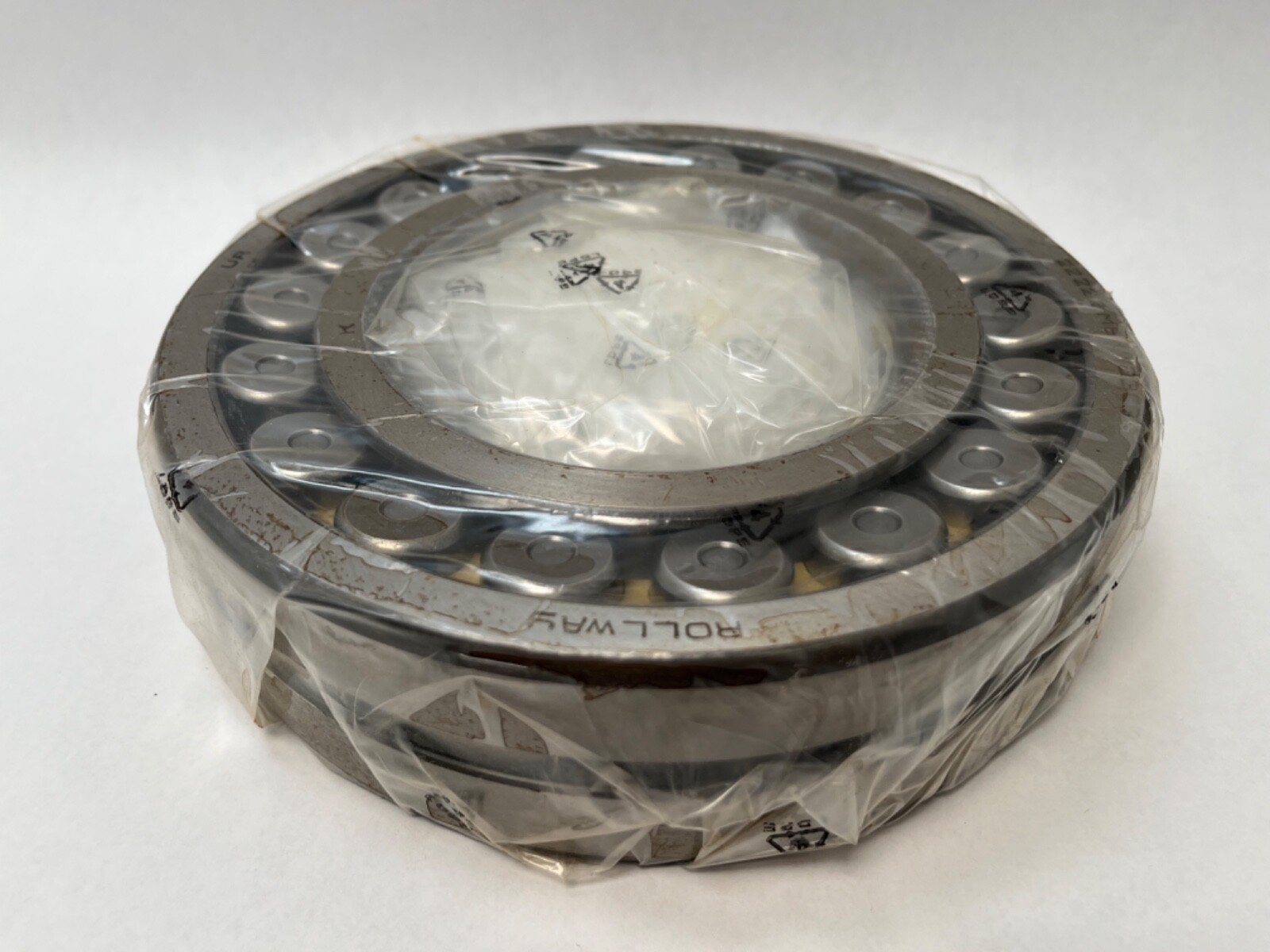

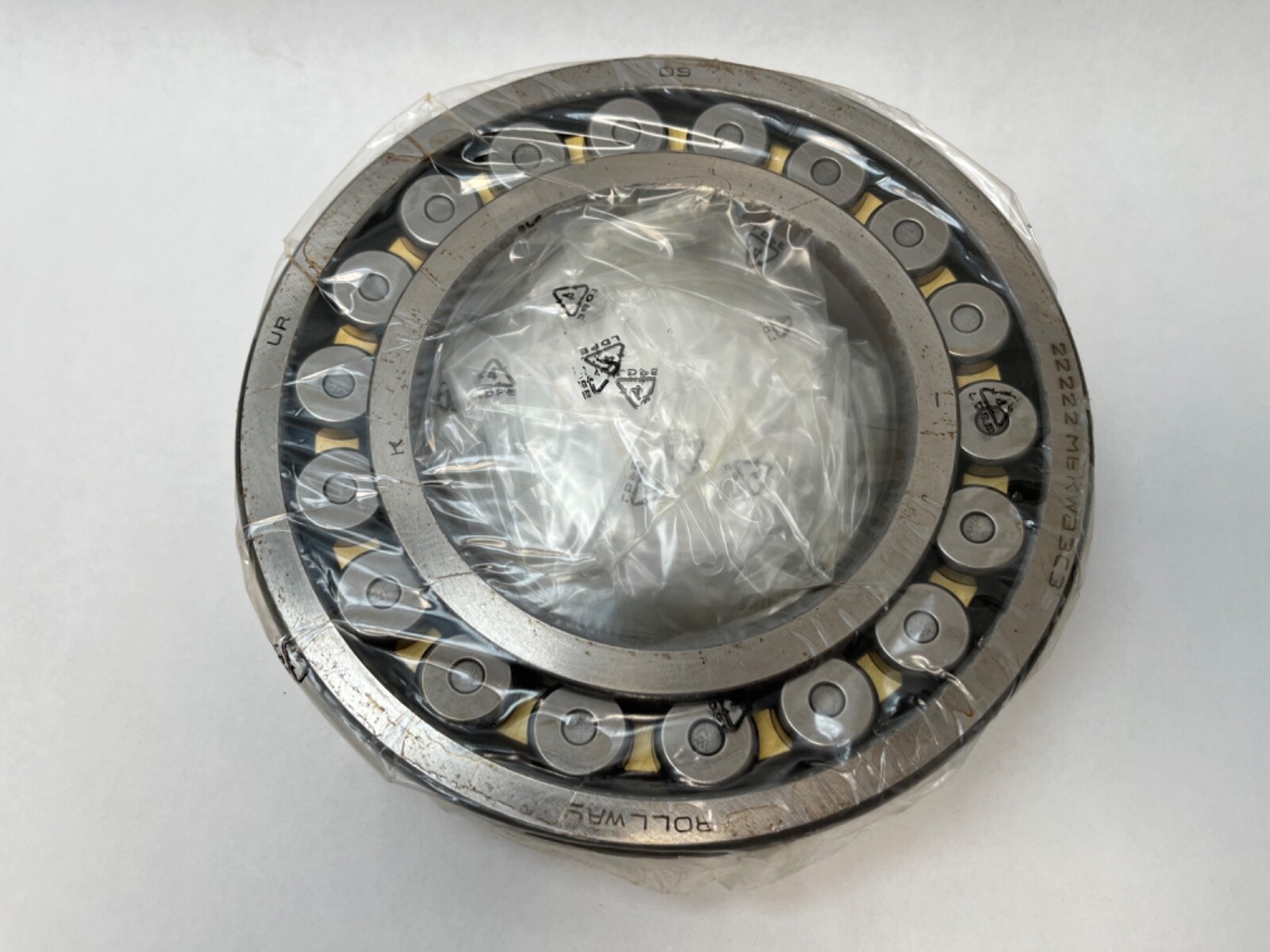

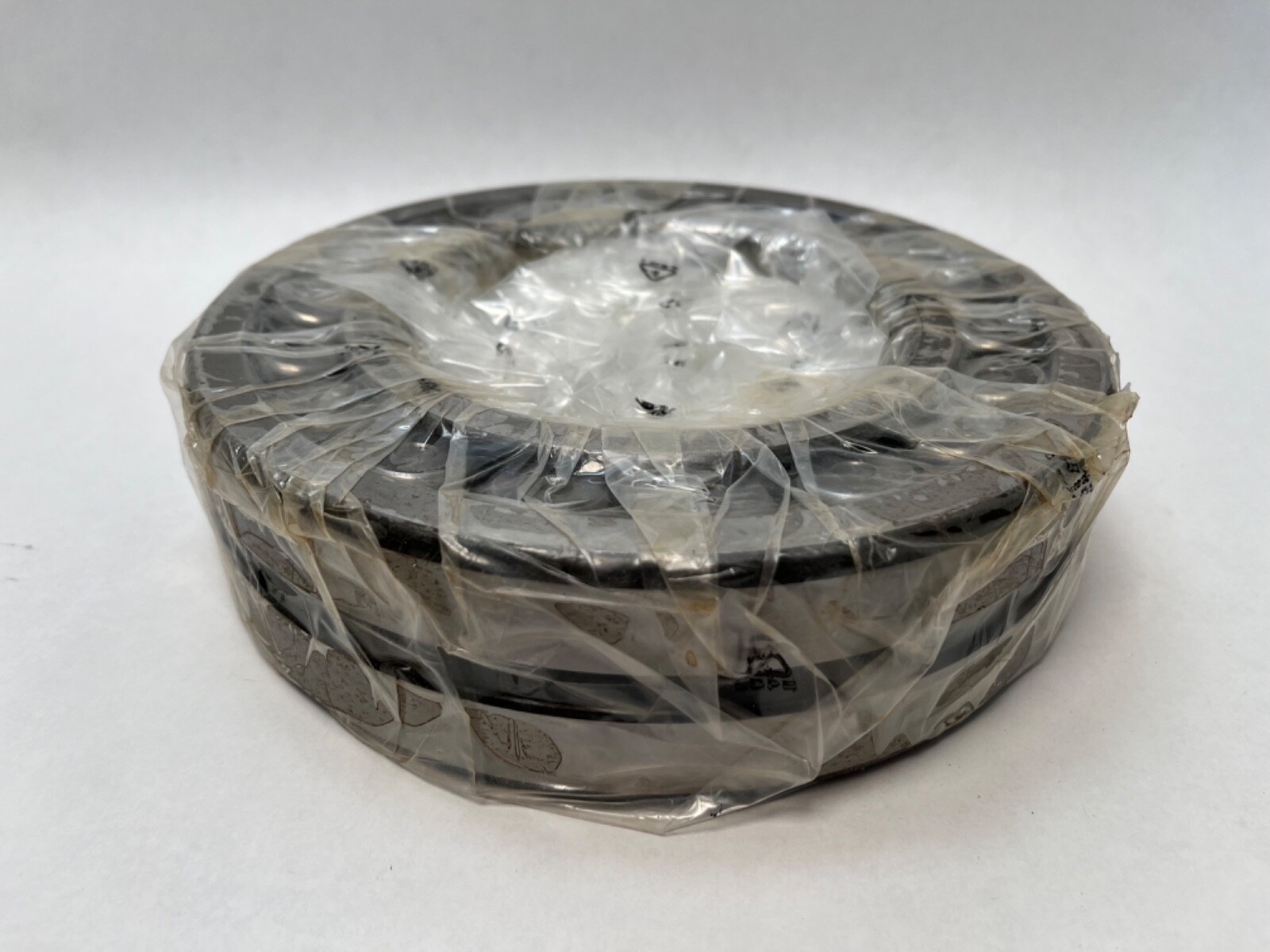

Rollway spherical roller bearing, 110 mm tapered bore (1:12), 200 mm OD, 53 mm wide, C3 clearance, machined brass cage, W33 lubrication groove and holes.
List Price
$175.02
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Rollway |
|---|---|
| MPN | 22222 MB KC3 W33 |
| Model | 22222MBKC3W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 110 mm |
| OD | 200 mm |
| Width | 53 mm |
| Material | Bearing Steel |
|---|---|
| Series | 222 |
| Cage Type | Two-piece |
| Rolling Elements | Spherical Roller |
| Cage Material | Brass |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | C3 |
| Mpn Variants | 22222 MB KC3 W33, 22222MBKC3W33, 22222-MB-K-C3-W33, 22222 KMB C3 W33 |
| Compatible With Replaces | Adapter sleeve H322 |
| Lubricant | grease or oil |
| Relubrication Feature | W33 groove and holes in outer ring |
| Cross Reference 1 | SKF 22222 EK/C3 |
|---|---|
| Cross Reference 2 | FAG 22222-E1-K-C3 |
| Cross Reference 3 | NTN 22222EMKW33C3 |
| Cross Reference 4 | Timken 22222KEJW33C3 |
Rollway 22222 MB KC3 W33 is a double-row spherical roller bearing from the 222 series with a tapered bore, a brass cage and a lubrication groove in the outer ring. Rollway is a Regal Rexnord brand. The bearing is self-aligning and carries heavy radial load with moderate axial load in both directions.
22222 — 222 series spherical roller bearing, bore code 22, 110 x 200 x 53 mm.
MB — brass cage, two-piece design.
K — tapered bore, 1:12 taper.
C3 — internal clearance greater than normal.
W33 — lubrication groove and holes in the outer ring.
Bore Diameter: 110 mm. Outside Diameter: 200 mm. Overall Width: 53 mm. Bore Type: Tapered 1:12. Internal Clearance: C3. Cage Material: Brass. Cage Type: Two-piece. Closure Type: Open. Rolling Elements: Spherical Roller. Number Of Rows: 2. Series: 222. Lubricant: grease or oil.
The tapered bore mounts on an H322 adapter sleeve on a 100 mm shaft, with a KM22 locknut and MB22 lock washer, or directly on a tapered journal. The W33 groove feeds grease or oil to the roller path from the outer ring.
Same envelope and feature set as SKF 22222 EK/C3, FAG 22222-E1-K-C3, NTN 22222EMKW33C3 and Timken 22222KEJW33C3. Common listing forms: 22222MBKC3W33, 22222-MB-K-C3-W33, 22222 KMB C3 W33.
What adapter sleeve fits the Rollway 22222 MB KC3 W33?
The H322 adapter sleeve, which seats the 110 mm tapered bore on a 100 mm shaft.
What does C3 mean on this bearing?
C3 is internal clearance greater than normal, used where shaft and ring temperatures run higher or fits are tighter.
Does this bearing have a lubrication groove?
Yes. W33 is a circumferential groove with holes in the outer ring for grease or oil feed.
