Two-bolt cast iron pillow block, 1-7/16 in bore, 207-series ball insert, 65° setscrew lock, 1.88 in centre height, 5,759 lbf dynamic, 3,500 rpm.
List Price
$39.07
Out of stock
Out of stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Ball Bearing Pillow Block - 1-3/16 in Bore, Two-Bolt, Cast Iron, Eccentric Collar, Non-Expansion$31.88
Two-Bolt Pillow Block Bearing - 1 in Shaft, Eccentric Collar Locking, Cast Iron, Wide Inner Ring$31.94
Two-Bolt Pillow Block Bearing - 1-3/8 in Shaft, Eccentric Collar Locking, Cast Iron, Narrow Inner Ring$57.98
Two-Bolt Pillow Block Ball Bearing Unit, 1-7/16 in Bore, Eccentric Collar Locking, Triple-Lip Contact Seals with Flingers, Cast Iron$91.90| MFR / Brand | Dodge |
|---|---|
| MPN | P2B-SC-107 |
| GTIN | 782475113910 |
| Model | P2B-SC-107 / 123813 |
| ID | 1-7/16 in |
| Material | Cast Iron |
|---|---|
| Type | Pillow Block Bearing |
| Base Number | 123813 |
| Industry Terms | Pillow block bearing, two-bolt plummer block, setscrew pillow block, mounted ball bearing unit |
| Common Misspellings | P2BSC-107, P2B SC107, Dodge P2BSC 107, 123813 |
| Bolt Center To Center Length | 4.68 to 5.44 in (slotted feet) |
| Bearing Insert Type | Ball |
| Bore Shaft Size | 1-7/16 in (36.51 mm) |
| Housing Style | Two-bolt pillow block, cast iron |
| Locking Method | 65° setscrew |
| Relubrication | Grease fitting in the housing |
| Replacement Insert | Dodge INS-SC-107 |
| Mpn Variants | P2BSC107, P2B SC 107, P2B-SC107, 123813 |
| Additional Attributes | Base to shaft centreline 1.88 in; overall length 6-1/2 in; overall height 3-3/4 in; bolt diameter 1/2 in; standard duty |
| Dynamic Load Rating | 5,759 lbf (25.6 kN) |
| Static Load Rating | 3,461 lbf (15.4 kN) |
| Series | 207 wide inner ring |
| Bearing Type | Mounted single-row ball bearing pillow block unit |
| Number Of Rows | 1 |
| Limiting Speed | 3,500 rpm |
| Expansion Type | Non-expansion |
| Part Number | P2B-SC-107 |
| Cross Reference 1 | Dodge F2B-SC-107 — two-bolt flange on the same insert |
|---|---|
| Cross Reference 2 | Dodge F4B-SC-107 (item 124208) — four-bolt flange on the same insert |
| Cross Reference 3 | Dodge INS-SC-107 — the insert alone |

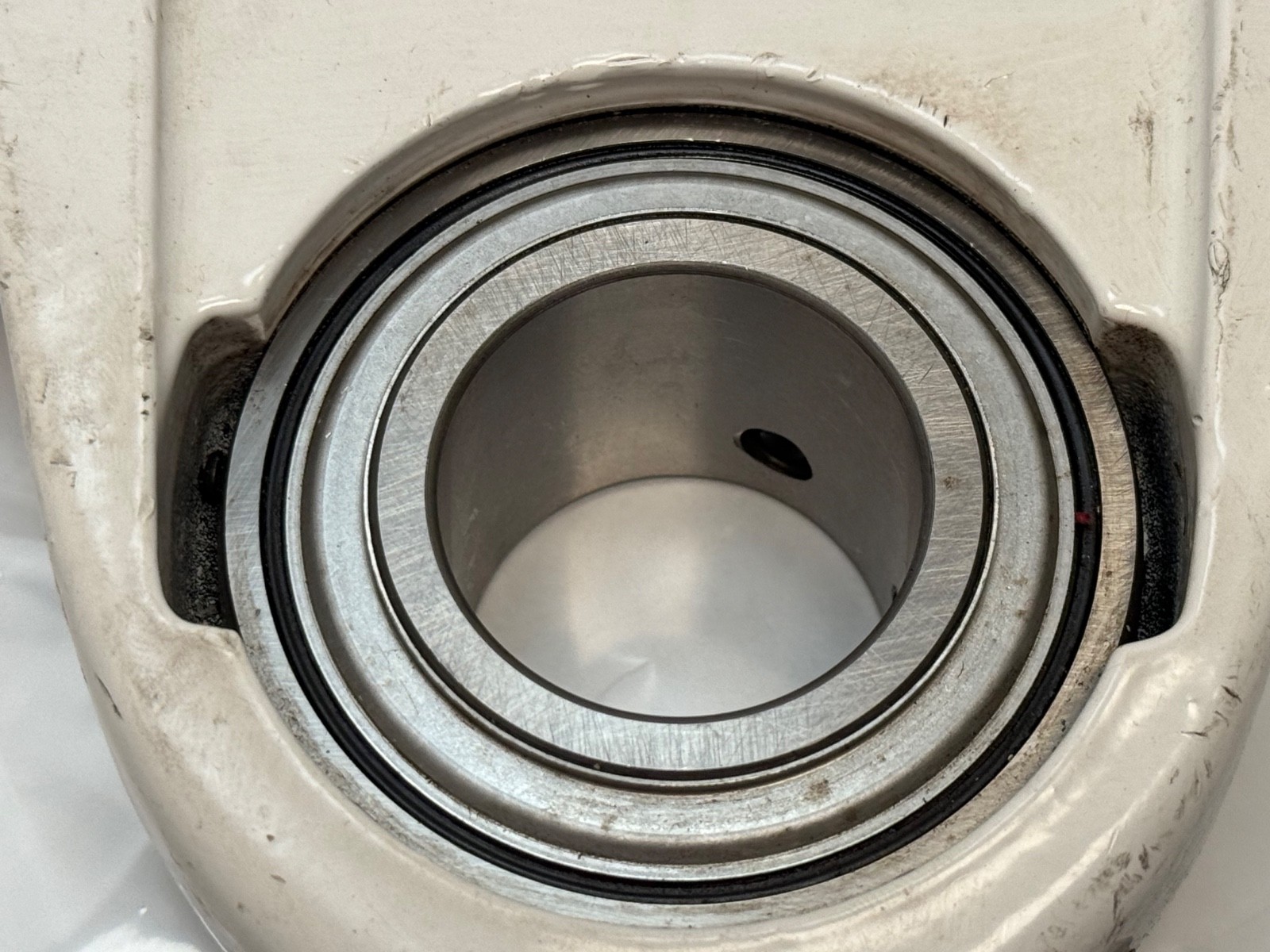

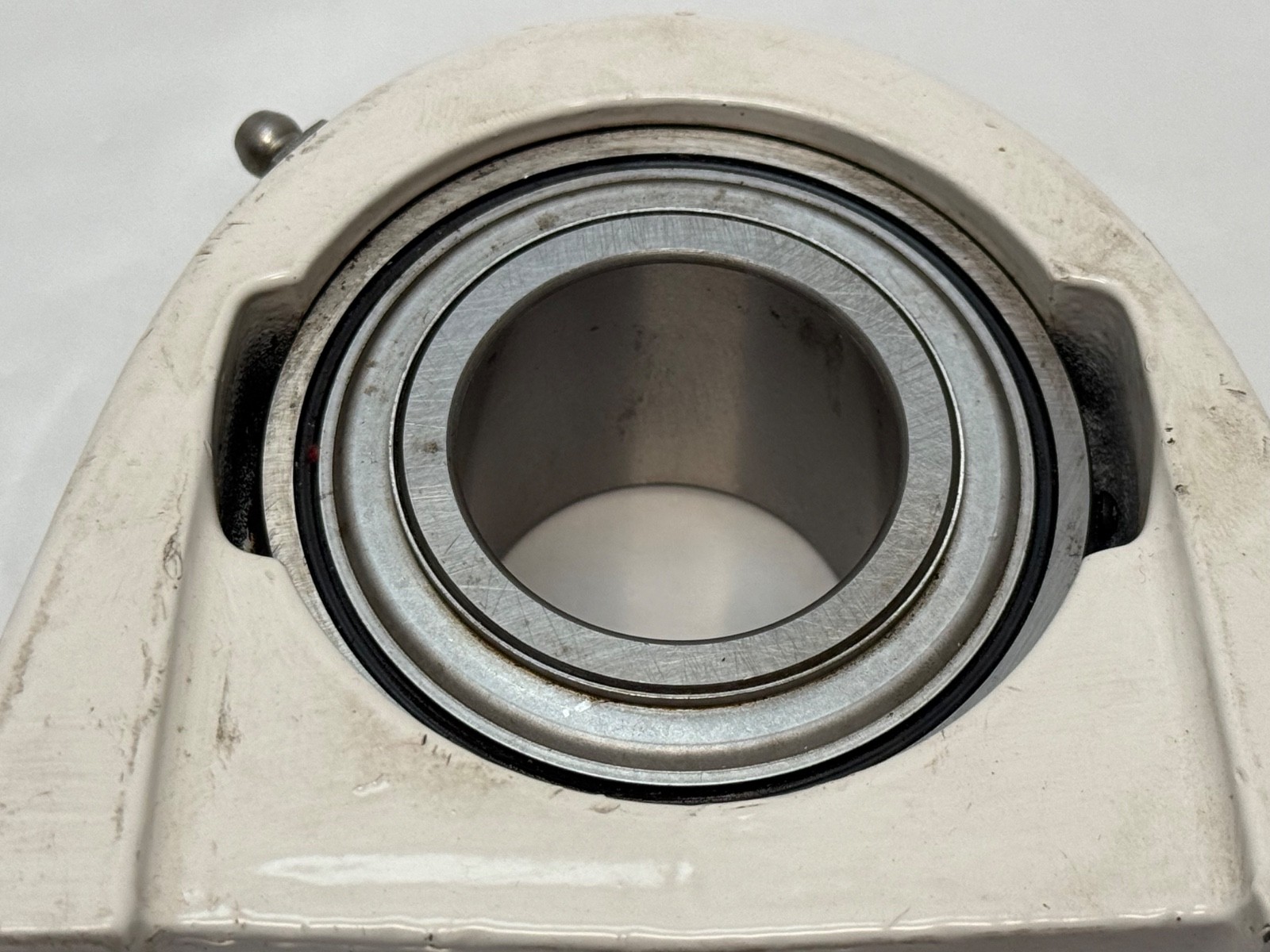

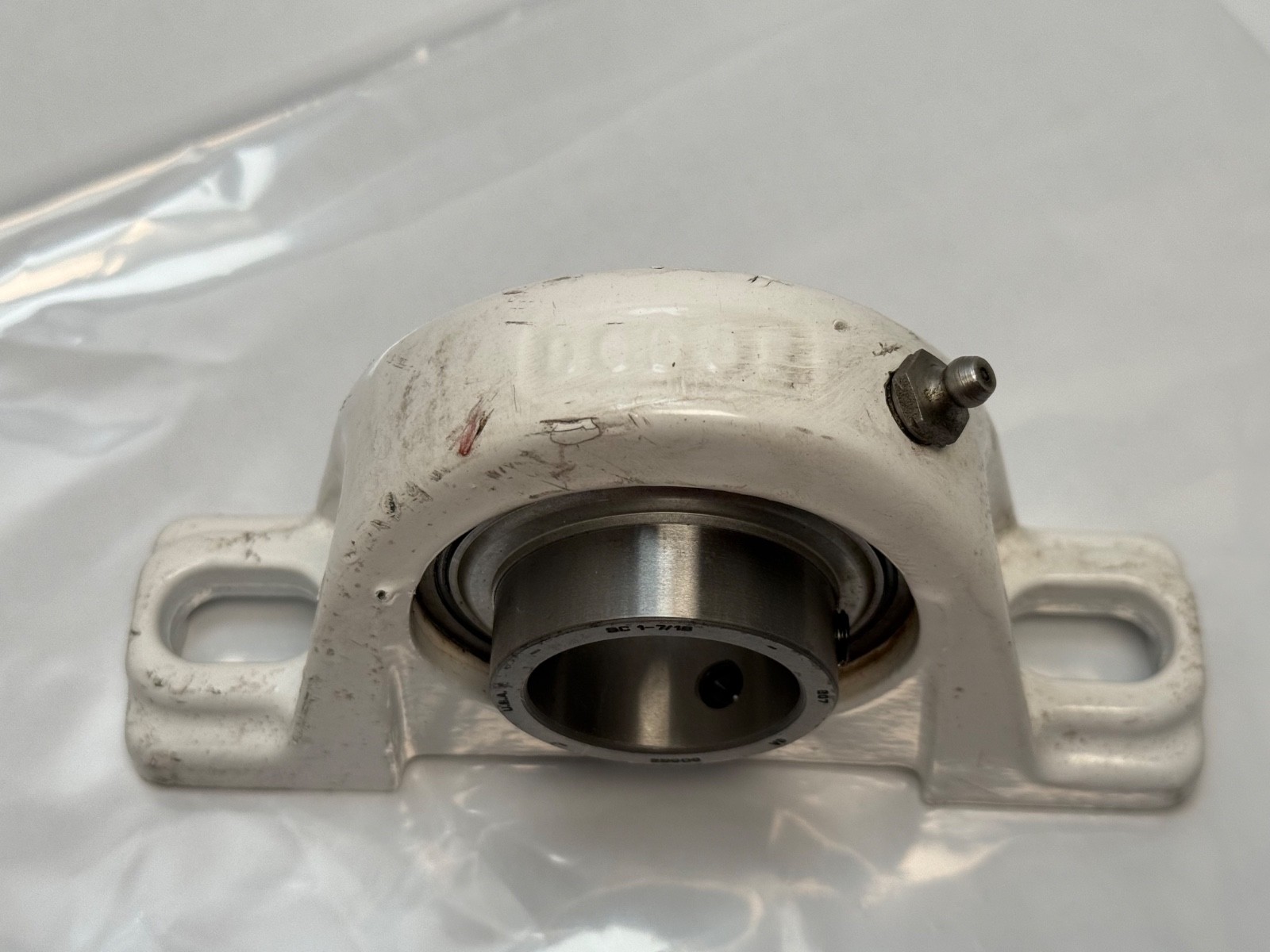

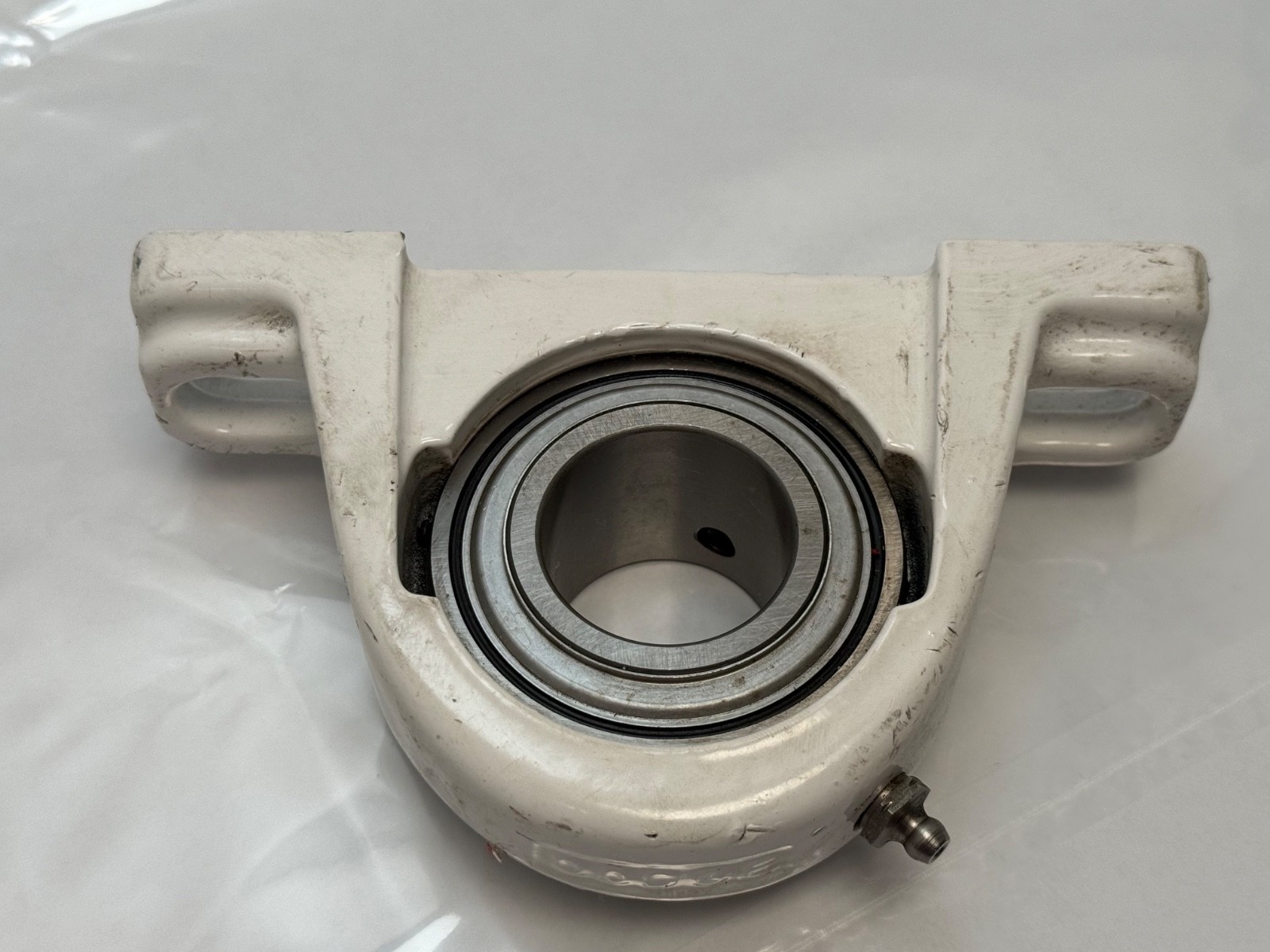

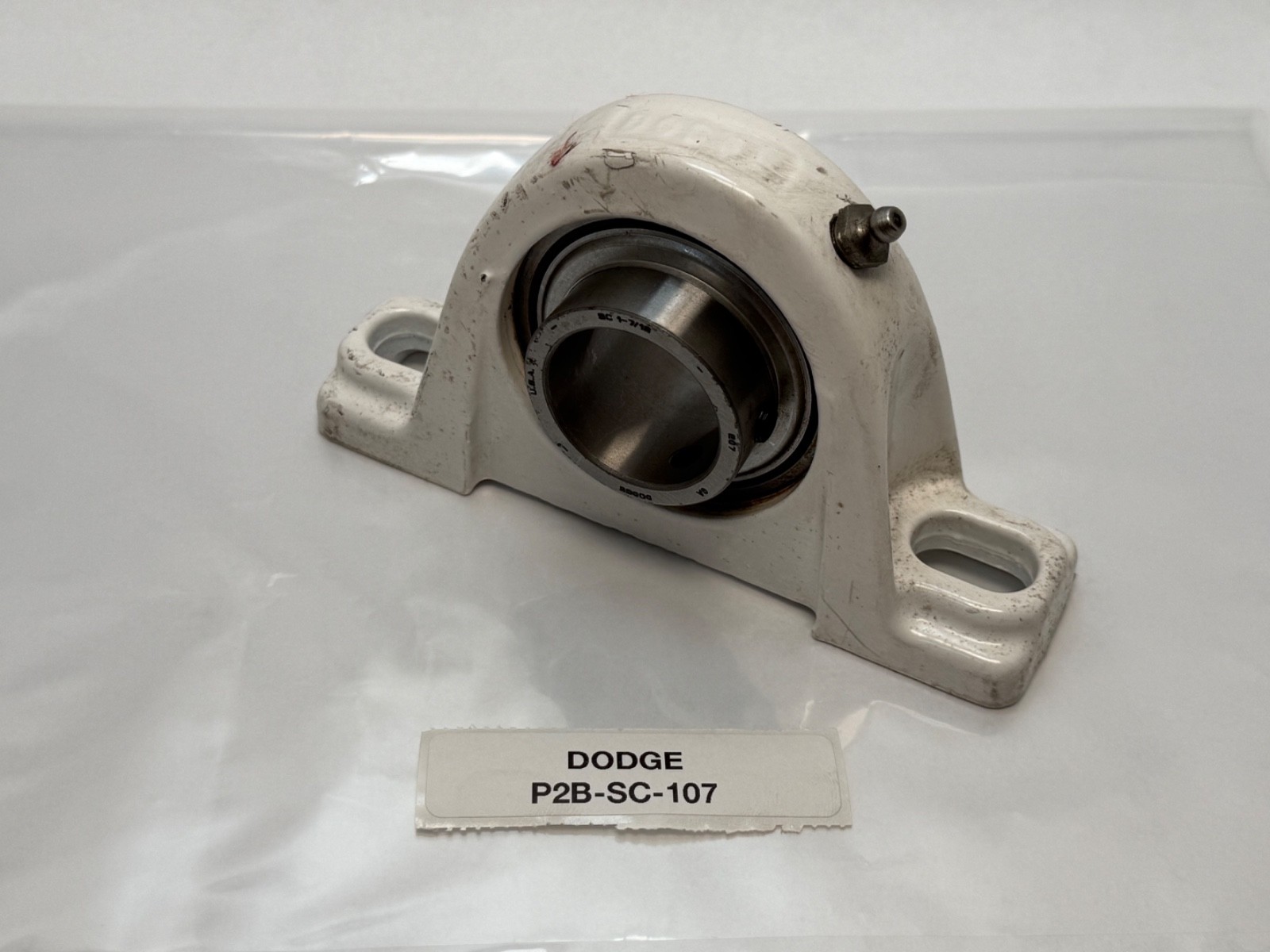

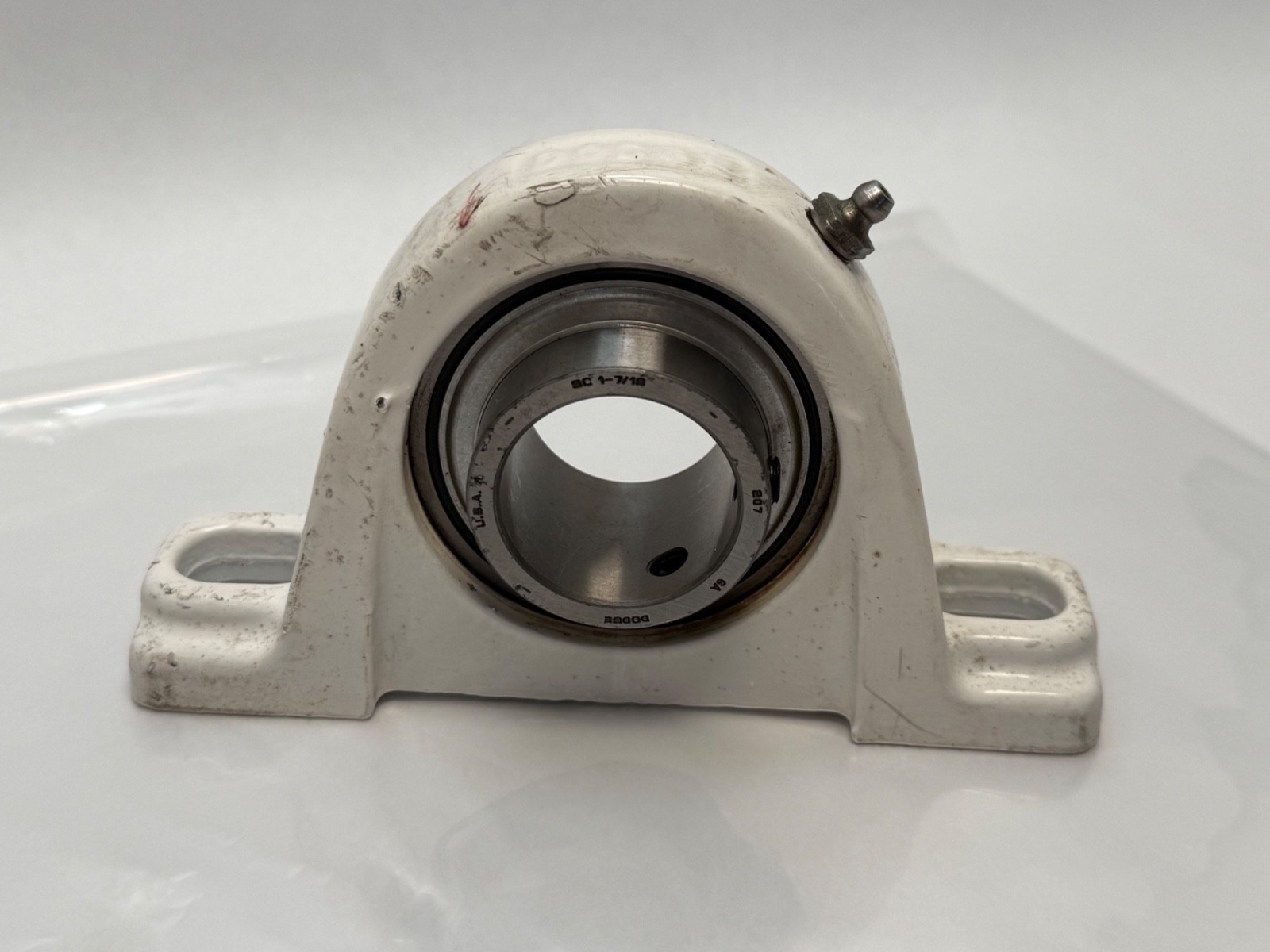

Dodge P2B-SC-107, Dodge item number 123813, is a two-bolt pillow block ball bearing unit. Bearing Type: Mounted single-row ball bearing insert in a pillow block housing. Housing Style: Two-bolt pillow block, cast iron, standard duty. Bore / Shaft Size: 1-7/16 in (36.51 mm). Series: 207 wide inner ring. Locking Method: 65° setscrew. Closure Type: DualGuard seals. Expansion Type: Non-expansion. Dynamic Load Rating: 5,759 lbf. Static Load Rating: 3,461 lbf. Limiting Speed: 3,500 rpm.
P2B — two-bolt pillow block housing, bolted down to a horizontal base with the shaft running parallel to that surface.
SC — setscrew locking on a standard-duty cast iron housing, the general-purpose Dodge ball bearing line.
107 — bore code for a 1-7/16 in shaft.

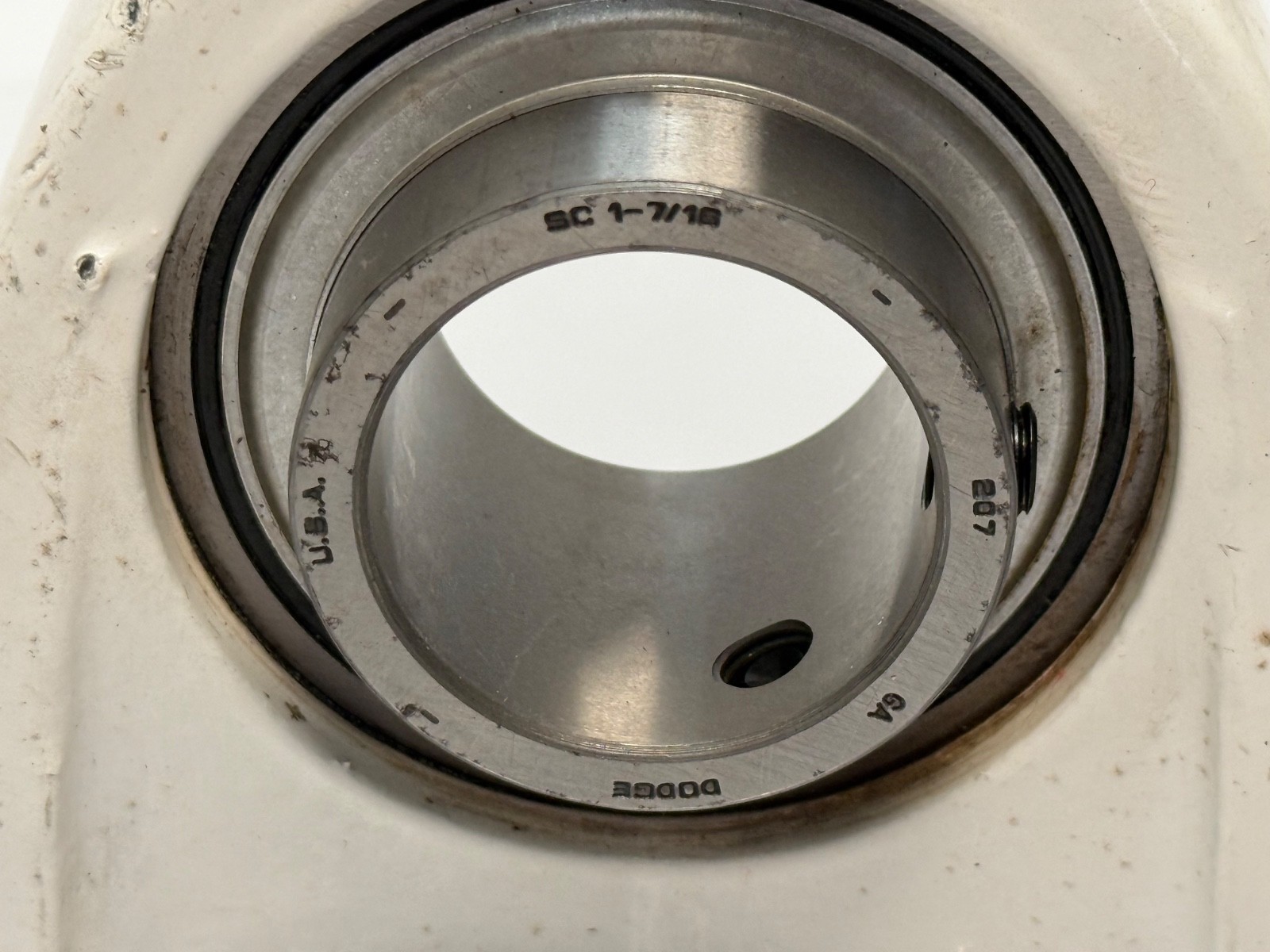

Locking Method: 65° setscrew. Two setscrews set at 65° to one another bite the shaft and hold the insert against rotation and axial creep, which is the quickest locking method to fit and to release in the field. The insert’s spherical outside diameter seats in a matching spherical housing bore, so the unit accommodates initial shaft misalignment on a frame that is not perfectly machined. Dynamic Load Rating: 5,759 lbf and Static Load Rating: 3,461 lbf are the 207-series ratings. Limiting Speed: 3,500 rpm.

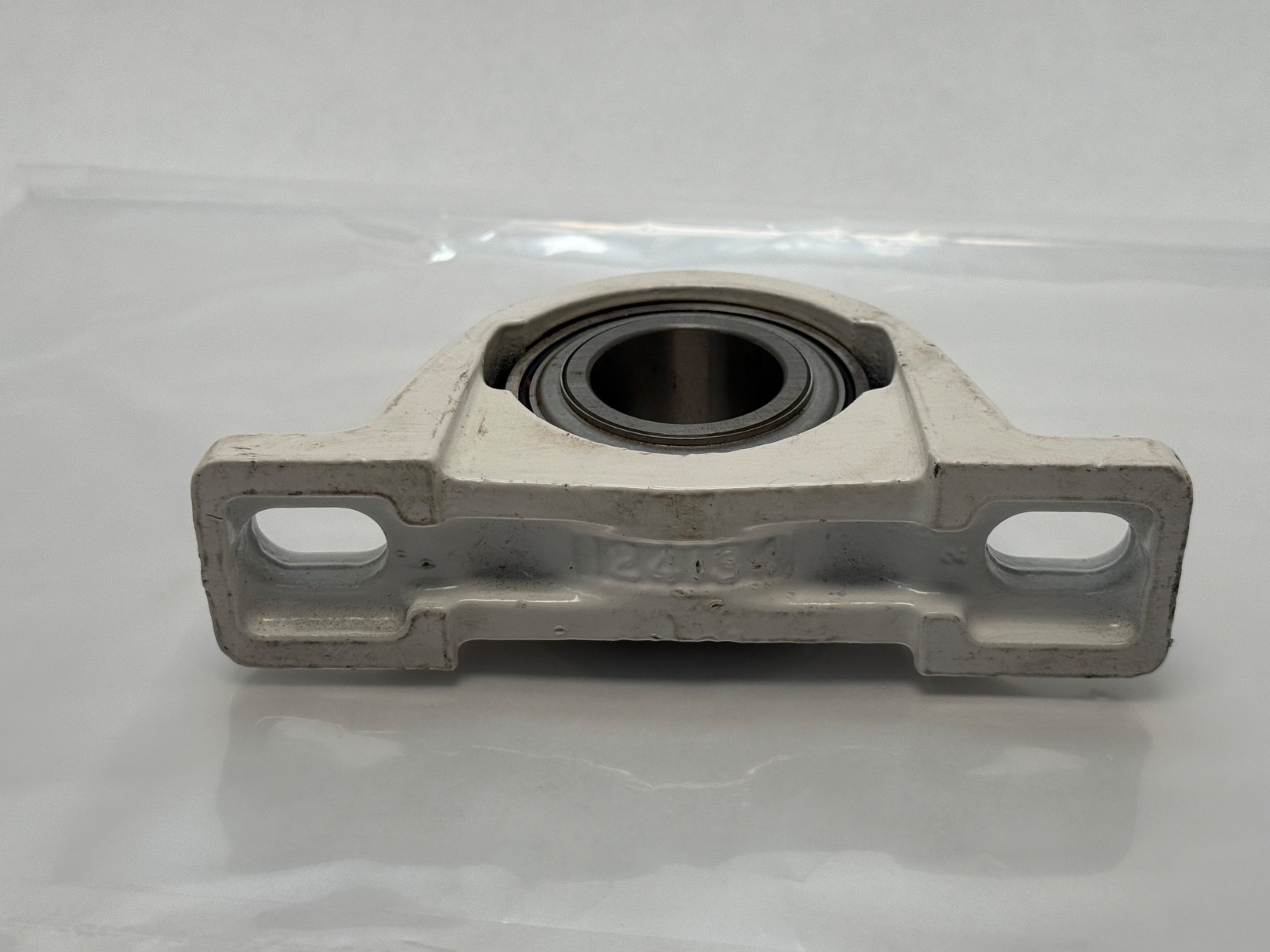

Housing Style: Two-bolt pillow block, cast iron. Bolt Center To Center Length: 4.68 to 5.44 in, on slotted feet that allow the unit to be shifted for alignment. Bolt Diameter: 1/2 in. Base to shaft centreline height: 1.88 in. Overall length 6-1/2 in, overall height 3-3/4 in.
Expansion Type: Non-expansion — this position fixes the shaft axially, so a floating unit belongs at the far end of a long shaft that grows with temperature. Relubrication: grease fitting in the housing. Closure Type: DualGuard seals on both faces of the insert.
Unit Quantity: 1 Pc. Complete pillow block — cast iron housing with the 207-series ball insert and its setscrew collar fitted.
Part Number: P2B-SC-107. Base Number: 123813. Searchable variants: P2BSC107, P2B SC 107, P2B-SC107. The matching insert on its own is the Dodge INS-SC-107. The flange versions on the same insert are the two-bolt F2B-SC-107 and the four-bolt F4B-SC-107.
