Availability:
1 in stock
Two-bolt pillow block, 1-3/8 in shaft, eccentric collar locking, cast iron housing, narrow inner ring, intermediate duty, non-expansion. Dodge P2B-SXV-106.
List Price
$57.98
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | P2B-SXV-106 |
| GTIN | 782475119691 |
| Model | P2B SXV 106 / 131980 |
| ID | 1-3/8 in |
| Material | Cast iron housing, chrome steel insert |
|---|---|
| Type | Pillow Block Bearing |
| Base Number | P2B-SXV |
| Industry Terms | Two bolt pillow block; eccentric collar pillow block; mounted ball bearing unit; SXV pillow block; 207 series pillow block |
| Common Misspellings | P2B SXV 106, P2BSXV-106, P2B-SXV106, Dodge 13198 0, P2B-SVX-106 |
| Bolt Center To Center Length | 4.68 to 5.44 in |
| Bearing Insert Type | Ball |
| Bore Shaft Size | 1-3/8 in (1.375 in) |
| Housing Style | Two-bolt pillow block, cast iron |
| Locking Method | Eccentric collar |
| Mpn Variants | P2B-SXV-106, P2BSXV106, P2B SXV 106, 131980 |
| Additional Attributes | Narrow inner ring; intermediate duty; slotted mounting base; base to bore centerline 1.875 in; bolt diameter 0.5 in; bore length 1.53 in; take-up frame LD-20, TS-250; 207 series; relubricatable |
| Dynamic Load Rating | 5,759 lbf |
| Static Load Rating | 3,461 lbf |
| Series | SXV |
| Rolling Elements | Balls |
| Bearing Type | Mounted ball bearing, two-bolt pillow block |
| Limiting Speed | 3,500 rpm |
| Number Of Rows | 1 |
| Expansion Type | Non-expansion (fixed) |
| Part Number | P2B-SXV-106 |
| Application Types | Conveyors, fans, blowers, pumps, general industrial shaft support |
| Cross Reference 1 | Dodge P2B-SXR-106 (wide inner ring, normal duty) |
|---|---|
| Cross Reference 2 | Dodge P2B-SC-106 (setscrew locking, 207 series) |

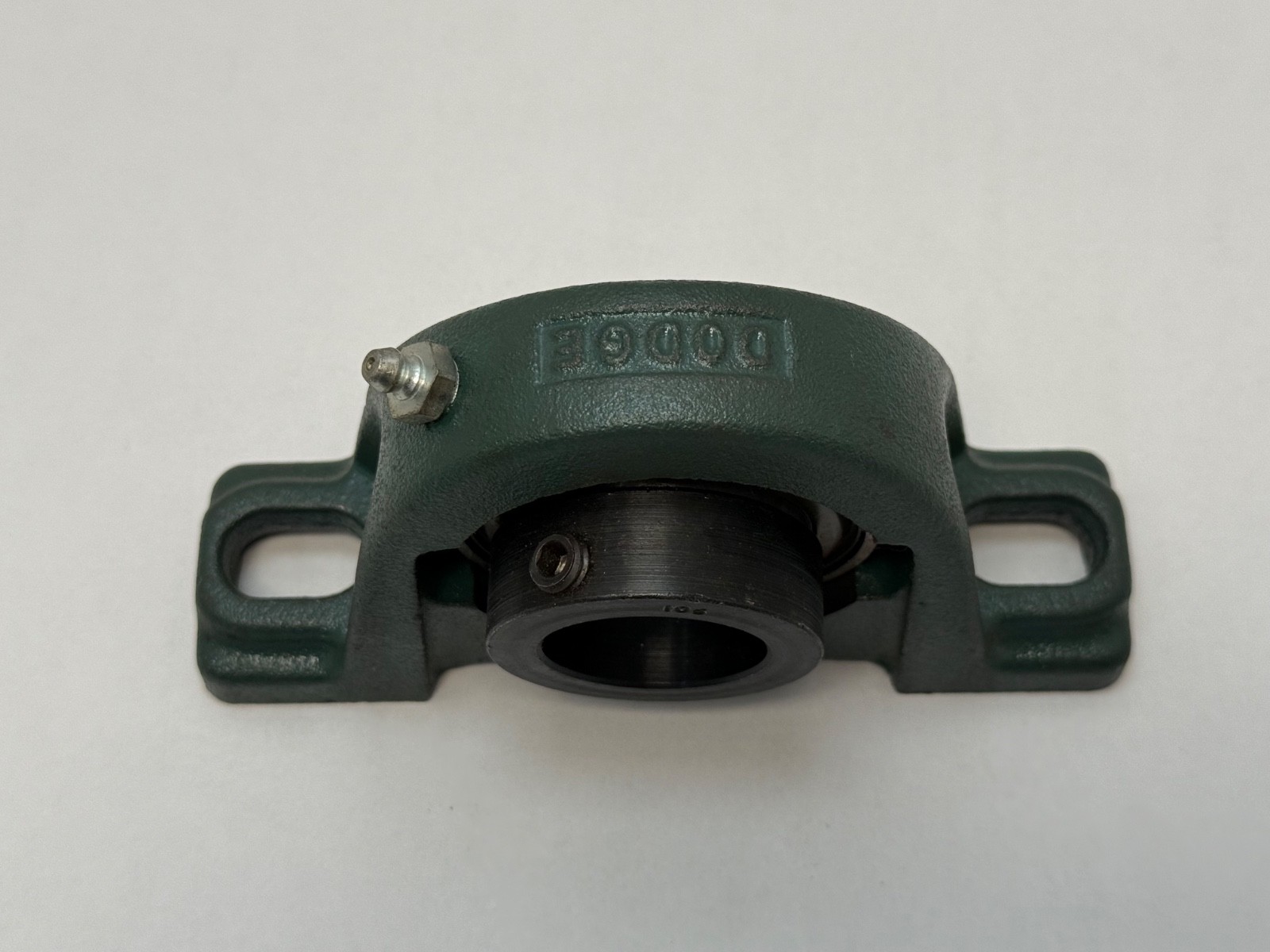

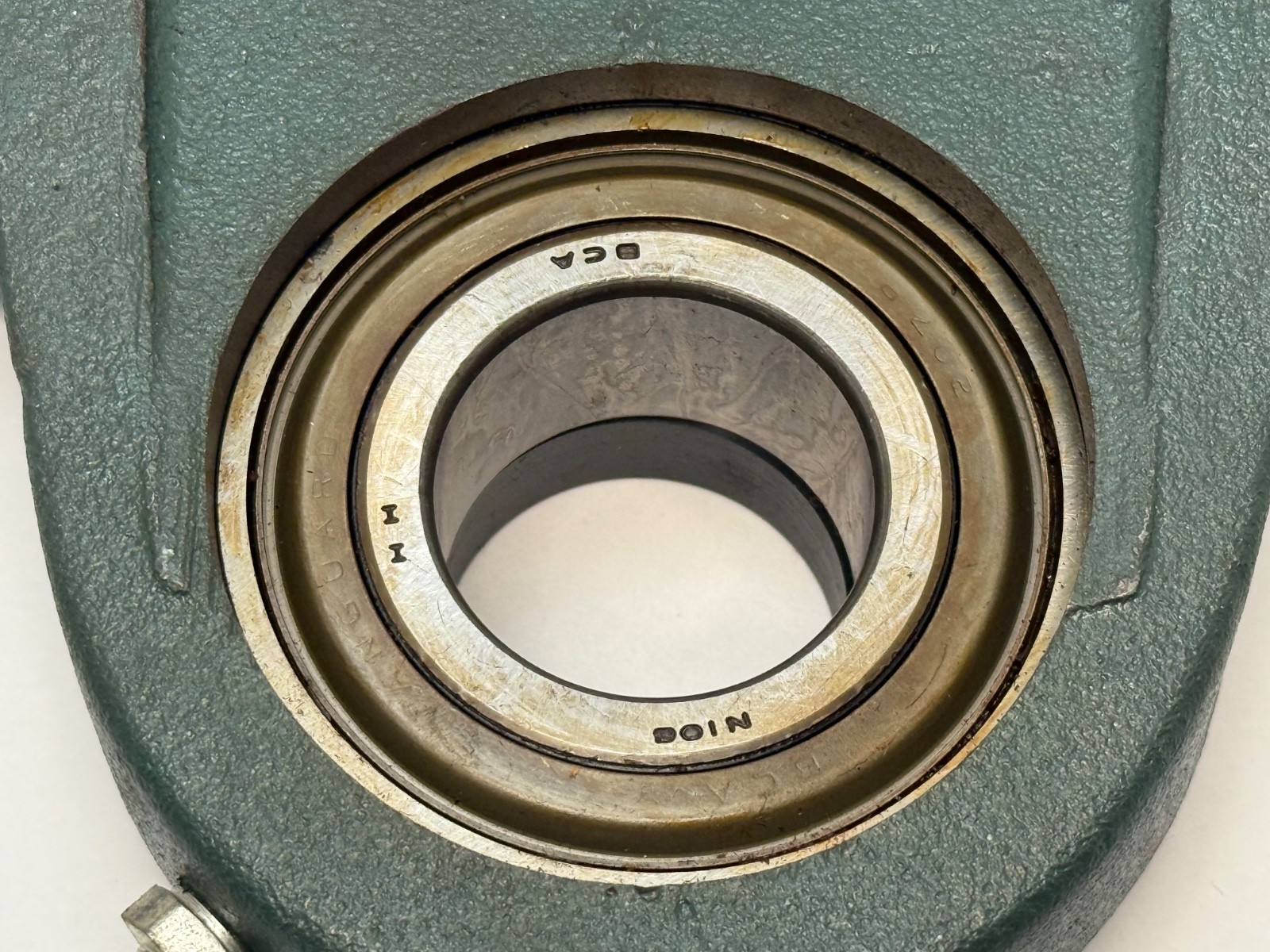

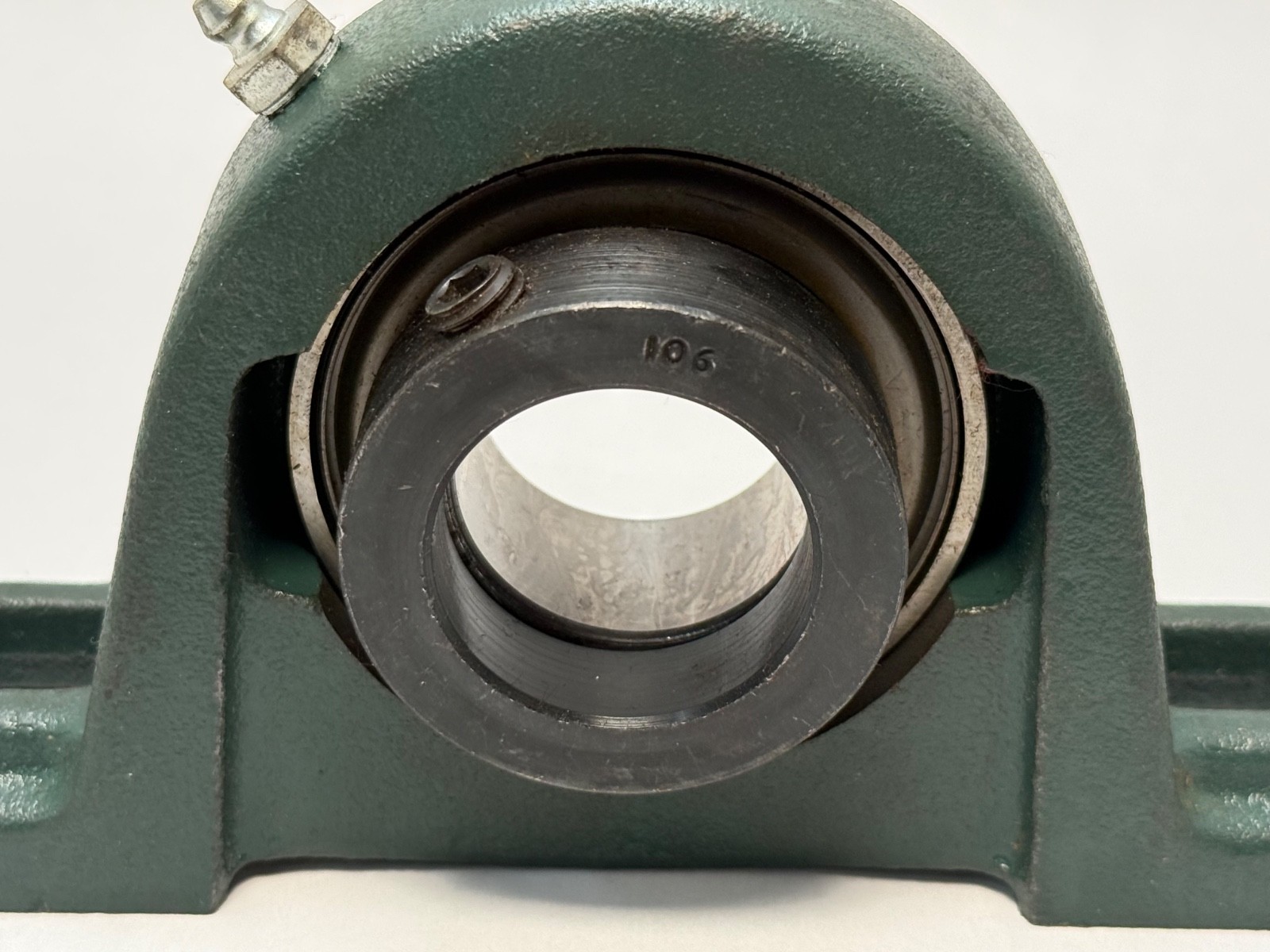

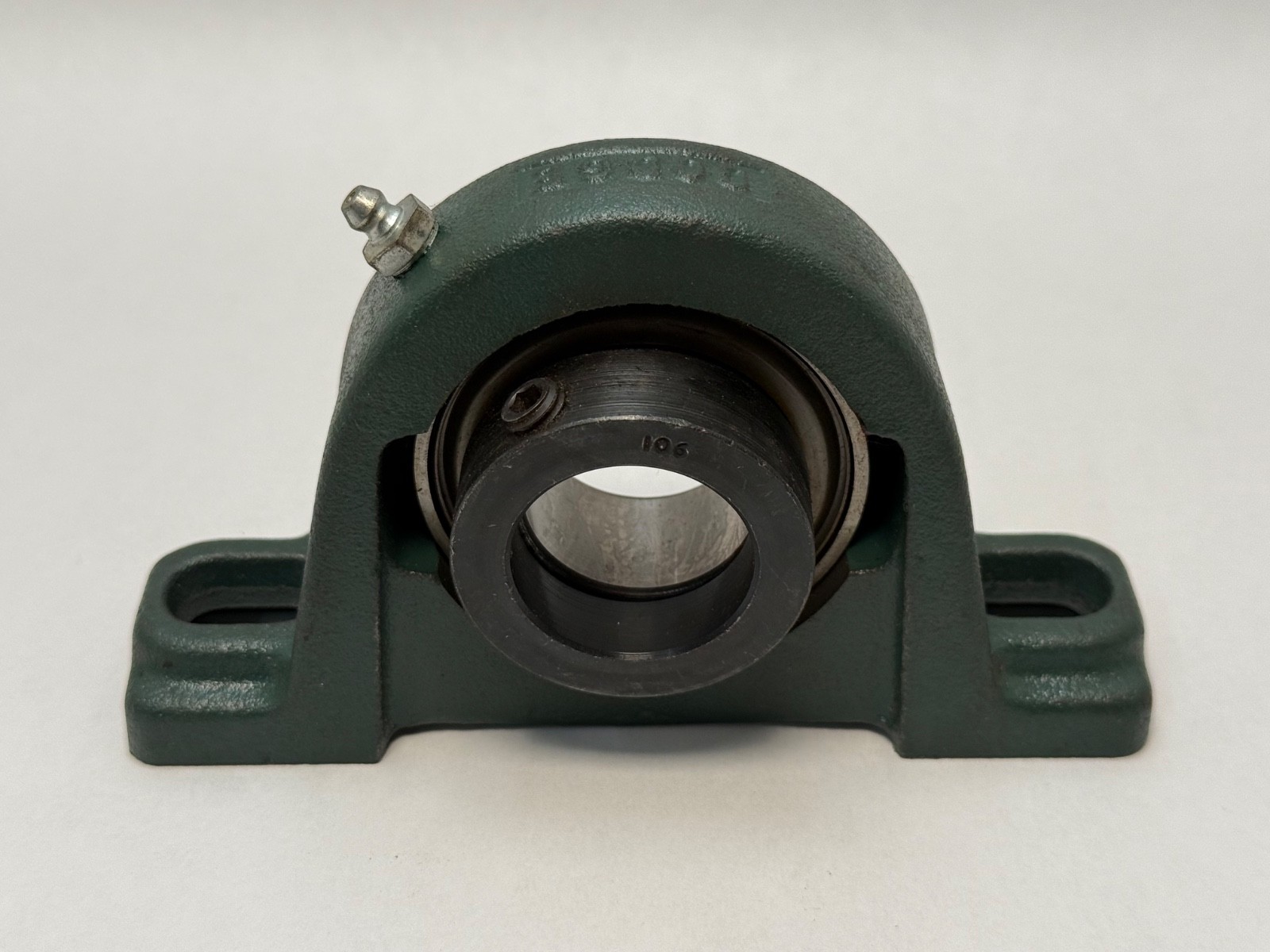

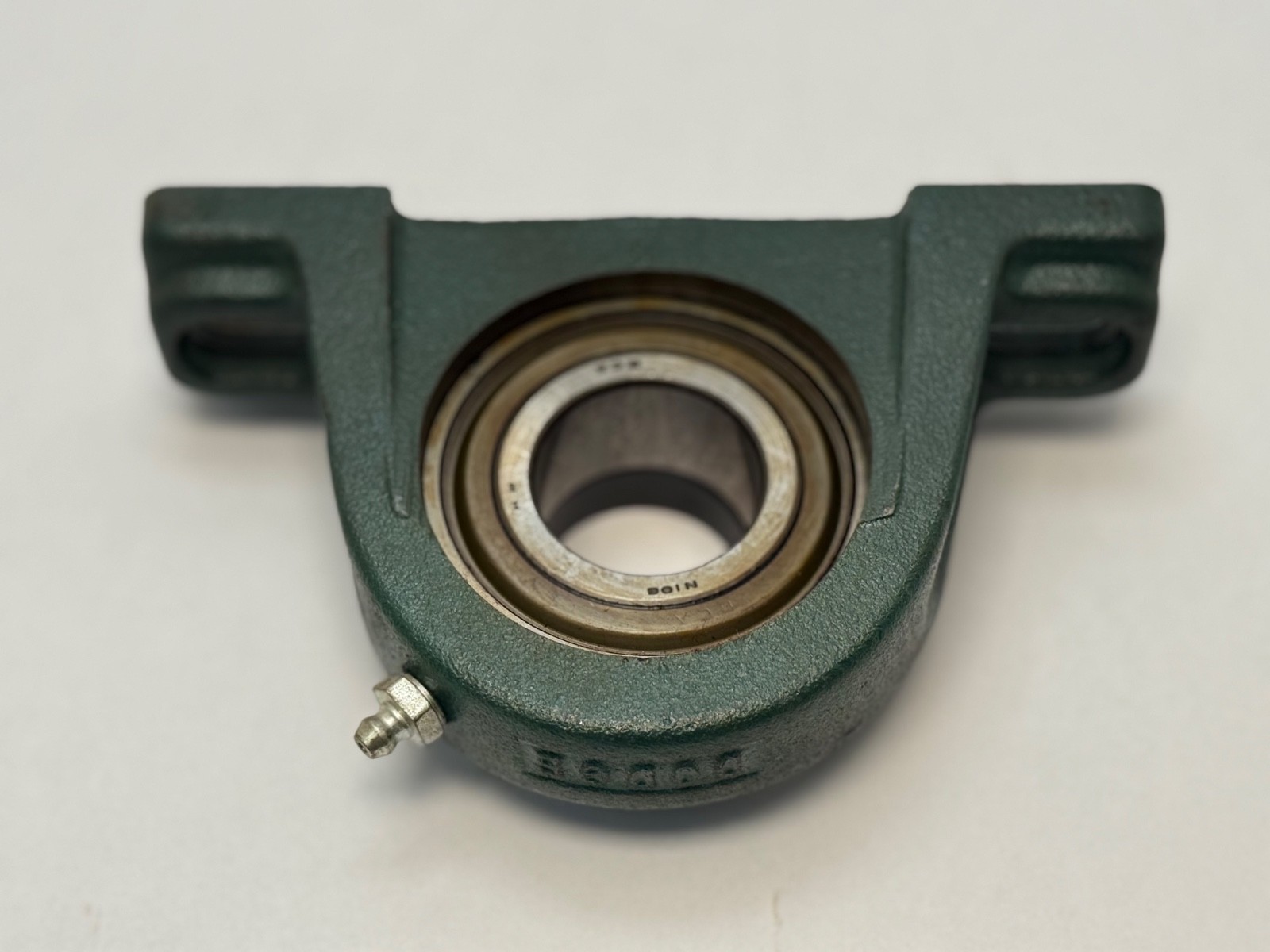

The Dodge P2B-SXV-106 is a mounted ball bearing unit, Dodge part number 131980, in a two-bolt pillow block with a cast iron housing, eccentric collar locking and a narrow inner ring. Bore / Shaft Size: 1-3/8 in (1.375 in).
P2B — two-bolt pillow block.
SXV — Dodge eccentric collar ball bearing, narrow inner ring, intermediate duty.
106 — Dodge bore code in whole inches and sixteenths: 1-06/16 = 1-3/8 in shaft.

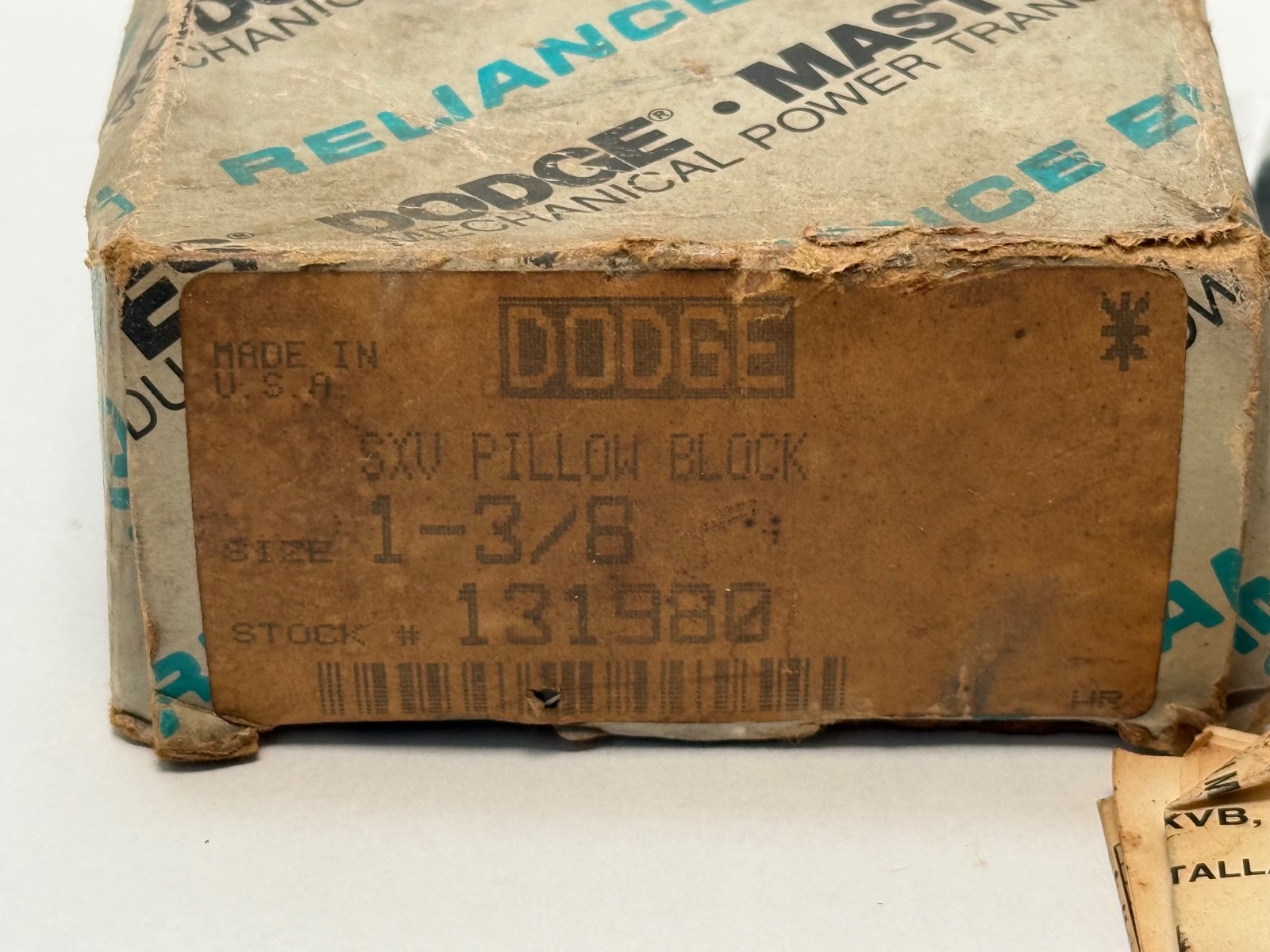

131980 — Dodge stock number for this build.
Bearing Type: Mounted ball bearing, two-bolt pillow block. Bore / Shaft Size: 1-3/8 in (1.375 in). Housing Style: Two-bolt pillow block, cast iron, slotted base. Locking Method: Eccentric collar. Expansion Type: Non-expansion (fixed). Closure Type: Single-lip contact seal. Duty Rating: Intermediate duty, narrow inner ring. Bearing Series: 207. Rolling Elements: Balls. Number of Rows: 1. Material: Cast iron housing, steel insert. Dynamic Load Rating: 5,759 lbf. Static Load Rating: 3,461 lbf. Limiting Speed: 3,500 rpm. Lubricant: Grease, Unirex N2. Relubricatable: Yes. Series: SXV. Unit Quantity: 1 Pc. GTIN: 782475119691.

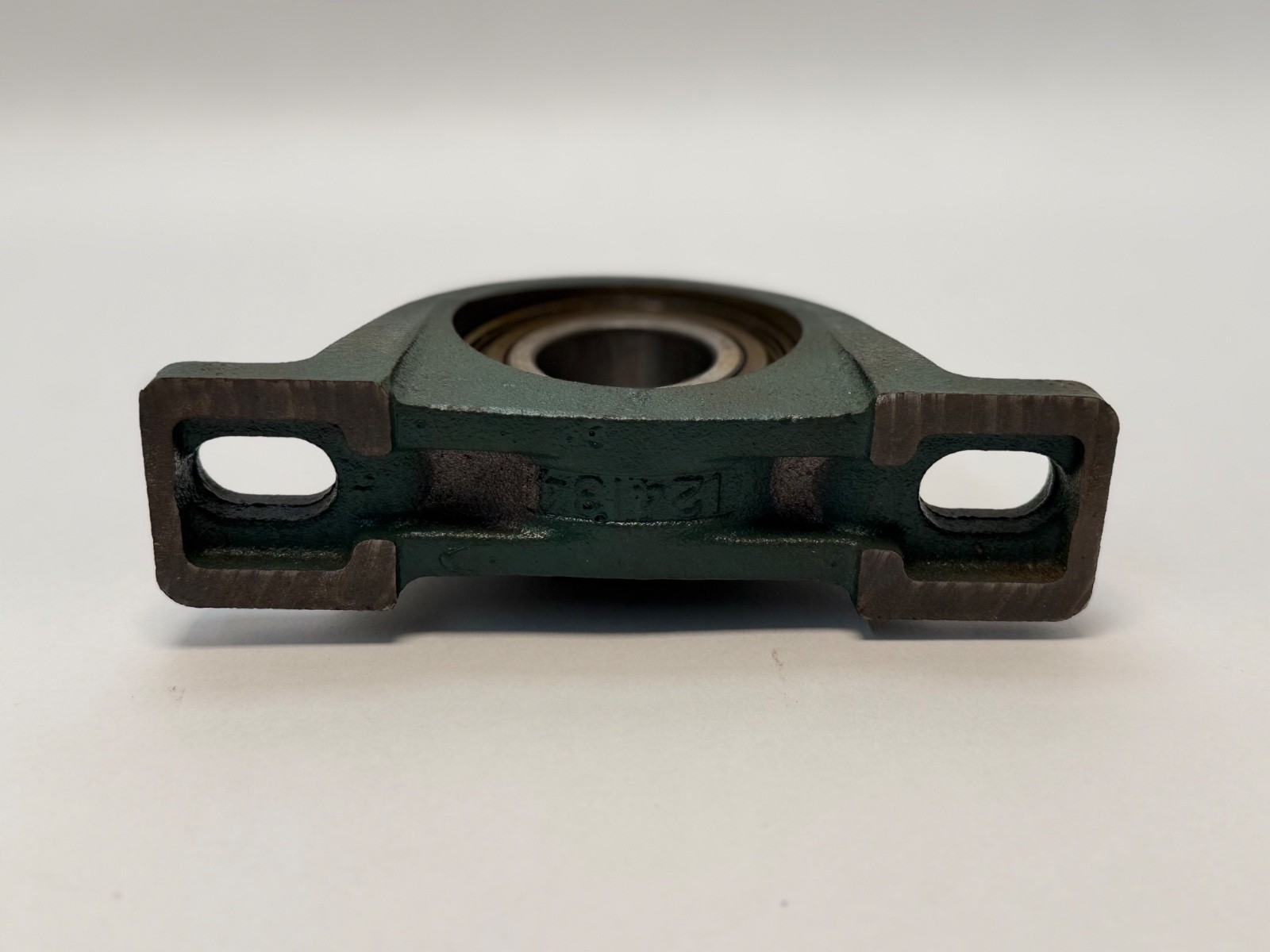

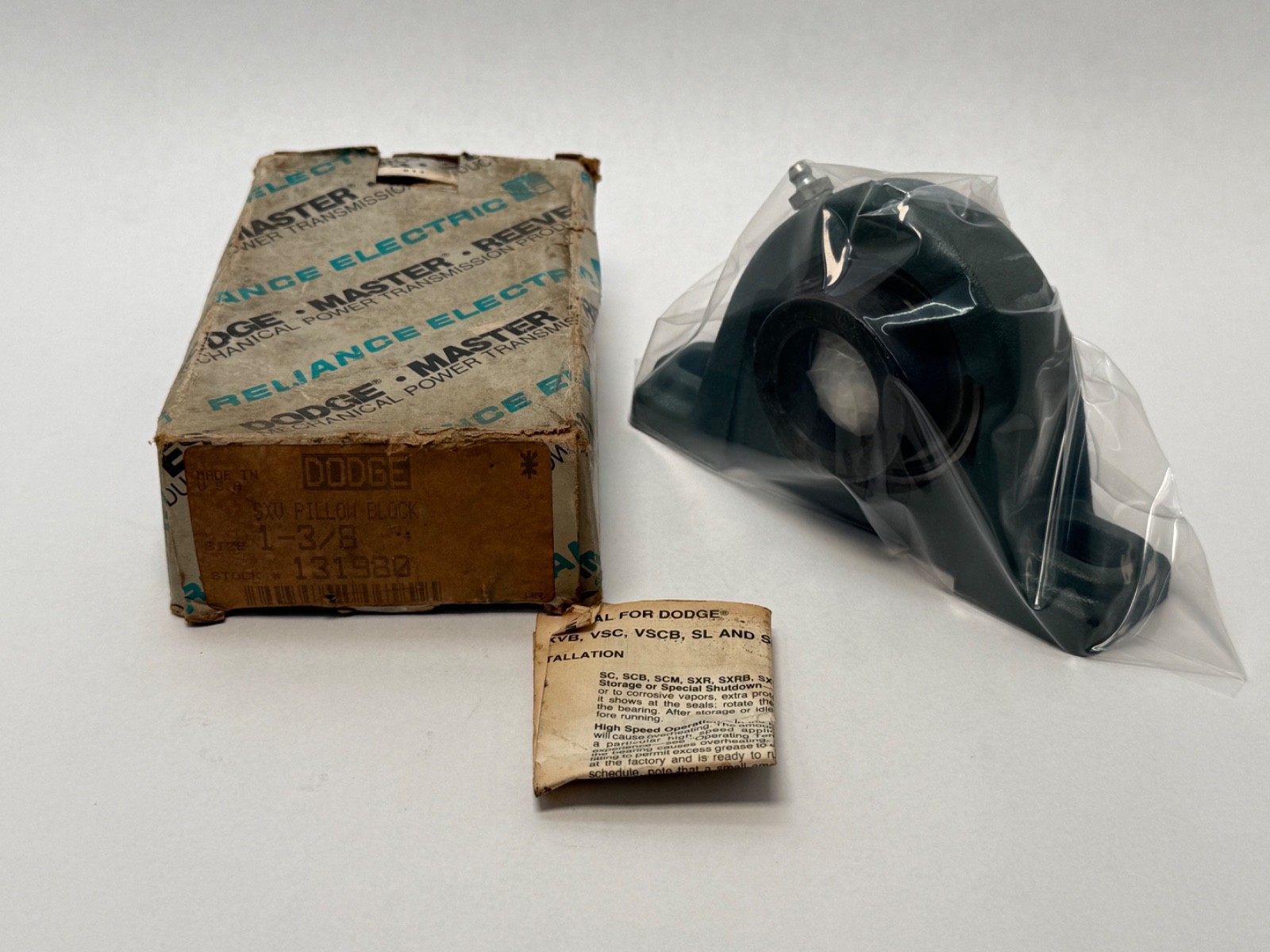

Two-bolt pillow block with a slotted base. Base To Bore Centerline: 1.875 in. Bolt Diameter: 0.5 in. Bolt Center To Center Length: 4.68 to 5.44 in. Bore Length: 1.53 in. Take-Up Frame Size: LD-20, TS-250. The unit is one complete pillow block with the cast iron housing, insert and eccentric collar assembled.
The P2B-SXR-106 is the same two-bolt pillow block at the same 1-3/8 in shaft on a wide inner ring, normal-duty insert, also eccentric collar. The P2B-SC-106 is the same shaft size on a setscrew-locking 207-series insert. Also written P2BSXV106, P2B SXV 106 and 131980.
1-3/8 in (1.375 in).
With an eccentric collar.
Dynamic Load Rating is 5,759 lbf and Static Load Rating is 3,461 lbf.
$144.56
12 in stock
