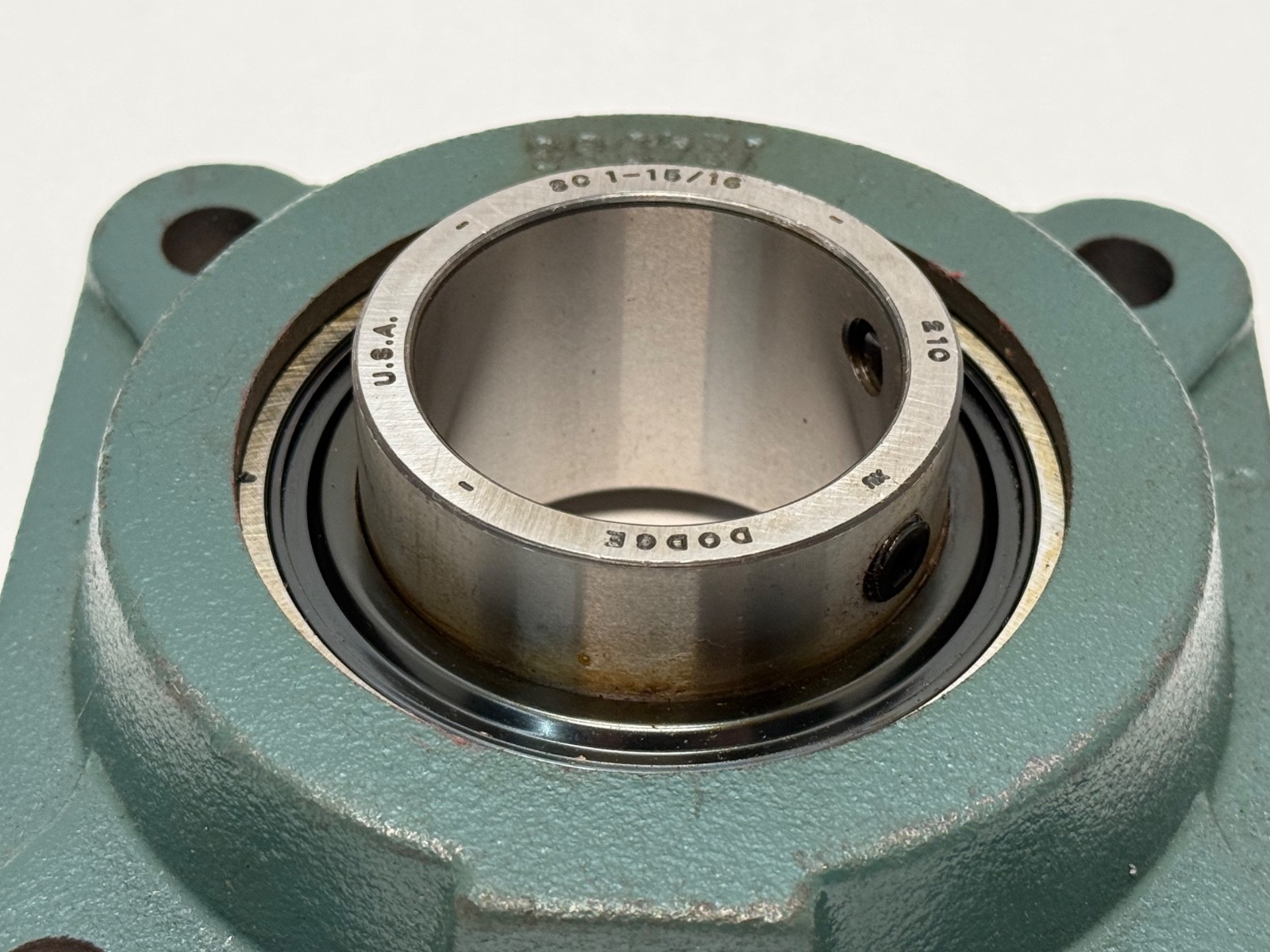

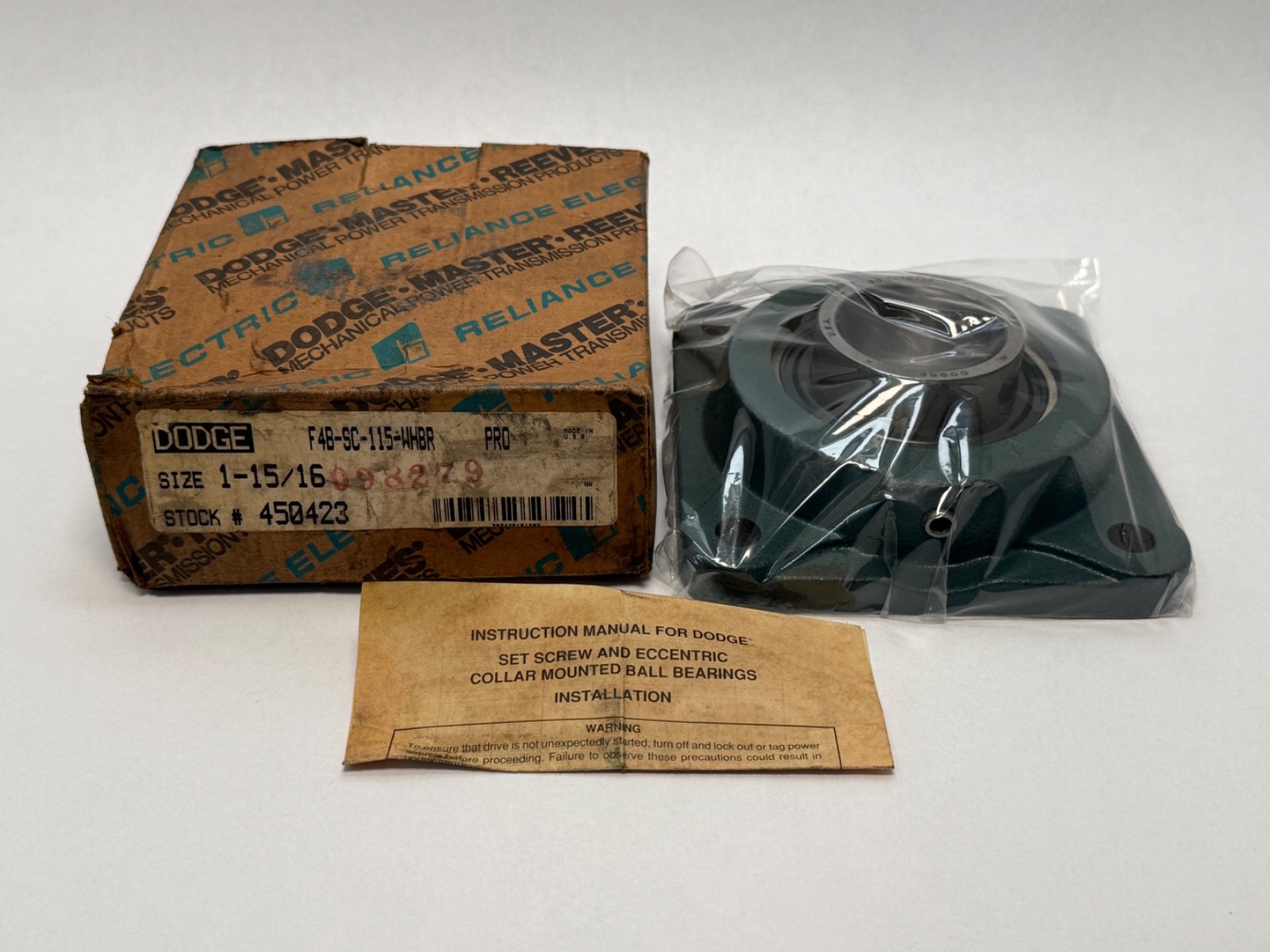

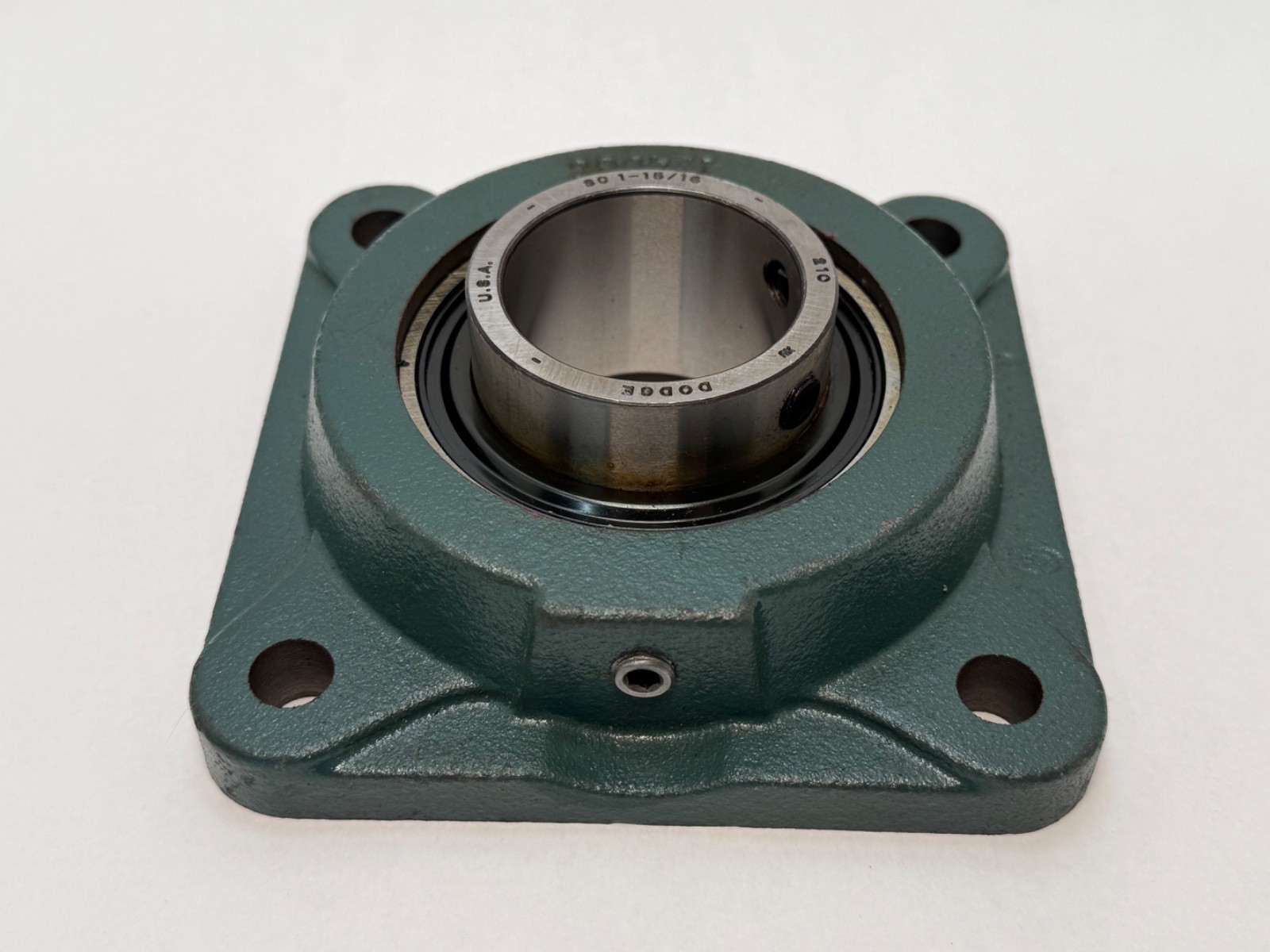

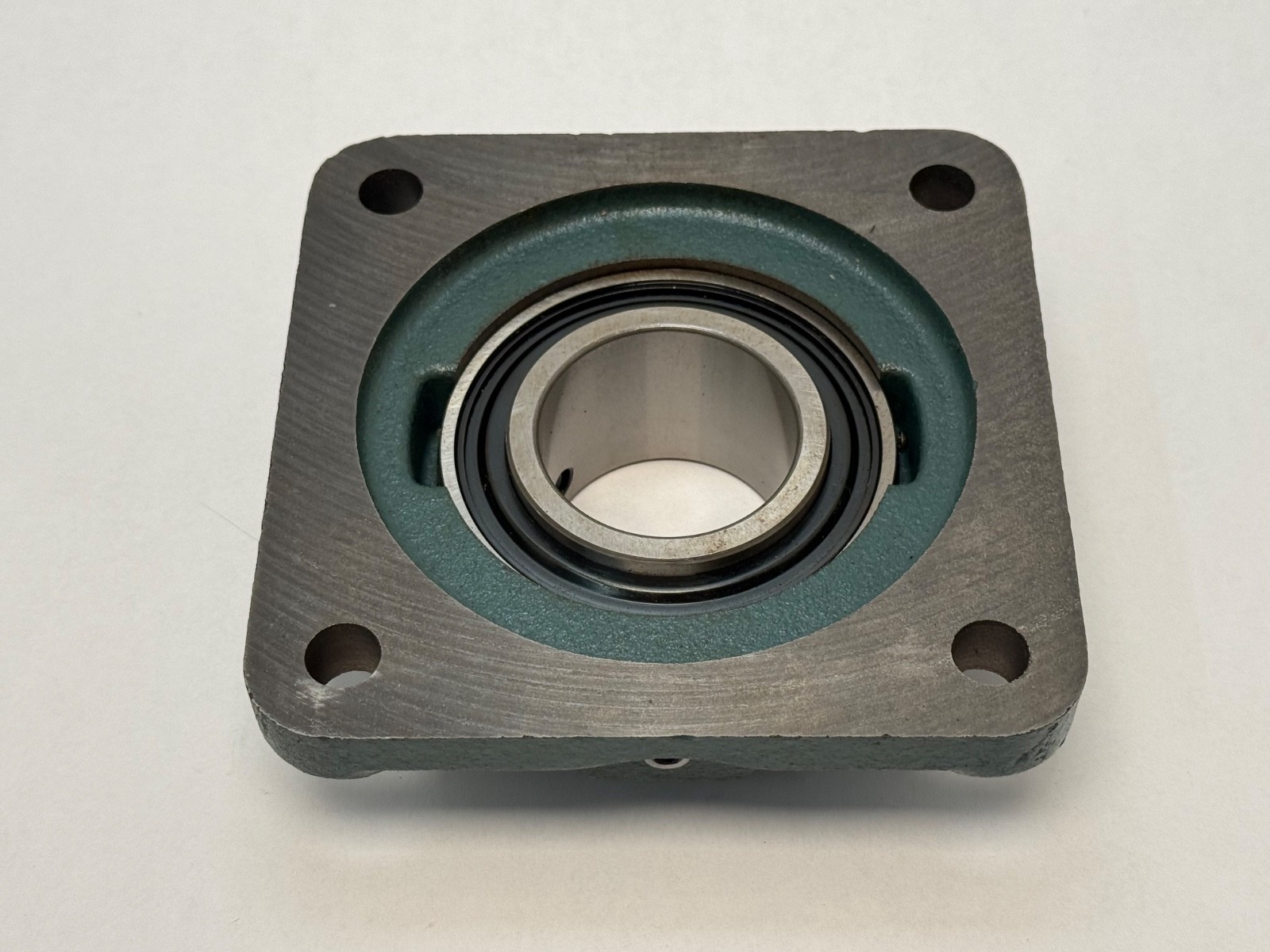

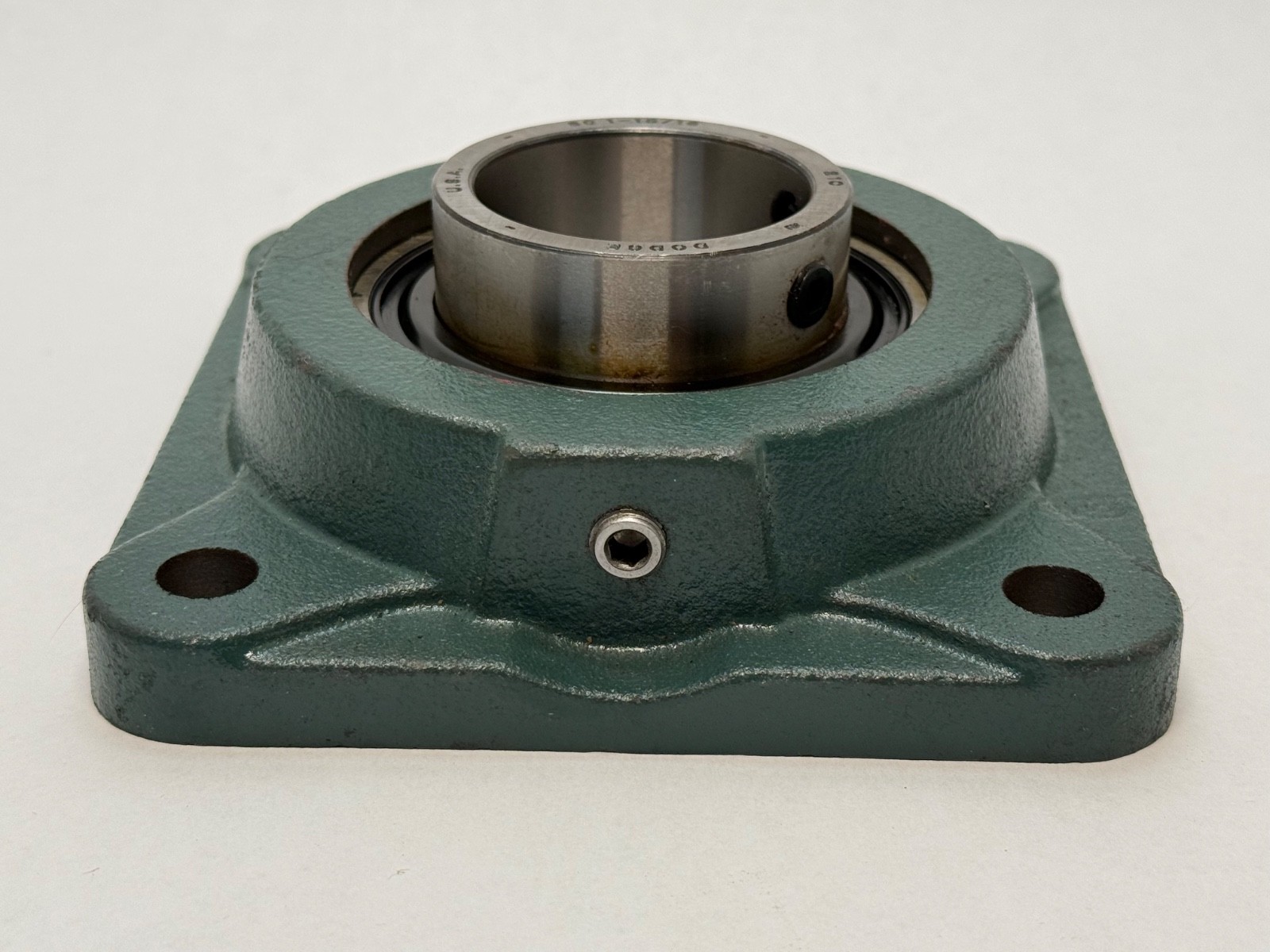

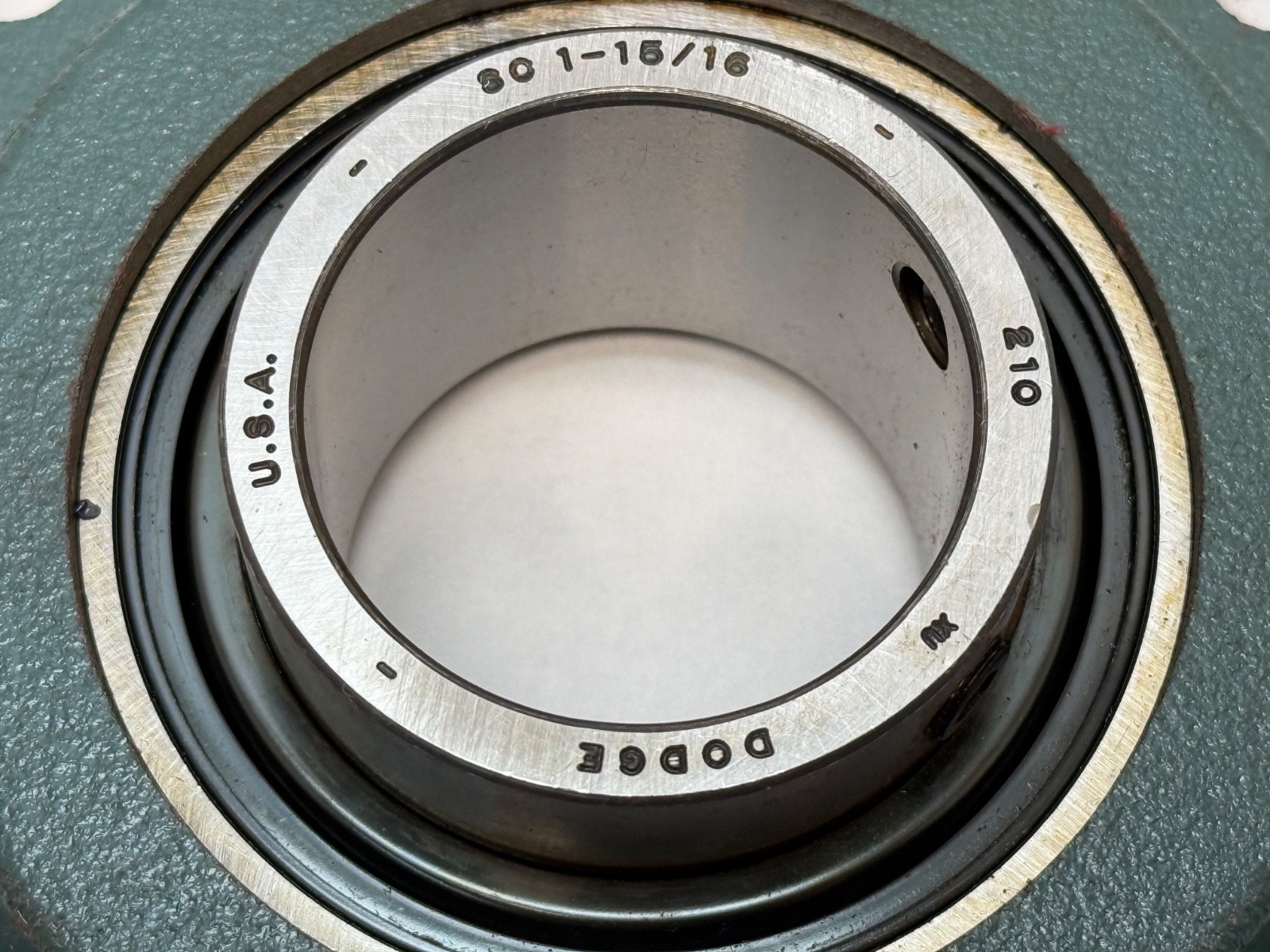

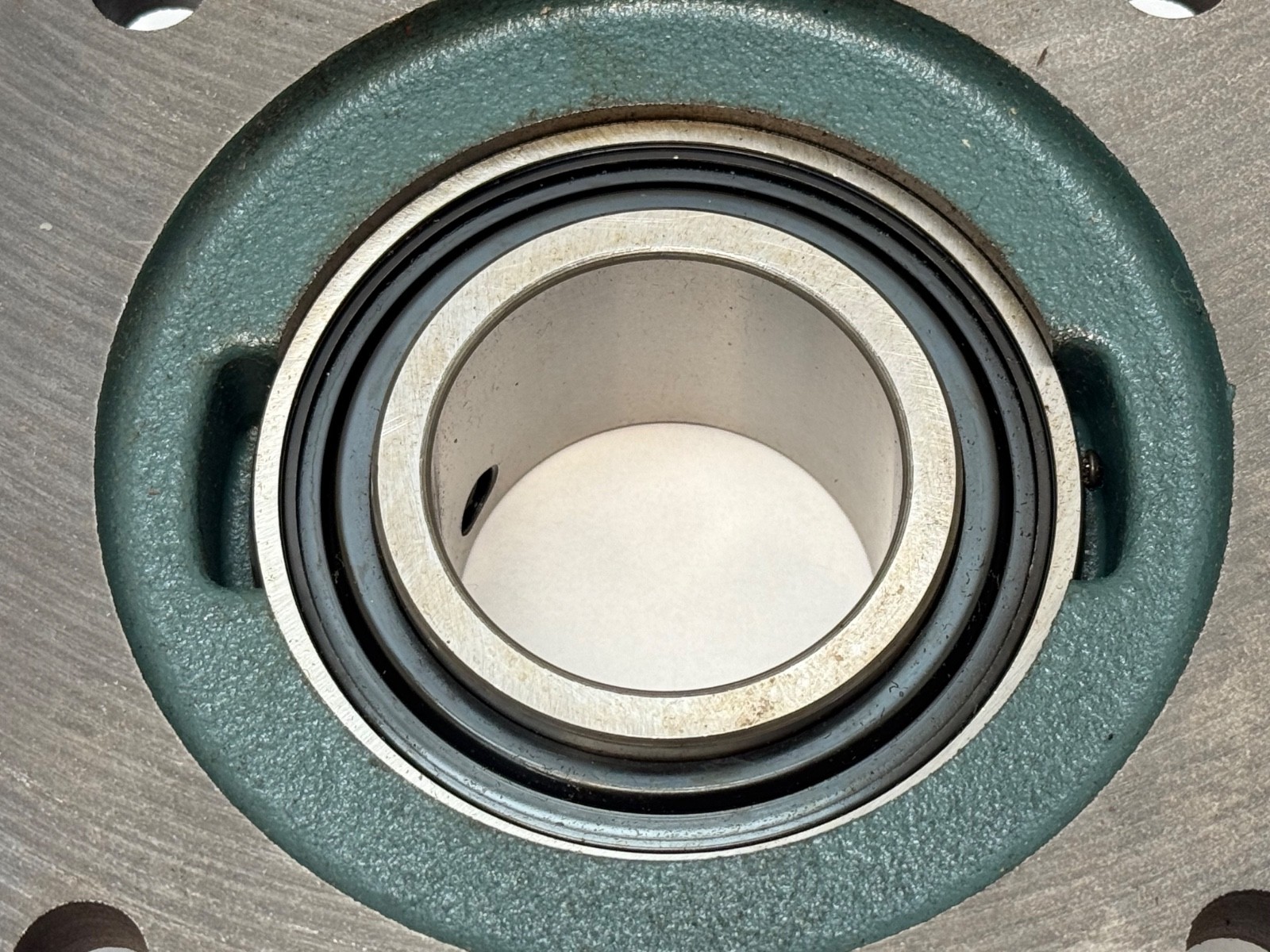

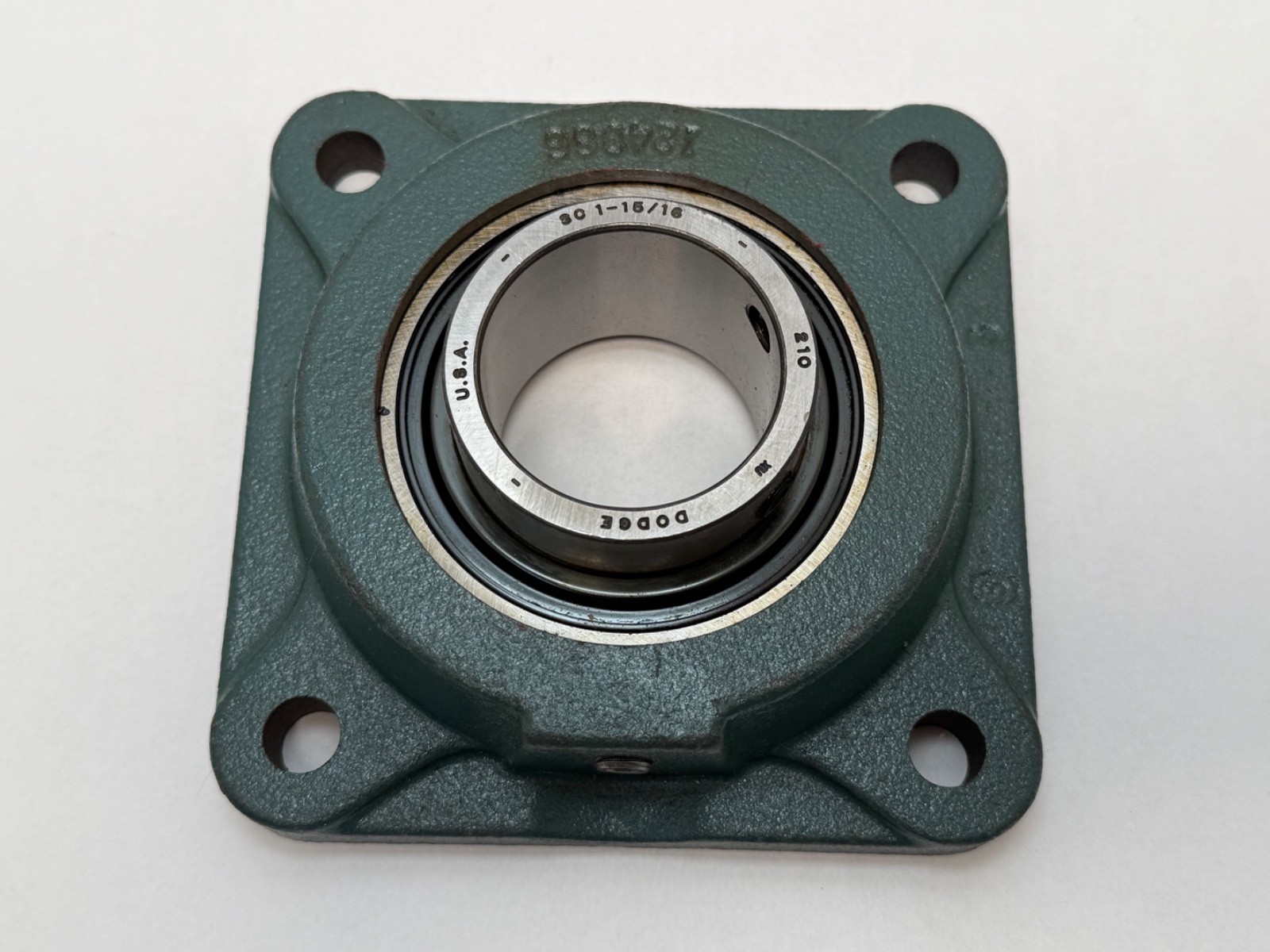

Dodge SC four-bolt flange bearing, 1-15/16 in bore, 210 series ball insert, 65° set screw locking, 4.38 in bolt spacing. 7,891 lb dynamic load, 4,500 rpm max.
List Price
$67.99
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | DODGE |
|---|---|
| MPN | F4B-SC-115-WHBR |
| Model | F4B-SC-115-WHBR |
| ID | 1-15/16 in |
| Base Number | F4B-SC-115 |
|---|---|
| Industry Terms | flange bearing; four-bolt flange unit; mounted ball bearing; flange block; set screw bearing |
| Common Misspellings | F4BSC115; F4B-SC115; F4B SC 115 |
| Application Types | conveyors; fans; agricultural equipment; material handling |
| Bore Width | 1.94 in |
| Bolt Center To Center Length | 4.38 in |
| Number Of Bolt Holes For Fasteners | 4 |
| Bearing Insert Type | Ball |
| Bore Shaft Size | 1-15/16 in |
| Housing Style | Four-bolt square flange |
| Locking Method | Set screw, two screws at 65° |
| Relubrication | Yes, grease |
| Mpn Variants | F4B-SC-115-WHBR; F4BSC115-WHBR; F4BSC115WHBR; 450423; F4B-SC-115 |
| Compatible With Replaces | Dodge F4B-SC-115 (124213) standard catalogue equivalent |
| Additional Attributes | Dodge Part Number: 450423; Base Part: F4B-SC-115 (124213); Base part data: Overall Length/Height 5.63 in; Overall Depth 2.02 in; Length Through Bore 1.94 in; Bolt Diameter 1/2 in; Insert Series 210 |
| Material | Cast Iron |
| Dynamic Load Rating | 7,891 lb |
| Static Load Rating | 5,213 lb |
| Condition | New – Open box |
| Bearing Type | Single-row ball, 210 series insert, DualGuard single-lip contact seal with flinger |
| Limiting Speed | 4,500 rpm |
| Housing Material | Cast iron |
| Expansion Type | Non-expansion |
| Compatible Model | F4B-SC-115 (124213) |
Dodge F4B-SC-115-WHBR is a four-bolt square flange unit with an SC normal-duty ball bearing insert for a 1-15/16 in shaft. Dodge part number: 450423. Base part: Dodge F4B-SC-115 (124213). Housing Style: Four-bolt flange. Bore / Shaft Size: 1-15/16 in. Bearing Type: Single-row ball, 210 series insert. Housing Material: Cast iron.
F4B — flange unit, four-bolt.
SC — wide inner ring, normal duty, two set screws spaced 65° apart.
115 — 1-15/16 in shaft size.
Base part F4B-SC-115 data: Dynamic Load Rating: 7,891 lb. Static Load Rating: 5,213 lb. Limiting Speed: 4,500 rpm. Locking Method: Set screw, two screws at 65°. Seal Type: DualGuard single-lip contact seal with flinger. Expansion Type: Non-expansion.
Base part F4B-SC-115 data: Bolt Center To Center Length: 4.38 in. Number Of Bolt Holes: 4. Bolt Diameter: 1/2 in. Overall Length and Height: 5.63 in square. Overall Depth: 2.02 in. Length Through Bore: 1.94 in. Relubrication: Yes, grease.
Standard catalogue equivalent: Dodge F4B-SC-115, part number 124213.
