Four-bolt square flange ball bearing unit, 1-7/16 in bore, 207-series insert, 65° setscrew lock, 3.63 in bolt centres, 5,759 lbf dynamic, 3,500 rpm.
List Price
$50.99
Out of stock

Out of stock
On the Shelf & Ready to Ship
Ships same day by 6pm ET

No Risk, No Hassle
This item is currently out of stock
Here are some other options that might fit your project — cross-referenced equivalents and similar parts we have in stock and ready to ship. Need help choosing? Call 585-295-7880.
Dodge | F4B-SC-101Four-Bolt Square Flange Ball Bearing Unit - 1-1/16 in Bore, 206 Series, Setscrew Lock, Non-Expansion, 3-1/4 in Bolt Centres$33.96
Dodge | F4B-SC-105Four-Bolt Flange Mount Ball Bearing Unit, 1-5/16" Bore, 3.63" Bolt Centres, Setscrew Locking, Non-Expansion$38.99
Dodge | F4B-SXV-100Four-Bolt Square Flange Bearing Unit - 1 in Shaft, Eccentric Collar Locking, Cast Iron, Narrow Inner Ring$40.99
Dodge | LFT-SXV-107-NLFlange Mount Ball Bearing Unit — 2-Bolt Light Duty, 1-7/16 in Bore, Eccentric Collar Lock, 3.94 in Bolt Centers, Sealed No-Lube$32.28| MFR / Brand | Dodge |
|---|---|
| MPN | F4B-SC-107 |
| Model | 124208 / F4B SC 107 |
| ID | 1-7/16 in |
| Material | Cast Iron |
|---|---|
| Type | Flanged Mount Bearing |
| Base Number | 124208 |
| Industry Terms | Four-bolt flange bearing, square flange block, flange mount ball bearing unit, setscrew flange bearing |
| Common Misspellings | F4BSC-107, F4B SC107, Dodge F4BSC 107, 124208 |
| Bolt Center To Center Length | 3.63 in |
| Bearing Insert Type | Ball |
| Bore Shaft Size | 1-7/16 in (36.51 mm) |
| Housing Style | Four-bolt square flange, cast iron |
| Locking Method | 65 degree setscrew |
| Relubrication | Grease fitting in the housing |
| Replacement Insert | Dodge INS-SC-107 |
| Mpn Variants | F4BSC107, F4B SC 107, F4B-SC107, 124208 |
| Additional Attributes | Four fixing holes on a square pattern; standard duty; spherical insert OD for initial misalignment take-up |
| Dynamic Load Rating | 5,759 lbf (25.6 kN) |
| Static Load Rating | 3,461 lbf (15.4 kN) |
| Series | 207 wide inner ring |
| Bearing Type | Mounted single-row ball bearing flange unit |
| Number Of Rows | 1 |
| Limiting Speed | 3,500 rpm |
| Expansion Type | Non-expansion |
| Part Number | F4B-SC-107 |
| Cross Reference 1 | Dodge P2B-SC-107 (item 123813) — pillow block on the same insert |
|---|---|
| Cross Reference 2 | Dodge INS-SC-107 — the insert alone |

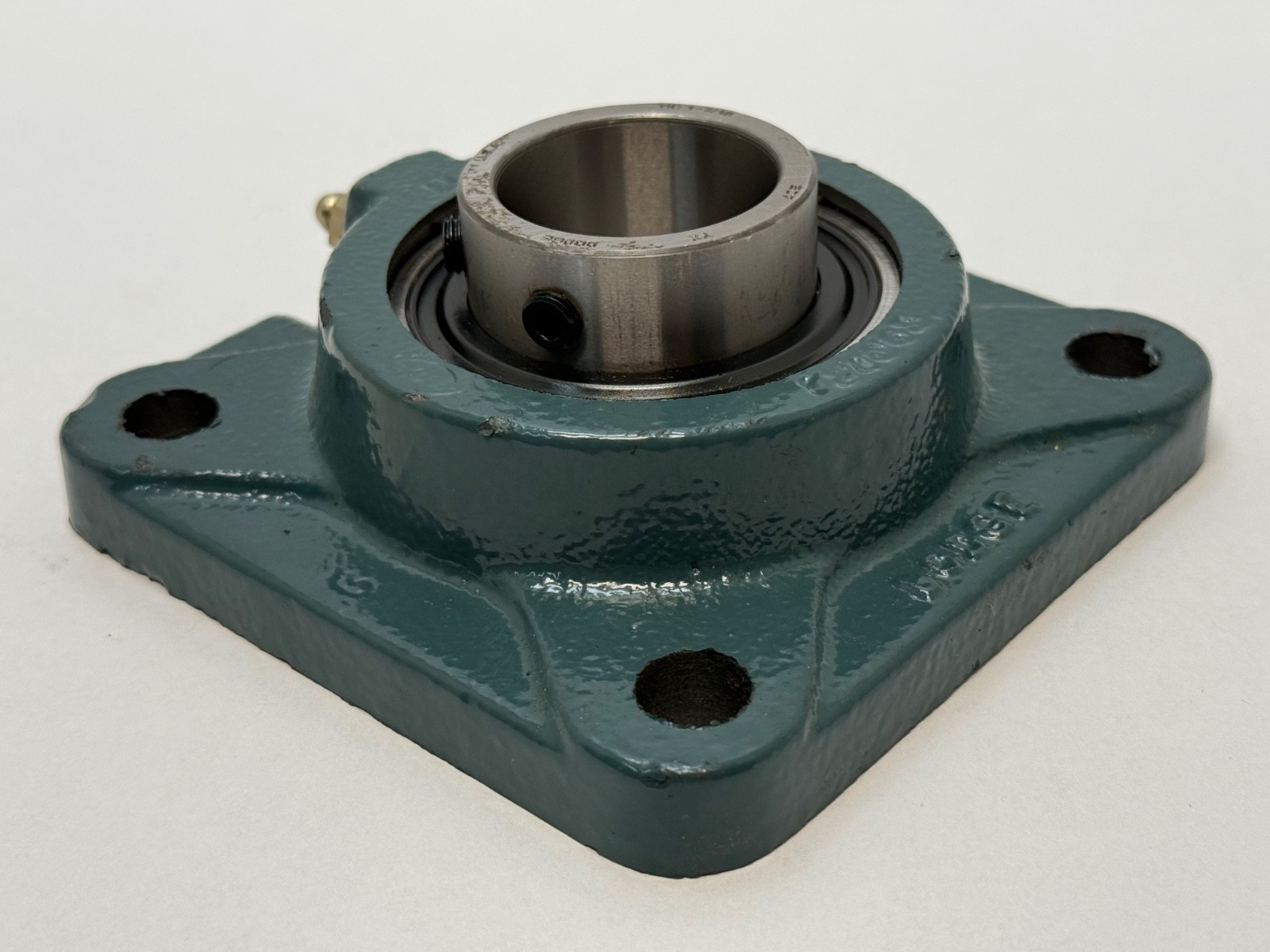

Dodge F4B-SC-107, Dodge item number 124208, is a four-bolt square flange ball bearing unit. Bearing Type: Mounted single-row ball bearing insert in a flange housing. Housing Style: Four-bolt square flange, cast iron. Bore / Shaft Size: 1-7/16 in (36.51 mm). Series: 207 wide inner ring. Locking Method: 65° setscrew. Expansion Type: Non-expansion. Dynamic Load Rating: 5,759 lbf. Static Load Rating: 3,461 lbf. Limiting Speed: 3,500 rpm.
F4B — four-bolt flange housing, bolted flat against a vertical face with the shaft running perpendicular through it.
SC — setscrew locking on a standard-duty cast iron housing, the general-purpose Dodge mounted ball bearing line.
107 — bore code for a 1-7/16 in shaft.

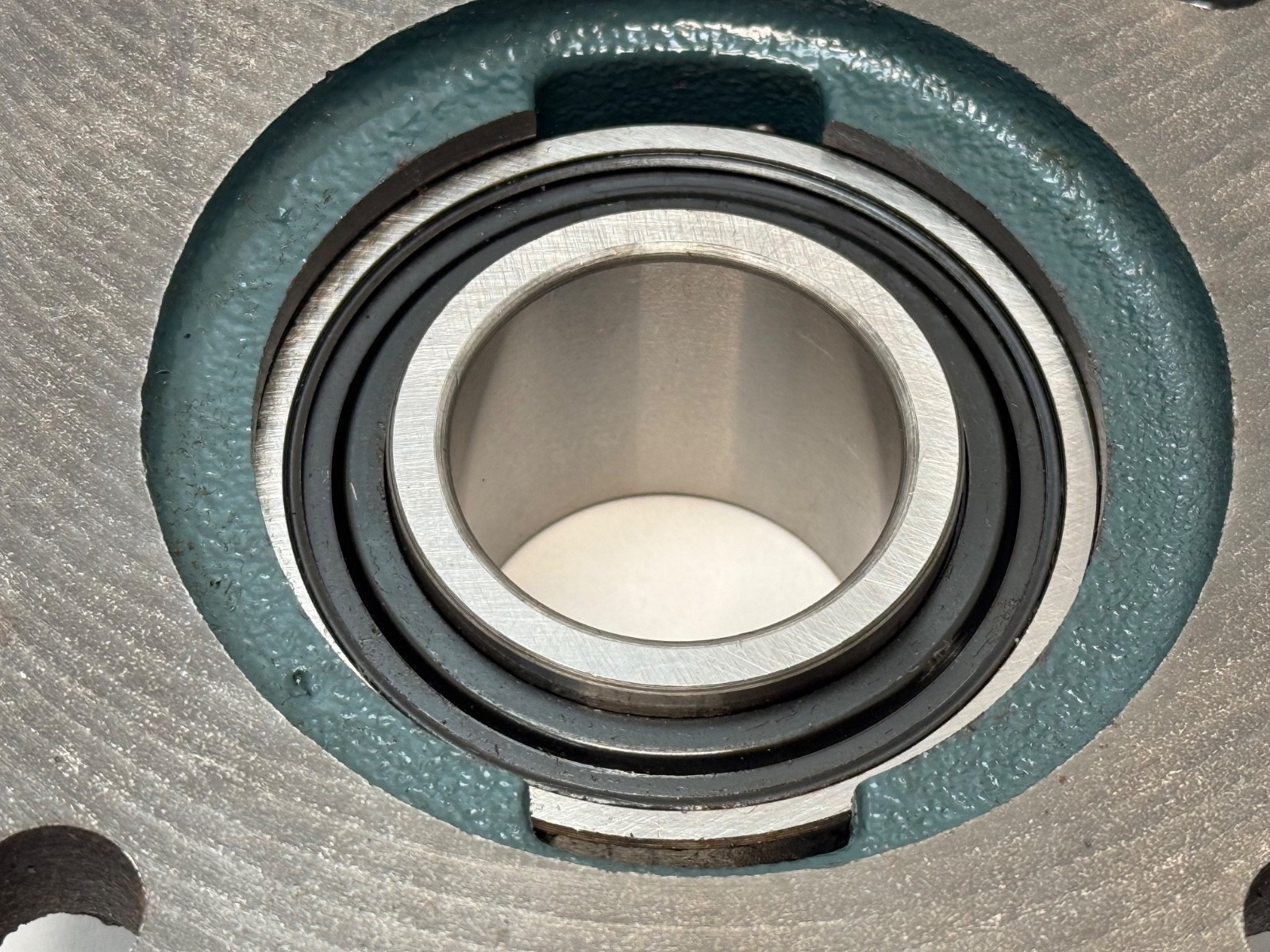

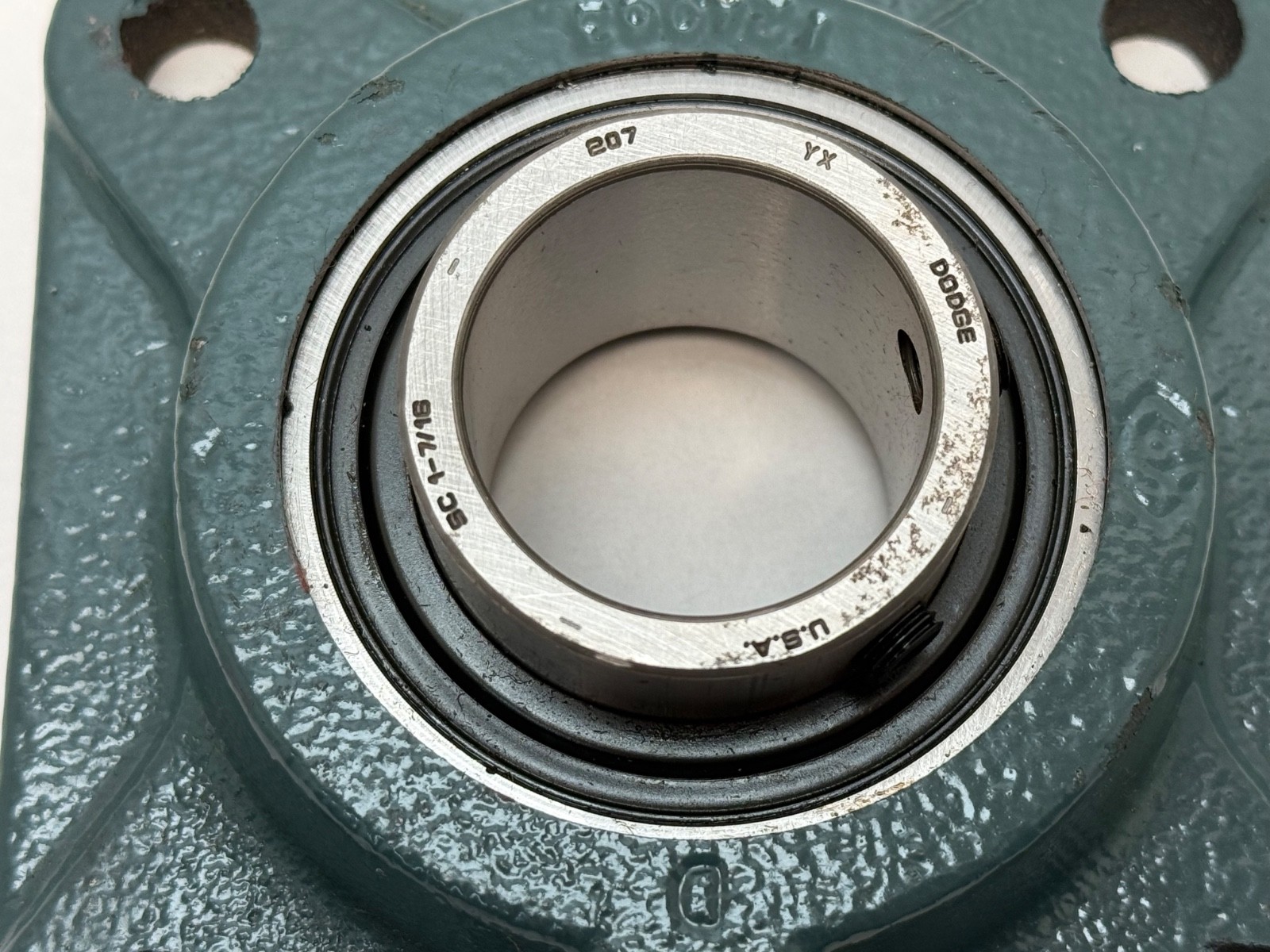

Locking Method: 65° setscrew. Two setscrews set at 65° to one another bite the shaft through the extended inner ring, holding the insert against rotation and axial creep, and they release with a hex key at changeout. The insert’s spherical outside diameter seats in a matching spherical housing bore, so the unit takes up initial shaft misalignment on a frame that is not perfectly machined. Dynamic Load Rating: 5,759 lbf and Static Load Rating: 3,461 lbf are the 207-series figures. Limiting Speed: 3,500 rpm.

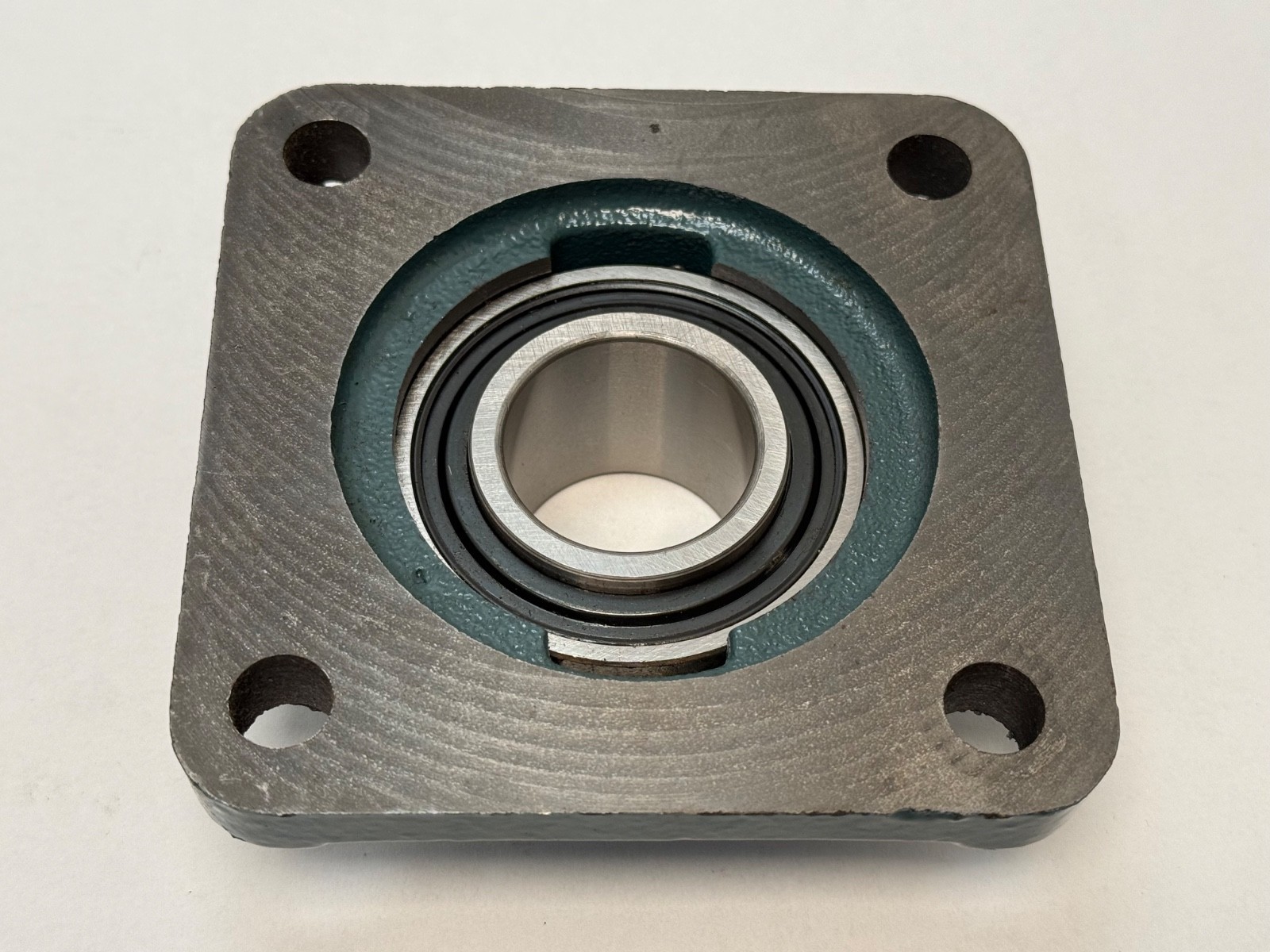

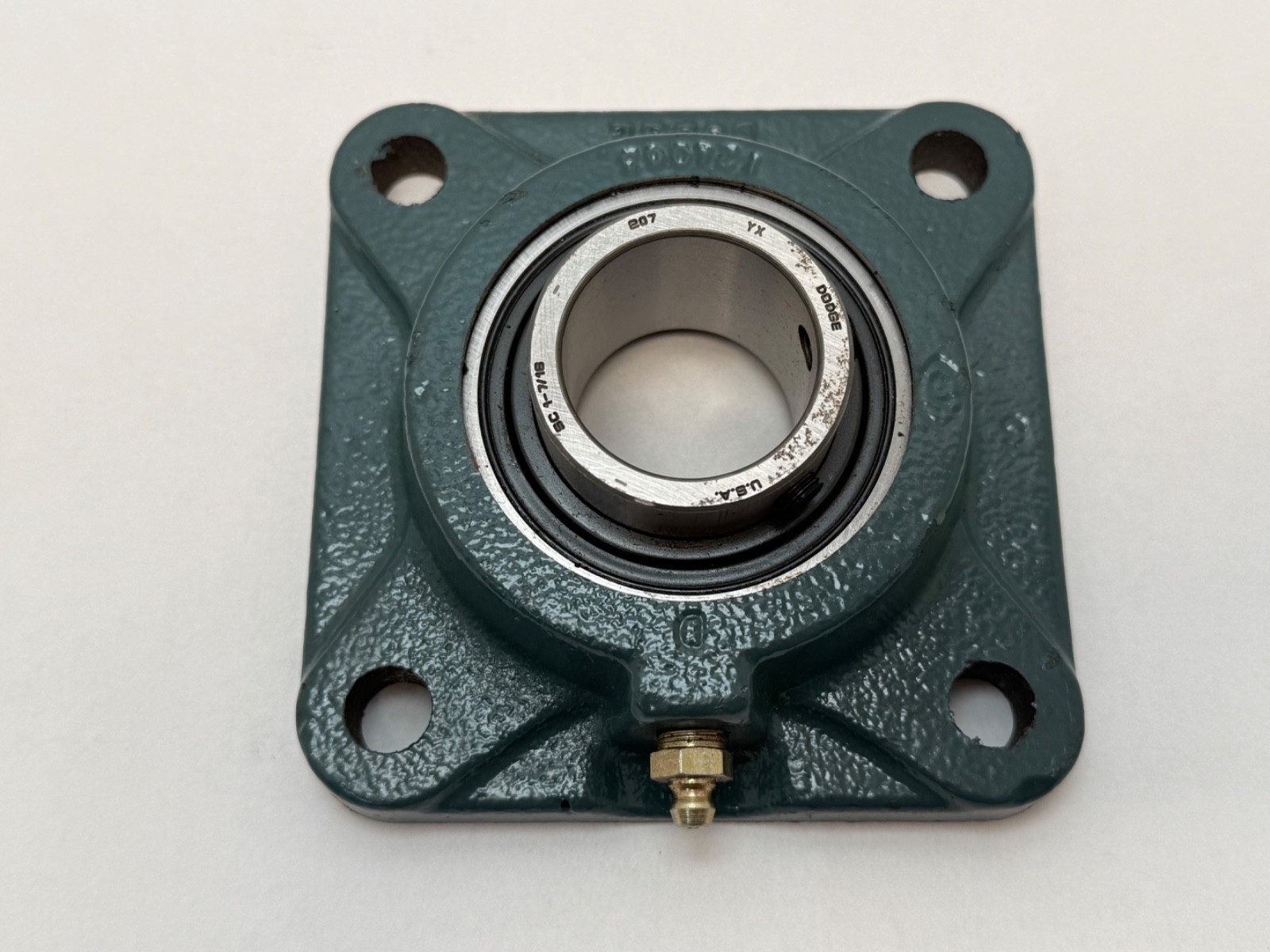

Housing Style: Four-bolt square flange, cast iron. Bolt Center To Center Length: 3.63 in between adjacent holes on the square pattern. Four fixing points spread the load across a bulkhead or gearcase wall and hold the shaft square to it, which is the reason to choose this over a two-bolt flange in the same bore.

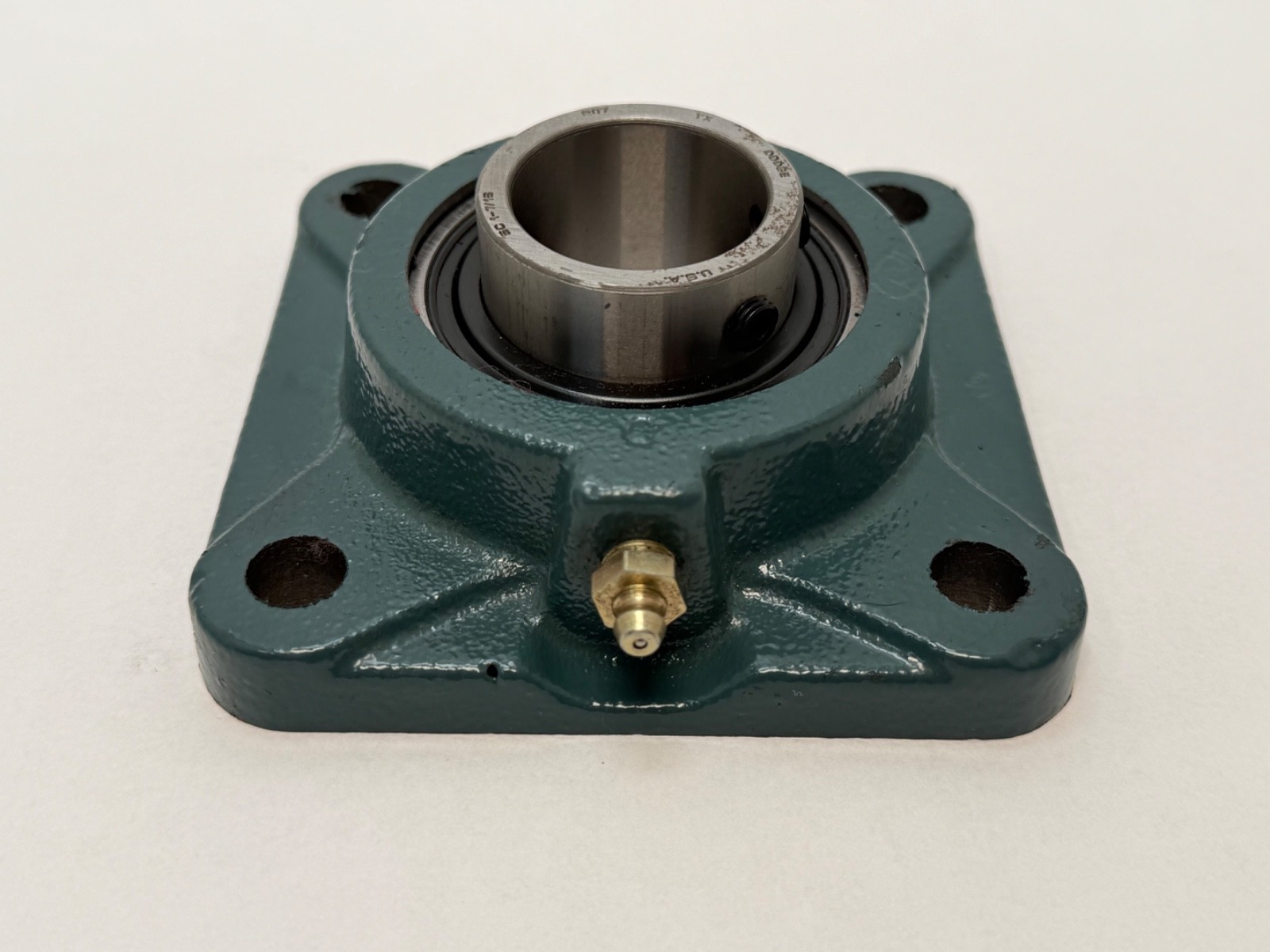

Expansion Type: Non-expansion — this position fixes the shaft axially, so a floating unit belongs at the far end of a long shaft that grows with temperature. Relubrication: grease fitting in the housing.

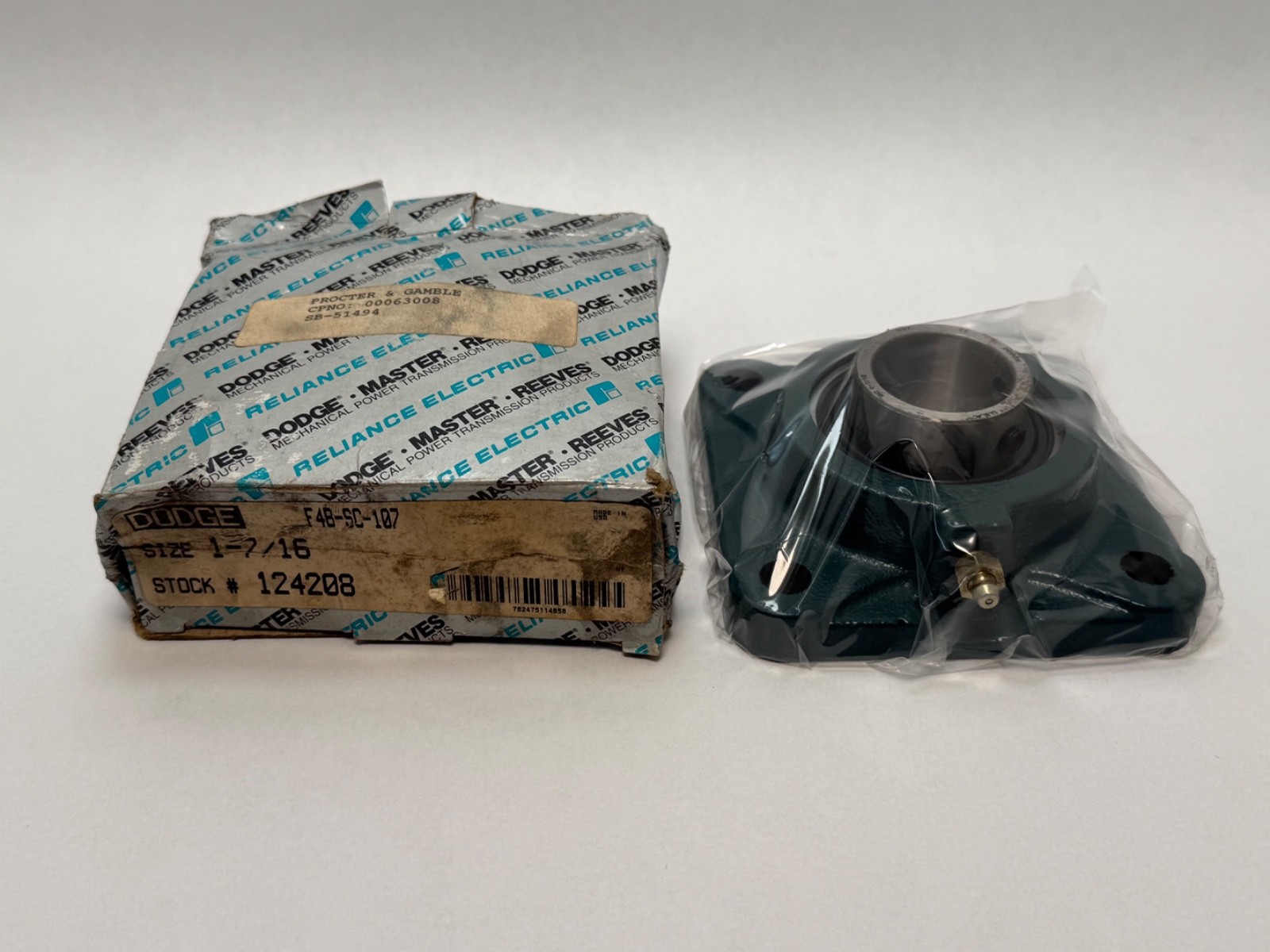

Unit Quantity: 1 Pc. Complete flange unit — cast iron housing with the 207-series ball insert and its setscrew collar fitted.
Part Number: F4B-SC-107. Base Number: 124208. Searchable variants: F4BSC107, F4B SC 107, F4B-SC107. The matching insert on its own is the Dodge INS-SC-107. The pillow block on the same insert is the Dodge P2B-SC-107, item 123813.
