Availability:
1 in stock

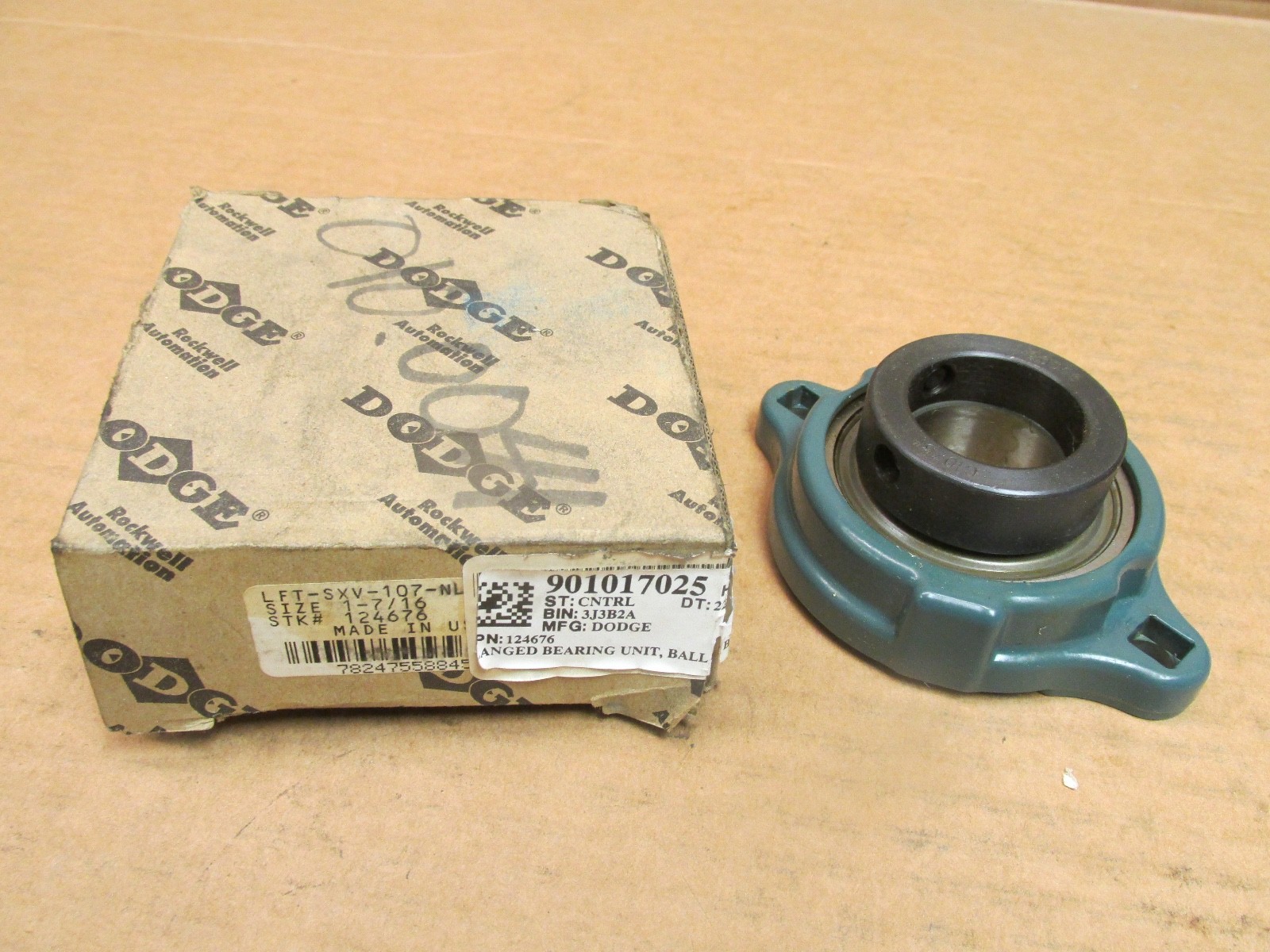

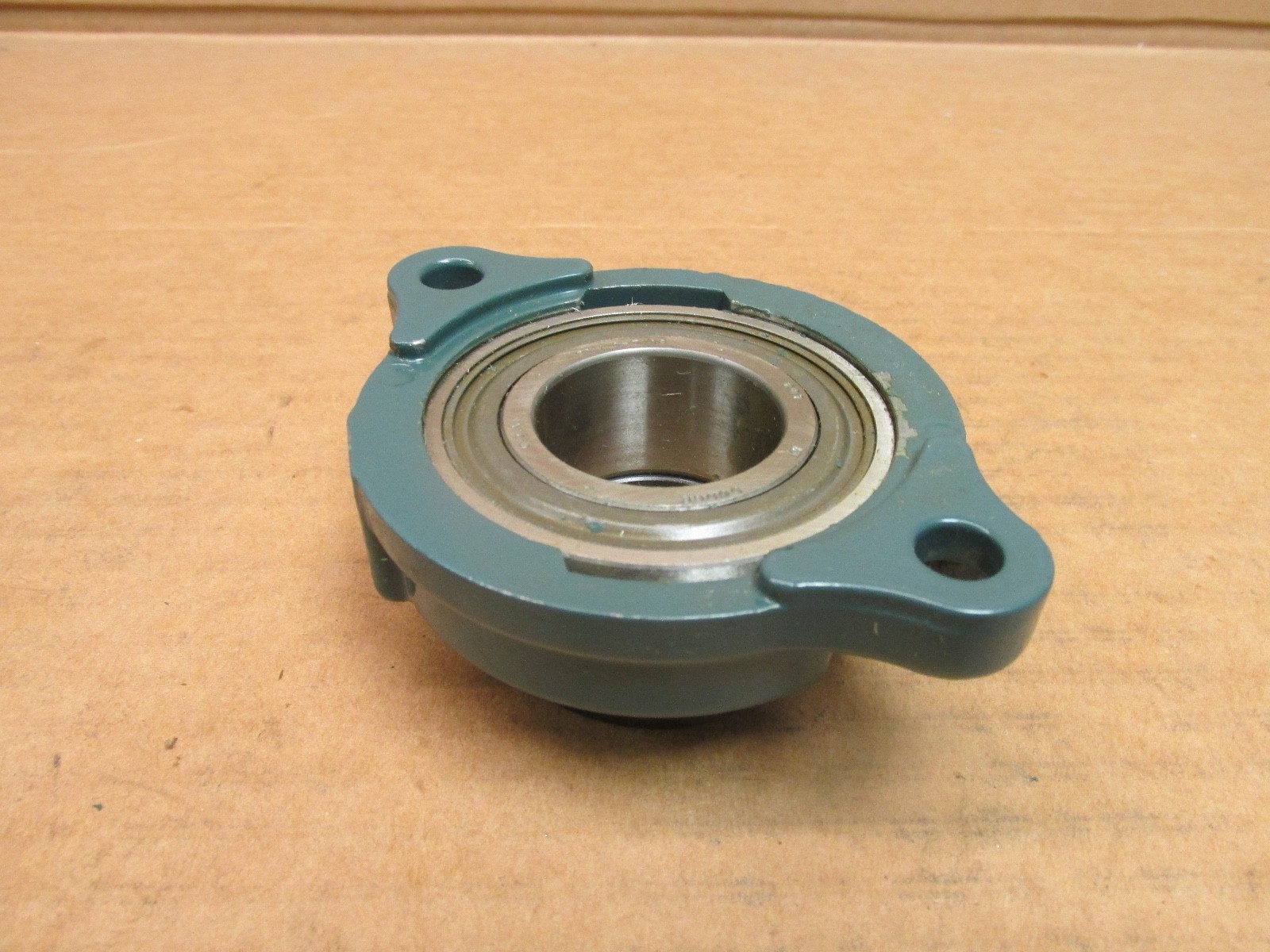

Dodge LFT-SXV-107-NL 2-bolt flange ball bearing unit, 1-7/16 in bore, eccentric locking collar, 3.94 in bolt centers, sealed no-lube, catalog 124676.
List Price
$32.28
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | LFT-SXV-107-NL |
| GTIN | 782475588459 |
| Model | LFT-SXV-107-NL |
| ID | 1-7/16 in |
| Type | Flanged Mount Bearing |
|---|---|
| Bolt Center To Center | 3.94 in |
| Number Of Bolt Holes | 2 |
| Bolt Center To Center Length | 3.94 in |
| Number Of Bolt Holes For Fasteners | 2 |
| Rolling Elements | Ball (Insert) |
| Bearing Type | Flange mounted ball bearing unit |
| Locking Device | Eccentric locking collar |
| Industry Terms | 2-bolt flange bearing, light duty flange unit, eccentric collar flange bearing, no-lube flange bearing |
| Bore Shaft Size | 1-7/16 in (1.4375 in, 36.51 mm) |
| Housing Style | 2-bolt flange, light duty |
| Locking Method | Eccentric locking collar |
| Relubrication | Sealed for life |
| Mpn Variants | 124676, LFTSXV107NL, LFT SXV 107 NL |
| Additional Attributes | Bearing Series: 207; Bolt Holes: Square; Overall Length: 4.82 in; Overall Height: 3-1/2 in; Overall Depth: 1.72 in; Finish: Powder coated |
| Dynamic Load Rating | 5,759 lbf (25,617 N) |
| Static Load Rating | 3,461 lbf (15,395 N) |
| Limiting Speed | 5,500 rpm |
The Dodge LFT-SXV-107-NL, catalog number 124676, is a two-bolt light duty flange mounted ball bearing unit for a 1-7/16 in shaft, with an eccentric locking collar and a factory-lubricated, sealed-for-life insert. Housing Style: 2-bolt flange with square bolt holes. Bearing Series: 207.
LFT — Dodge two-bolt light duty flange housing.
SXV — Dodge eccentric locking collar ball bearing insert.
107 — 1-7/16 in shaft size.
NL — no-lube: sealed for life, no grease fitting.
Bore / Shaft Size: 1-7/16 in (1.4375 in, 36.51 mm). Locking Method: Eccentric locking collar. Dynamic Load Rating: 5,759 lbf (25,617 N). Static Load Rating: 3,461 lbf (15,395 N). Limiting Speed: 5,500 rpm. Relubrication: Sealed for life. Expansion Type: Non-expansion. The collar locks the insert to the shaft with a quarter turn in the direction of rotation and is secured with a set screw.
Number Of Bolt Holes: 2. Bolt Center To Center Length: 3.94 in. Overall Length: 4.82 in. Overall Height: 3-1/2 in. Overall Depth: 1.72 in. Finish: Powder coated.

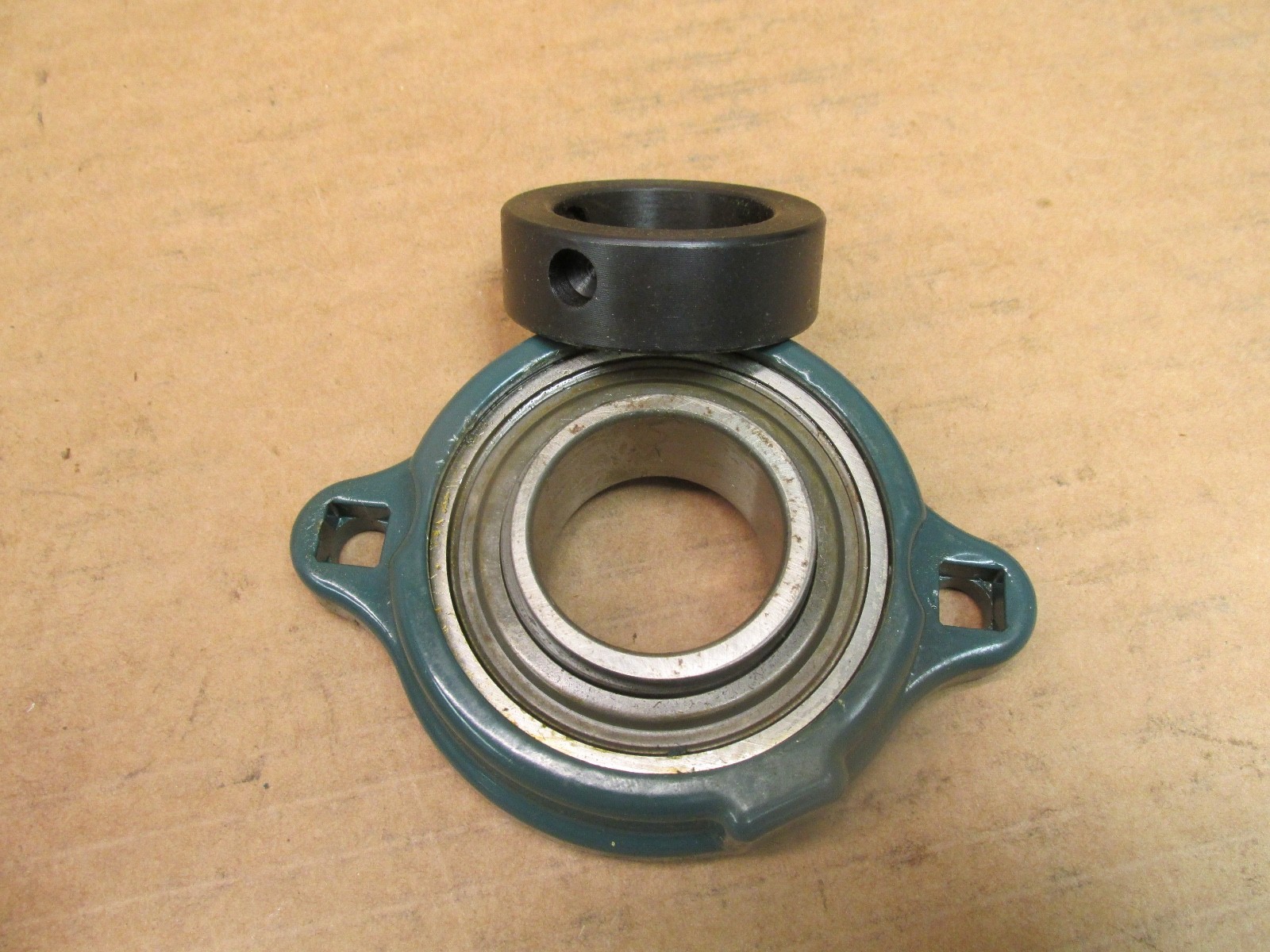

Complete mounted unit: two-bolt flange housing with eccentric collar ball bearing insert installed. GTIN: 782475588459.
Dodge catalog number 124676 and engineering number LFT-SXV-107-NL identify the same part. Also written LFTSXV107NL and LFT SXV 107 NL.
