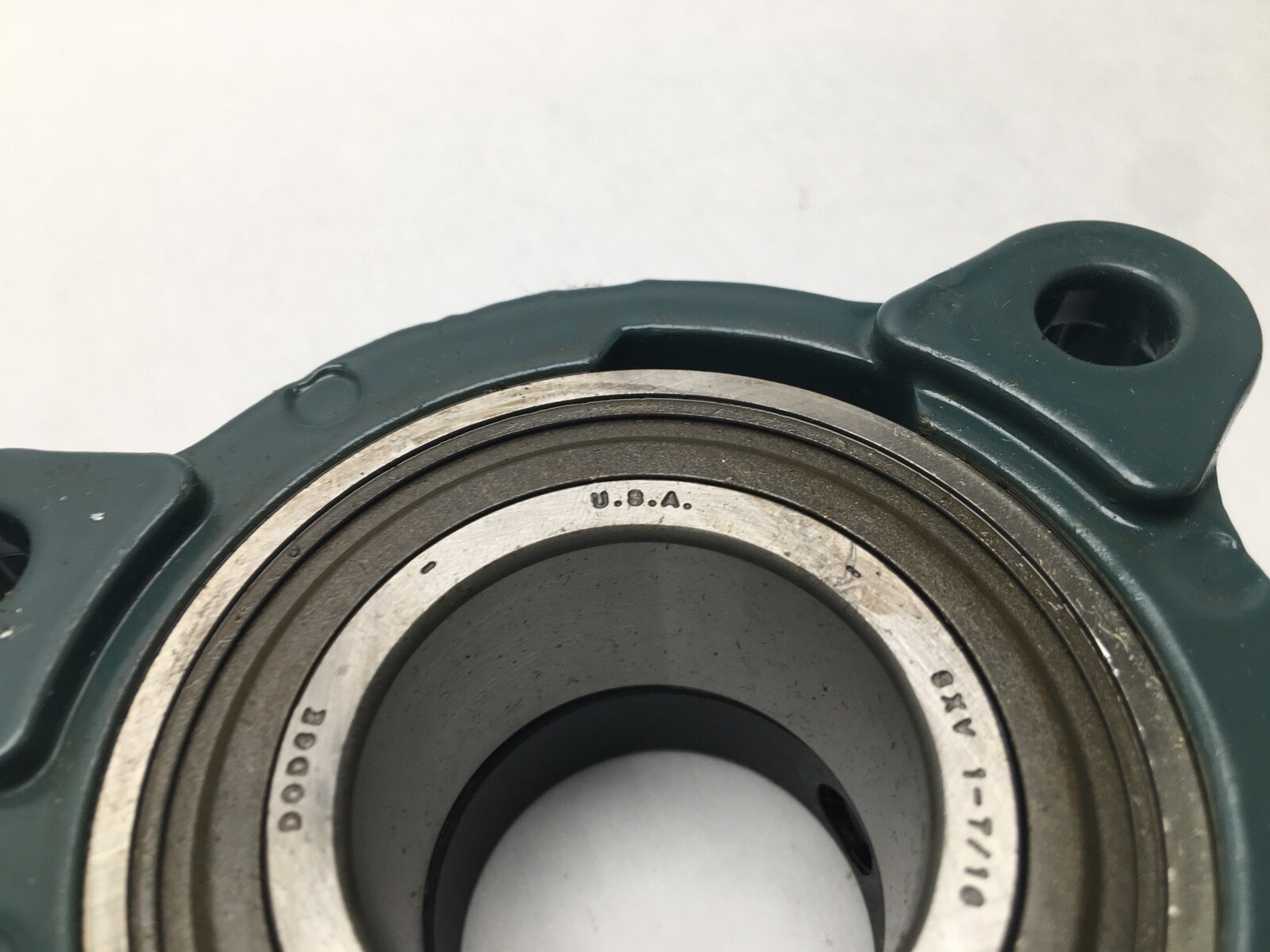

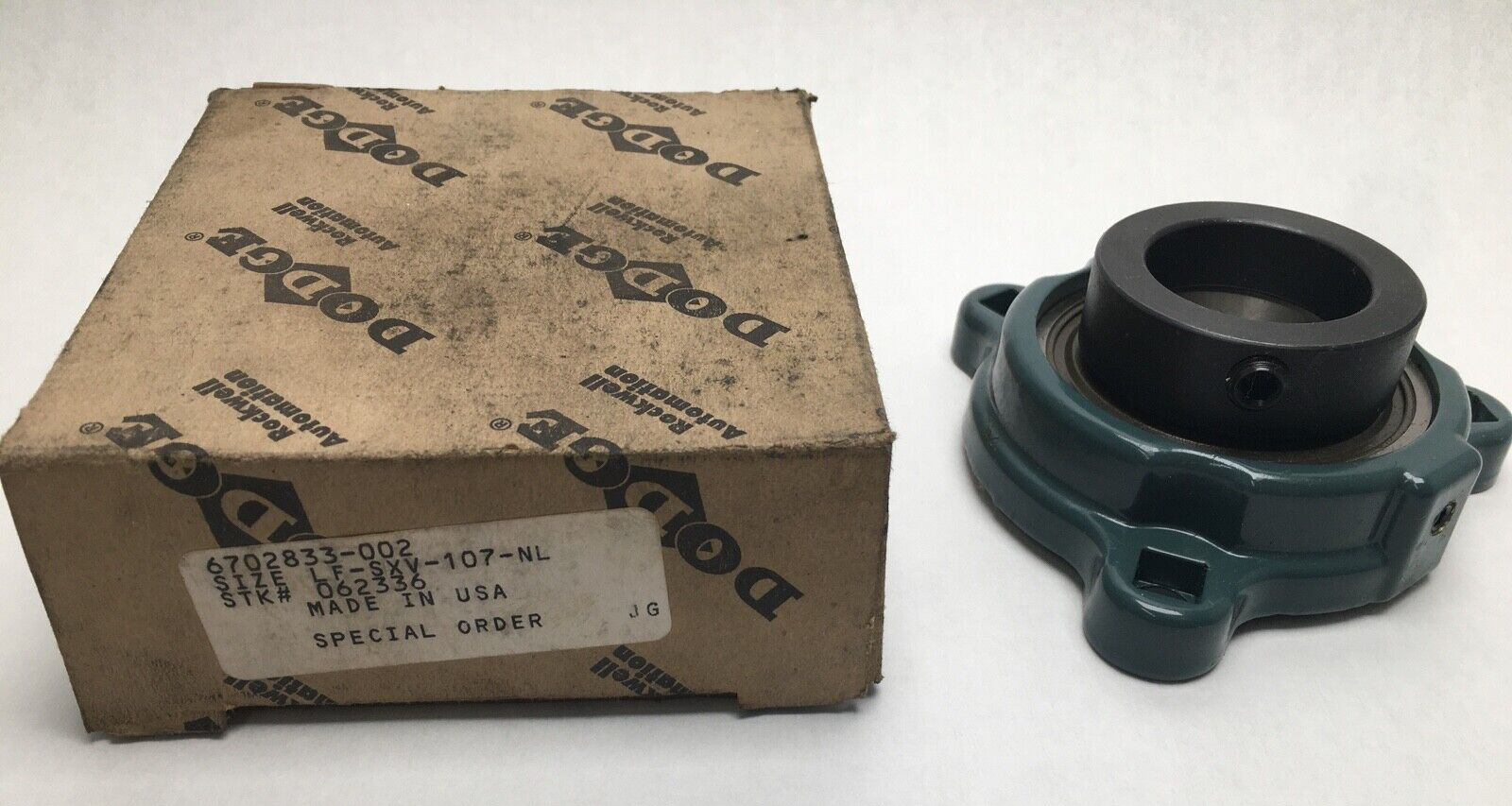

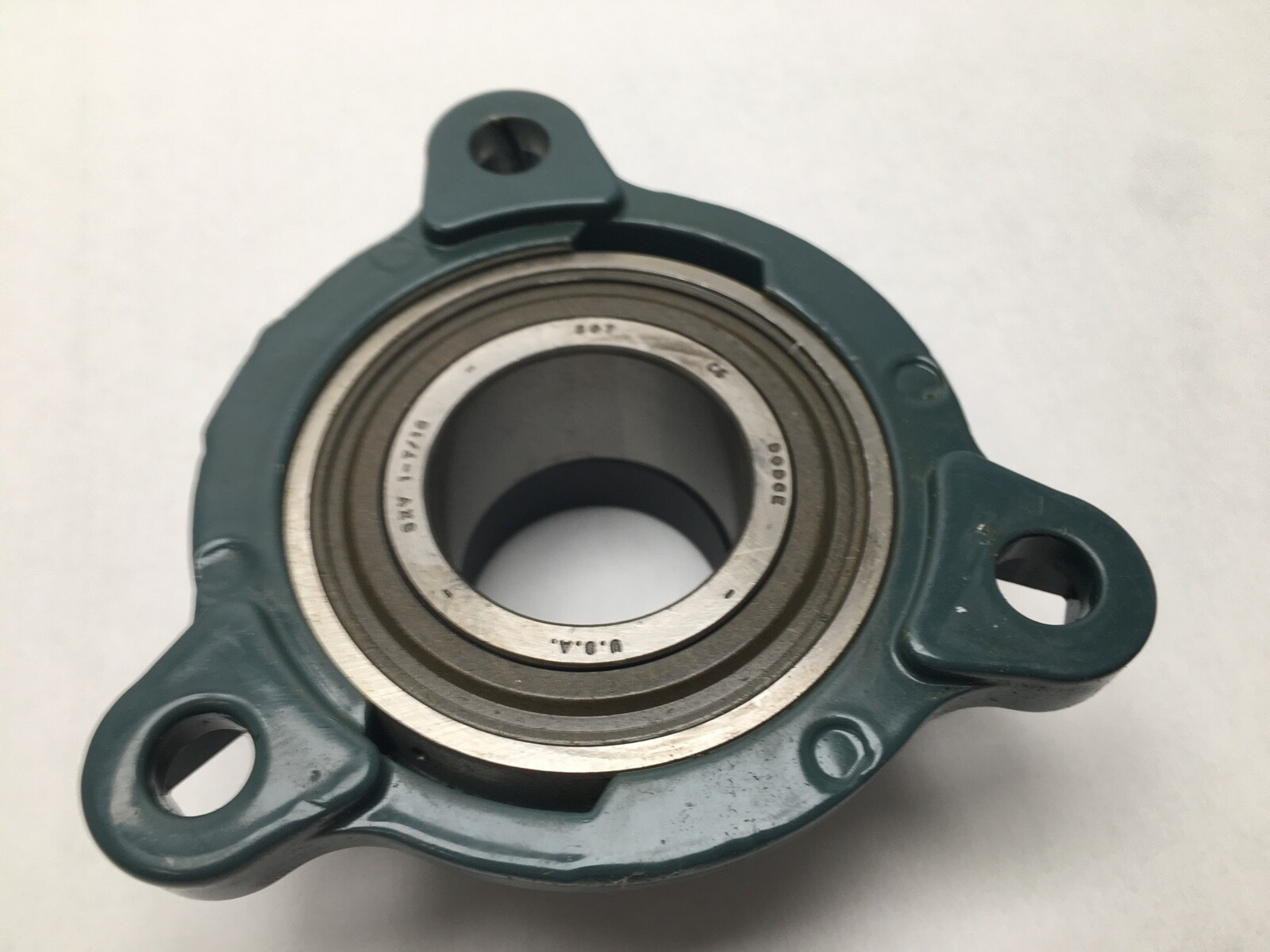

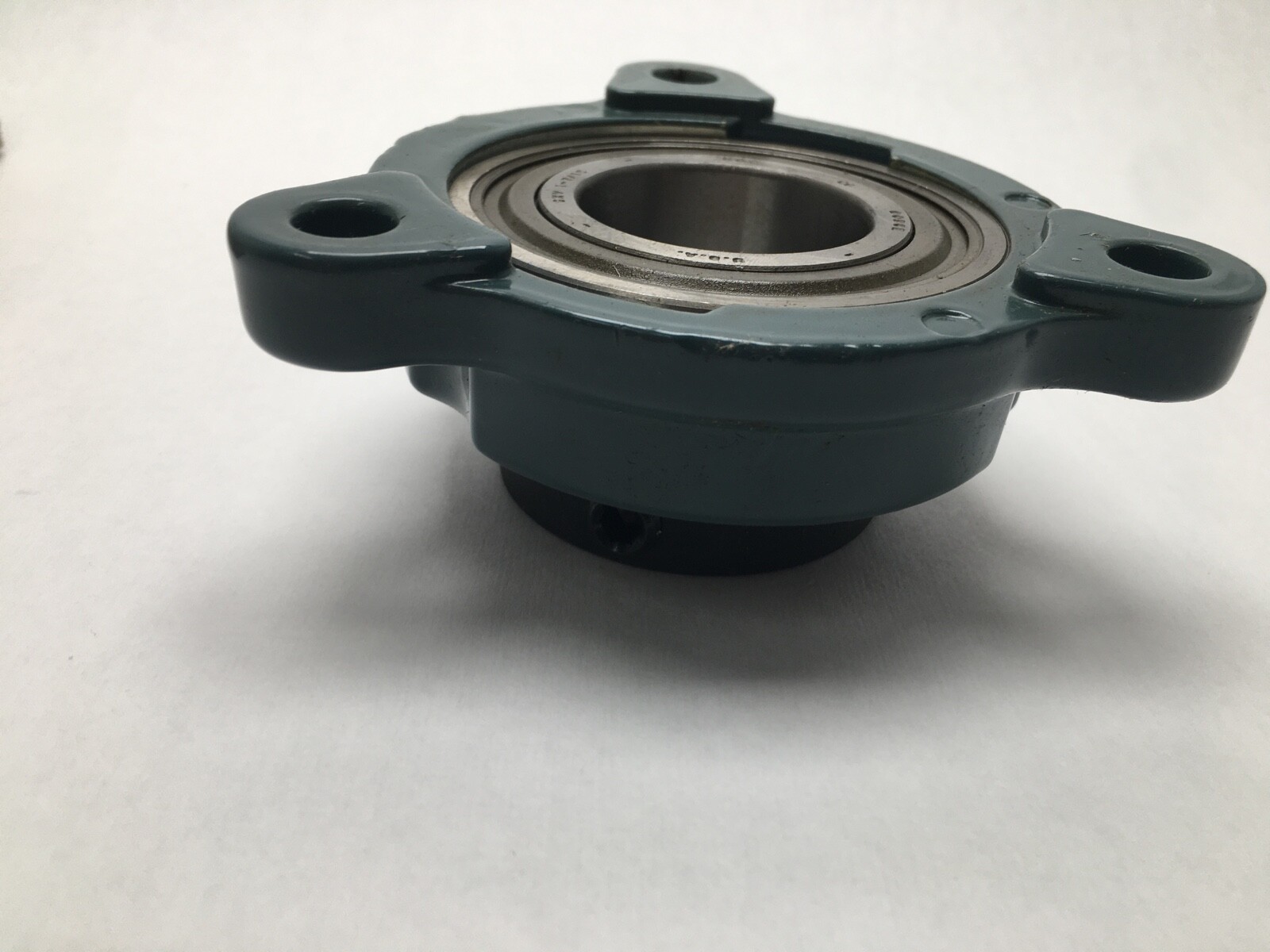

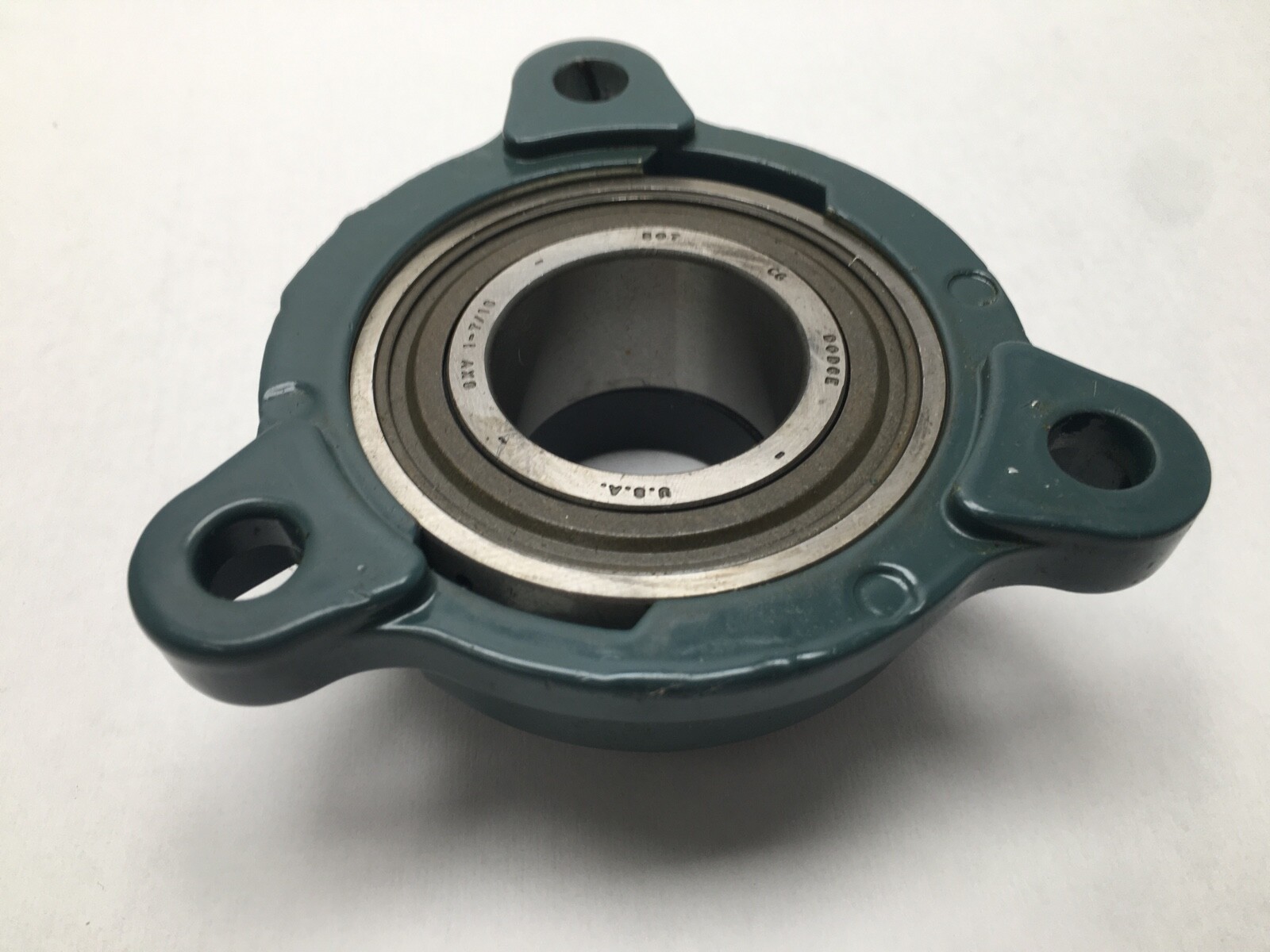

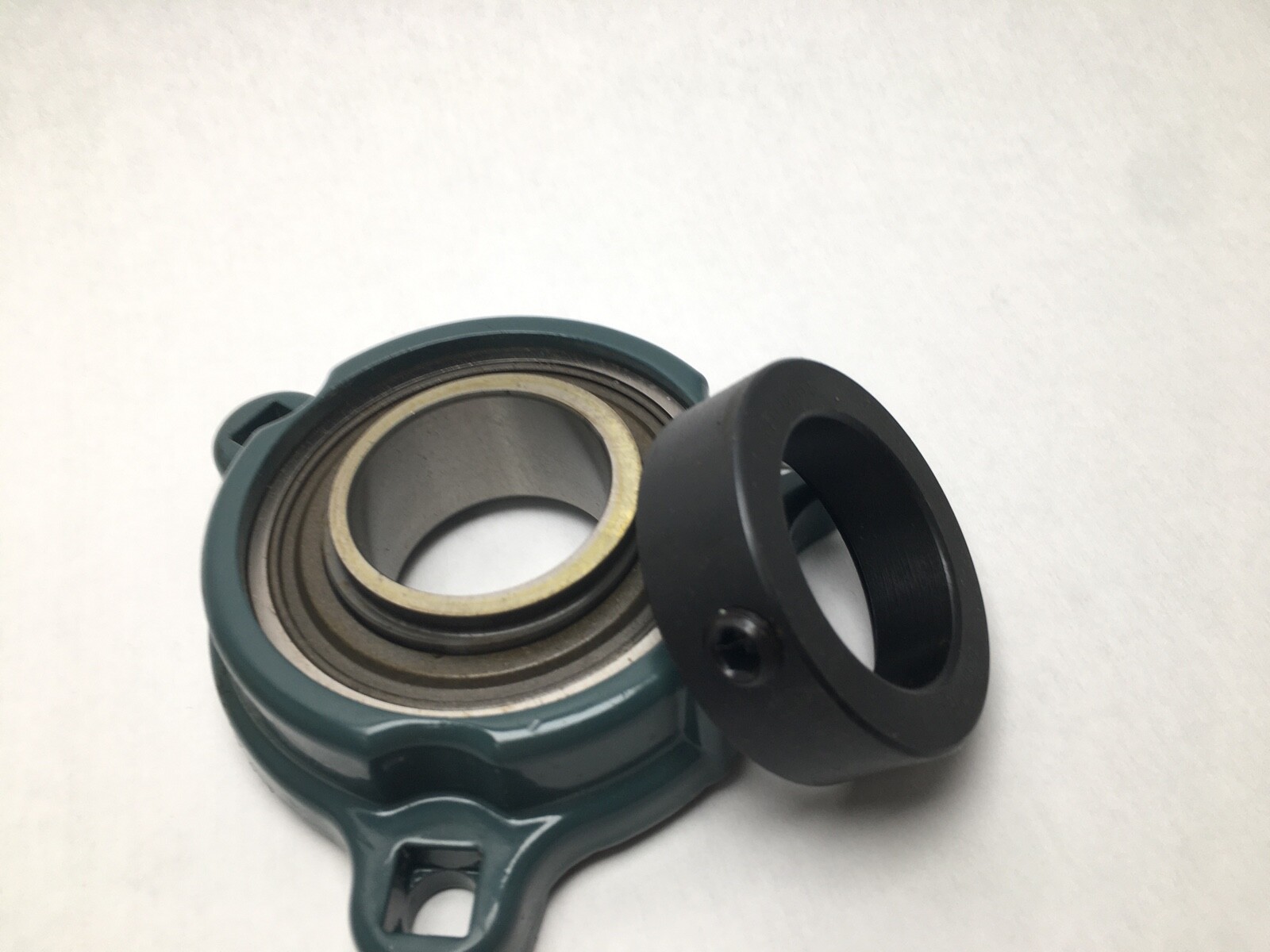

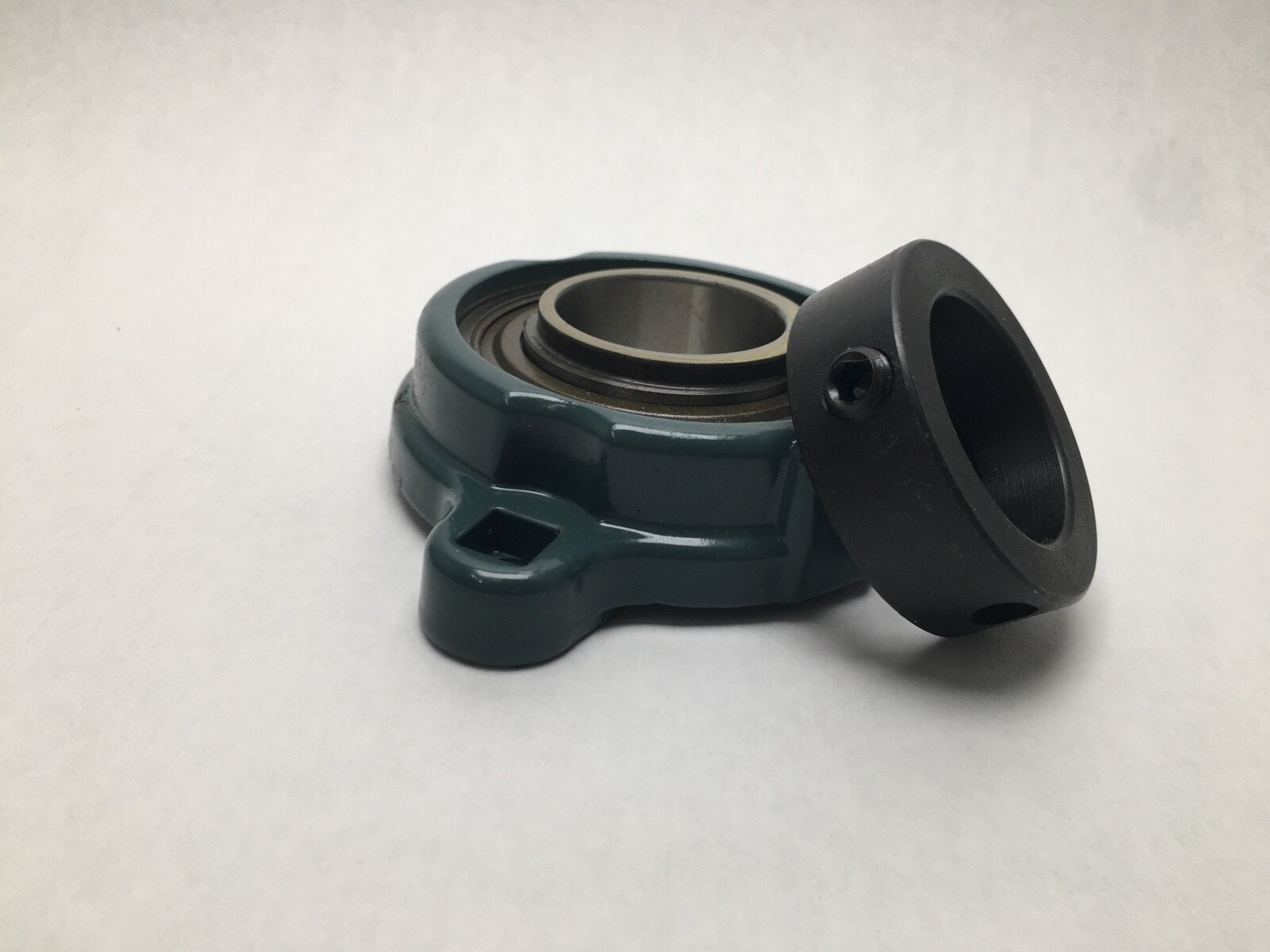

DodgeLF-SXV-107-NLFlange Ball Bearing Unit – 3-Bolt, 1-7/16 in Bore, Eccentric Collar, 207 Series, 3.94 in Bolt Circle

Condition: New

Availability:

1 in stock

Dodge LF-SXV-107-NL three-bolt flange bearing, 1-7/16 in bore, SXV eccentric collar insert, 207 series, 3.94 in bolt circle, 5,500 rpm. Part 062336.

List Price

$98.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandDodge
MPNLF-SXV-107-NL
ModelLFSXV107NL
ID1.4375 in

Technical Specifications

Series207
TypeFlanged Mount Bearing
Base NumberLF-SXV-107
Industry Termsflange bearing; 3-bolt flangette; mounted bearing; eccentric collar bearing
Common MisspellingsLFSXV107NL; LF SXV 107 NL; LF-SXV107-NL
Number Of Bolt Holes3
Number Of Bolt Holes For Fasteners3
Bore Shaft Size1-7/16 in (36.513 mm)
Housing StyleThree-bolt flange
Locking MethodEccentric collar
Mpn VariantsLF-SXV-107-NL; LFSXV107NL; LFSXV107-NL; 062336
Compatible With ReplacesDodge 062336; frame and insert of Dodge LF-SXV-107 (050420)
Additional AttributesDodge Part Number: 062336; Base part LF-SXV-107 data: Bolt Circle Diameter: 3.94 in; Overall Diameter: 4.81 in; Overall Depth: 1.72 in; Bolt Holes: Square; Finish: Powder coated; Duty: Intermediate
Dynamic Load Rating5,759 lbf (25,620 N)
Static Load Rating3,461 lbf (15,400 N)
Rolling ElementsBall
Bearing TypeFlange Mount Bearing
Item Weight1.75 lb (0.79 kg)
Number Of Rows1
Bore TypeStraight
Limiting Speed5,500 rpm
Duty TypeIntermediate
Locking DeviceEccentric Collar
Harmonization Code8483.20.40.40
Expansion TypeNon-expansion (fixed)
Application TypesConveyors; fans and blowers; general industrial machinery
Seller Part Number: AA4B5#QB7OU3

Product Description

What this part is:

Dodge LF-SXV-107-NL, Dodge part number 062336. Three-bolt flange ball bearing unit, SXV series, 207 size insert, eccentric collar locking, non-expansion (fixed). Unit Quantity: 1 Pc.

Decoding the designation:

LF — three-bolt flange housing.

SXV — Dodge SXV ball bearing insert with eccentric locking collar.

107 — shaft size 1-7/16 in.

Specifications:

Bore / Shaft Size: 1-7/16 in (36.513 mm). Locking Method: Eccentric collar. Expansion Type: Non-expansion (fixed). Number Of Bolt Holes For Fasteners: 3. Series: 207. Rolling Elements: Ball. Base part LF-SXV-107 (050420) data: Dynamic Load Rating: 5,759 lbf (25,620 N). Static Load Rating: 3,461 lbf (15,400 N). Limiting Speed: 5,500 rpm. Duty: Intermediate. Finish: Powder coated. Insert: Steel ball bearing, 207 series.

Dimensions and mounting:

Base part LF-SXV-107 data: Bolt Circle Diameter: 3.94 in. Overall Diameter: 4.81 in. Overall Depth: 1.72 in. Square bolt holes. Item Weight: 1.75 lb.

Compatibility and replacement:

Dodge part number 062336. Base part for the published data: Dodge LF-SXV-107 (050420). Designation forms: LF-SXV-107-NL, LFSXV107NL, LFSXV107-NL, 062336.

Frequently asked questions:

What is the Dodge part number of the LF-SXV-107-NL?

The Dodge part number is 062336.

What shaft size and locking method does the LF-SXV-107-NL have?

The shaft size is 1-7/16 in (36.513 mm) and the locking method is an eccentric collar. The unit is non-expansion (fixed).

How many bolt holes does the LF-SXV-107-NL flange have?

The flange has 3 bolt holes. The base part LF-SXV-107 has a 3.94 in bolt circle diameter.
