Availability:
5 in stock

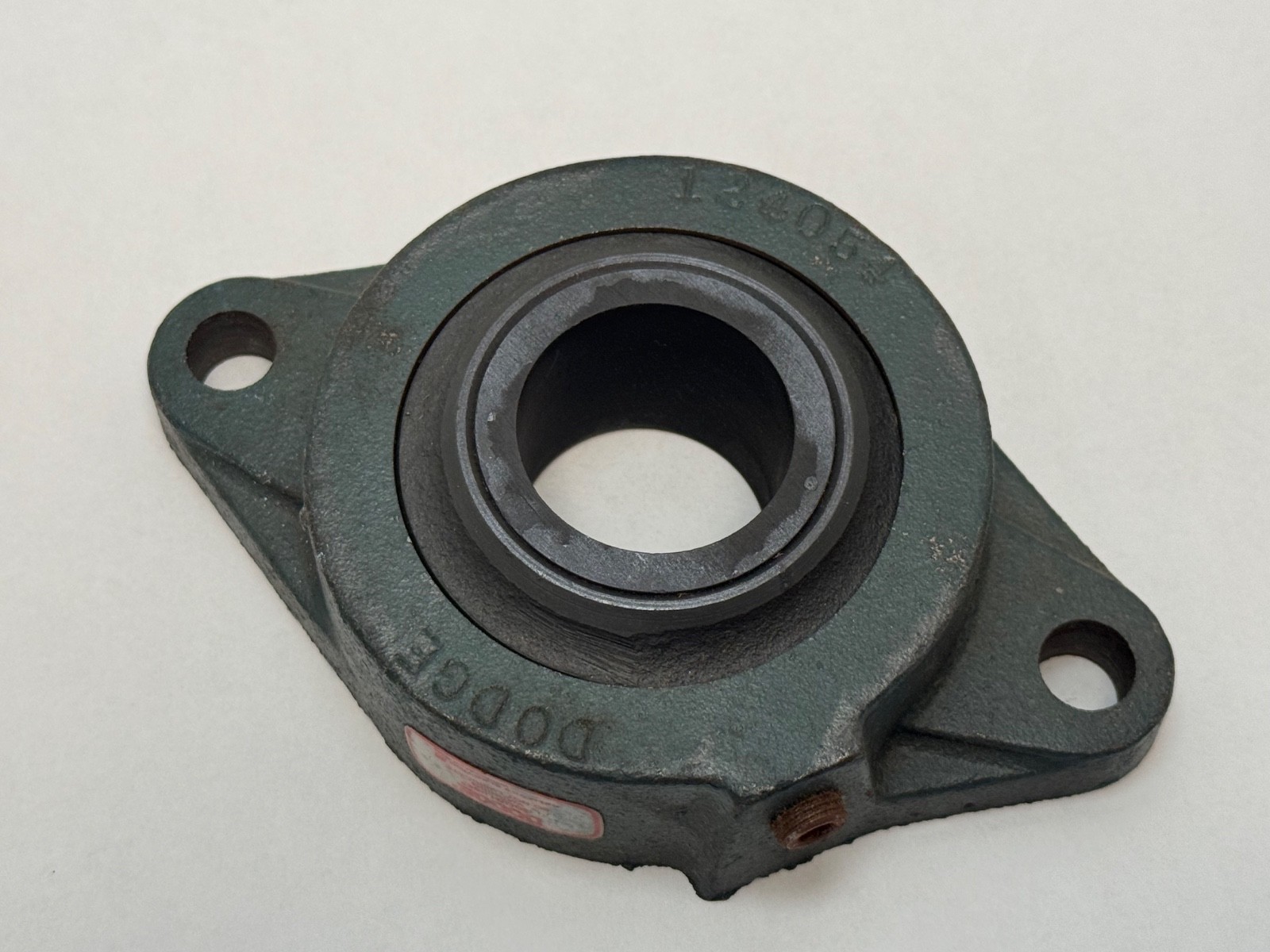

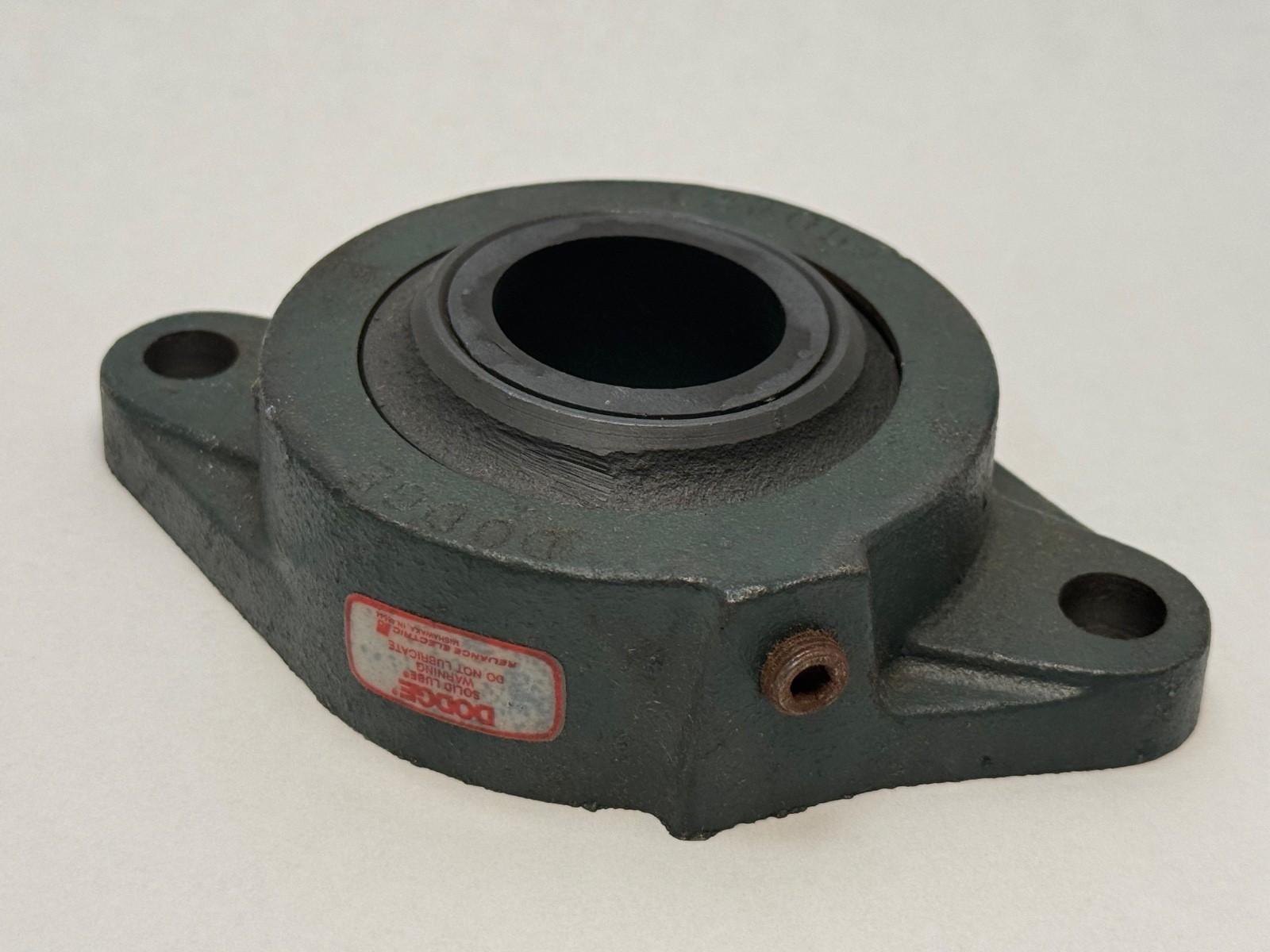

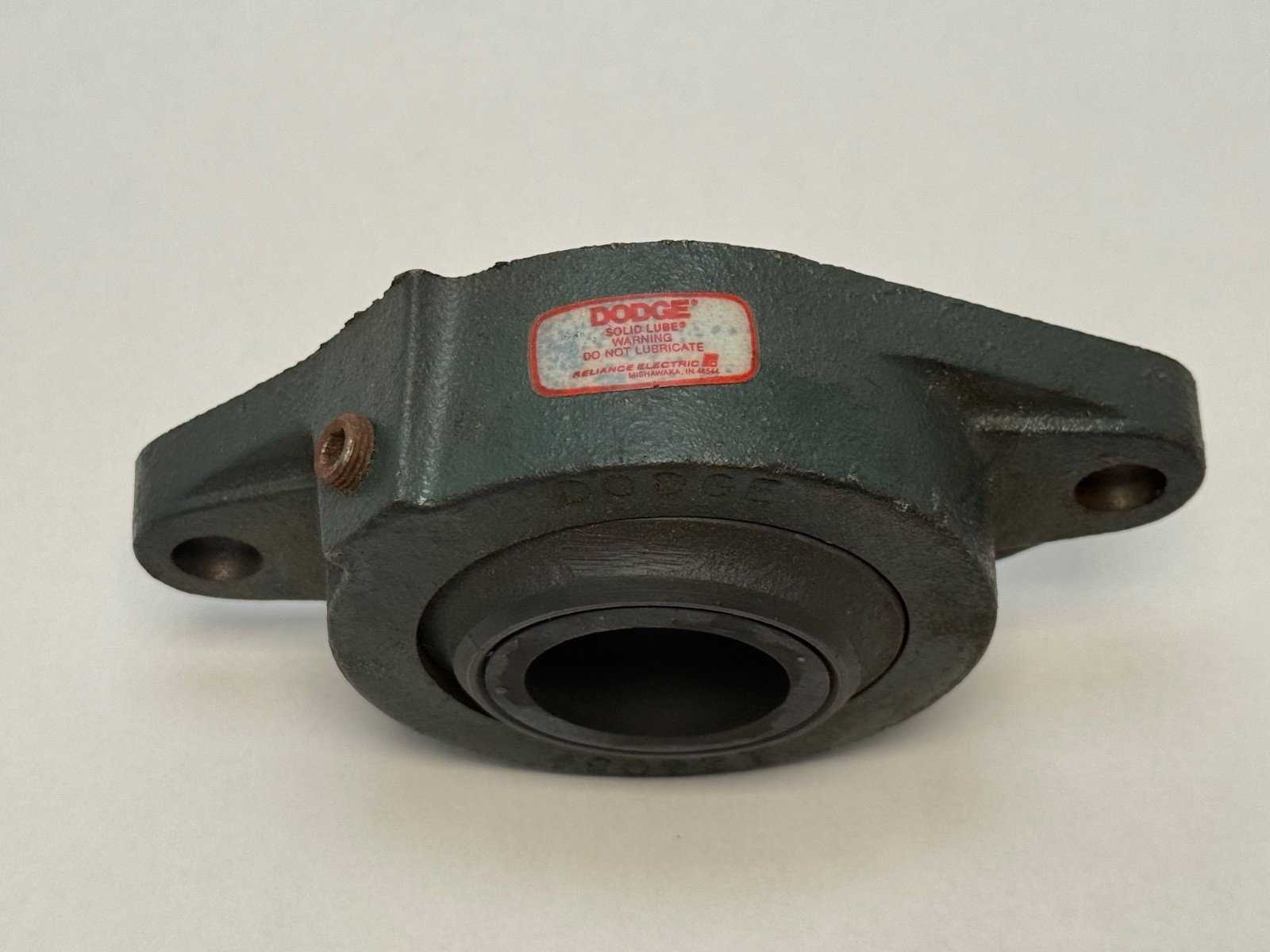

Two-bolt flange mounted sleeve bearing, 1-7/16 in bore, 1.95 in bore length, self-lubricating graphite insert, cast iron housing, float design, 1,300 rpm.
List Price
$127.05
5 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | F2B-LT7-107 |
| GTIN | 782475016099 |
| Model | F2B LT7 107 / 033093 |
| ID | 1-7/16 in |
| Material | Cast iron housing, graphite sleeve insert, powder coated finish |
|---|---|
| Type | Flanged Mount Bearing |
| Base Number | 033093 |
| Industry Terms | Flange sleeve bearing, journal bearing flange block, graphite bushing flange unit, self-lubricating flange bearing |
| Common Misspellings | F2BLT7-107, F2B-LT-7-107, Dodge F2BLT7 107, 33093 |
| Overall Width | 1.95 in (49.53 mm) bore length |
| Bolt Center To Center Length | 5.12 in (130.05 mm) |
| Bearing Insert Type | Plain Bearing |
| Bore Shaft Size | 1-7/16 in (36.51 mm) |
| Housing Style | Two-bolt flange |
| Mpn Variants | F2BLT7107, F2B LT7 107, LT7-107, 033093 |
| Additional Attributes | Bolt diameter 1/2 in; take-up frame size LD-20; powder coated finish |
| Series | LT7 self-lubricating sleeve |
| Rolling Elements | Plain sliding sleeve |
| Bearing Type | Mounted plain journal (sleeve) bearing |
| Item Weight | 2.95 lb (1.34 kg) |
| Limiting Speed | 1,300 rpm |

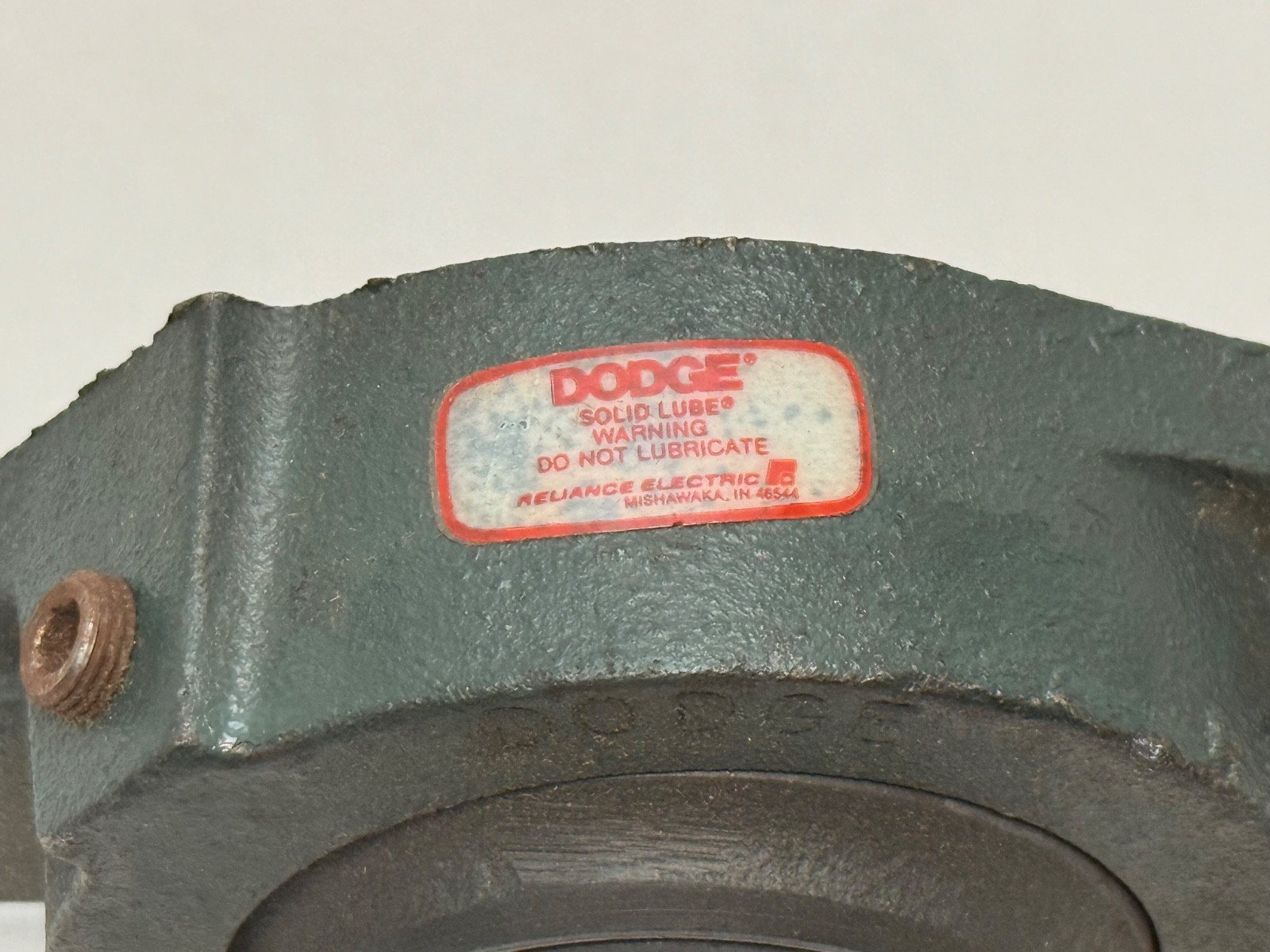

| Lubricant | Self-lubricating graphite insert |
| Expansion Type | Expansion (float) |
| Part Number | F2B-LT7-107 |
Dodge F2B-LT7-107, Dodge item number 033093, is a two-bolt flange mounted sleeve bearing. Bearing Type: Mounted plain journal (sleeve) bearing. Housing Style: Two-bolt flange. Bore / Shaft Size: 1-7/16 in (36.51 mm). Bore Length: 1.95 in (49.53 mm). Housing Material: Cast iron. Finish: Powder coated. Insert Material: Graphite. Lubrication: Self-lubricated. Expansion Type: Expansion (float). Limiting Speed: 1,300 rpm. Item Weight: 2.95 lb. GTIN: 782475016099.
F2B — two-bolt flange housing, bolted to a vertical face with the shaft passing through it.

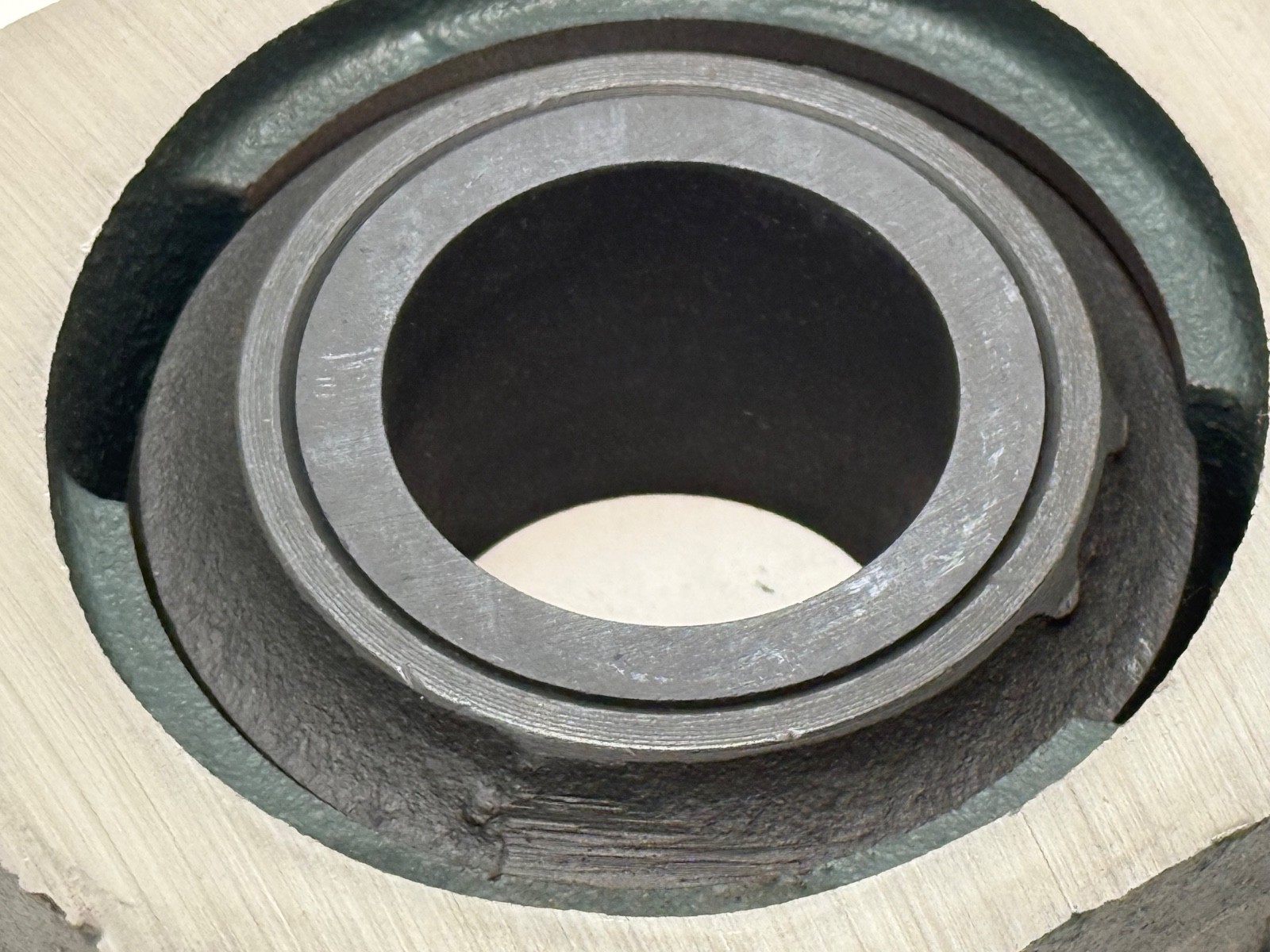

LT7 — the Dodge self-lubricating sleeve bearing series, in which a graphite-bearing insert supplies its own lubricant film in service.
107 — bore code for a 1-7/16 in shaft.
A sleeve bearing carries load on a continuous sliding film rather than on rolling elements, so it runs quietly and tolerates shock and dirt that would brinell a ball bearing. Limiting Speed: 1,300 rpm sets the top of its working range. The graphite insert releases lubricant as the shaft turns, which suits high-temperature service and positions that are awkward to reach with a grease gun.

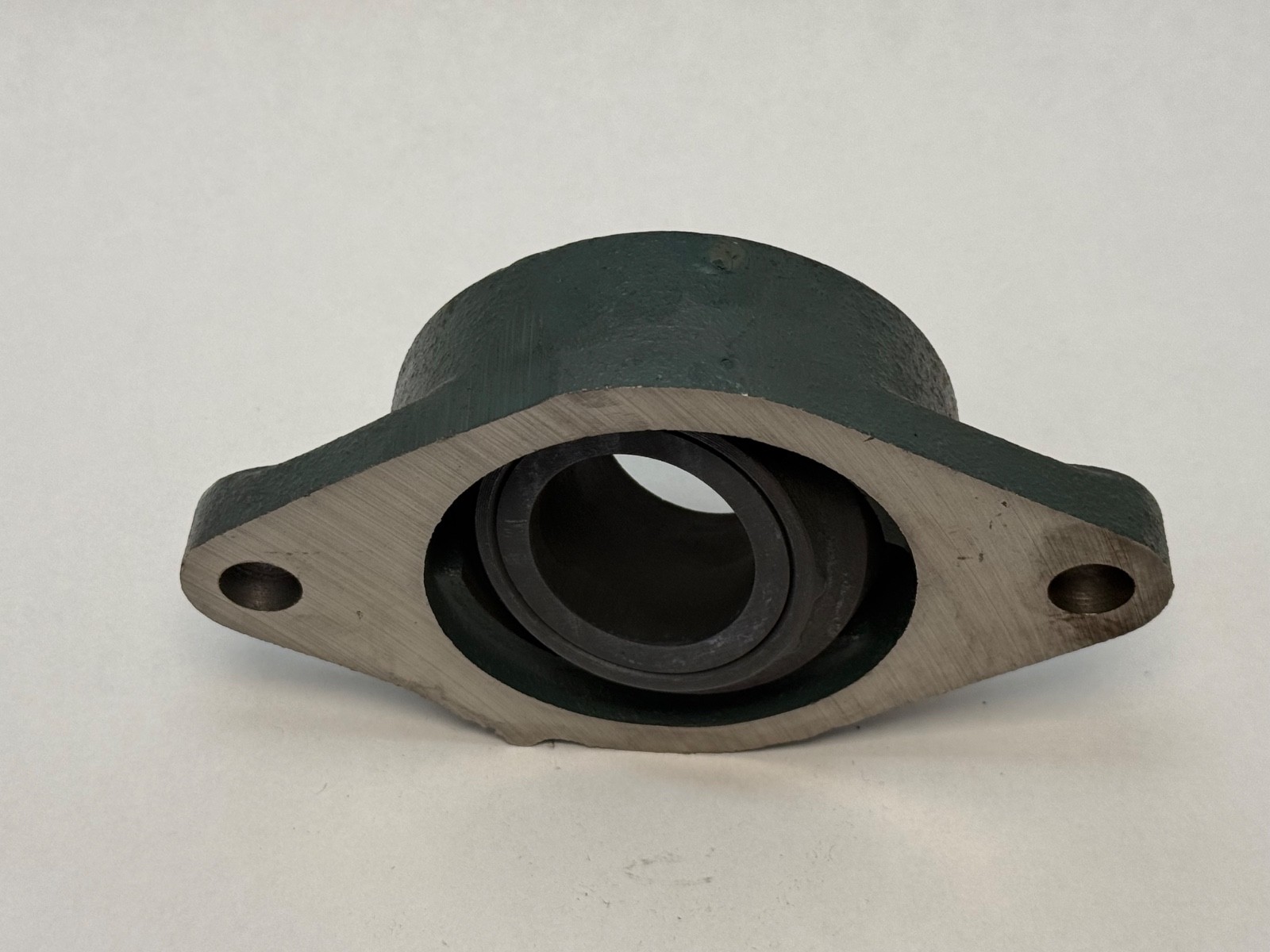

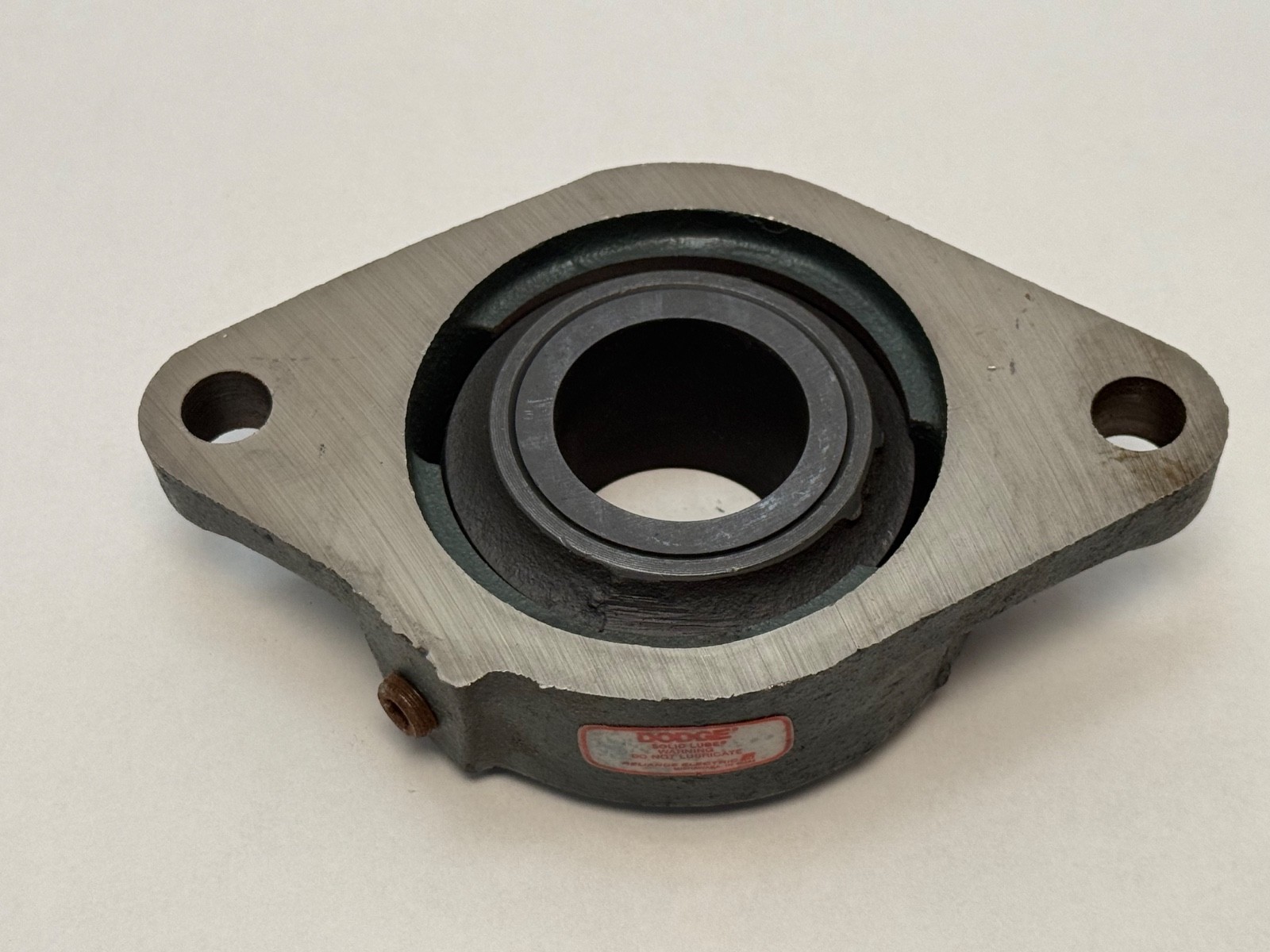

Housing Style: Two-bolt flange, cast iron, powder coated. Bolt Center To Center Length: 5.12 in (130.05 mm). Bolt Diameter: 1/2 in. The two mounting holes sit on a single line either side of the bore, so the unit bolts flat to a bulkhead, gearcase wall or conveyor end plate.
Expansion Type: Expansion (float). The shaft slides axially within the 1.95 in bore length as it grows with temperature, so this end of a shaft takes radial load while a fixed unit at the other end holds axial position. Take-Up Frame Size: LD-20 for take-up service.

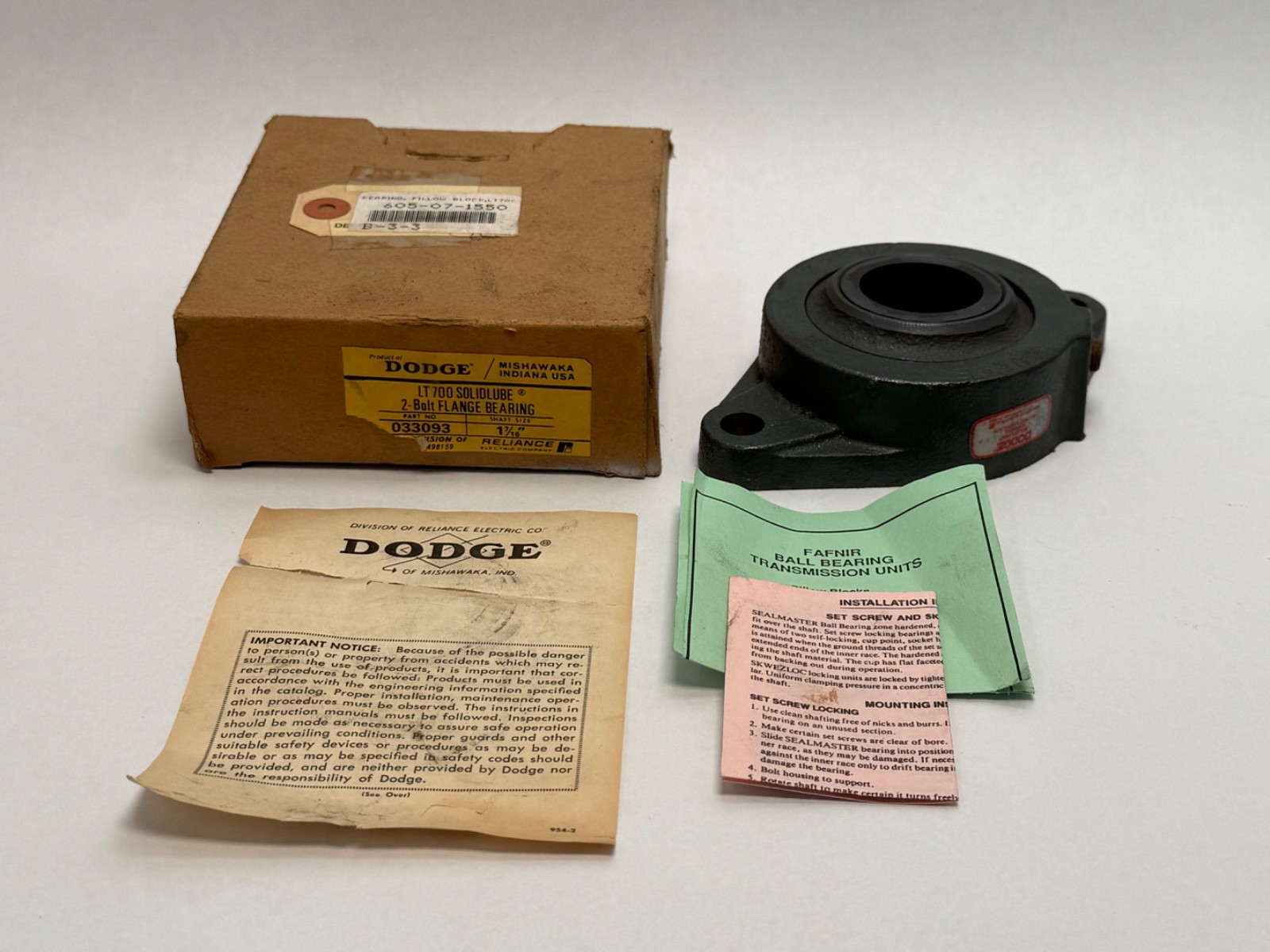

Unit Quantity: 1 Pc. Complete flange unit — cast iron housing with the graphite sleeve insert fitted.
Part Number: F2B-LT7-107. Base Number: 033093. Searchable variants: F2BLT7107, F2B LT7 107, LT7-107. The 108 size in the same series is the 1-1/2 in bore, a different shaft size on the same housing family.
