Two-bolt alignable flange ball bearing unit, 3/4 in bore, cast iron housing; Link-Belt FXW-212-E, W200 insert series, one complete unit, inch design.
List Price
$33.98
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Link Belt |
|---|---|
| MPN | FXW-212-E |
| GTIN | 793699283099 |
| Model | FXW 212 E |
| ID | 3/4 in |
| Type | Flanged Mount Bearing |
|---|---|
| Base Number | FXW-212 |
| Industry Terms | 2-bolt flange bearing, flange block, flanged unit, alignable flange unit, mounted unit, flangette |
| Common Misspellings | Link Belt FXW212E, FXW-2I2-E, LinkBelt FXW212, FWX212E, FXW 212E |
| Application Types | Conveyors, fans, light industrial drives, material handling, agricultural equipment |
| Bore Shaft Size | 3/4 in (19.05 mm) |
| Housing Style | Two-bolt flanged unit, alignable, cast iron |
| Mpn Variants | FXW212E, FXW-212-E, FXW 212 E, FXW212, FXW-212, FXW-212E |
| Bearing Type | Mounted ball bearing unit |
| Number Of Rows | 1 |
| Part Number | FXW-212-E |

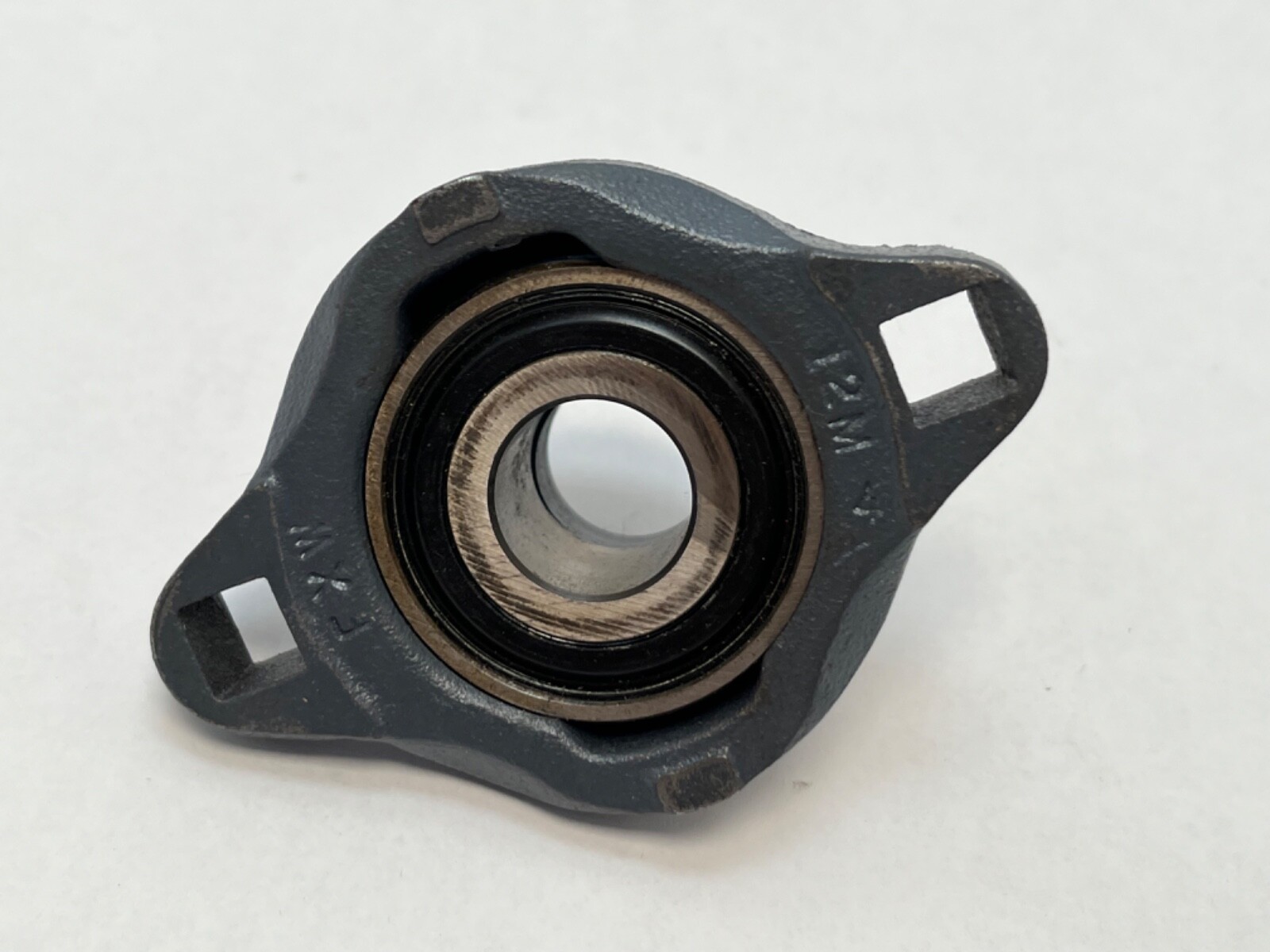

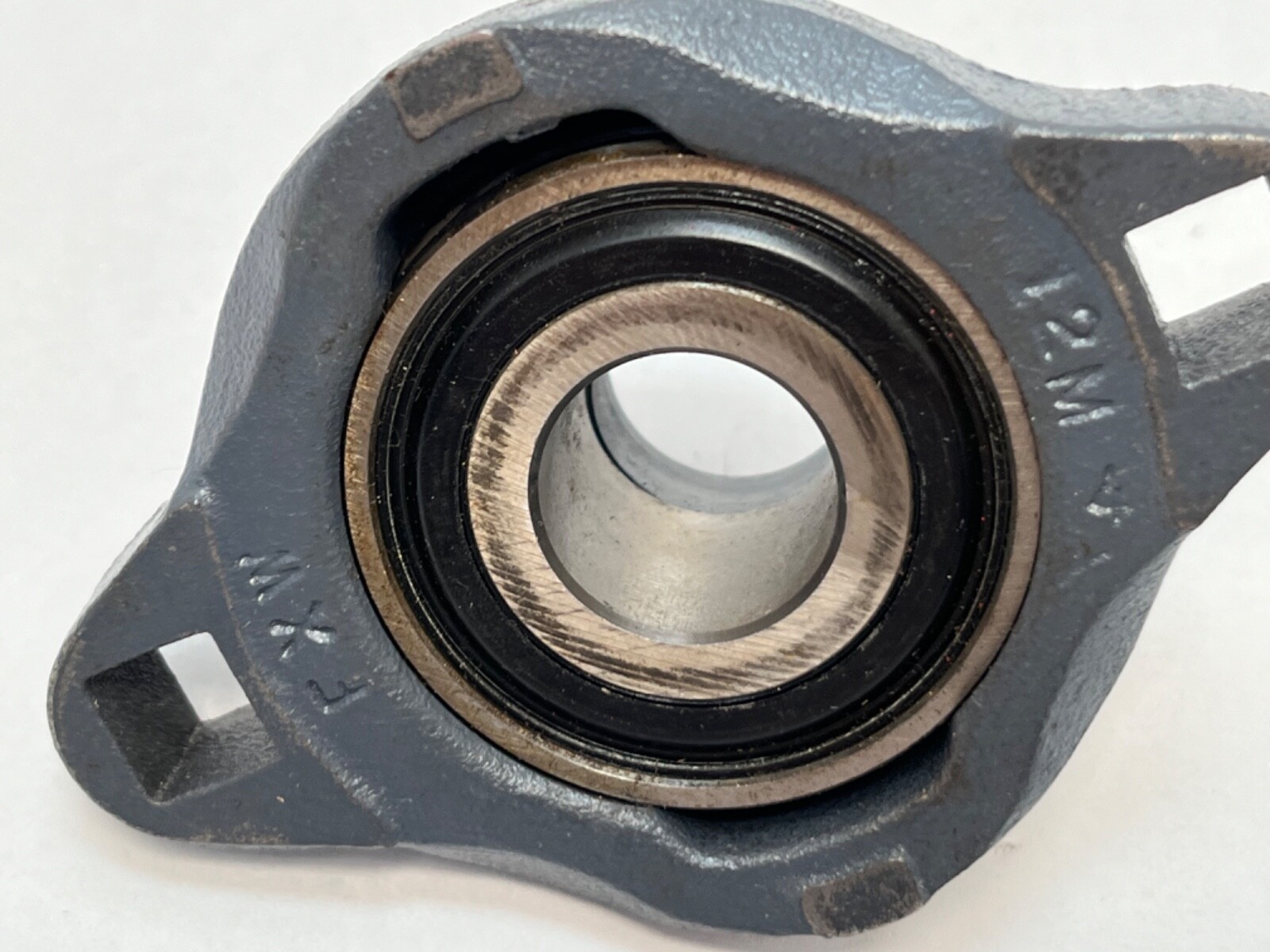

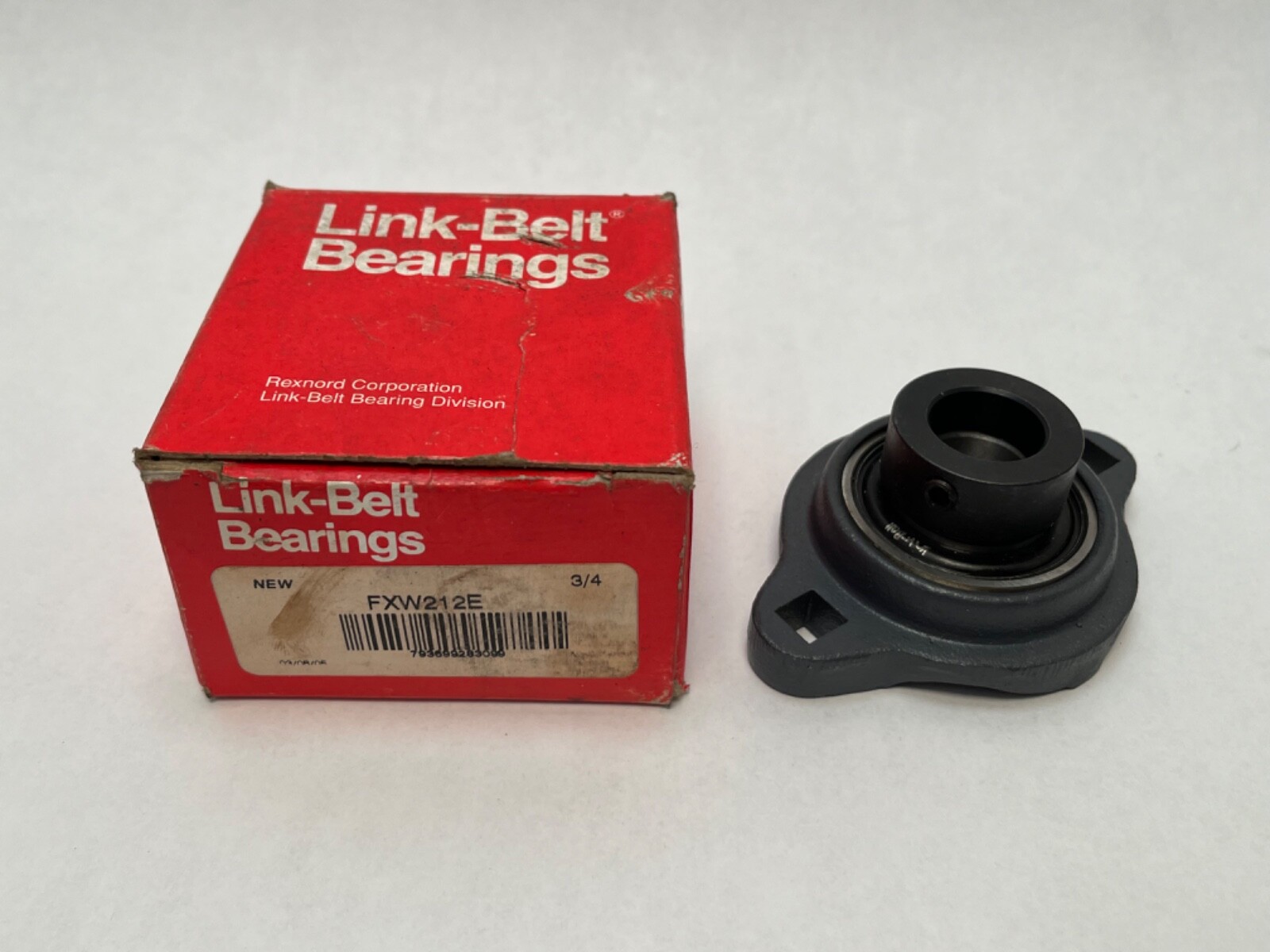

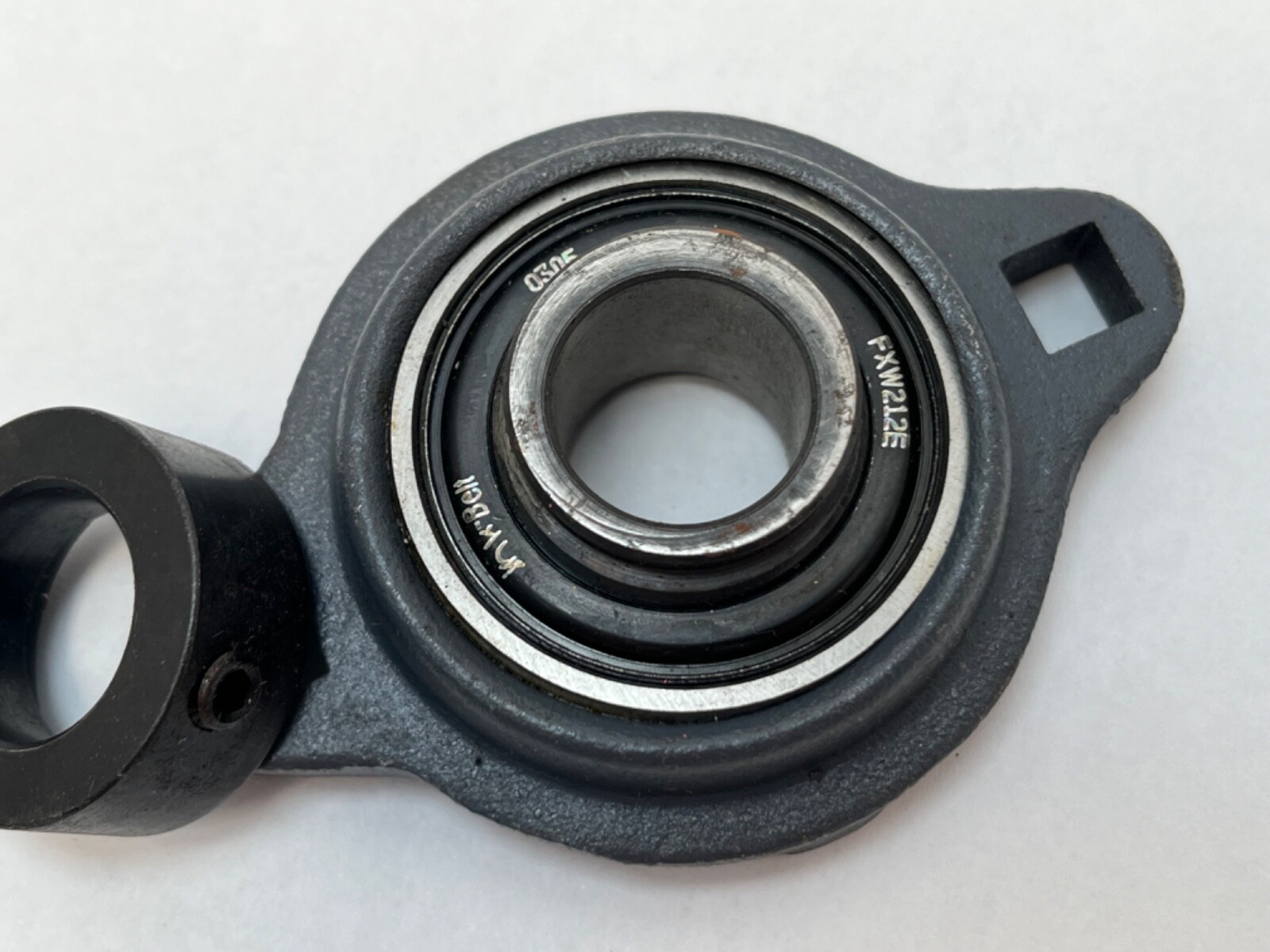

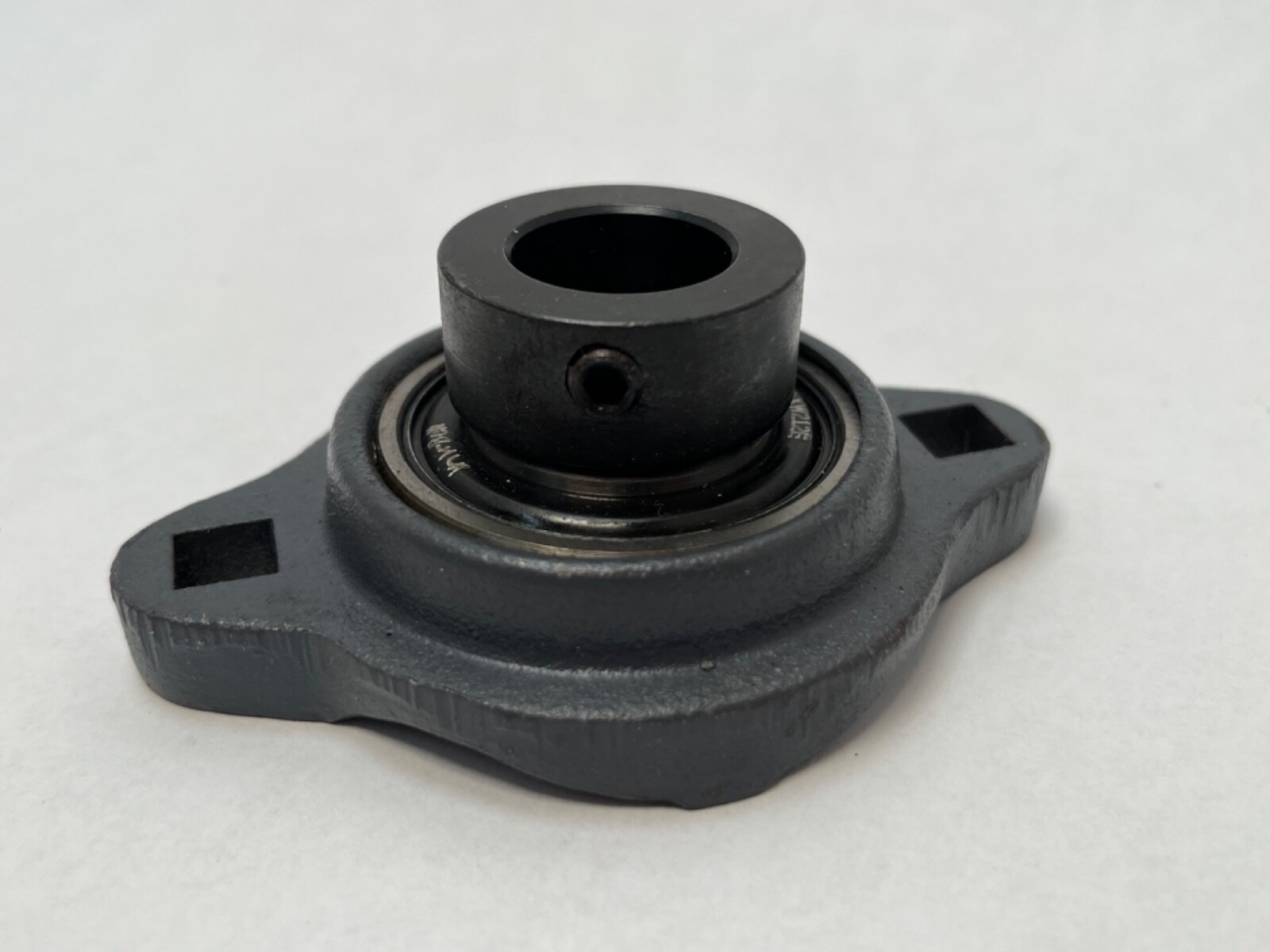

Link-Belt FXW-212-E is a mounted ball bearing unit: a two-bolt alignable flange block with a cast iron housing for a 3/4 inch shaft. The housing bolts to a machine wall or frame through two holes and the insert seats spherically. Bore / Shaft Size: 3/4 in (19.05 mm). Unit Quantity: 1 Pc, one complete unit with insert fitted.
FX — Link-Belt two-bolt alignable flanged unit.
212 — shaft size in sixteenths of an inch: 12/16 = 3/4 inch bore.
Housing Style: two-bolt flanged unit, alignable, cast iron. Bore / Shaft Size: 3/4 in (19.05 mm). Series: Link-Belt 200 series, W insert. Rolling Elements: Ball. Number Of Rows: 1. Design Units: inch.
Two-bolt flange. Link-Belt’s four-bolt flange in the 200 series is F (F3-U200N, F-U200N) and the three-bolt round flange is FB3. Pillow blocks carry a P, PL, PH or PT prefix.
Two-bolt flange units at 3/4 inch bore from other makers: Dodge F2B, SealMaster SFT and FT, Rexnord KF, Hub City FB, SKF FYT; flange face dimensions and bolt centres differ by maker. Link-Belt F-212 (four-bolt) and FB3-212 (three-bolt round) share the bore in a different housing style. Also written FXW212E, FXW 212 E, FXW-212 and FXW-212E.
3/4 inch (19.05 mm) bore.
Two bolts. It is an alignable two-bolt flange unit with a cast iron housing.
No. It is a flange unit; Link-Belt pillow blocks carry a P, PL, PH or PT prefix.
