Link BeltFX3Y216NTwo-Bolt Flange Mount Bearing Unit, 1 in Bore, Eccentric Collar Locking, Wide Inner Race, Cast Iron

Product Description

What this part is

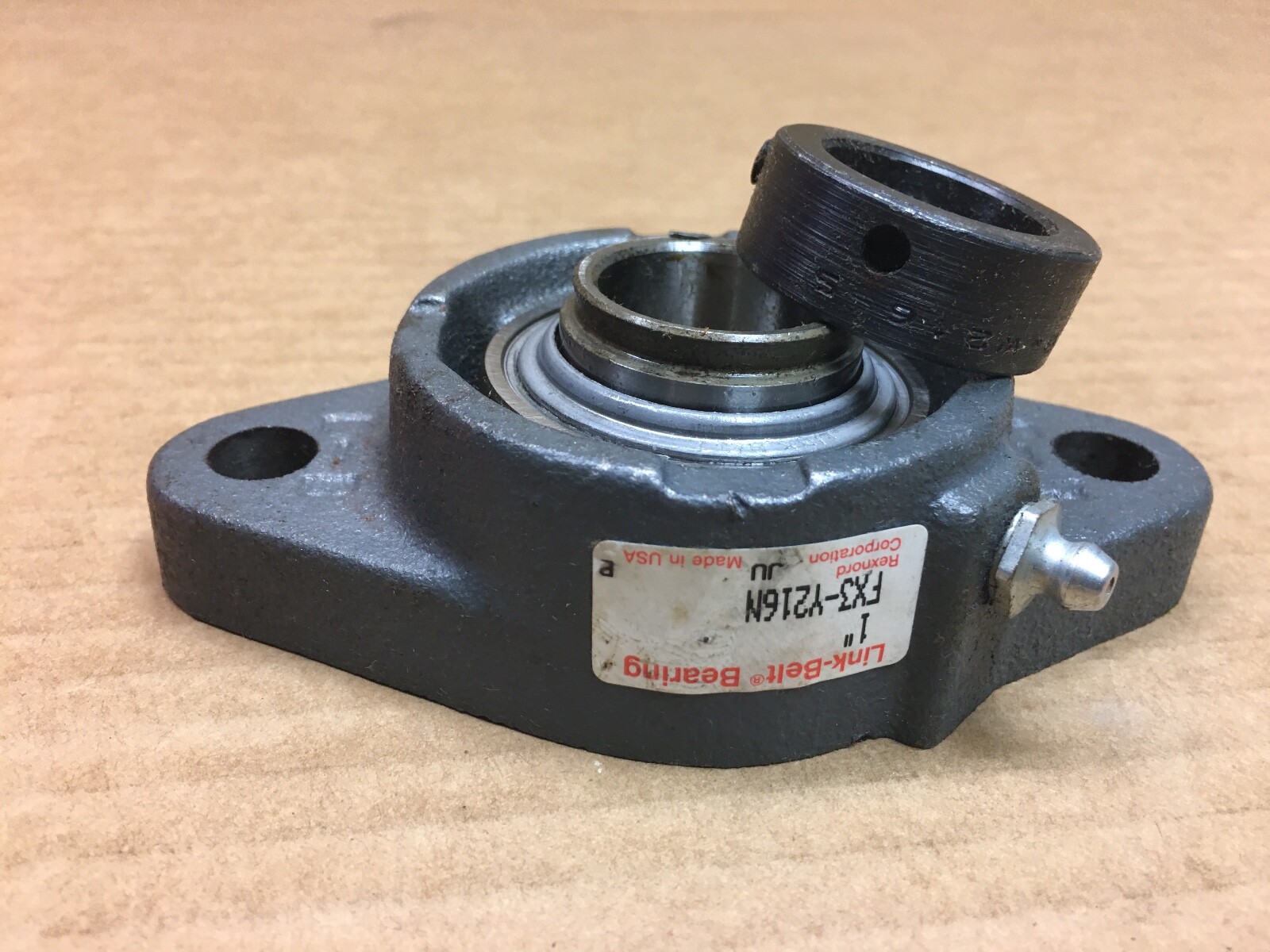

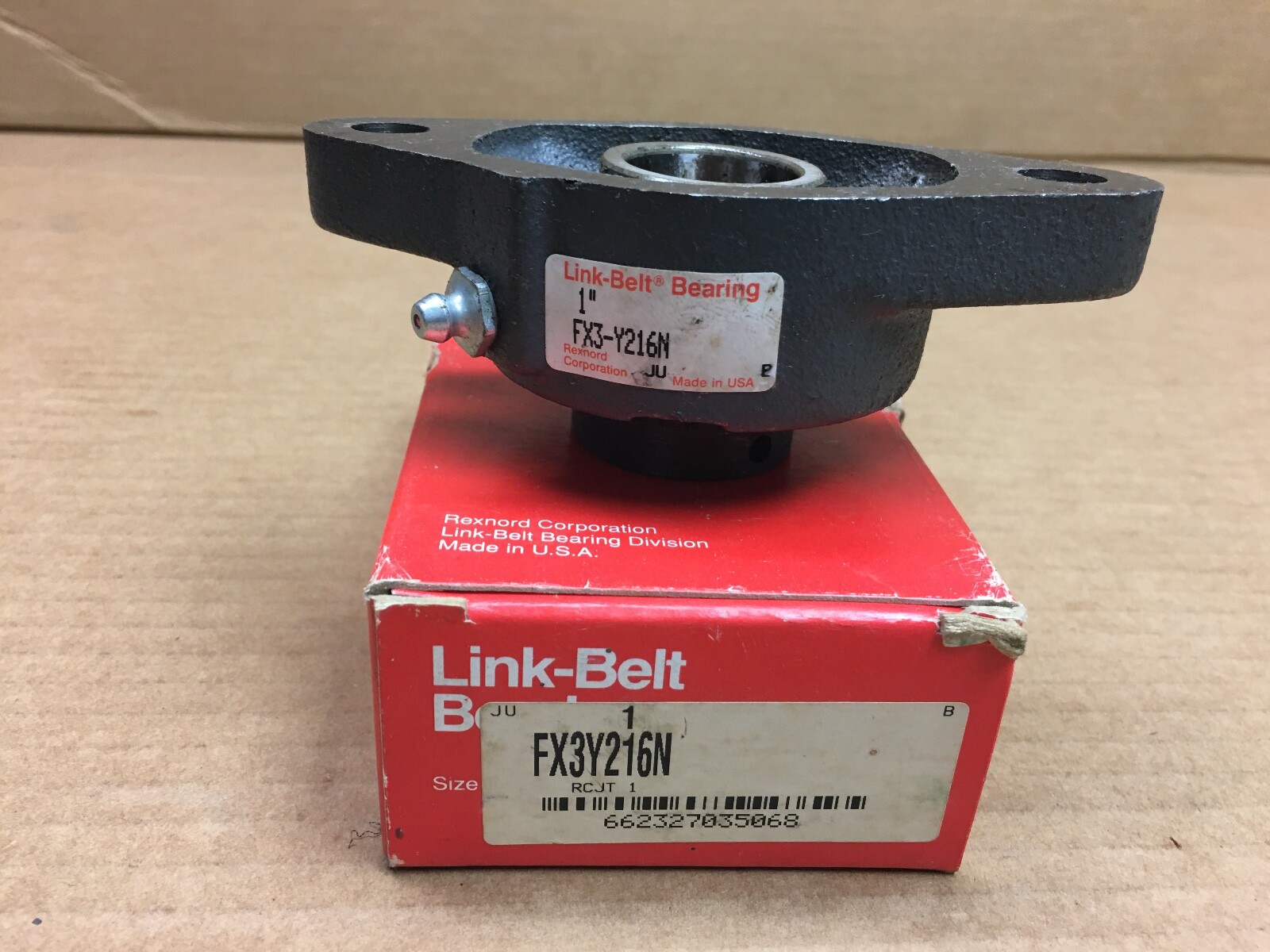

A complete housed ball bearing unit in the two-bolt flange block style. The one-piece cast iron housing is powder coated black and takes two mounting bolts. Bore is 1 in (25.4 mm), size code 205. The insert is a wide inner race bearing locked by an eccentric cam collar. Mounted internal clearance is C3.

Decoding the designation

FX3 — two-bolt flange block housing, cast iron, one piece
F3 — the four-bolt square flange housing in the same size range, which is what distinguishes bolt count in this scheme
Y — wide inner race insert with eccentric cam locking collar
216 — sixteen sixteenths of an inch, so a 1 in bore, in the 205 size code
N — single-lip contact seal, BUNA
Insert bearing number YG216NL; end cap Y2166N; locking device kit W2165S

Housing style and bolt pattern

Two mounting bolts, 7/16 in, centre-to-centre 3-57/64 in (98.8 mm). Housing length 4-29/32 in; overall width 2.6875 in; housing mounting width 19/32 in; foot height 0.59 in. From the mounting surface to the cap face is 2 in, and to the outermost bearing face 1-13/16 in.

What these specs mean in practice

The eccentric cam collar has an off-centre bore that wedges against the extended inner race when rotated in the direction of shaft rotation, so drive torque tightens the grip. That holds better on soft, plated or lightly worn shafting than a setscrew biting into the surface, and it favours unidirectional drives. C3 mounted clearance runs looser than normal at assembly, which absorbs the inner-race expansion of a shaft running warm. The unit accommodates ±2° of static misalignment at installation and is axially fixed, so it locates the shaft rather than floating it.

Published ratings and mounting data

Bore: 1 in / 25.4 mm
Size code: 205
Bolt centre-to-centre: 3-57/64 in / 98.8 mm
Mounting bolt size: 7/16 in
Housing length: 4-29/32 in
Overall width: 2.6875 in
Housing mounting width: 19/32 in
Foot height: 0.59 in
Mounting surface to cap face: 2 in
Mounting surface to outermost bearing face: 1-13/16 in
Locking collar outside diameter: 1-1/2 in
Length through bore: 1.75 in
Dynamic load rating: 3150 lb
Static load rating: 1760 lb
Maximum speed: 9600 RPM
Mounted internal clearance: C3
Static misalignment capability: ±2°
Maximum operating temperature: 225 °F
Factory lubricant: lithium complex NLGI 2

Quantity and configuration

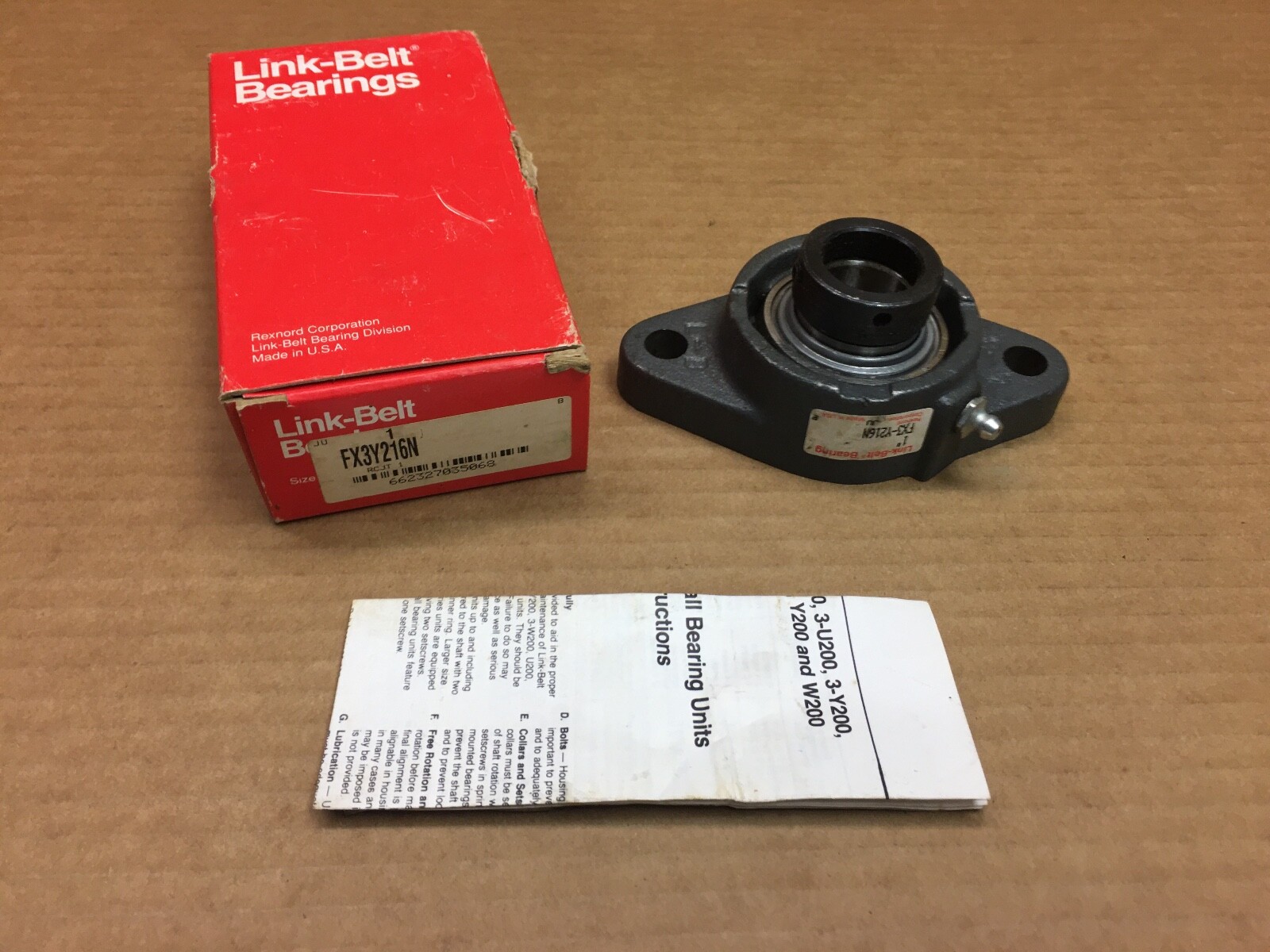

1 Pc. Complete housed unit: cast iron two-bolt flange housing, powder coated black, with the YG216NL wide inner race insert and its eccentric locking collar fitted. Glass-filled nylon ball-riding retainer. BUNA single-lip contact primary seal. Non-expansion, axially fixed.

Fitting notes

The flange seats against a flat rigid face, shimmed where uneven, on two 7/16 in fasteners at 3-57/64 in centres. The flange bolts are drawn down first so the insert settles into its aligned seat, then the collar is rotated in the direction of shaft rotation and its setscrew tightened. Shaft seat is a commercial ground 1.000 in diameter over a 1.75 in length through the bore.

Interchange guidance

The Link-Belt F3Y216N is the same insert and bore in the four-bolt square flange casting, so it is a related size rather than an interchange. The FX3S216E substitutes setscrew locking for the eccentric collar in the same housing. Two-bolt flange units on a 3-57/64 in bolt pattern in 1 in bore from other schemes match the mounting geometry: NTN UELFL205-100, Rexnord KFC2451, Asahi UELFL205-100. Those differ in insert locking construction, so the mounting bolts interchange while the insert does not.
