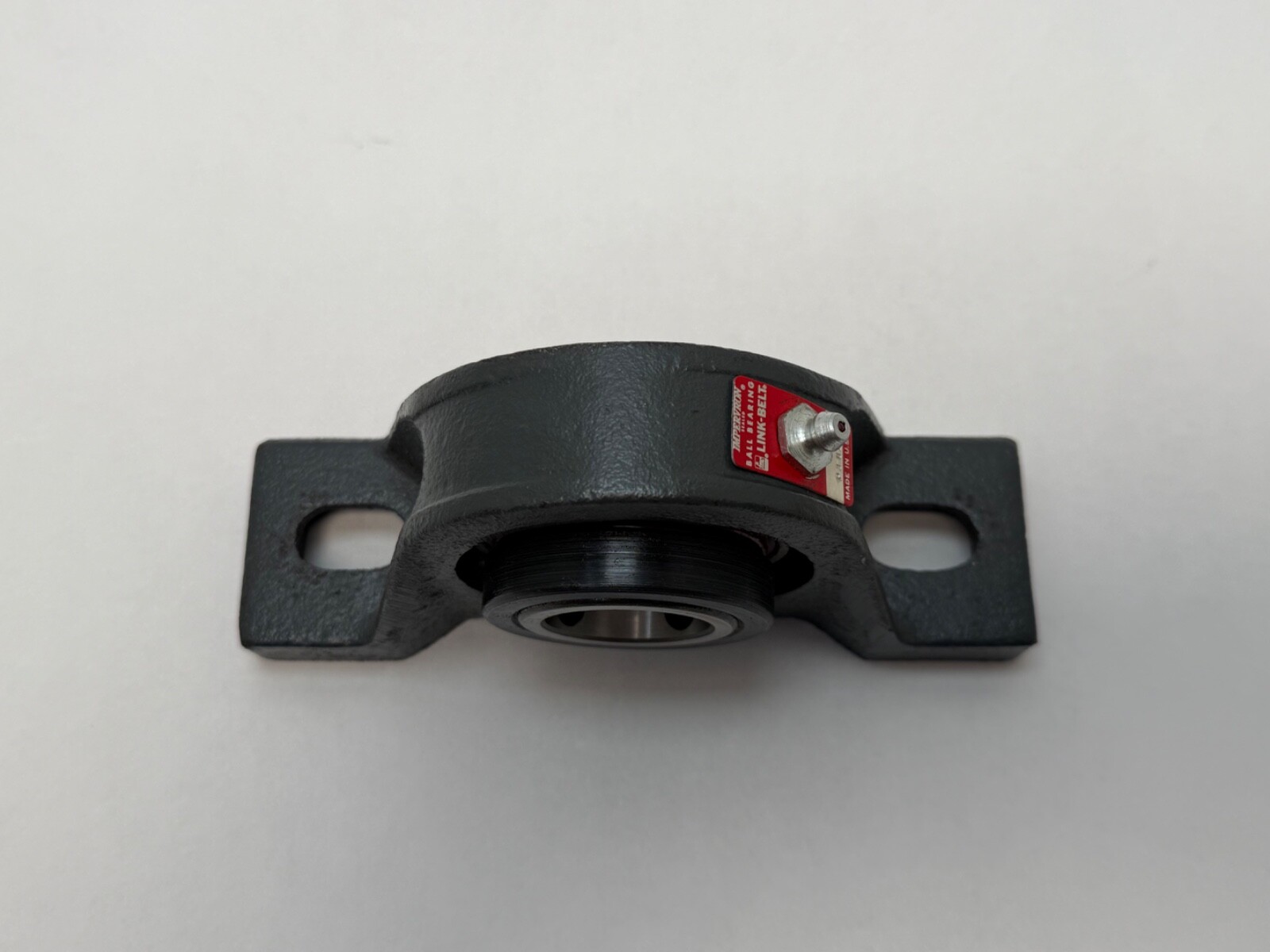

Link-Belt P3U219H two-bolt pillow block ball bearing, 1-3/16 in bore, set screw locking, cast iron housing, 1-11/16 in shaft height, UG219HL insert.
List Price
$47.86
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Link Belt |
|---|---|
| MPN | P3U219H |
| GTIN | 662327120832 |
| Model | P3-U219H |
| ID | 1-3/16 in |
| Width | 1.7500 in |
| Series | Link-Belt 200 Series Ball |
|---|---|
| Type | 2-Bolt Pillow Block Ball Bearing |
| Lubricant | Lithium complex NLGI 2 grease |
| Material | Cast Iron |
| Bolt Center To Center | 4.63 in |
| Number Of Bolt Holes | 2 |
| Bolt Center To Center Length | 4.63 in |
| Number Of Bolt Holes For Fasteners | 2 |
| Centre Height Pillow Block | 1.6875 in |
| Centre Height | 1.6875 in |
| Dynamic Load Rating | 4,390 lbf |
| Static Load Rating | 2,530 lbf |
| Rolling Elements | Ball |
| Max Temp | 107 °C (225 °F) |
| Bearing Type | Pillow Block Unit |
| Item Weight | 2.90 lb |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 8,000 rpm grease |
| Internal Clearance | C3 |
| Duty Type | Standard Duty |
| Locking Device | Set Screw |
| Relubrication Feature | Yes, 1/8 NPT grease fitting |
| Harmonization Code | 84832040 |
| Housing Material | Cast Iron |
| Expansion Type | Fixed |
| Maximum Permissible Misalignment | 2° |
| Industry Terms | pillow block bearing, 2-bolt pillow block, plummer block, mounted ball bearing |
| Common Misspellings | Linkbelt P3U219H, Link Belt P3 U219H, P3U219 |
| Application Types | Conveyors, fans, blowers, agricultural equipment, material handling |
| Bearing Insert Type | Ball |
| Mpn Variants | P3U219H, P3-U-219-H, P3-U219H, P3U 219H |
| Compatible With Replaces | Link-Belt P3U219H; replacement insert UG219HL; end cap Y2196N |
| Additional Attributes | Housing base: semi-solid; Base width 1.63 in; Slot length 0.94 in; Overall height 3.31 in; Foot height 0.69 in; Length through bore 1.567 in; Centerline to outermost bearing face 0.953 in; Inner ring OD 1.587 in; Set screw torque 85 in-lb; Misalignment +/-2.0 deg static only; Vibration frequencies (per rpm): FTF 0.0067, BPFI 0.0905, BPFO 0.0595, BSF 0.0385 |
| Overall Length | 6.31 in |
| Cage Material | Molded fiberglass reinforced nylon |
| Bolt Size | 1/2 in |

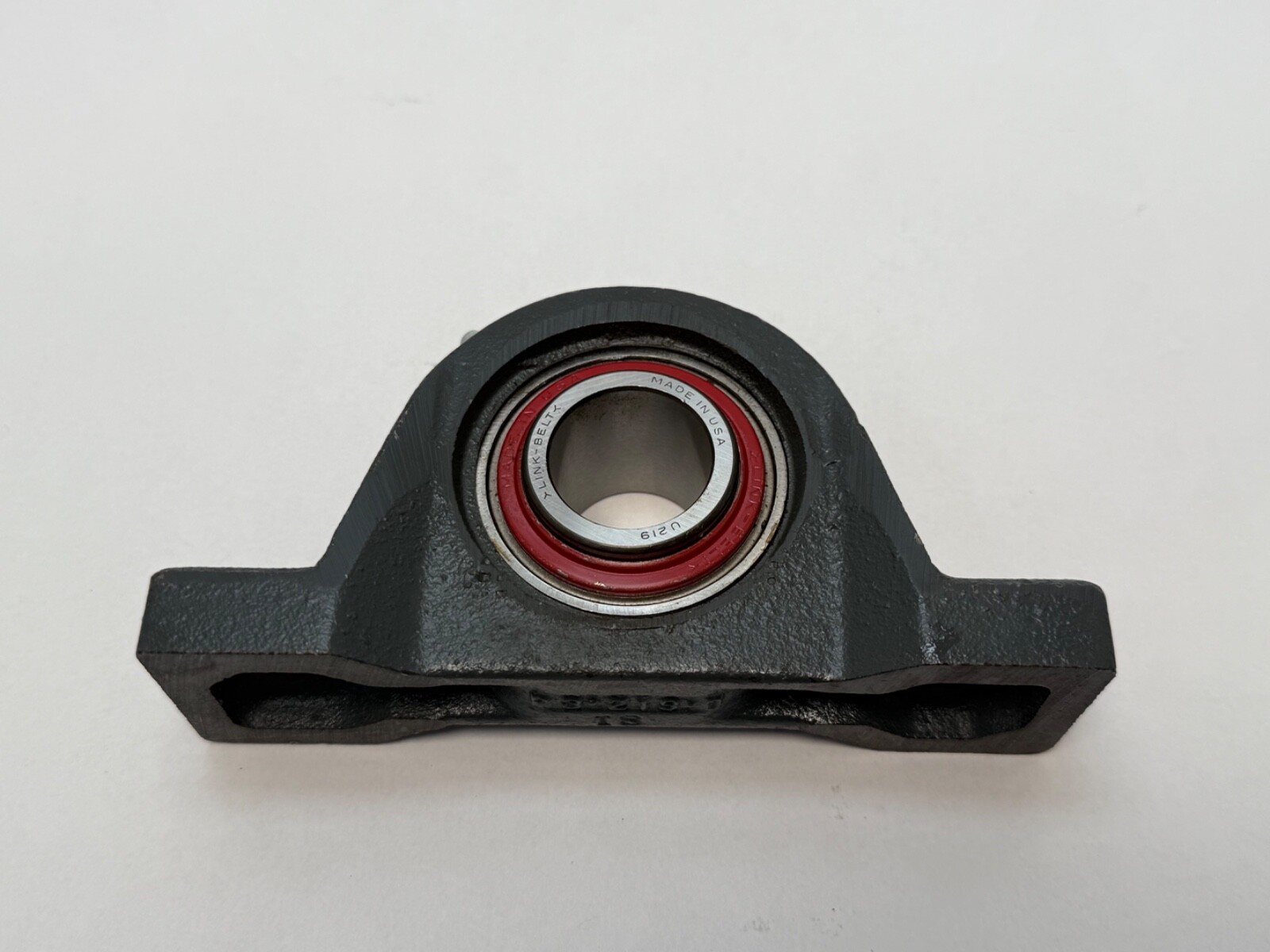

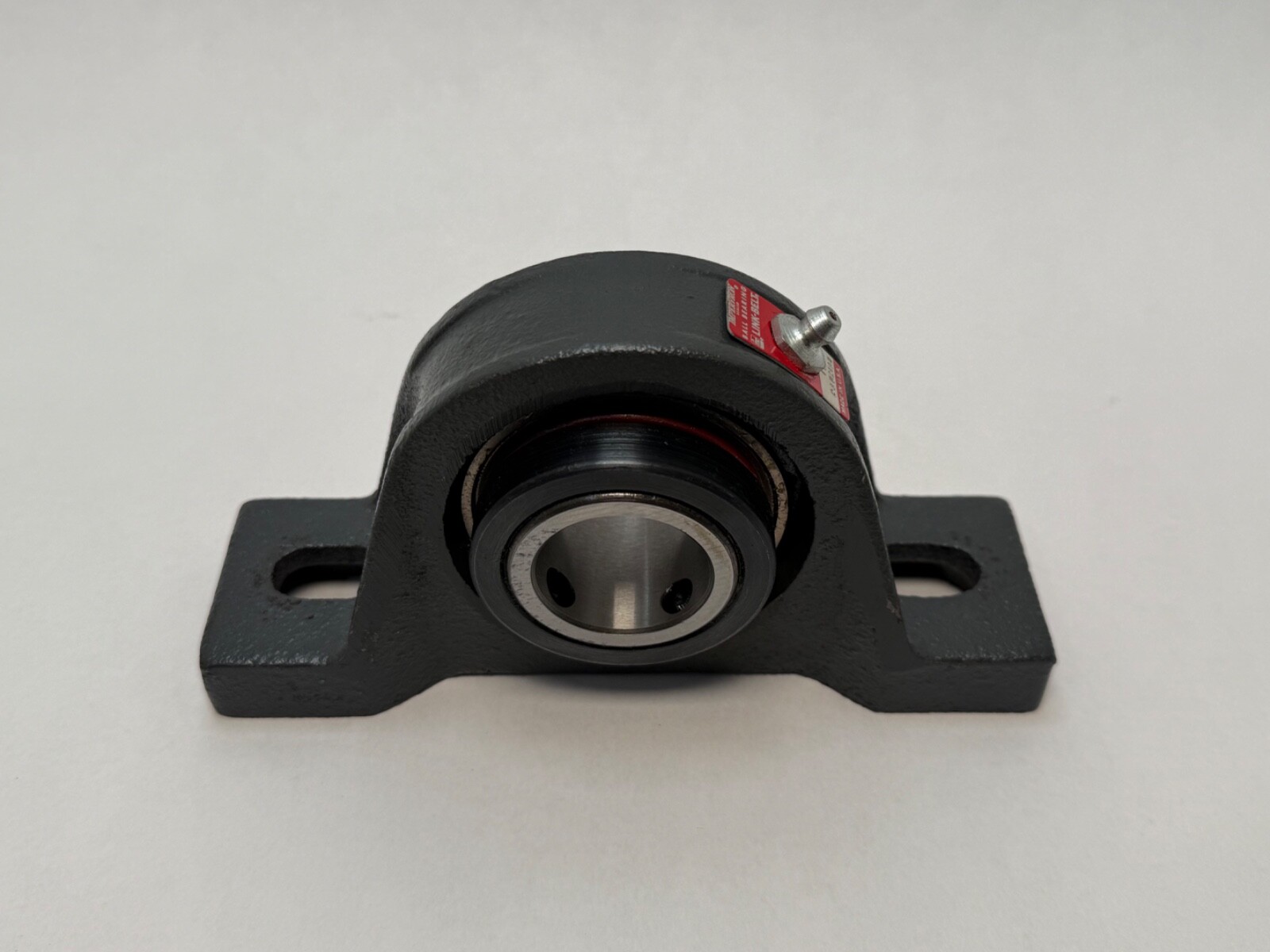

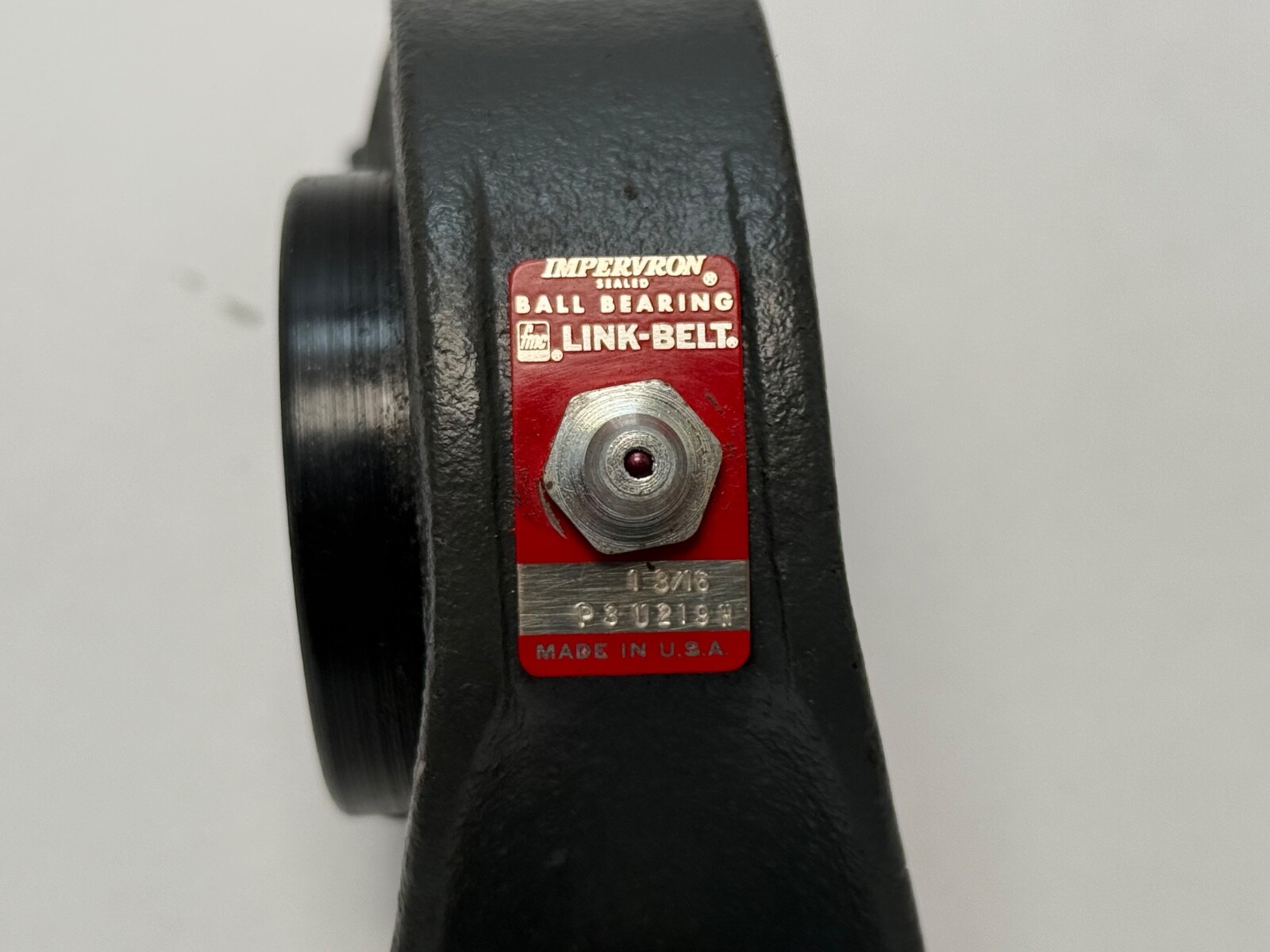

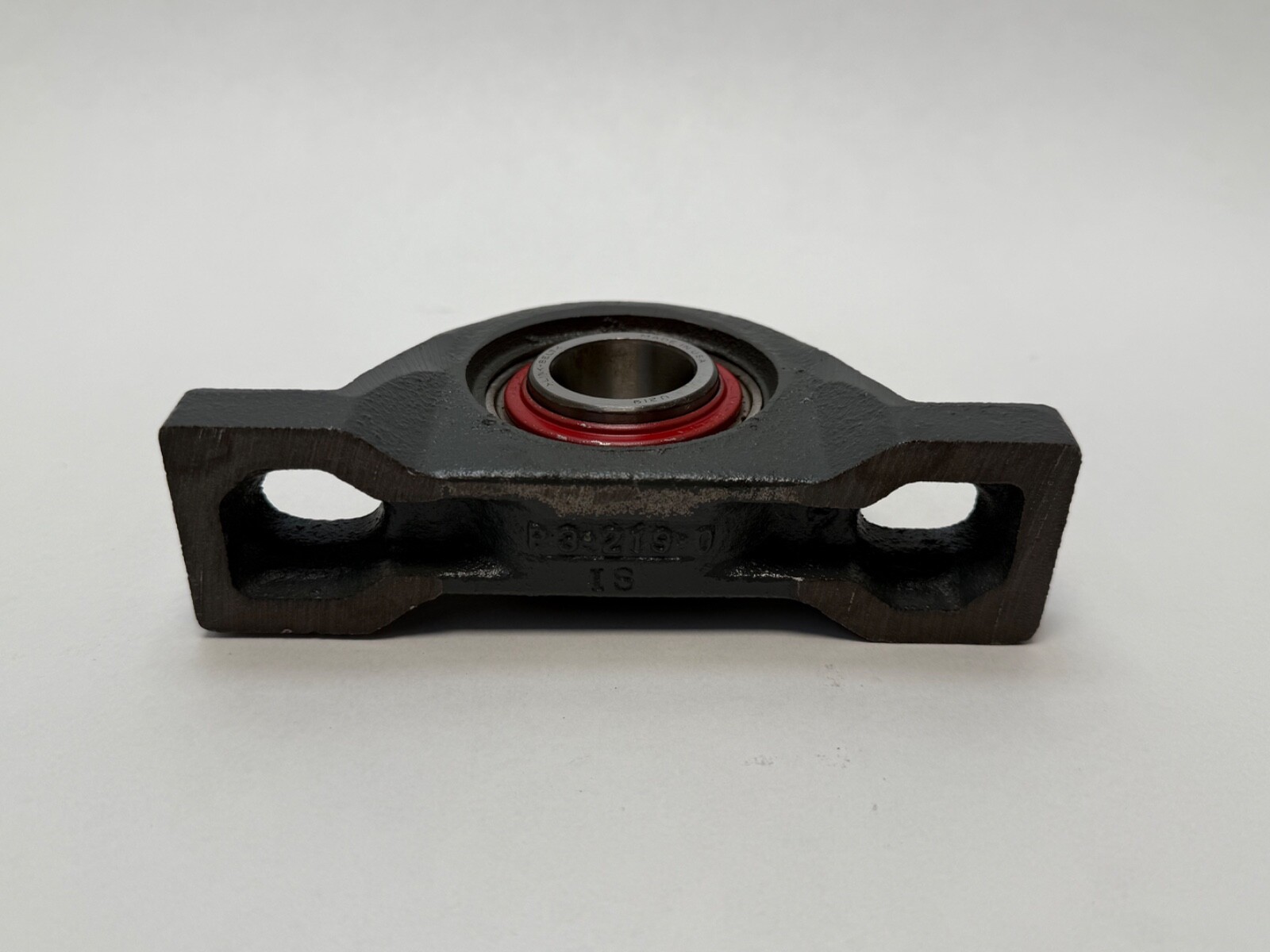

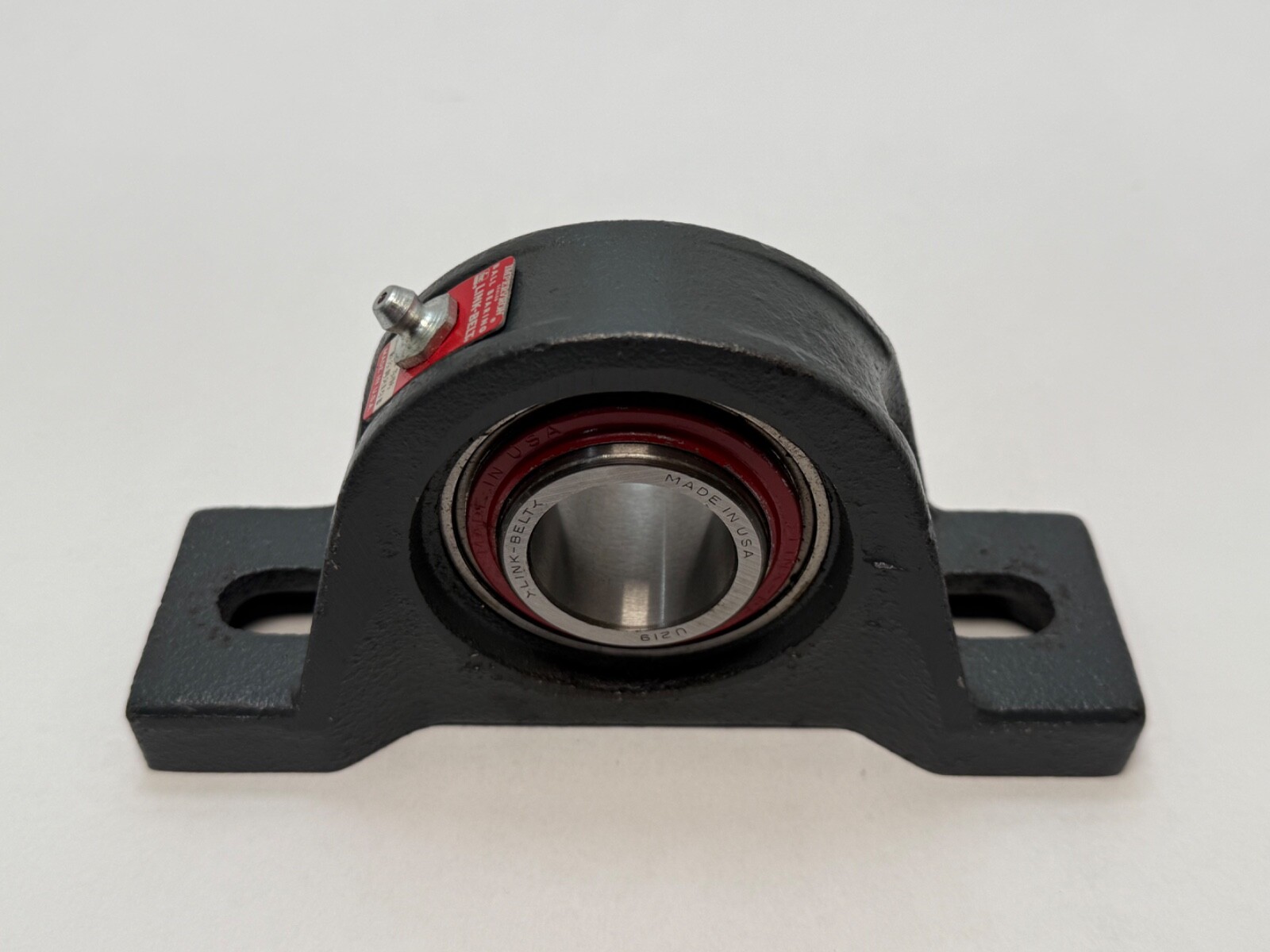

The Link-Belt P3U219H is a two-bolt pillow block ball bearing unit from the Link-Belt 200 series. A 1-3/16 in bore ball bearing insert with set screw locking and labyrinth seals is held in a one-piece cast iron pillow block housing with a grease fitting.
P3 — Link-Belt two-bolt pillow block housing.
U2 — 200 series ball bearing insert.
19 — bore in sixteenths of an inch, 1-3/16 in.
H — labyrinth seal.
Bore Diameter: 1-3/16 in (1.1875 in). Housing Type: Pillow block, two bolt. Housing Material: Cast iron, black powder coat. Housing Base: Semi-solid. Insert: Link-Belt UG219HL. Bearing Material: 52100 bearing steel. Rolling Elements: Ball. Shaft Locking: Set screw. Seal Type: Labyrinth seal. Cage Material: Molded fiberglass reinforced nylon. Cage Type: Ball riding retainer. Radial Clearance: C3. Dynamic Load Rating: 4,390 lbf. Static Load Rating: 2,530 lbf. Maximum Speed: 8,000 rpm. Lubricant: Lithium complex NLGI 2 grease. Relubricatable: Yes, 1/8 NPT grease fitting. Maximum Operating Temperature: 107 °C (225 °F). Misalignment: plus or minus 2.0° static. Expansion Type: Fixed. Weight: 2.90 lb.
Shaft Center Height: 1-11/16 in (1.6875 in). Bolt Spacing: 4.63 in. Bolt Size: 1/2 in. Slot Length: 0.94 in. Base Length: 6.31 in. Base Width: 1.63 in. Overall Height: 3.31 in. Foot Height: 0.69 in. Length Through Bore: 1.567 in. Centerline to Outermost Bearing Face: 0.953 in. Inner Ring Outside Diameter: 1.587 in. Set Screw Torque: 85 in-lb.
Replaces Link-Belt P3U219H and P3-U-219-H. Replacement insert: Link-Belt UG219HL. End cap: Link-Belt Y2196N. GTIN: 662327120832. CAD model and data sheet: available from Regal Rexnord (regalrexnord.com).
It is a two-bolt pillow block with a 1-11/16 in shaft center height.
The mounting bolts are on 4.63 in centers and take 1/2 in bolts.

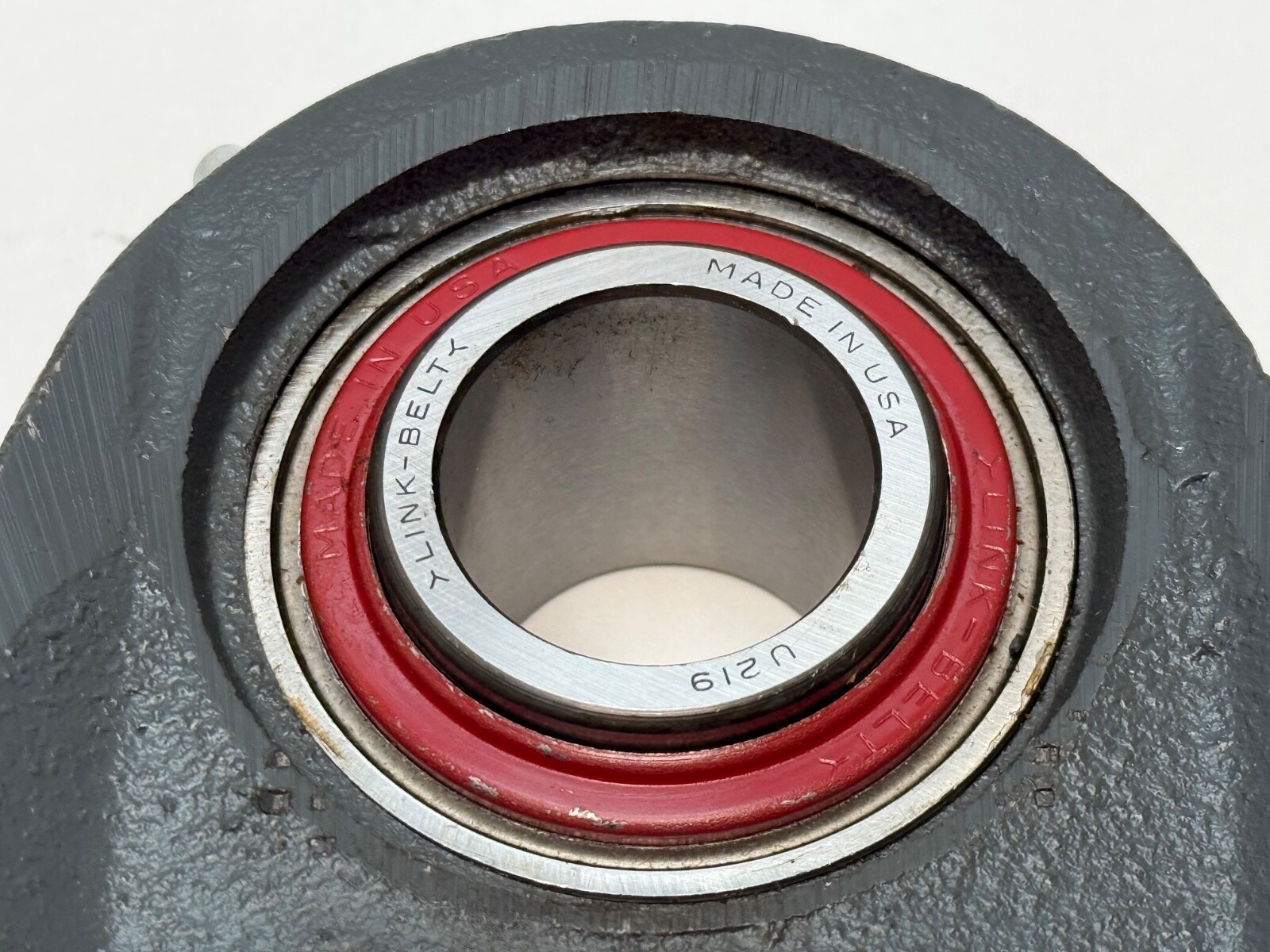

It uses the Link-Belt UG219HL 1-3/16 in bore ball bearing insert.
