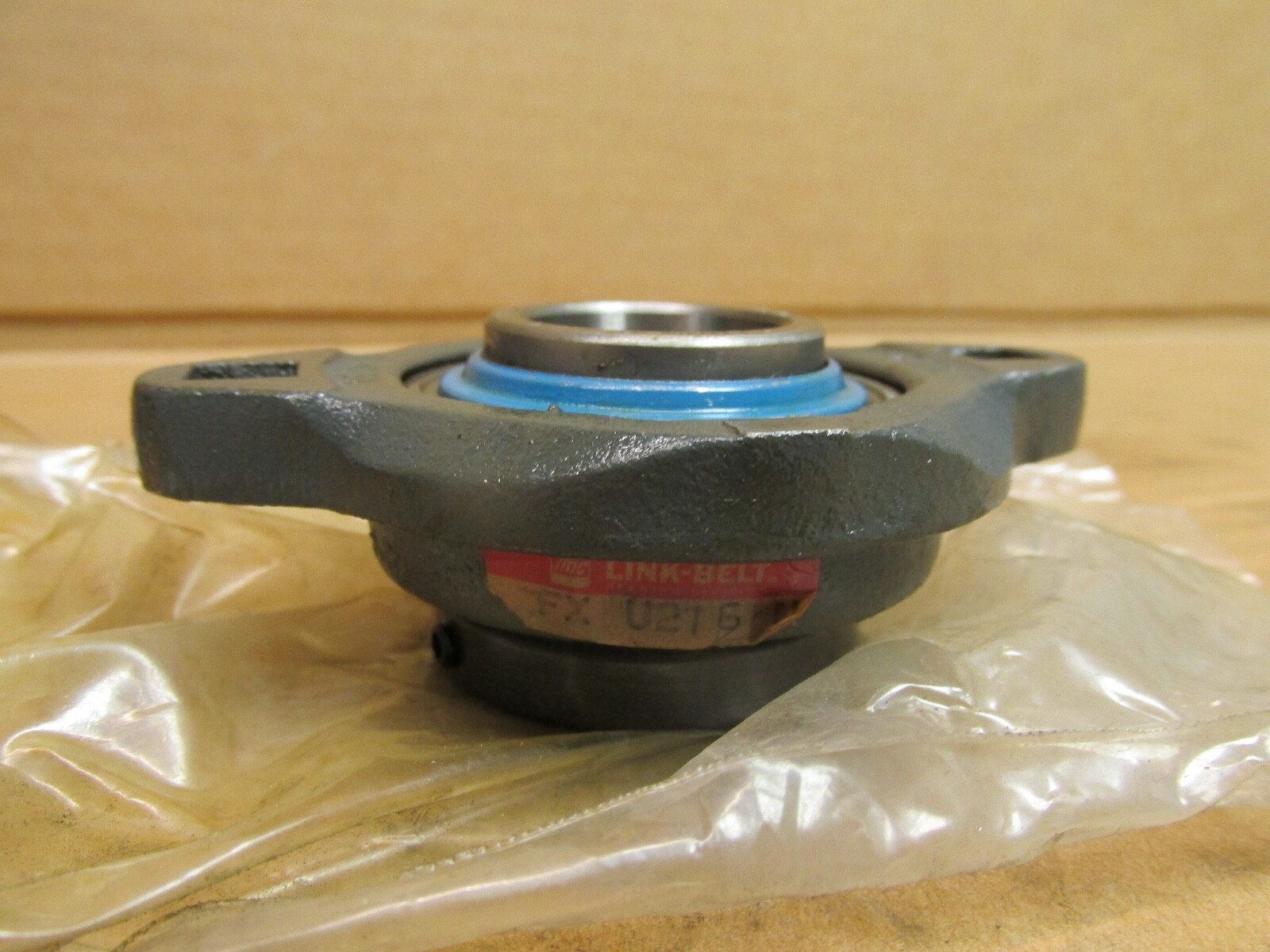

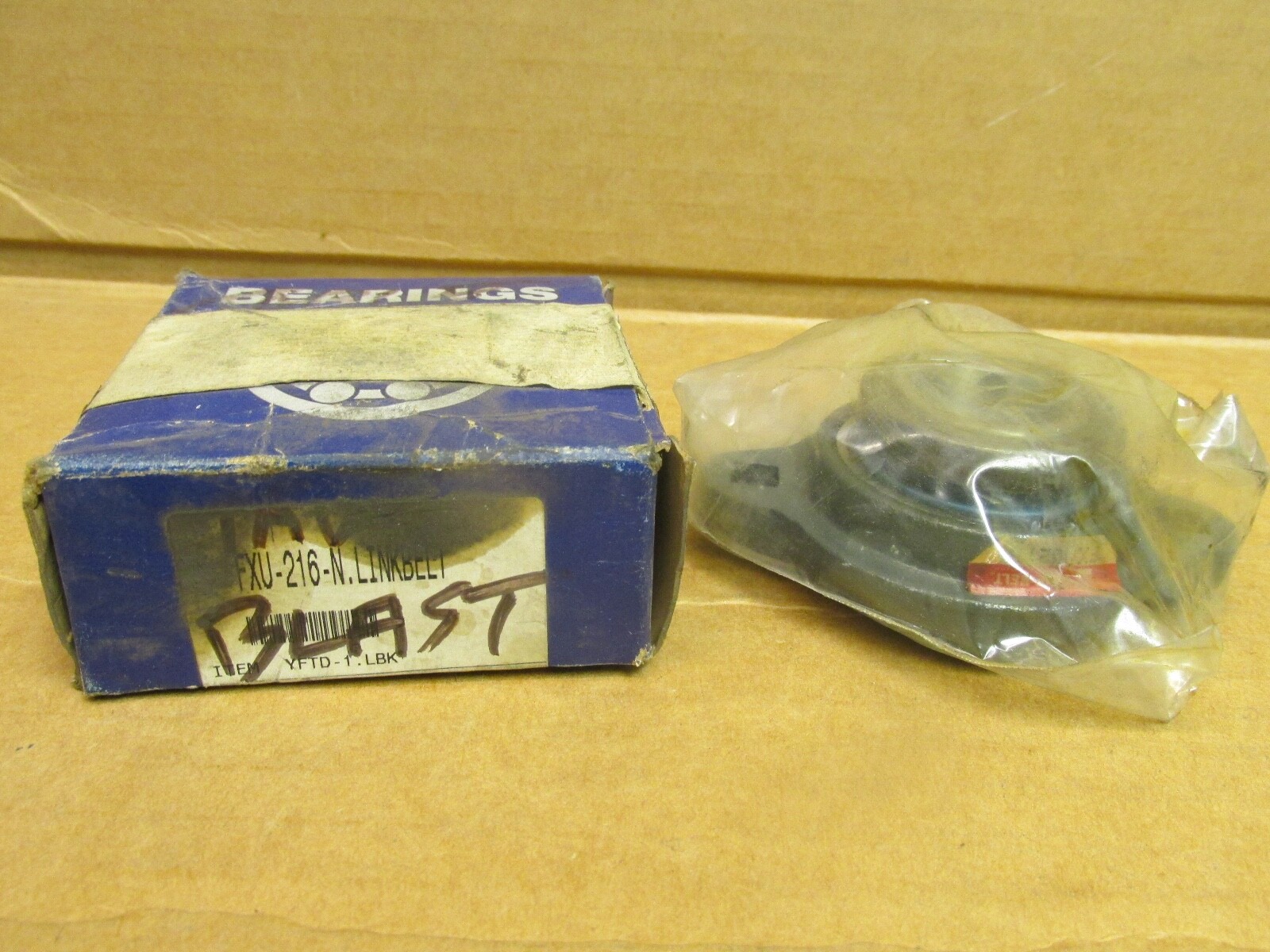

Link BeltFXU216N2-Bolt Flange Ball Bearing Unit – 1 in Bore, Set Screw Locking, Ductile Iron, 3 in Bolt Spacing

Name: Link Belt FXU216N 2-Bolt Flange Ball Bearing Unit – 1 in Bore, Set Screw Locking, Ductile Iron, 3 in Bolt Spacing
Brand: Link Belt
SKU: AB3B5#QAJSW8
Price: 47.63 USD
Availability: InStock

Condition: New – Open box

Condition Note: New Old Stock, Made In USA.

Availability:

1 in stock

Categories: Bearings, 2-Bolt Flange Ball Bearing Unit

Link-Belt FXU216N two-bolt flange ball bearing unit, 1 in bore, set screw locking, ductile iron housing, 3 in bolt spacing, U216NL insert, 3,150 lbf dynamic.

List Price

$47.63

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	Link Belt
MPN	FXU216N
GTIN	662327033248
Model	FXU-216N
ID	1 in

Technical Specifications

Material	Ductile Iron
Type	2-Bolt Flange Ball Bearing Unit
Bearing Insert Type	Ball
Industry Terms	2-bolt flange bearing, flange block, flanged bearing unit, mounted ball bearing
Common Misspellings	Linkbelt FXU216N, Link Belt FXU 216N, FXU216
Application Types	Conveyors, fans, agricultural equipment, packaging machinery, light duty shafts
Overall Width	2.72 in
Bolt Center To Center	3 in
Number Of Bolt Holes	2
Bolt Center To Center Length	3 in
Mpn Variants	FXU216N, FXU-216-N, FXU-216N, FXU 216 N
Compatible With Replaces	Link-Belt FXU216N; replacement insert Link-Belt U216NL
Additional Attributes	Misalignment: +/-2.0 deg static only; Set screw torque 87-92 in-lb; Inner ring OD 1.313 in; Length through bore 1.363 in; Housing height 0.78 in; Foot height 0.42 in; Housing coating: black powder coat; Vibration frequencies (per rpm): FTF 0.0067, BPFI 0.0905, BPFO 0.0595, BSF 0.0387
Overall Length	3.75 in
Cage Type	Ball riding retainer
Dynamic Load Rating	3,150 lbf
Static Load Rating	1,760 lbf
Series	Link-Belt 200 Series Ball
Max Temp	107 °C (225 °F)
Item Weight	0.42 kg (0.92 lb)
Cage Material	Molded fiberglass reinforced nylon
Limiting Speed	9,600 rpm grease
Internal Clearance	C3
Lubricant	Lithium complex NLGI 2 grease
Locking Device	Set Screw
Relubrication Feature	No
Housing Material	Ductile Iron
Expansion Type	Fixed
Bolt Size	5/16 in

Seller Part Number: AB3B5#QAJSW8

Product Description

What this part is:

The Link-Belt FXU216N is a two-bolt flange ball bearing unit from the Link-Belt 200 series. A 1 in bore ball bearing insert with set screw locking is held in a one-piece ductile iron flange housing.

Decoding the designation:

FX — Link-Belt two-bolt flange housing.

U2 — 200 series ball bearing insert.

16 — bore in sixteenths of an inch, 16/16 = 1 in.

N — single lip contact seal.

Specifications:

Bore Diameter: 1 in. Housing Type: Flange, two bolt. Housing Material: Ductile iron, black powder coat. Housing Construction: One piece. Insert: Link-Belt U216NL. Bearing Material: 52100 bearing steel. Rolling Elements: Ball. Shaft Locking: Set screw. Seal Type: Single lip contact seal. Cage Material: Molded fiberglass reinforced nylon. Cage Type: Ball riding retainer. Radial Clearance: C3. Dynamic Load Rating: 3,150 lbf. Static Load Rating: 1,760 lbf. Maximum Speed: 9,600 rpm. Lubricant: Lithium complex NLGI 2 grease. Relubricatable: No. Maximum Operating Temperature: 107 °C (225 °F). Misalignment: plus or minus 2.0° static. Expansion Type: Fixed. Weight: 0.92 lb.

Dimensions and mounting:

Bolt Spacing: 3 in. Bolt Size: 5/16 in. Overall Length: 3.75 in. Overall Width: 2.72 in. Overall Height: 1.363 in. Housing Height: 0.78 in. Foot Height: 0.42 in. Length Through Bore: 1.363 in. Inner Ring Outside Diameter: 1.313 in. Pilot: None. Set Screw Torque: 87 to 92 in-lb.

Compatibility and replacement:

Replaces Link-Belt FXU216N and FXU-216-N. Replacement insert: Link-Belt U216NL. GTIN: 662327033248. CAD model and data sheet: available from Regal Rexnord (regalrexnord.com).
