Availability:
2 in stock
Dodge F2B-GT-102 two-bolt flange ball bearing unit, 1-1/8 in (28.58 mm) bore, cast iron housing, Grip-Tight concentric adapter, contact seals. 1 Pc.
List Price
$42.02
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| GTIN | 782475885893 |
| Model | F2B GT 102 / 129307 |
| ID | 1.125 in (28.58 mm) |
| Width | 1.61 in |
| Material | Cast Iron |
|---|---|
| Series | GT |
| Type | 2-Bolt Flange Ball Bearing Unit |
| Lubricant | Grease |
| Base Number | F2B-GT-102 |
| Industry Terms | two bolt flange bearing; 2-bolt flange unit; Grip Tight flange bearing |
| Common Misspellings | F2BGT 102; F2B GT102; Dodge F2BGT-102; Grip-Tite; Grip Tite 102 |
| Number Of Flanges | 2 |
| Bolt Center To Center | 4.59 in |
| Number Of Bolt Holes | 2 |
| Number Of Bolt Holes For Fasteners | 2 |
| Bearing Insert Type | Ball |
| Bore Shaft Size | 1-1/8 in (1.125 in / 28.58 mm) |
| Housing Style | Two-bolt flange bracket, surface mount |
| Locking Method | Grip-Tight concentric tapered adapter |
| Mpn Variants | F2B-GT-102; F2BGT102; F2B GT 102; F2BGT-102; 129307 |
| Rolling Elements | Ball |
| Bearing Type | 2-Bolt Flange Ball Bearing Unit |
| Number Of Rows | 1 |
| Bore Type | Straight (Grip-Tight concentric adapter) |
| Duty Type | Standard Duty |
| Locking Device | Grip-Tight concentric tapered adapter |
| Insert Outer Ring | Spherical |
| Harmonization Code | 8483.20.40.40 |
| Housing Material | Cast Iron |
| Expansion Type | Non-Expanding |
| Part Number | F2B-GT-102 |

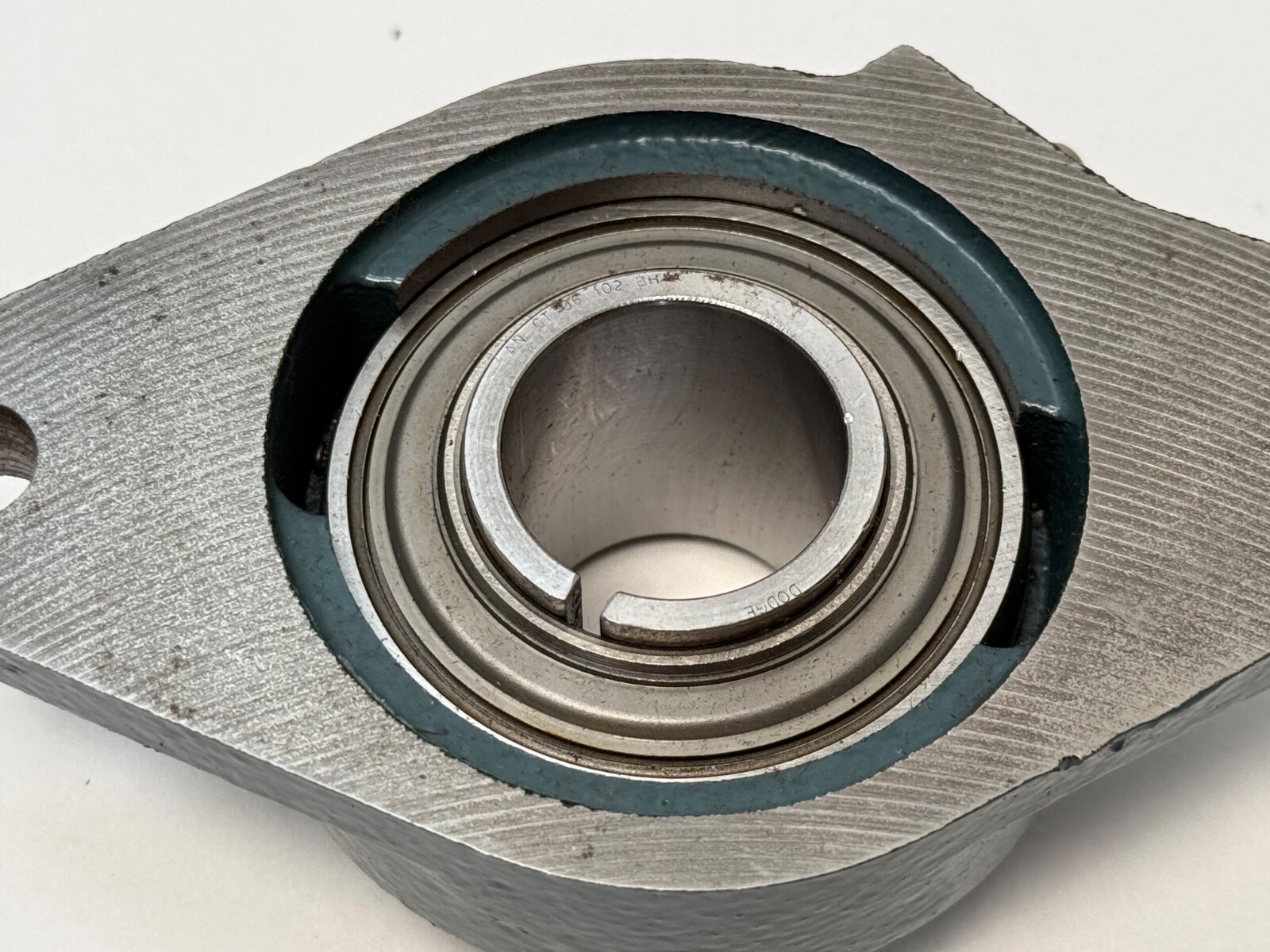

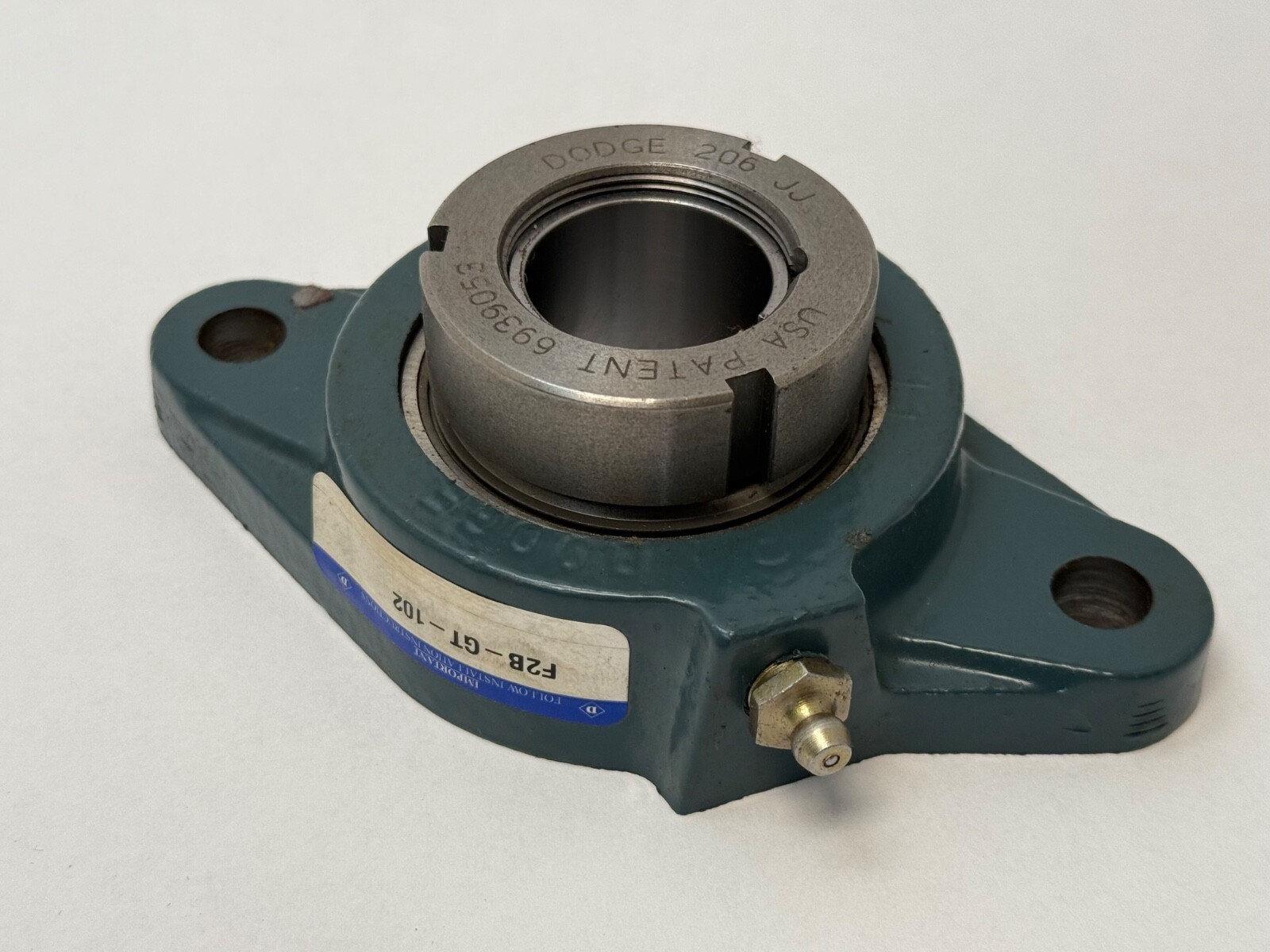

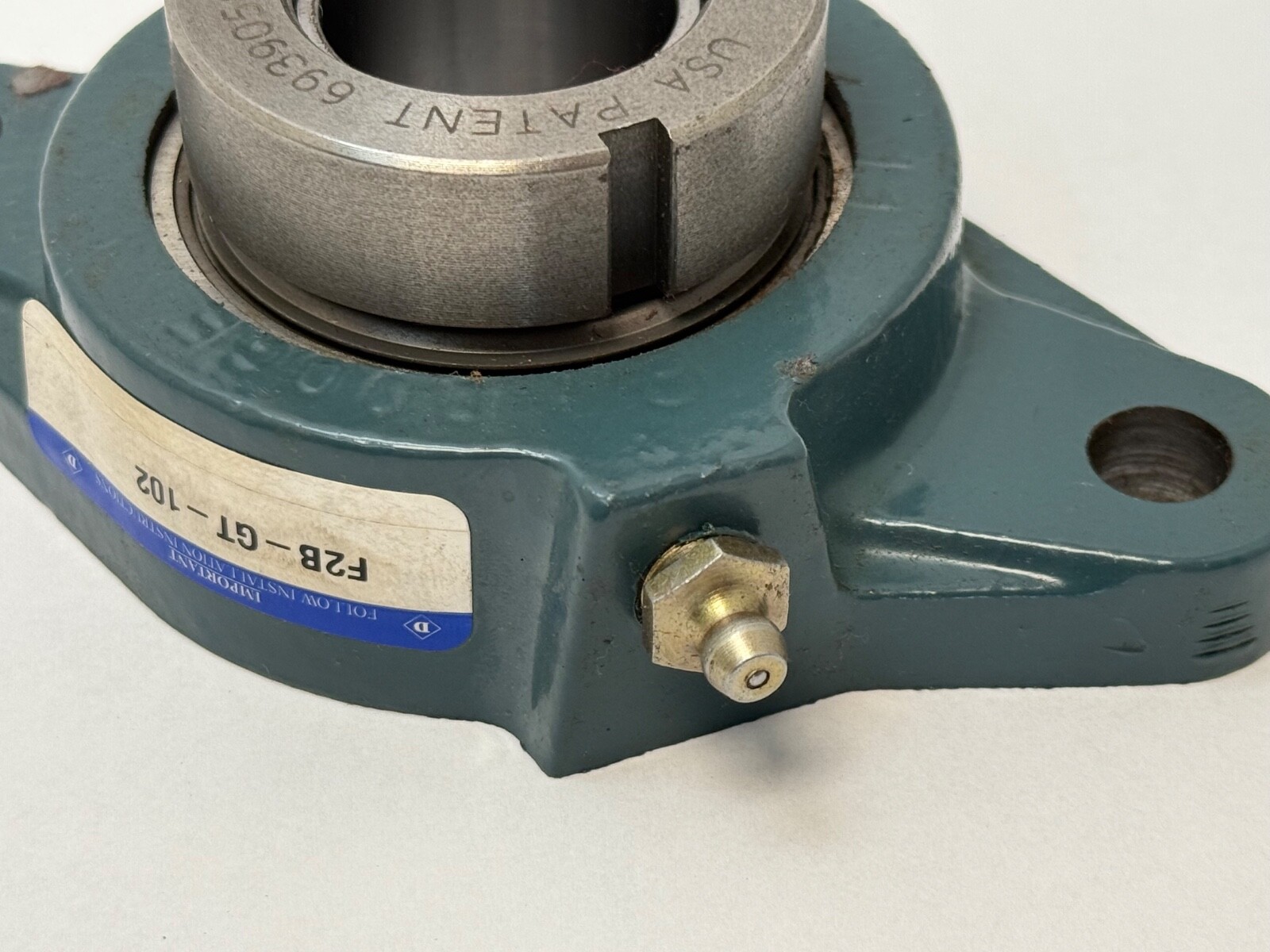

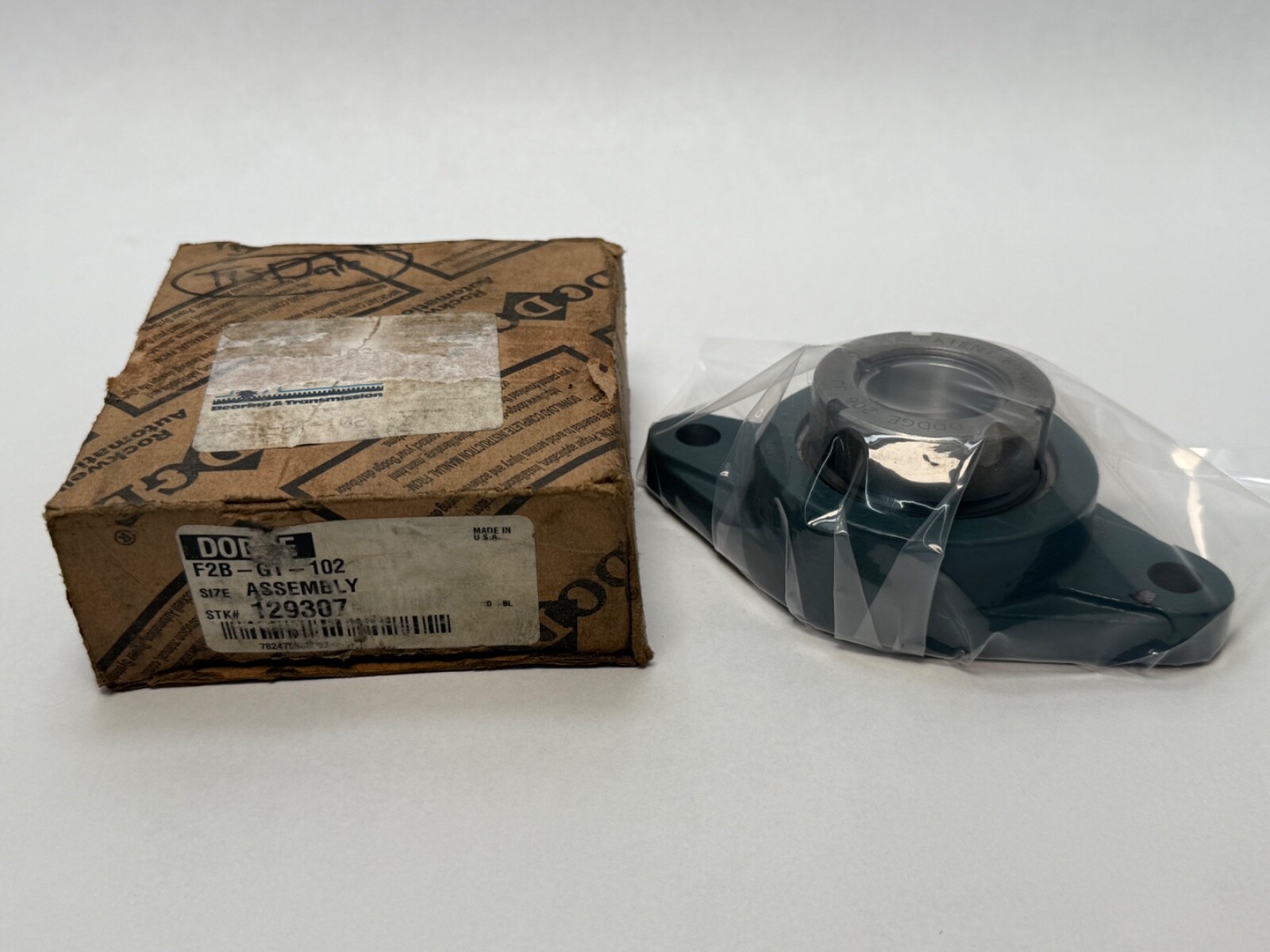

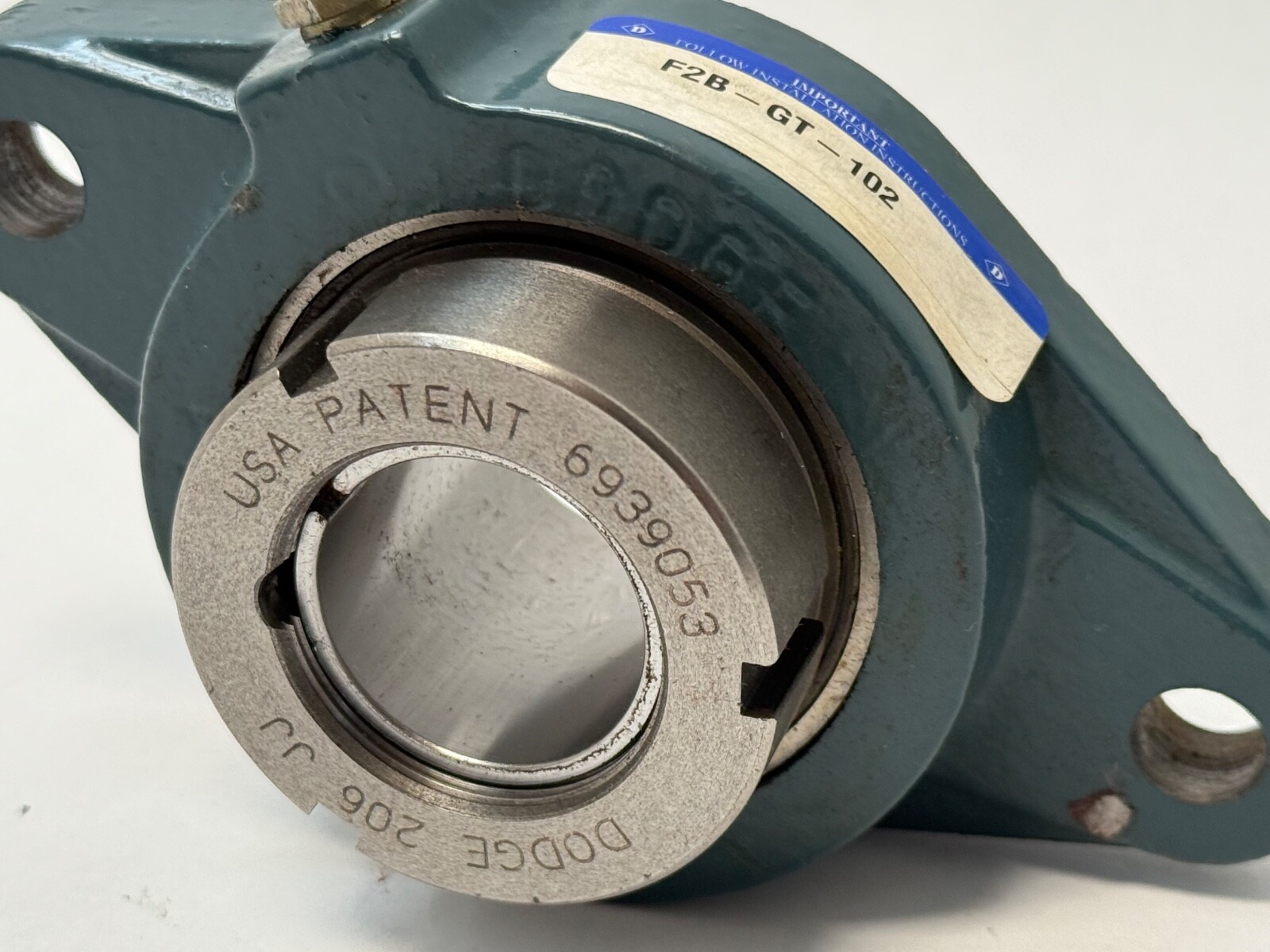

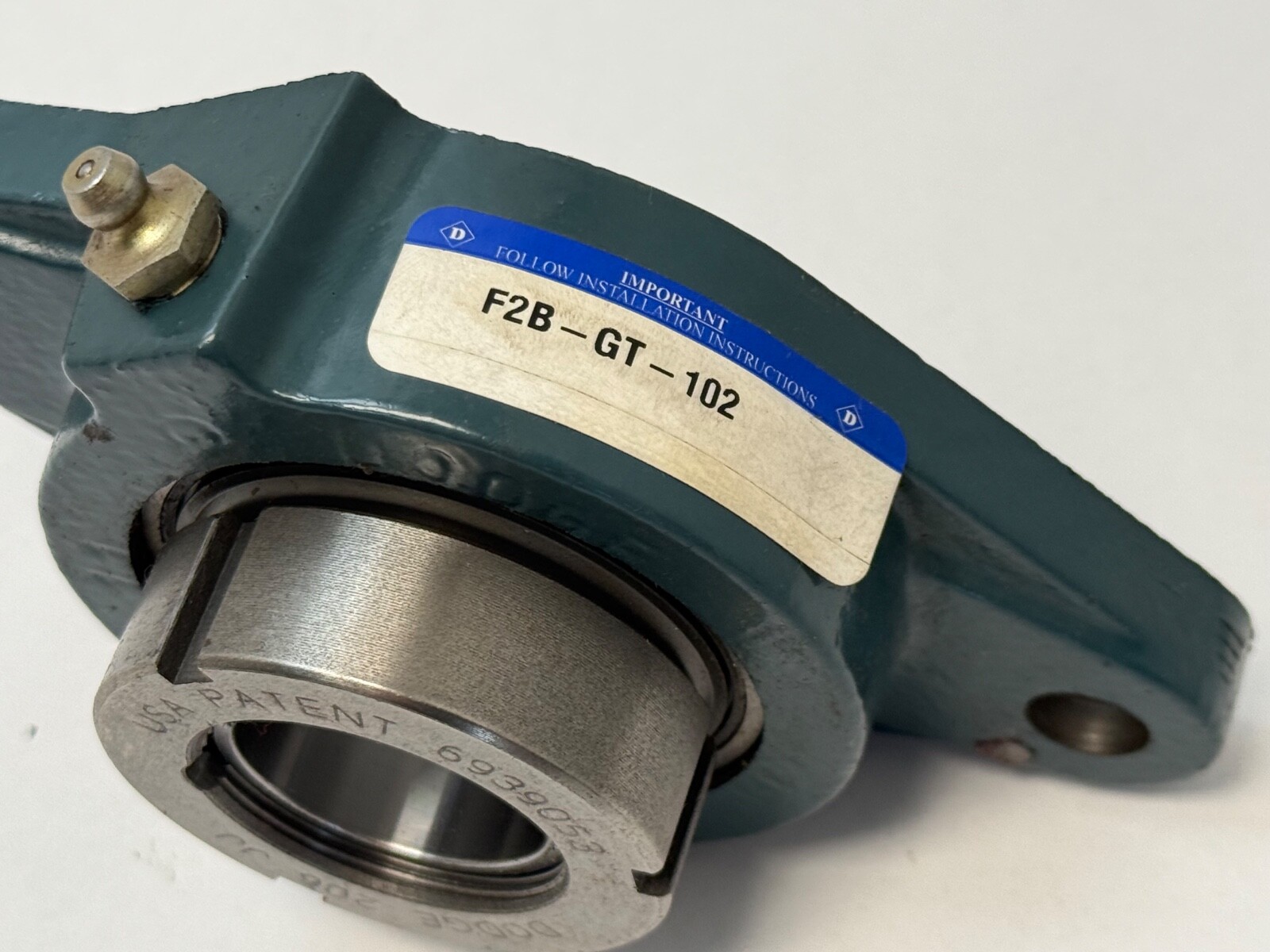

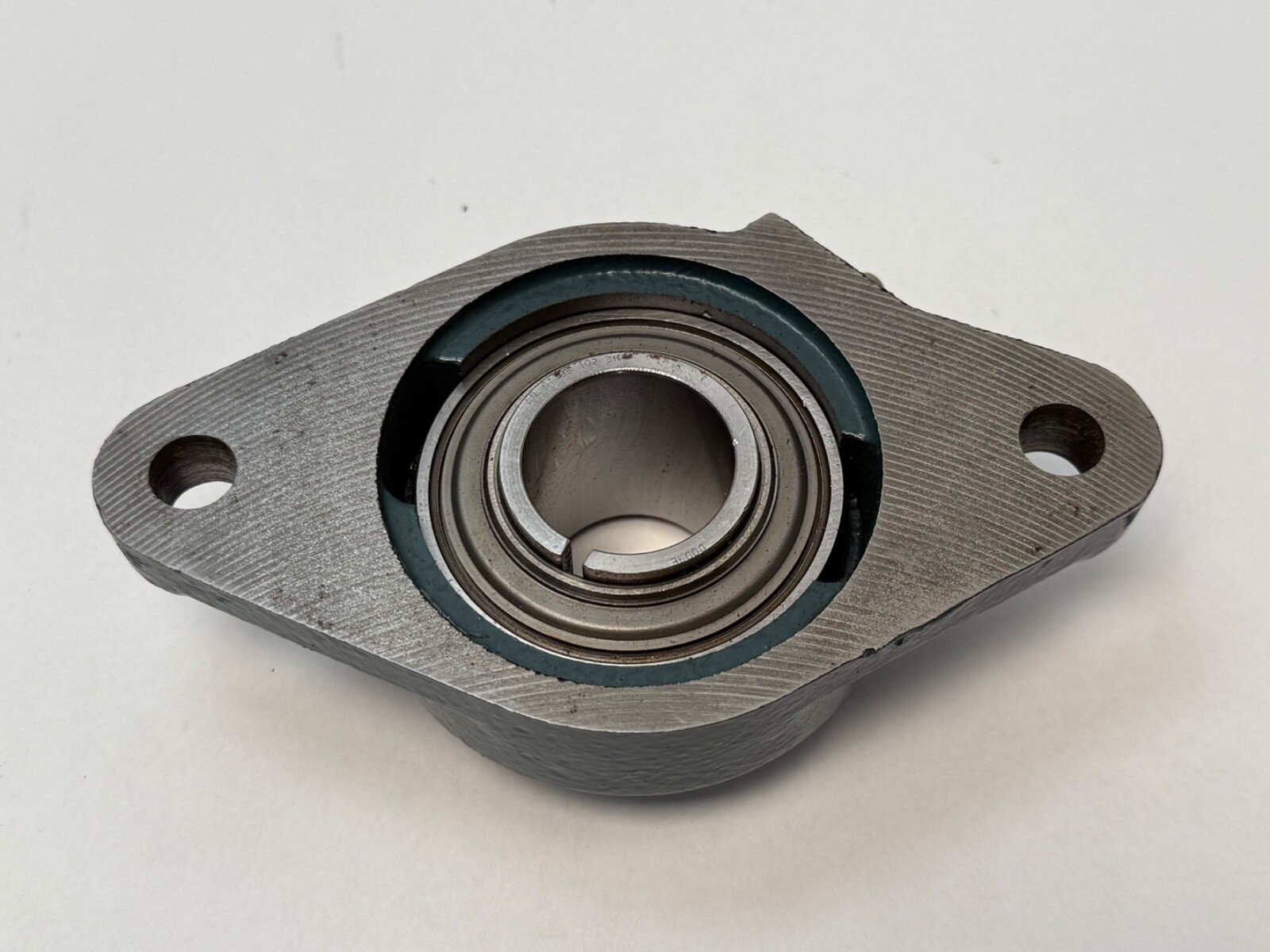

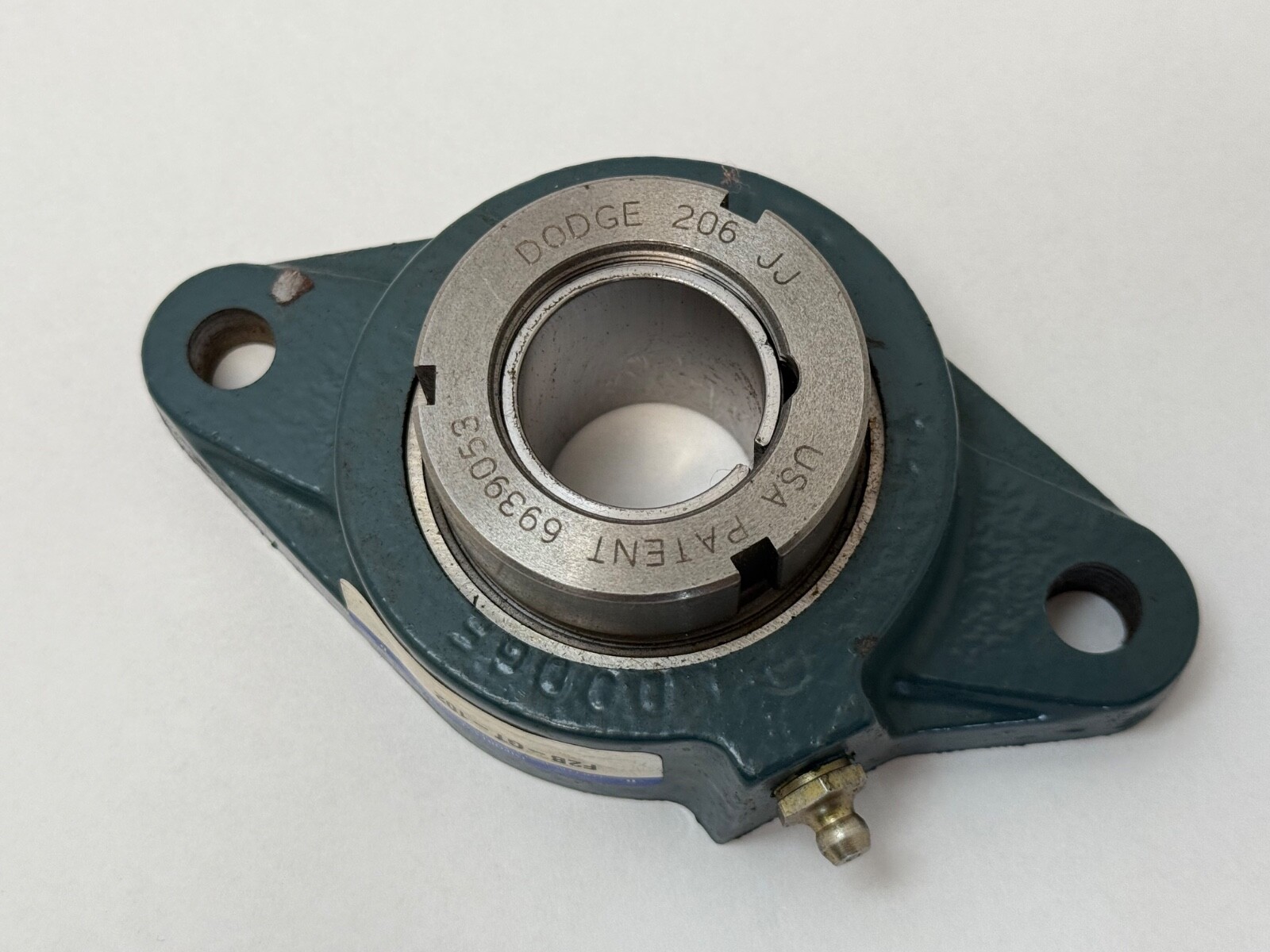

Dodge F2B-GT-102 two-bolt flange ball bearing unit, Dodge stock number 129307. Cast iron two-bolt flange housing with a single-row ball bearing insert, spherical outer ring, 1-1/8 in (28.58 mm) shaft size, Grip-Tight concentric locking adapter, contact seals on both sides, grease lubricated with a relubrication fitting. Unit Quantity: 1 Pc.
F2B — Dodge two-bolt flange housing style.
GT — Grip-Tight, a tapered concentric adapter that clamps the full circumference of the shaft.
102 — shaft-size code for 1-1/8 in.
129307 — Dodge stock number.
Bore Diameter: 1.125 in (28.58 mm). Housing Style: Two-bolt flange bracket, surface mount. Number Of Bolt Holes: 2. Bolt Center To Center: 4.59 in. Overall Width: 1.61 in. Housing Material: Cast iron. Insert: Single-row ball bearing, spherical outer ring. Locking Device: Grip-Tight concentric tapered adapter. Seal Type: Contact seals both sides. Lubricant: Grease. Expansion Type: Non-expansion. Operating temperature range: -20 to 120 °C. Unit Quantity: 1 Pc.
Two-bolt flange bracket mounted against a vertical face with the shaft passing through. The Grip-Tight adapter grips the shaft through 360°. The spherical outer ring on the insert takes up initial misalignment between the mounting faces. Non-expansion type: this position locates the shaft axially.
Same Dodge two-bolt flange housing with other locking methods: F2B-SC-102 (setscrew) and F2B-SCEZ-102 (eccentric collar). Alternate written forms: F2B-GT-102, F2BGT102, F2B GT 102, 129307.
What shaft size does the Dodge F2B-GT-102 fit?
1-1/8 in (28.58 mm).
How many bolts mount the housing?
Two bolts, on a 4.59 in bolt center to center.
What locking method does it use?
A Grip-Tight concentric tapered adapter.
