Split cast iron pillow block housing, SAF-XT 515 series, 2-7/16 in or 2-1/2 in shaft, 3-1/4 in base to bore centreline, 9-1/2 in bolt centres. Seal set 043542.
List Price
$120.05
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | H2S-SFXT-515 |
| Model | HS2S FXT 515 / 042106 |
| ID | 2.4375 in |
| Material | Cast Iron |
|---|---|
| Series | HS2 |
| Type | Bearing Housing |
| Base Number | 042106 |
| Industry Terms | split pillow block, SAF housing, SAF-XT, split frame housing, housing only, pillow block housing, plummer block, adapter mounted pillow block, line shaft bearing block, two bolt base pillow block |
| Common Misspellings | HS2SFXT515, HS2S FXT 515, H2S SFXT515, Dodge 42106, SAF XT 515, SAFXT 515, pillow block housing flange mount, Dodge pillowblock, plumber block |
| Application Types | Line shafts, conveyors, fans and blowers, bucket elevators, and other horizontal shaft positions where a split housing allows assembly without removing the shaft |
| Number Of Bolt Holes | 4 |
| Number Of Bolt Holes For Fasteners | 4 |
| Bore Shaft Size | 2-7/16 in or 2-1/2 in shaft (per carton label and SNW-15 adapter family) |
| Housing Style | Split pillow block, two-bolt base, both ends open (NOT a flange mount) |
| Locking Method | Adapter sleeve mounted — SNW-15 sleeve with lock nut and lock washer, sold separately |
| Replacement Insert | 22215K adapter-mounted spherical roller bearing (not included) |
| Mpn Variants | 042106, H2S-SFXT-515, H2SSFXT515, H2S SFXT 515, HS2SFXT515, HS2S-FXT-515, HS2S FXT 515, SAF-XT 515, SAFXT515, SAFXT-515, SAF 515 |
| Manufacturer Status | Current catalogue item. Dodge lineage: Dodge (Mishawaka, IN) → Reliance Electric → Baldor Electric 2007 → ABB 2011 → RBC Bearings November 2021, now trading as Dodge Industrial. |
| Compatible With Replaces | Direct replacement for legacy SAF 515 series split pillow block housings; same 3-1/4 in centre height and 9-1/2 in bolt centres, so no base plate rework required |
| Bearing Type | Split Pillow Block Housing |
| Bore Type | Straight |
| Duty Type | Standard |
| Locking Device | Adapter Mount |
| Harmonization Code | 8483.20.40.40 |
| Housing Material | Cast Iron |
| Expansion Type | Expansion |
| Part Number | H2S-SFXT-515 |
| Cross Reference 6 | SNW-15 x 2-1/2 (alternate adapter sleeve, 2-1/2 in shaft) |
|---|---|
| Cross Reference 7 | 041888 (SAF-515 x 2-7/16 TT complete assembly) |
| Cross Reference 9 | 043542 (Dodge seal set physically included in this lot) |

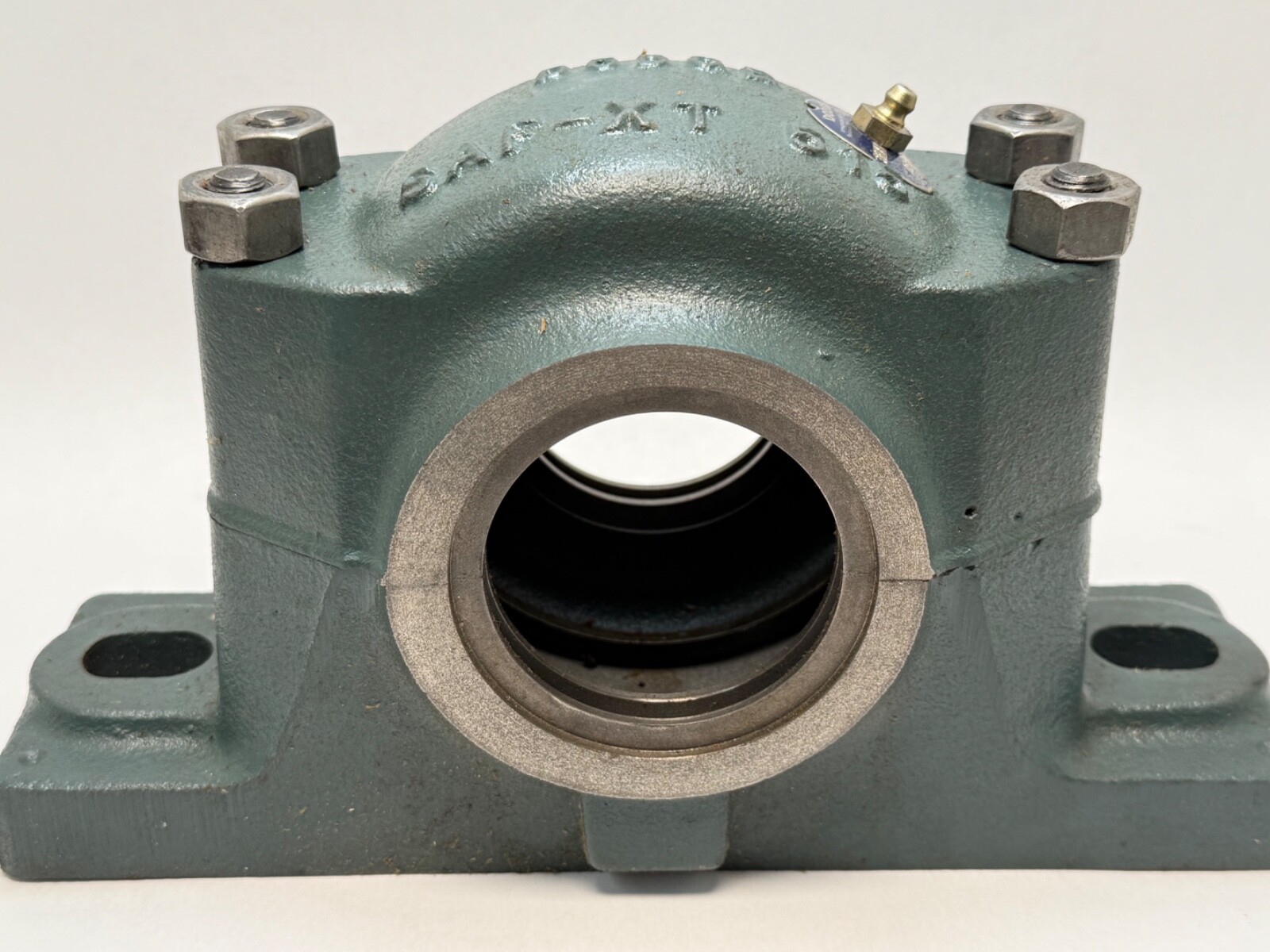

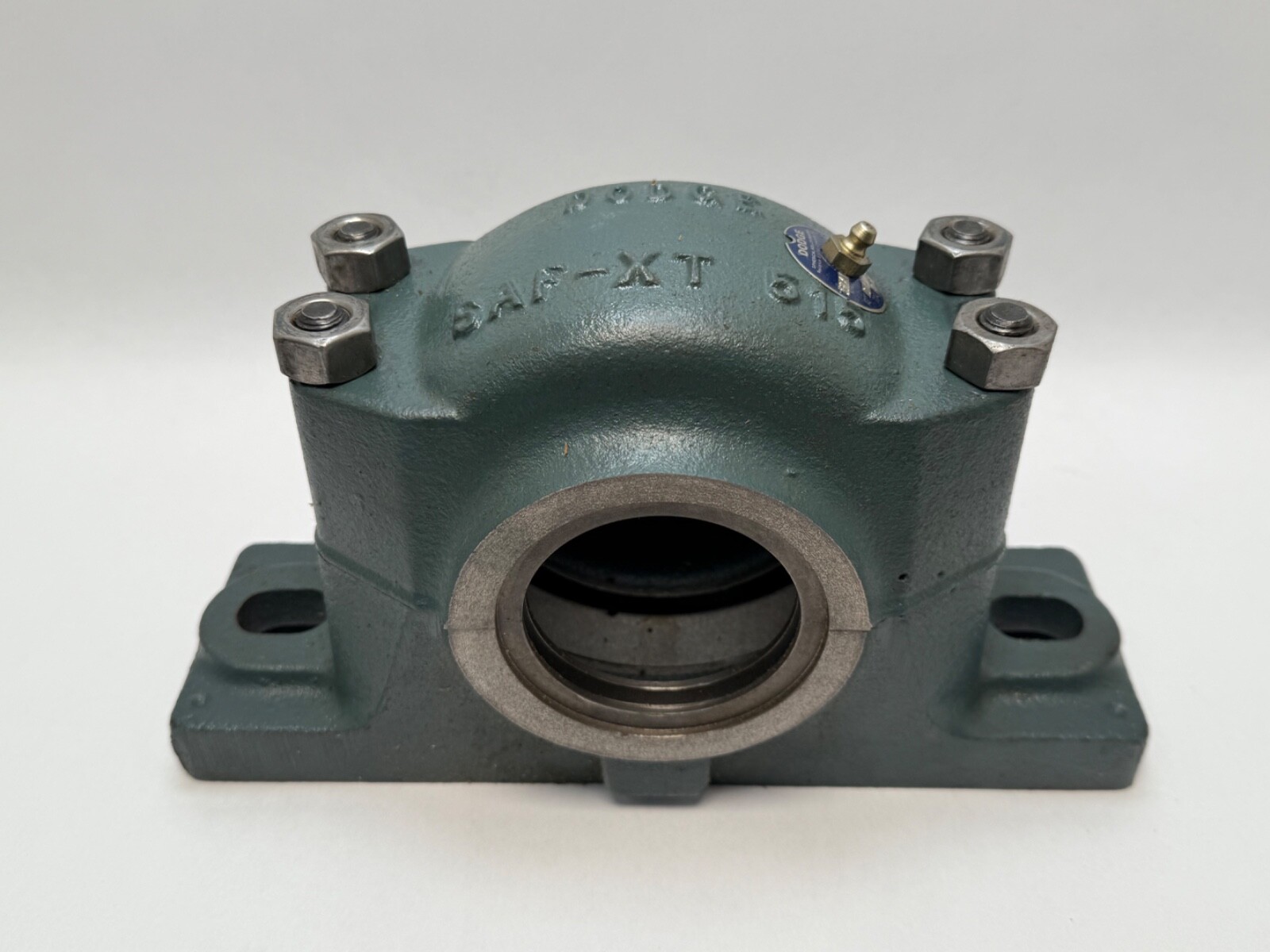

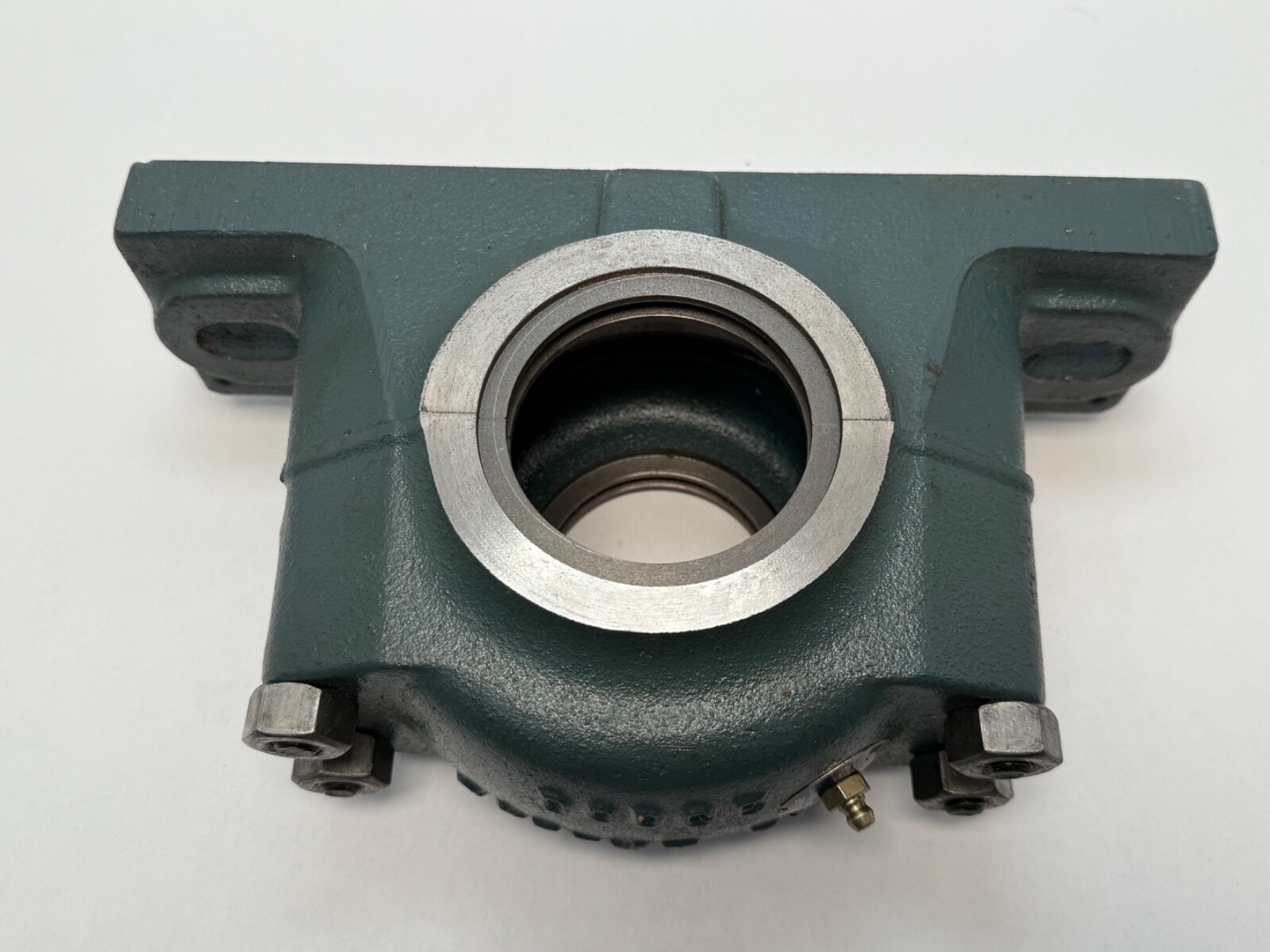

Dodge 042106 H2S-SFXT-515 split cast iron pillow block housing, SAF-XT 515 series, with cap, base and a bagged seal set. Housing Style: split pillow block, two-bolt base, both ends open. Shaft Size Range: 2-7/16 in or 2-1/2 in. Locking Method: adapter sleeve mounted. Replacement Insert: 22215K adapter-mounted spherical roller bearing, a separate item. Adapter Sleeve: SNW-15 x 2-7/16 or SNW-15 x 2-1/2 with lock nut and lock washer, separate items. Unit Quantity: 1 Pc.
H — Housing.
S — Split. The housing separates into cap and base.

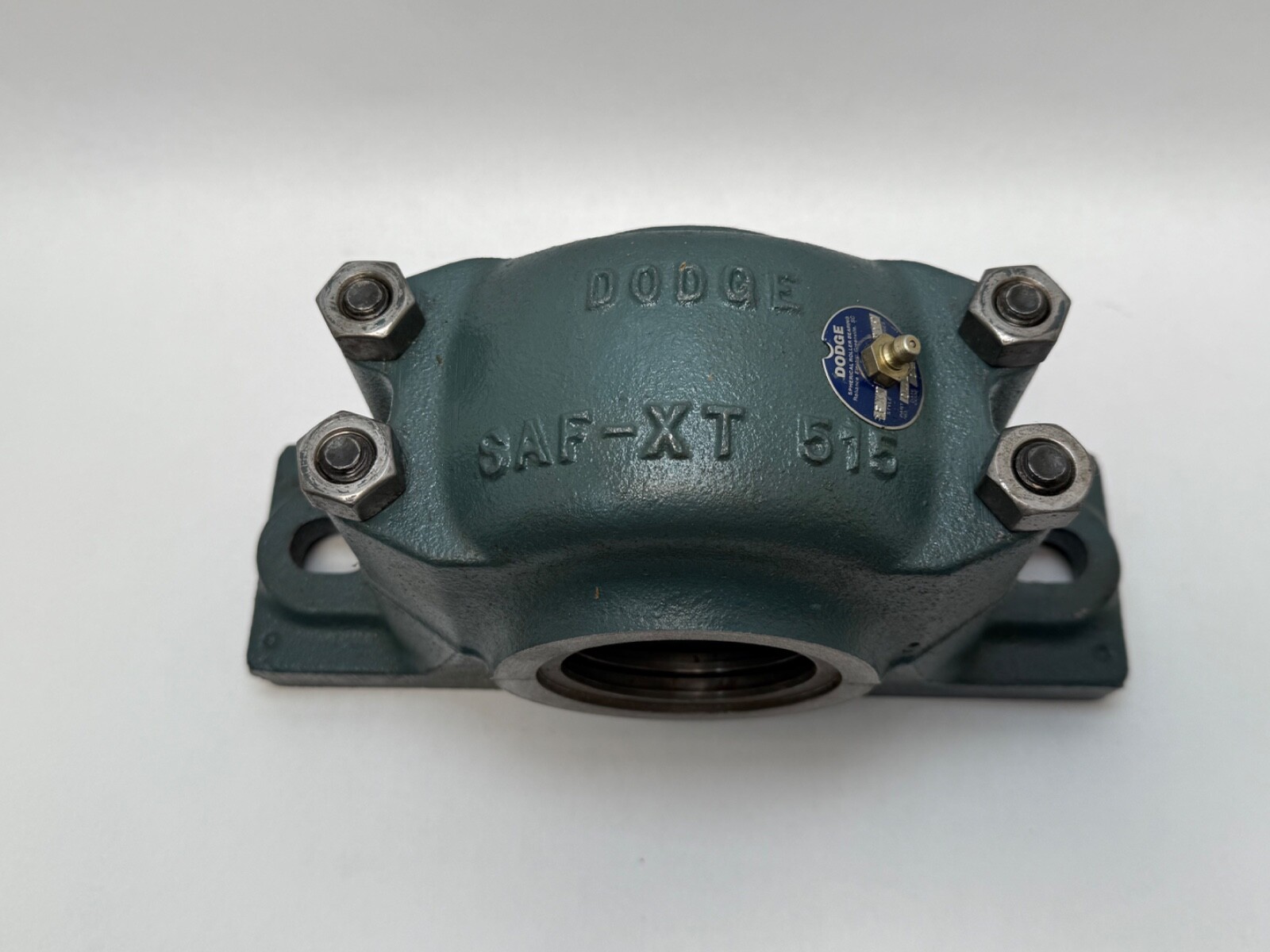

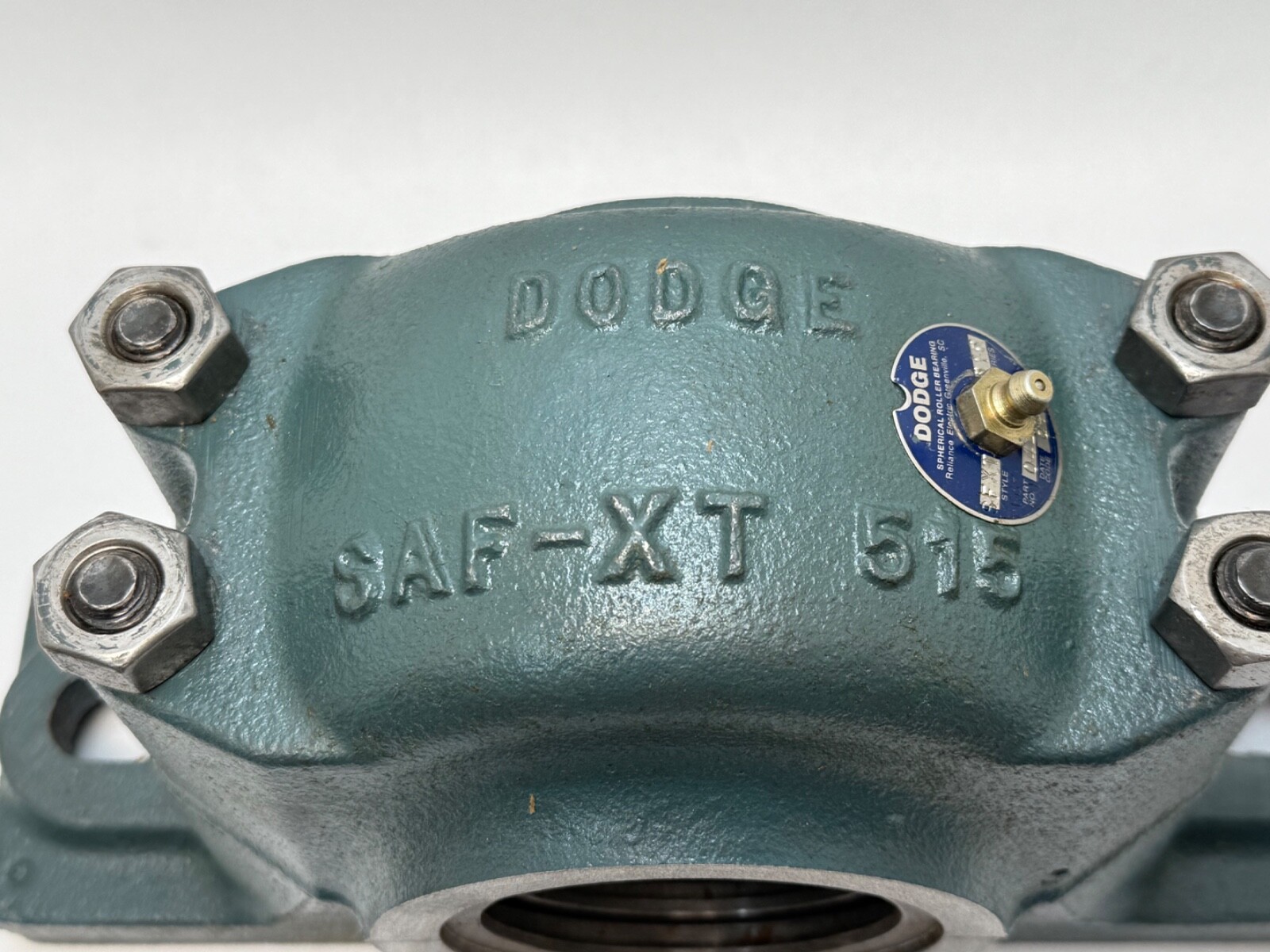

SFXT — Split Frame XT, the SAF-XT series. The cap is cast SAF-XT 515.
515 — the SAF / SN housing series number. Series 515 is the housing envelope for the 22215K bearing and the SNW-15 adapter family, which sets the 2-7/16 in or 2-1/2 in shaft size. The carton label reads SIZE 2-7/16 – 2-1/2.
042106 — Dodge catalogue number for H2S-SFXT-515. HS2SFXT515 is the carton form of the same designation.

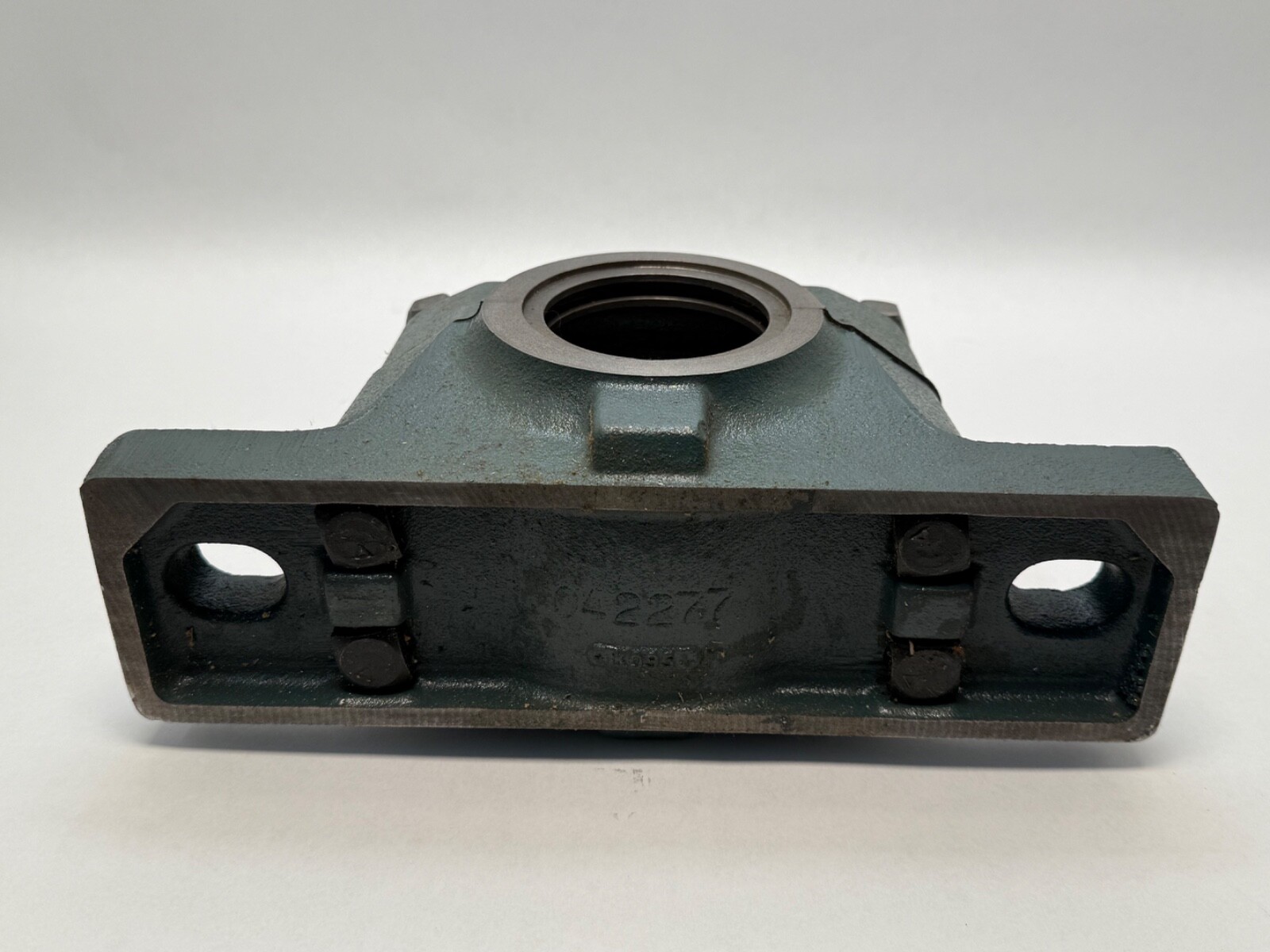

Material: cast iron, uncoated. Configuration: split, both ends open. Housing Series: SAF-XT 515. Number Of Bolt Holes: 2 in the base. Cap Bolts: 4. Weight: 23.53 lb. UPC: 782475022441. Harmonization Code: 8483.20.40.40. Duty Type: Standard.
Shaft Size Range: 2-7/16 in or 2-1/2 in (carton label and SNW-15 adapter family). Base to Bore Centreline Height: 3-1/4 in. Bolt Centre to Centre: 9-1/2 in. Overall Length: 11-1/4 in. Overall Width: 4.91 in. Overall Height: 6.44 in. Base Width: 3.13 in. The same 3-1/4 in centre height and 9-1/2 in bolt centres as legacy SAF 515 series split pillow blocks.

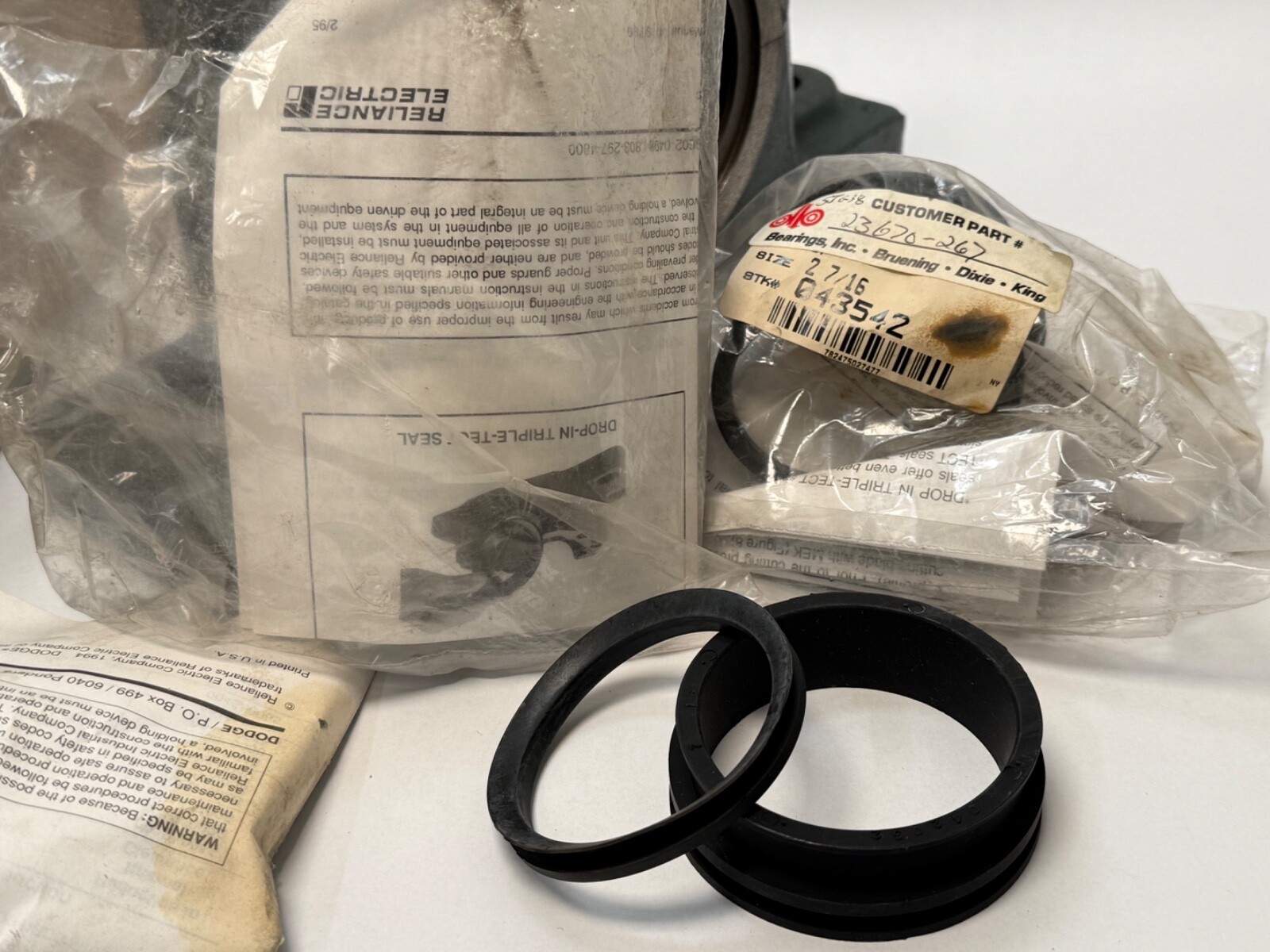

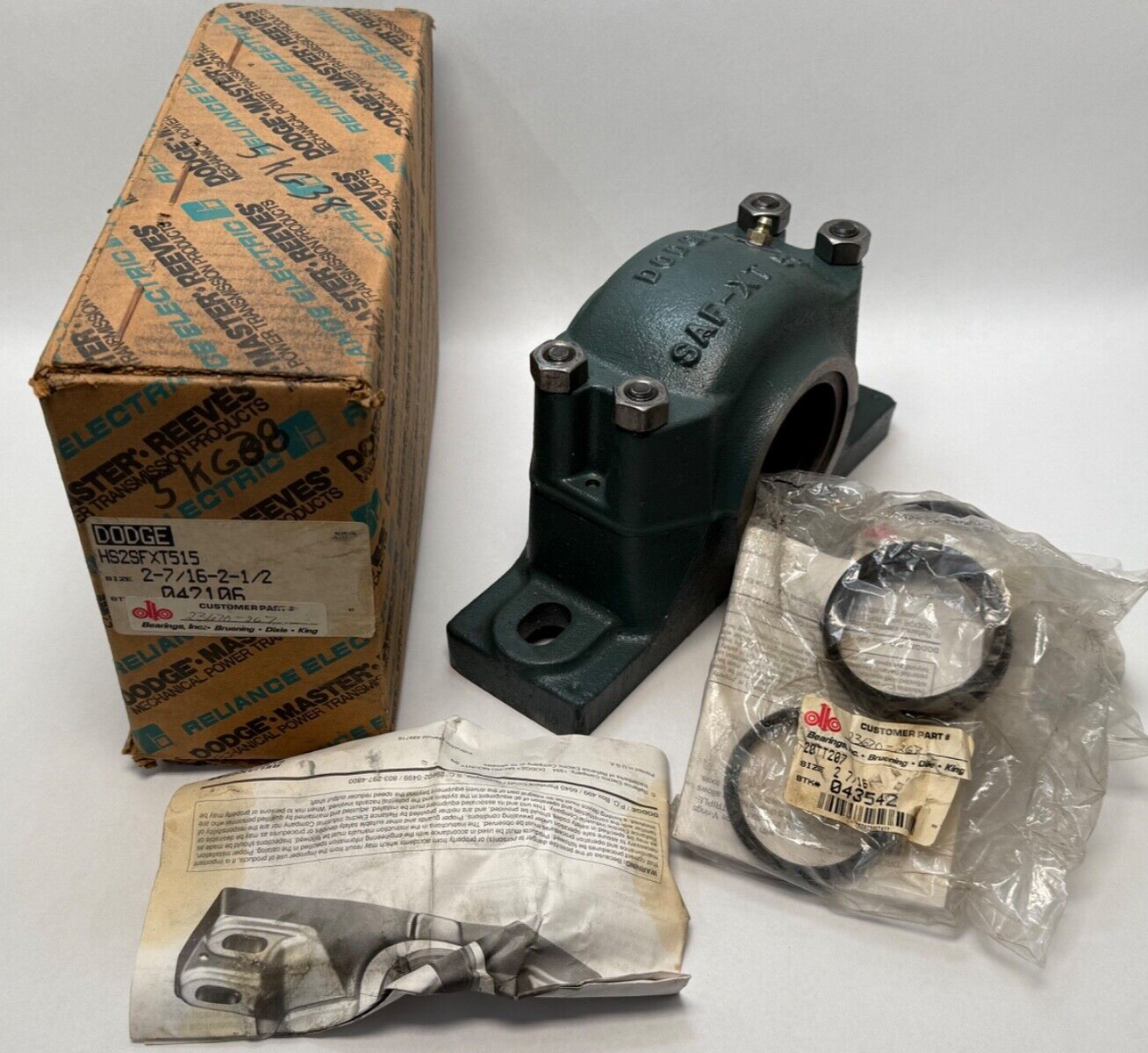

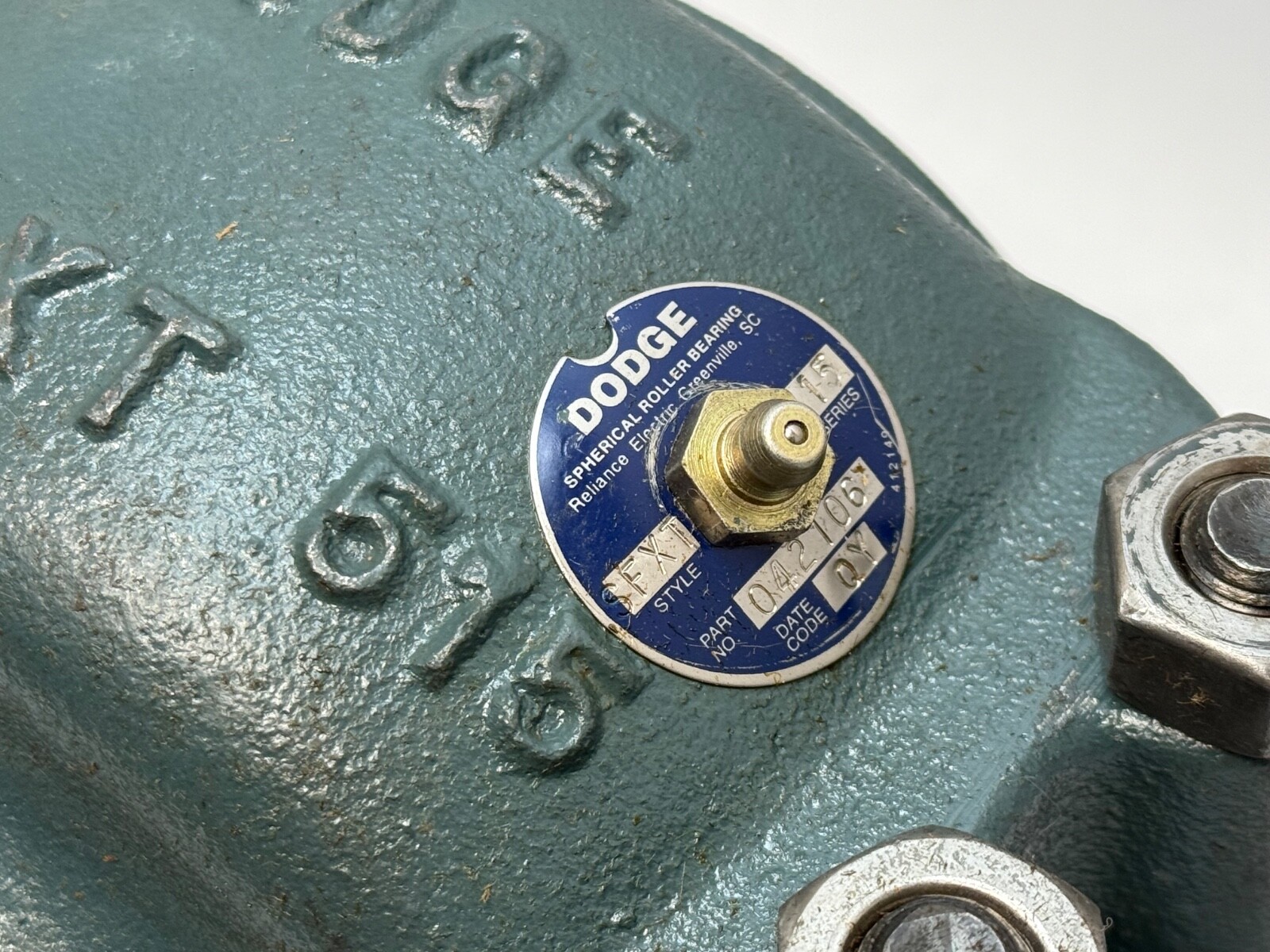

One split cast iron pillow block housing with cap bolts and grease fitting fitted. One bagged Dodge seal set, part number 043542, marked for a 2-7/16 in shaft. Original Dodge / Reliance Electric carton and instruction sheet.
Related numbers: 042109 (H4S-SFXT-515, same series, different cap-bolt configuration), 041888 (SAF-515 x 2-7/16 TT complete assembly: housing, bearing, adapter and seals), 22215K (bearing), SNW-15 x 2-7/16 and SNW-15 x 2-1/2 (adapter sleeves), 043542 (seal set included here). Dodge lineage: Dodge (Mishawaka, IN), Reliance Electric, Baldor Electric 2007, ABB 2011, RBC Bearings November 2021, now Dodge Industrial. 042106 is a current catalogue item. MPN variants: 042106, H2S-SFXT-515, H2SSFXT515, H2S SFXT 515, HS2SFXT515, HS2S-FXT-515, SAF-XT 515, SAFXT515, SAF 515.
2-7/16 in or 2-1/2 in.
3-1/4 in, with 9-1/2 in bolt centres.

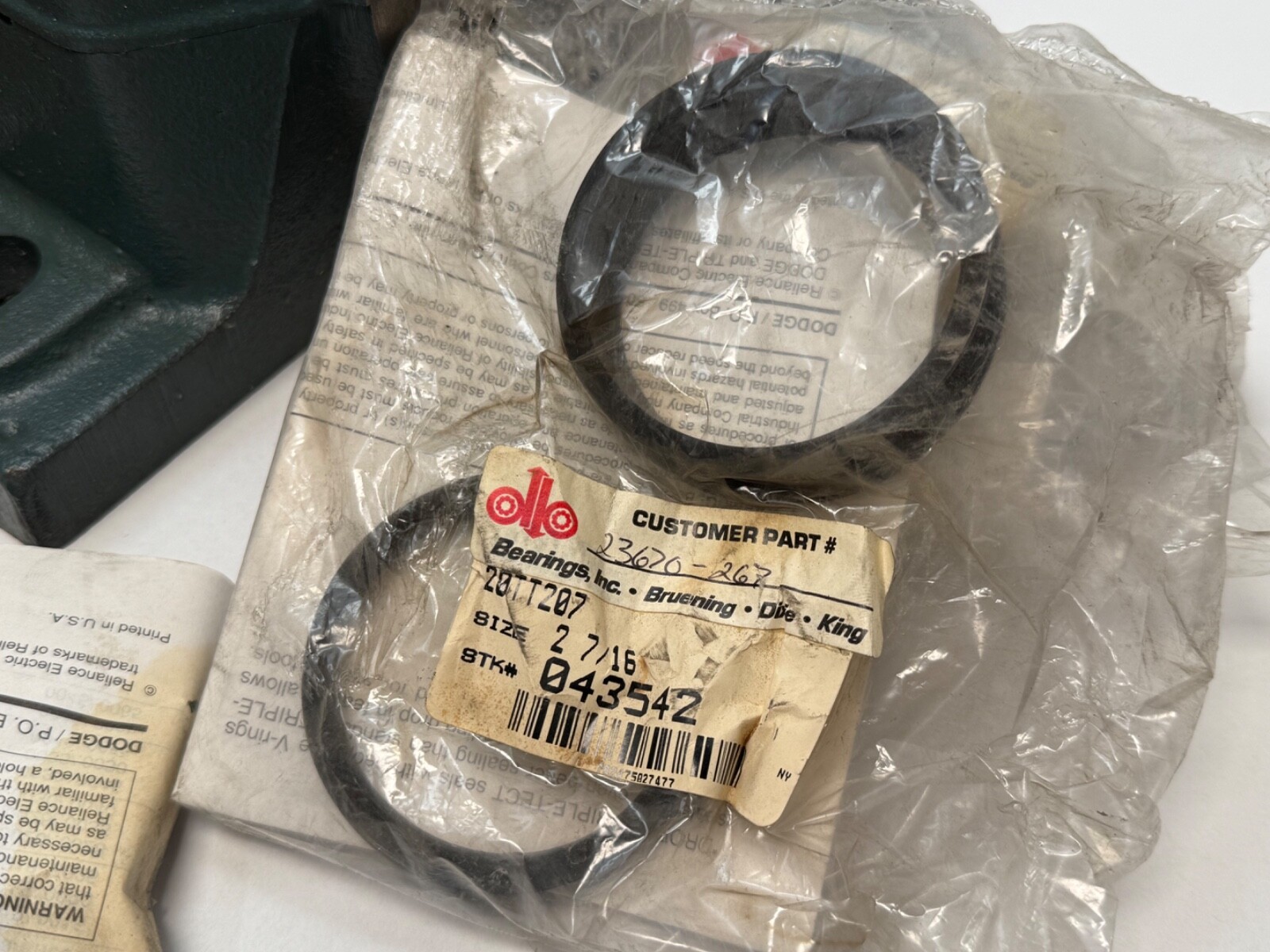

Dodge seal set 043542, marked for a 2-7/16 in shaft.
