DodgeF4B-E-115RFour-Bolt Flange Tapered Roller Bearing Unit, 1-15/16 in Bore, Cast Iron, Type E

Condition: New – Open box

Availability:

1 in stock

Dodge F4B-E-115R four-bolt flange bearing unit with Type E tapered roller bearing, 1-15/16 in bore, cast iron housing, set screw lock, catalog 023102.

List Price

$212.49

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandDodge
MPNF4B-E-115R
GTIN782475699858
Model023102
ID1-15/16 in

Technical Specifications

Bearing Insert TypeTapered Roller
MaterialCast Iron
TypeFlanged Mount Bearing
Industry Termsfour-bolt flange bearing; flange block bearing; tapered roller bearing unit; Type E mounted bearing; Type E-XTRA; flange mount bearing
Common MisspellingsDodge F4B-E-115; Doge F4B-E-115R; Dodge F4BE115R; Dodge F4B E115R
Application TypesConveyors; Industrial machinery shafts; Power transmission equipment
Mpn VariantsF4B-E-115R; F4B E 115R; F4BE115R; F4B-E-115; 023102; 23102
Additional AttributesLocking Method: Set Screw; Expansion Type: Non-expansion; Radial Dynamic Load Rating: 9,300 lbf; Radial Static Load Rating: 43,000 lbf; Weight: 11.75 lb; Lubrication: Greasable
Seller Part Number: BG3#CEBXLK

Product Description

What this part is:

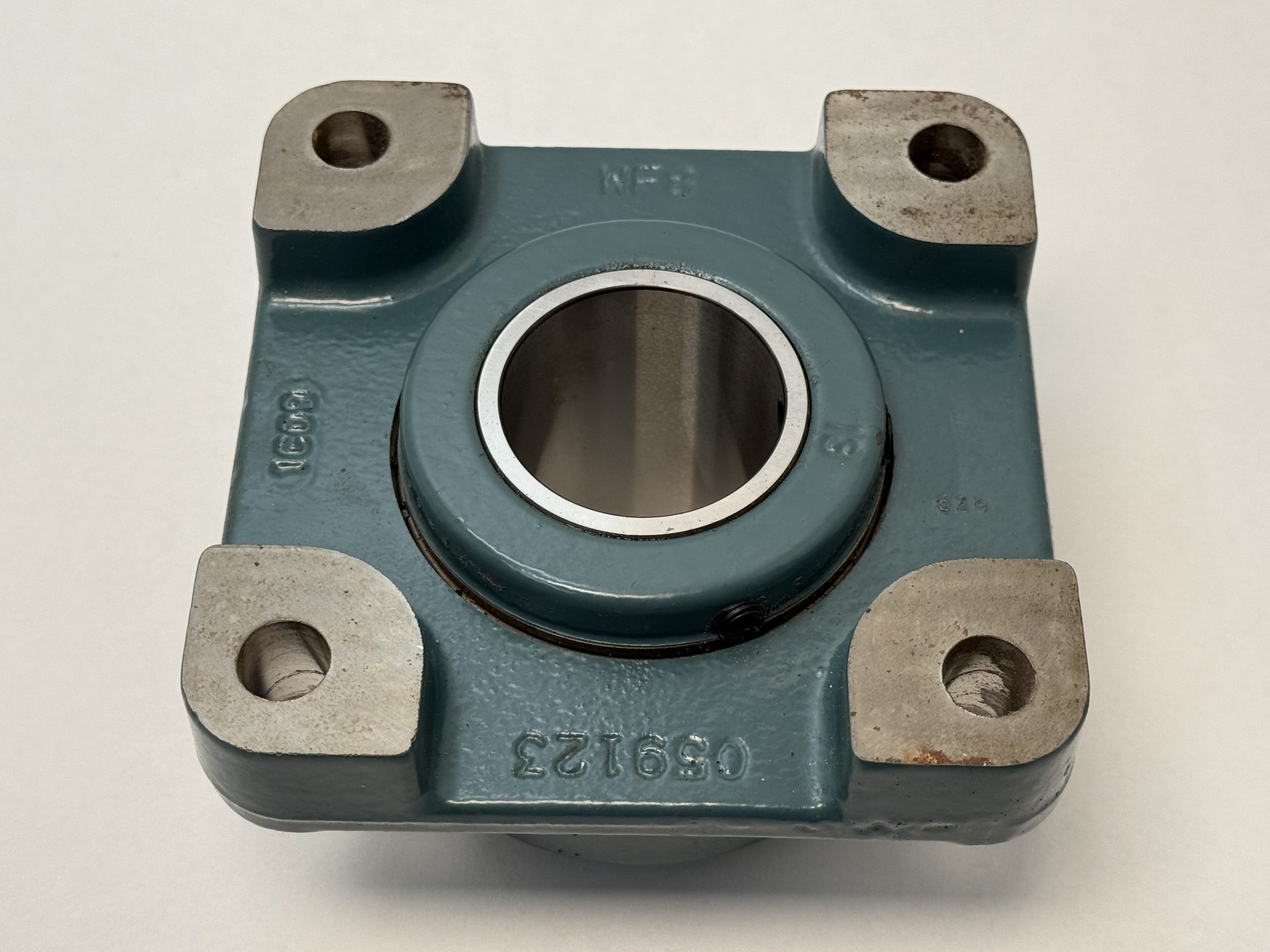

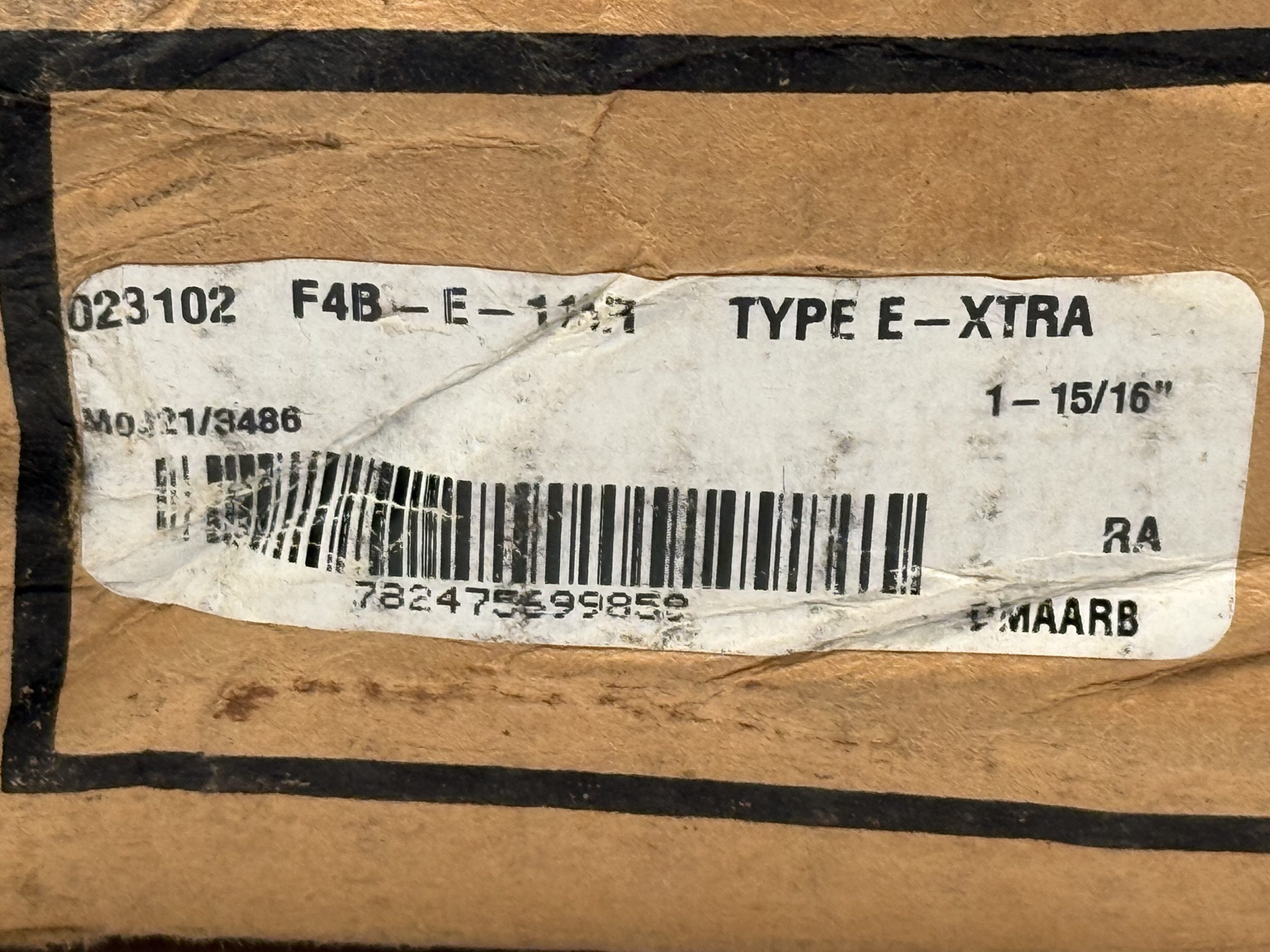

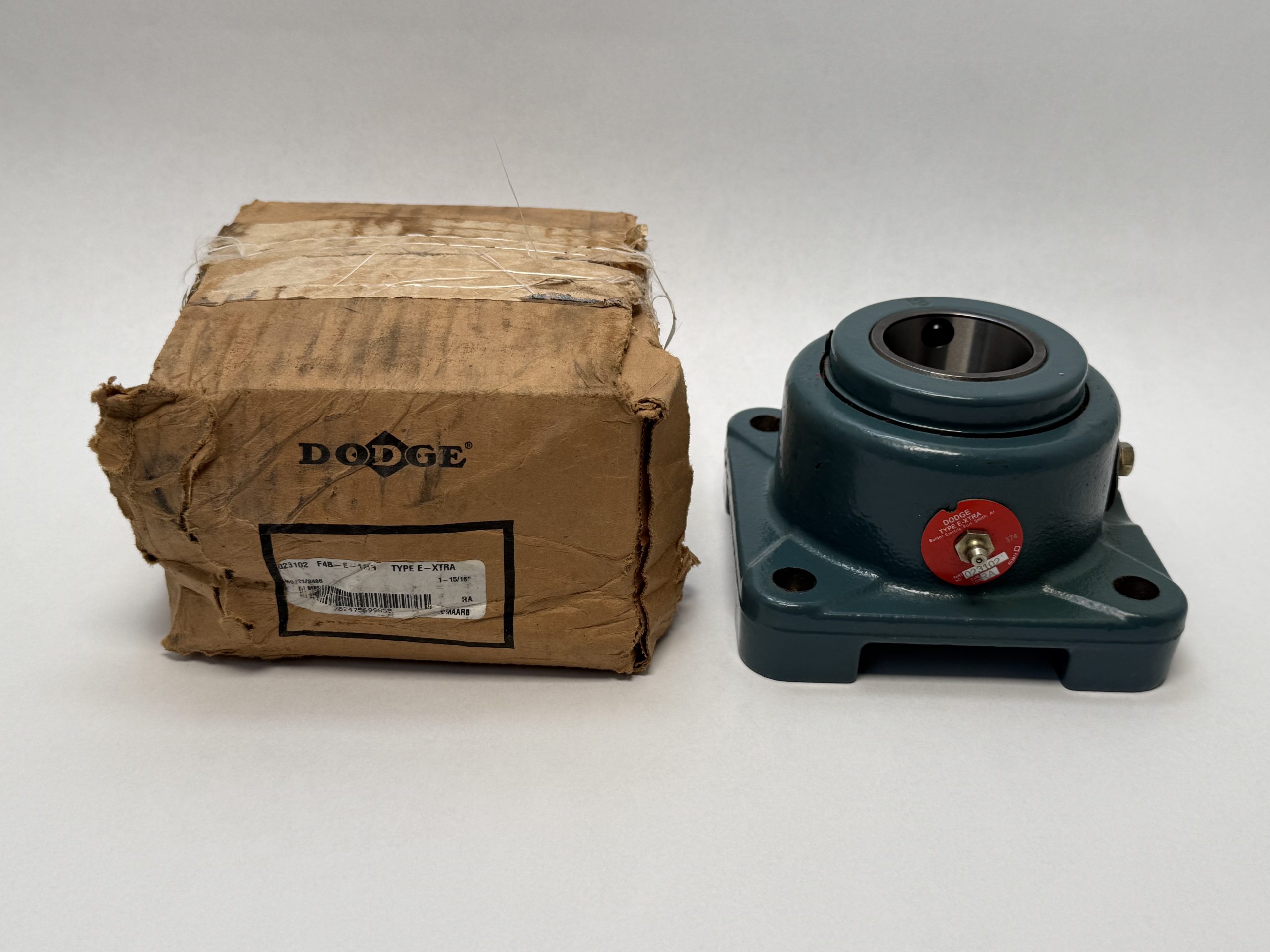

Dodge F4B-E-115R four-bolt flange bearing unit with a Type E tapered roller bearing (Type E-XTRA on the box), 1-15/16 in bore, cast iron housing, Dodge catalog number 023102. The unit is in its original box, which has been opened and shows shelf wear. GTIN: 782475699858.

Decoding the designation:

F4B — four-bolt flange housing.

E — Type E tapered roller bearing (box label: TYPE E-XTRA).

115 — 1-15/16 in bore: first digit is whole inches, last two digits are sixteenths.

023102 — Dodge catalog number.

Specifications:

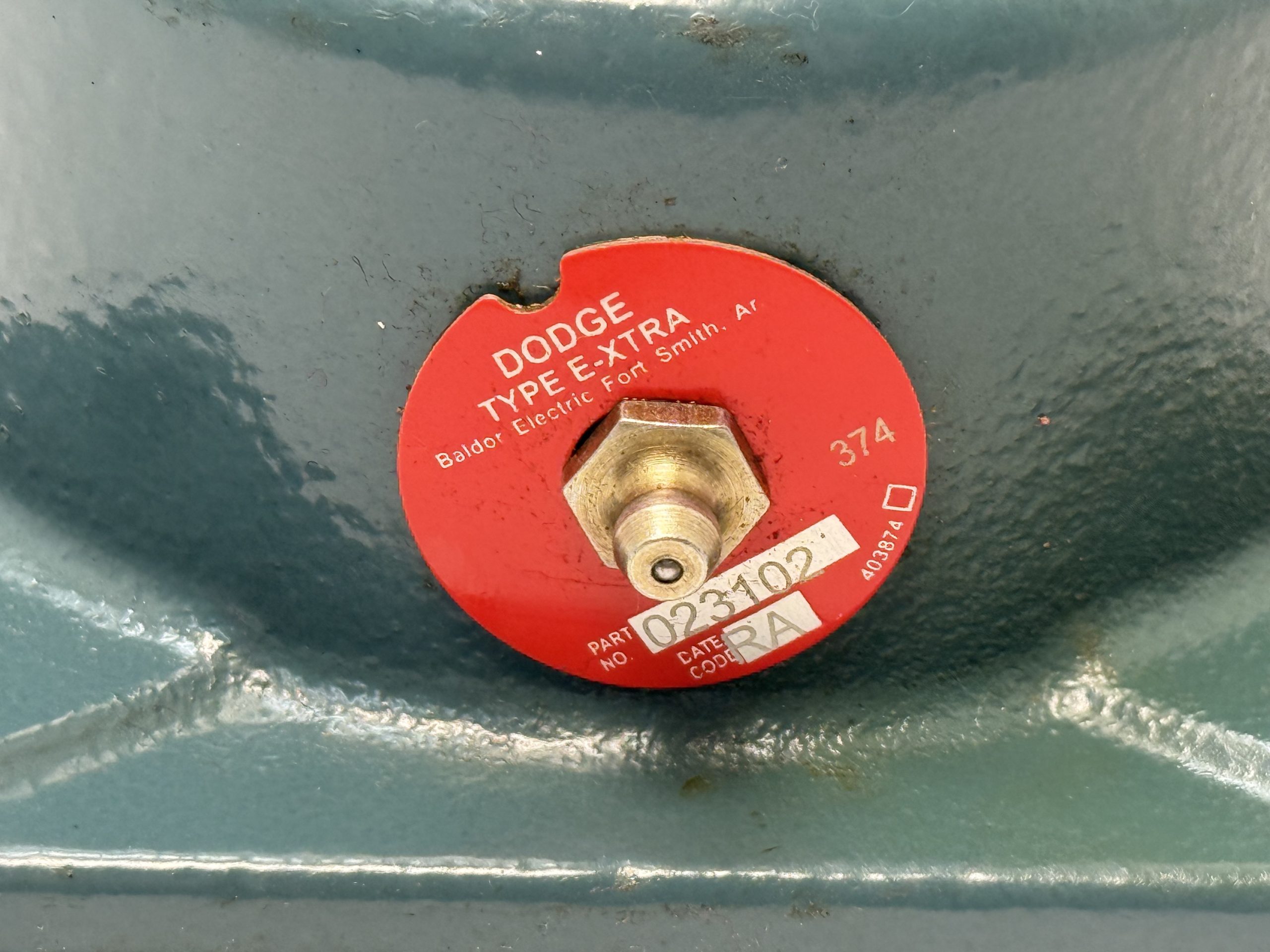

Brand: Dodge. Manufacturer Part Number: F4B-E-115R. Dodge Catalog Number: 023102. Bore Diameter: 1-15/16 in (1.9375 in). Housing Style: four-bolt flange. Housing Material: Cast Iron. Rolling Elements: Tapered Roller. Locking Method: Set Screw. Expansion Type: Non-expansion (fixed). Lubrication: Greasable, grease fitting fitted. Radial Dynamic Load Rating: 9,300 lbf. Radial Static Load Rating: 43,000 lbf. Weight: 11.75 lb. Country of Origin: USA.

Frequently asked questions:

What does F4B-E-115R mean?

F4B is the four-bolt flange housing, E is the Type E tapered roller bearing and 115 is the 1-15/16 in bore.

What is the bore size and how is the bearing locked to the shaft?

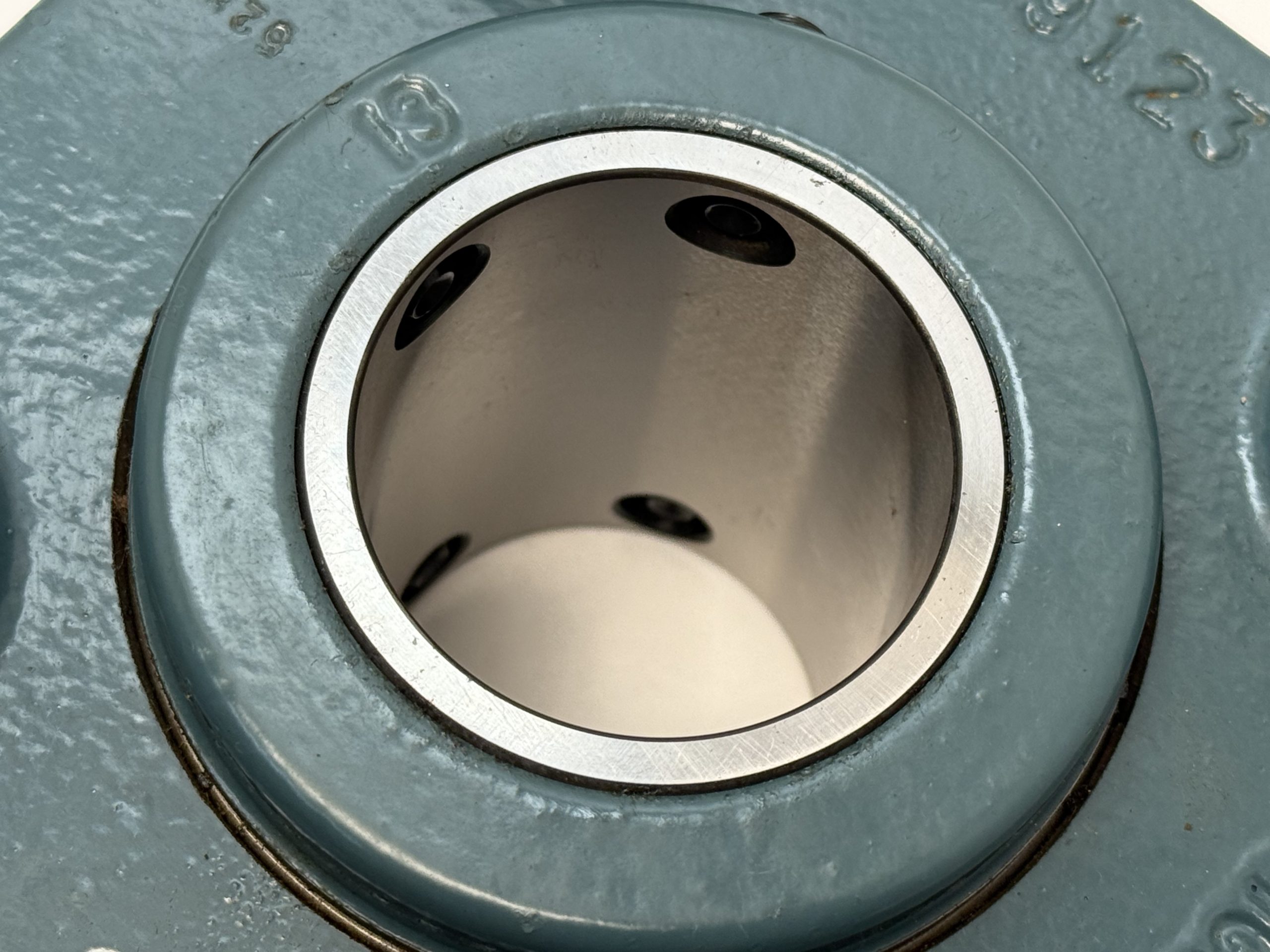

The bore is 1-15/16 in (1.9375 in) and the bearing locks to the shaft with set screws.

What is the Dodge catalog number?

The Dodge catalog number is 023102 and the GTIN is 782475699858.
