Angular Contact Ball Bearing - 30 mm ID, 62 mm OD, 16 mm Width, Open, Light Preload.$75.70
Angular Contact Ball Bearing - 30 mm ID, 62 mm OD, 16 mm Width, 15° Contact Angle, ABEC 7 / P4, Light Preload, Open.$76.08
Angular Contact Ball Bearing — 30 mm ID, 62 mm OD, 16 mm Width, 25°, Phenolic Cage, ABEC 7 / P4, Universal Light Preload$82.86
Angular Contact Ball Bearing, 30 x 62 x 16 mm, 40 Deg Angle$25.46| MFR / Brand | GMN |
|---|---|
| MPN | S6206CTAA7DUM |
| Model | S 6206 C TA A7/P4 DUM / 2MM206WI CR DUM / 7206C T P4 DUM / ABEC7 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 30 mm |
| OD | 62 mm |
| Width | 16 mm |
| Material | Steel |
|---|---|
| Preload | Medium |
| Min Temp | -30°C |
| Cage Type | Phenolic |
| Dynamic Load Rating | 24.3 kN / 5460 lbf |
| Static Load Rating | 15.9 kN / 3570 lbf |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Balls |
| Max Temp | 120°C |
| Item Weight | 0.45 lbs |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Contact Angle | 15° |
| Mounting Arrangement | Universal |
| Running Accuracy | P4 |
| Running Accuracy Radial And Axial Runout | P4 |
| Limiting Speed | 23000 rpm |
| Cross Reference 1 | SKF 7206 CD/P4A |
|---|---|
| Cross Reference 2 | Fafnir 2MM206WI-DUM |

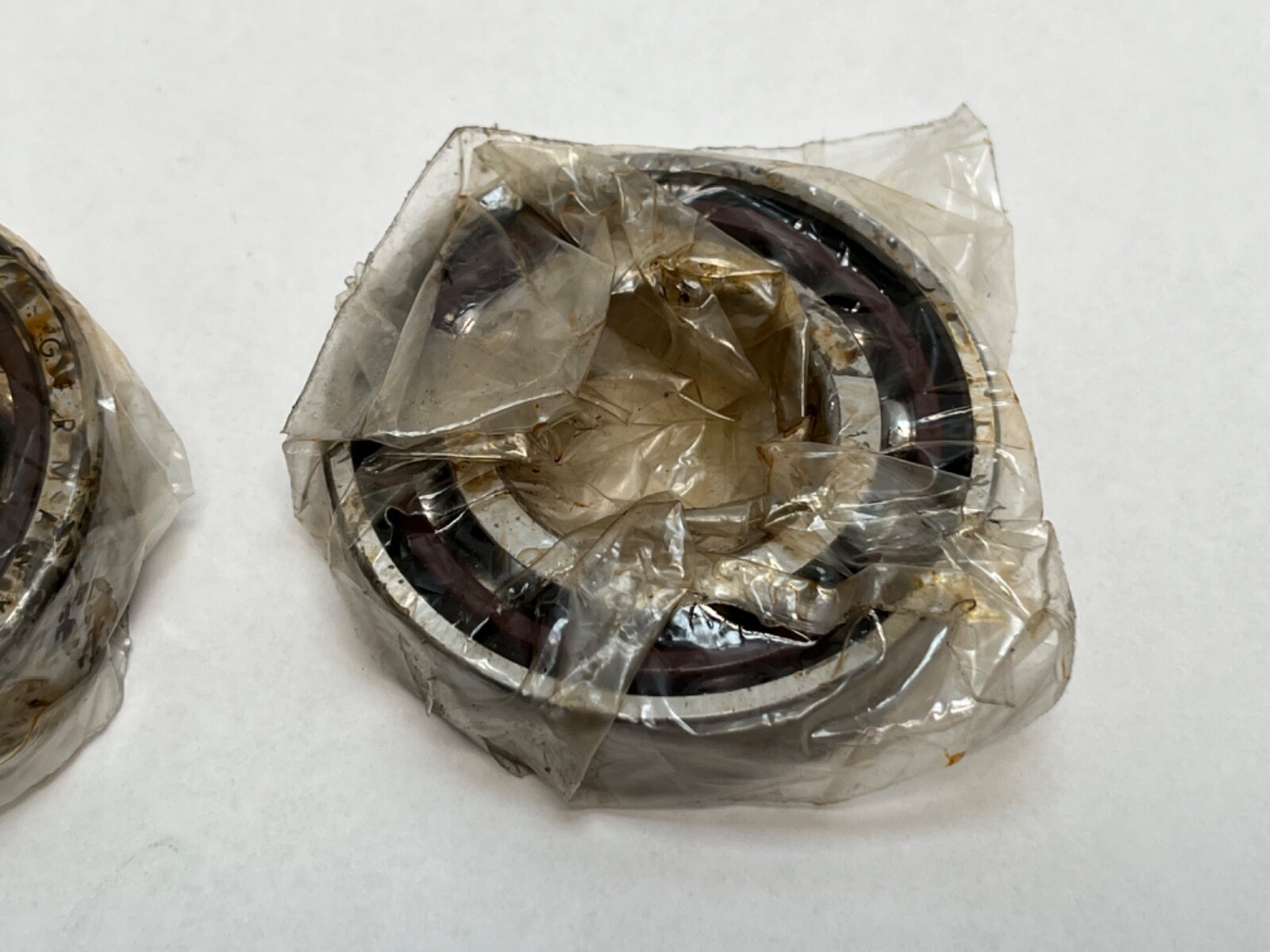

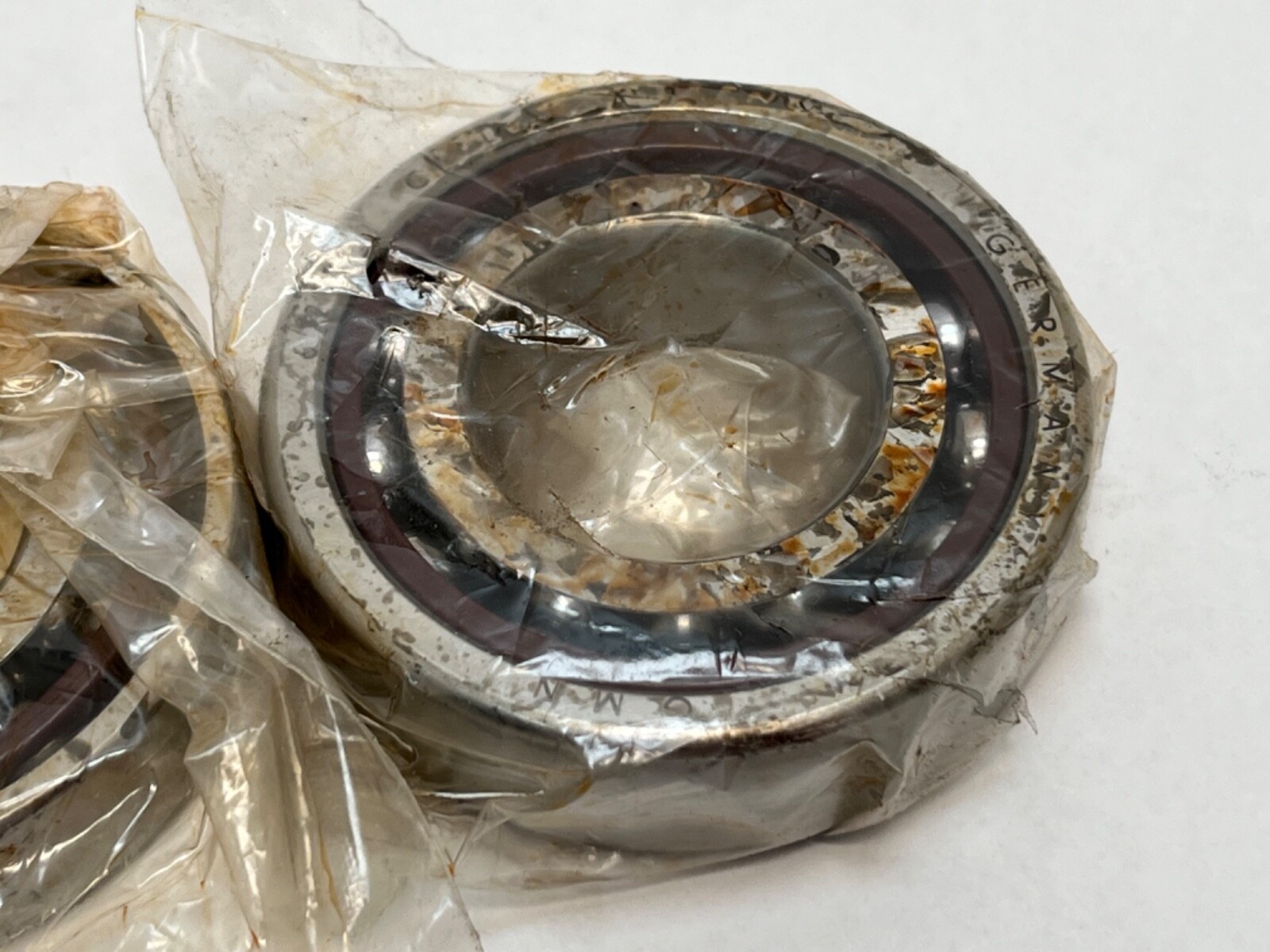

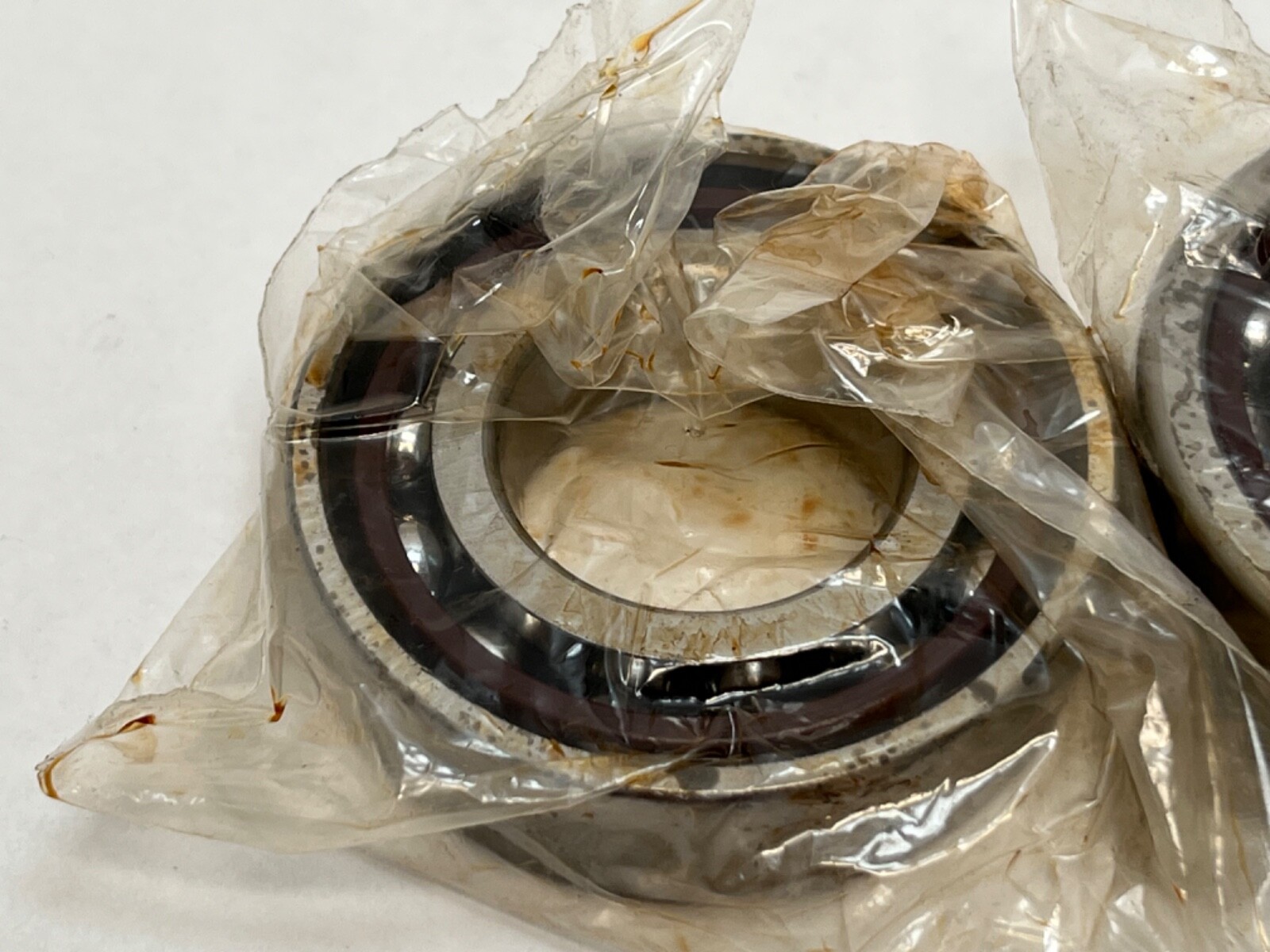

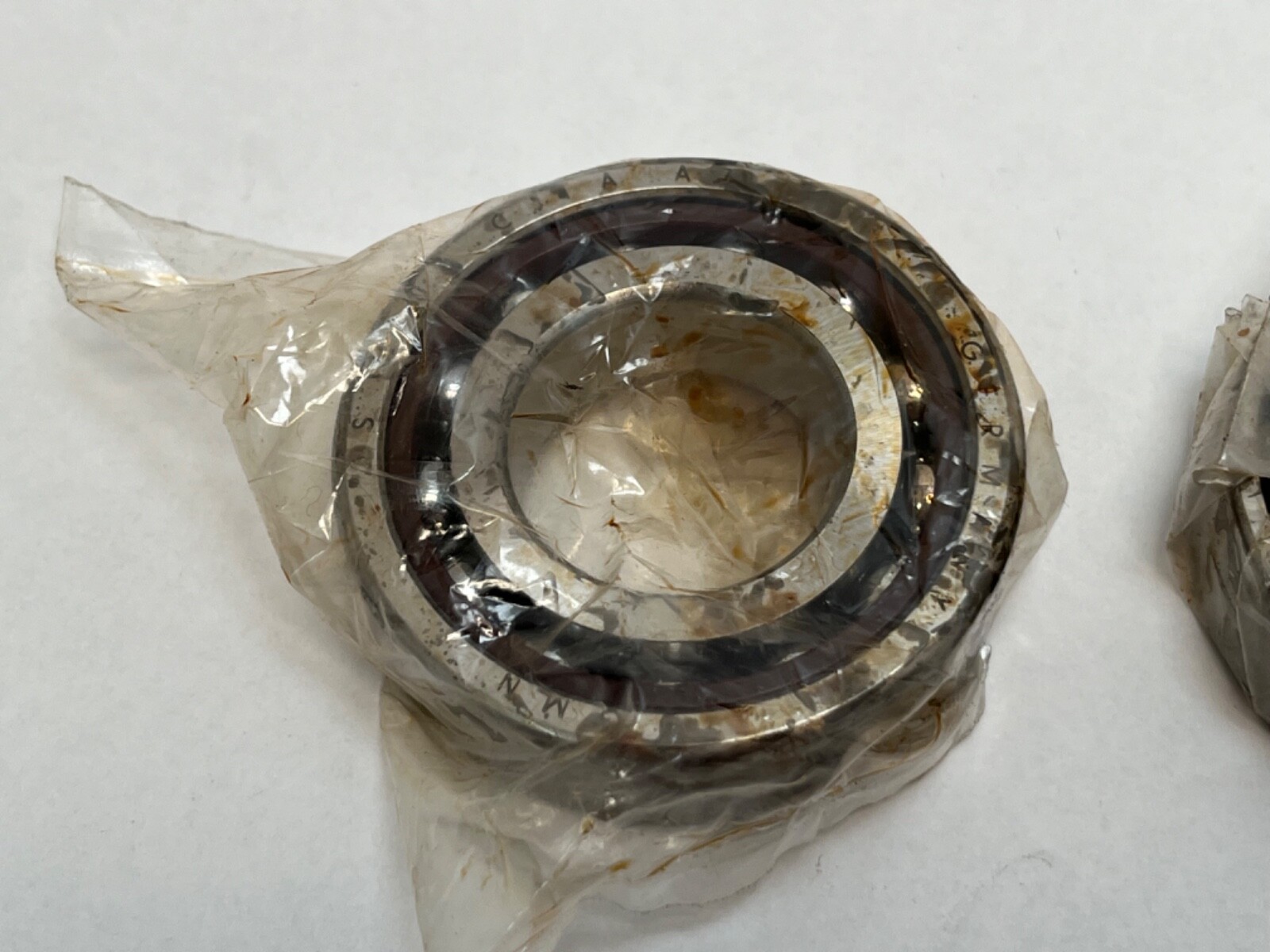

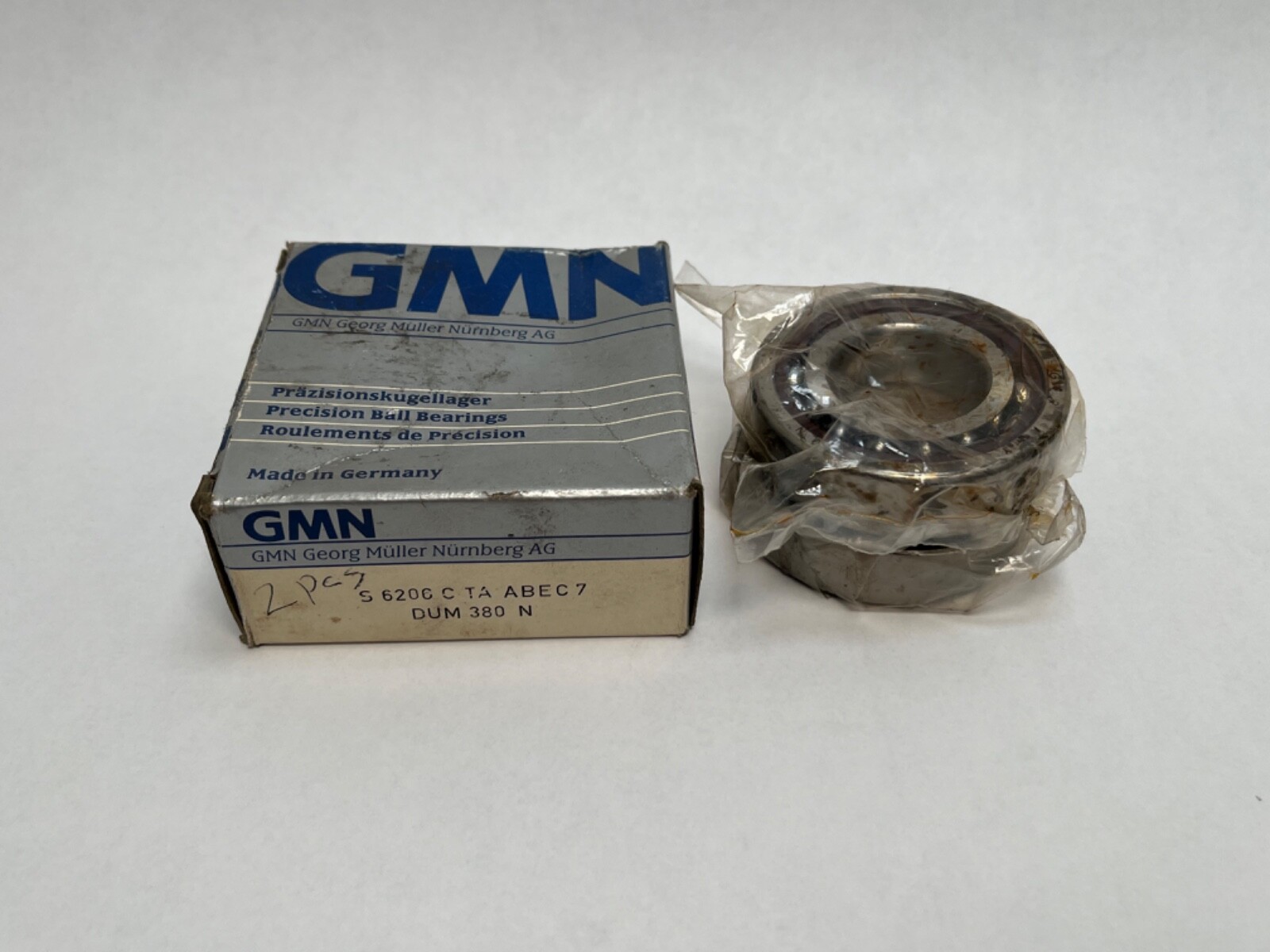

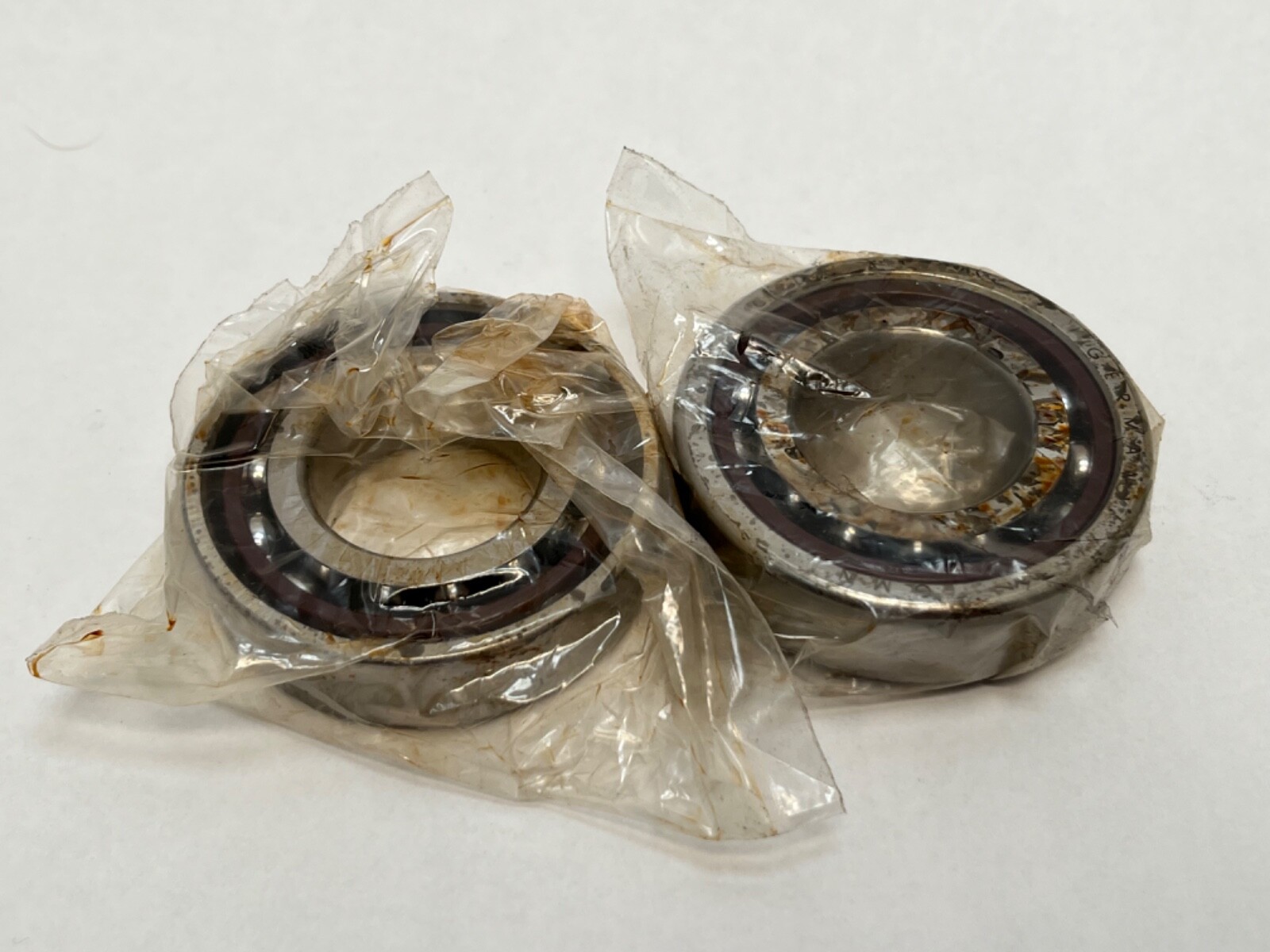

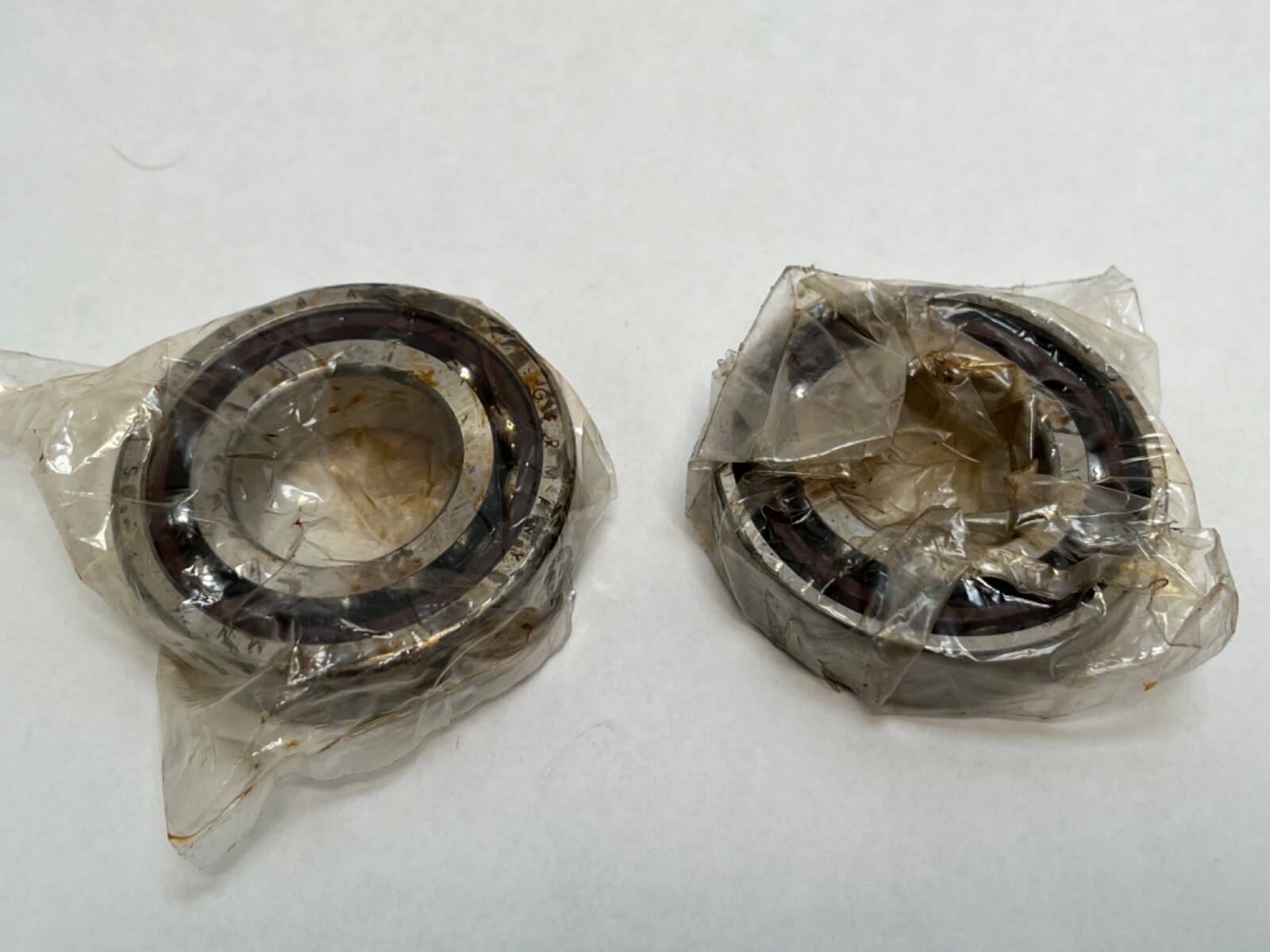

The GMN S6206CTAA7DUM Angular Bearing is a high-quality steel bearing with a bore diameter of 30mm and an outside diameter of 62mm. This angular contact ball bearing is designed for industrial automation and motion control applications, offering precision and reliability. Manufactured in Germany, this bearing is suitable for various mechanical power transmission systems and is sold in a pack of two. With its ABEC7 rating and specific model number, this bearing is a dependable choice for demanding mechanical systems.
$137.64
92 in stock
