GMNS-6206-E-TA-P4-DULAngular Contact Ball Bearing — 30 mm ID, 62 mm OD, 16 mm Width, 25°, Phenolic Cage, ABEC 7 / P4, Universal Light Preload

Product Description

What this part is:

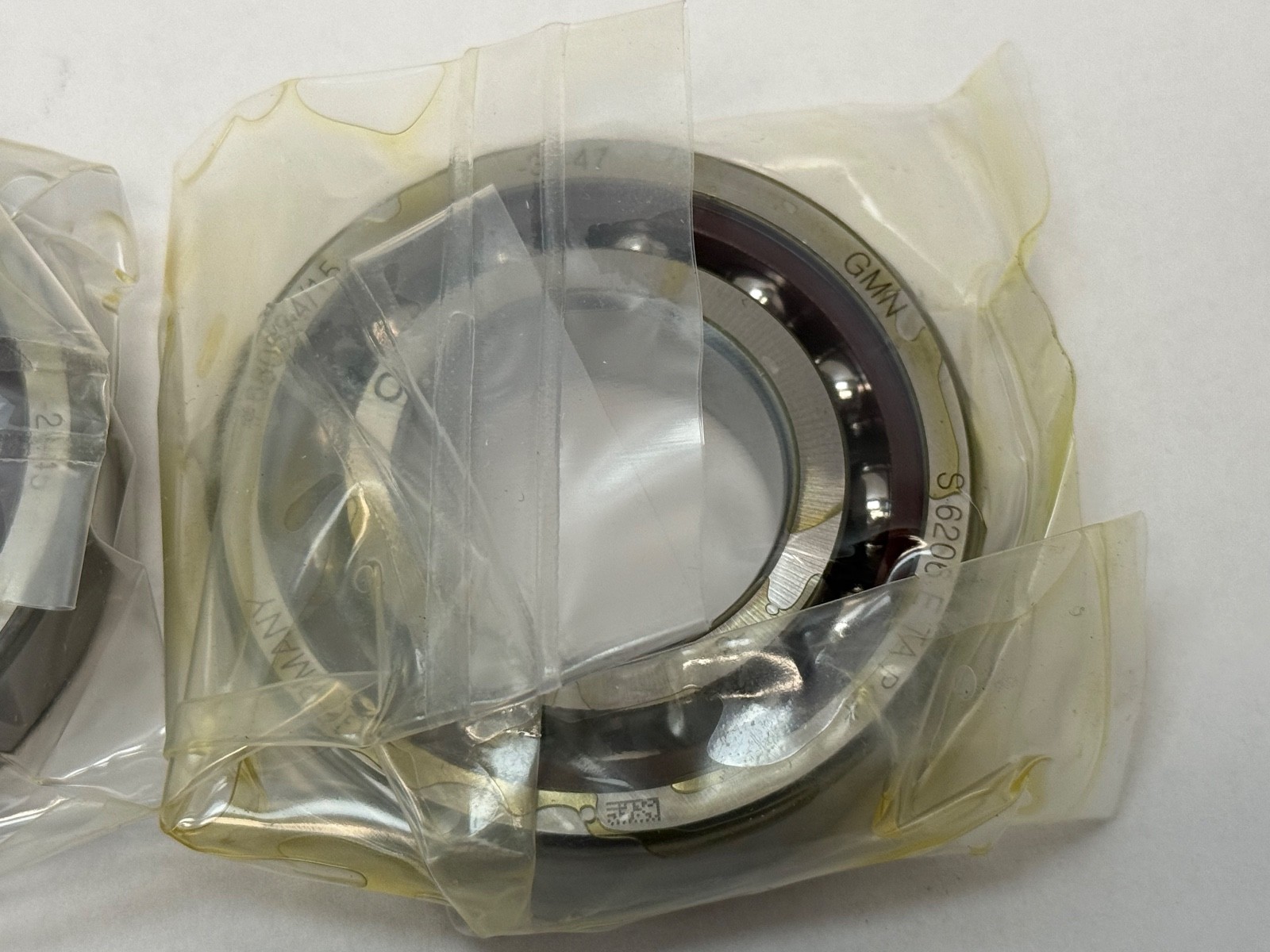

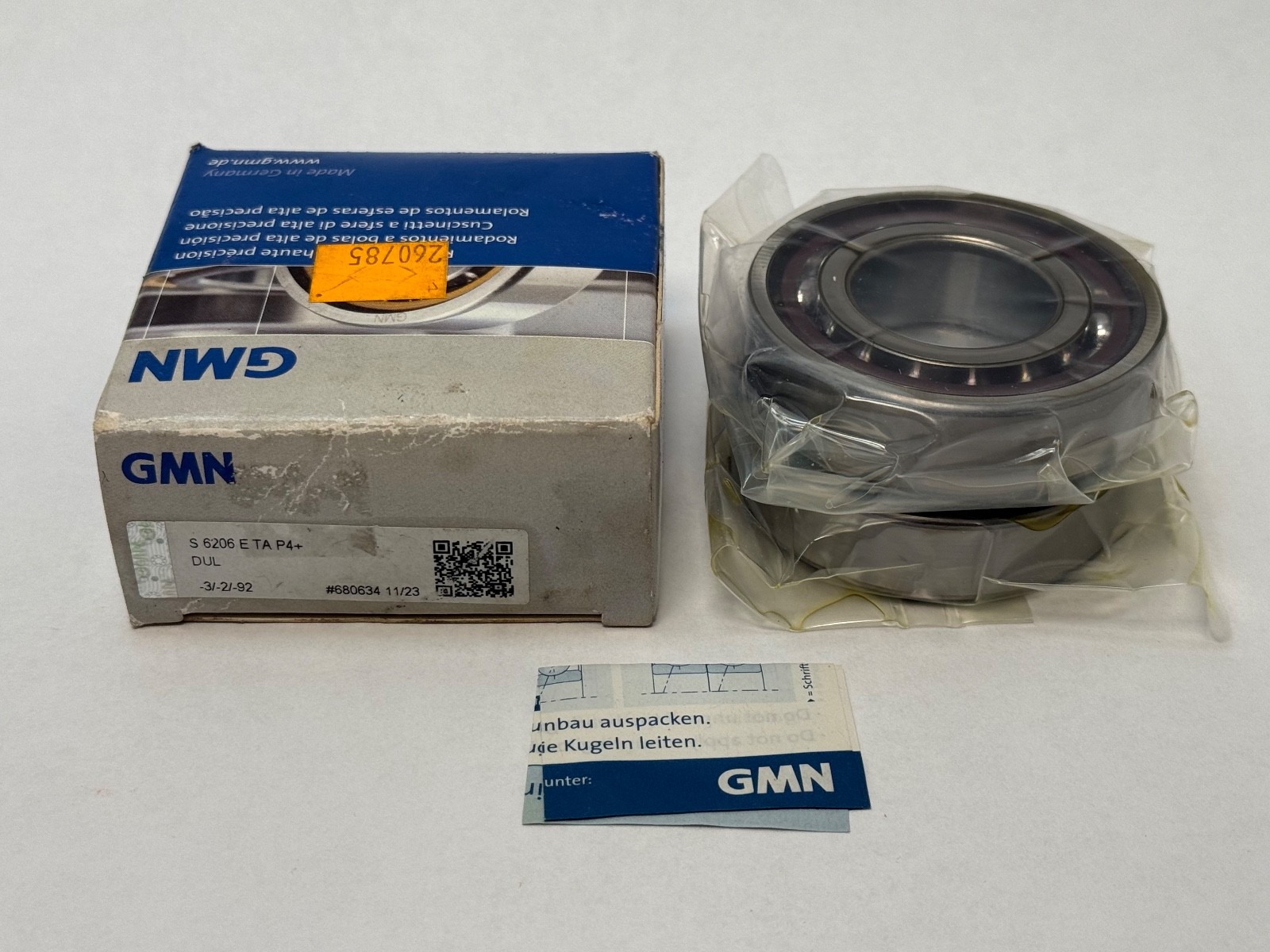

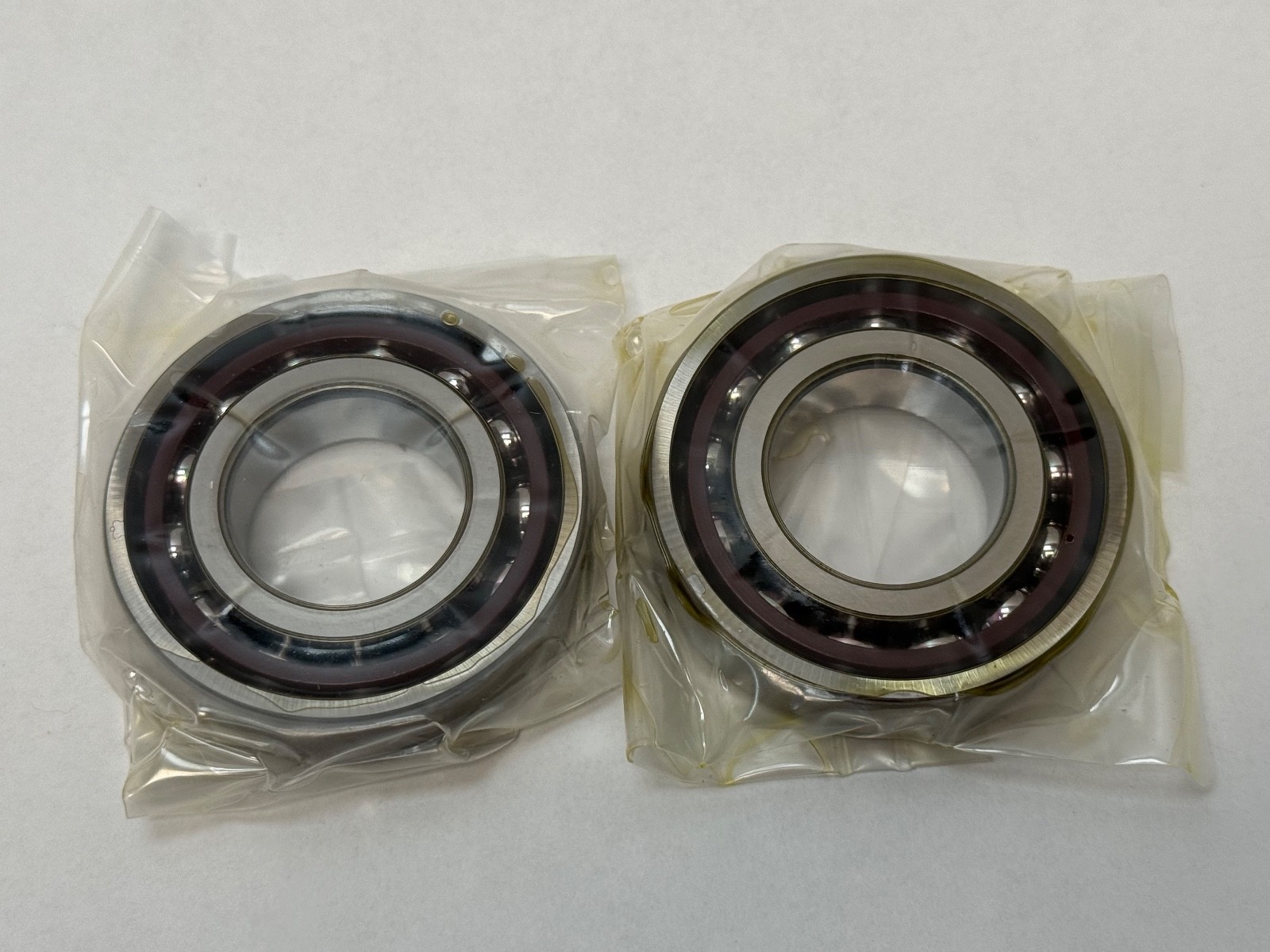

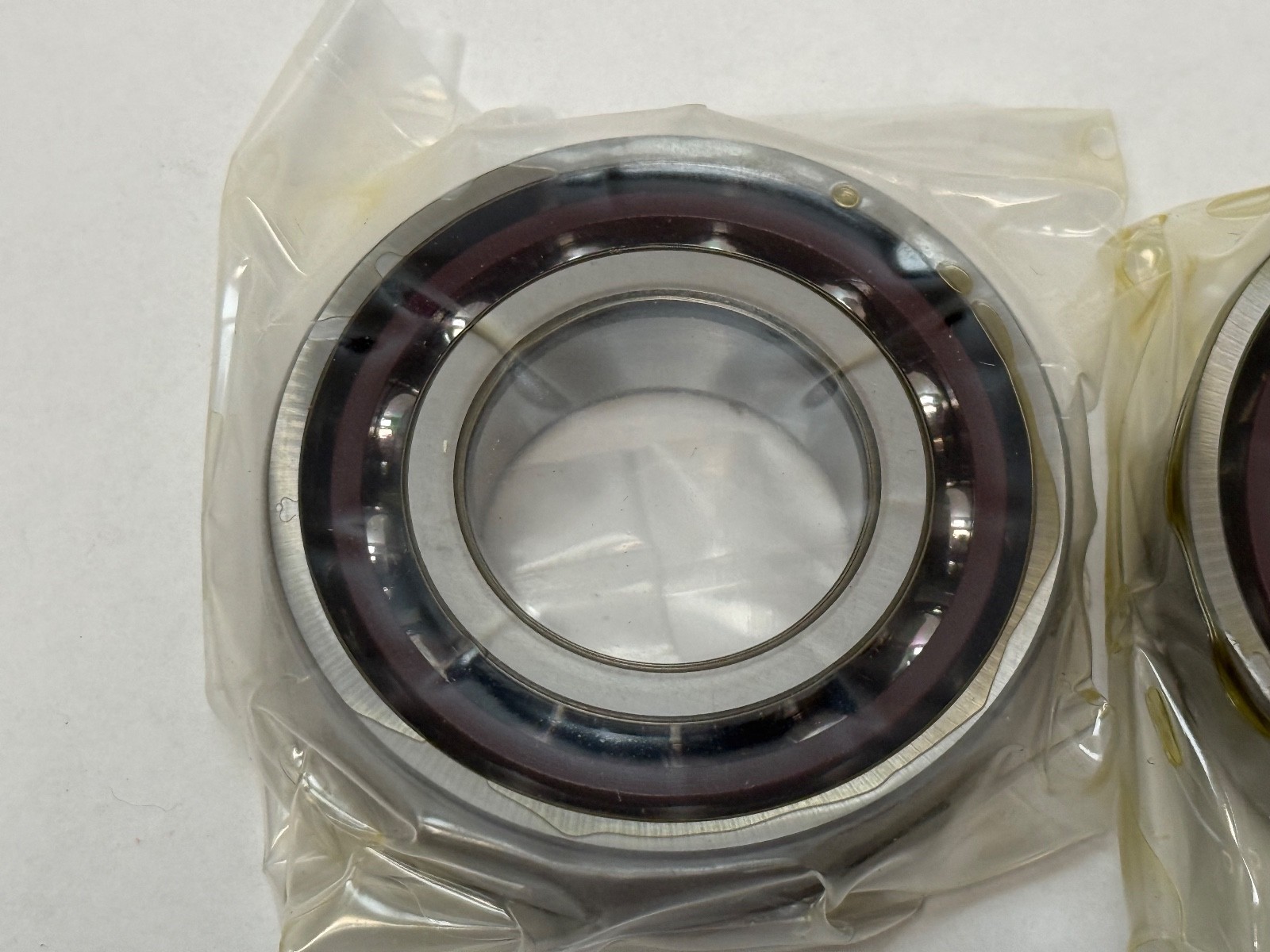

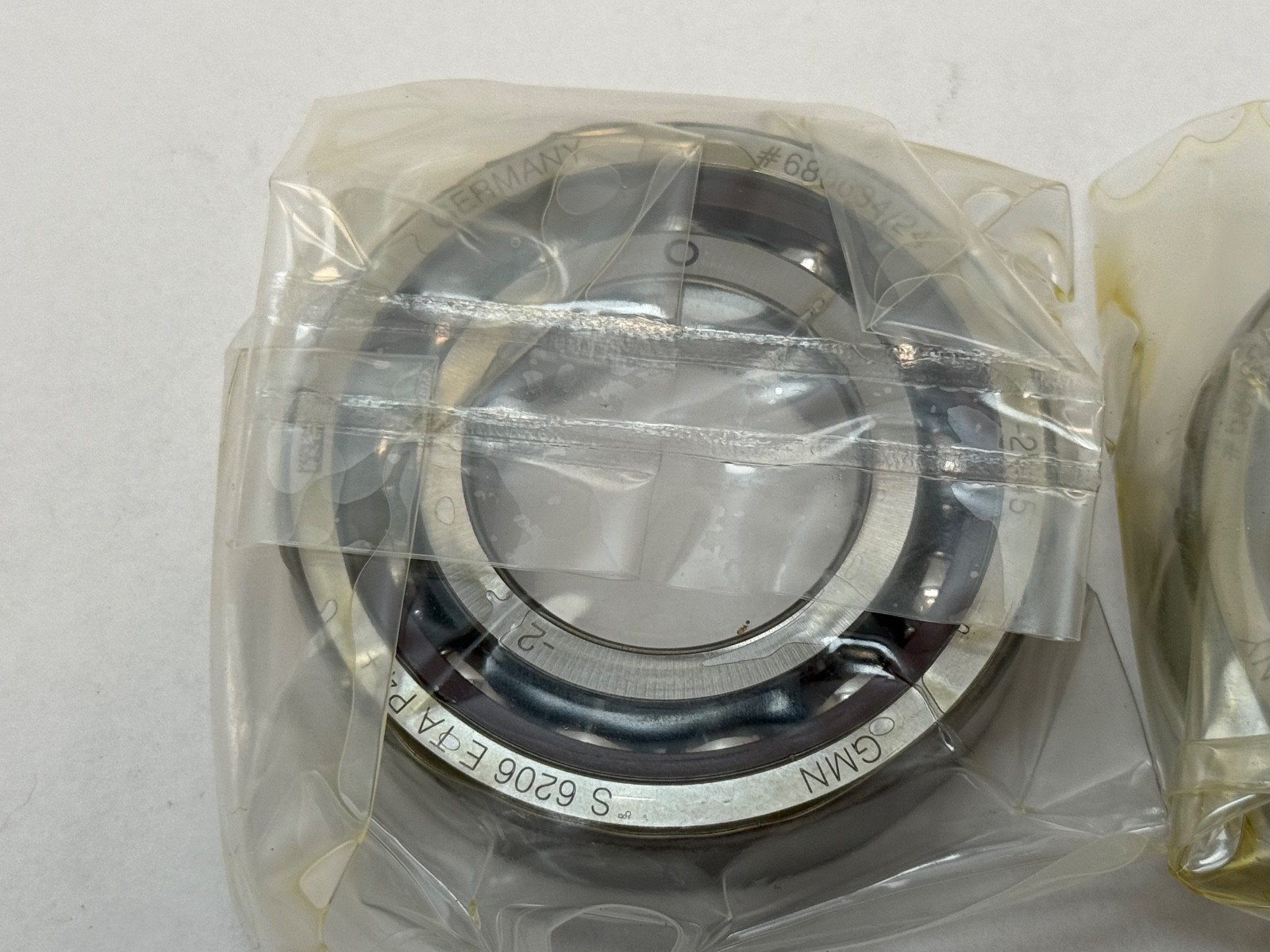

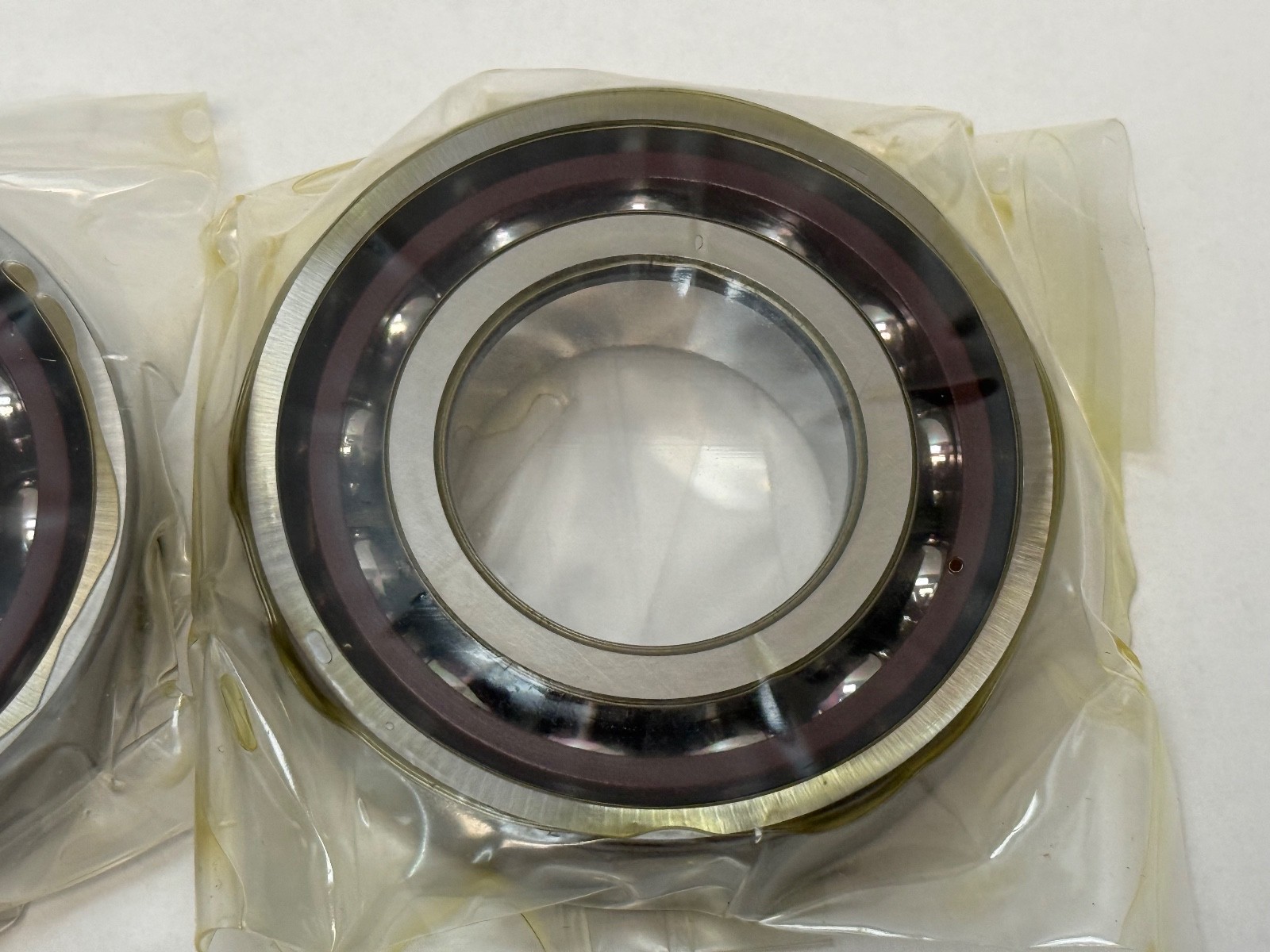

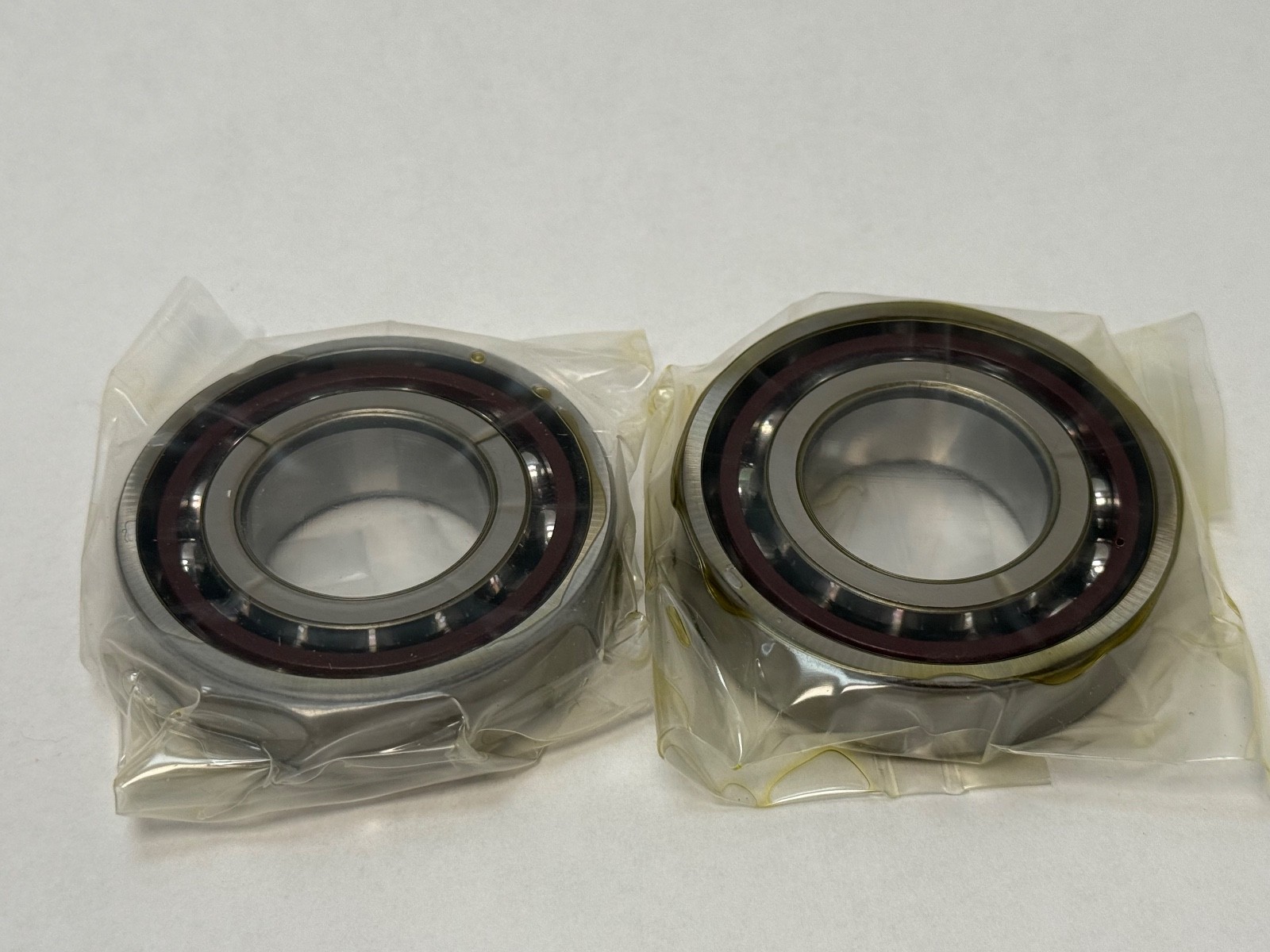

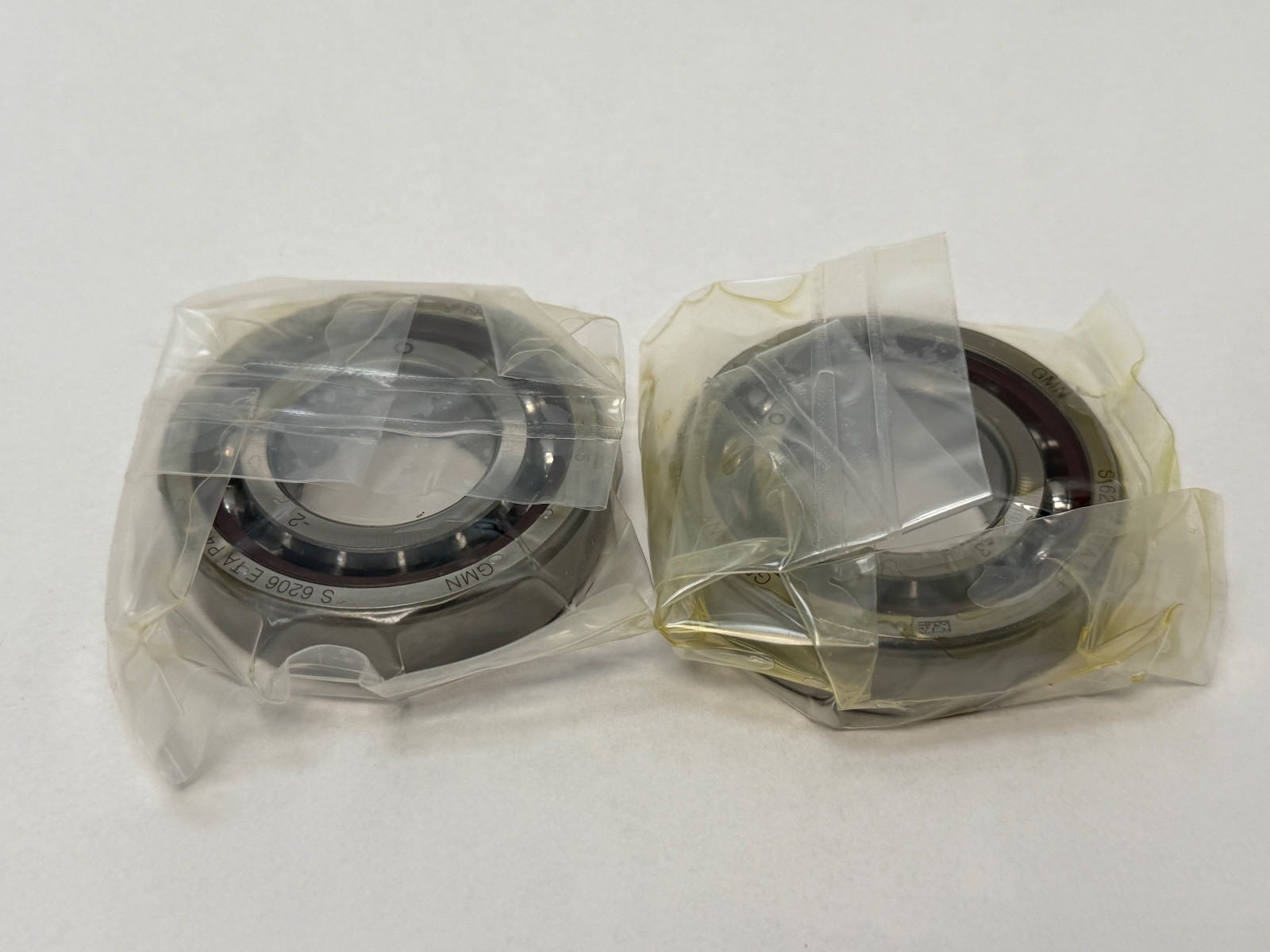

GMN S 6206 E TA P4 DUL is a super-precision angular contact spindle bearing set: two bearings universally matched with light preload. Unit Quantity: 2 Pcs (one factory duplex set).

Decoding the designation:

S — GMN standard spindle bearing, two lands on the inner ring, non-separable.

6206 — dimension series 02, bore code 06: 30 x 62 x 16 mm, the ISO 7206 size.

E — 25° nominal contact angle.

TA — laminated phenolic resin cage guided on the outer ring, rated to 120 °C.

P4 — GMN P4 tolerance class, equivalent to P4S per DIN 628-6.

D — set of two bearings.

UL — universal matching, light preload. The pair mounts back-to-back, face-to-face or in tandem.

Specifications:

Bore Diameter: 30 mm. Outside Diameter: 62 mm. Overall Width: 16 mm per bearing. Contact Angle: 25°. Precision Class: ABEC 7 / P4. Preload: L (light), 200 N. Cage Material: Laminated phenolic resin. Cage Type: Machined, outer-ring guided. Rolling Elements: Ball, 13 x 9.525 mm. Closure Type: Open. Dynamic Load Rating: 24,000 N. Static Load Rating: 16,100 N. Limiting Speed: 24,000 rpm grease; 32,000 rpm oil. Lubricant: grease or oil. Item Weight: 0.199 kg per bearing. Axial rigidity at light preload: 117 N/µm per pair.

Dimensions and mounting:

Envelope: 30 x 62 x 16 mm per bearing (bore x outside diameter x width). Universally ground set: mounts back-to-back, face-to-face or in tandem.

Compatibility and replacement:

Same 30 x 62 x 16 mm envelope and 25° angle: Fafnir 3MM206WI, FAG B7206-E-T, SKF 7206 ACD, RHP 7206 X3TA, Barden 2206H, SNR 7206 H. MPN variants: S-6206-E-TA-P4-DUL, S6206ETAP4DUL, S6206ETAP4-DUL, S 6206 E TA P4 DUL, 7206E.

Frequently asked questions:

What size is the GMN S 6206 E TA P4 DUL?

30 mm bore, 62 mm outside diameter, 16 mm wide per bearing; the ISO 7206 size.

What does DUL mean in this designation?

D is a set of two bearings; UL is universal matching with light preload.

What contact angle and cage does it have?

25° contact angle (E) and a laminated phenolic resin cage guided on the outer ring (TA).
