FAG7206-B-TVPAngular Contact Ball Bearing – 30 mm Bore, 62 mm OD, 16 mm Width, Open, 40° Contact Angle, Polyamide Window Cage

Product Description

What this part is

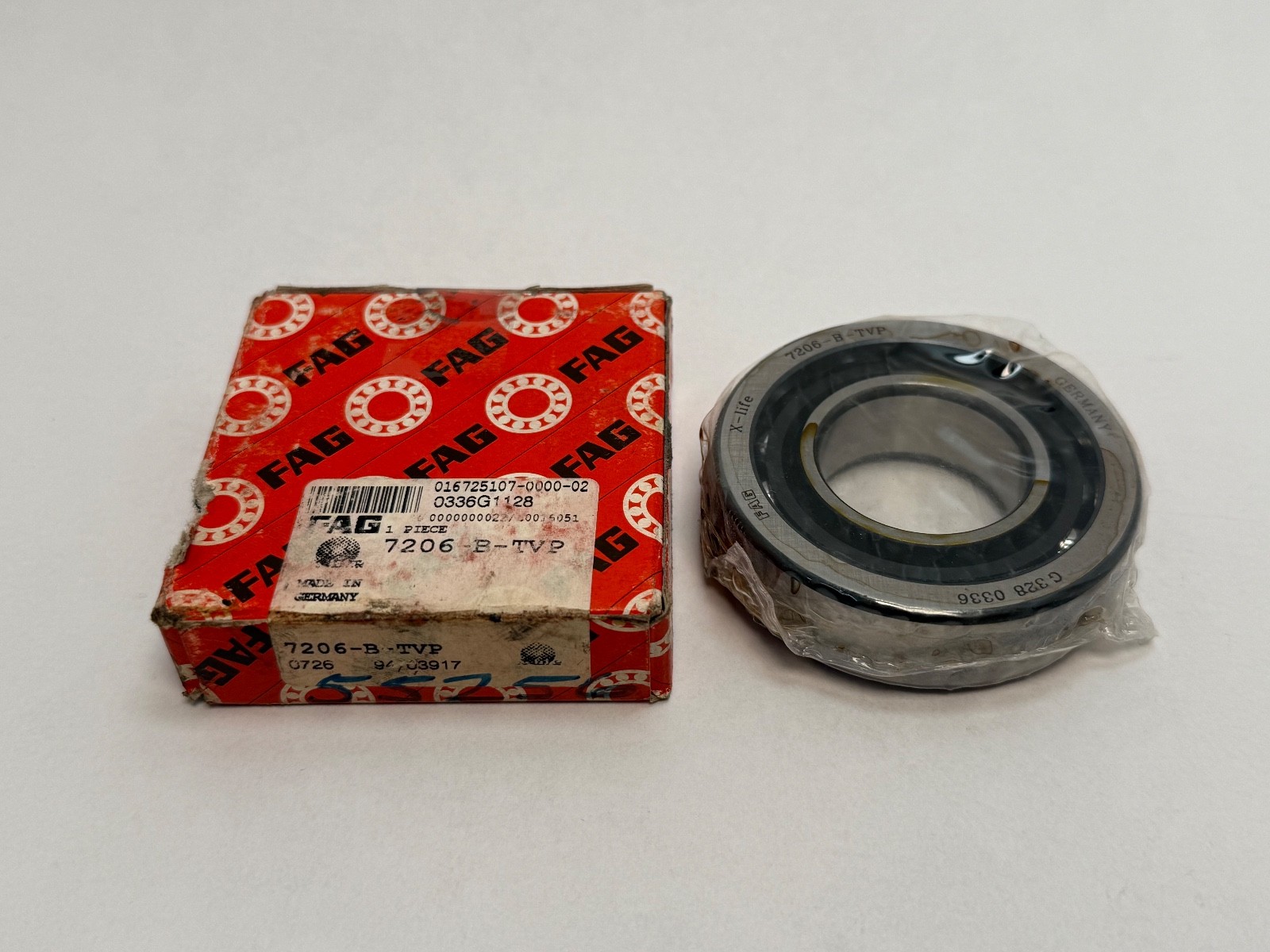

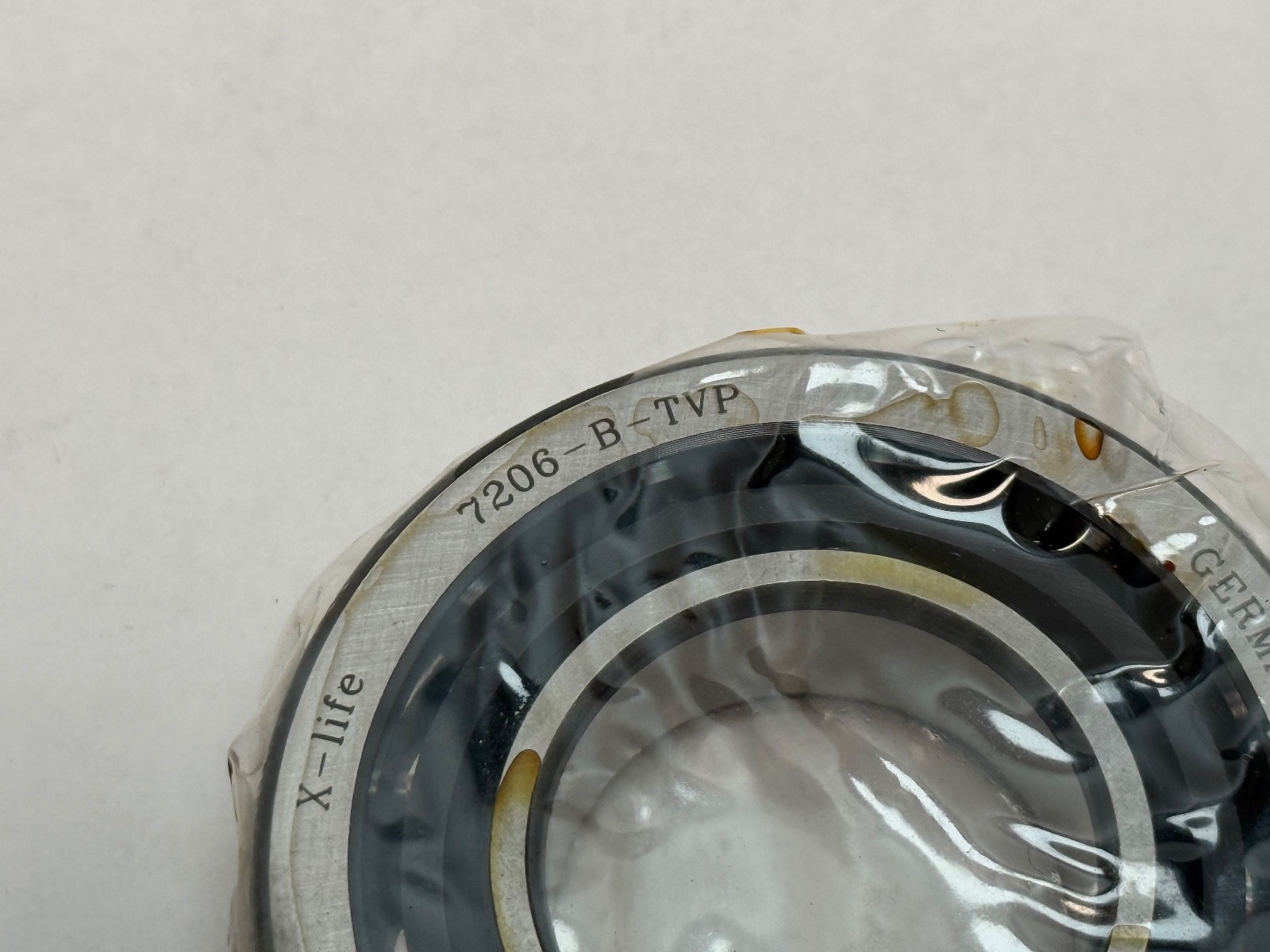

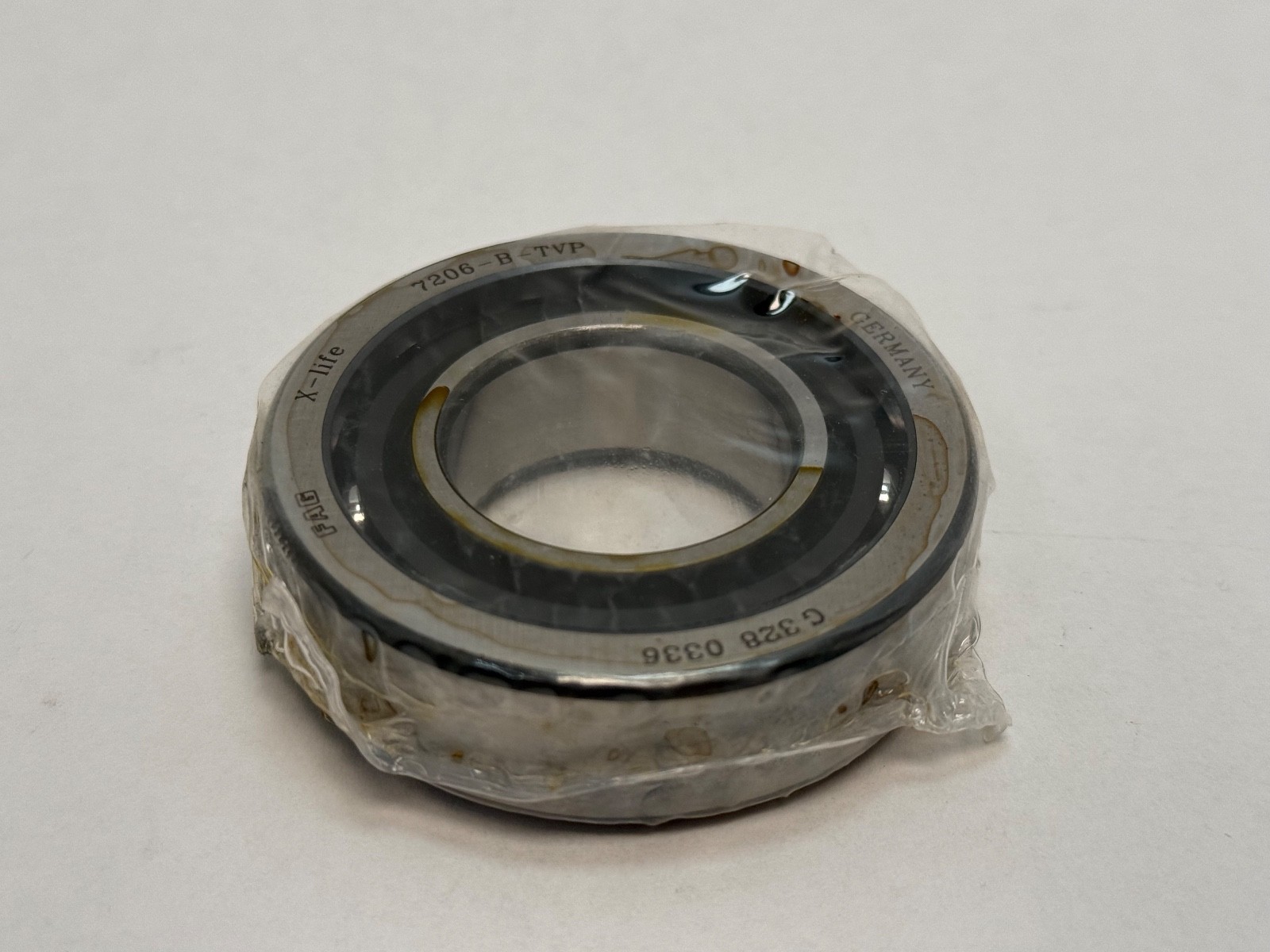

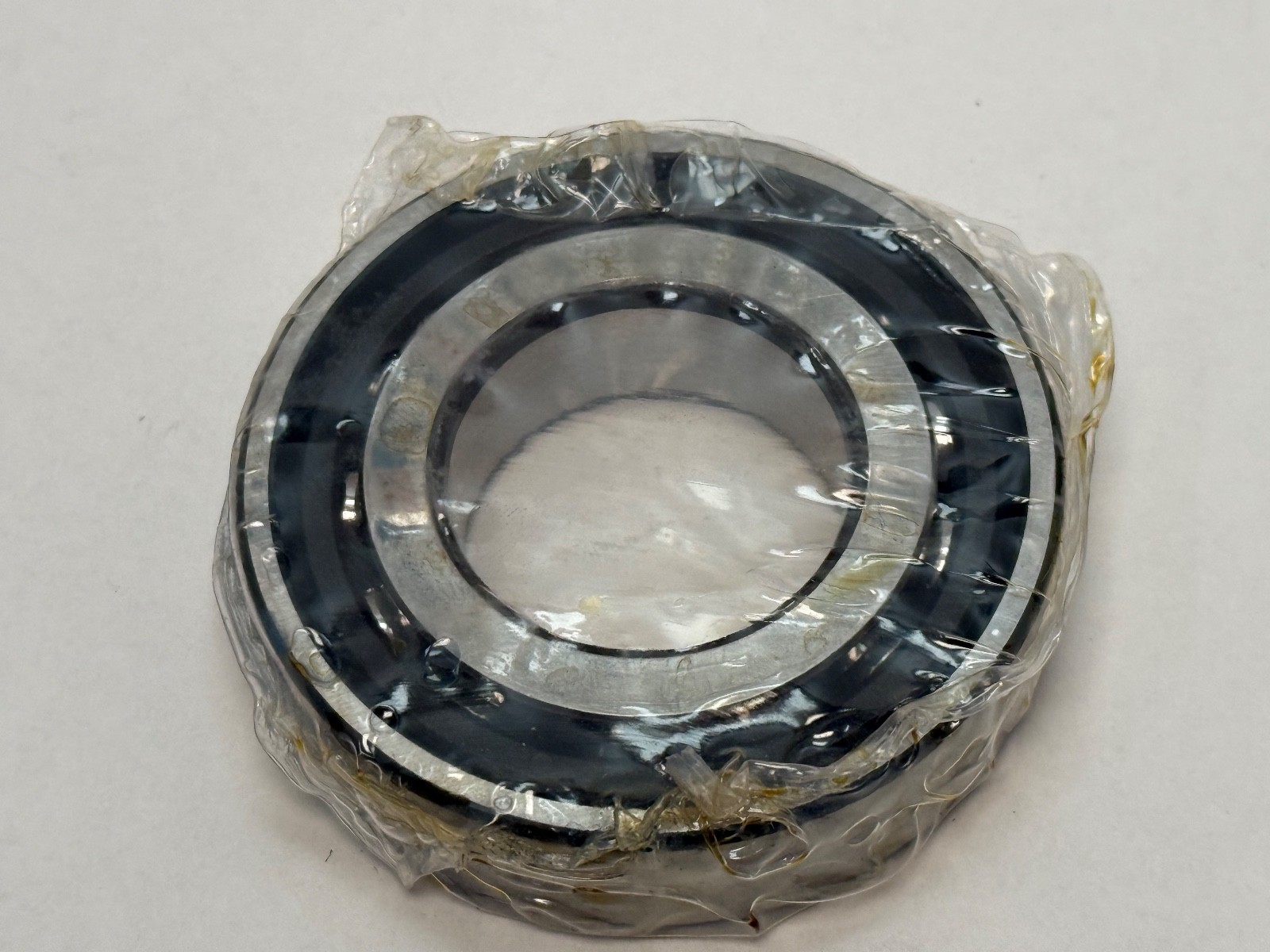

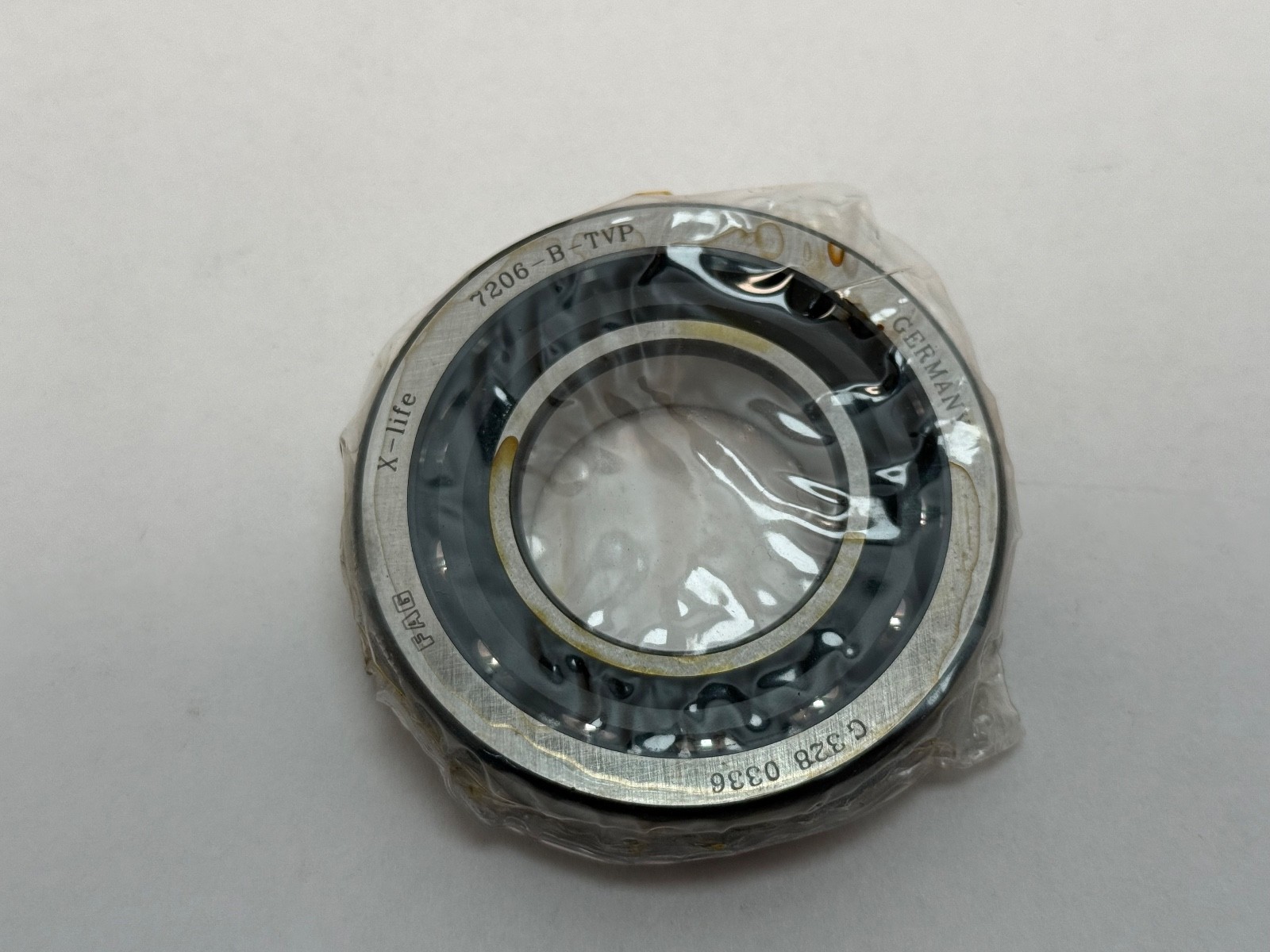

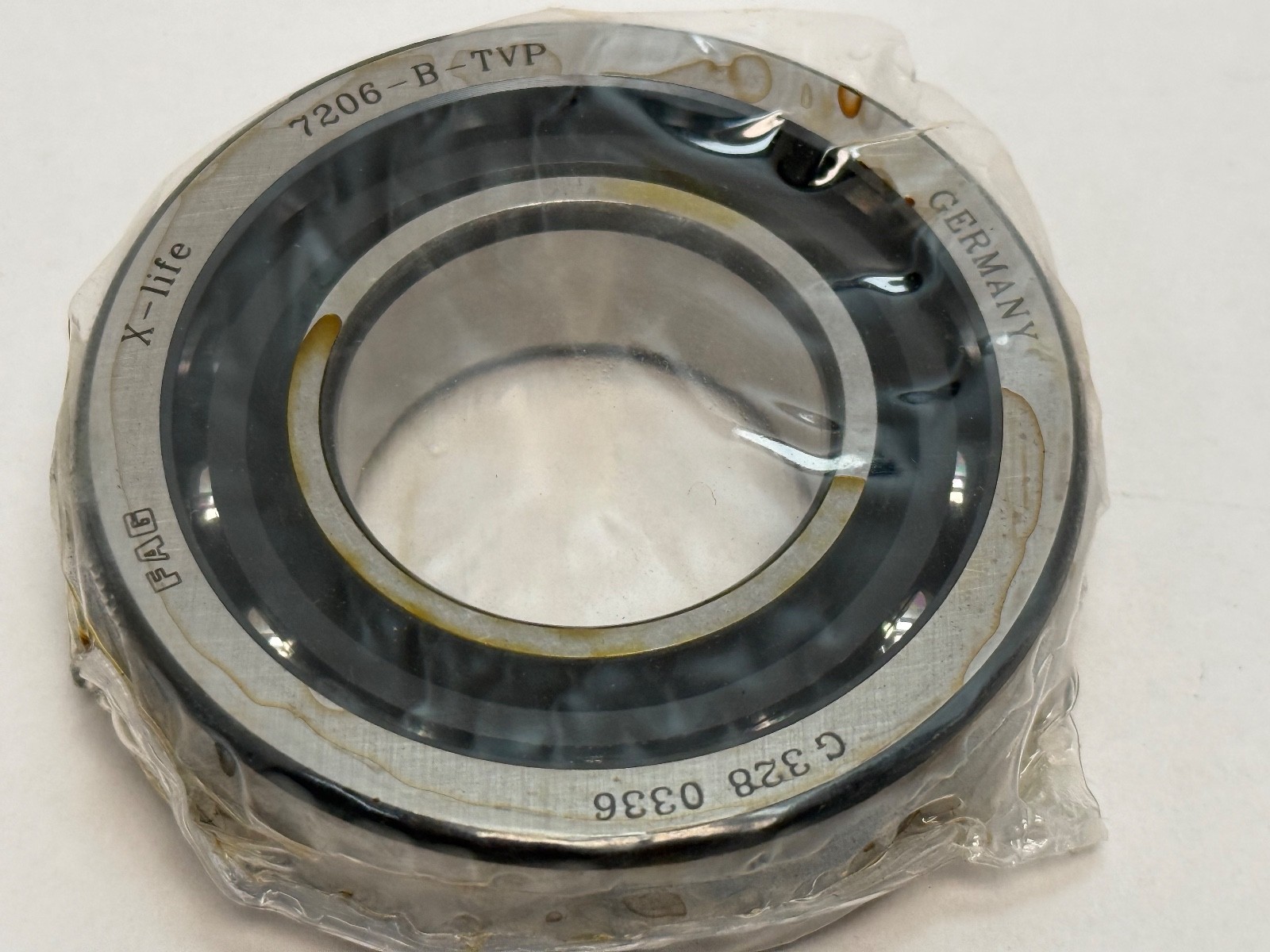

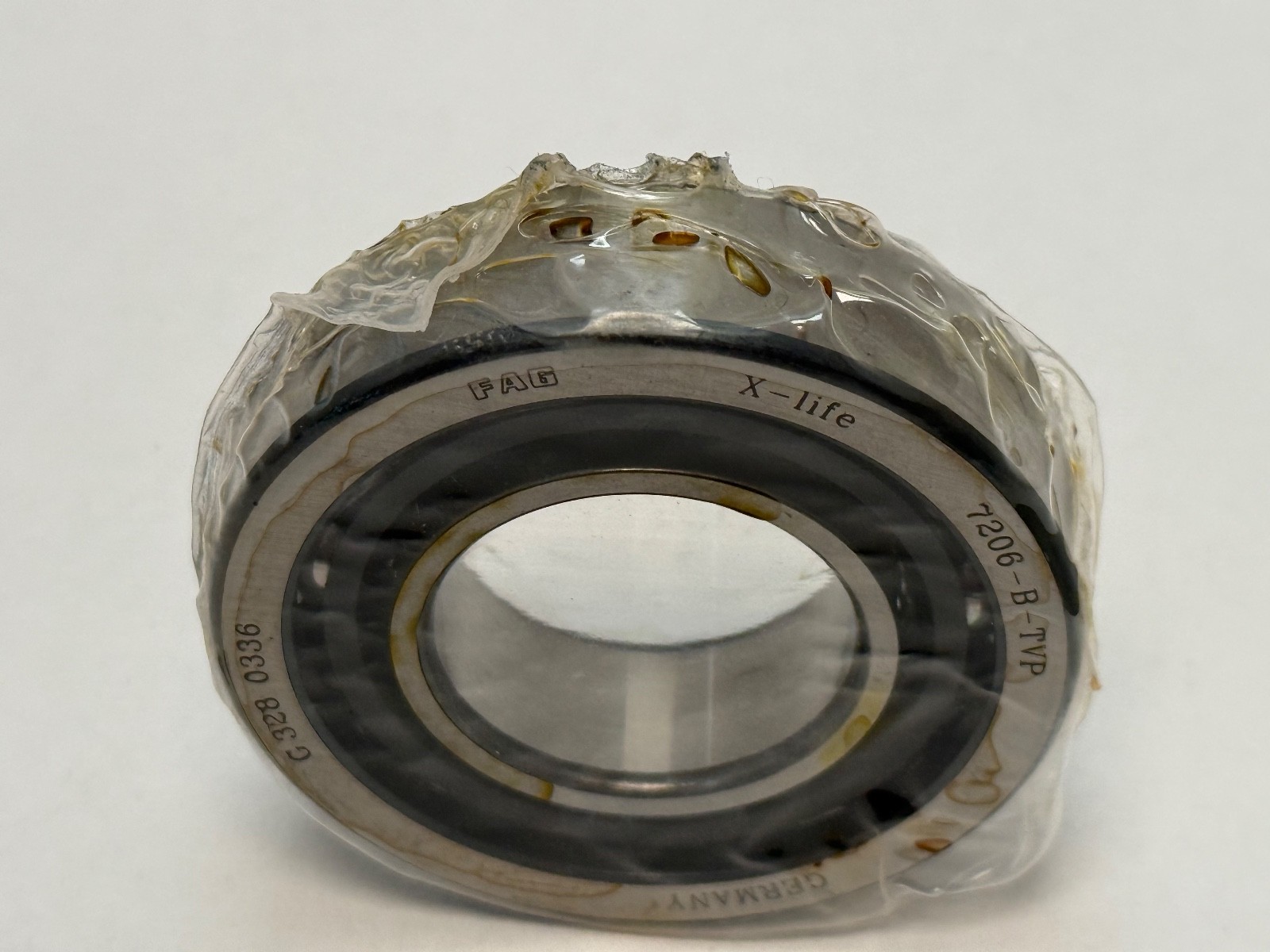

FAG 7206-B-TVP single-row angular contact ball bearing. Bore: 30 mm. Outside Diameter: 62 mm. Overall Width: 16 mm. Contact Angle: 40°. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Cage Material: Glass-fibre reinforced polyamide. Cage Type: One-piece window cage. Bearing Material: Chrome steel. Dynamic Load Rating: 21.7 kN. Static Load Rating: 14.1 kN. Item Weight: 0.196 kg (0.43 lb).

Decoding the designation

7206 — ISO 72 dimension series at a 30 mm bore, giving a 30 x 62 x 16 mm envelope.

B — 40° contact angle on a 72xx series bearing.

TVP — one-piece window cage in glass-fibre reinforced polyamide.

What these specs mean in practice

A 40° contact angle is the high-thrust end of the angular contact range. At the same size it carries considerably more axial load than a 15° or 25° execution, and it accepts a lower speed for that.

A single-row angular contact bearing takes axial load in one direction, so it is normally mounted against a second bearing that takes the other direction and sets the shaft.

Dynamic Load Rating 21.7 kN sets the L10 life calculation; Static Load Rating 14.1 kN sets the limit on permanent raceway indentation at rest and under shock.

The one-piece polyamide window cage is light and quiet, and it runs well on either grease or oil.

Quantity and configuration

Unit Quantity: 1 Pc. Single bearing, open, straight bore.

Interchange guidance

7206-B-TVP-UA, 7206-B-TVP-UO and 7206-B-TVP-UL are the universally matchable executions of the same bearing, set respectively to a small axial clearance, zero clearance and light preload when paired. 7206-B-MP-UA is the machined brass cage version. 7206-B-XL-TVP is the X-life execution, which carries higher load ratings on the same envelope.

Searchable designation forms: 7206-B-TVP, 7206BTVP, 7206 B TVP, 7206B, 7206-B.
