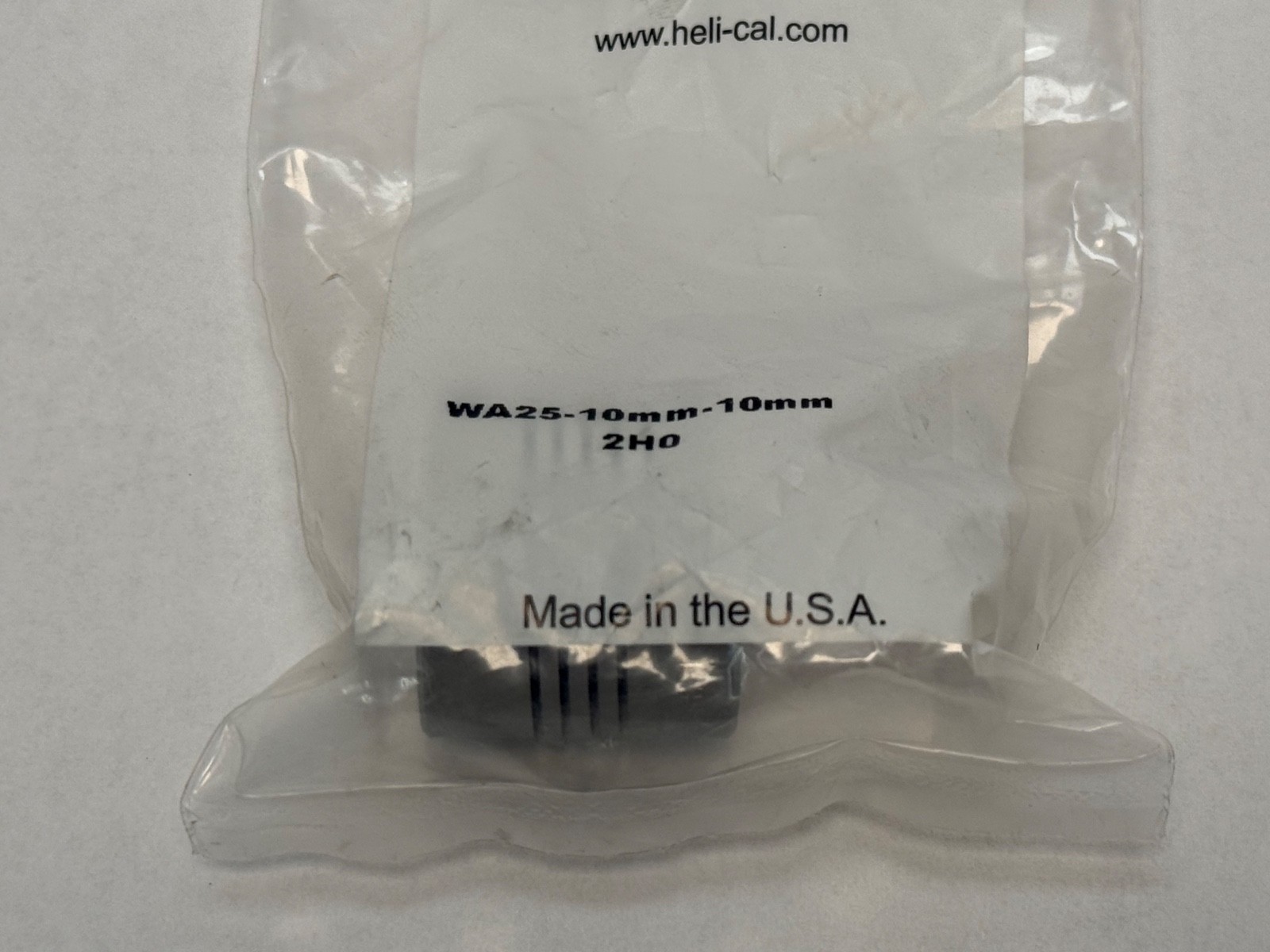

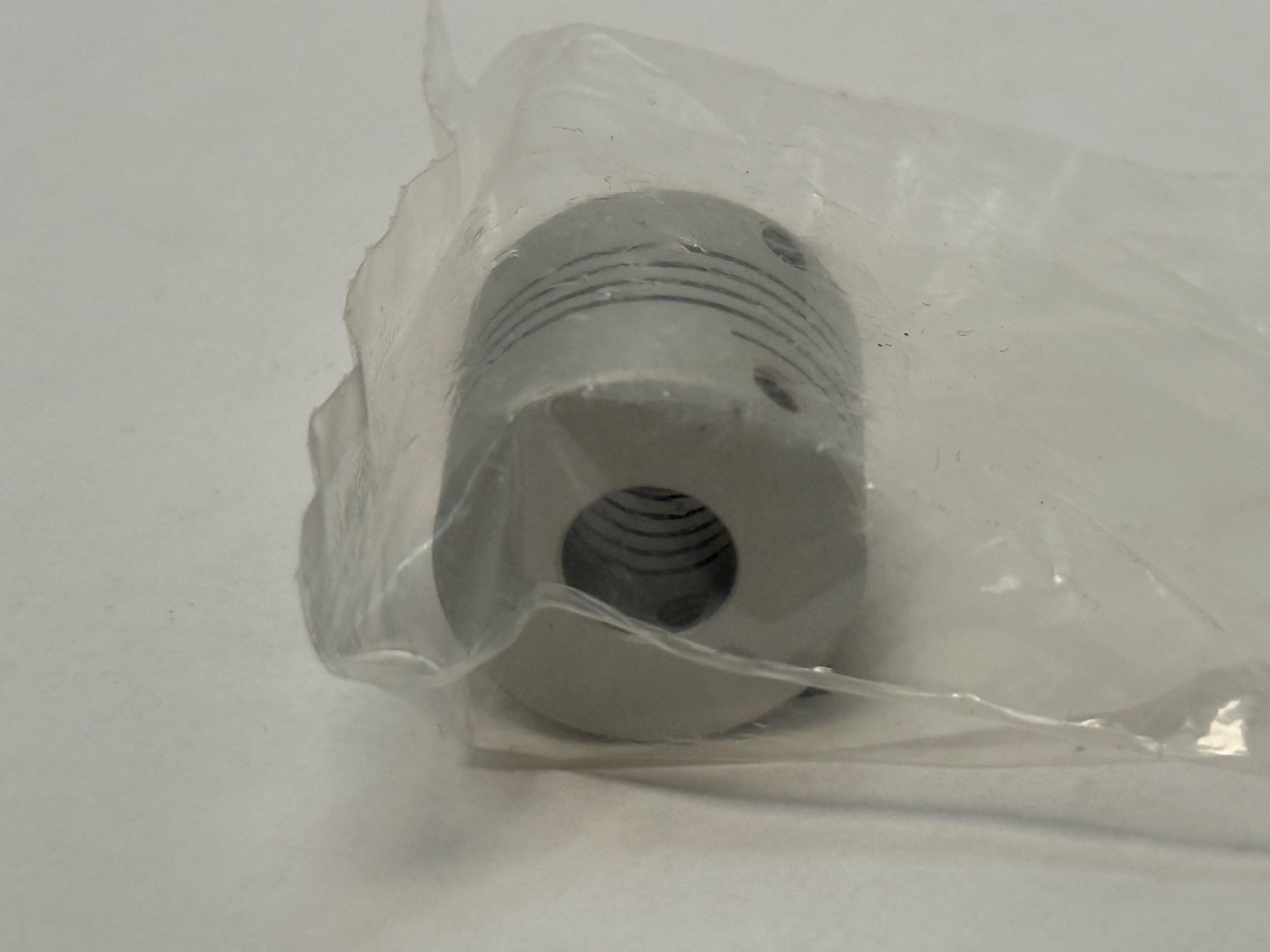

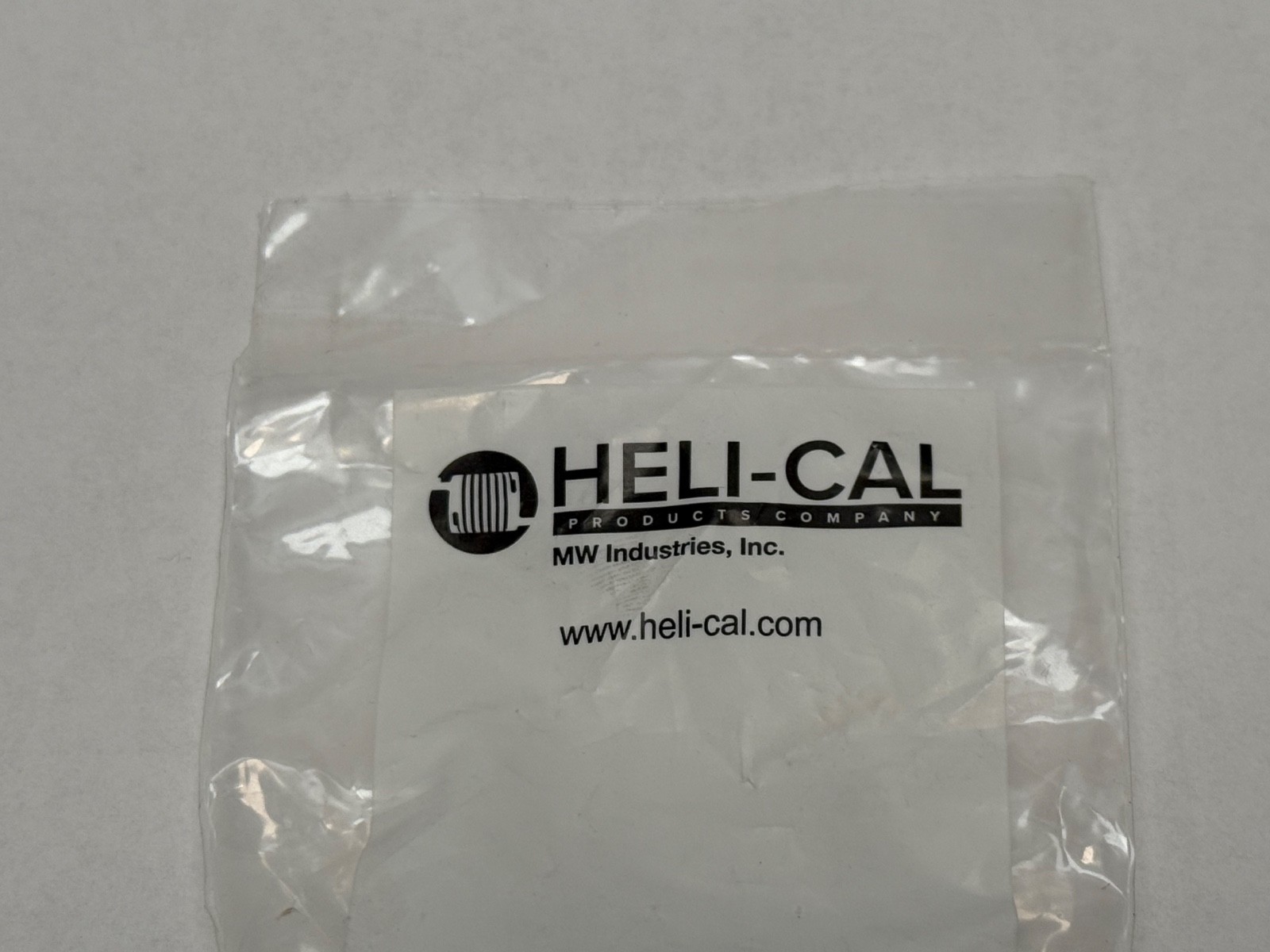

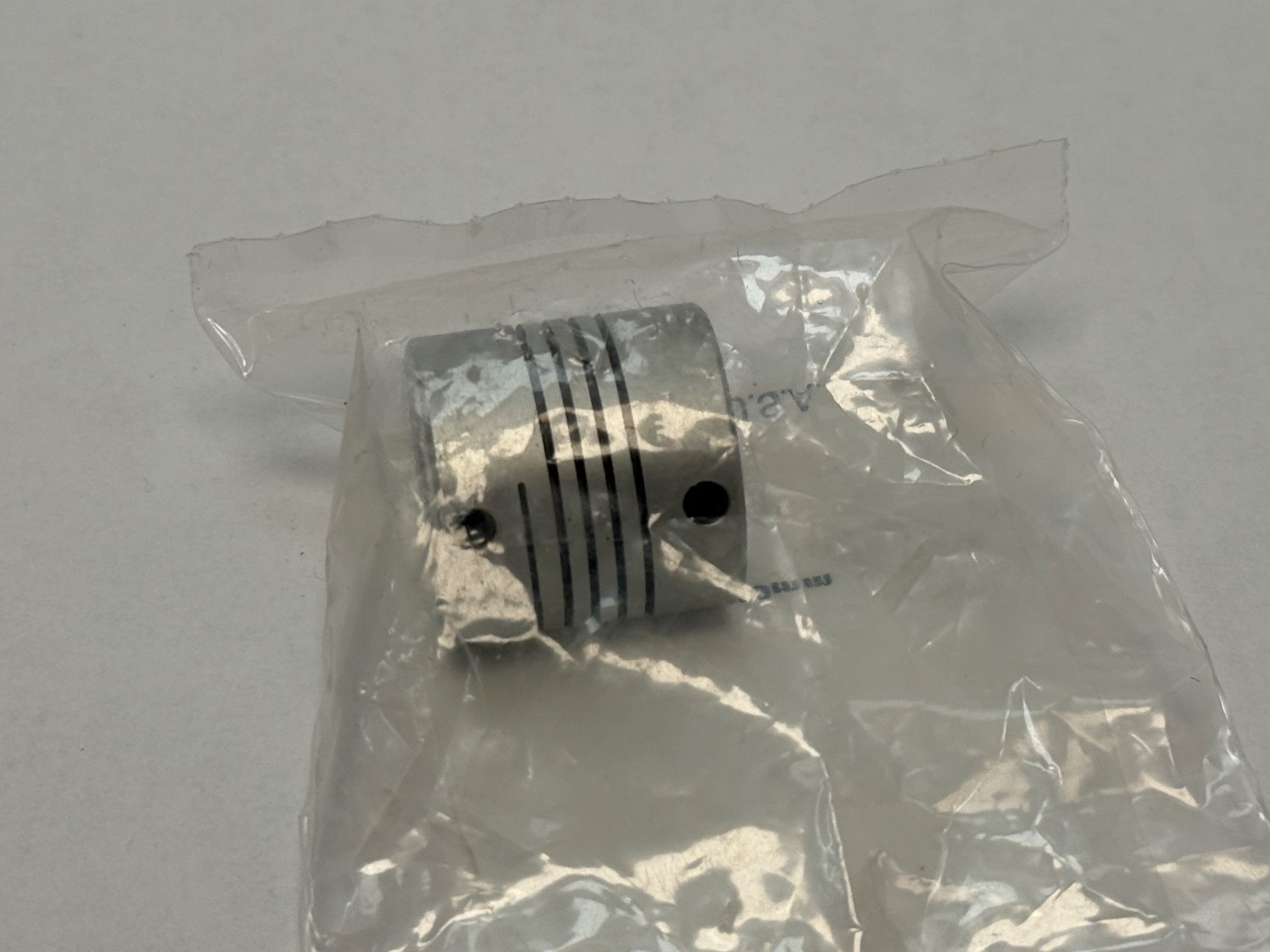

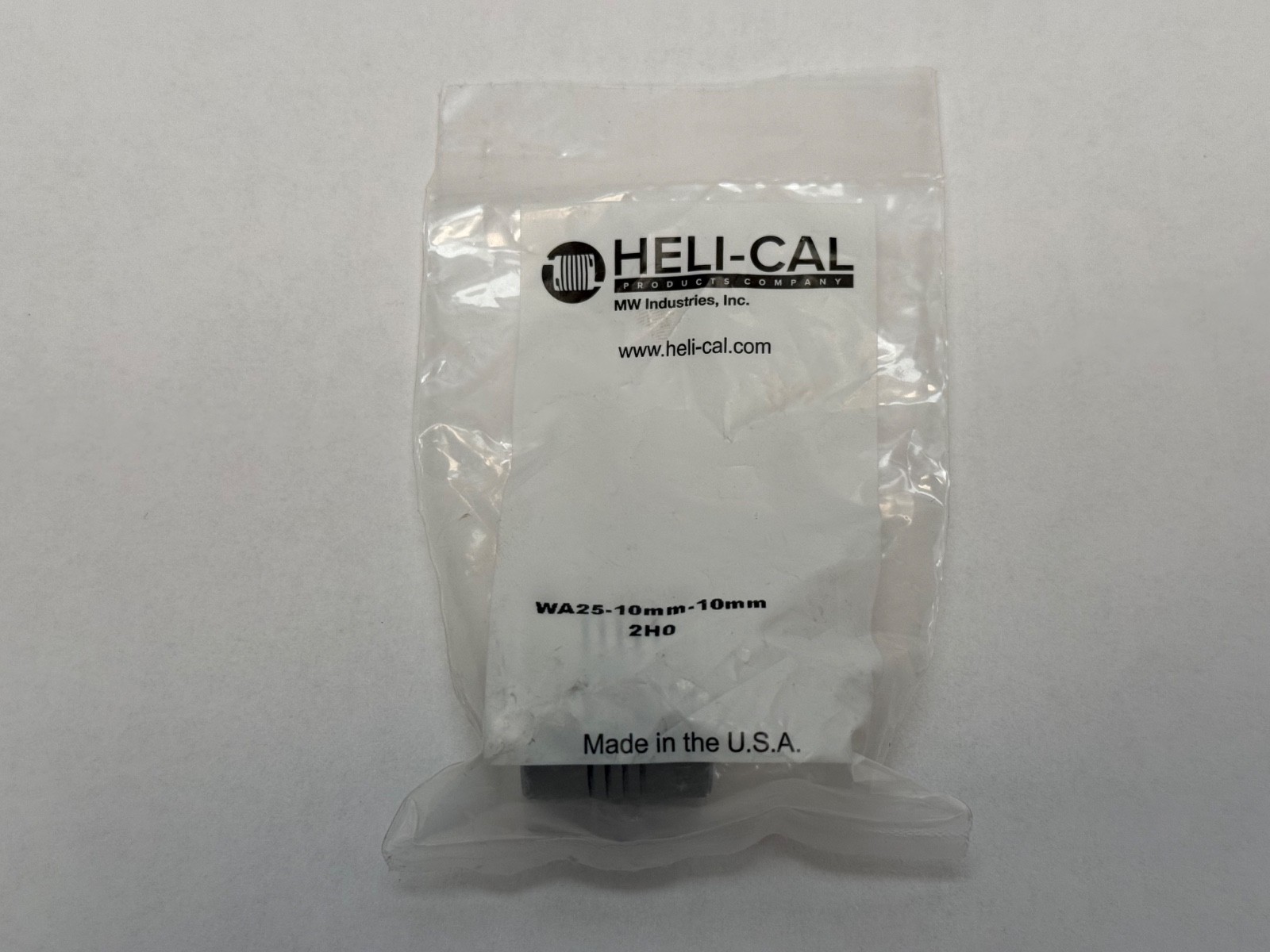

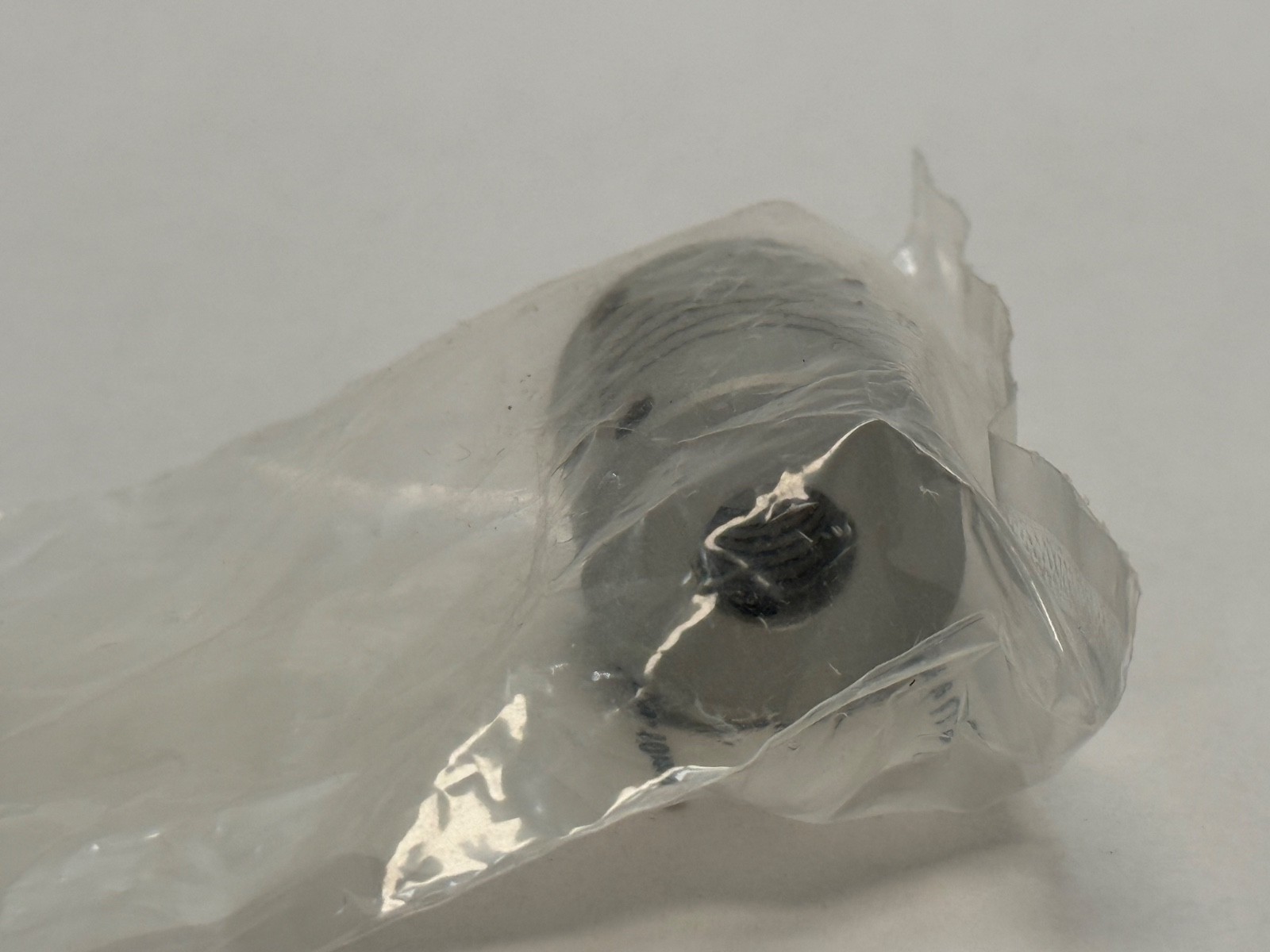

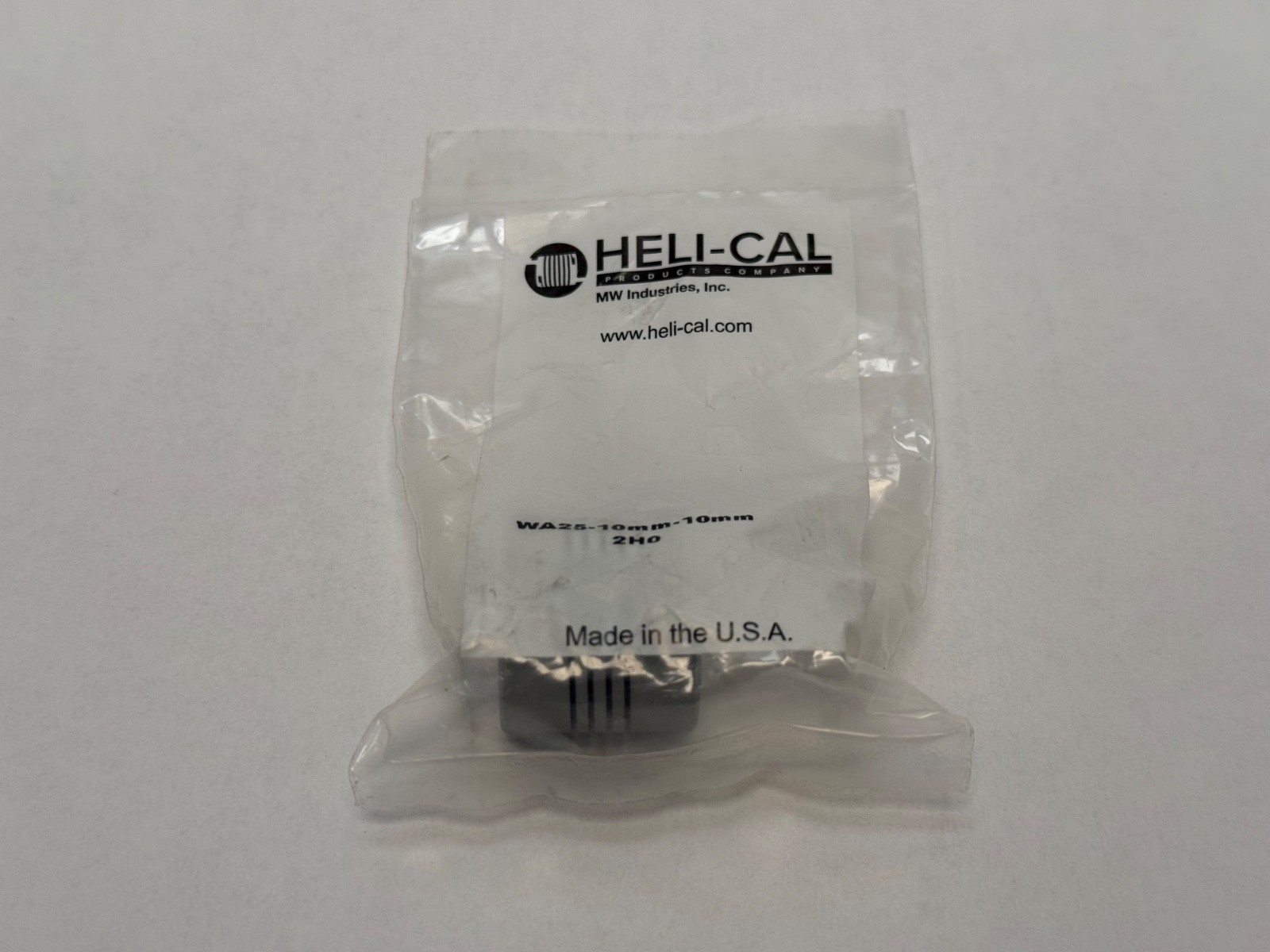

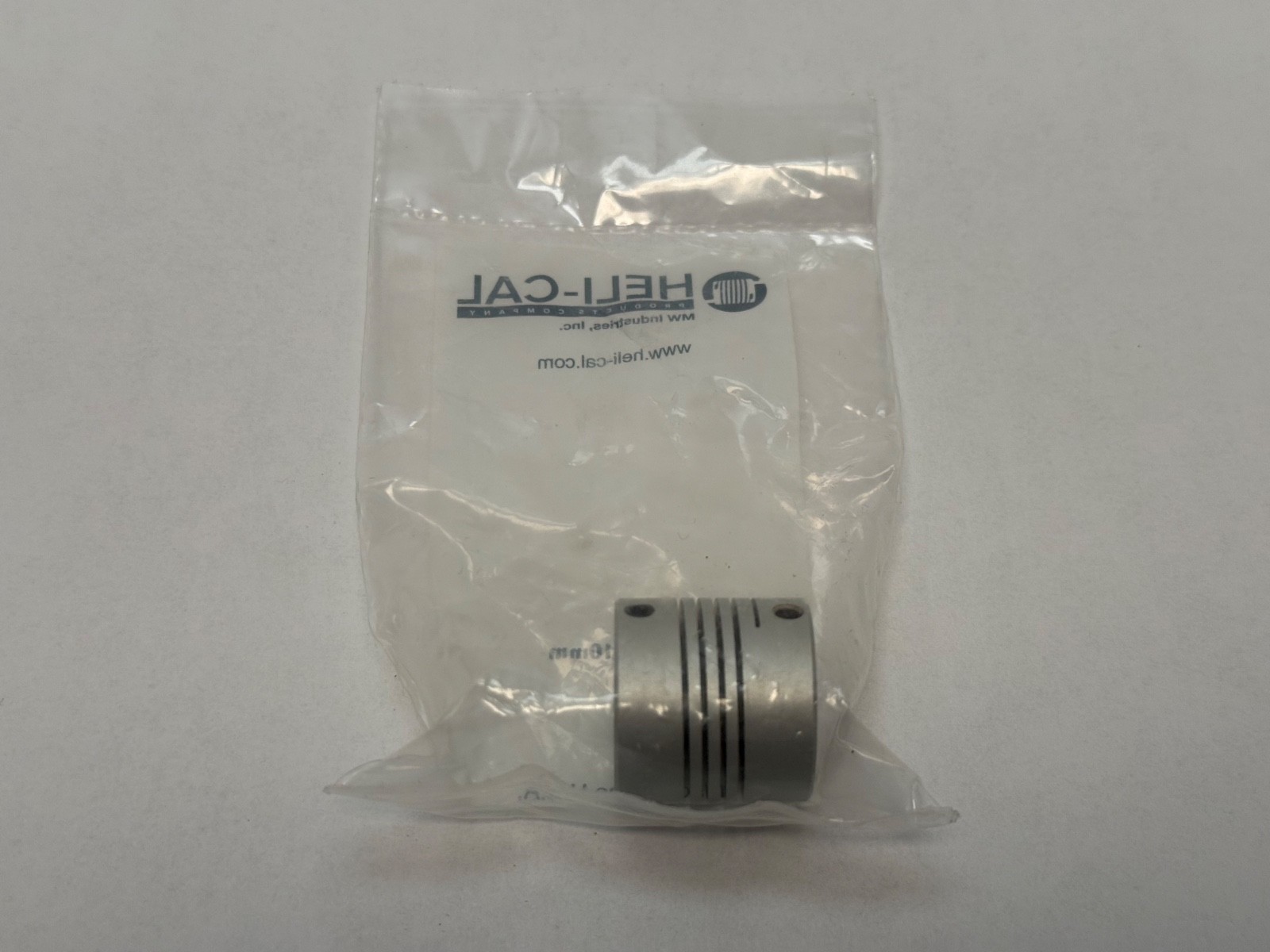

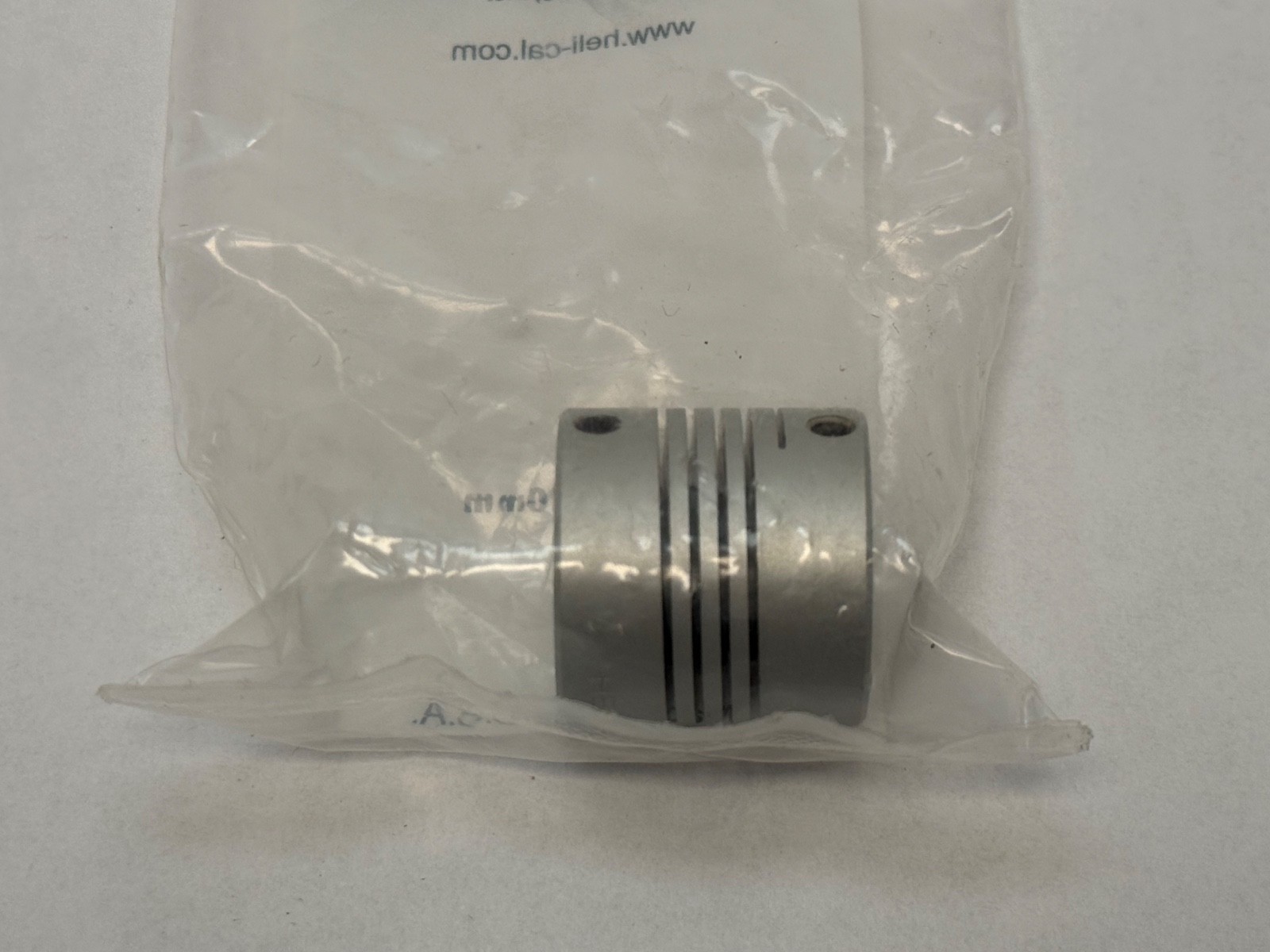

HelicalWA25-10mm-10mmFlexible Beam Coupling – 10 mm to 10 mm Bore, 25 mm OD, 24 mm Length, 7075-T6 Aluminum, Set Screw

Condition: New

Availability:

1 in stock

Helical WA25-10mm-10mm flexible beam coupling, 10 mm to 10 mm bores, 25 mm OD, 24 mm long, 7075-T6 aluminum with set screw ends, 2.2 N-m max torque.

Same day shipment

List Price

$72.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandHelical
MPNWA25-10mm-10mm
ModelWA25-10-10
ID10 mm
OD25 mm

Technical Specifications

Industry Termsbeam coupling, helical coupling, flexible shaft coupling, servo coupling, encoder coupling
Mpn VariantsWA25-10mm-10mm, WA25-10MM-10MM, WA2510mm10mm, WA25-10-10, WA25
Additional AttributesNon-Reversing Torque: 1.1 N-m; Reversing Torque: 0.55 N-m; Axial Motion: 0.25 mm; Rotational Rate: 3.5 N/deg; Inertia: 0.24 kg-cm/sec sq; Operating Temperature: 93 C; Set Screw: M4x0.7; Hex Size: 2 mm; Seating Torque: 2.1 N-m; Screw Center Line: 3 mm
Overall Length24 mm
Material7075-T6 Aluminum Alloy
SeriesWA
TypeFlexible Beam Coupling
FinishClear Anodized
Common MisspellingsHelicle WA25-10mm-10mm; Helical WA 25-10mm-10mm; Helical WA25-10mm-10 mm
Application TypesEncoder, stepper and servo motor shafts; lead screws; instrument drives
Seller Part Number: AK2B5#QYPKXH

Product Description

What this part is:

The Helical WA25-10mm-10mm is a one-piece flexible beam coupling from Helical Products, machined from 7075-T6 aluminum alloy with set screw end attachments. It joins two 10 mm shafts and accommodates angular misalignment, parallel offset and axial motion without backlash.

Decoding the designation:

W — Helical W series beam coupling.

A — aluminum alloy, 7075-T6.

25 — 25 mm outside diameter.

10mm-10mm — bore sizes, 10 mm and 10 mm.

Specifications:

Type: Flexible Beam Coupling. Series: WA. Material: 7075-T6 Aluminum Alloy. Finish: Clear Anodized. End Type: Set Screw. Bore Size: 10 mm. Bore Size 2: 10 mm. Outside Diameter: 25 mm. Length: 24 mm. Max Torque: 2.2 N-m. Non-Reversing Torque: 1.1 N-m. Reversing Torque: 0.55 N-m. Angular Misalignment: 5°. Parallel Offset: 0.25 mm. Axial Motion: 0.25 mm. Rated Speed: 10,000 rpm. Rotational Rate: 3.5 N/deg. Operating Temperature: up to 93 °C.

Dimensions and mounting:

Outside Diameter: 25 mm. Length: 24 mm. Set Screw Size: M4 x 0.7. Hex Key Size: 2 mm. Set Screw Seating Torque: 2.1 N-m. Set Screw Center Line: 3 mm from the coupling end.

Compatibility and replacement:

Helical Products WA25-10mm-10mm is also written WA25-10-10 and WA25-10MM-10MM. Applications: encoder, stepper and servo motor shafts, lead screws and instrument drives with 10 mm shafts. CAD model and data sheet: available from Helical Products (mwcomponents.com).

Frequently asked questions:

What are the bore sizes of the Helical WA25-10mm-10mm?

10 mm and 10 mm.

What is the torque rating?

Maximum torque 2.2 N-m, non-reversing 1.1 N-m, reversing 0.55 N-m.

What material is it made from?

7075-T6 aluminum alloy with a clear anodized finish.
