Availability:
1 in stock
Dodge QD bushing, size M, 5-1/2 in finished bore, 1-1/4 x 1/4 in shallow keyway, 6-3/4 in length, 85,000 lb-in torque capacity. Four cap screw mounting.
List Price
$144.94
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | M X 5-1/2-KW |
| Model | M X 5-1/2-KW / 119937 |
| Condition | New |
|---|---|
| Type | Bushing |
| Base Number | M |
| Industry Terms | QD bushing; quick disconnect bushing; split taper bushing; sheave bushing; sprocket bushing |
| Common Misspellings | MX5-1/2KW; M X 5 1/2 KW; MX 5.5 KW |
| Application Types | sheaves; sprockets; pulleys; V-belt drives |
| Bore Width | 6-3/4 in |
| Shaft Diameter | 5-1/2 in |
| Maximum Output Torque | 85,000 lb-in |
| Bore Shaft Size | 5-1/2 in |
| Mpn Variants | M X 5-1/2-KW; MX5-1/2KW; M-X-5-1/2-KW; MX5-1/2; M X 5-1/2 KW; 119937 |
| Additional Attributes | Dodge Part Number: 119937; Bushing Type: QD; Bushing Size: M; Torque Capacity: 85,000 lb-in; Keyway: 1-1/4 x 1/4 in (shallow); Length: 6-3/4 in; Cap Screws: 4 x 3/4-10; Cap Screw Torque: 2,700 lb-in; Bolt Circle: 7.88 in; Key Seat Set Screw: 3/8-16, 290 lb-in; Size M Bore Range: 2 to 5-1/2 in |
| Overall Length | 6-3/4 in |
| Item Weight | 29 lb |

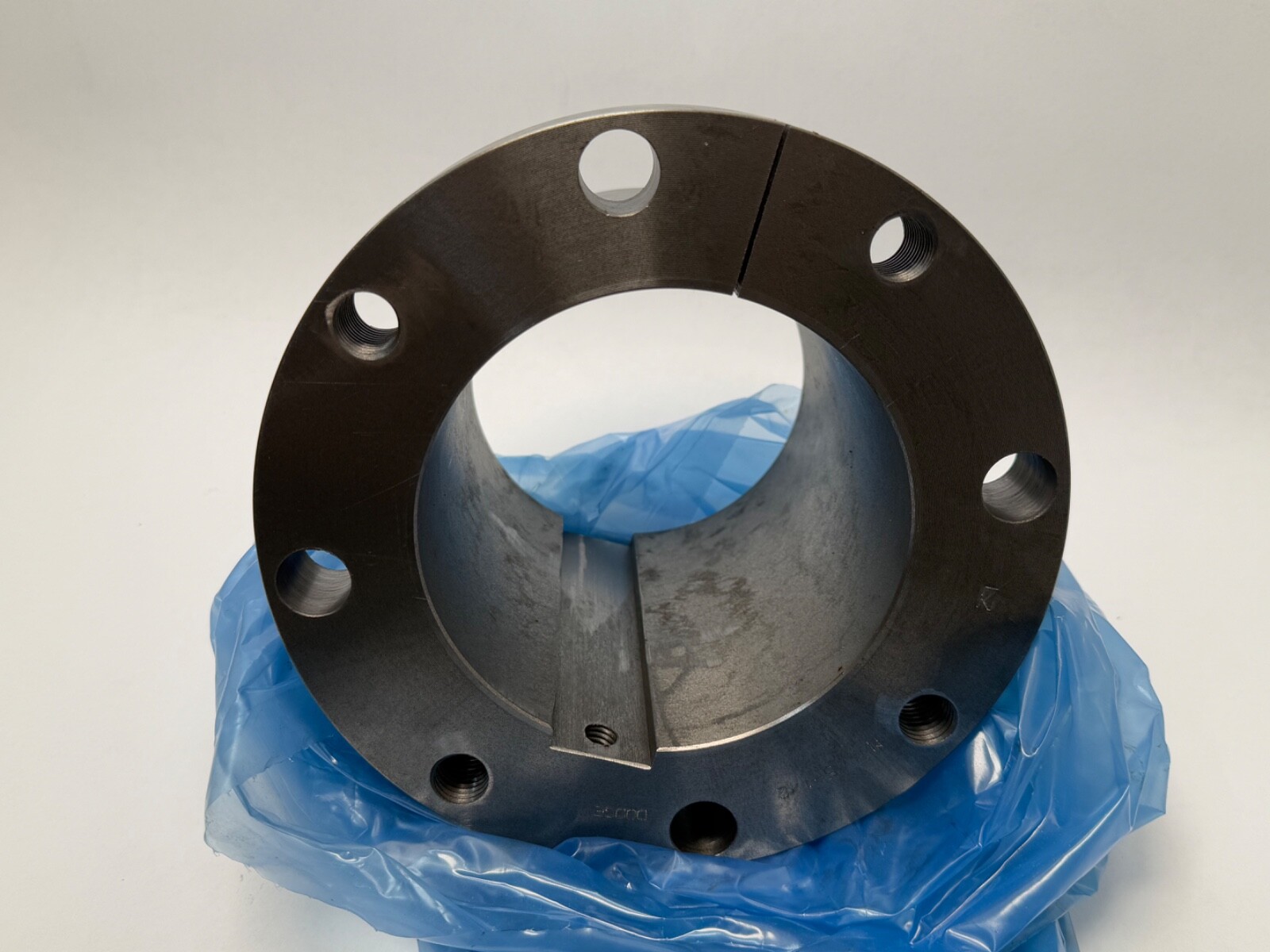

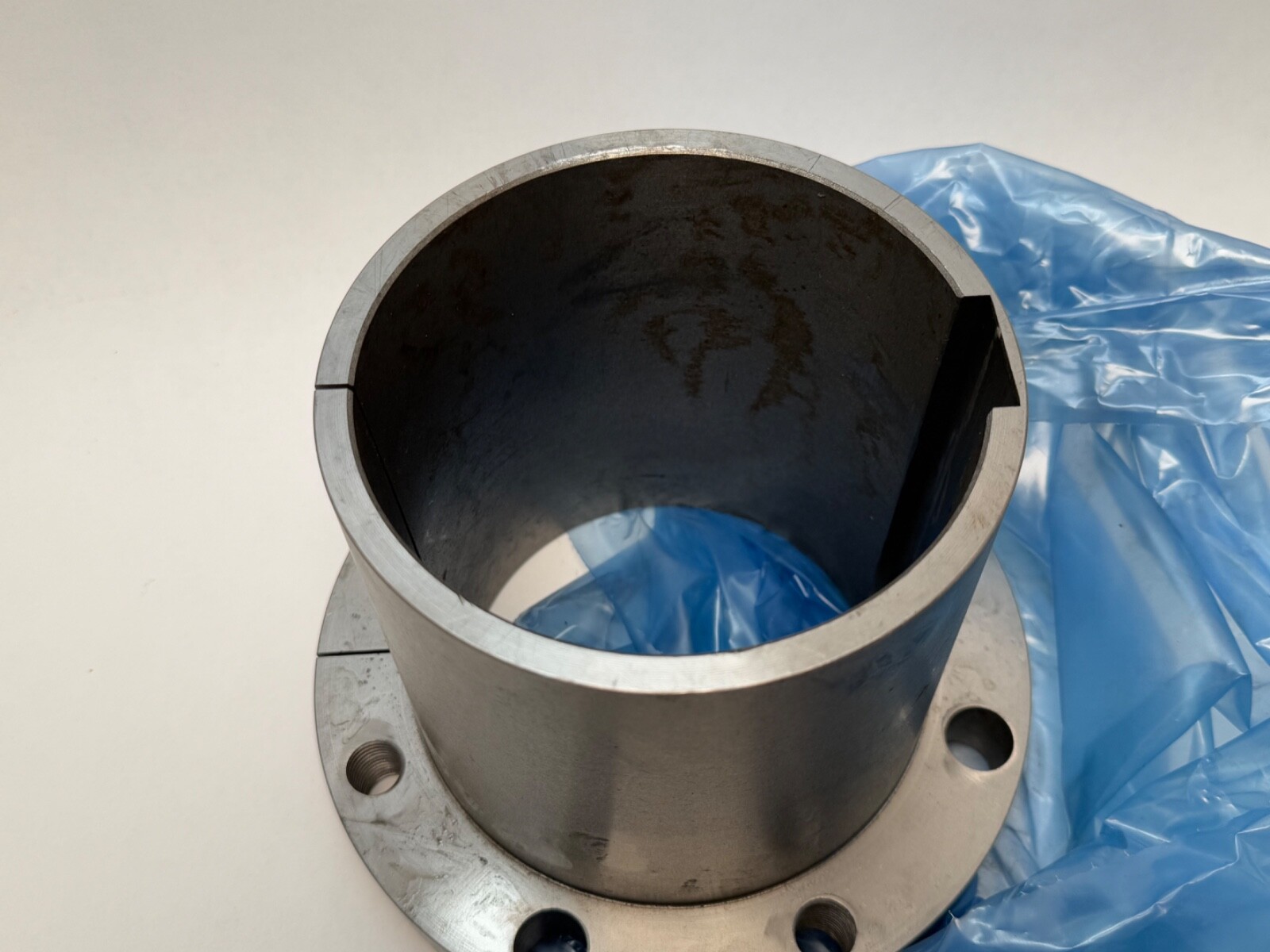

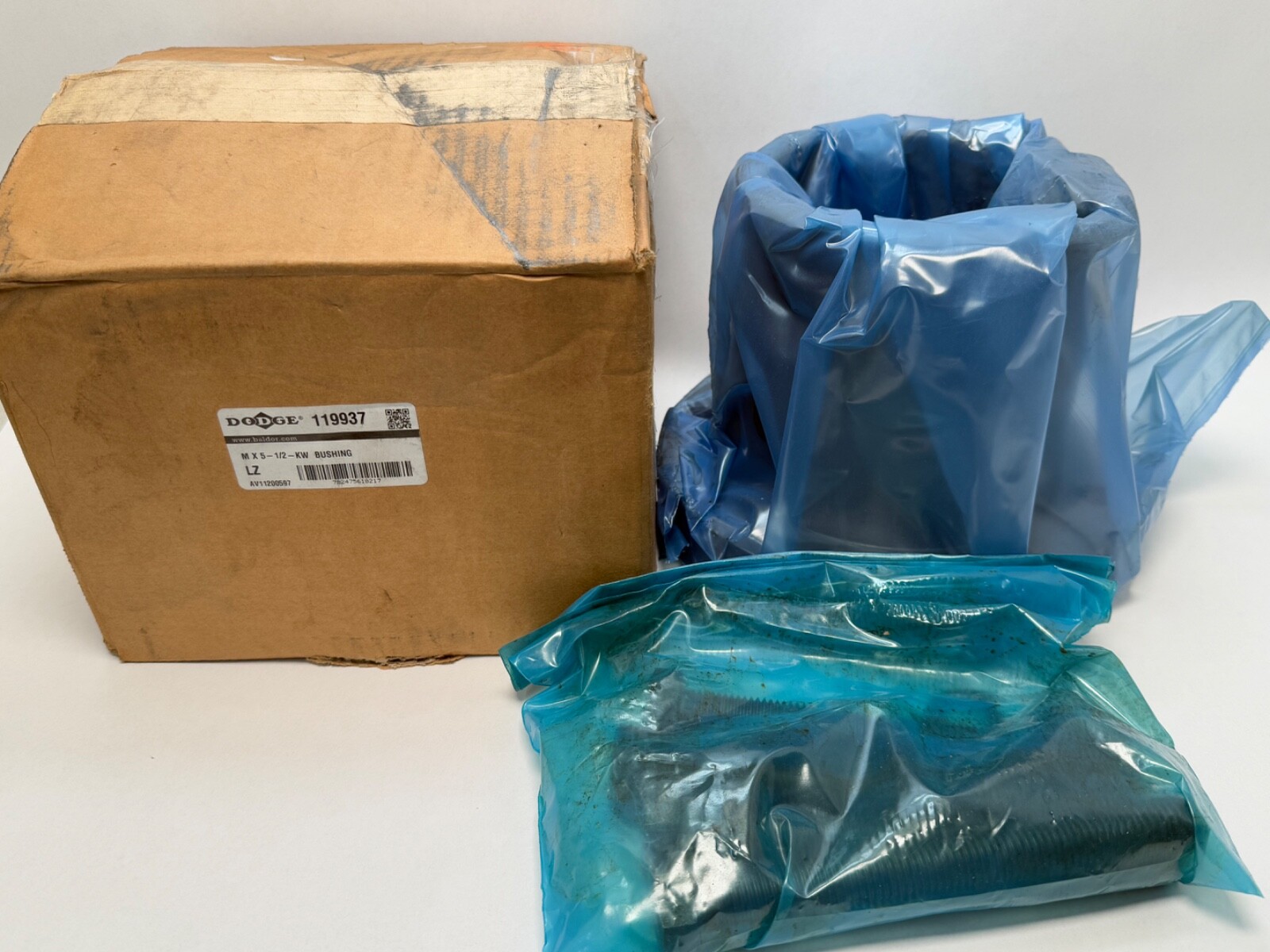

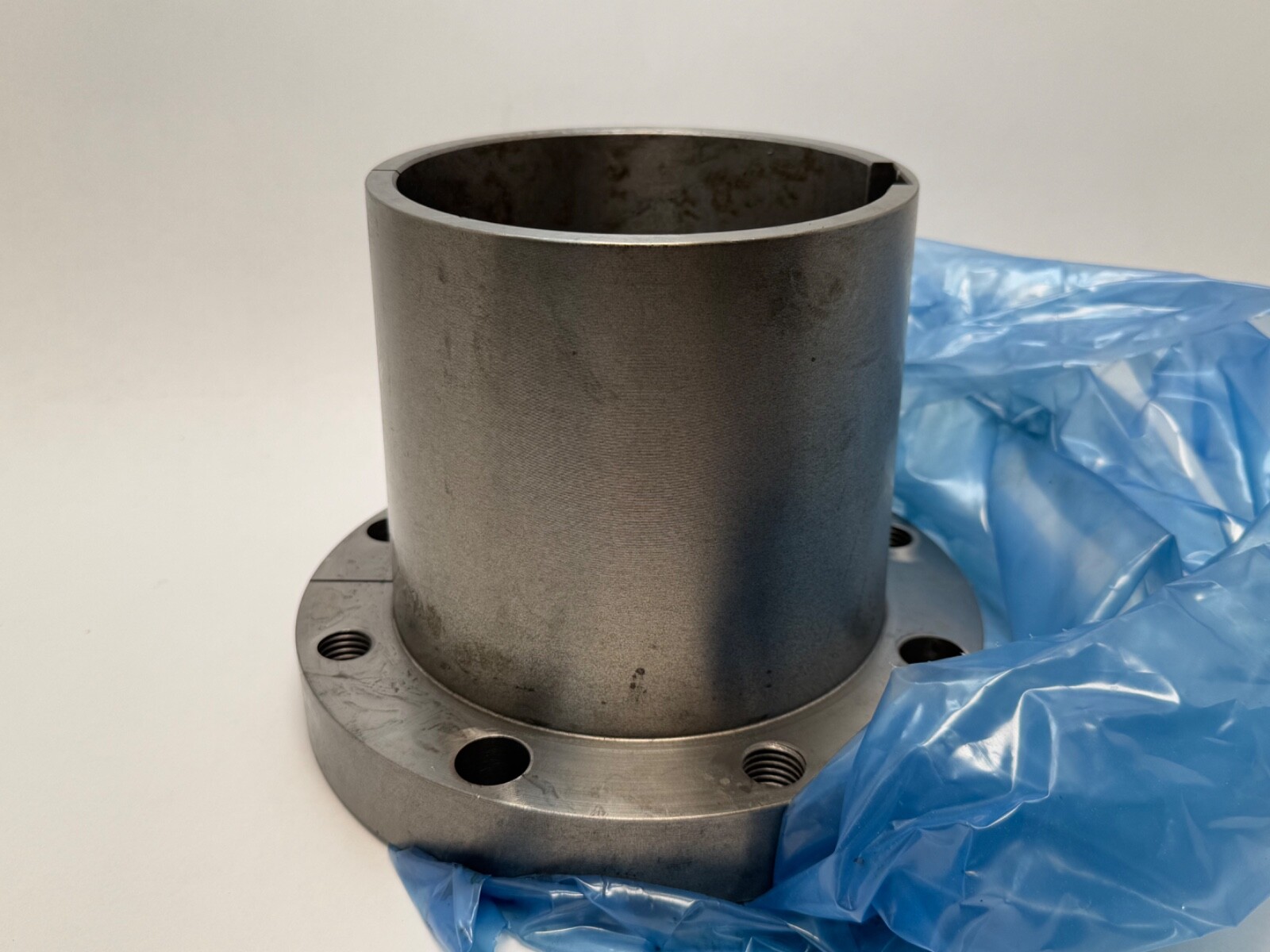

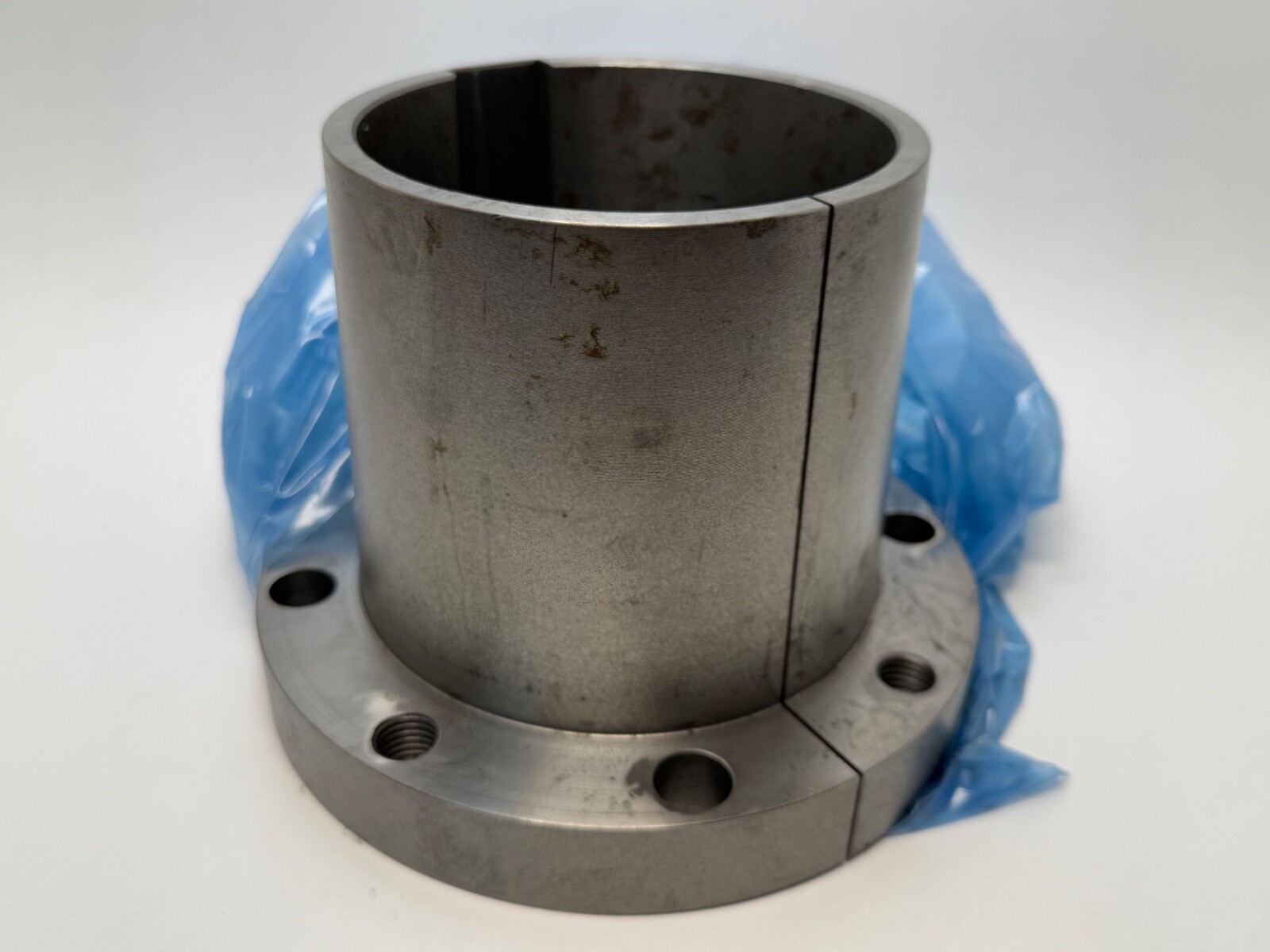

Dodge M X 5-1/2-KW is a size M QD (quick-disconnect) tapered, split, flanged bushing with a 5-1/2 in finished bore. Dodge part number: 119937. Bore / Shaft Size: 5-1/2 in. Bushing Size: M. Bushing Type: QD.
M — QD bushing size M, covering bores from 2 in to 5-1/2 in.
X 5-1/2 — 5-1/2 in finished bore.

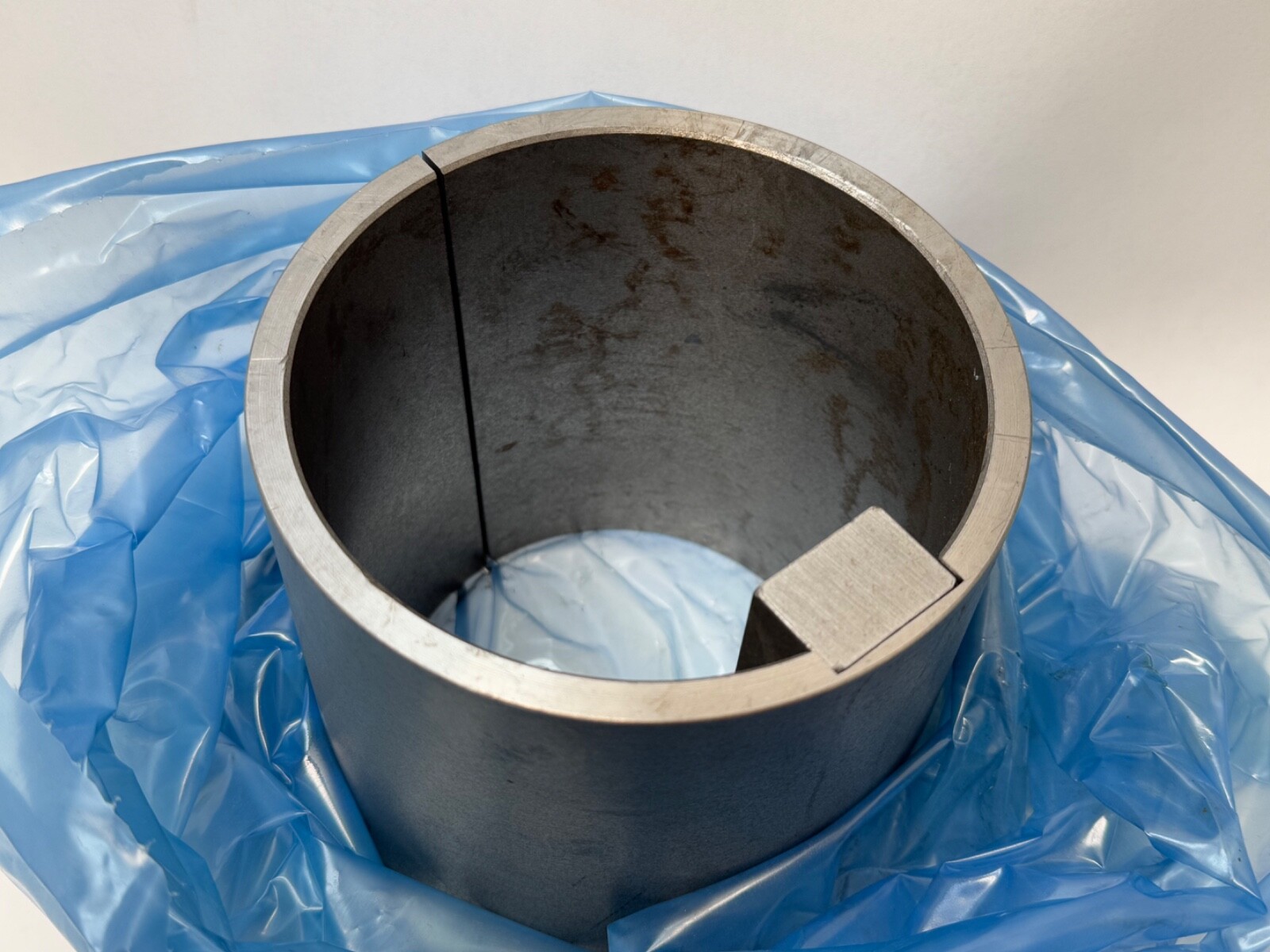

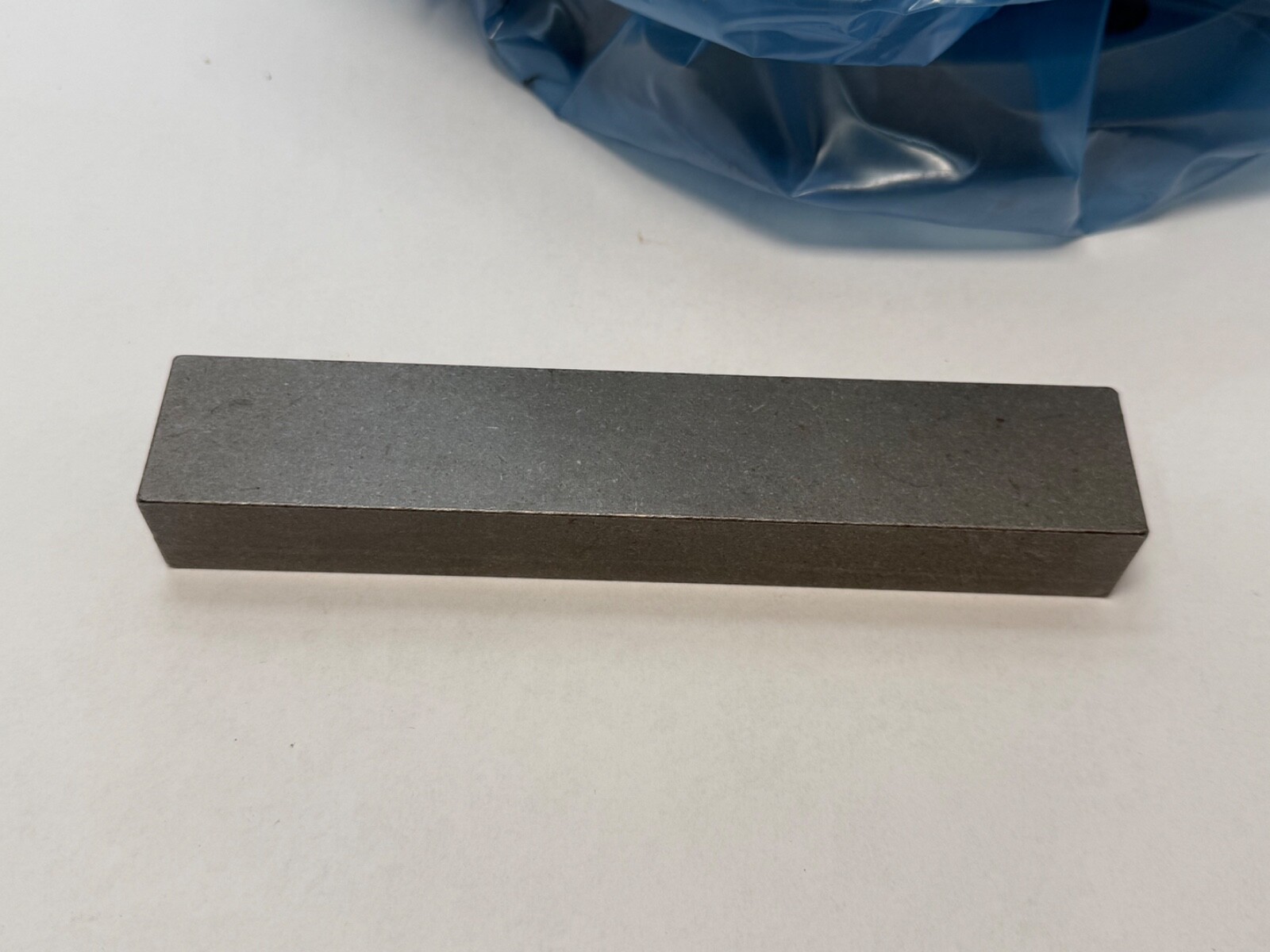

KW — keyway cut. At 5-1/2 in, the maximum bore for size M, the keyway is a shallow 1-1/4 x 1/4 in.
Torque Capacity: 85,000 lb-in. Keyway: 1-1/4 x 1/4 in (shallow). Length: 6-3/4 in. Item Weight: 29 lb. The QD taper grips the shaft and the mating hub when the cap screws are drawn up, and the flange screws also jack the bushing free for removal.

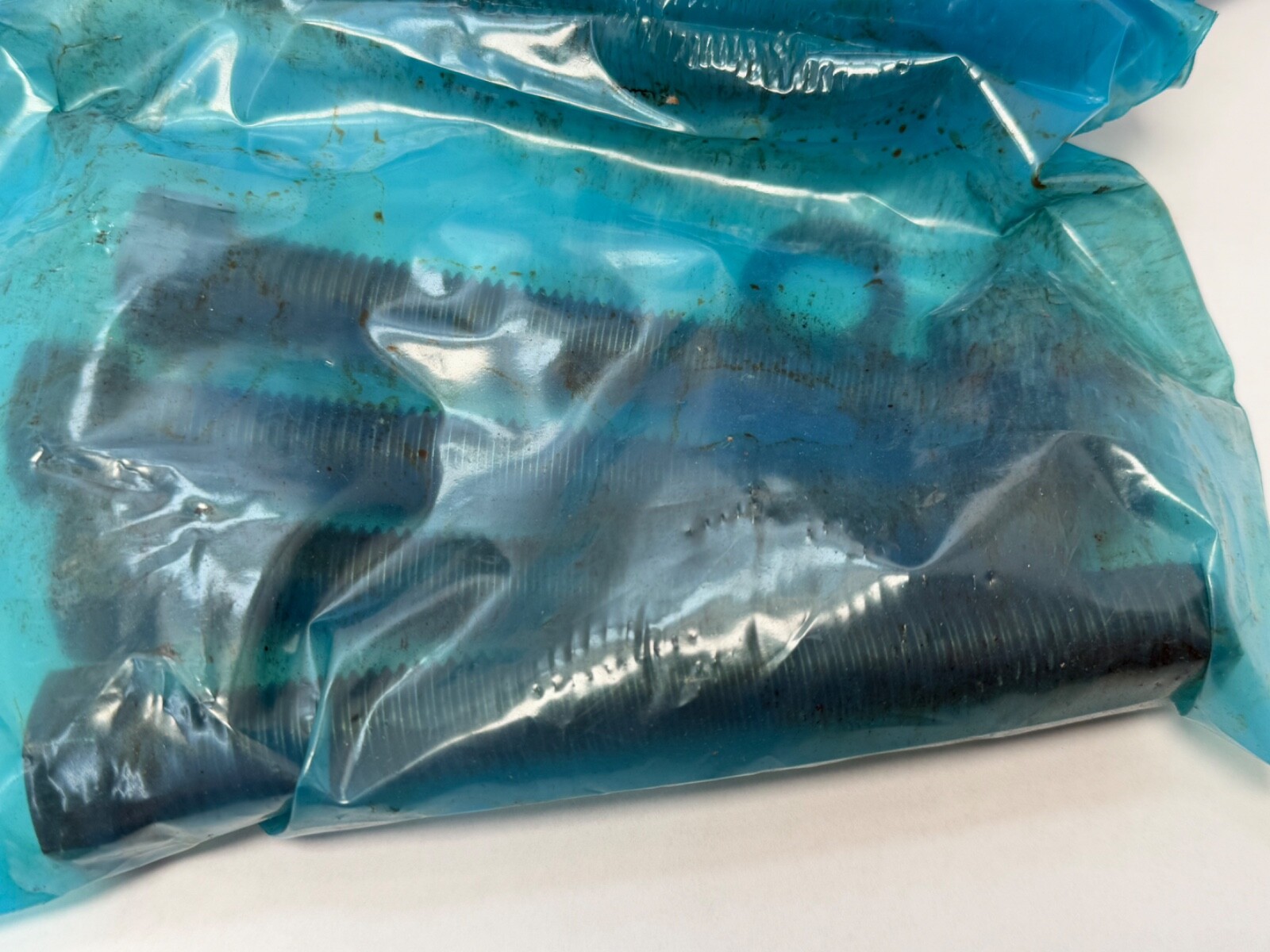

Cap Screws: 4, 3/4-10 thread. Cap Screw Wrench Torque: 2,700 lb-in. Cap Screw Bolt Circle: 7.88 in. Key Seat Set Screw: 3/8-16, 290 lb-in. Size M bushings mount in either conventional or reverse position.
Fits sprockets, sheaves and pulleys with a size M QD hub bore. Other size M bores run from 2 in to 5-1/2 in, e.g. Dodge 119936 (5-7/16 in) and 119935 (5-1/4 in).
