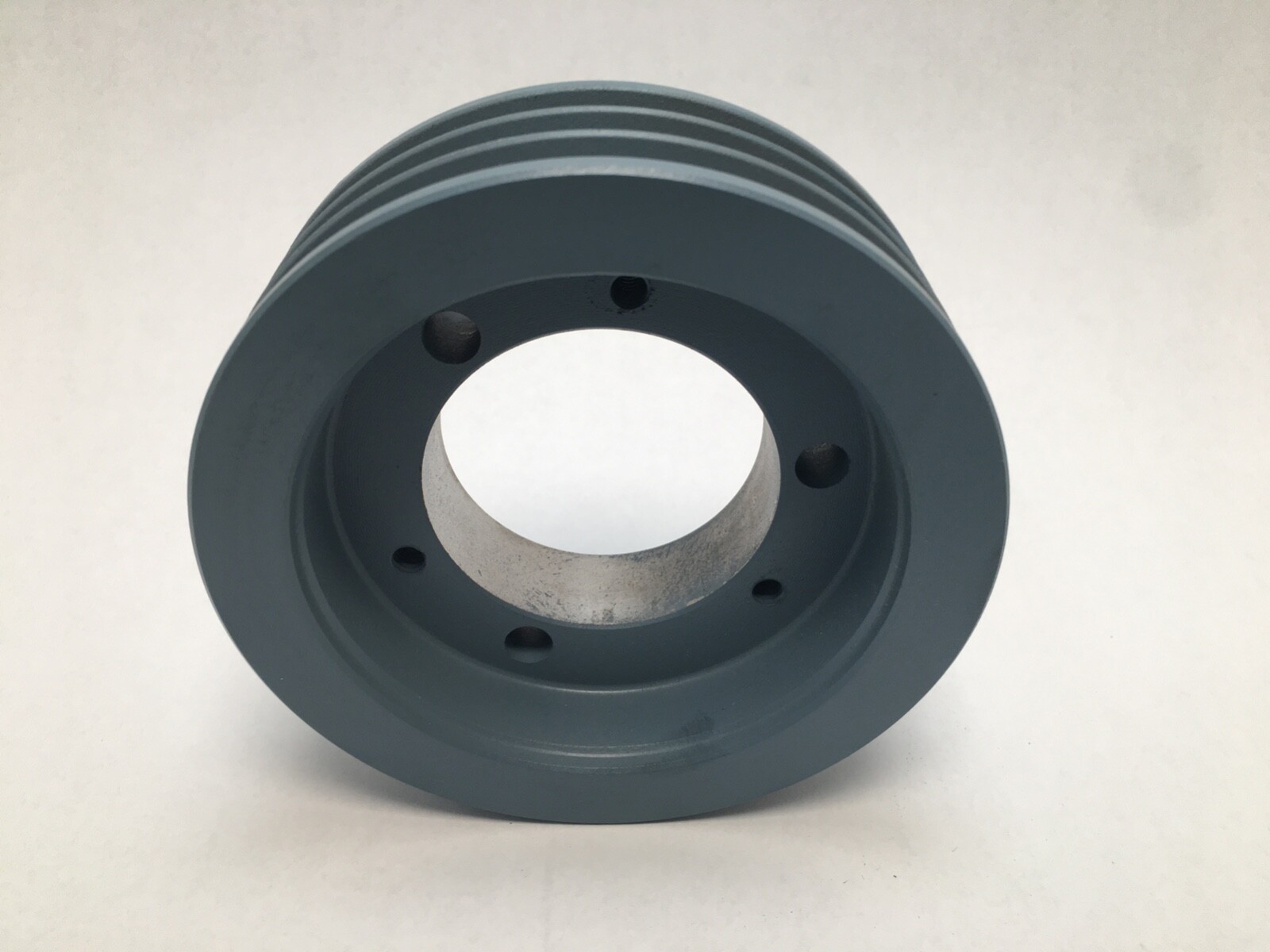

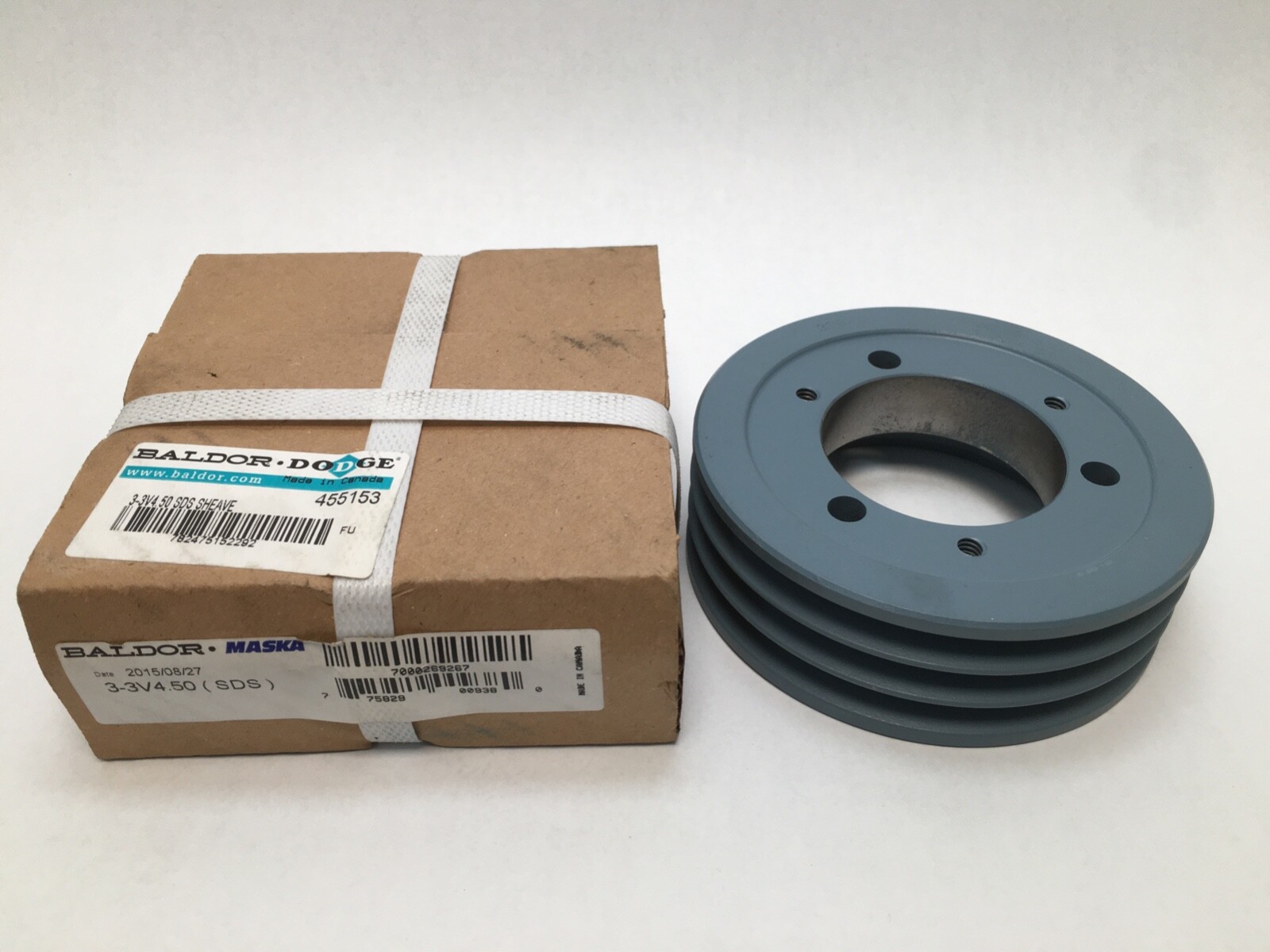

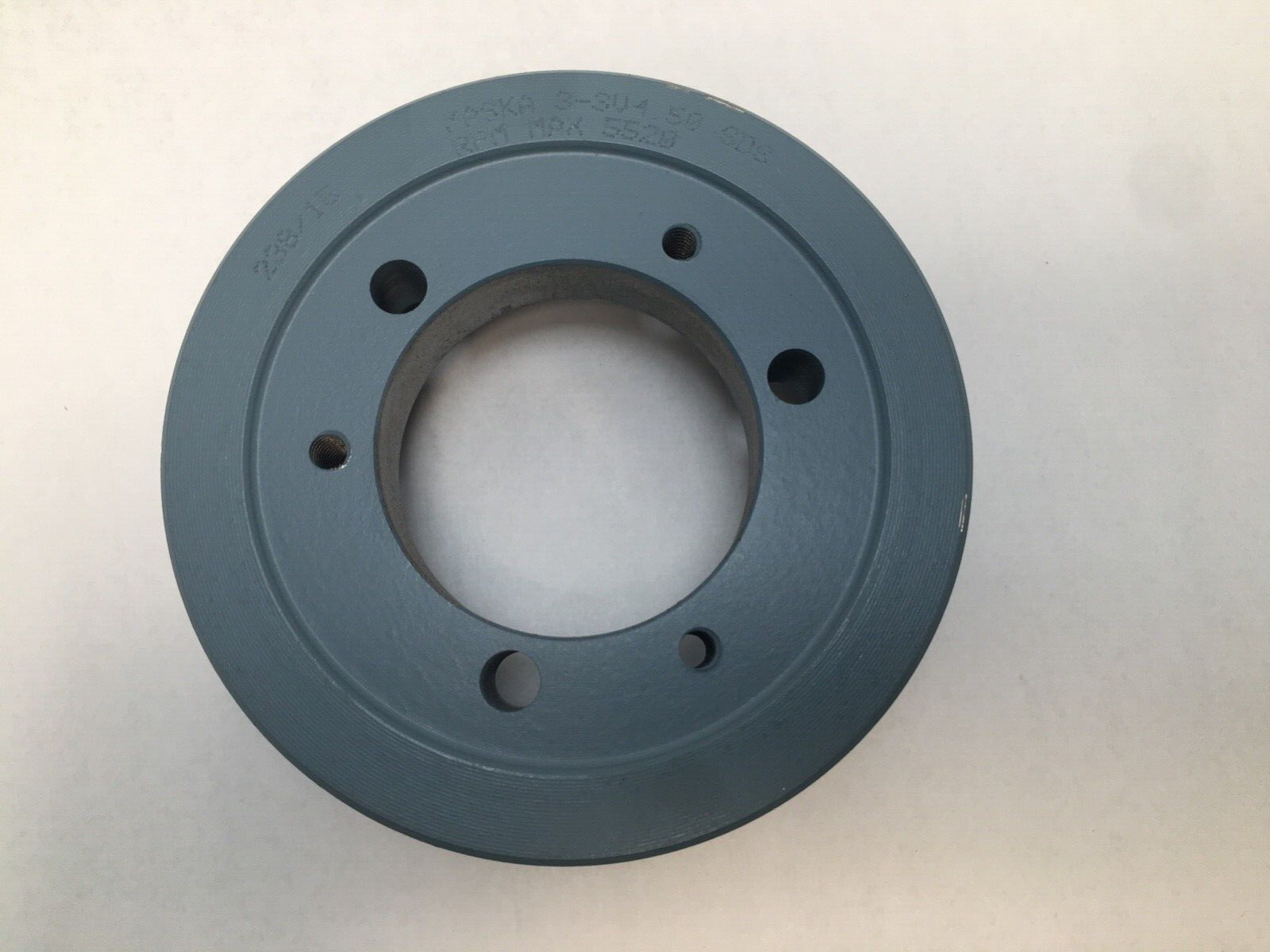

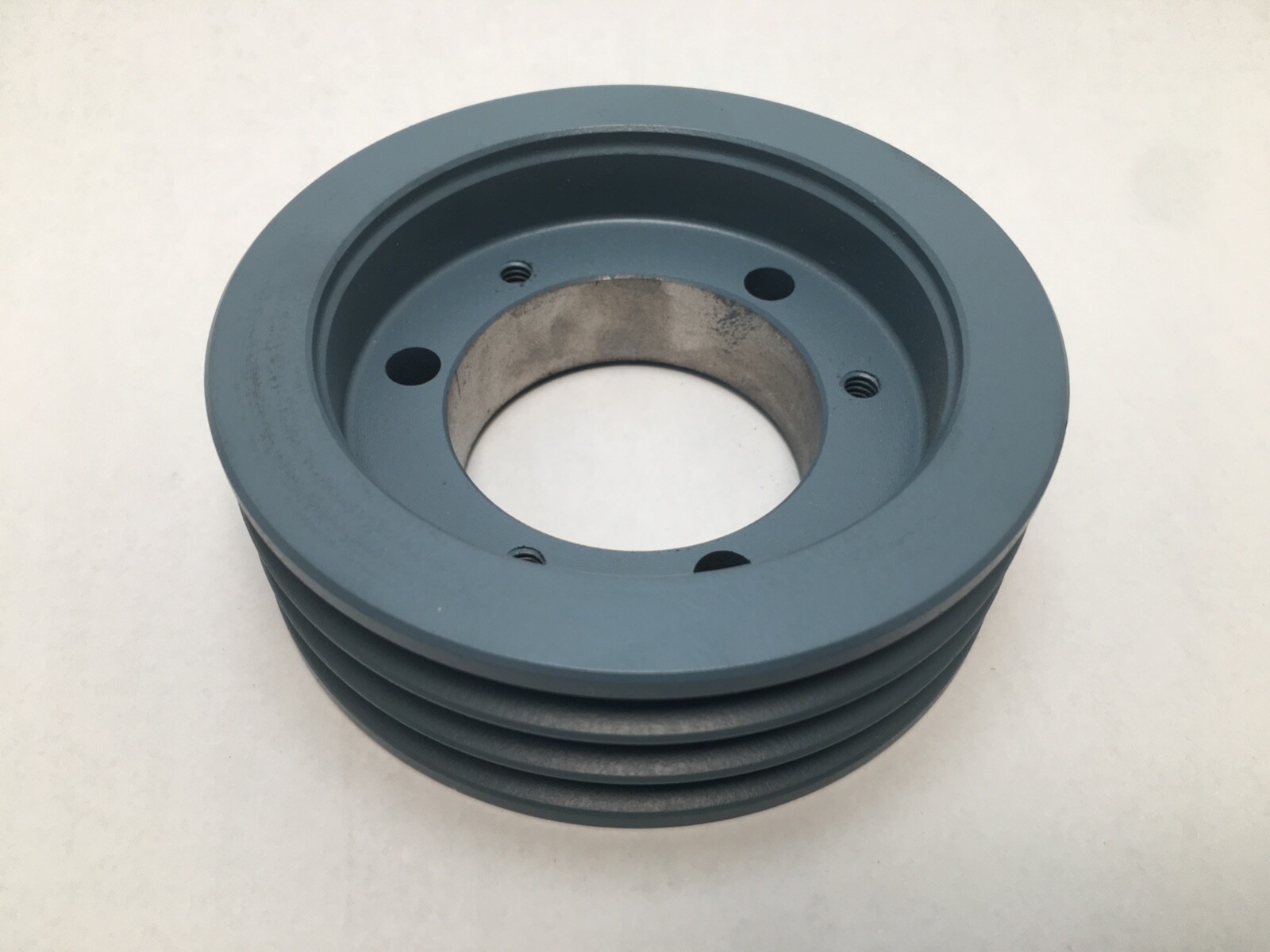

Dodge 455153 QD sheave, three 3V grooves, 4.50 in OD, 4.45 in pitch diameter, 1-1/2 in face. Takes an SDS QD bushing for 7/16 in to 2 in shafts. Cast iron.
List Price
$48.01
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | 455153 |
| Model | 3-3V4.50-SDS |
| OD | 4.50 in |
| Type | V-Belt Sheave |
|---|---|
| Base Number | 3-3V4.50 |
| Industry Terms | QD sheave, V-belt pulley, narrow wedge sheave, 3V sheave, bushed sheave, quick disconnect sheave |
| Common Misspellings | 3V450, 3-3V450, 3/3V4.5, 3 3V 4.5 SDS, Maska 3-3V4.5, Dodge Baldor |
| Application Types | Fan and blower drives, pump drives, compressor drives, HVAC air handlers, conveyor drives |
| Pitch Diameter | 4.45 in |
| Bore Shaft Size | 7/16 in to 2 in (via QD SDS bushing) |
| Locking Method | QD bushing, size SDS |
| Mpn Variants | 455153, 3-3V4.50-SDS, 3/3V4.50-SDS, 3/3V4.5SDS, 3-3V4.50 SDS, 3-3V4.50 (SDS), 3-3V4.50 SDS / 455153, D3-3V450 |
| Compatible With Replaces | 3V narrow-wedge V-belts; QD SDS bushings; Maska 3-3V4.50 |
| Additional Attributes | Number of Grooves: 3. Belt Type: 3V. Outside Diameter: 4.50 in. Pitch Diameter: 4.45 in. Face Width: 1-1/2 in. Bushing: QD SDS. Sheave Type: B1. Material: Cast iron, gray finish. |
| Item Weight | 1.36 kg (3.0 lb) |
| Harmonization Code | 8483.50 |
| Belt Type | 3V |

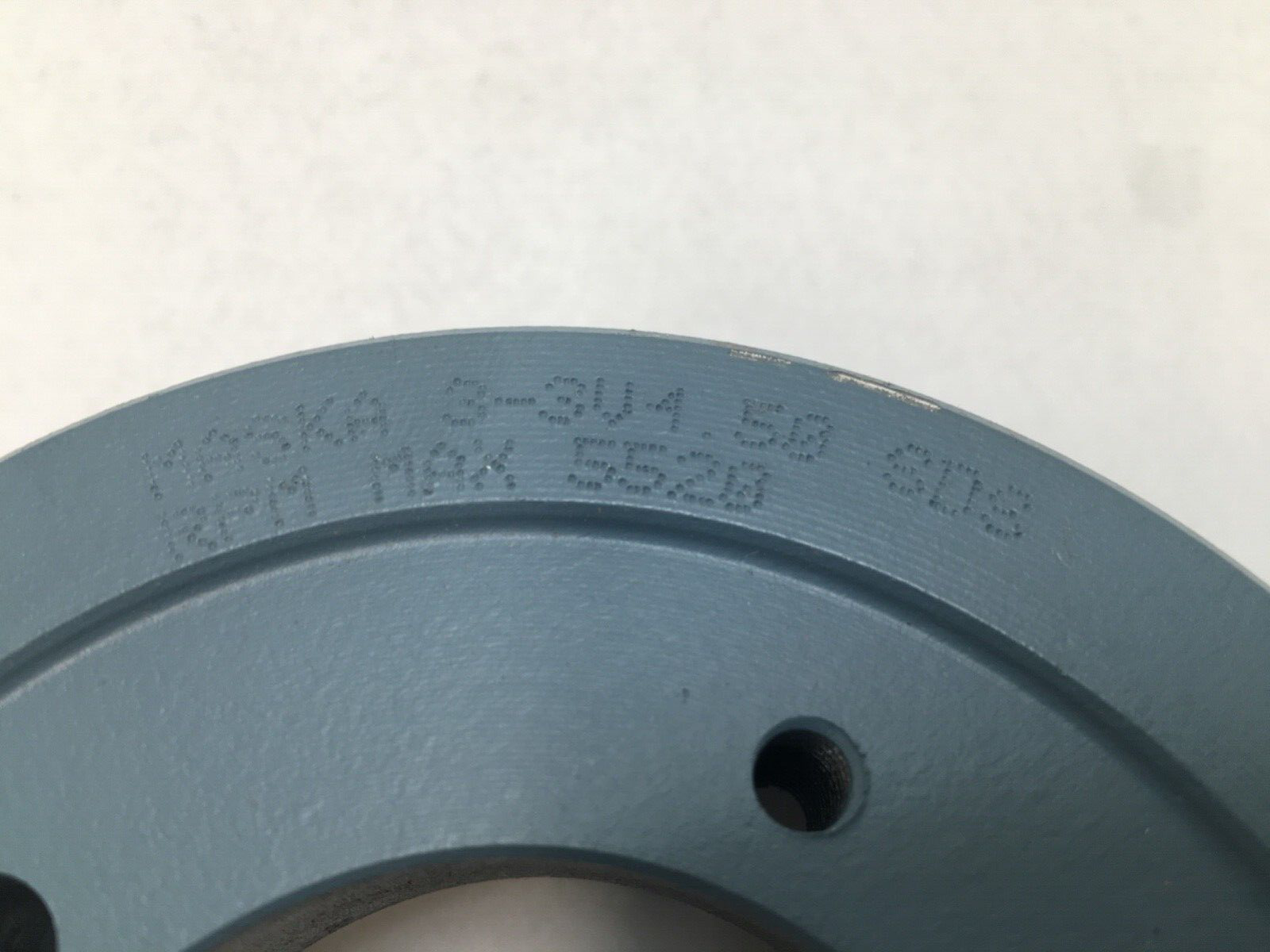

| Cross Reference 1 | Maska 3-3V4.50 |
|---|
Dodge 455153 is the 3-3V4.50-SDS, a three-groove 3V narrow-wedge V-belt sheave bored for a QD SDS bushing. Product Type: V-belt sheave, QD bushed. Sheave Type: B1. Material: Cast iron. Unit Quantity: 1 Pc.
455153 — Dodge catalogue part number.
3 — number of grooves.
3V — narrow-wedge V-belt cross section the grooves are cut for.
4.50 — outside diameter in inches.
SDS — QD bushing size the tapered hub bore accepts.
Number of Grooves: 3. Belt Type: 3V. Outside Diameter: 4.50 in. Pitch Diameter: 4.45 in. Face Width: 1-1/2 in. Bushing: QD SDS. Bore / Shaft Size: 7/16 in to 2 in (via SDS bushing). Material: Cast iron. Finish: Gray. Item Weight: 1.36 kg (3.0 lb).
Outside Diameter: 4.50 in. Pitch Diameter: 4.45 in. Face Width: 1-1/2 in. The tapered QD hub bore takes an SDS bushing; the bushing sets the shaft bore and keyway.
Runs 3V narrow-wedge V-belts. Mounts on QD SDS bushings. Maska designation for the same size: 3-3V4.50. MPN Variants: 455153, 3-3V4.50-SDS, 3/3V4.50-SDS, 3/3V4.5SDS, 3-3V4.50 SDS, 3-3V4.50 (SDS), 3-3V4.50 SDS / 455153, D3-3V450.

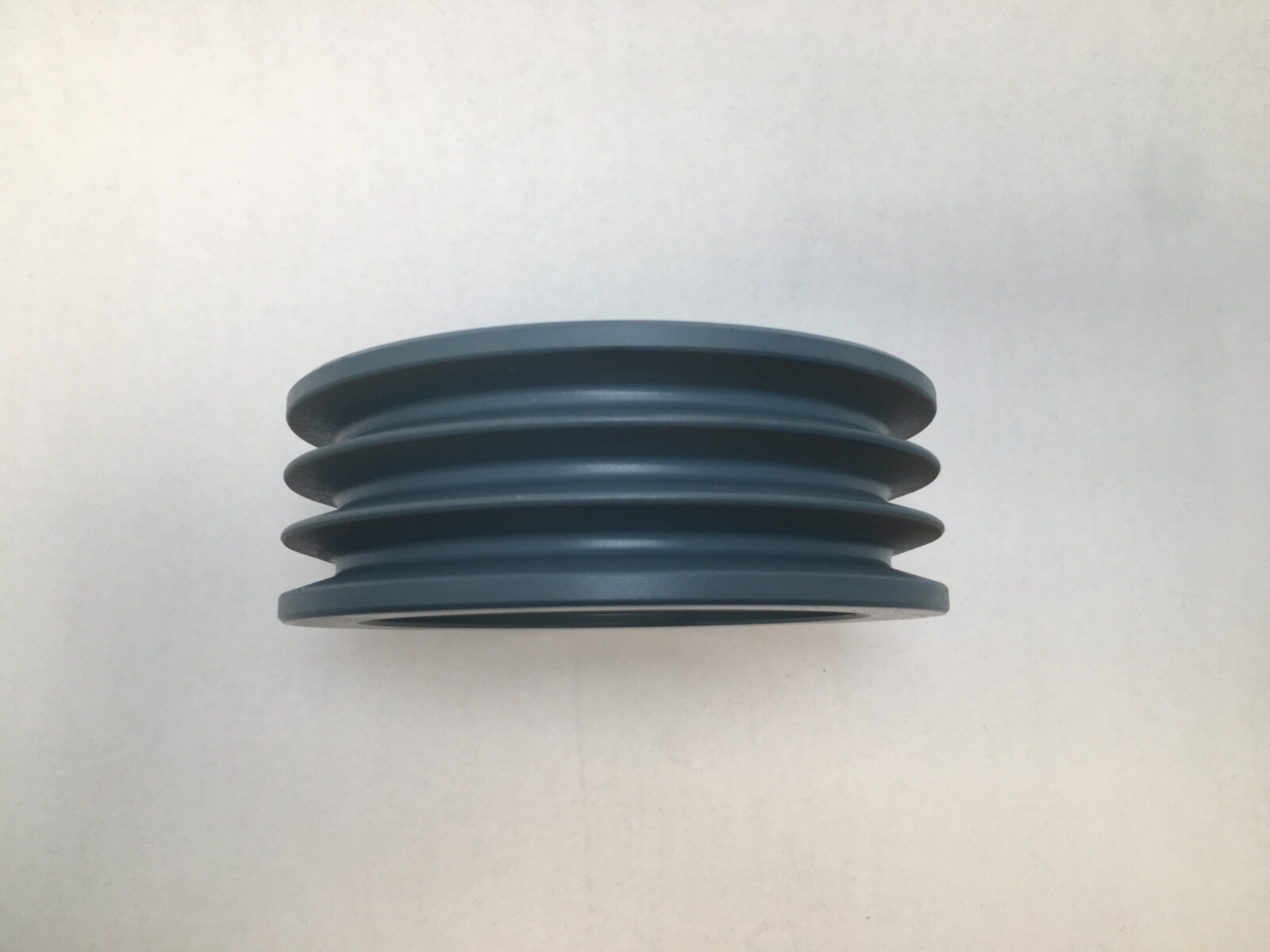

Three grooves, cut for 3V narrow-wedge V-belts.
It takes a QD SDS bushing, which covers shaft bores from 7/16 in to 2 in.
4.50 in outside diameter and 4.45 in pitch diameter, with a 1-1/2 in face width.
