Dodge000721Spacer Coupling Shaft Hub — 1-1/8 in Finished Bore, 4.45 in OD, 1.22 in Length Through Bore, 1,800 in-lb, 4,000 rpm

Name: Dodge 000721 Spacer Coupling Shaft Hub — 1-1/8 in Finished Bore, 4.45 in OD, 1.22 in Length Through Bore, 1,800 in-lb, 4,000 rpm
Brand: Dodge
SKU: AG5B3#BWFB4Y
Price: 52.7 USD
Availability: InStock

Condition: New – Open box

Availability:

1 in stock

Categories: Power Transmission, Couplings

Dodge Para-Flex PS60FBS spacer shaft hub, 1-1/8 in finished bore with keyway, 4.45 in OD, 1.22 in length through bore. Rated 1,800 in-lb, 4,000 rpm max.

Same day shipment

List Price

$52.70

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	Dodge
MPN	000721
Model	PS60FBS 1-1/8

Technical Specifications

Type	Flexible Coupling Shaft Hub
Base Number	PS60FBS
Industry Terms	Para-Flex spacer hub, spacer coupling hub, elastomeric hub
Common Misspellings	Paraflex, Para Flex, PS-60, PS 60 FBS, PS60FBSX, 00721
Application Types	Pump drives, fan and blower drives, motor-to-gearbox couplings
Bore Width	1.22 in (1-7/32 in)
Bore Shaft Size	1-1/8 in (28.58 mm)
Locking Method	Keyed finished bore, clearance fit
Mpn Variants	000721, 000721 FBS-1-1/8 PS60, PS60FBS 1-1/8, PS60FBS1-1/8, PS60 FBS 1-1/8
Compatible With Replaces	Dodge Para-Flex PS60 spacer center assemblies and couplings
Limiting Speed	4,000 rpm
Harmonization Code	8483.60

Seller Part Number: AG5B3#BWFB4Y

Product Description

What this part is:

Dodge 000721 is a PS60FBS Para-Flex spacer shaft hub with a finished 1-1/8 in straight bore. Product Type: Spacer coupling shaft hub, straight bore. Coupling Size: PS60. Unit Quantity: 1 Pc.

Decoding the designation:

000721 — Dodge catalogue part number for this exact hub and bore.

PS60 — Para-Flex spacer coupling, size 60.

FBS — the shorter of Dodge’s two straight-bore PS60 hub styles, covering 7/8 in to 1-15/16 in bores.

1-1/8 — bore diameter in inches.

Specifications:

Bore / Shaft Size: 1-1/8 in (28.58 mm). PS60FBS Bore Range: 7/8 in to 1-15/16 in. Hub Outside Diameter: 4.45 in (4-29/64 in). Length Through Bore: 1.22 in (1-7/32 in). Rated Torque: 1,800 in-lb. Power Rating: 2.86 hp per 100 rpm. Maximum Speed: 4,000 rpm. Center Assembly Removal Clearance: 2.50 in. Hub Weight at Maximum Bore: 4.00 lb (1.81 kg). Straight-bore Para-Flex hubs in sizes 40 through 120 are furnished with a clearance fit.

Dimensions and mounting:

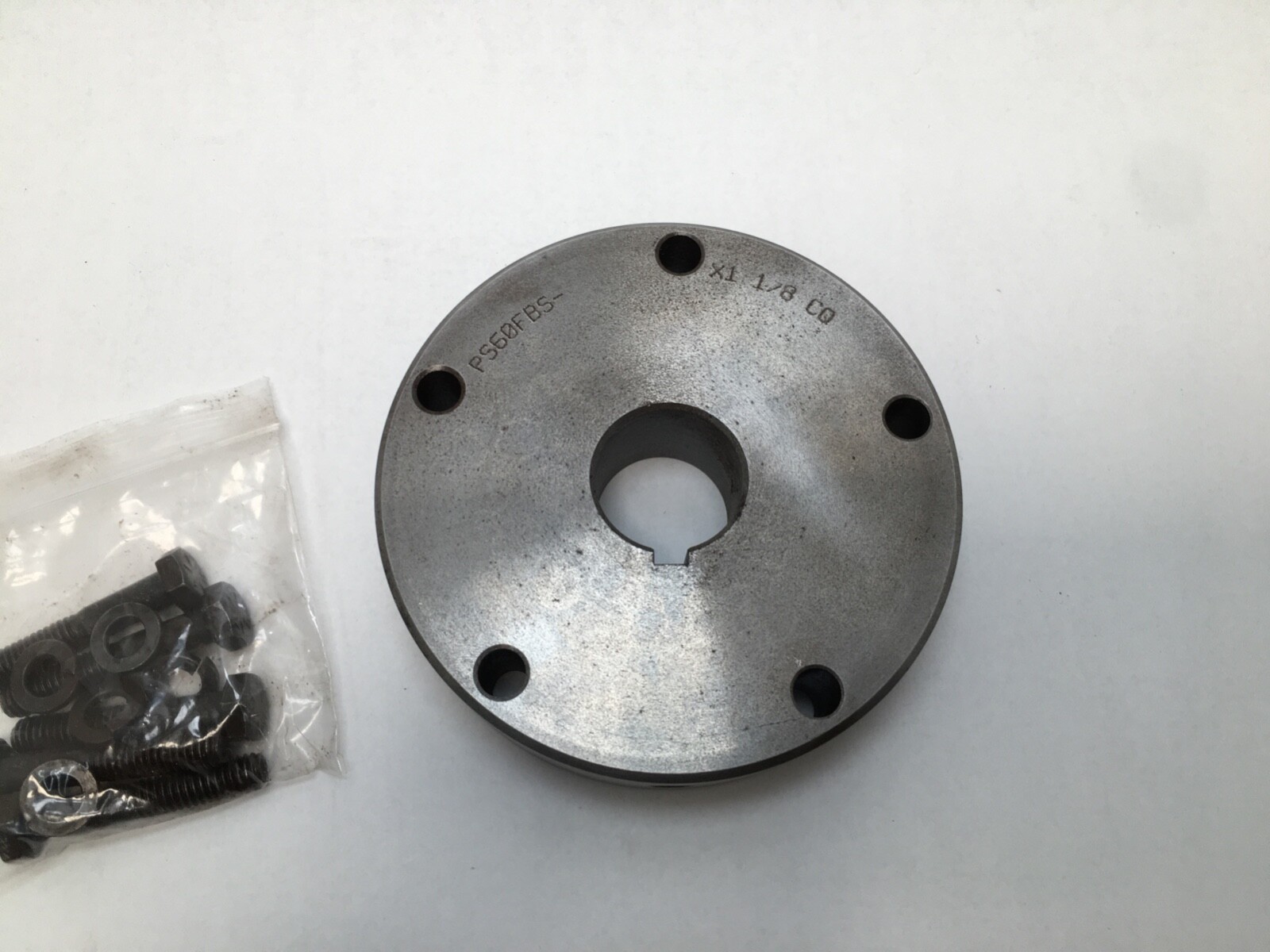

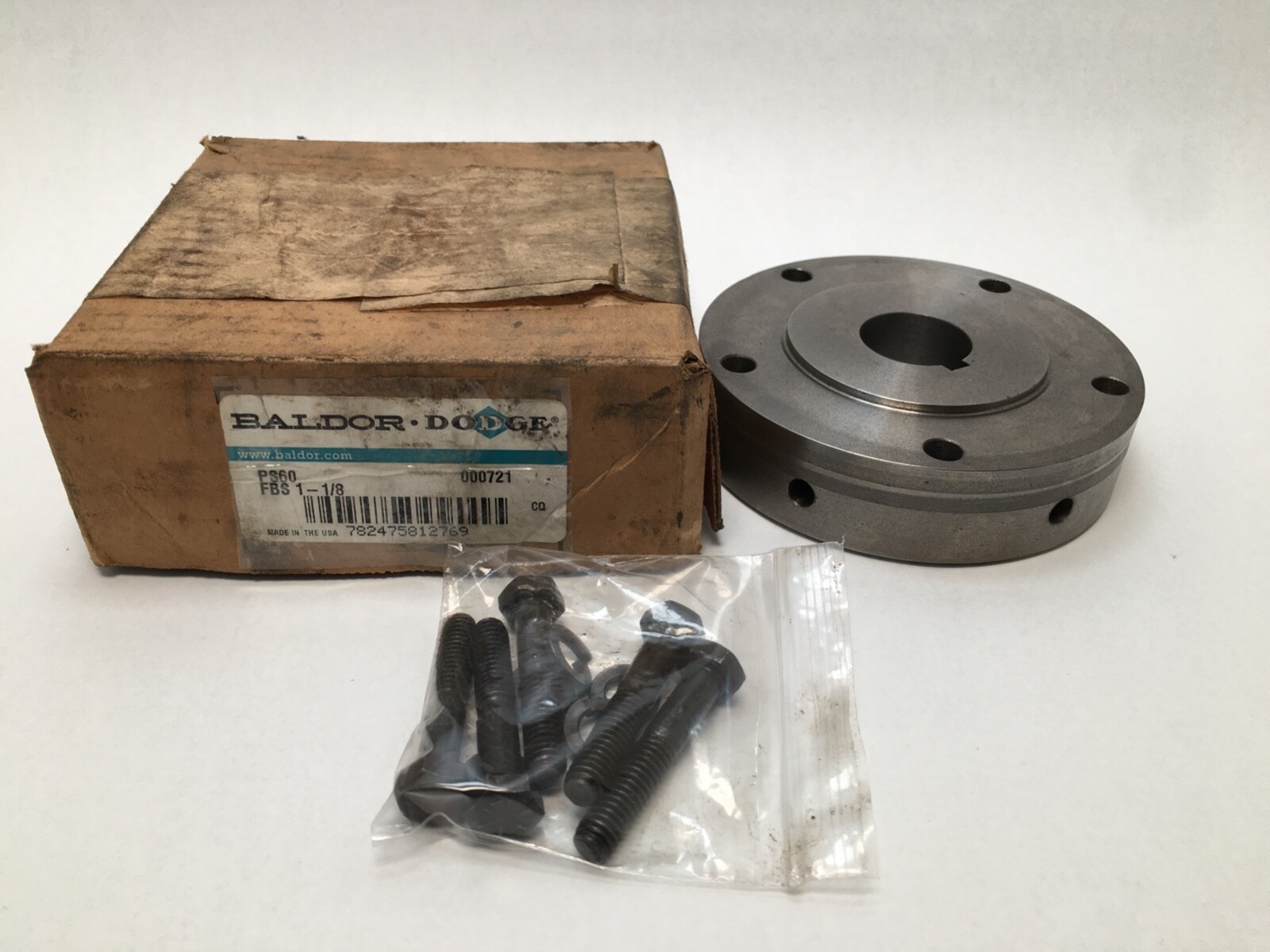

Supplied as one shaft hub with keyed bore, five screws and five crush washers. The spacer center assembly bolts between two hubs and lifts out. A complete PS60 spacer coupling uses two shaft hubs and one PS60 spacer center assembly.

Compatibility and replacement:

Fits Dodge Para-Flex PS60 spacer center assemblies, catalogued in between-shaft-end lengths from 3.38 in to 7.33 in. Other PS60 hubs in the range: PS60TL Taper-Lock hub 011621 (1610 bushing) and the PS60FBS finished-bore series from 7/8 in (000719). Also written 000721, PS60FBS 1-1/8, PS60FBS1-1/8, PS60 FBS 1-1/8 and 000721/FBS-1-1/8 PS60.
