Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

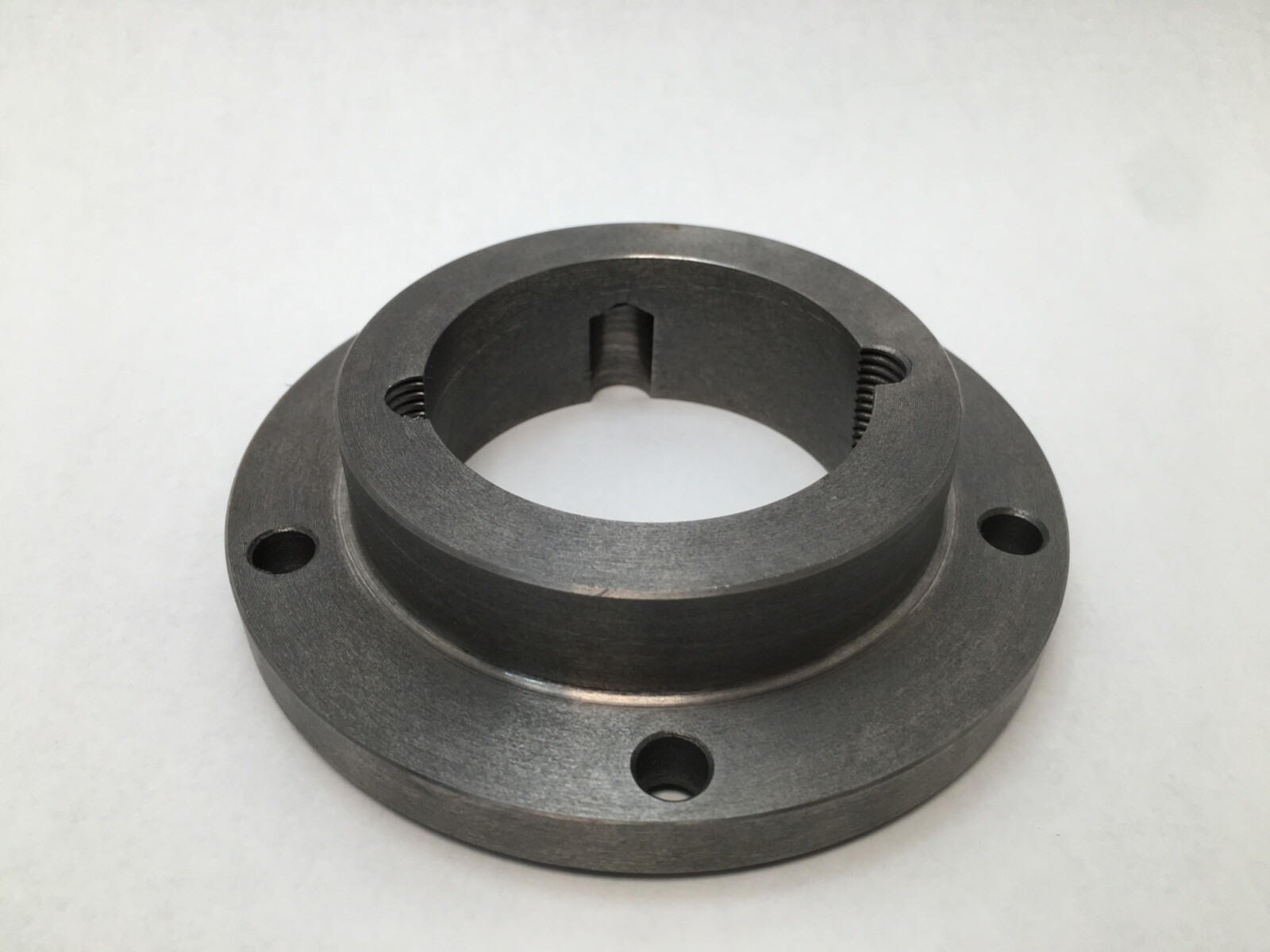

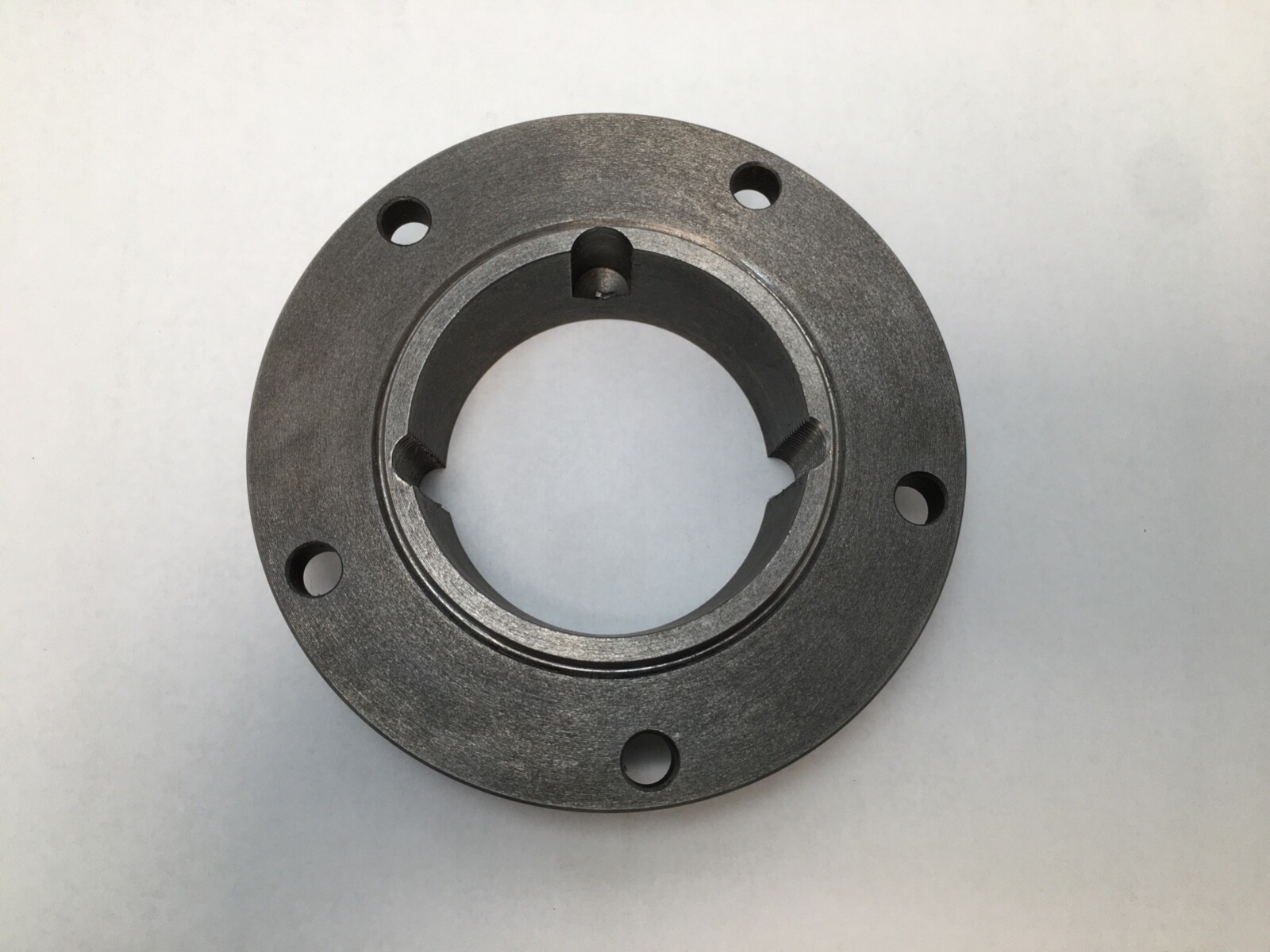

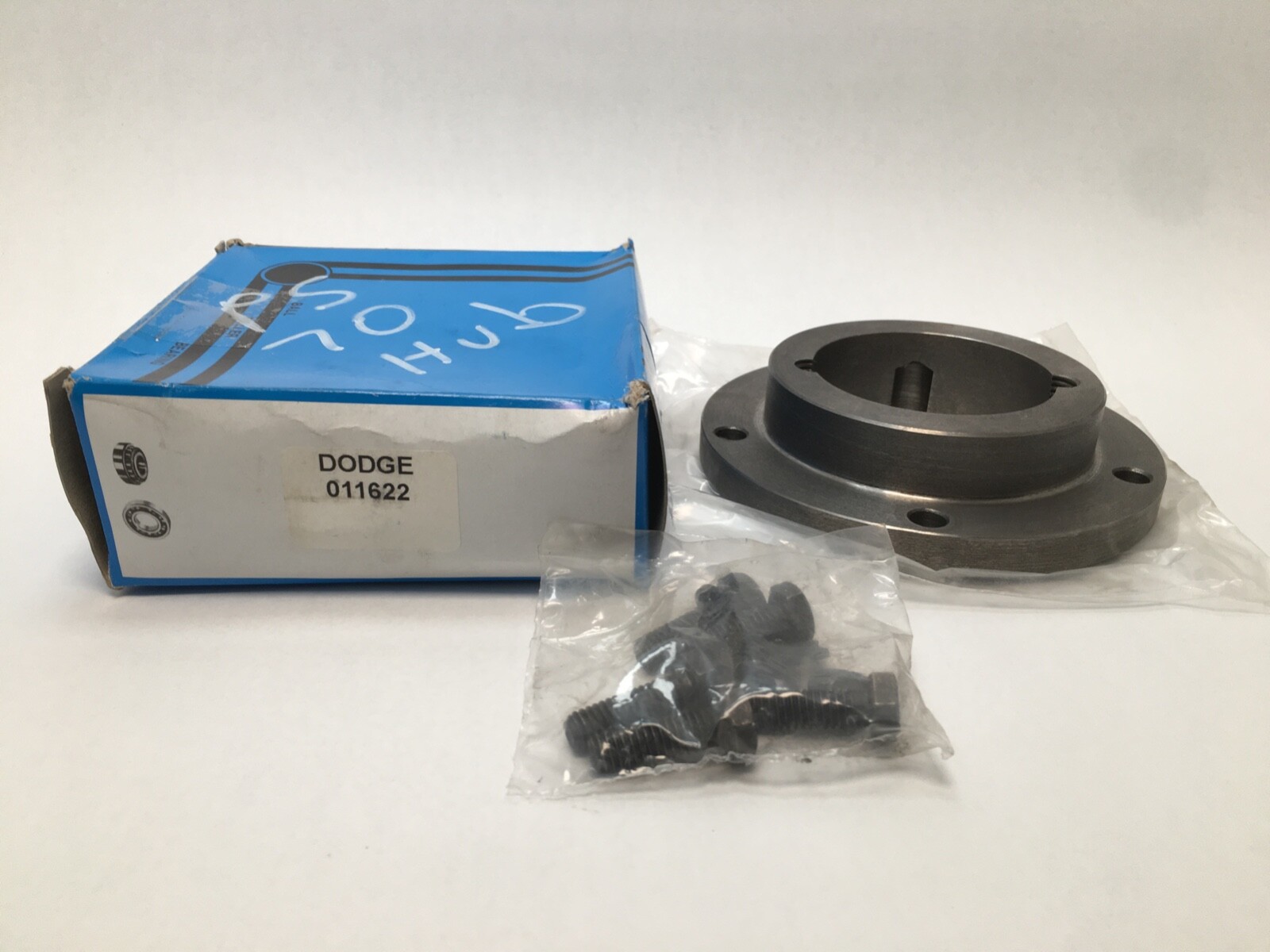

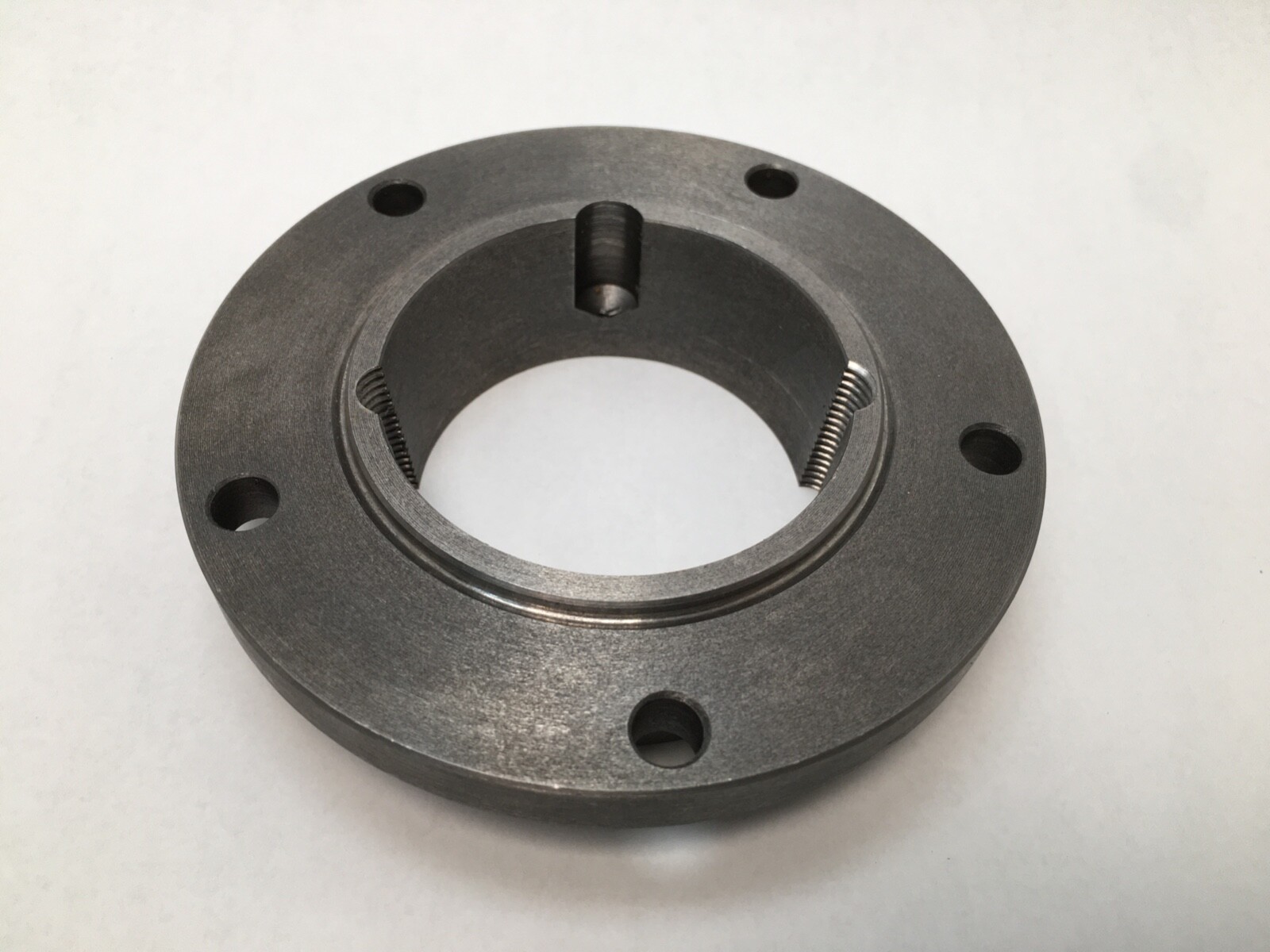

Dodge 011622 Para-Flex PS70TL spacer coupling shaft hub for a Taper-Lock 2012 bushing, 2-1/8 in max bore, 5.00 in OD, 2,200 in-lb rated torque.
List Price
$40.61
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Dodge |
|---|---|
| MPN | 011622 |
| Model | PS70TL |
| Type | Bushed Coupling Hub |
|---|---|
| Base Number | PS70TL |
| Industry Terms | Para-Flex spacer hub, spacer coupling hub, tire coupling hub, elastomeric coupling hub, Taper-Lock coupling hub, bushed coupling hub, drop-out spacer coupling hub |
| Common Misspellings | Paraflex, Para Flex, PS-70, PS 70 TL, 11622, Taperlock, Dodge Baldor |
| Application Types | Pump drives, fan and blower drives, motor-to-gearbox spacer couplings, conveyor drives |
| For Taper Lock Busing | 2012 |
| Bore Width | 1.25 in (1-1/4 in) |
| Bore Shaft Size | Up to 2-1/8 in (via Taper-Lock 2012 bushing) |
| Locking Method | Taper-Lock bushing, size 2012 |
| Mpn Variants | 011622, PS70TL, PS70 TL, PS70 TL 2012, 011622 PS70, 011622/PS70, PS 70 2012 BUSHING |
| Compatible With Replaces | Dodge Para-Flex PS70 spacer center assemblies; Taper-Lock 2012 bushings |
| Additional Attributes | Coupling Size: PS70. Bushing: Taper-Lock 2012. Maximum Bore: 2-1/8 in. Hub Outside Diameter: 5.00 in. Length Through Bore: 1.25 in. Rated Torque: 2,200 in-lb. Power Rating: 3.49 hp per 100 rpm. Center Assembly Removal Clearance: 1.00 in. Hub Weight with Bushing at Maximum Bore: 4.00 lb. |
| Limiting Speed | 3,600 rpm |
| Harmonization Code | 8483.60 |

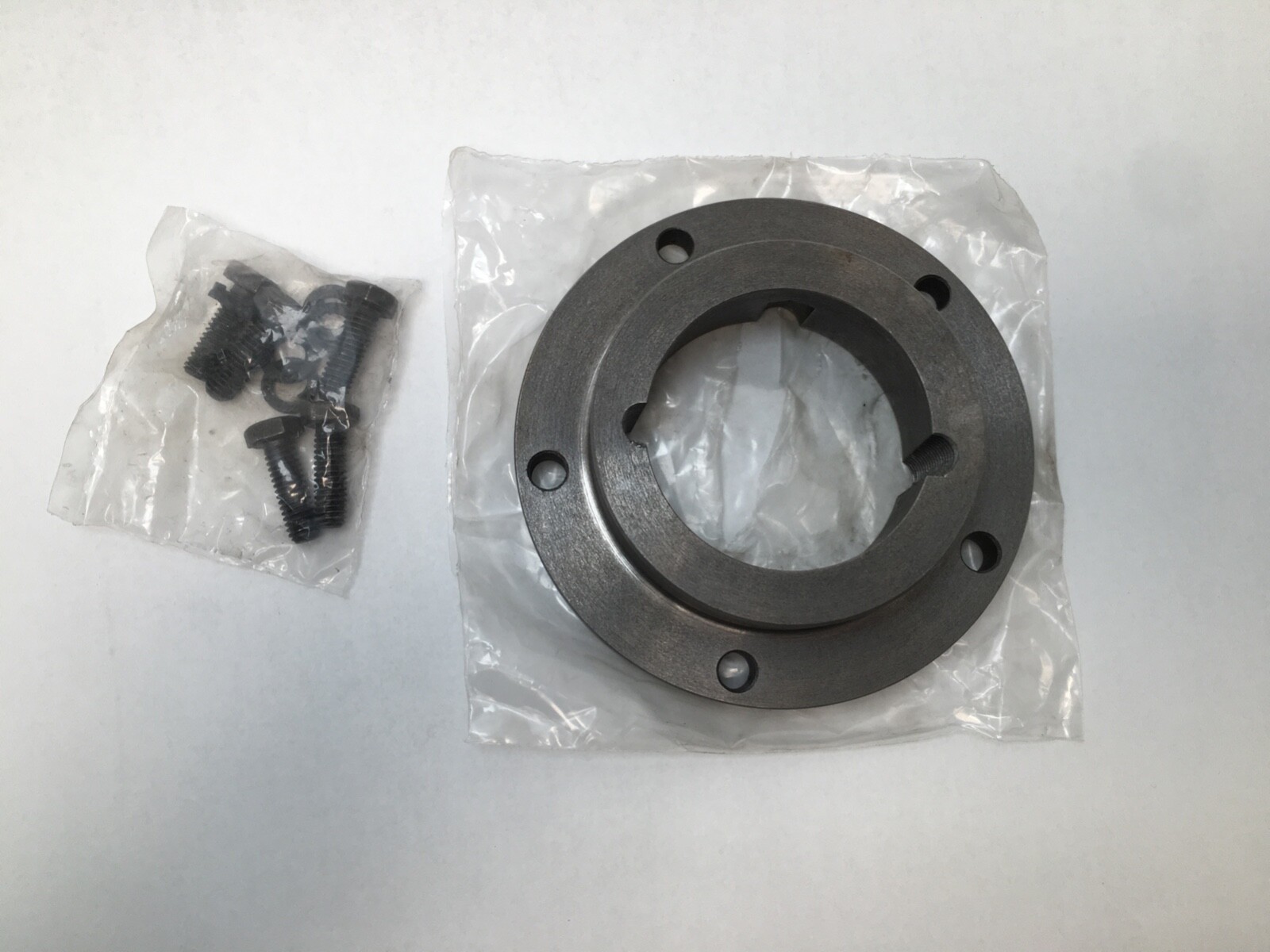

Dodge 011622 is the Para-Flex PS70TL spacer coupling shaft hub, machined to take a Taper-Lock 2012 bushing. Product Type: Spacer coupling shaft hub, Taper-Lock bushed. Coupling Size: PS70. Unit Quantity: 1 Pc. Supplied with hardware.
011622 — Dodge catalogue part number for the PS70 Taper-Lock spacer shaft hub.
PS70 — Para-Flex spacer coupling, size 70.
TL — Taper-Lock bushed hub; the bushing sets the shaft bore and keyway.
2012 — Taper-Lock bushing size the hub seat accepts.
Bushing: Taper-Lock 2012. Maximum Bore: 2-1/8 in (with bushing). Rated Torque: 2,200 in-lb. Power Rating: 3.49 hp per 100 rpm. Maximum Speed: 3,600 rpm. Hub Weight with Bushing at Maximum Bore: 4.00 lb (1.81 kg).
Hub Outside Diameter: 5.00 in. Length Through Bore: 1.25 in. Center Assembly Removal Clearance: 1.00 in. A complete PS70 spacer coupling uses two shaft hubs, two Taper-Lock 2012 bushings and one PS70 spacer center assembly.
Fits Dodge Para-Flex PS70 spacer center assemblies, catalogued in between-shaft-end lengths from 3.50 in to 7.50 in. Takes Taper-Lock 2012 bushings. Finished-bore alternatives: PS70FBS and PS70FBX hubs.
Bushing: Taper-Lock 2012. Maximum Bore: 2-1/8 in.
Rated Torque: 2,200 in-lb. Maximum Speed: 3,600 rpm. Power Rating: 3.49 hp per 100 rpm.
Hub Outside Diameter: 5.00 in. Length Through Bore: 1.25 in.
$76.47
1 in stock
$131.61
1 in stock
$68.51
1 in stock
