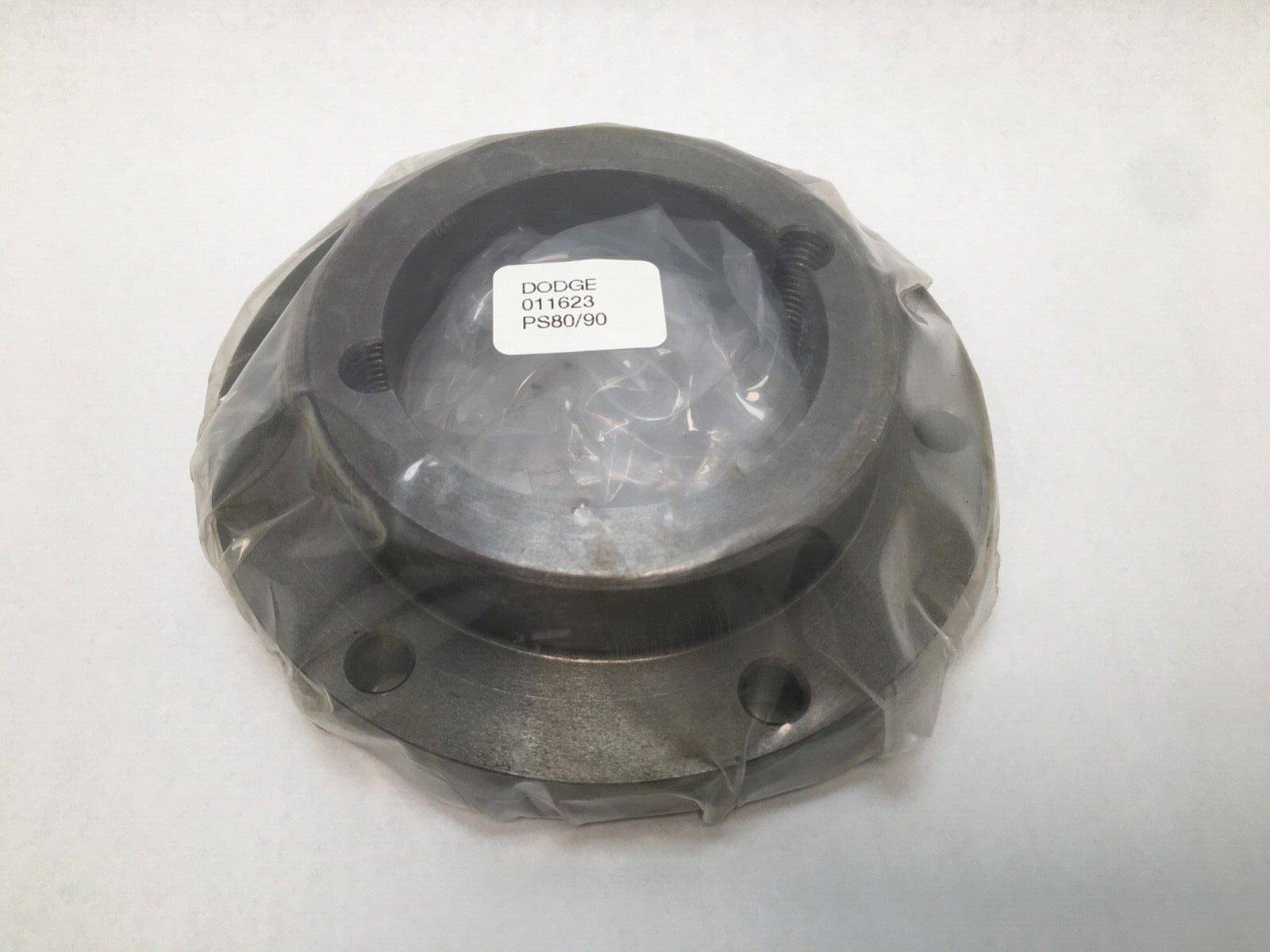

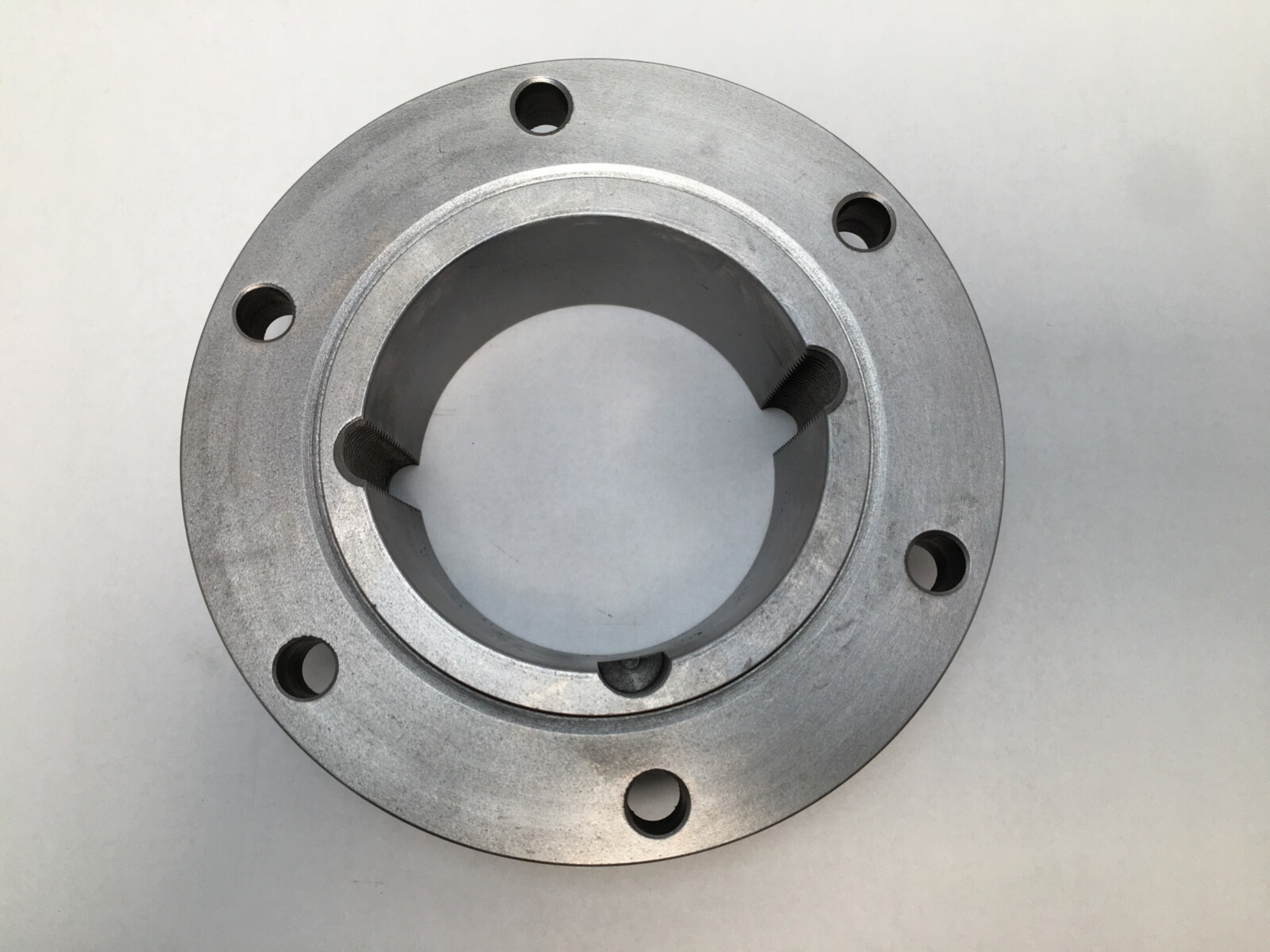

DODGE011623Para-Flex Coupling Spacer Shaft Hub – PS80/90, Series 2517 Taper-Lock, 6 in OD, Ductile Iron

Name: Para-Flex Coupling Spacer Shaft Hub – PS80/90, Series 2517 Taper-Lock, 6 in OD, Ductile Iron
Brand: DODGE
SKU: BP2#5XPORL
Price: 73.42 USD
Availability: InStock

Condition: New – Open box

Condition Note: New, No Box

Availability:

8 in stock

Categories: Power Transmission, Couplings

Para-Flex PS80/90 spacer shaft hub, Taper-Lock bored for a Series 2517 bushing, 6 in OD, 1-3/4 in through bore, ductile iron, 4,502 in-lb.

List Price

$73.42

8 in stock

Also Available From:

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	DODGE
MPN	011623
GTIN	782475010721

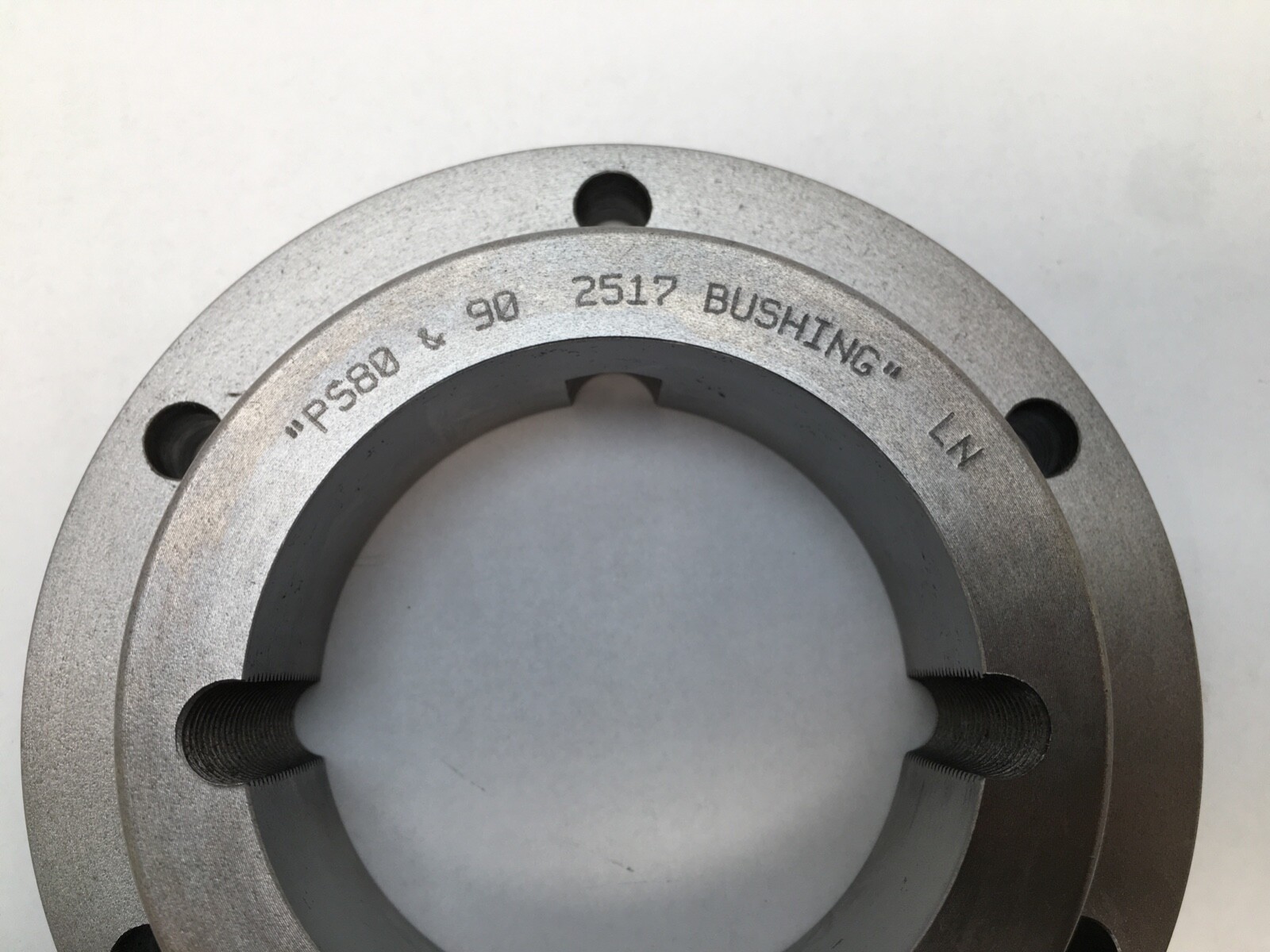

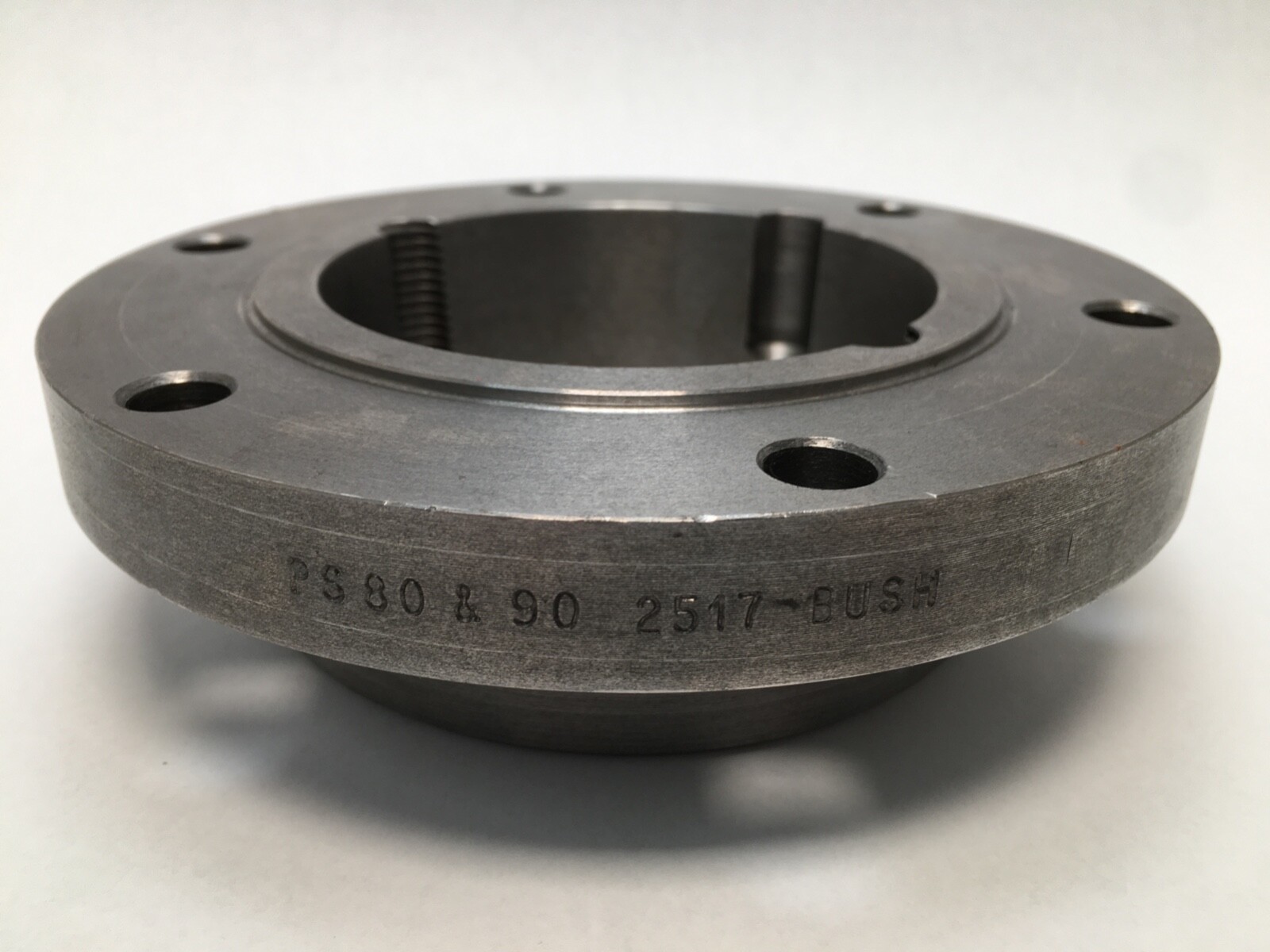

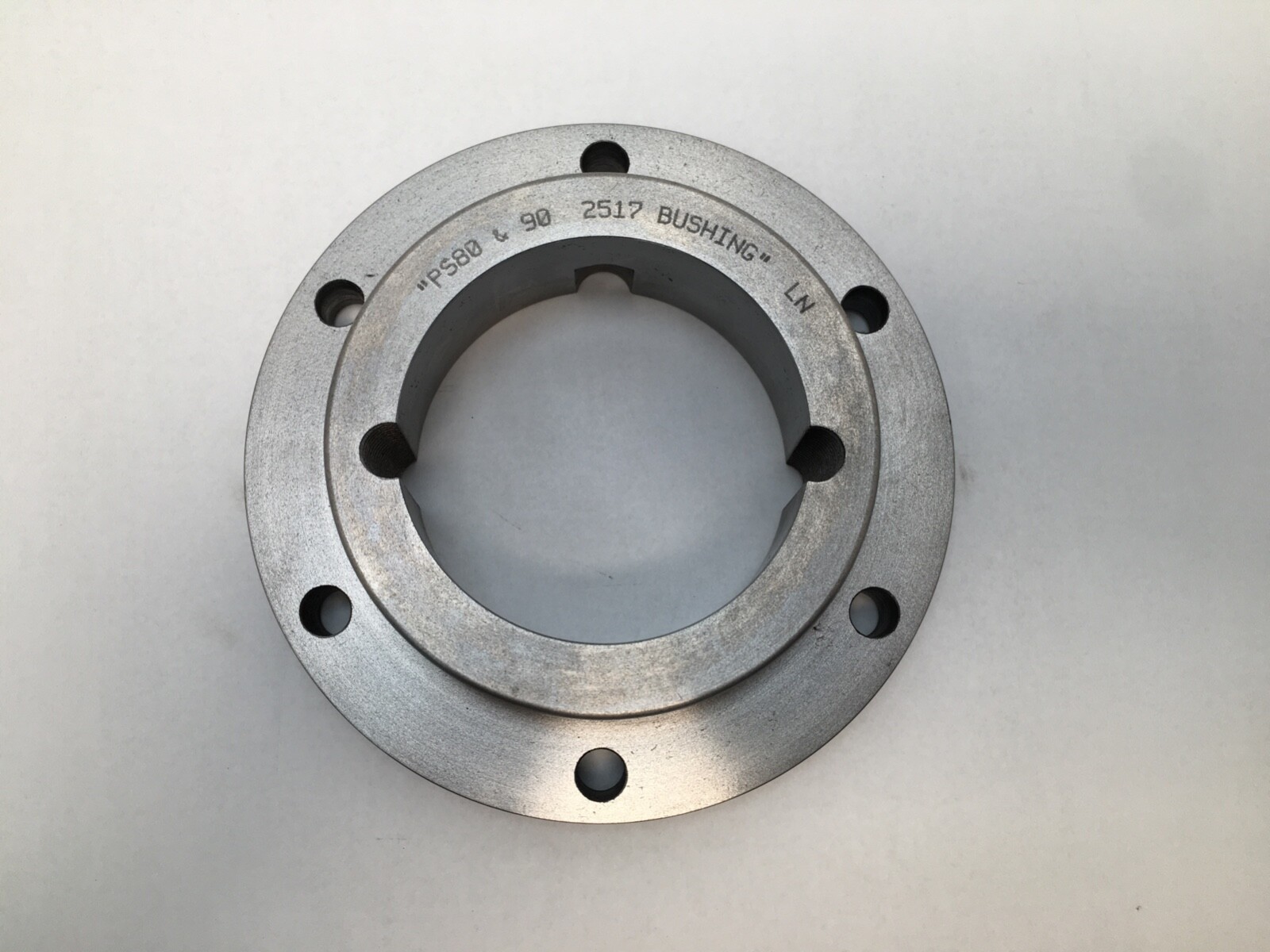

Model	PS 80 & 90 (2517 Bushing)
OD	6 in

Technical Specifications

Condition	New – Open box
Type	Bushed Coupling Hub
Base Number	PS80/90 TL
Industry Terms	Coupling hub, spacer hub, shaft hub, Para-Flex hub, tyre coupling hub, elastomeric coupling hub, Taper-Lock hub, drop-out spacer coupling
Common Misspellings	Para Flex, Paraflex, PS80/90TL, PS 80 90, 0116-23, Dodge Baldor, Dodge ABB
Application Types	Pump and blower drives needing drop-out access, motor-to-gearbox spacer couplings, shock-loaded conveyor drives, torsional vibration damping on reciprocating loads
Condition Note	New, No Box
Locking Method	Taper-Lock bushing, Series 2517
Mpn Variants	011623, 011623-PS80/90, PS80/90 TL 2517, PS80/90 TL SPACER HUB 2517, PS80 90SPACER HUB, DOD PS80/90 TL SPACER HUB 2517
Compatible With Replaces	Dodge Para-Flex PS80 and PS90 spacer couplings; Series 2517 Taper-Lock bushings
Additional Attributes	Dodge 011623 Para-Flex PS80/90 TL spacer shaft hub. Taper-Lock seat for a Series 2517 bushing, maximum bore 2-11/16 in. Outside diameter 6 in, hub diameter 4.196 in, length through bore 1-3/4 in. Ductile iron. Rated torque 4,502 in-lb / 375 ft-lb, maximum speed 3,100 rpm. GTIN 782475010721. Pairs with a Para-Flex PS80 or PS90 spacer centre assembly and tyre.
Material	Ductile iron
Series	Para-Flex PS80/90 TL
Design Units	English
Part Number	011623

Seller Part Number: BP2#5XPORL

Product Description

What this part is

Dodge 011623, a Para-Flex PS80/90 TL spacer shaft hub. Product Type: Coupling spacer shaft hub, Taper-Lock bushed. Coupling Size: PS80 and PS90. Bushing Series: 2517 Taper-Lock. Outside Diameter: 6 in. Hub Diameter: 4.196 in. Length Through Bore: 1-3/4 in. Maximum Bore: 2-11/16 in. Material: Ductile iron. Maximum Speed: 3,100 rpm. Rated Torque: 4,502 in-lb (375 ft-lb). GTIN: 782475010721. Unit Quantity: 1 Pc.

Decoding the designation

011623: the Dodge material number. PS80/90: the Para-Flex coupling sizes this hub belongs to. TL: Taper-Lock, so the hub bore is the tapered seat for a Taper-Lock bushing rather than a finished bore on a fixed shaft size. 2517: the Taper-Lock bushing series the seat is cut for, which sets the maximum bore at 2-11/16 in.

Taper-Lock mounting

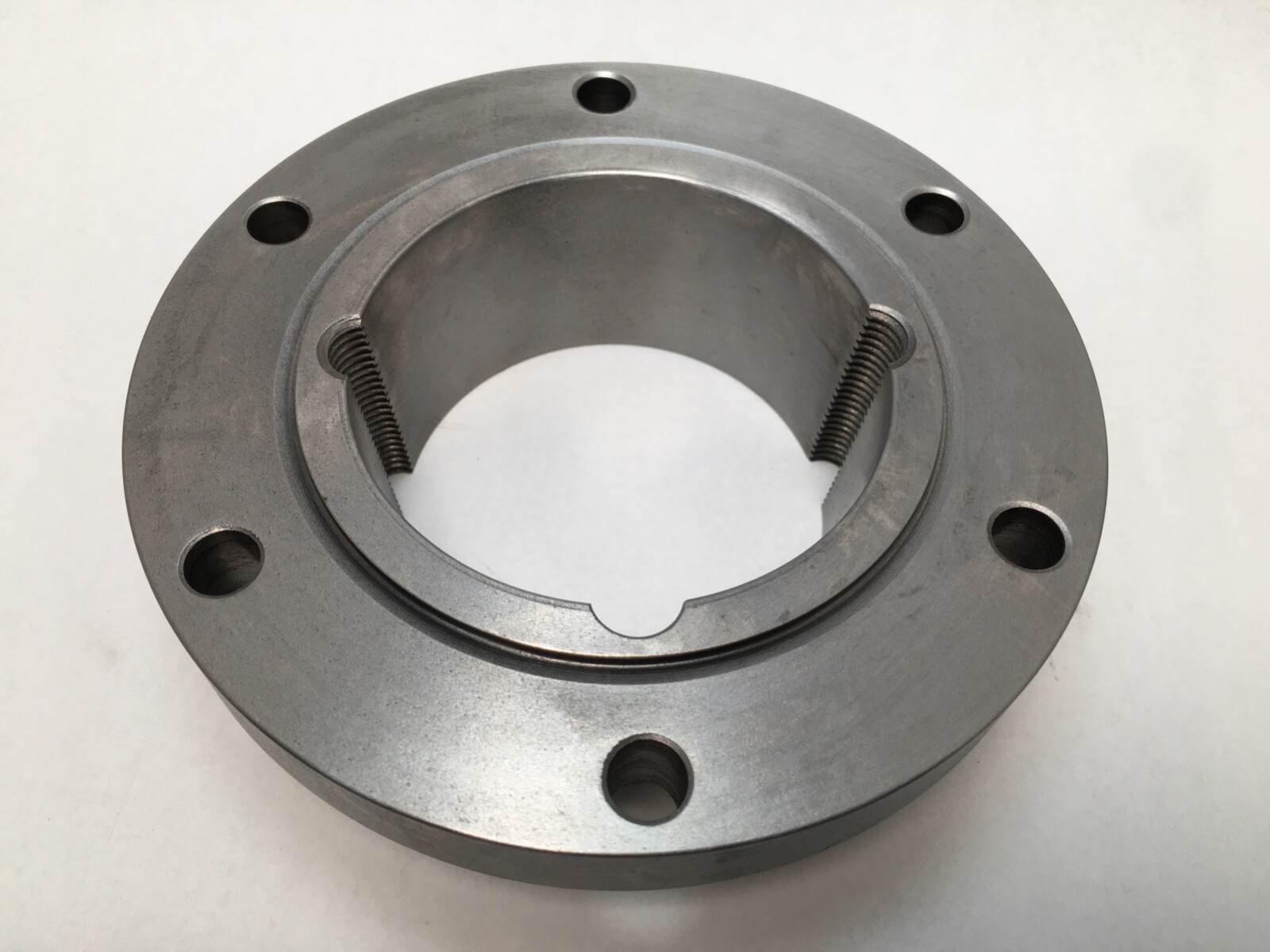

Bushing Series: 2517 Taper-Lock. Maximum Bore: 2-11/16 in. A Taper-Lock seat means one hub casting covers every shaft size the 2517 bushing range offers, from small bores up to 2-11/16 in, and the bushing itself sets the bore and the keyway. Tightening the bushing screws draws the taper up and clamps hub to shaft with a true interference fit, so the joint is concentric and takes reversing torque without a setscrew backing off. The hub mounts on a Series 2517 Taper-Lock bushing.

What the spacer configuration does

Product Type: Coupling spacer shaft hub. Coupling Size: PS80 and PS90. A spacer coupling puts a drop-out centre section between two shaft hubs, so the driven machine can be pulled back or a seal changed without moving either shaft or breaking the alignment. Para-Flex transmits torque through an elastomeric tyre clamped between the two flanges, which absorbs shock and damps torsional vibration while tolerating angular, parallel and axial misalignment.

Ratings and dimensions

Rated Torque: 4,502 in-lb (375 ft-lb). Maximum Speed: 3,100 rpm. Outside Diameter: 6 in. Hub Diameter: 4.196 in. Length Through Bore: 1-3/4 in. Maximum Bore: 2-11/16 in. Material: Ductile iron. Ductile iron rather than grey cast iron is what carries the 3,100 rpm rating on a 6 in outside diameter.

Quantity and configuration

Unit Quantity: 1 Pc. One spacer shaft hub. The hub takes a Series 2517 Taper-Lock bushing and pairs with a Para-Flex PS80 or PS90 spacer centre assembly and tyre.

Interchange guidance

Searchable forms of the designation: 011623, 011623-PS80/90, PS80/90 TL 2517, PS80/90 TL SPACER HUB 2517, PS80 90SPACER HUB, DOD PS80/90 TL SPACER HUB. Brand names carried on this range: Dodge, Dodge Industrial, Baldor-Dodge, ABB Dodge.
